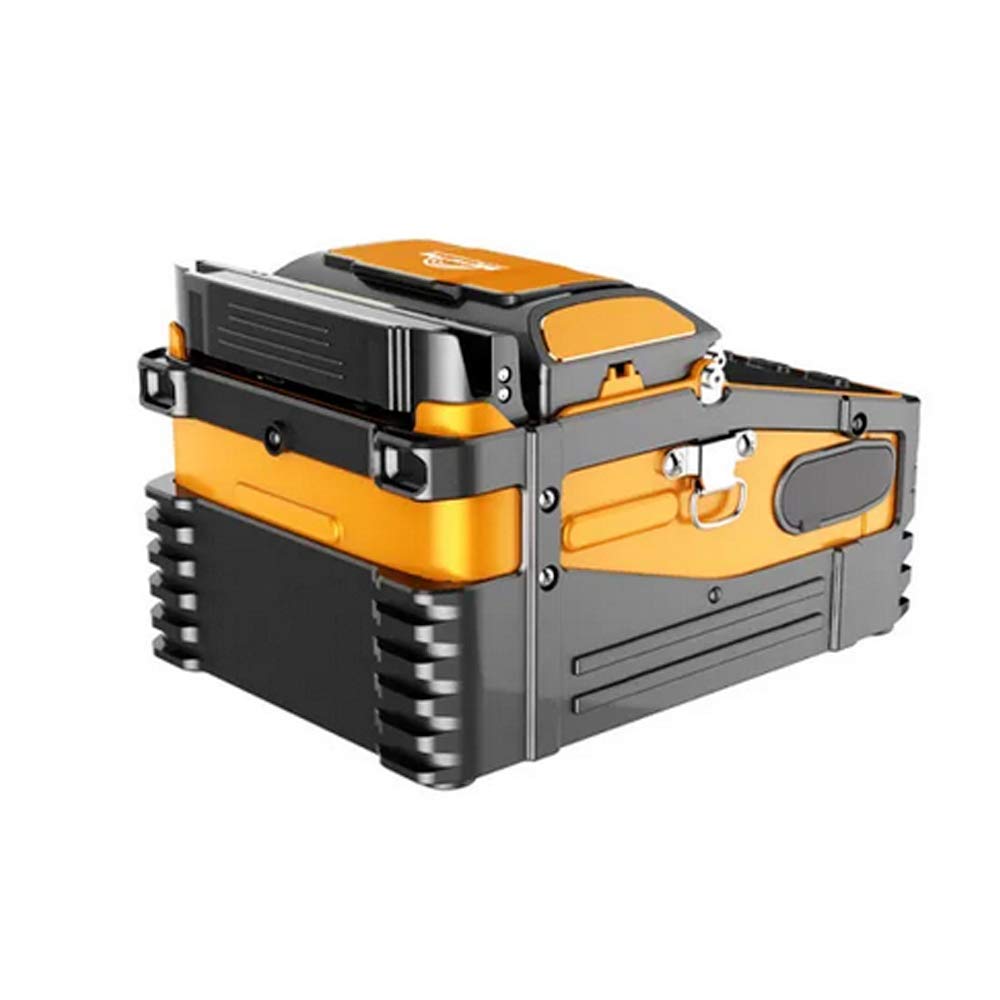

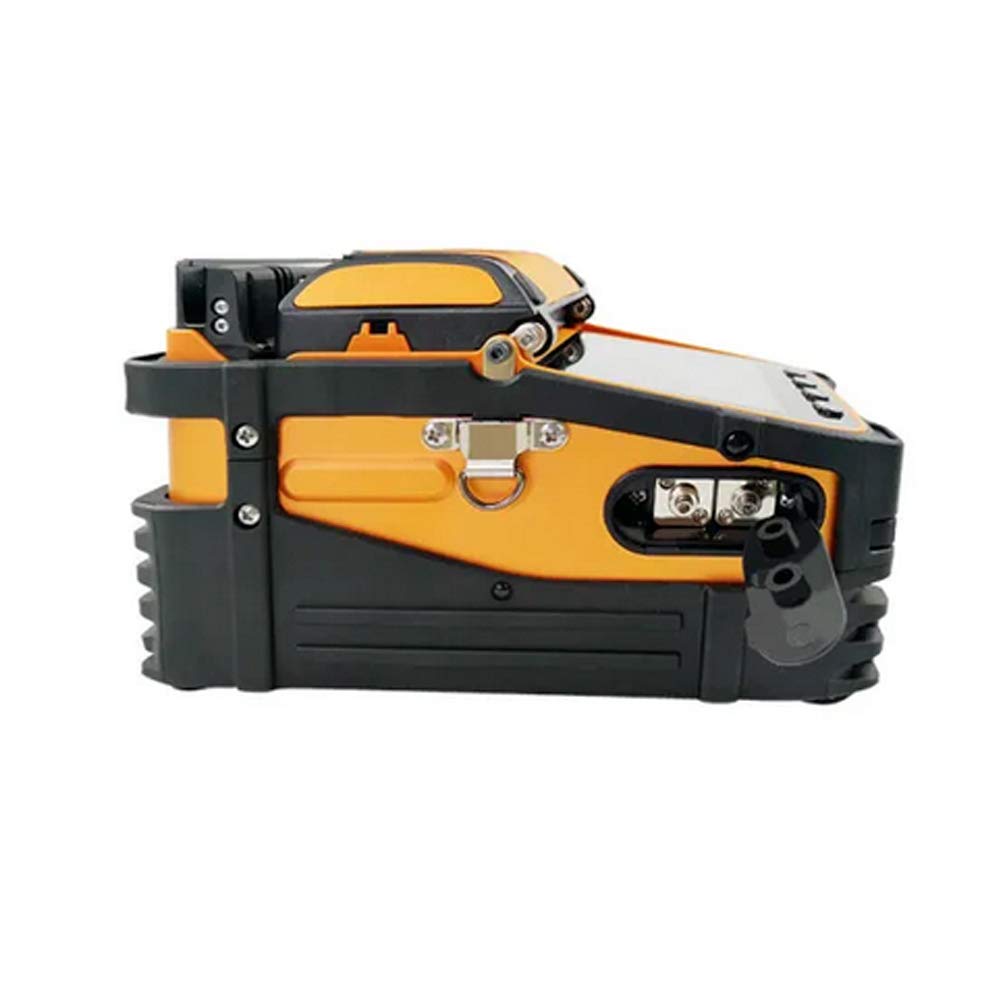

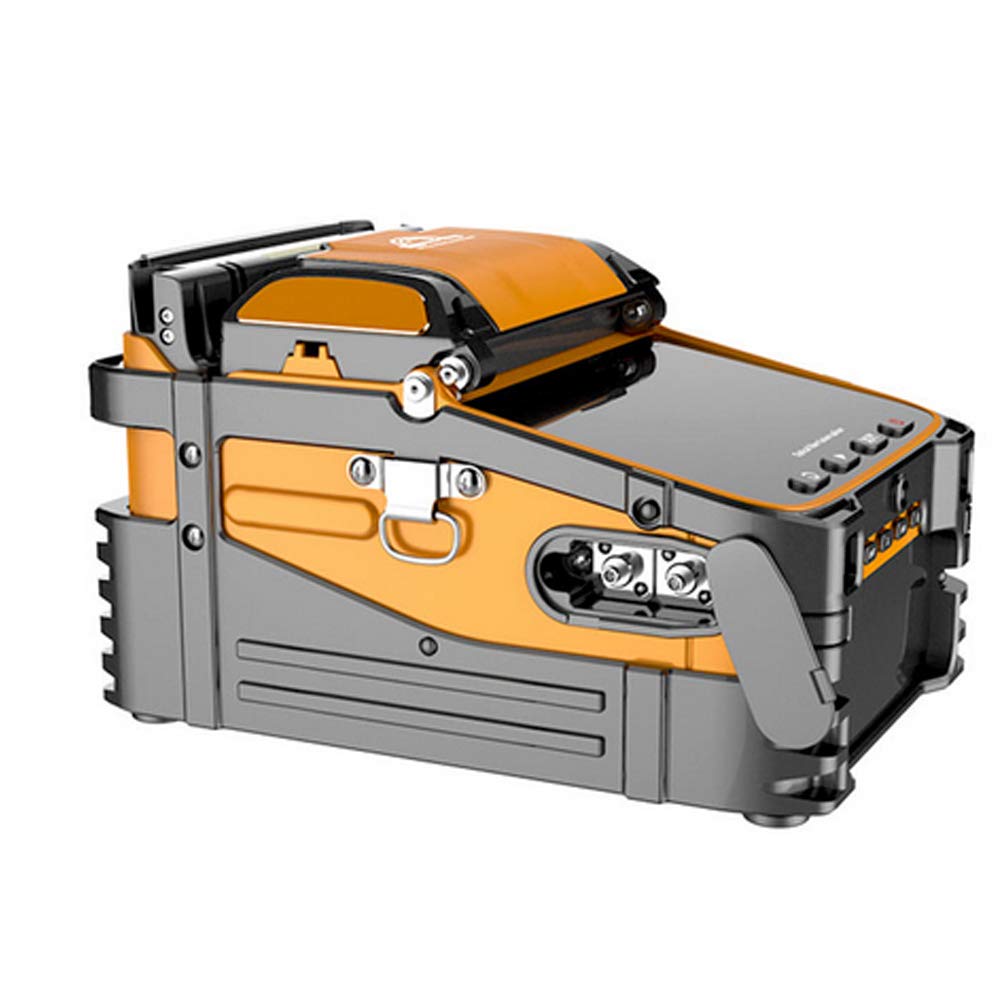

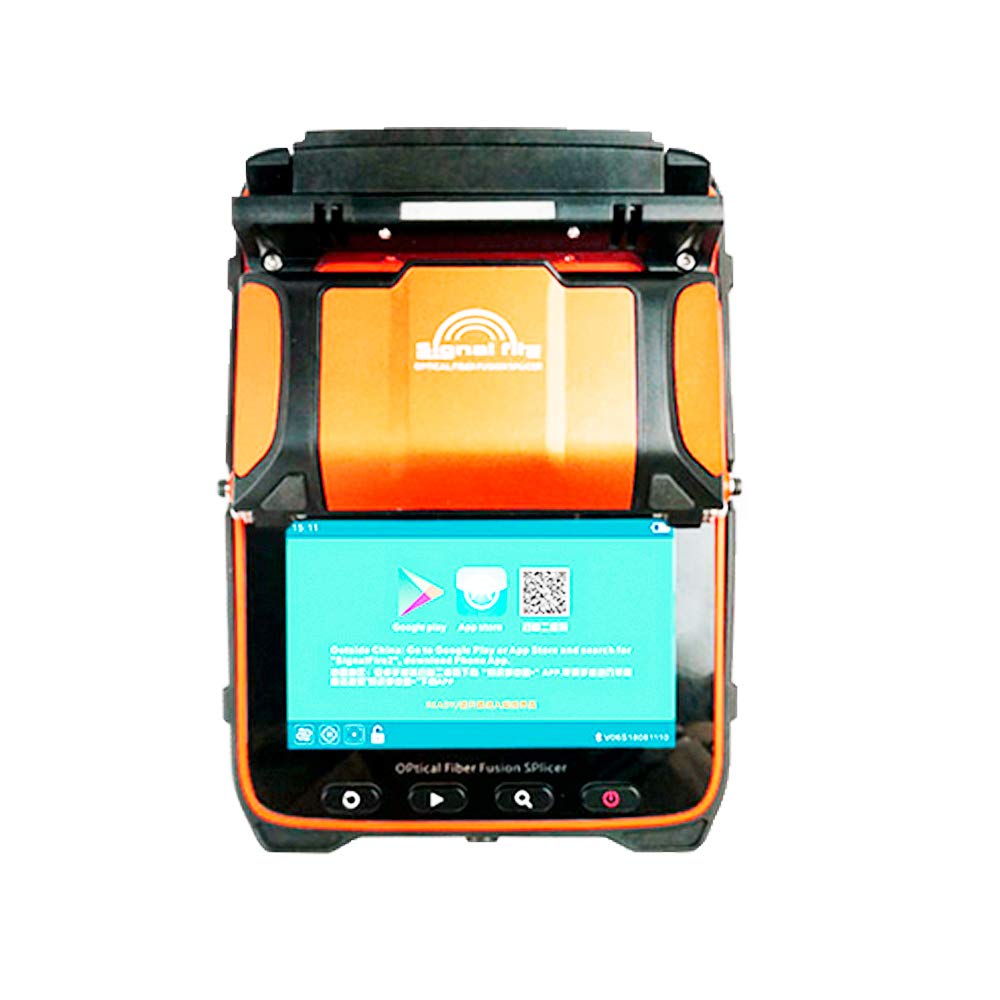

Graigar AI-9 Automatic Fiber Optical Fusion Splicer AI-9 Fiber Splicing Machine Tool Accessories Set Expanded 300 Times 5-Inch TFT Display

Brand: Graigar

Color: Black&Silver

Features:

• Adopt the latest core alignment technology, with auto focusing and six motors
• The machine uses industrial quad-core CPU, fast response time.
• 5-inch 800X480 high-resolution screen for easy and intuitive operation
• Up to 300 times the magnification of the focusing makes it very easy to observe the fiber with eyes

model number: AI-9

Part Number: AI-9

Details: Specification:
Condition: 100% Brand New
Splicing Time: 5s
Heating Time: 15s Heating Method: Automatic Heating (Preheating)

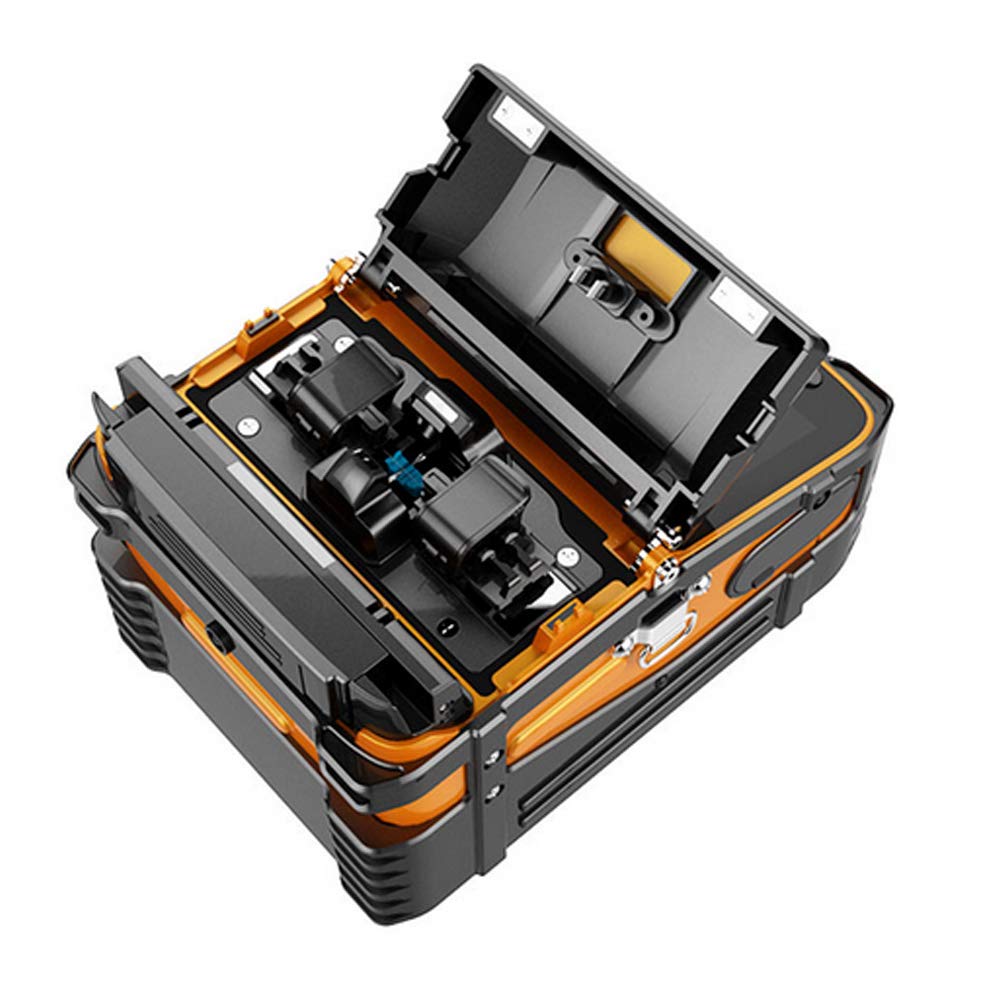

Focusing Mode: Six Motor Auto Focusing
Applicable Fibers: SM (G.652 And G.657), MM (G.651), DS (G.657), NZDS (G.655)
Splice Loss: 0.025dB (SM), 0.01dB (MM) 0.04dB (DS / NZDS)
Control Technology: Real-Time Control and Calibration With ARC
Return Loss: Better Than 60DB
Fiber Diameter: Cladding Diameter: 80-150um,Coating Diameter: 100-1000um
Fiber Cutting Length: Coating Less Than 250um: 8-16mm,Coating Less Than 250-1000um: 16mm
Software Update Length: Automatic Update; Button Time Update: 1 Second
Visual Fault Locator: Power: 15mw, 2hz Flicker and Constant Brightness Mode
Built-in Lighting: Easy to Operate at Night
Tension Test: Standard 2N
Fiber Holder: 3-In-1 Fiber Holder, SM, MM, Bare Fiber, Pigtail, Rubber Insulated Multi-Cable Cable
Magnification: 300 For X or Y View and 150 For X or Y View
Screen: 5-Inch TFT
Color Display Stitching Mode: Normal / High Accuracy Stitching
Splicing Method: Fully Automatic, Step By Step
Built-In Battery: 7800 MAh Large Capacity Lithium Battery, Charging Time ≤3.5 Hours

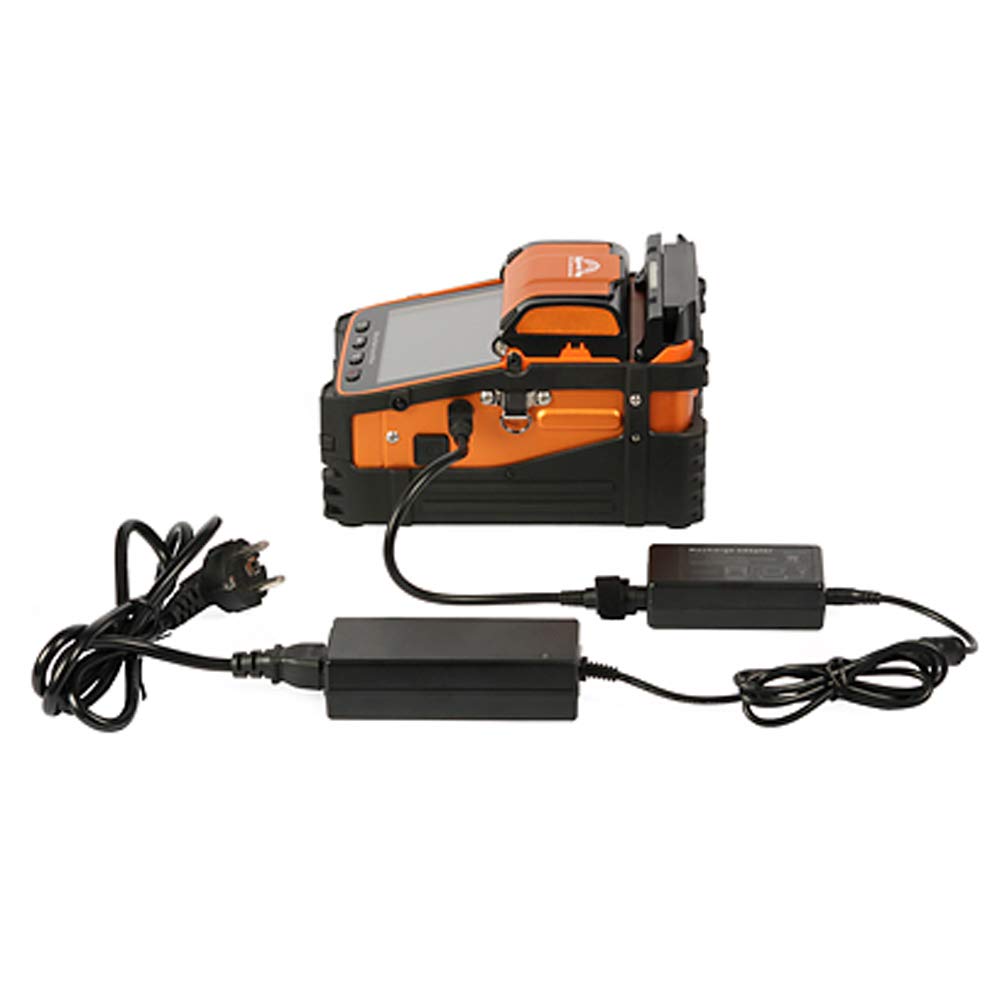

Power Supply: Input AC100-240V 50 / 60Hz, Output DC13.5V / 4A, Can Identify the Current Power Mode, Real-Time Detection of Battery Power Operation
Conditions: Temperature -15~ + 50℃, Humidity: <95% Rh (No Condensation)
Working Altitude: 0~5000m. Resistance to Maximum Wind Speed: ≤15m/S
Heat Shrinkable Tube: 60mm, 50mm, 40mm, 25mm
Size: Approx. 12.2 * 13 * 14.8cm / 4.8 * 5.1 * 5.8in

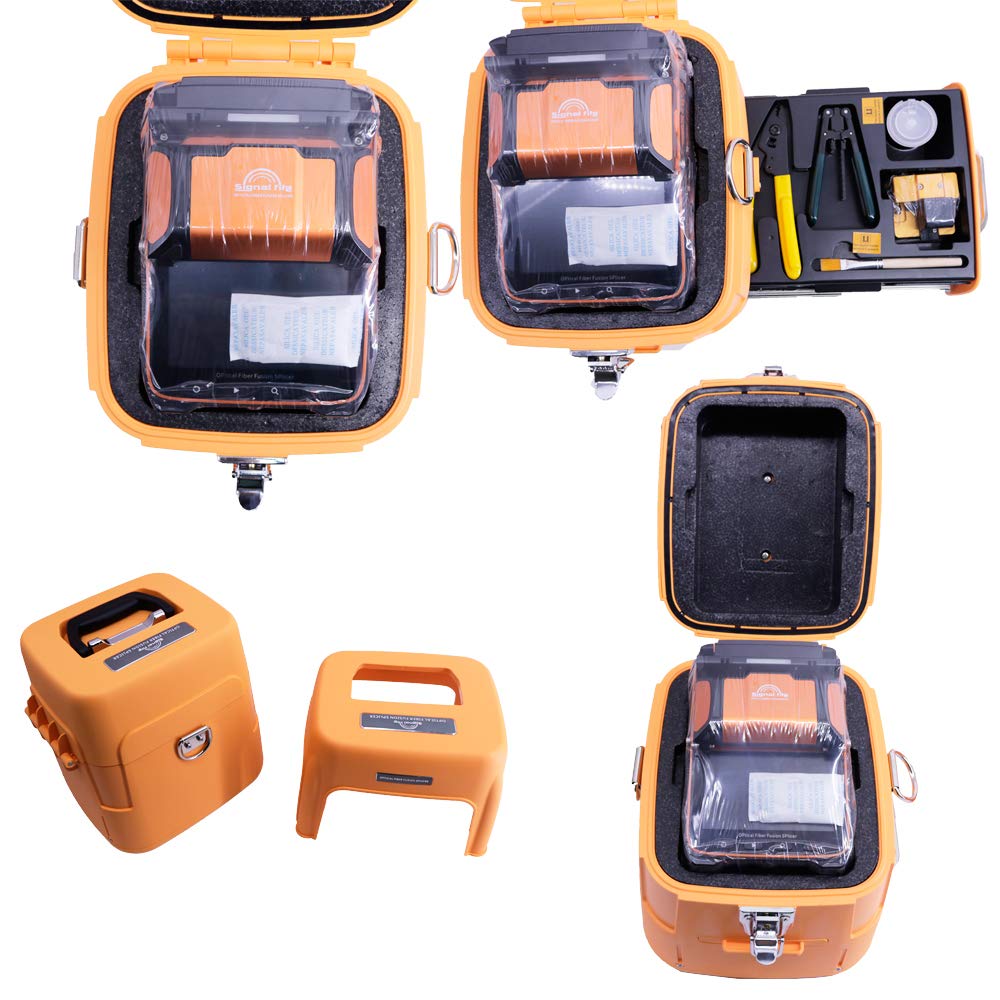

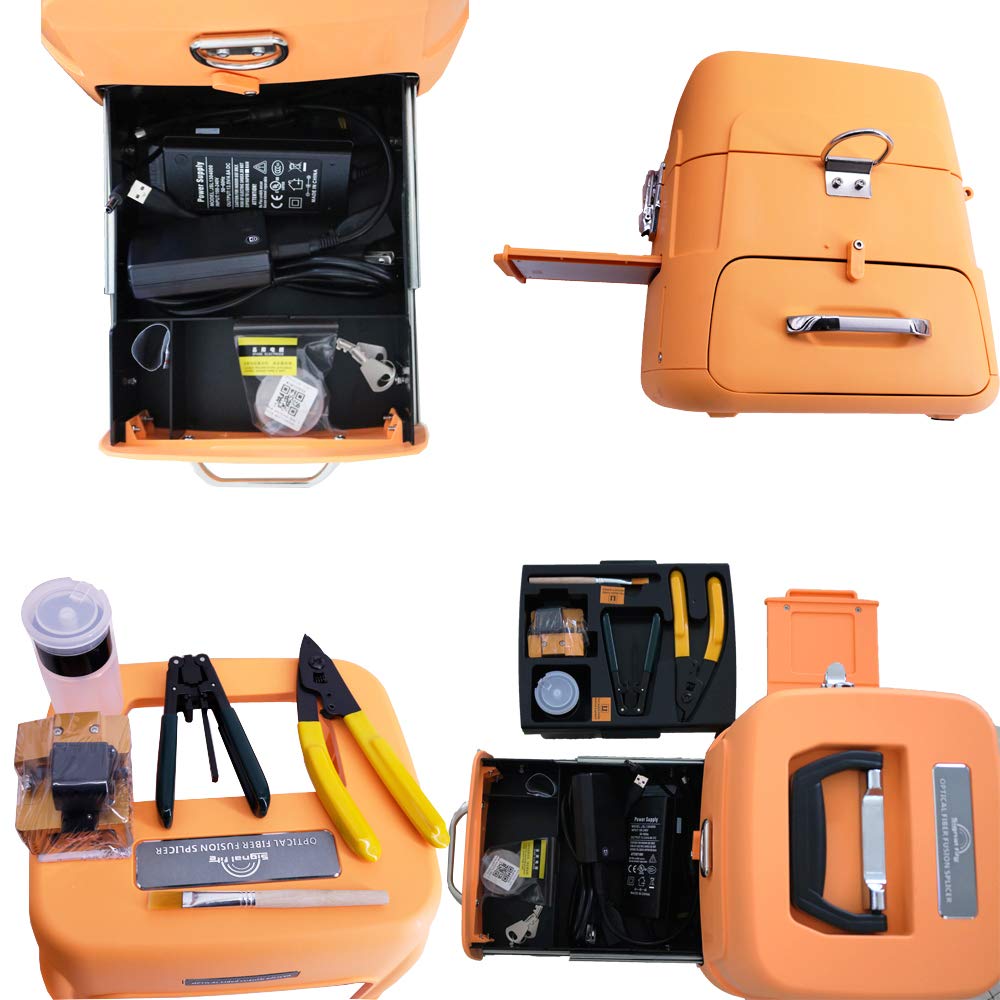

Package List:
1 * Fiber Cleaver,1 Pair of Spare Electrode,1 * Wire Stripper,1 * Pliers ,1 Set of Hex Wrench,1 * Fiber for ARC Calibration,1 * Strap,1 Set of Power Adapter,1 * Alcohol Bottle,1 * Brush,1 * User Manual,1 * Stool

EAN: 0761272054763
