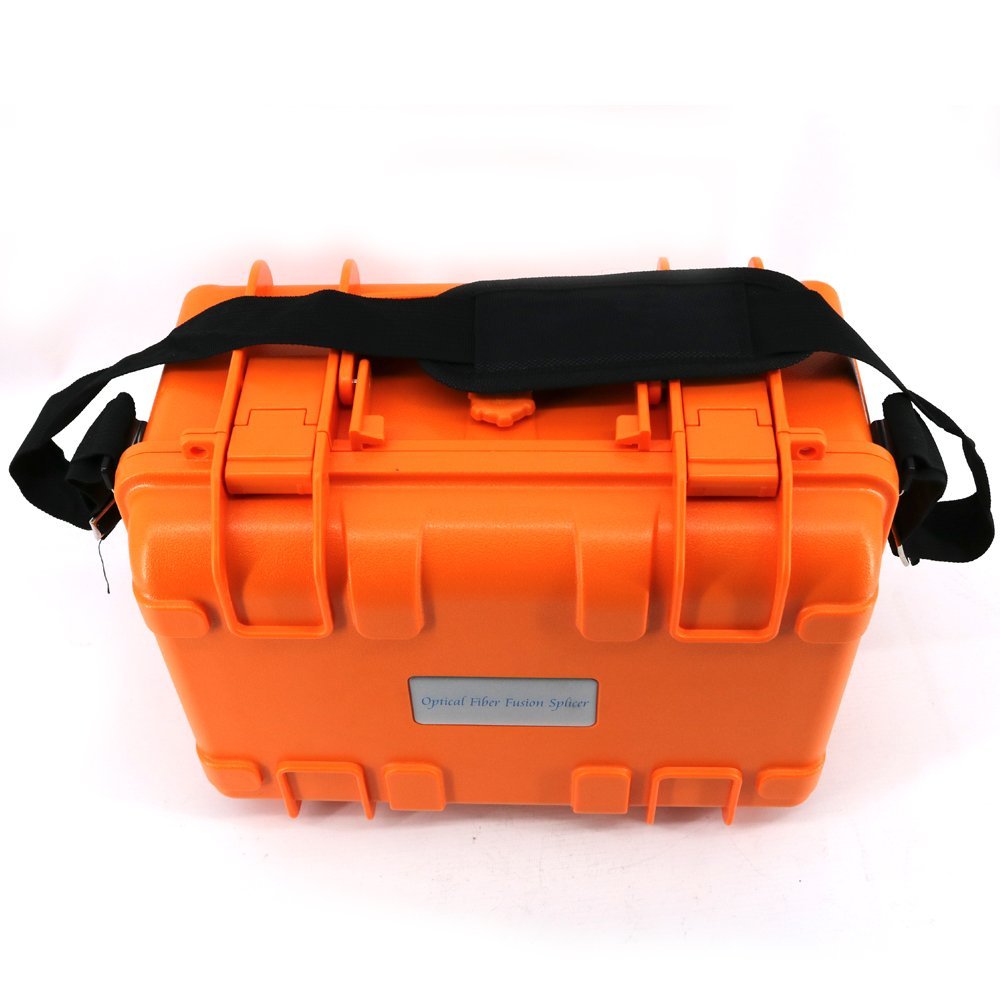

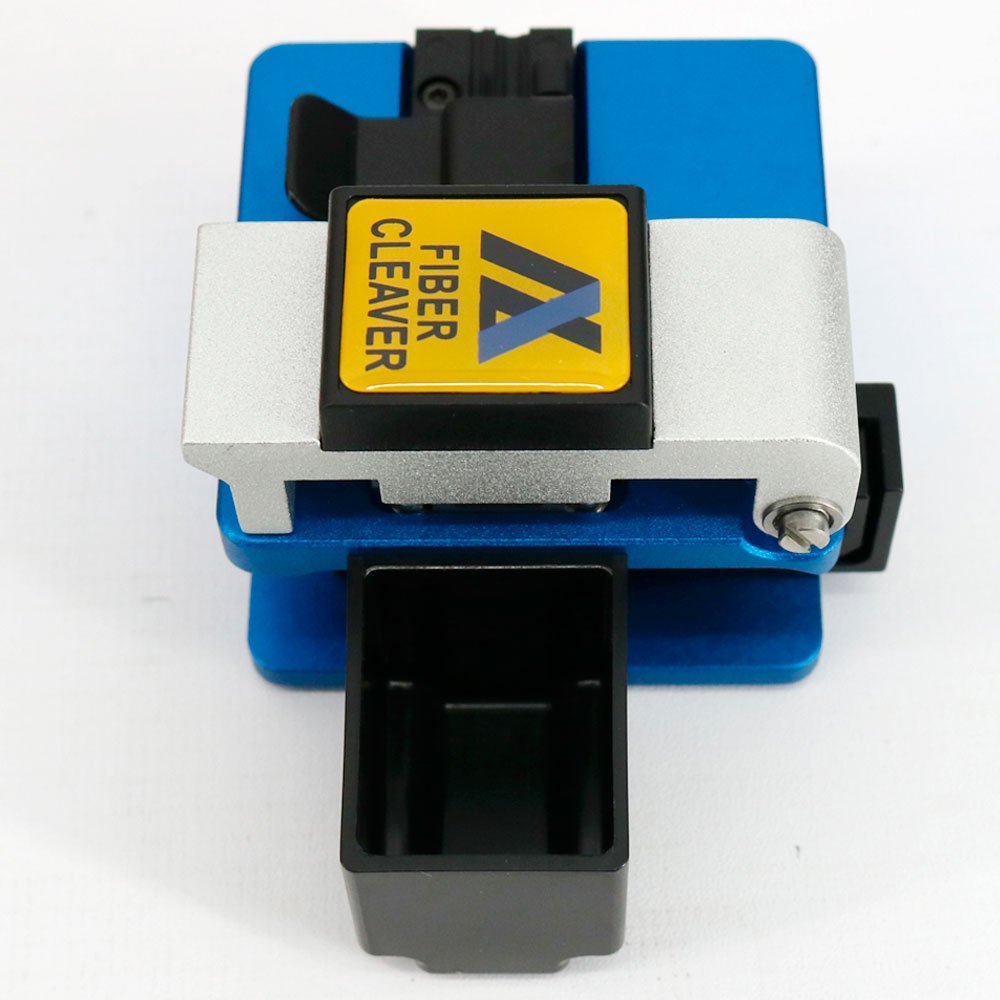

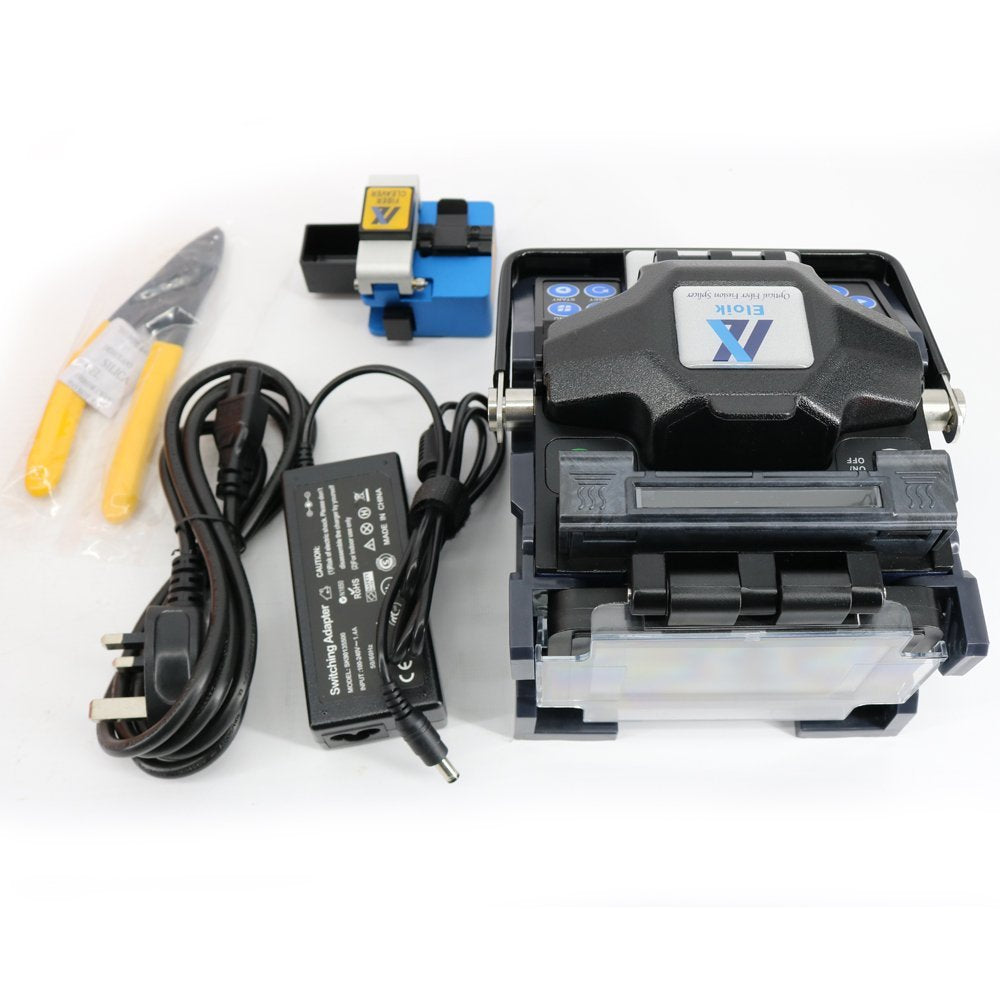

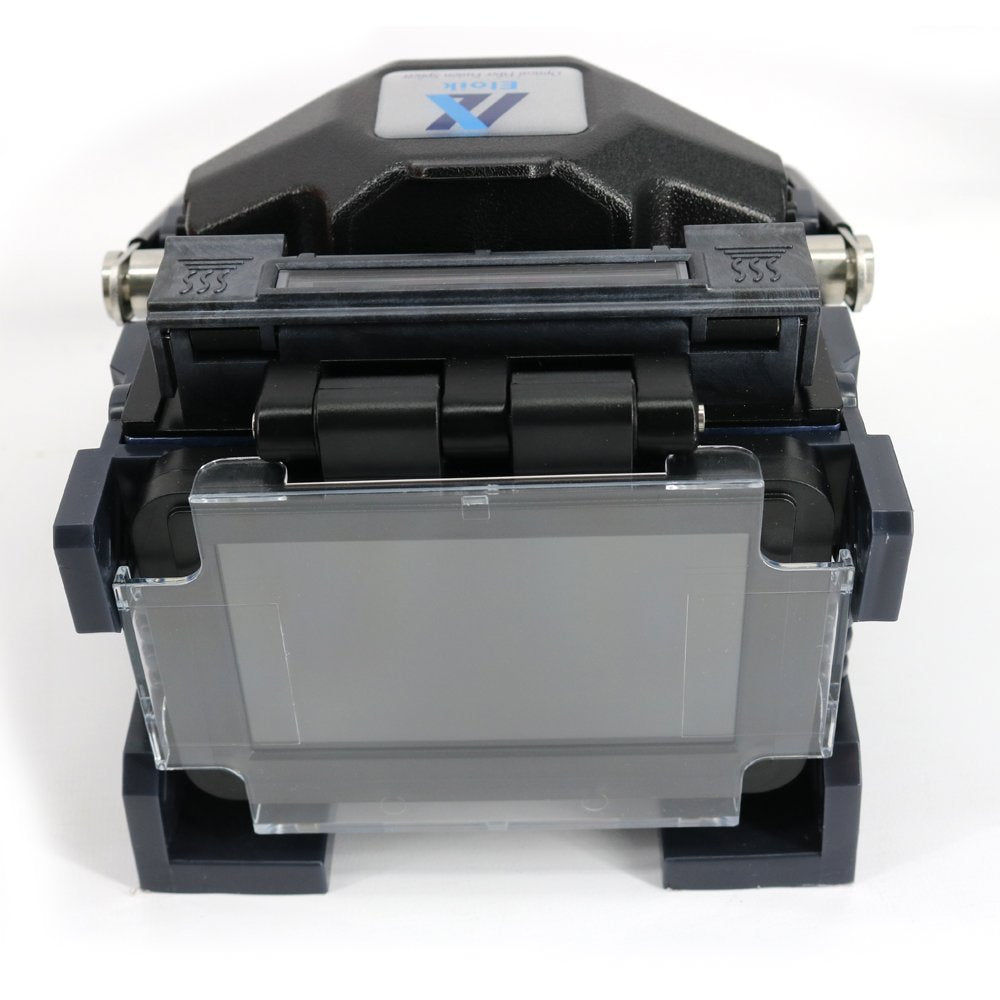

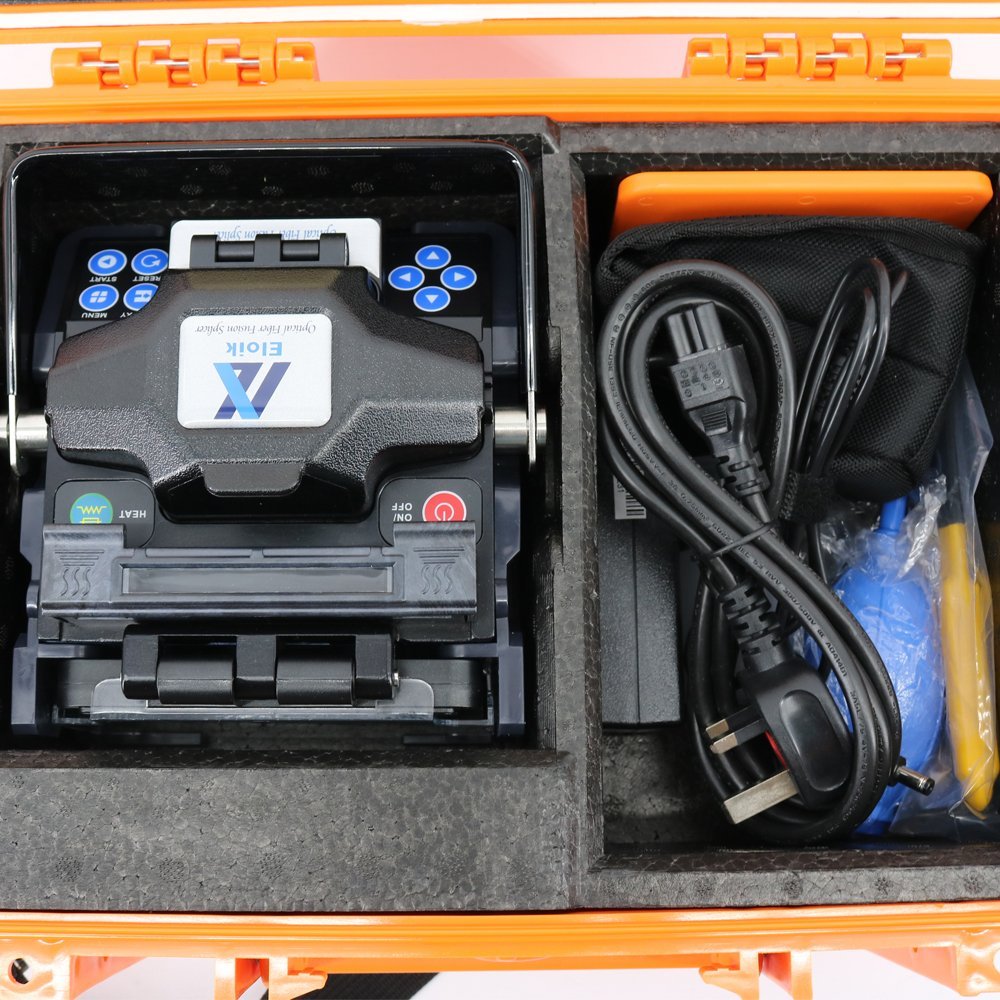

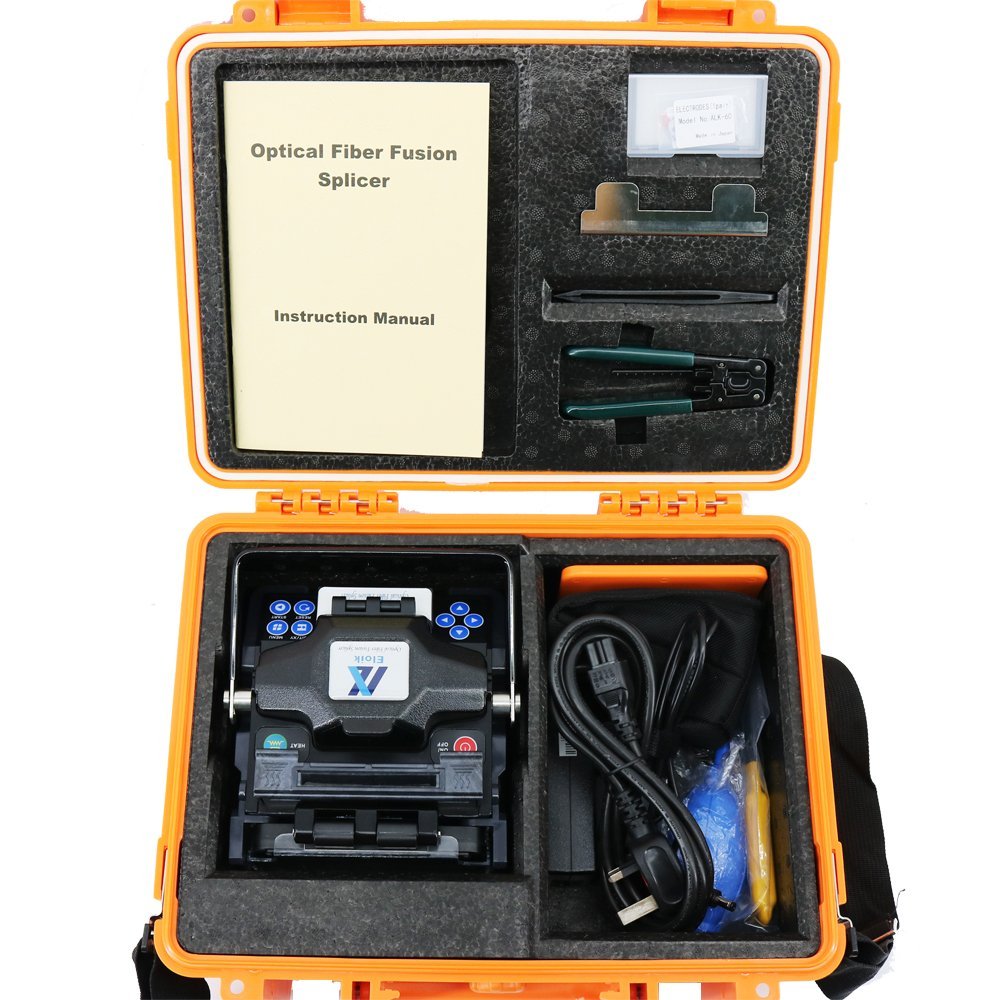

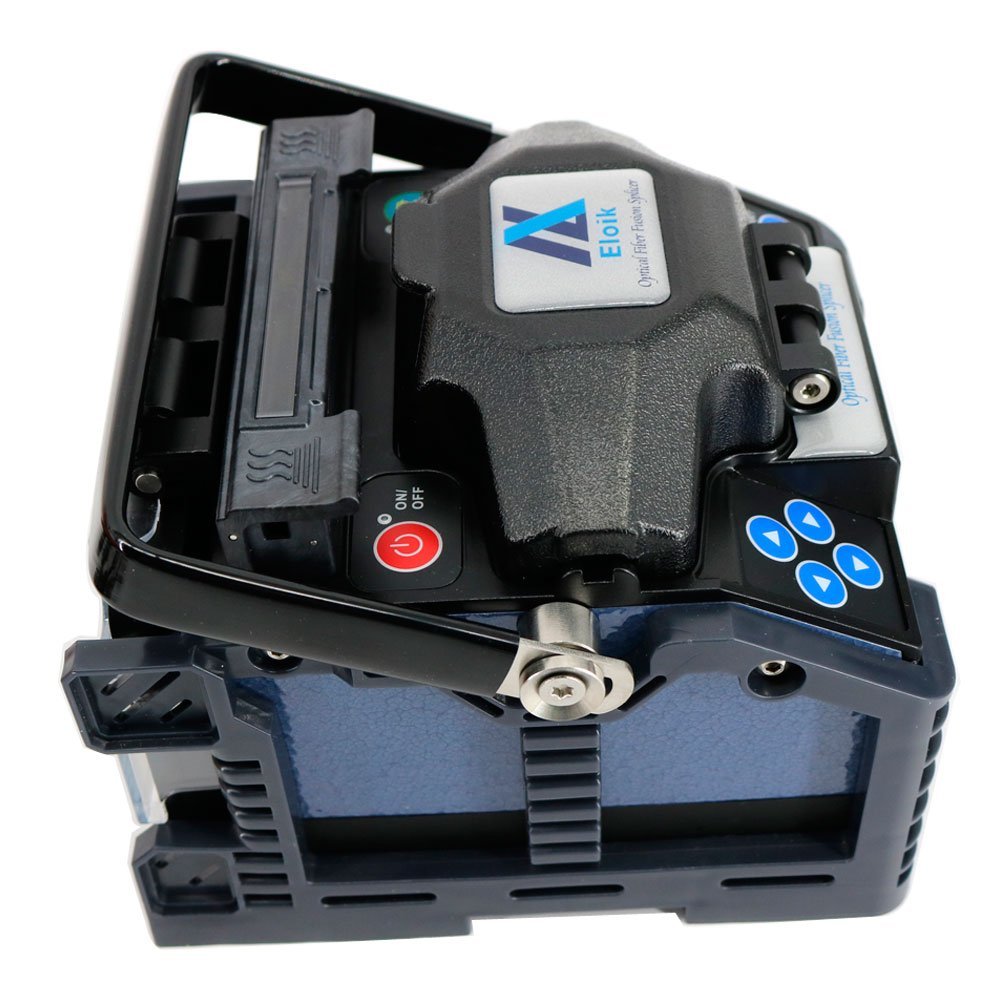

Graigar ALK-88 FTTH Optical Fiber Fusion Splicer Welding Splicing Machine

Brand: Graigar

Color: Black

Features:

• Automatic Fusion Splicing Machine ALK-88 Based on the principle of PAS（Lateral Projection System）, adopt advanced image detection algorithm;
• Adopt 4.3 inches 16:9 TFT colorized LCD screen;(4) Typical fusion time: 7sec;
• Double core align structure, higher success rate of fusion and lower loss;
• Reliability design, strengthen shockproof, dustproof and other functions;
• Typical heating time: 25 sec standard, is adjustable (FP-03 60mm);

model number: ALK-88

Part Number: ALK-88

Details: Main technical indexes

Applicable Optical Fiber Types ：SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)
Applicable Optical Fiber Core Number：Single core
Applicable Optical Fiber Diameter：Cladding diameter:125μm,Coating diameter:250～900μm
Fusion splice Model：Prestore:40 groups, User define: 80 groups
Average Fusion Splice Loss：0.03dB(SM), 0.02dB(MM), 0.06dB(DS), 0.06dB(NZDS)
Alignment：Both core alignment and c ladding alignment
Echo Loss：Better than 60dB
Fusion splice Duration Time：7sec(typical parameter)
Loss Estimation of Fusion Splice：Exist
Tension Test：2N
Monitor ：4.3 inches colorized LCD, English and Chinese caption.
Optical Fiber Magnification Times：X/Y:115 times, X or Y:230 times

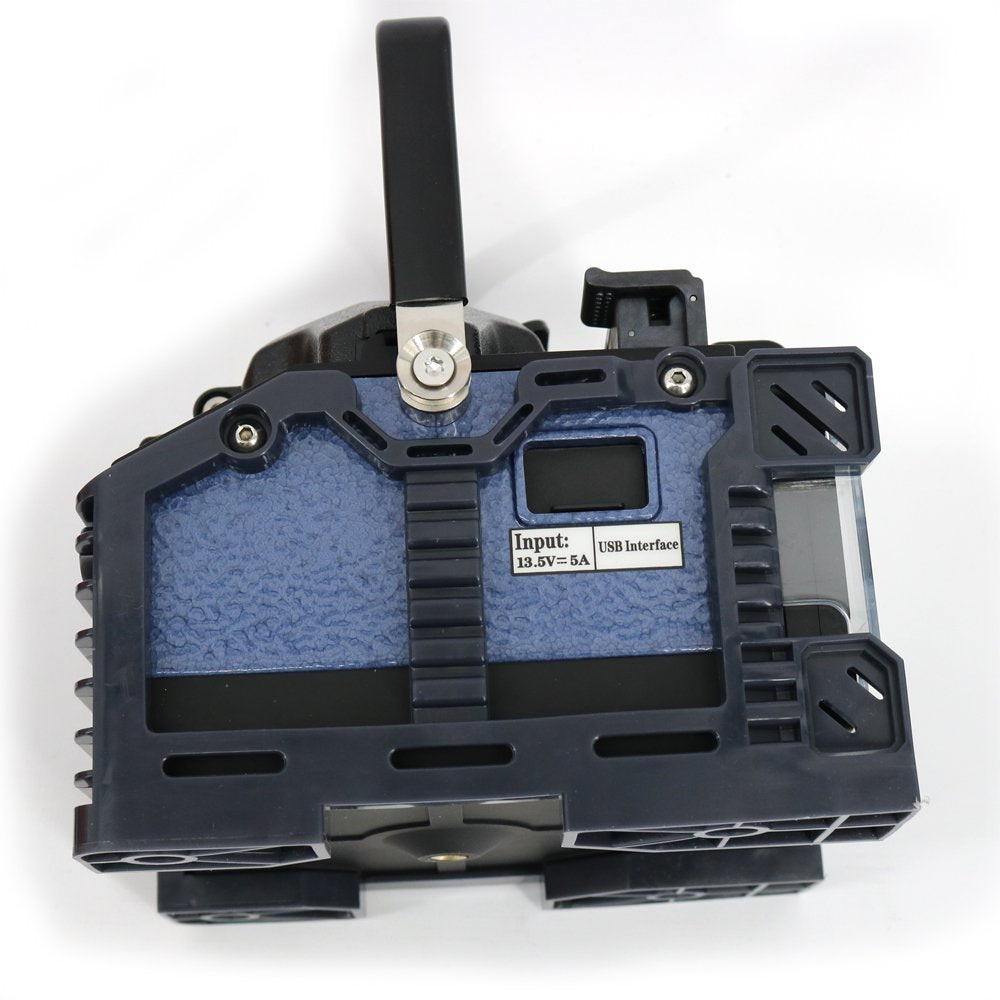

Power Supply：11.1V Lithium battery, 13.5V/5A power adapter, 12V power source available on the car
Battery ：Typically work 180 times(Fusion splicing / Heating), Single battery charge 3Hour，can be recycled 500 times
Splice Results Storage：5000 groups of the latest records
Data Interface：USB2.0
Operating Environment：Elevation:0~4000m, Relative humidity:0~95%,Temperature:-10°C~55°C，Maximum wind speed:12m/s
Storage Environment：Relative humidity:0~95%, Temperature:-40°C~80°C (Except Battery), Temperature:-10°C~30°C (Battery)
Weight of the Equipment：1.6kg(Exclude battery), 1.8kg(Include battery)
Size：150L×130W×128H(mm)

Tube Heater technical indexes
Applicable Optical Fiber Cable Diameter ：250μm, 900μm, 2~3mm
Applicable Sleeve Length：60mm，40mm(FP-03)
Heating time：35sec(60mm)，28sec(40mm)
Heating temperature：120~160°C
