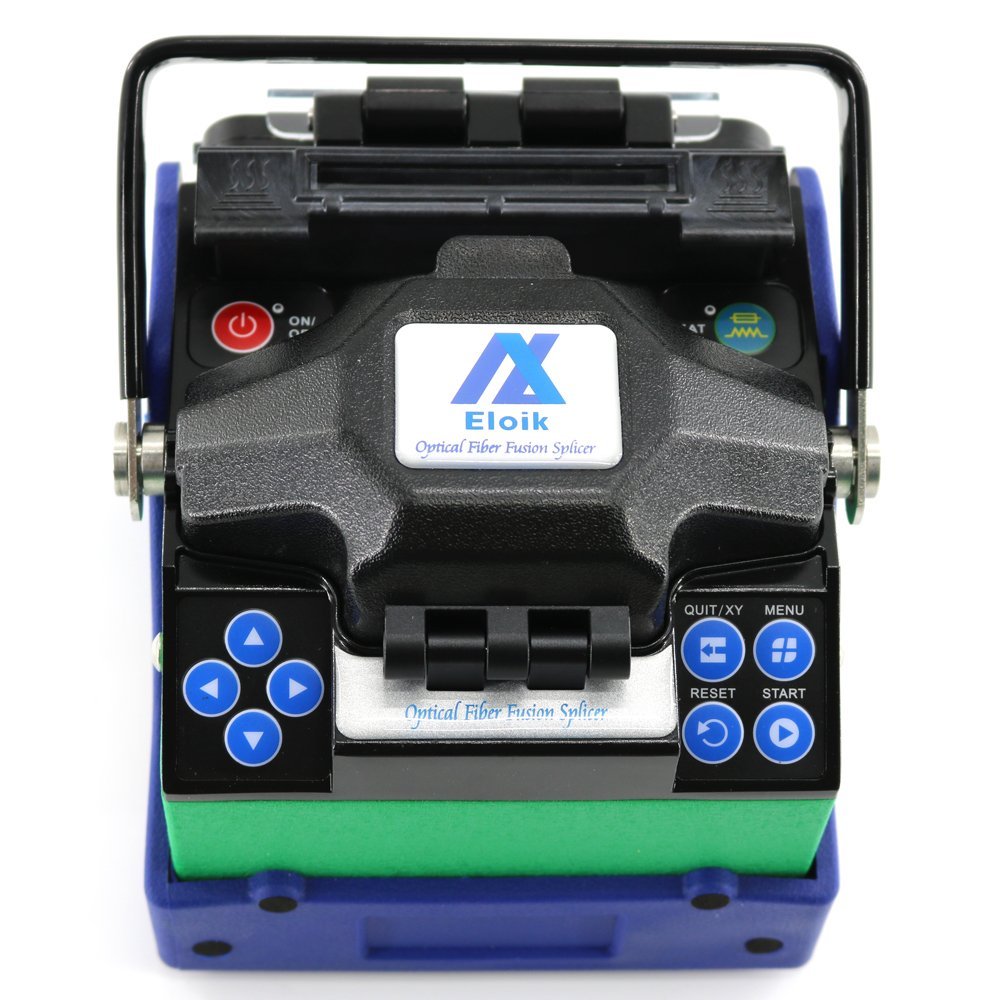

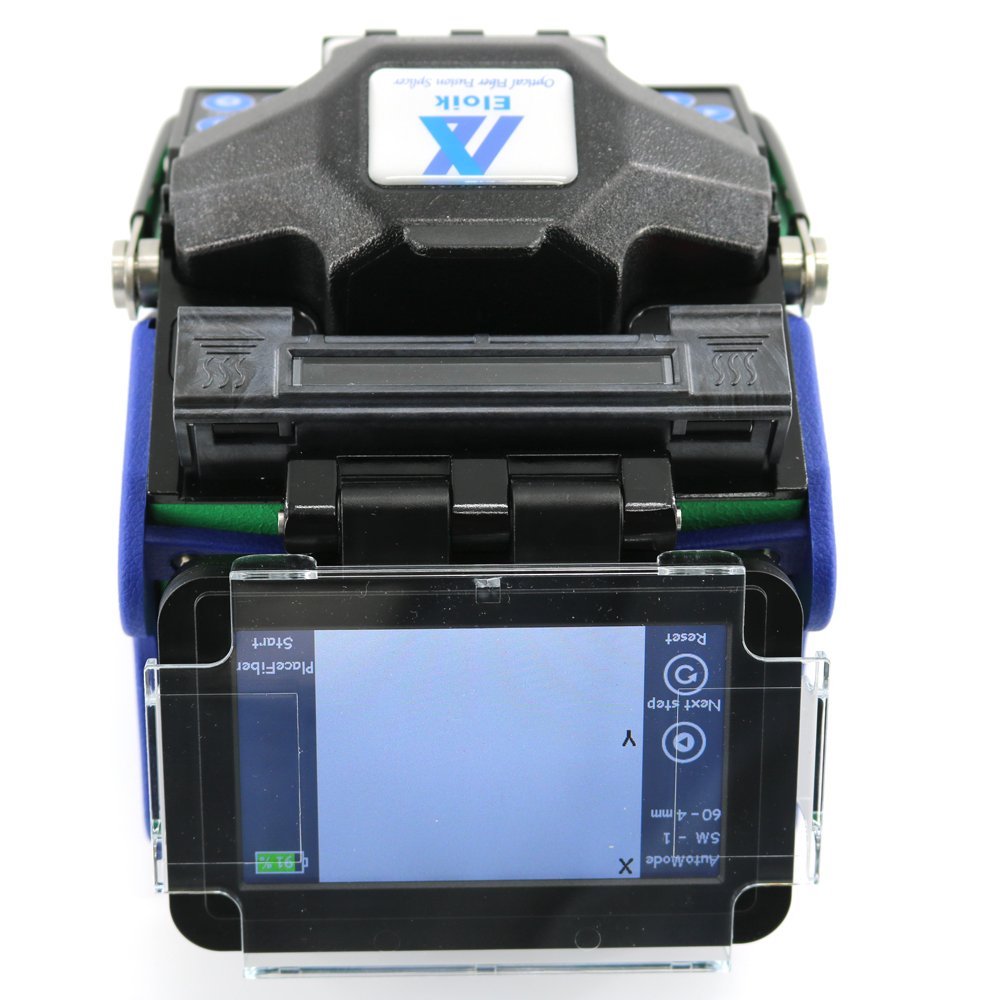

Automatic Fusion Splicing Machine ALK-88A, Small in size, Light in weight, 7 seconds fast splicing, 17 seconds arc heating, 400 to 520 times splicing and heating
100% automatic fiber detection and splicing start, Average splicing loss 0.02dB(SM) 0.01dB(MM) 0.04dB(DS) 0.04dB(NZDS)

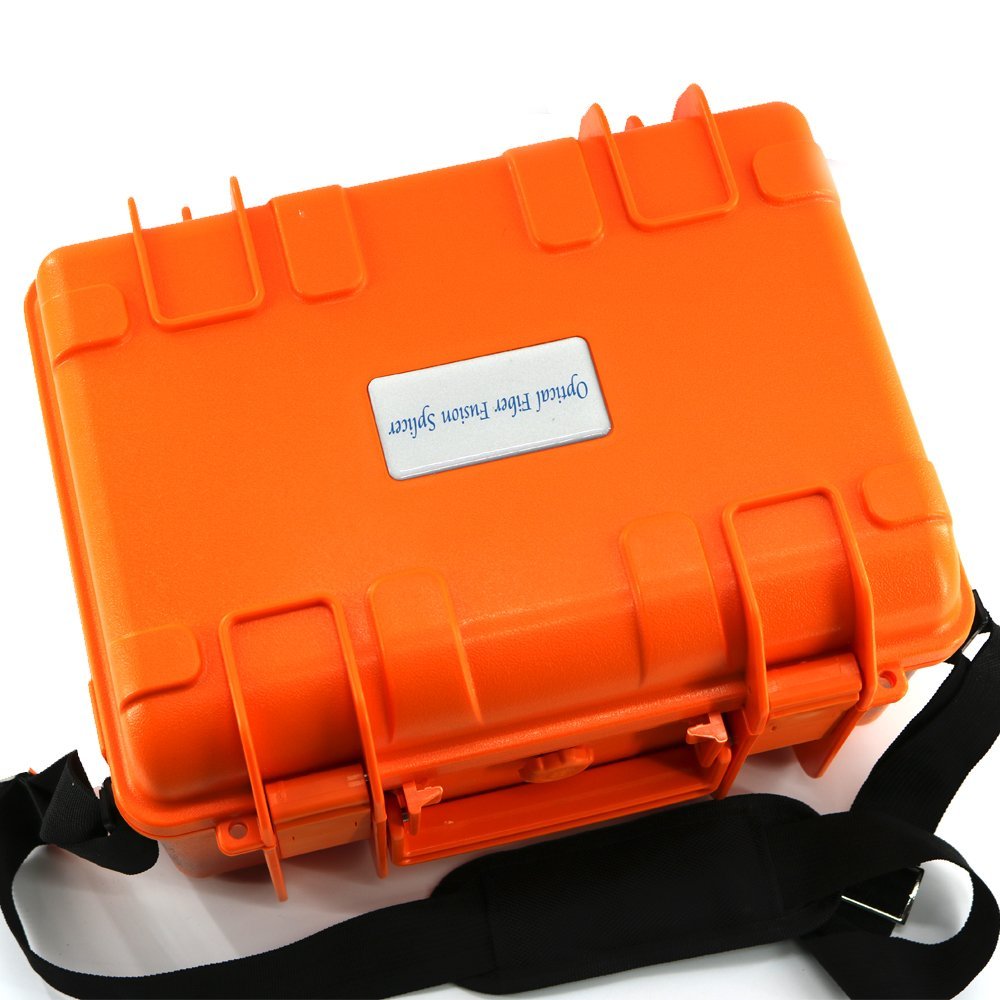

PAS fiber core alignment technology, CMOS image sensor imaging technology, Carrying bag also your work platform.
Mini Fiber Splicing Equipment,Compactly Designed,Easy to Carry and Operation

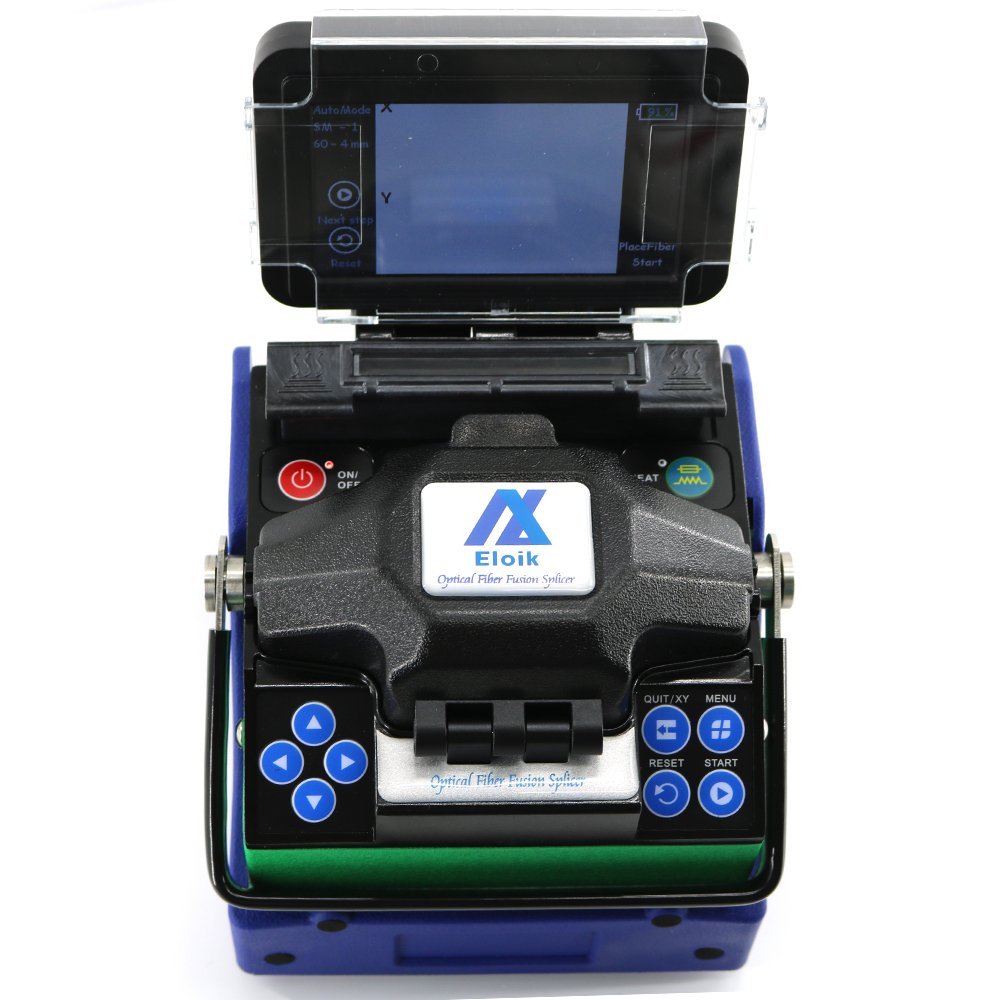

Vivid and Exquisite Image-Forming System,High Precision Image Processing Technology
Part Number: ALK-88A
Details: Fusion Splicer (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology
It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume ,the lightest weight ,the most fast splicing speed

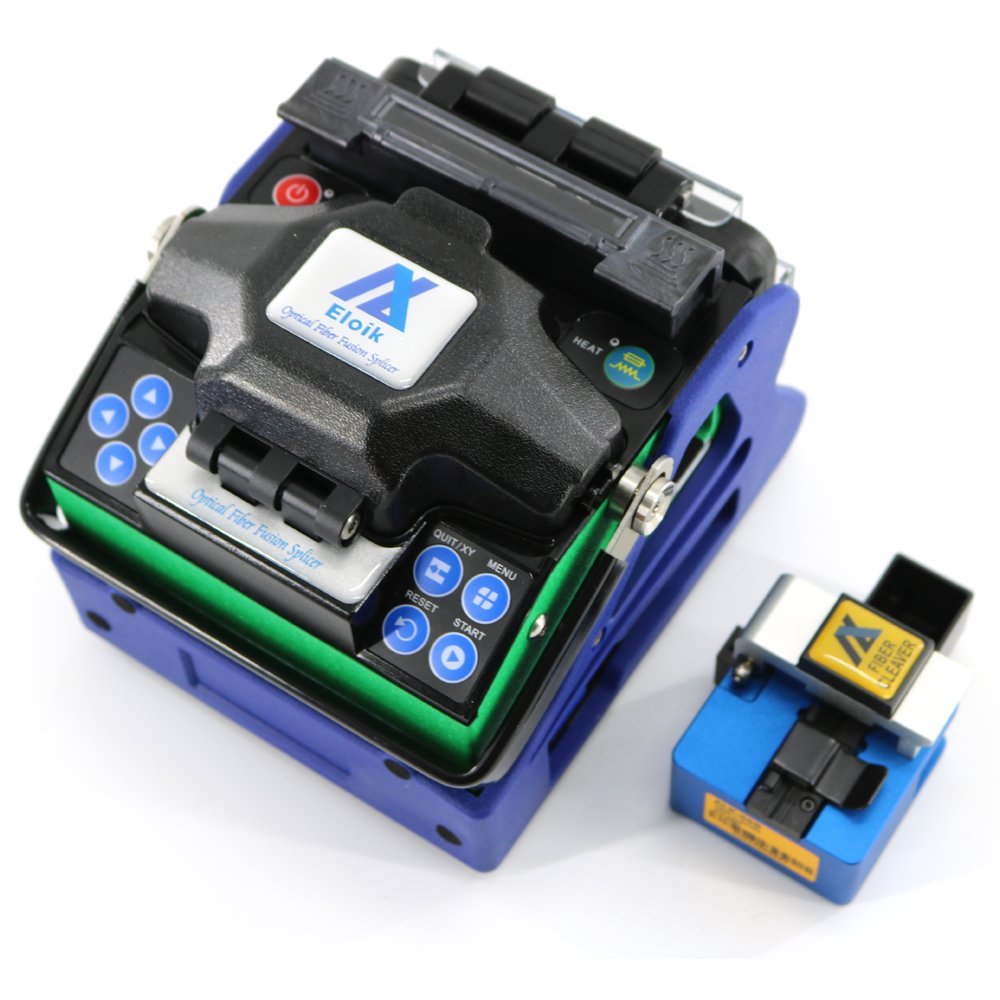

Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade , long lifetime.
Convenience: convenient for maintenance
Six languages: Chinese, English, Russian, Portuguese, French, Spanish
Applicable Fiber Type SM,MM,DS,NZDS
Applicable Fiber Count Single
Splice loss evaluation Have
Tensile test 2N
Optical magnification X / Y: 115 times, X, or Y: 230 times

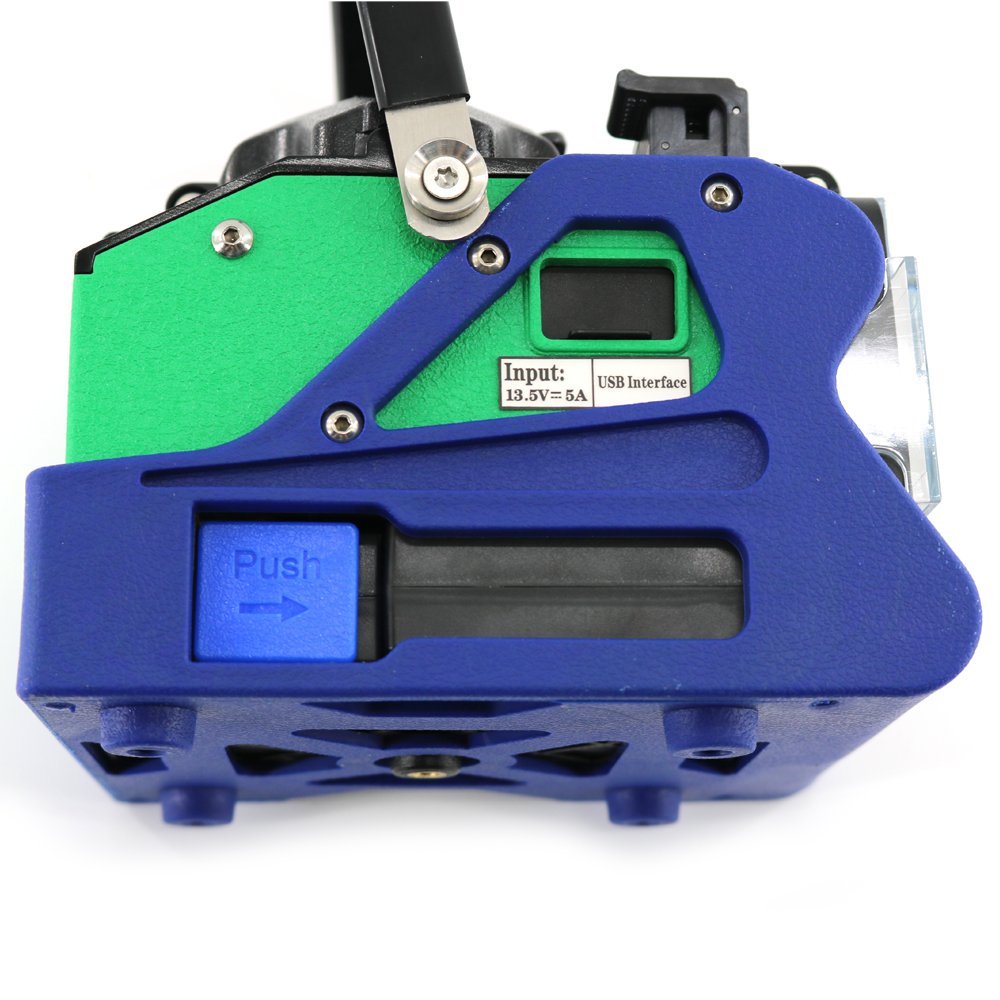

Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
Battery Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
Maximum storage 5000 set of the latest record storage
