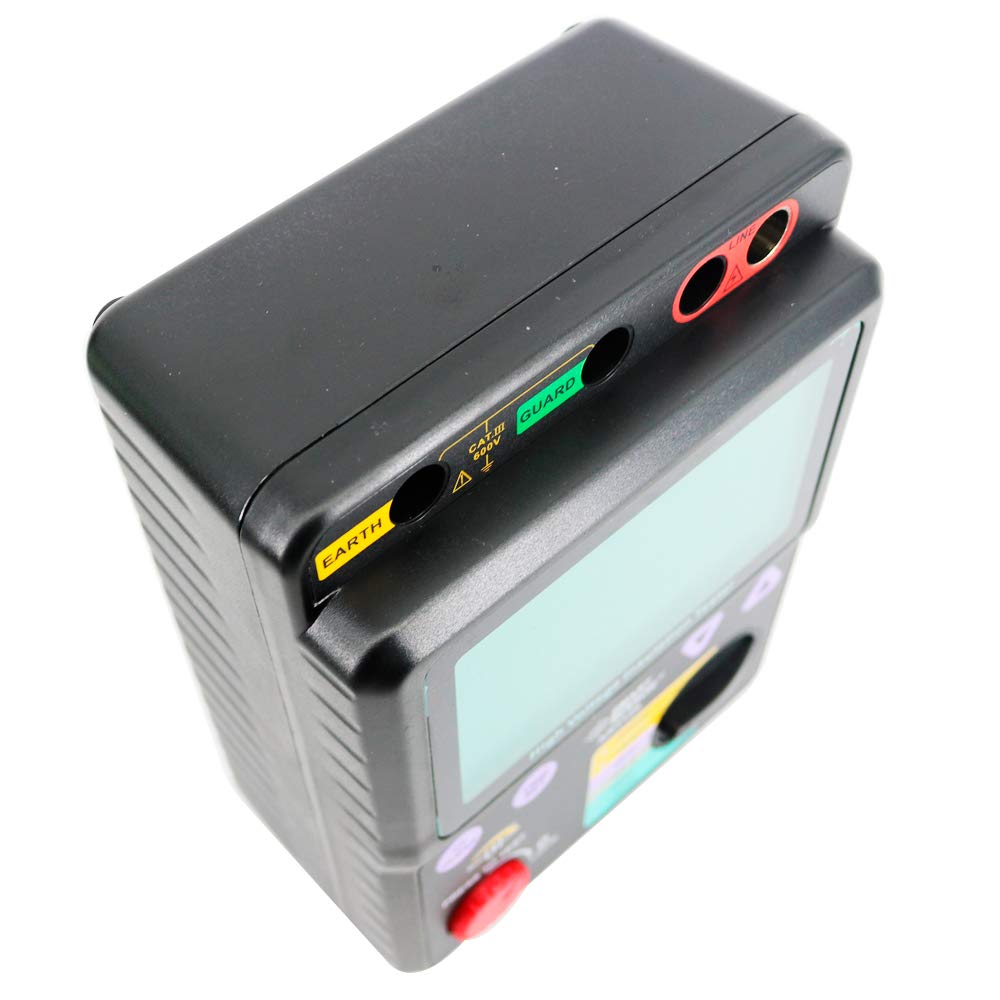

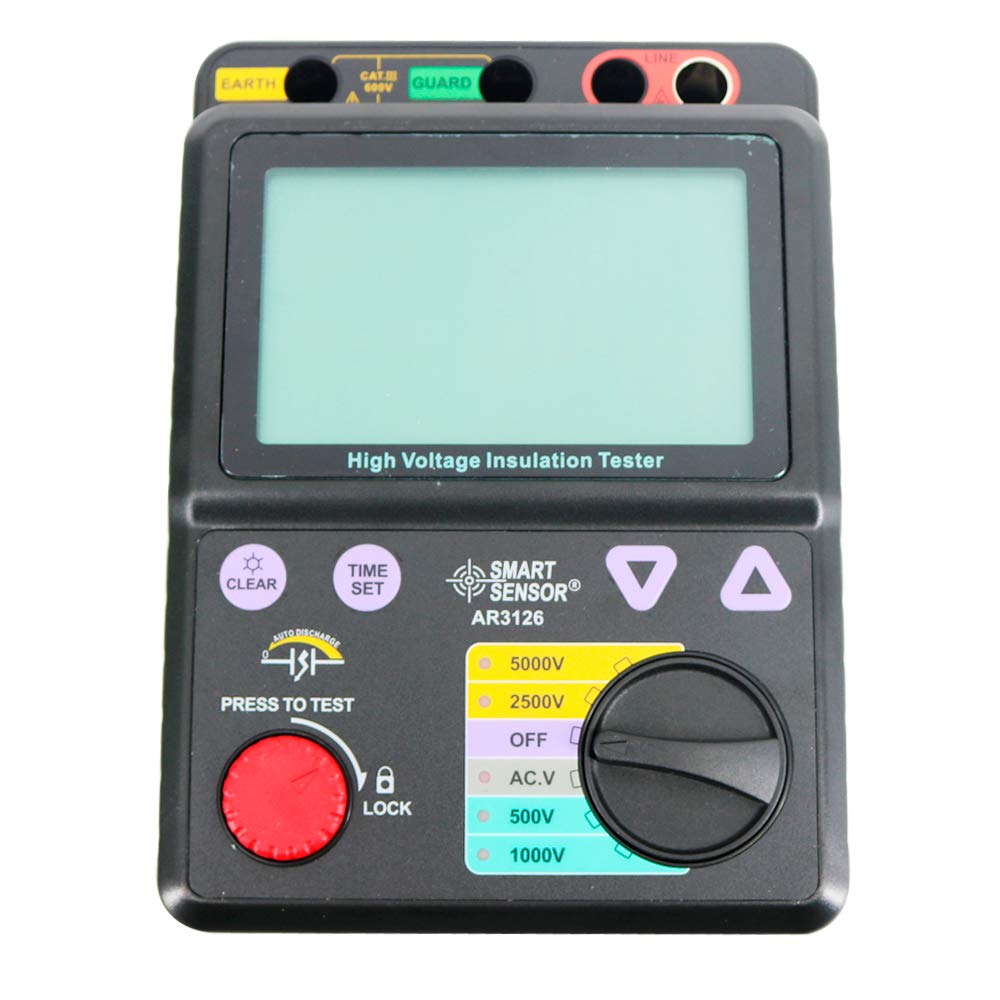

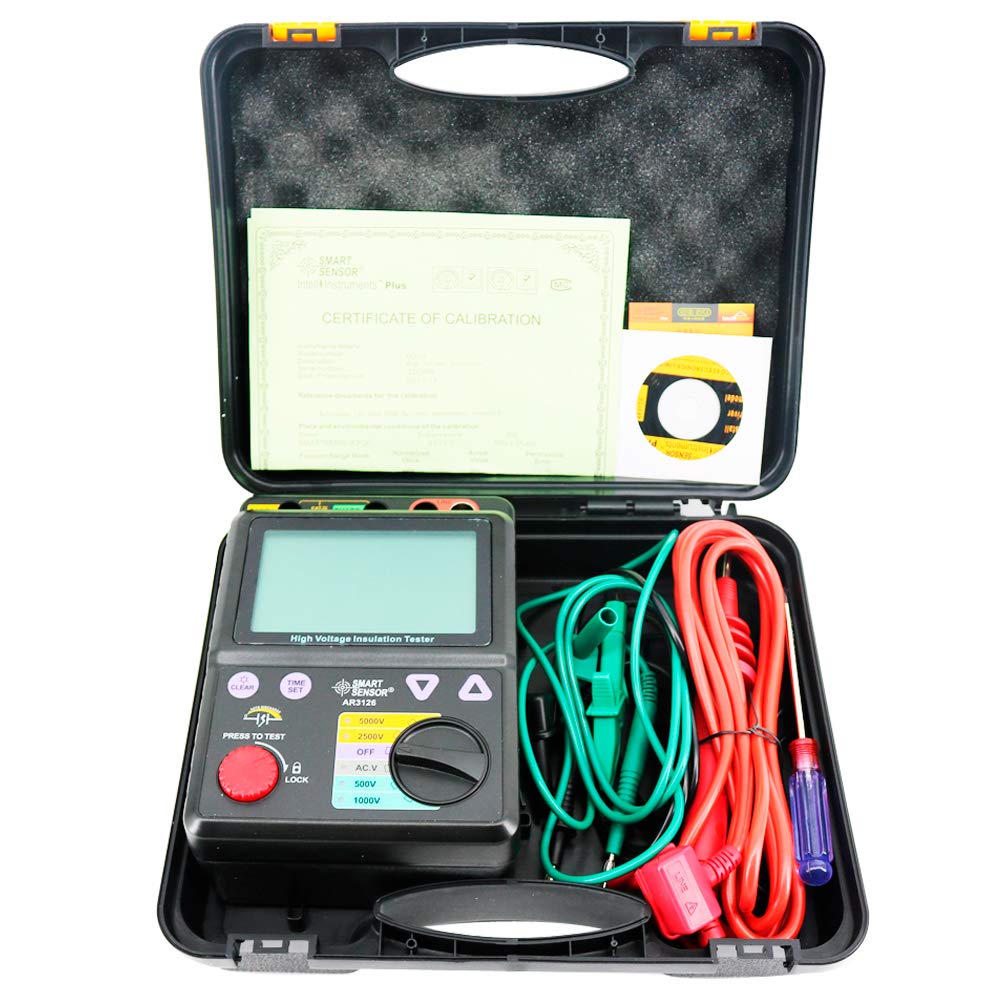

AR3126 High Voltage Insulation Resistance Tester is suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables.
AR3126 High Voltage Insulation Resistance Meter is useful for preventive maintenance in the generation, transmission and distribution of electrical energy.
Insulation Resistance Testing Range: 0.0MΩ~1000GΩ
Rated Voltage 500V/1000V/2500V/5000V
Resolution 1.0V
Part Number: AR3126
Details: Feature:
Insulation resistance tester, usually called megohmmeters or high resistance meter, widely used for measuring the generator, motor, power transformer, wiring, electrical appliances and other electrical equipment (such as cable control, signal, communication and power supply) insulation resistance. They are often used in routine maintenance procedures to indicate changes in insulation resistance for a few months or years. A large change in the insulation resistance may indicate a potential fault. As a result, regular calibration is necessary to ensure that the meter itself does not change over time.
Specification:
Rated Voltage 500V/1000V/2500V/5000V
Testing Range 500V:0.0~999MΩ
1000V:0.0~1.99GΩ
2500V:0.0~99.9GΩ
5000V:0.0~1000GΩ
Accuracy ±2%rdg±3dgt
DC/AC Voltage Test 30~600V
Resolution 1.0V
Overload Protect AC 1200V/10sec
Withstand Voltage AC 8320V/5 sec
Insulated Impedance 1000MΩ
Max. Short Circuit Current 1.4mA
Polarization Index √
External DC Adapter
DAR √
Packing information:

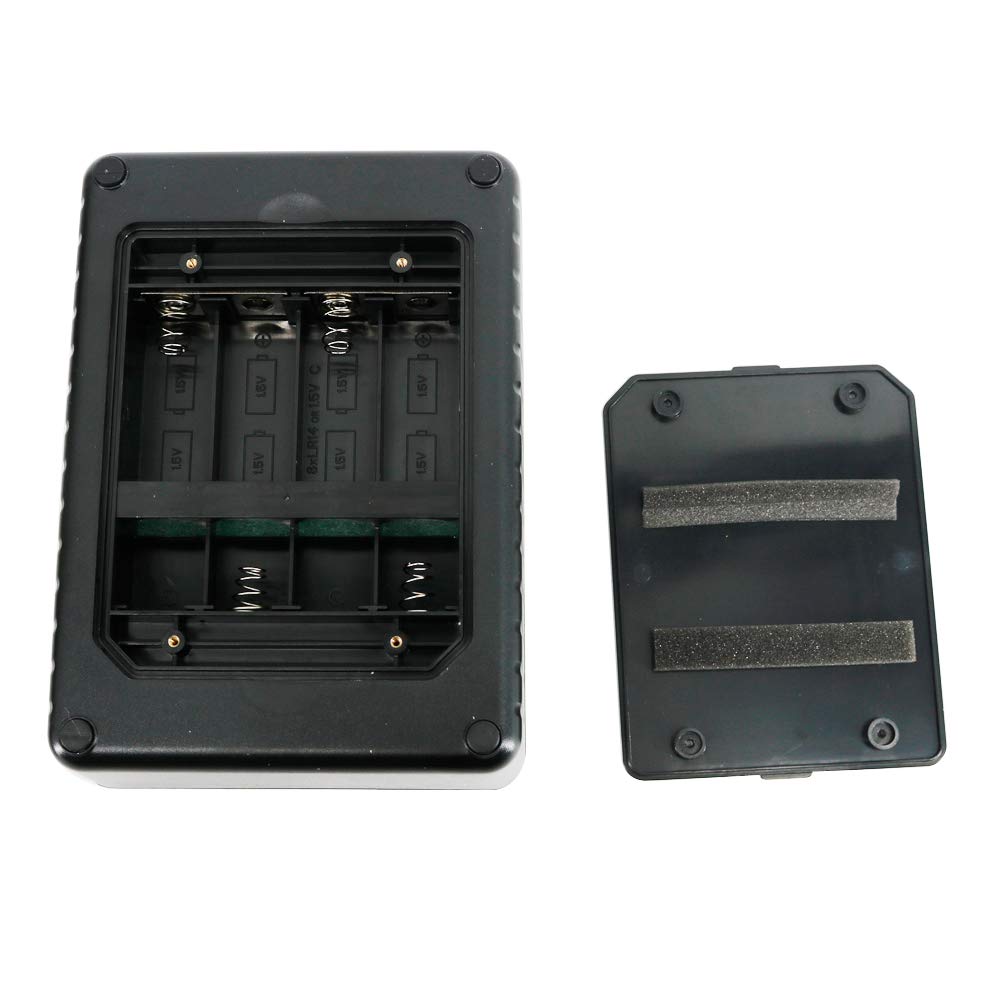

Power C*8 battery (not included)
Product Net Weight 1027g
Product Size 153*213*95mm
