Velocity Frequency Range 10Hz~1KHz Displacement Frequency Range 10Hz~1KHz Accuracy ±5%H ±2 digits
Acceleration Frequency Range 10Hz~1KHz (LO) 1KHz~15KHz (HI)
Acceleration Range 0.1~199.9m/s2 Velocity Range 0.1~199.9m/s
Displacement Range 0.001~1.999mm

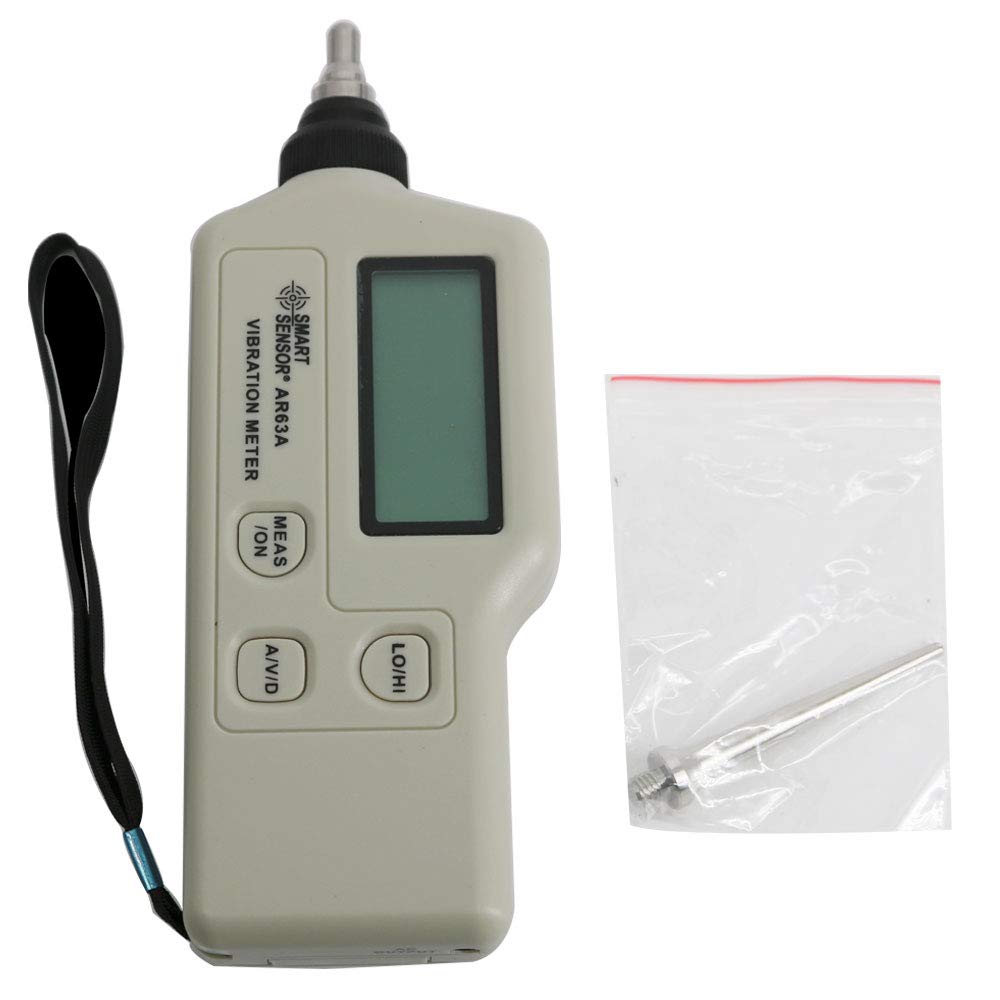

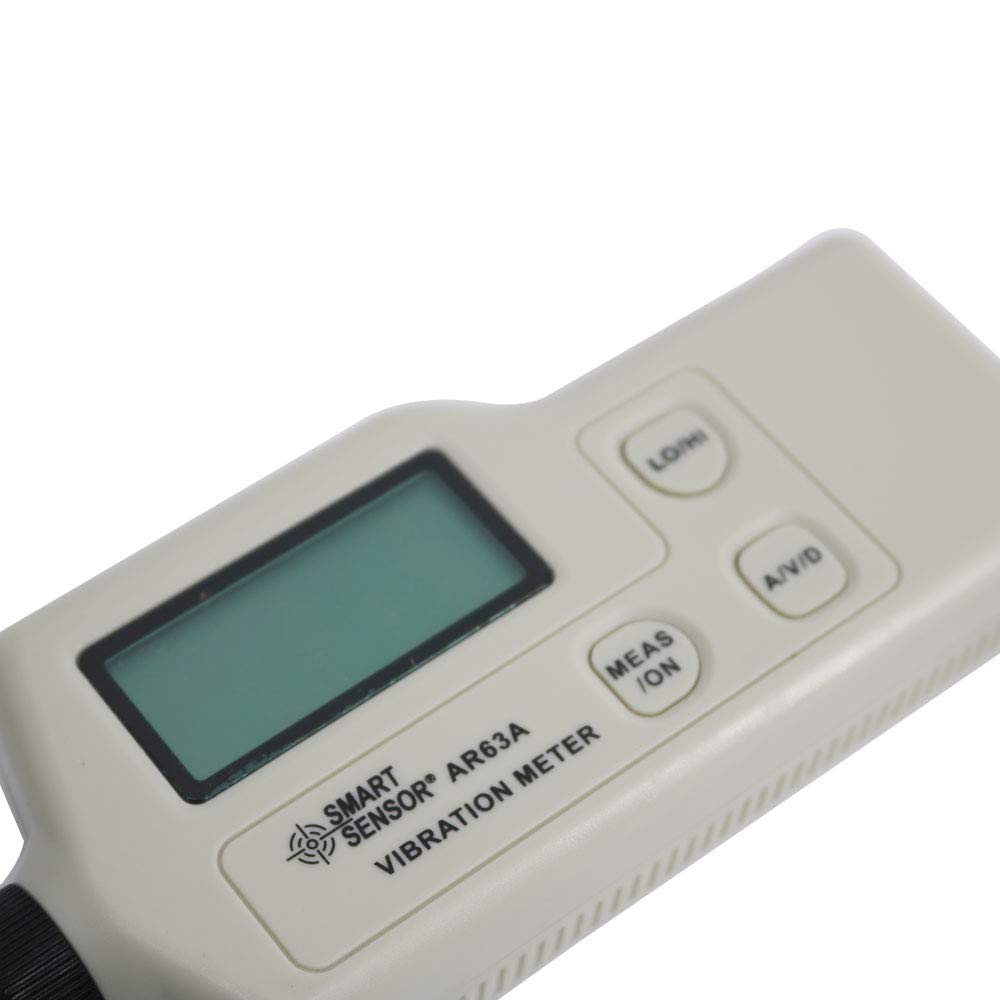

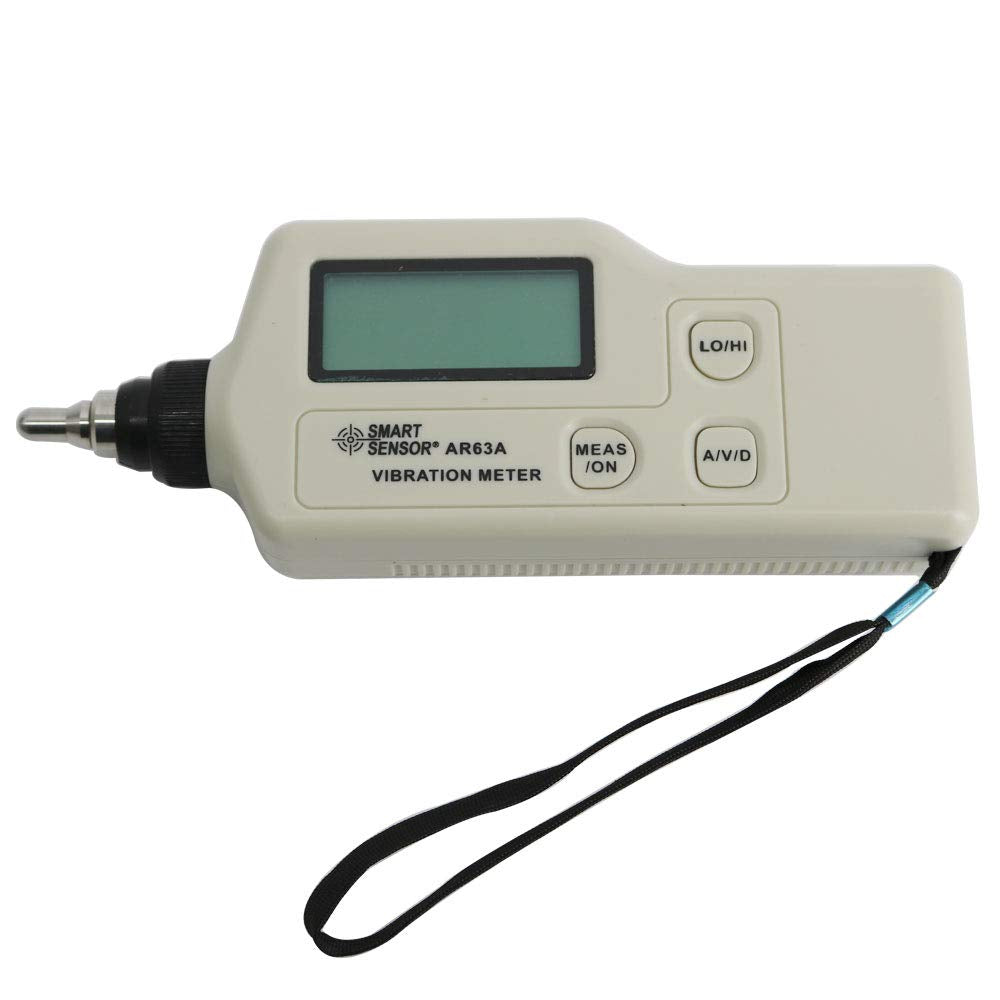

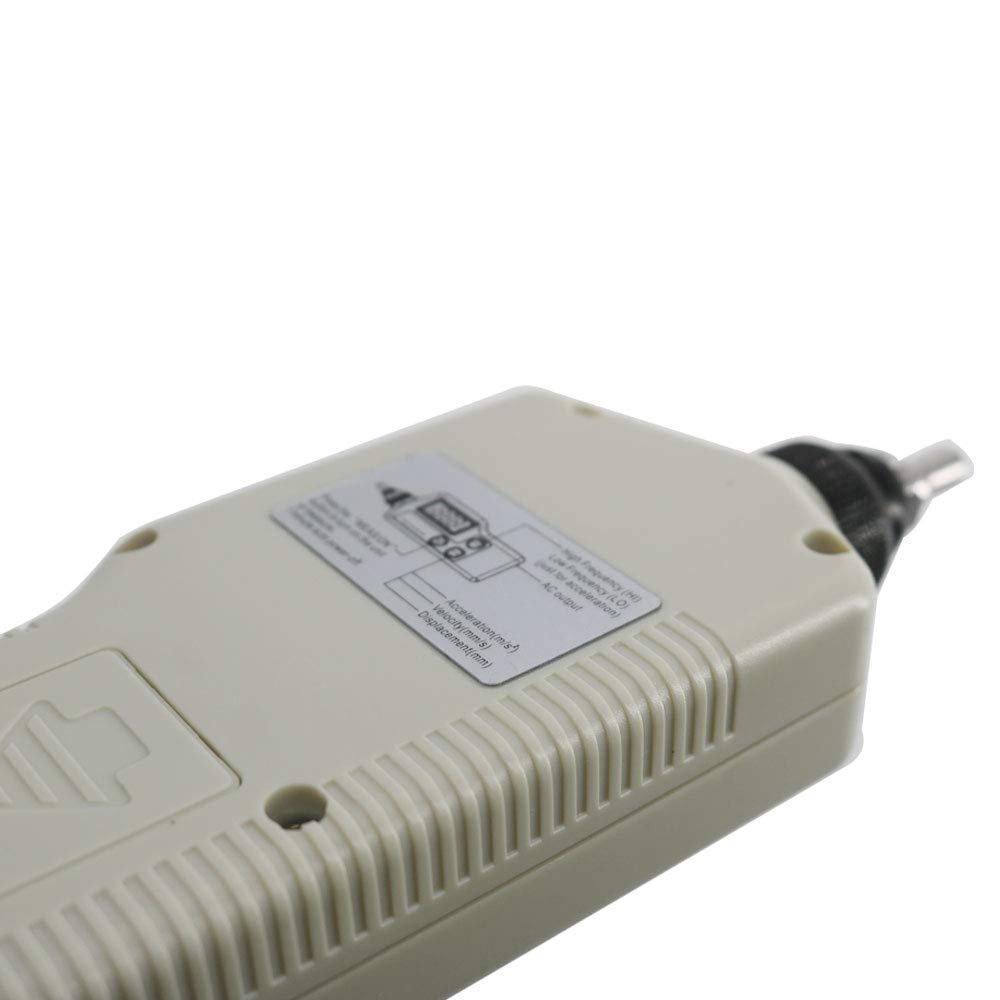

model number: AR63A
Part Number: AR63A
Details: Features:
Vibration meter(also called also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
Specifications:

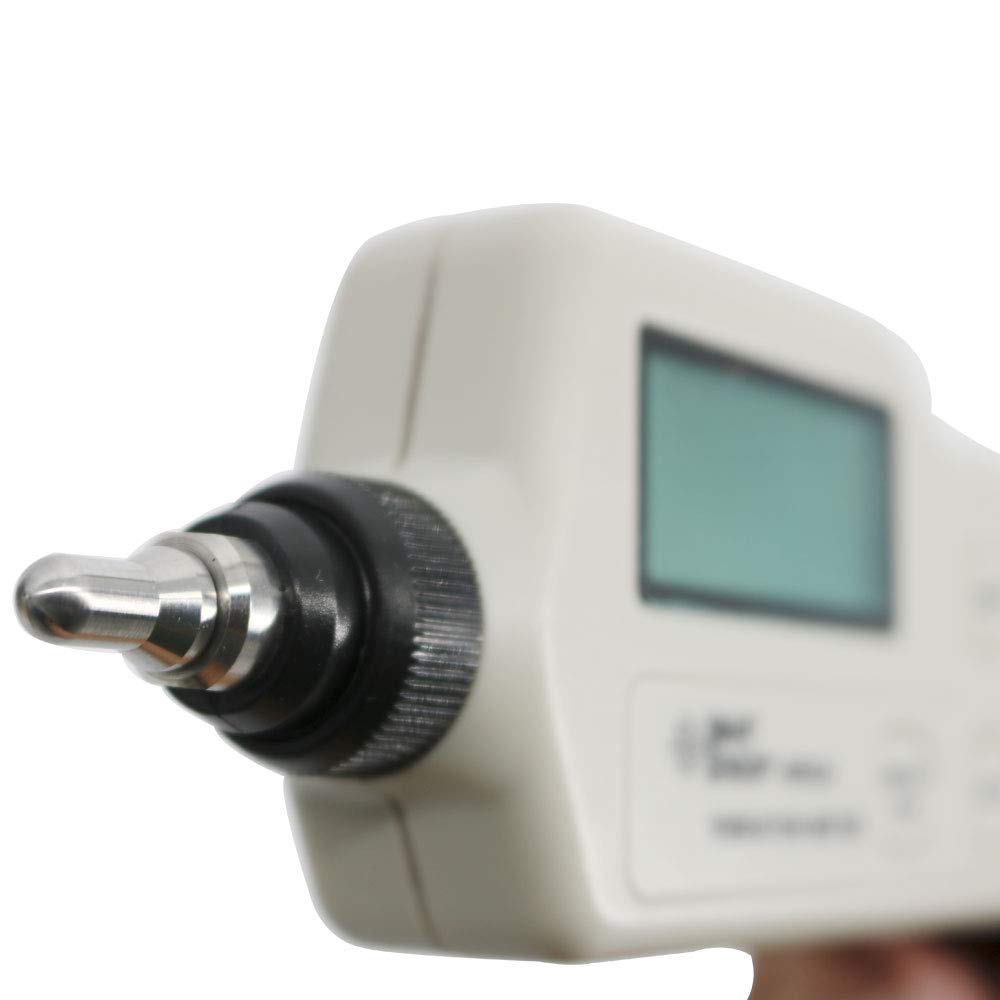

Vibration Pickup:Piezoelectric Ceramic Accelerometer(shear-type)
Acceleration:0.1~199.9m/s2
Velocity:0.1~199.9m/s
Displacement:0.001~1.999mm
Acceleration Frequency Range:10HZ~1KHZ(LO);1KHZ~15KHZ(HI)
Velocity Frequency Range:10HZ~1KHZ
Displacement Frequency Range:10HZ~1KHZ
Accuracy:±10%H±2digits
Singnal Output:AC output
Auto Switch Range:√
Backlight:√
Auto Power off:√

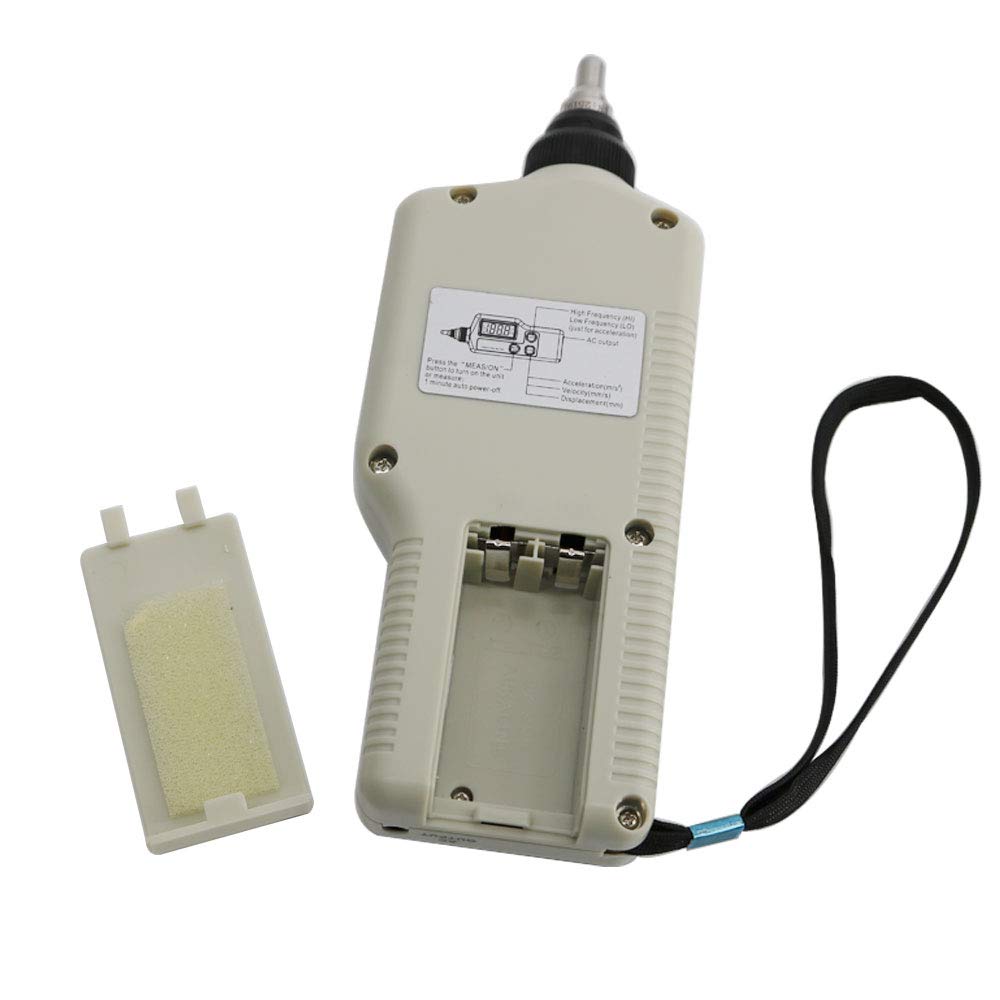

Power:9VDC battery
Product Net Weight:147g
Product Size:67*30*183mm

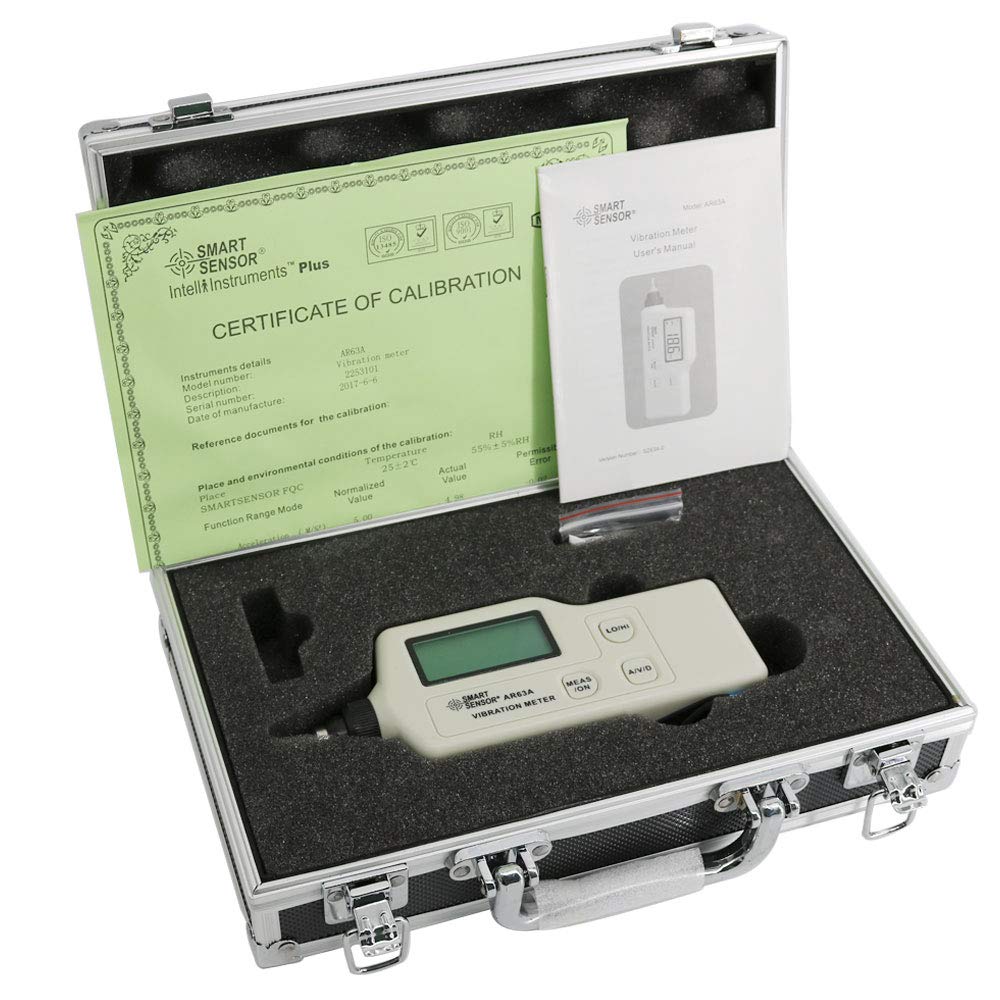

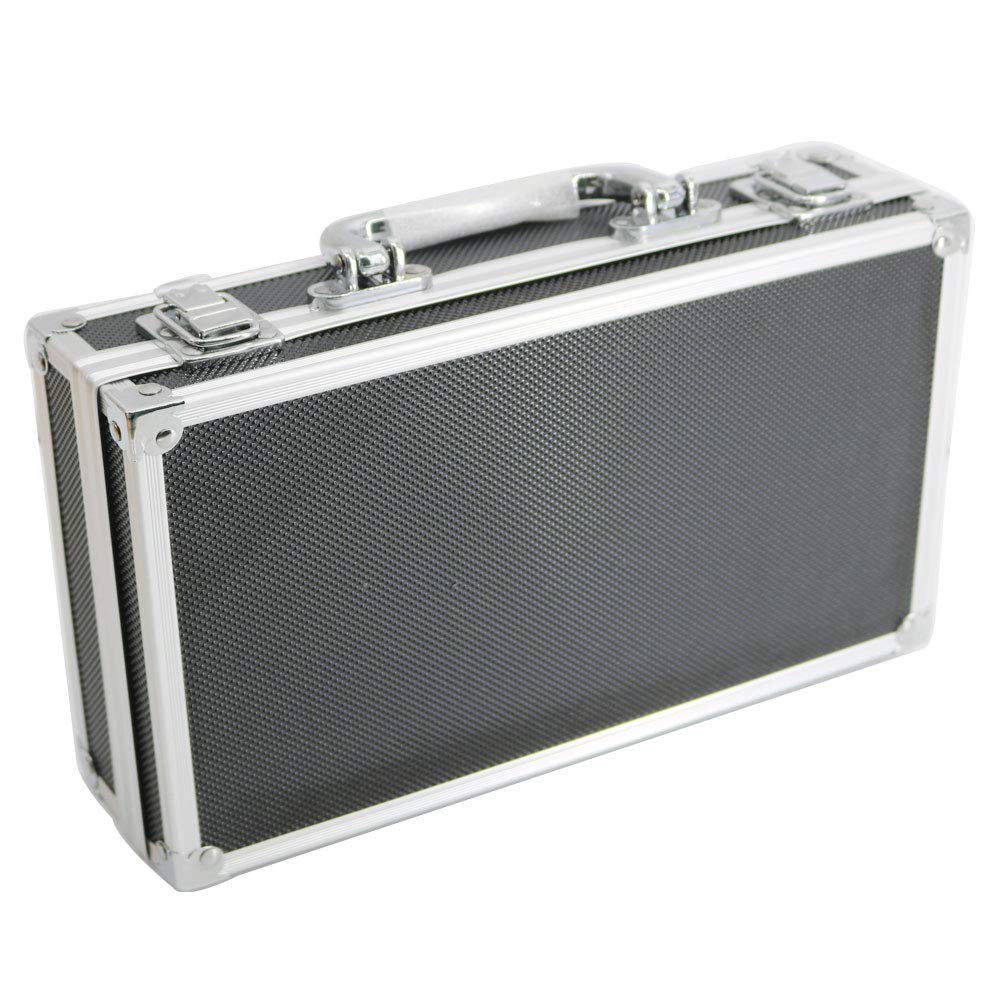

Packing:Aluminium box
