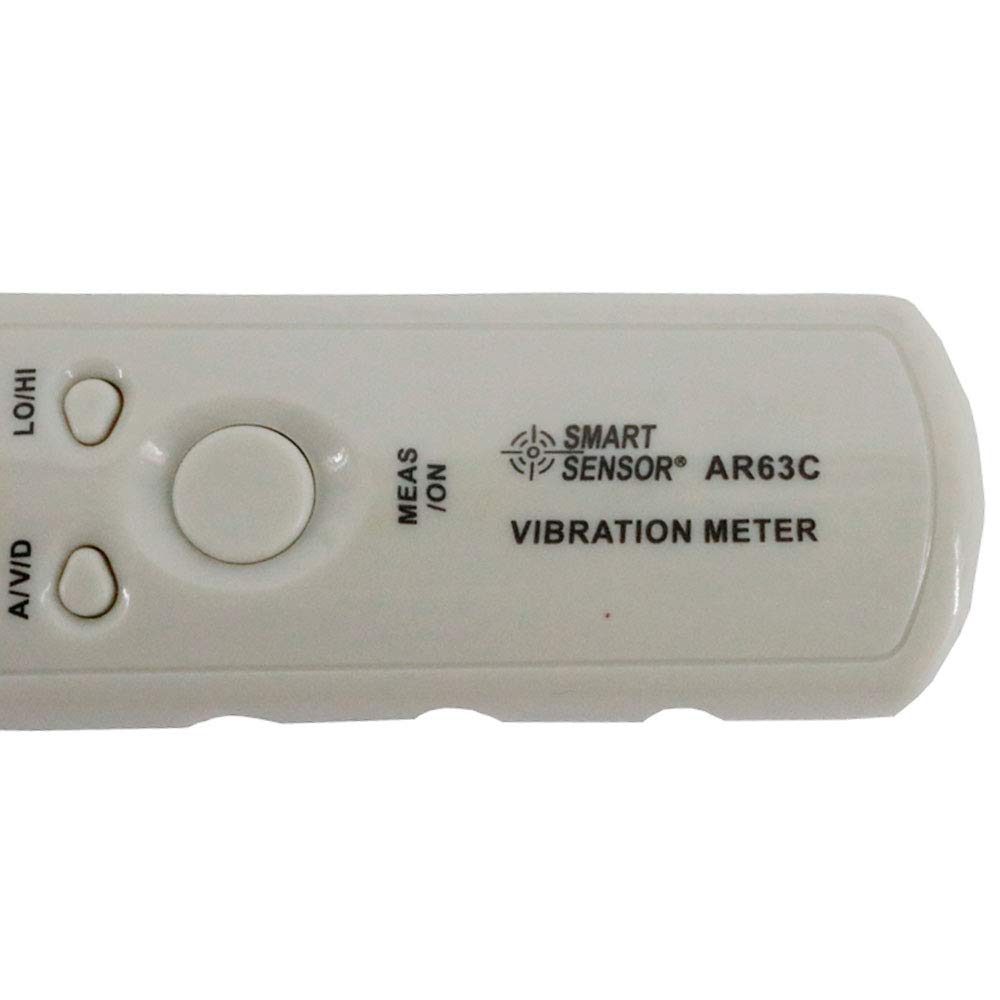

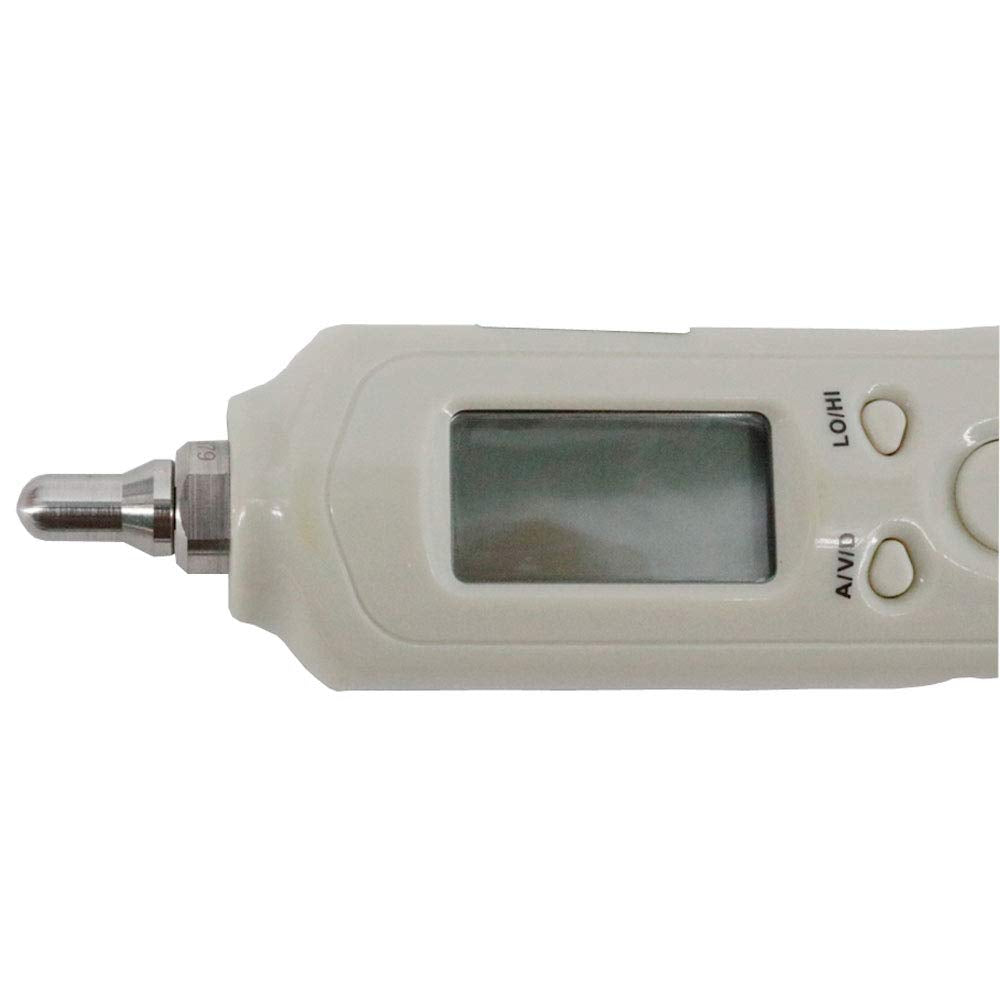

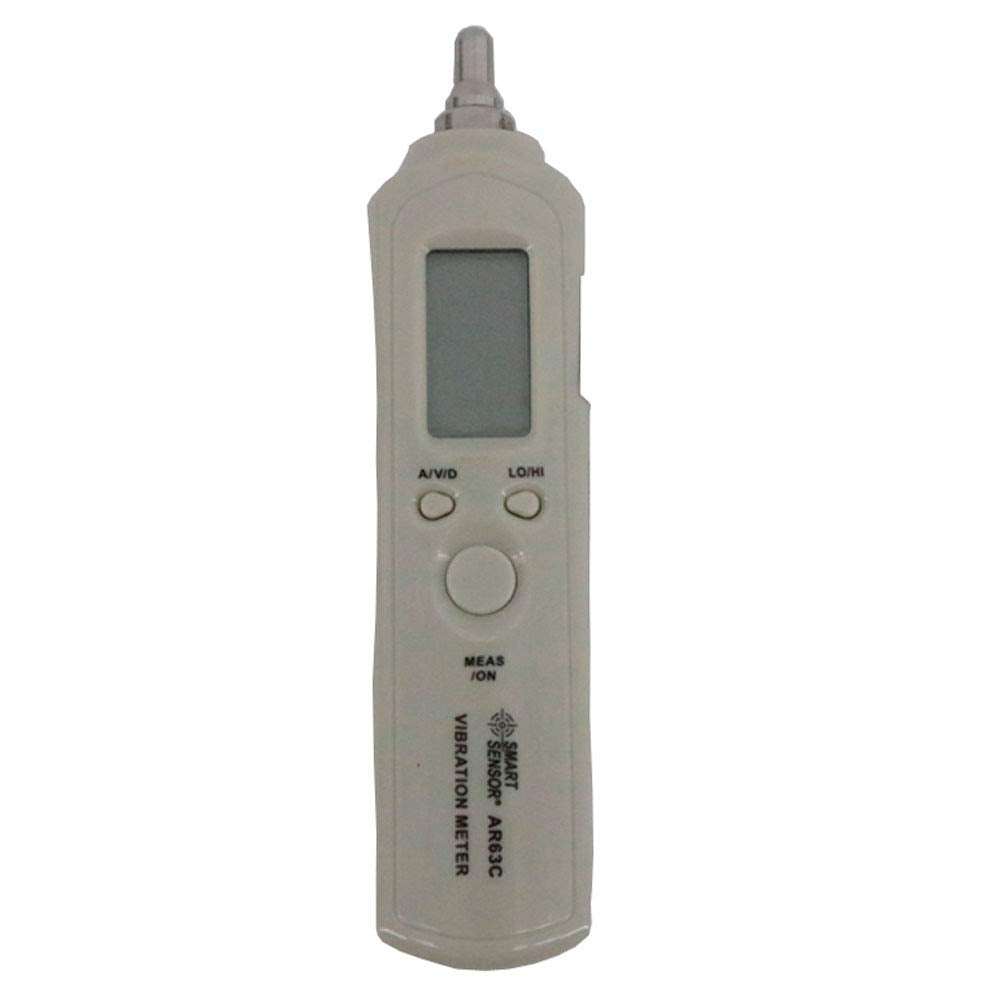

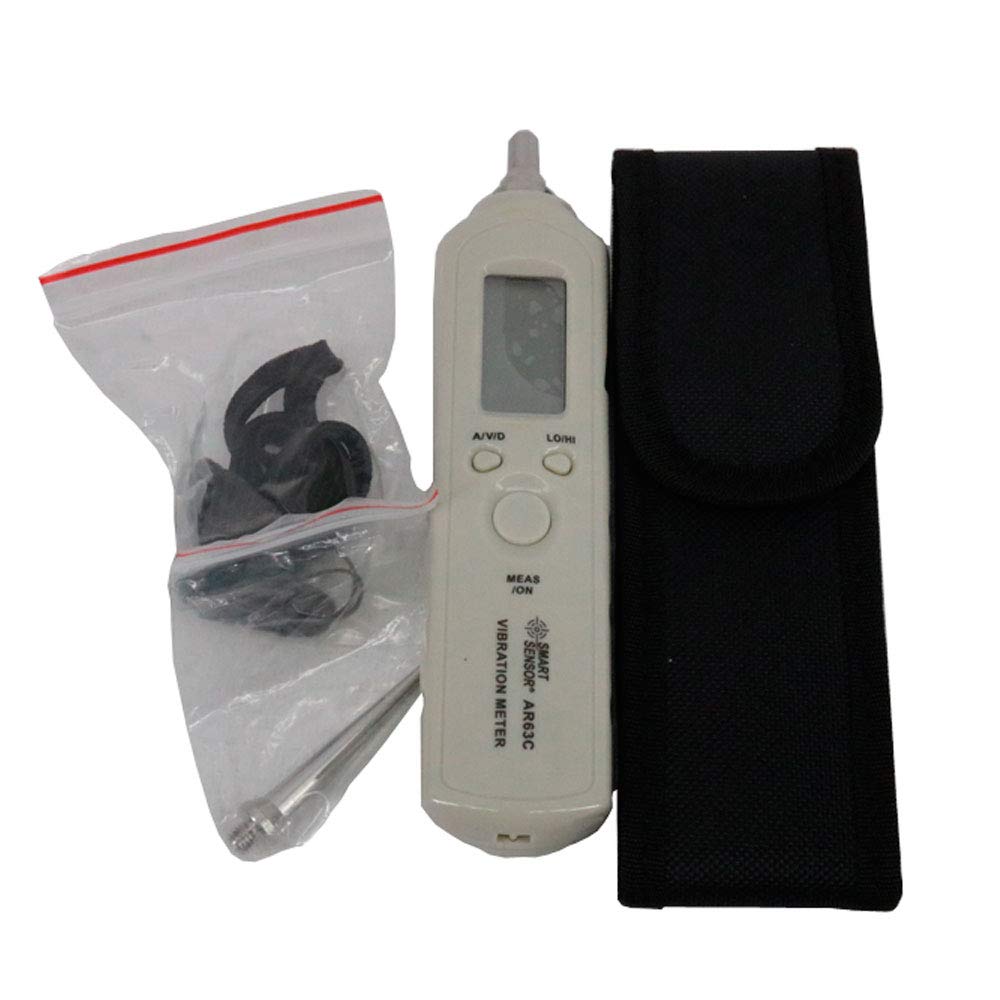

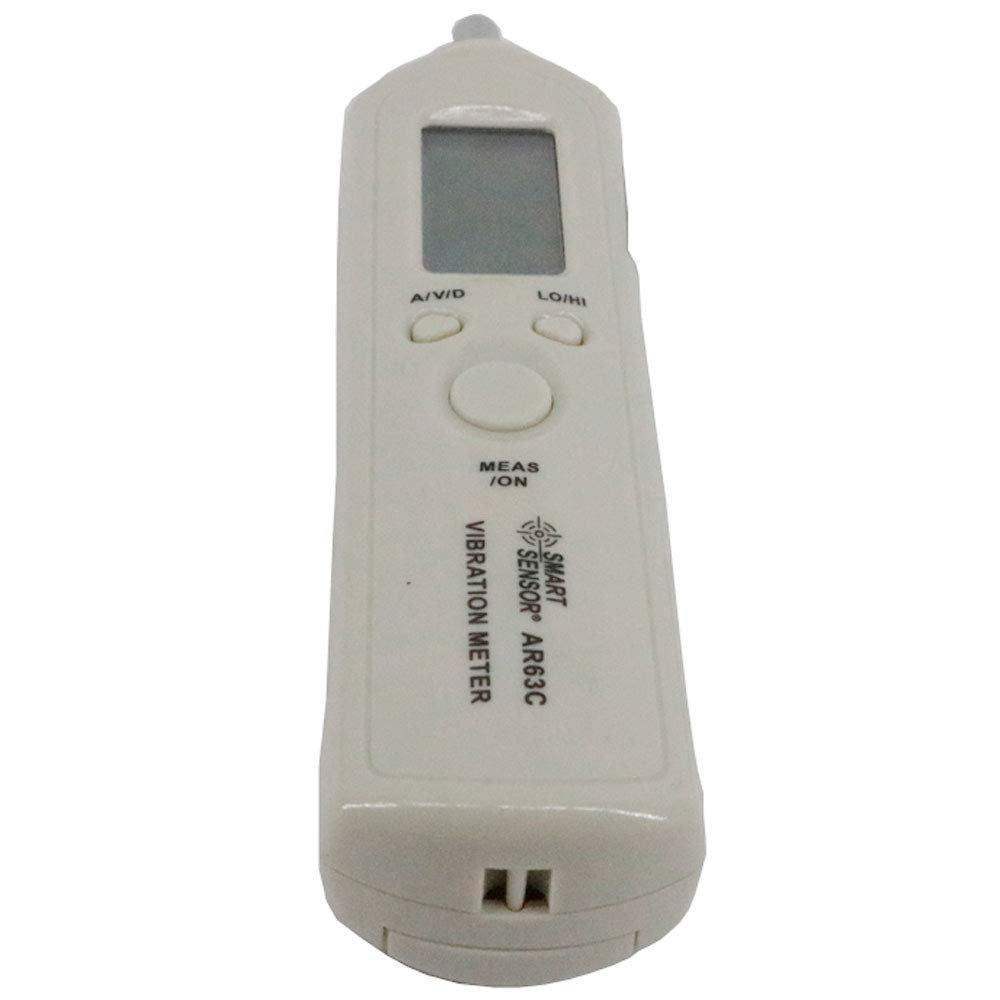

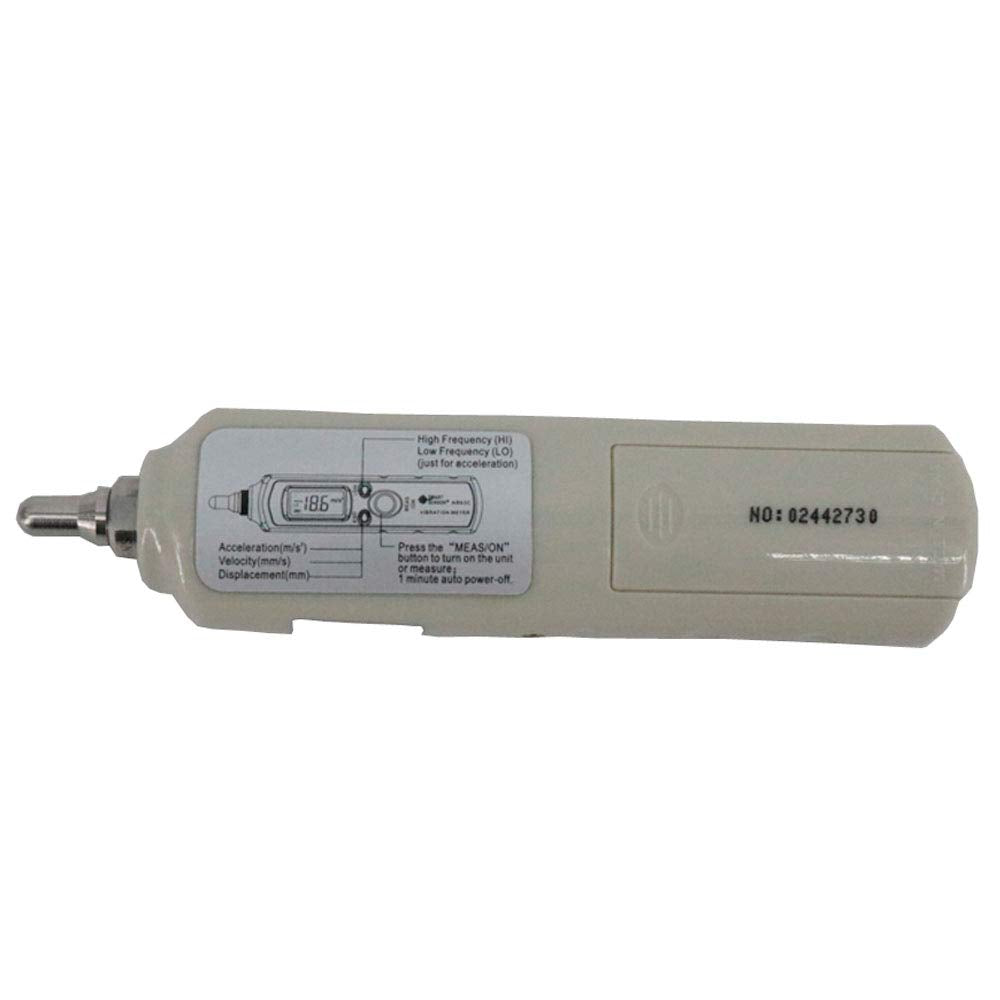

Graigar AR63C Digital Pen Type Vibration Meter Tester Gauge Analyzer Vibrometer Acceleration 0.1~199.9m/s2 Velocity 0.1~199.9m/s

Graigar AR63C Digital Pen Type Vibration Meter Tester Gauge Analyzer Vibrometer Acceleration 0.1~199.9m/s2 Velocity 0.1~199.9m/s

$216.00 USD
$216.00 USD
Sale Sold out

Brand: Graigar

Color: Gray

Features:

  • AR63C vibration meter Velocity 0.1~199.9m/s Accuracy ±5%H±2digits
  • Acceleration 0.1~199.9m/s2
  • Displacement 0.001~1.999mm
  • Velocity Frequency Range 10HZ~1KHZ
  • Acceleration Frequency Range 10HZ~1KHZ(LO) 1KHZ~15KHZ(HI)

model number: AR63C

Part Number: AR63C

Details: Features:
Vibration meter(also called also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

Specifications:
Vibration Pickup:Piezoelectric Ceramic Accelerometer(shear-type)
Acceleration:0.1~199.9m/s2
Velocity:0.1~199.9m/s
Displacement:0.001~1.999mm
Acceleration Frequency Range:10HZ~1KHZ(LO);1KHZ~15KHZ(HI)
Velocity Frequency Range:10HZ~1KHZ
Displacement Frequency Range:10HZ~1KHZ
Accuracy:±5%H±2digits
Singnal Output:AC output
Auto Switch Range:√

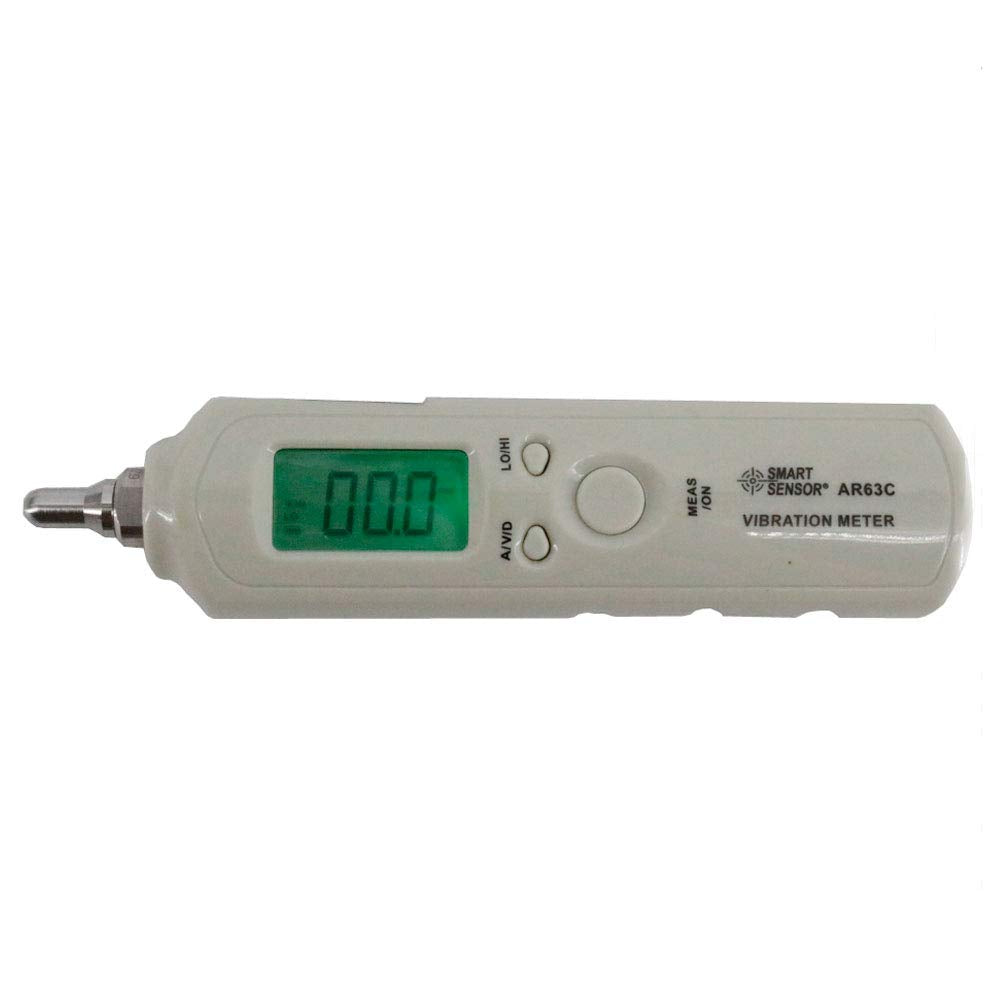

Backlight:√
Auto Power off:√
Power:AAA*2 battery
Product Net Weight:60g
Product Size:150*40*20mm

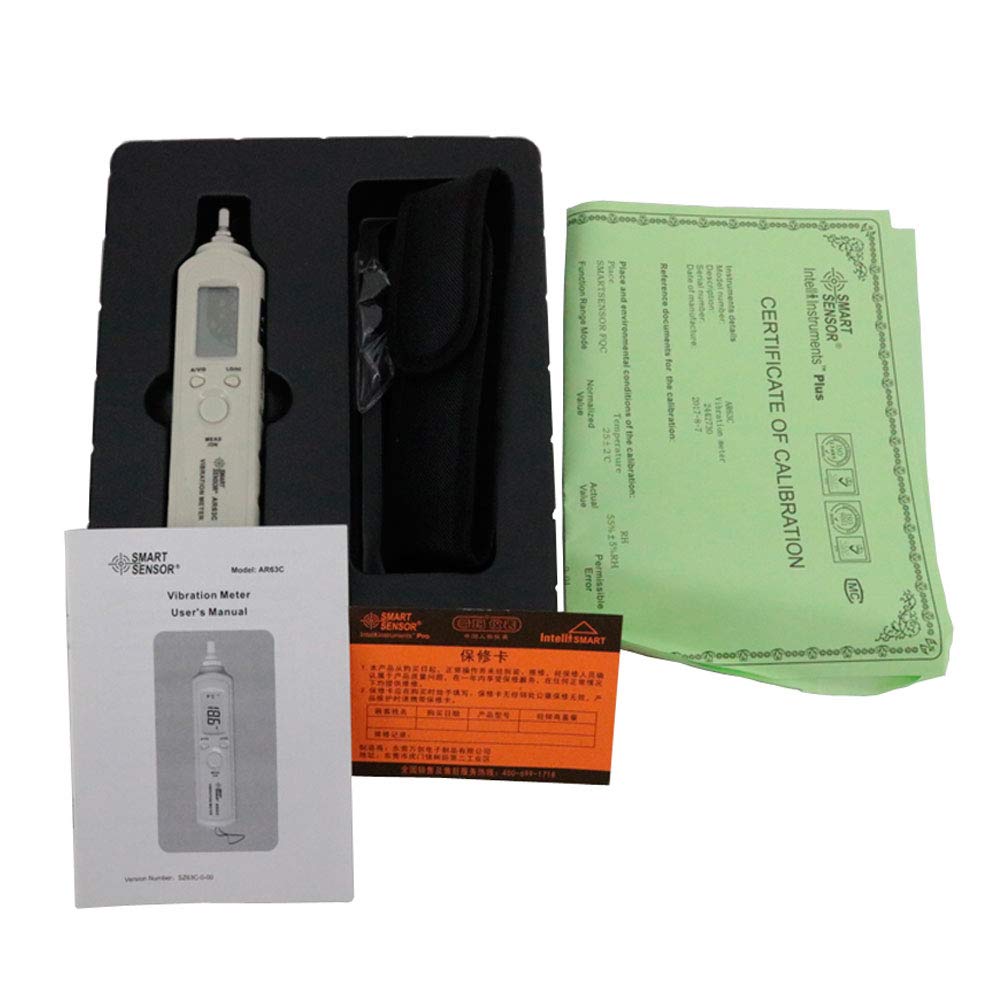

Packing:Gift box

EAN: 0705419446714
