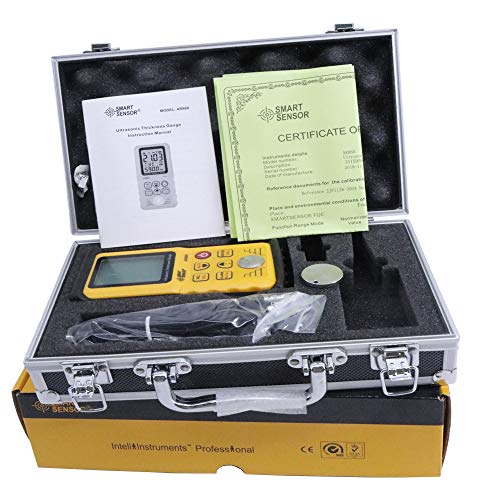

AR860 Ultrasonic Thickness Meter measuring sound velocity with a given thickness.Capable of measuring any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron,etc.
Minimum limit for tube measuring: φ15*2mm(steel)( φ6)/ φ20*3mm(steel) ( φ10); Thickness data storage:12 groups; Sound Velocity Measuring&Storage: 12 groups. Automatic Zero Calibration.
Product Size: 153*75*35mm .Product Net Weight: 275g. Power: 3*1.5V AAA batteries (not included) Couplant is not included.
Menu-driven, multifunctional tester with basic measurement capabilities.Measurement units:mm/inch
Part Number: AR860
Details: Features:
The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications.
Specifications:
Measuring Range: 1.2~300mm
Accuracy :±(1%H+0.1)mm
Resolution :0.1mm
Sound Velocity: 1000~9999m/s
Operating Frequency: 5MHz
Operation Condition :0°C~40°C
Sound Velocity Measuring & Storage :12 groups
Minimum limit for tube :
Φ15 x 2mm(Steel) (Φ6)
Φ20 x 3mm(Steel) (Φ10)
measuring :
Backlight Display: √
Auto Zero Calibration: √
Auto linear compensation: √
Coupling Indicator :√
Battery Indication: √
Auto/Manual Power Off: √
Packing information:

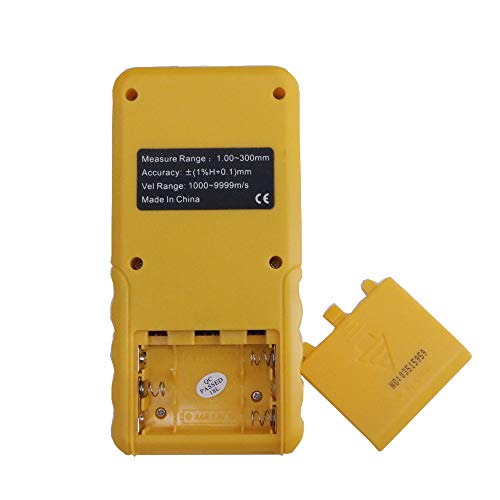

Power 3*1.5V AAA battery ( No Battery Included )
Product Net Weight 275g
Product Size 75*153*35mm
