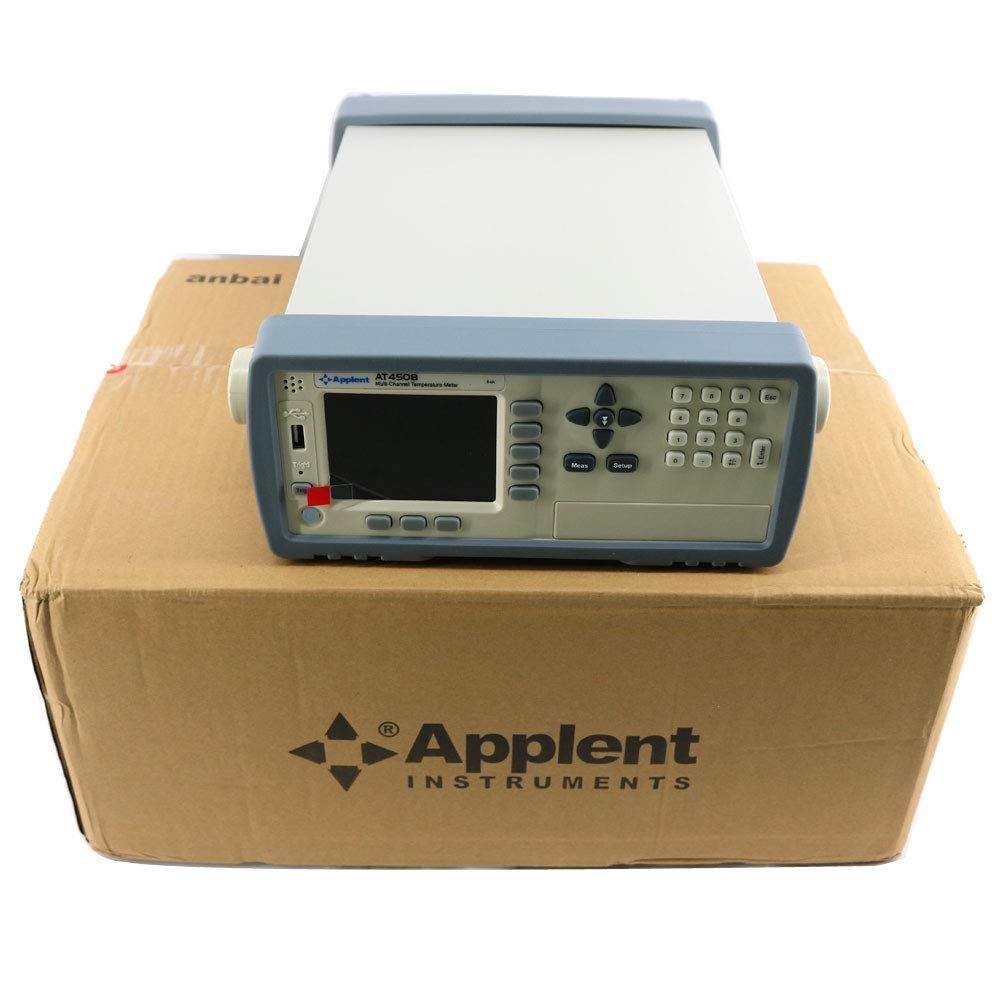

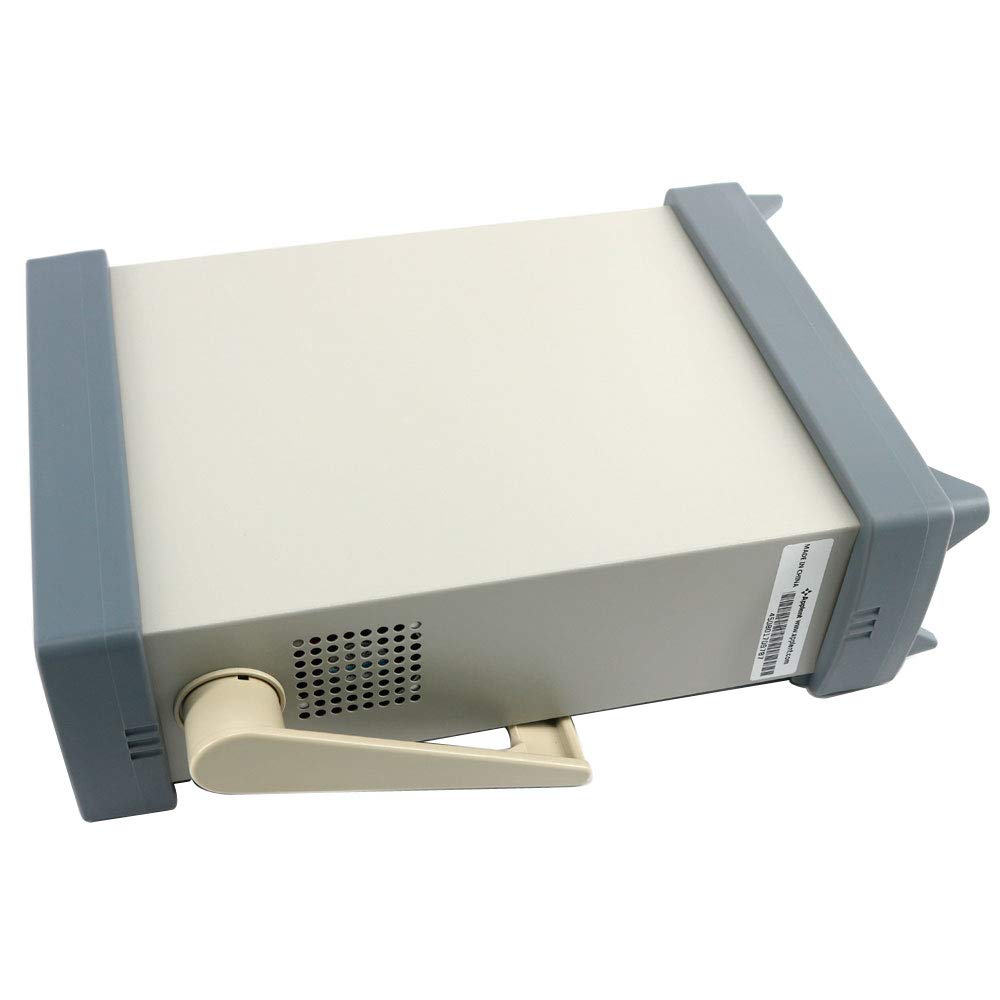

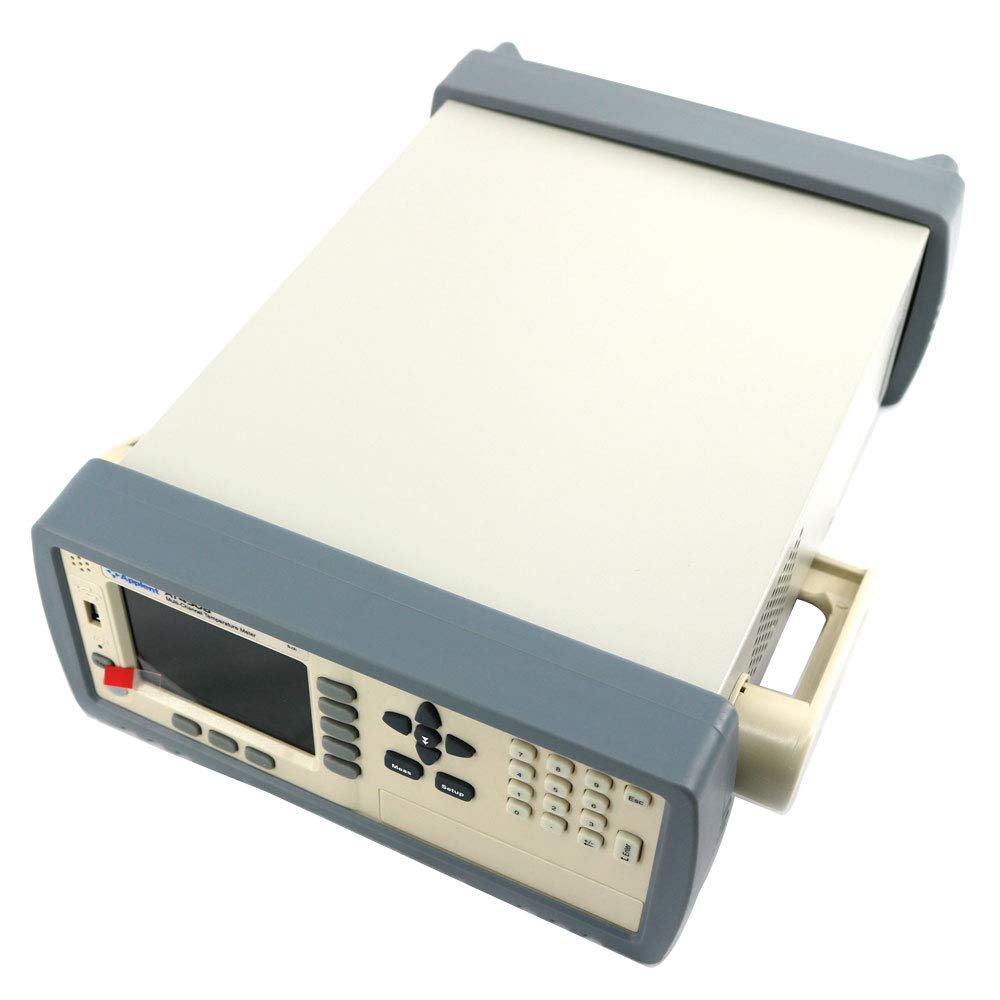

AT4508 temperature meter sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital

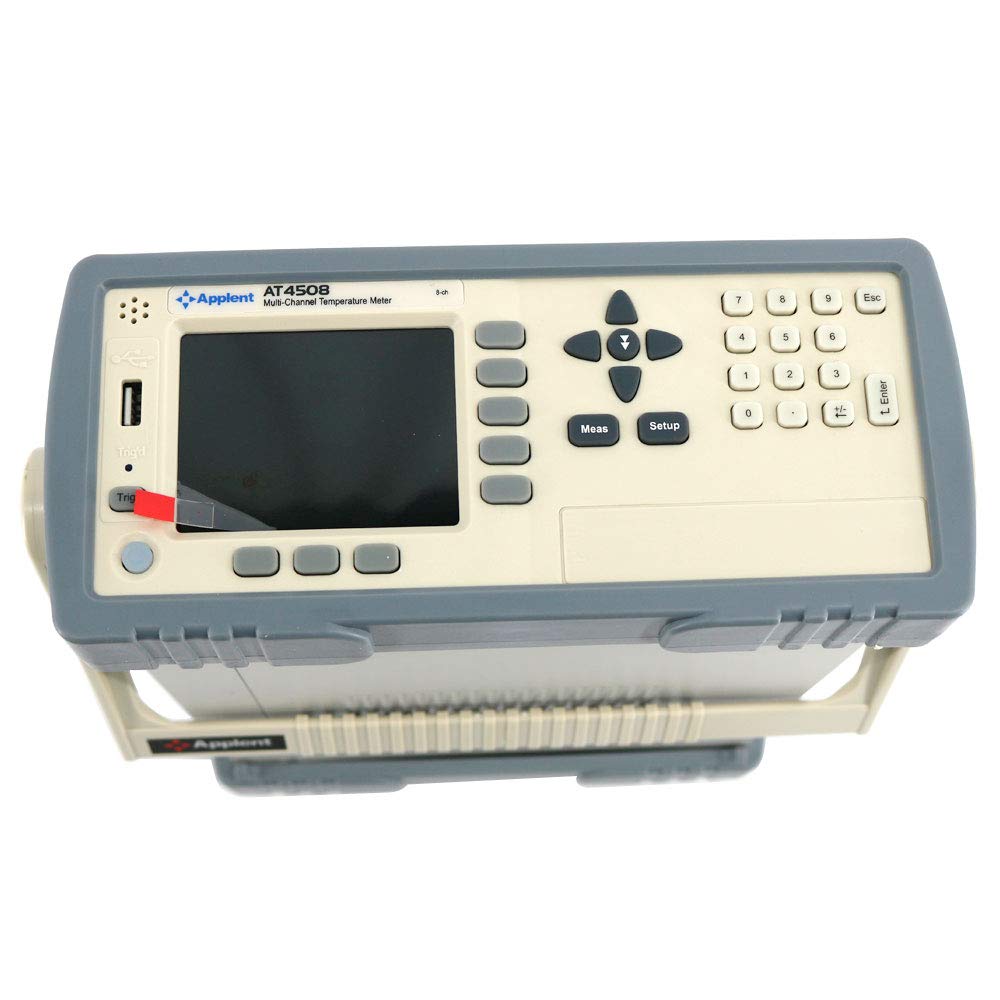

The AT4508 is easy to set up and reconfigure from the front panel.
AT4508 has bi-directional communication via RS-232C, which enables control from a host computer.
The AT4508 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget.
AT4508 is tested to stringent shock and vibration standards.
Part Number: AT4508
Details: Application
Apply to home appliance, motors, heating appliance, temperature controller, transformer, oven, thermal protector, power supply, lighting, electric power, LED and so on.
Technical Specifications
* Model: AT4508
* Graduation: thermocouple：J/K/T/E/S/N/B/R
* Accuracy: 0.2%+1℃
* Range: -200C~1300C（Varying depend on graduation）
* Resolution: 0.1℃
* Channels: 8 channels; Can be expanded to 128 channels
* Speed: Fast：100ms/channel Medium：500ms/channel Low：1s/channel
* Correction: Error correct for each channel
* Comparator: High/low beep Individual setting high/low value for each channel
* Interface: RS232C interface U-disc interface USB communication interface
* Cold Junction Accuracy: 0.5℃
* Other features: TFT-LCD True-color LCD display，broken thermocouple check function
* Size and weight: 216mm(Width)x88mm(Height)x300mm(Depth), 3kg
* Power requirements: Voltage：85VAC～260VAC Frequency：50Hz/60Hz Power：10VA

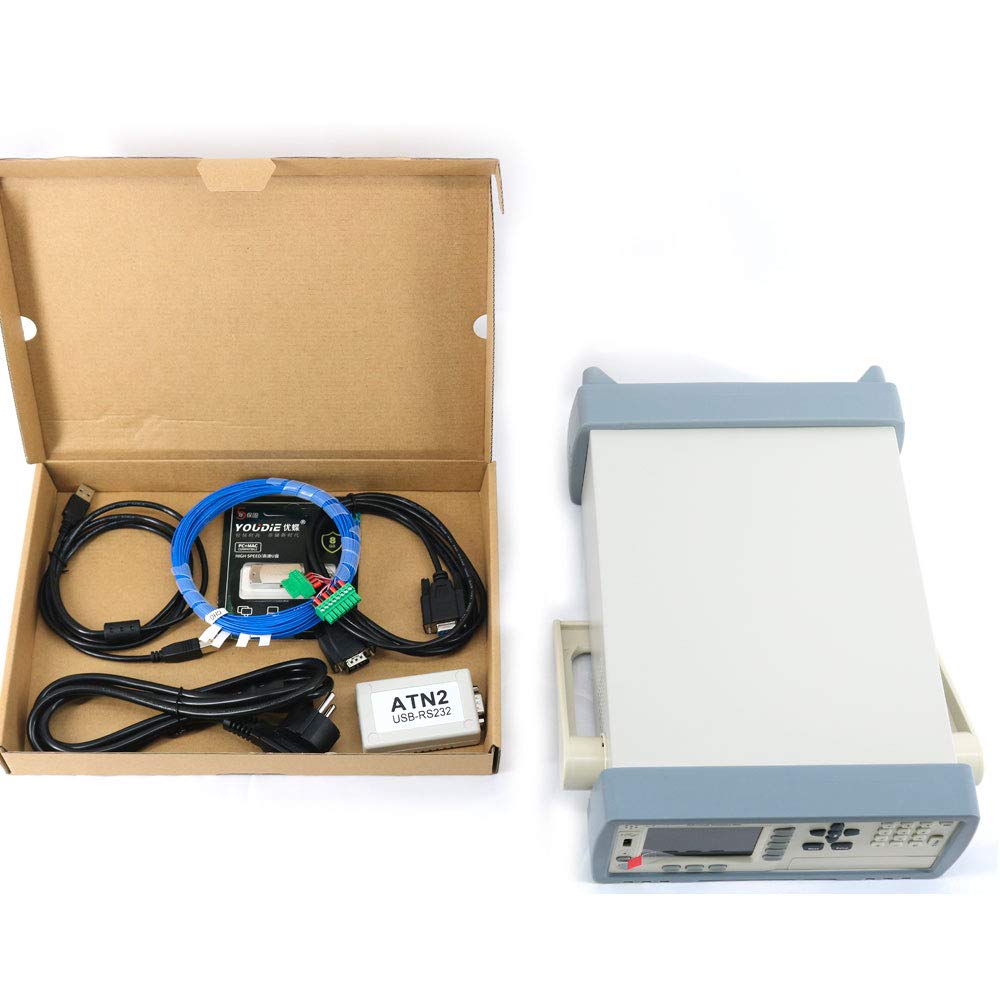

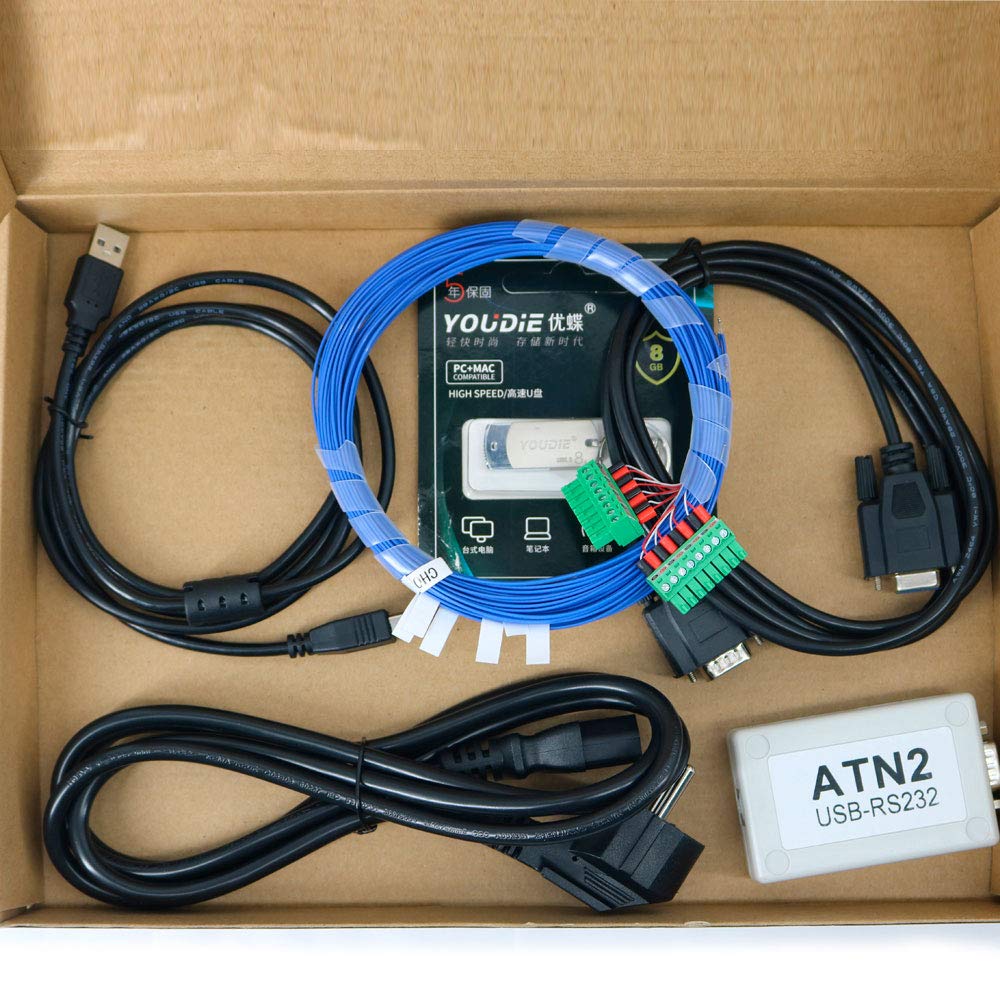

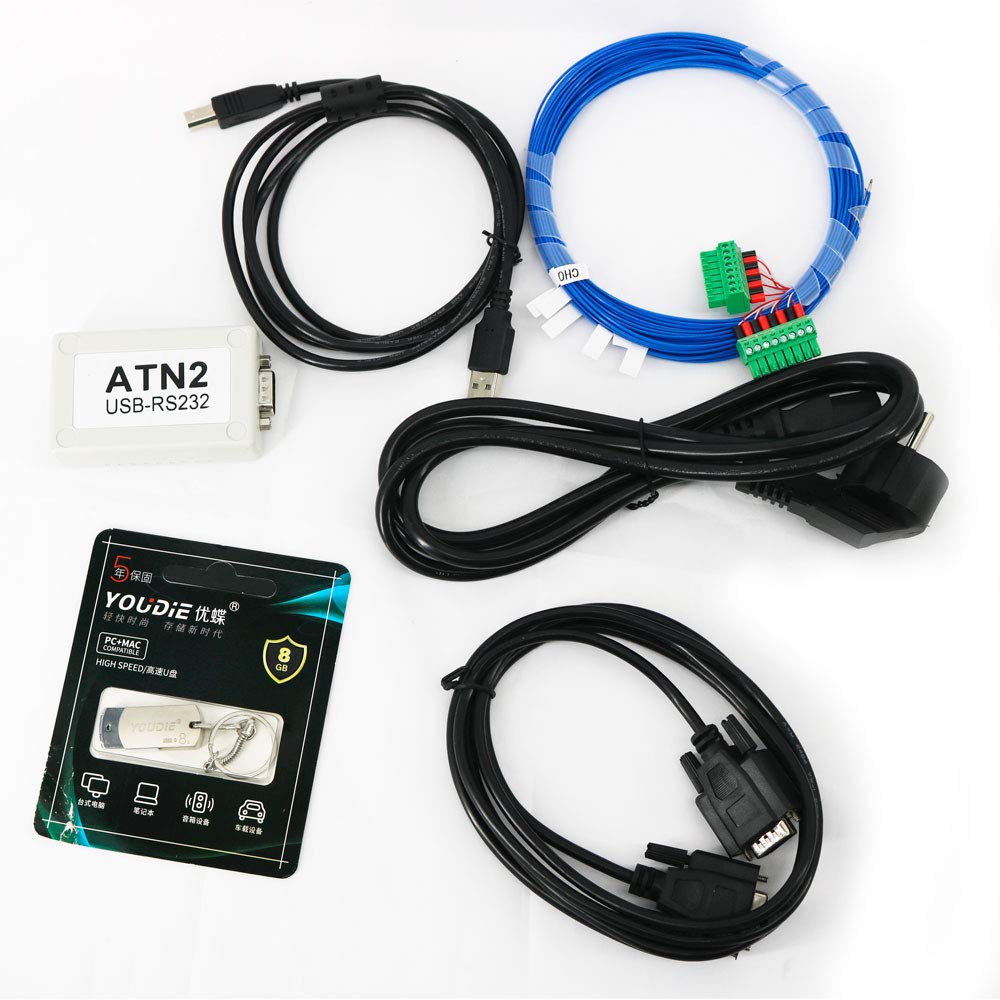

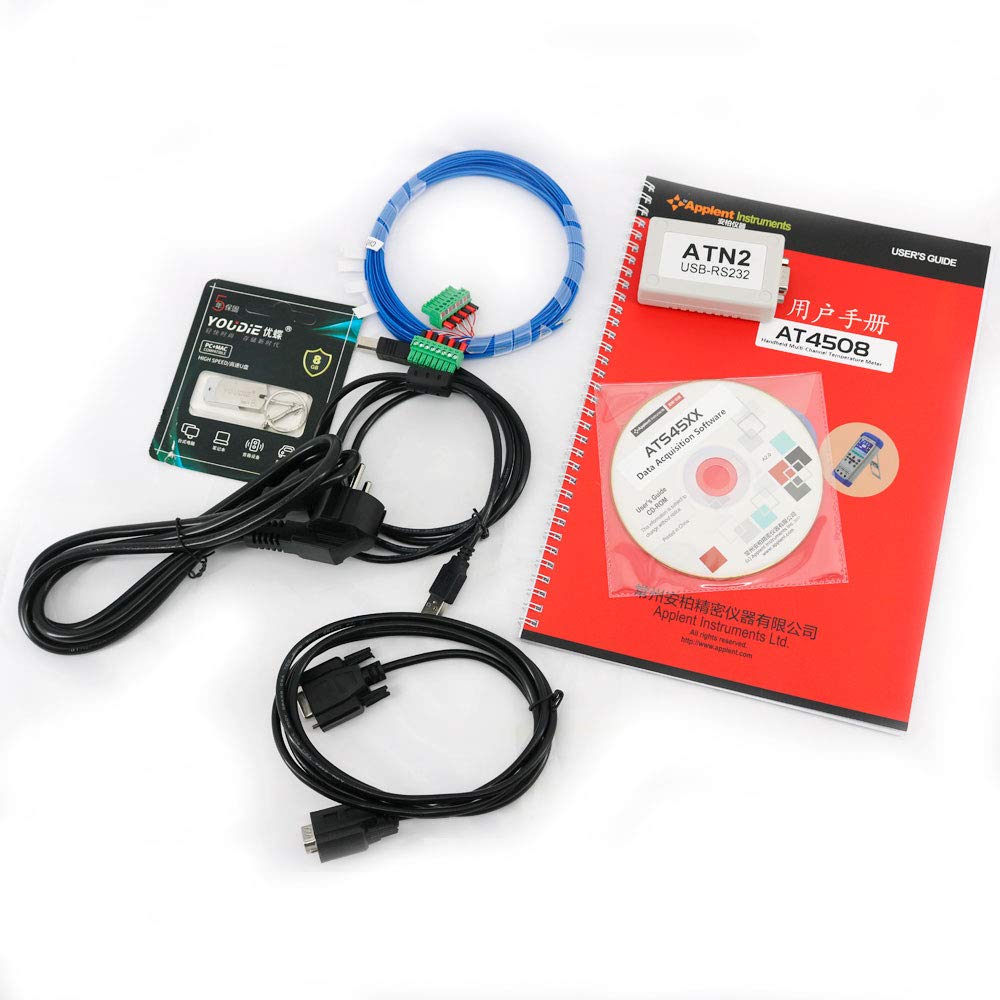

* Accessories: AT4508: K thermocouple 8 teams(2m/team) ATS45 data acquisition software
