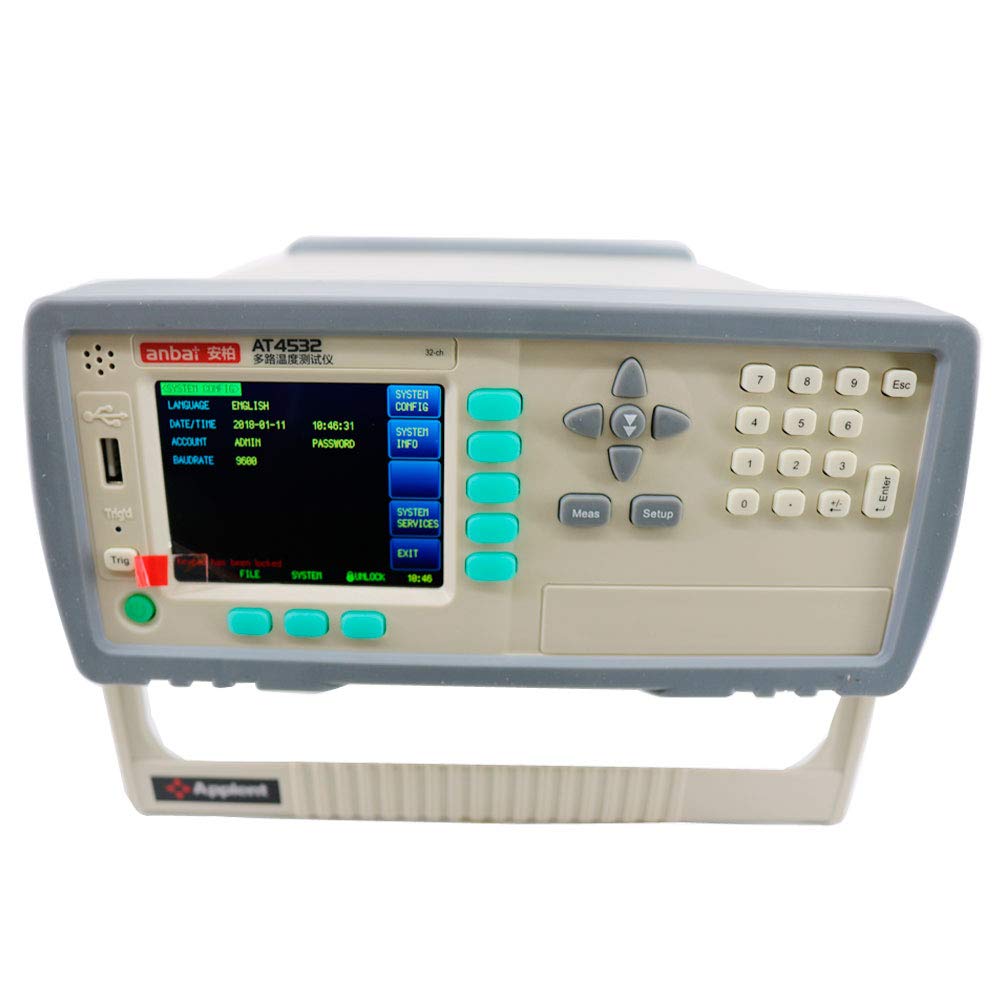

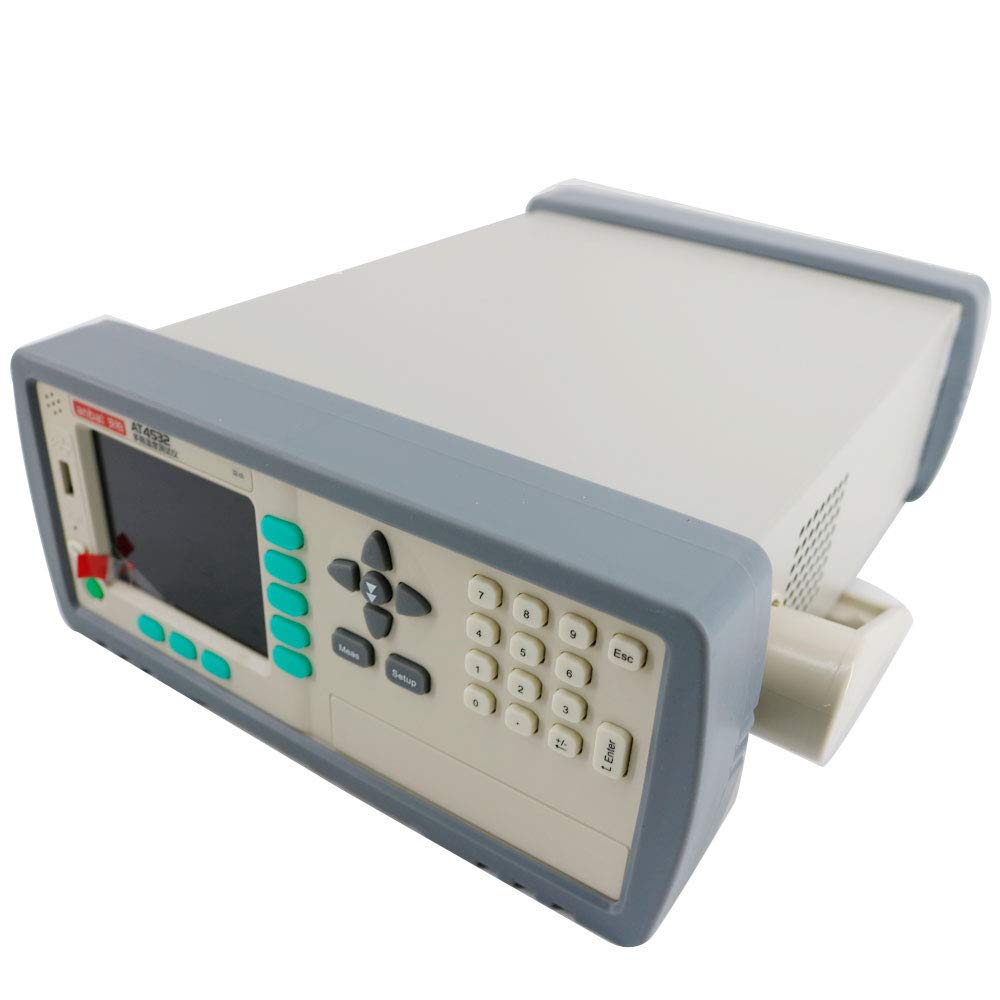

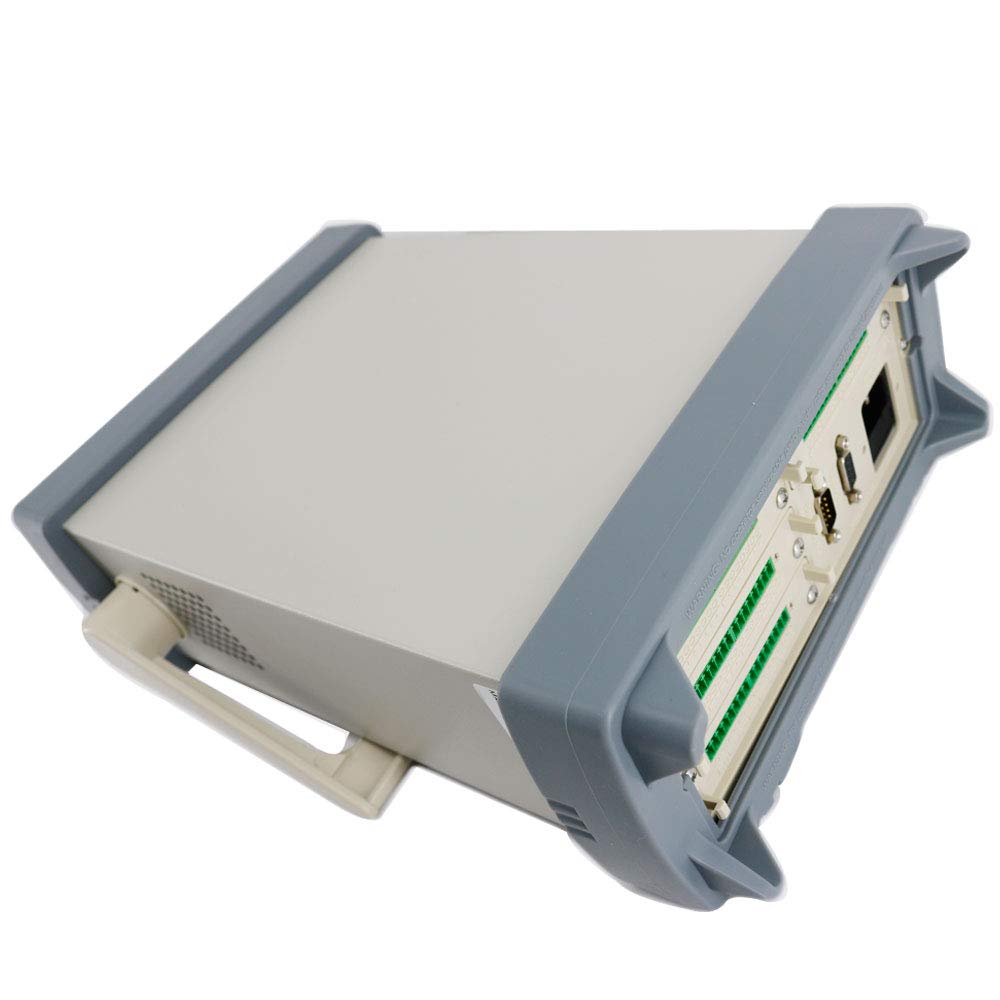

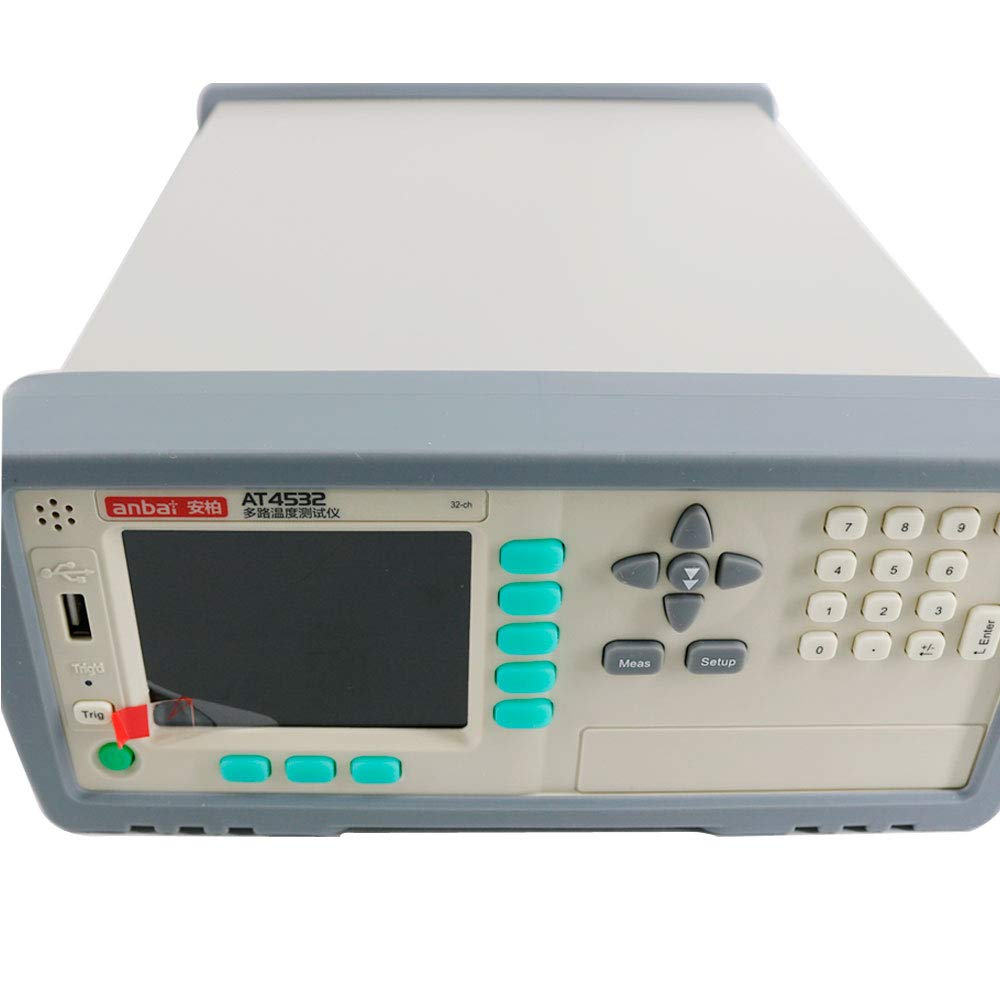

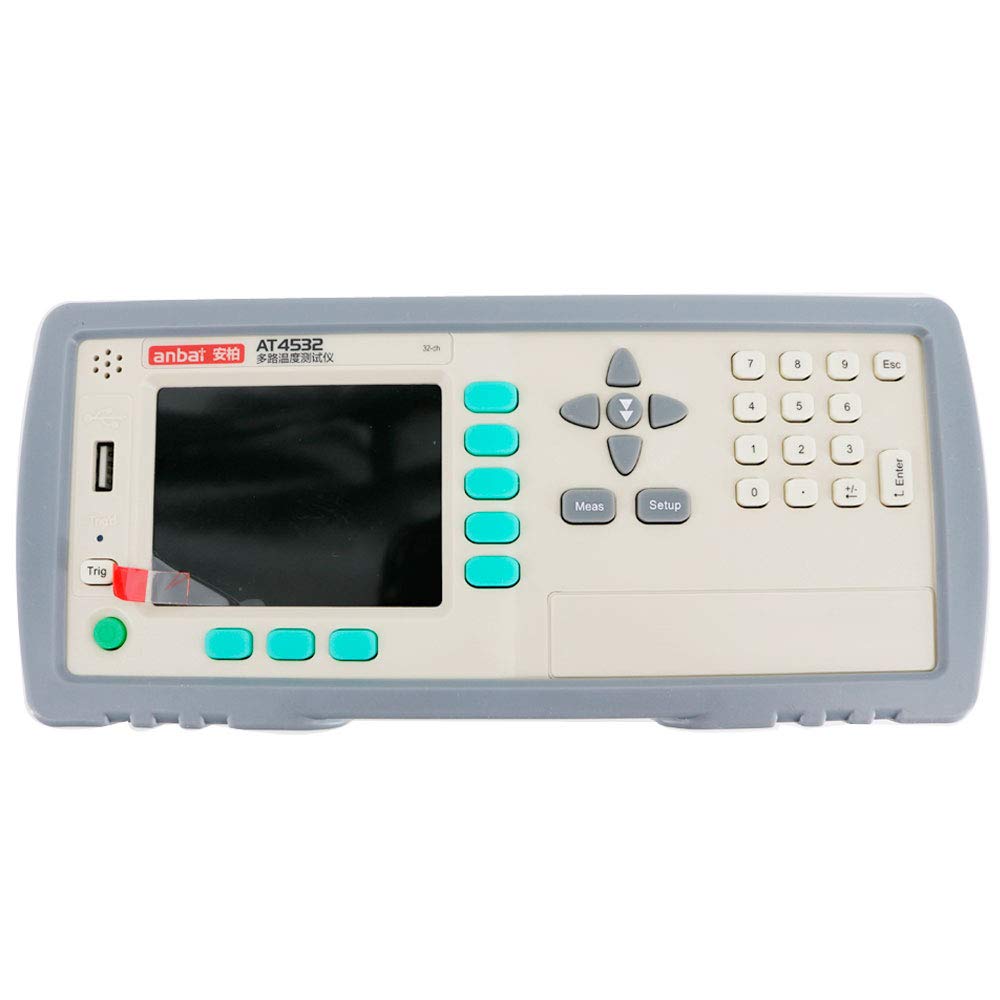

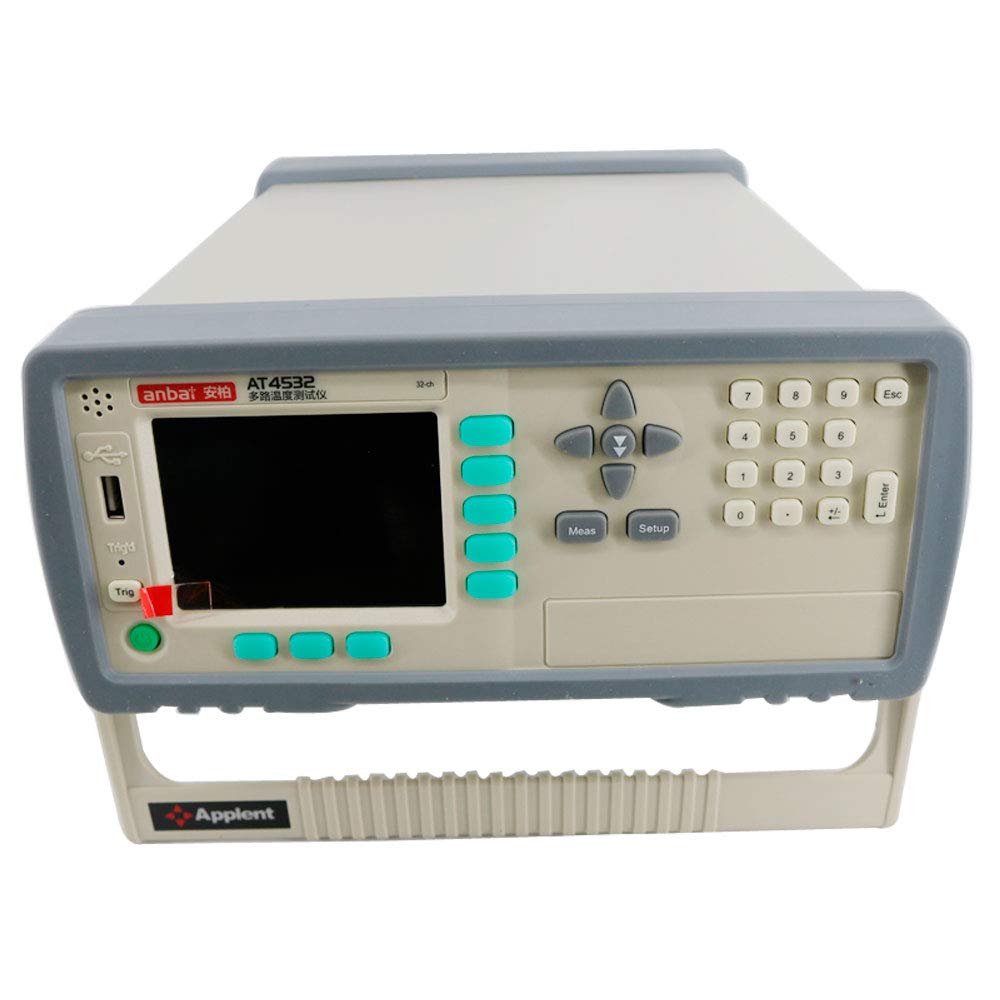

Graigar AT4532 32 Channels Temperature Recorder Meter Temperature Data Logger with TFT-LCD Display Thermocouple Data Logger -200℃～1300℃

Brand: Graigar

Color: Gray

Features:

• TFT True Color LCD Display AT4532 temperature recorder meter is tested to stringent shock and vibration standards. USB-Disk Interface
• Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.

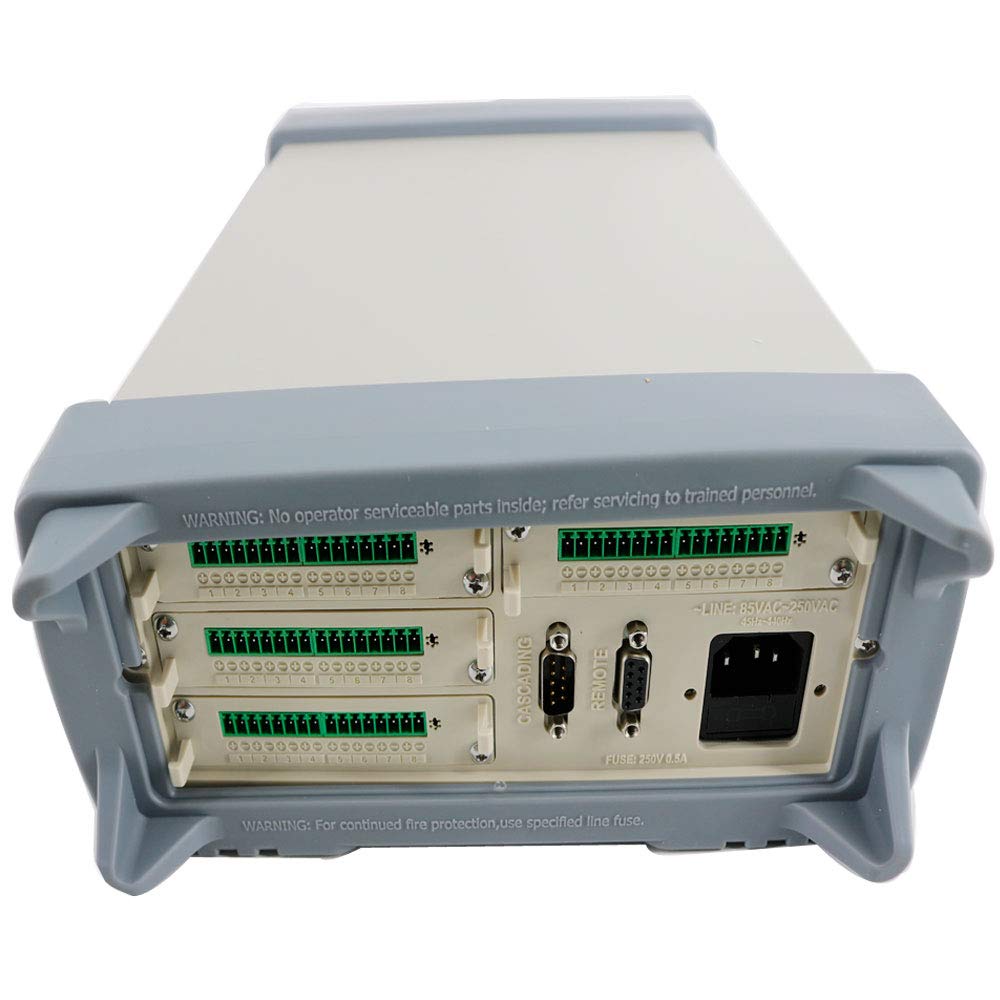

• Interface: RS232C and USB Slaver Interface AT4532 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital circuitry .
• The AT4532 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget.
• Scan speed: Fast/Med/Slow The AT4532 is easy to set up and reconfigure from the front panel. AT4332 has bi-directional communication via RS-232C, which enables control from a host computer.

Part Number: AT4532

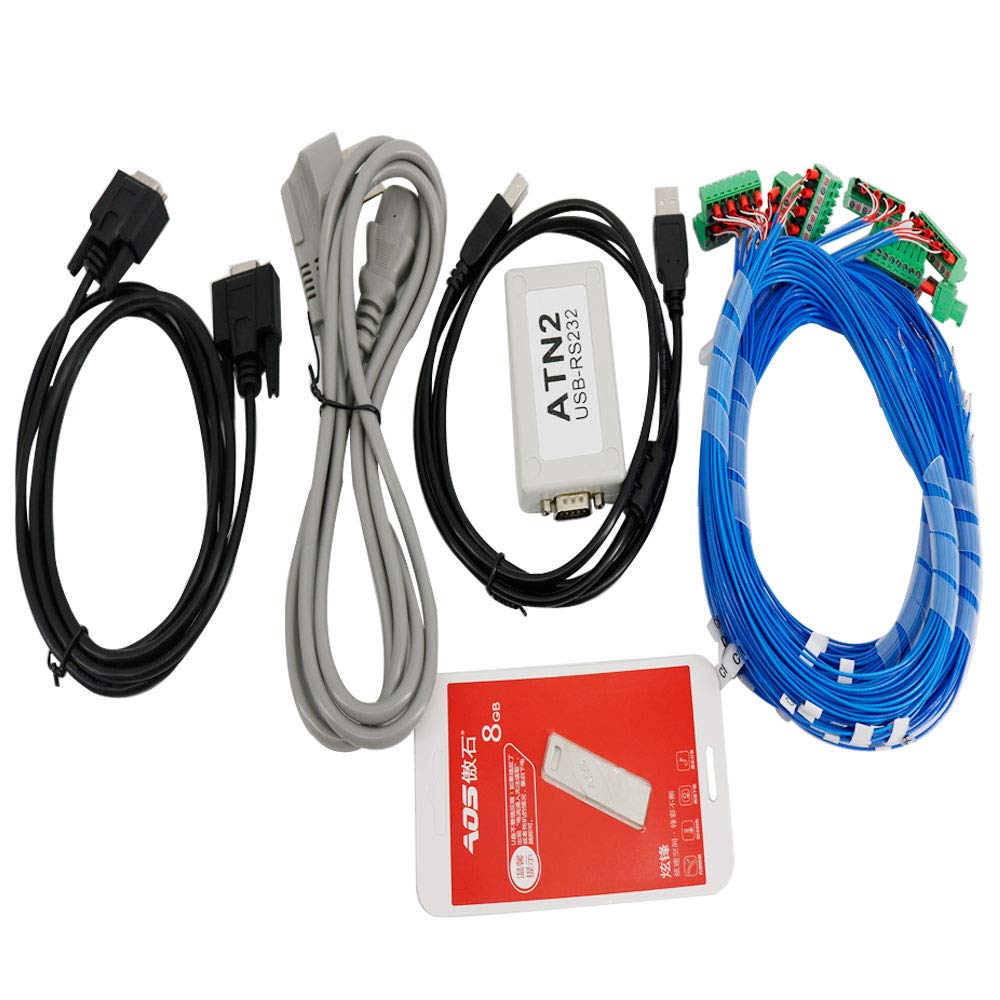

Details: Features:Scan speed: Fast/Med/SlowCold Junction CompensationTFT True Color LCD Display.Interface: RS232C and USB Slaver InterfaceUSB-Disk InterfaceSpecifications:Graduation:thermocouple: J/K/T/E/S/N/BAccuracy:0.2%+1ºCRange:-200ºC~1300ºC(Varying depend on graduation)Resolution:0.1ºCChannels:32 channels; 128 channels are availableSpeed:Fast:100ms/channel Medium:500ms/channel Low:s/channelCorrection:Error correct for each channelComparator:High/low beep Individual setting high/low value for each channelInterface:RS232C interface U-disc interface USB communication interfaceSoft:ATS45 data acquisition softwareCold junction  compensation:Accuracy:0.5ºCOther:TFT-LCD True-color LCD display,broken thermocouple checking functionPower Supply:Voltage:85VAC-260VAC Frequency:50Hz/60Hz Power:10VADimension & Weight:216mm(Width)x88mm(Height)x300mm(Depth) 3kgAccessories:AT4532: K thermocouple 32 teams(2m/team) ATS45 data acquistion software

EAN: 0799649265412
