Graigar AT516L DC Resistance Meter Micro Ohm Meter with Digital Resistors

Brand: Graigar

Color: Gray

Features:

• AT516L DC resistance meter adopts high-performance ARM microprocessor
• It is a desktop instrument that can do full-automatic real-time test with 0.1% accuracy and 1μΩ~30KΩ measurement range.
• With 5 digits display, 30000 reading, the maximum sampling rate is 7ms.
• The built-in temperature compensation interface to reduce the tolerance. The built-in 1 bins of comparator output, can setup 10 GD bins, all the comparator results can be output by Handler interface.
• The standard RS-232 interface, using SCPI, it can be communicated with PC, to efficiently complete remote control and data acquisition.

Part Number: AT516L

Details: Descriptions:

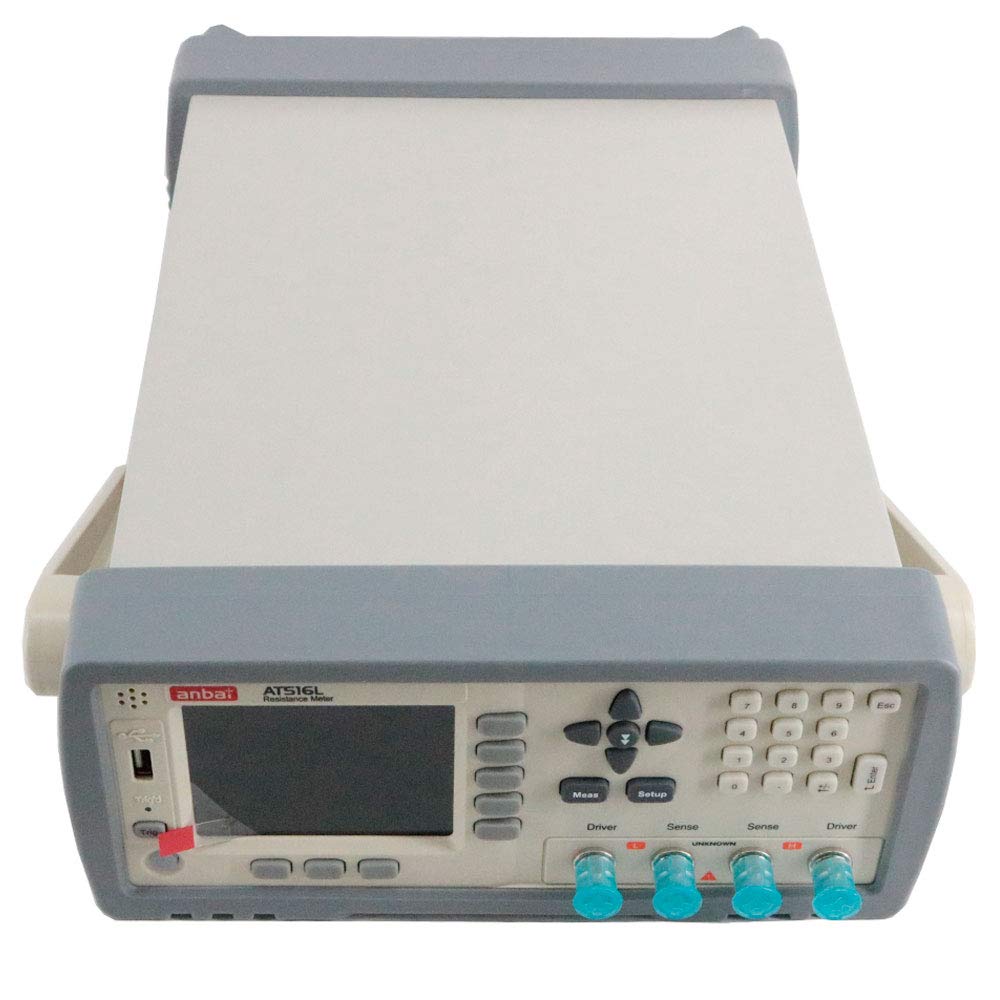

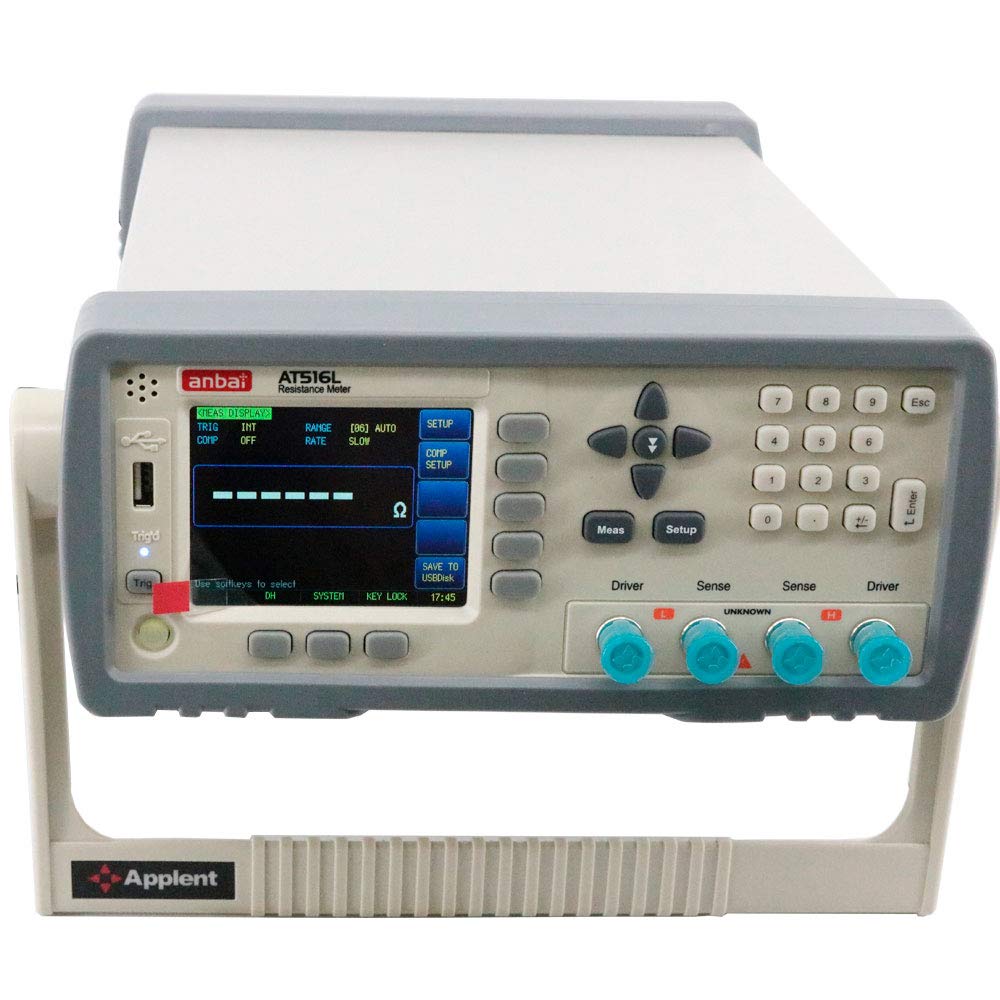

AT516L is brand-new design DC resistance meter with high precision and high stability, which adopts high-performance 32dgt ARM micro processor control. 3.5 inches true-color LCD display screen with Chinese and English menu, and it is easy to operate. AT516L can be applied to various kinds of resistors, switches contact resistance, connector contact resistance, relay coils and contact resistance, transformers, inductors, motors, deflecting coiling resistance, welding contact conductor resistance, the metal riveting resistance of vehicles, boats, airplanes, printed circuit lines and crack detection and so on.

Feature:
High brightness, ultra clear four-color VFD Display.
Double display: ΔABS/Δ/Sorting Result
Zero-setting Function: Zero-Adjust for each ranges.
Comparator Function: (Stores up to 30 group comparators)
HI/IN/LOW/GD/NG sorting results display and output.
Self-Calibration: Temperature compensation.
Self-Calibration: Thermoelectromotive force compensation.
Heavy current test mode(Open voltage <20mV).

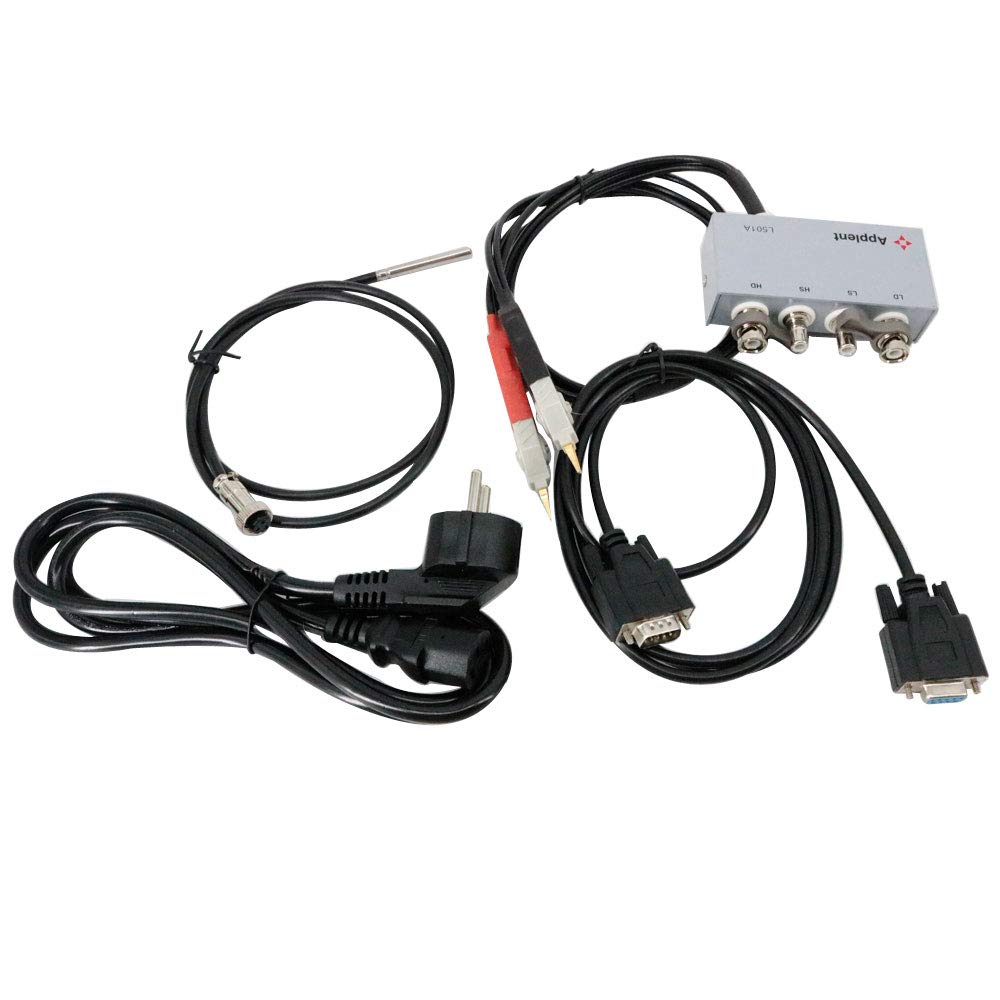

Four-terminal resistance test

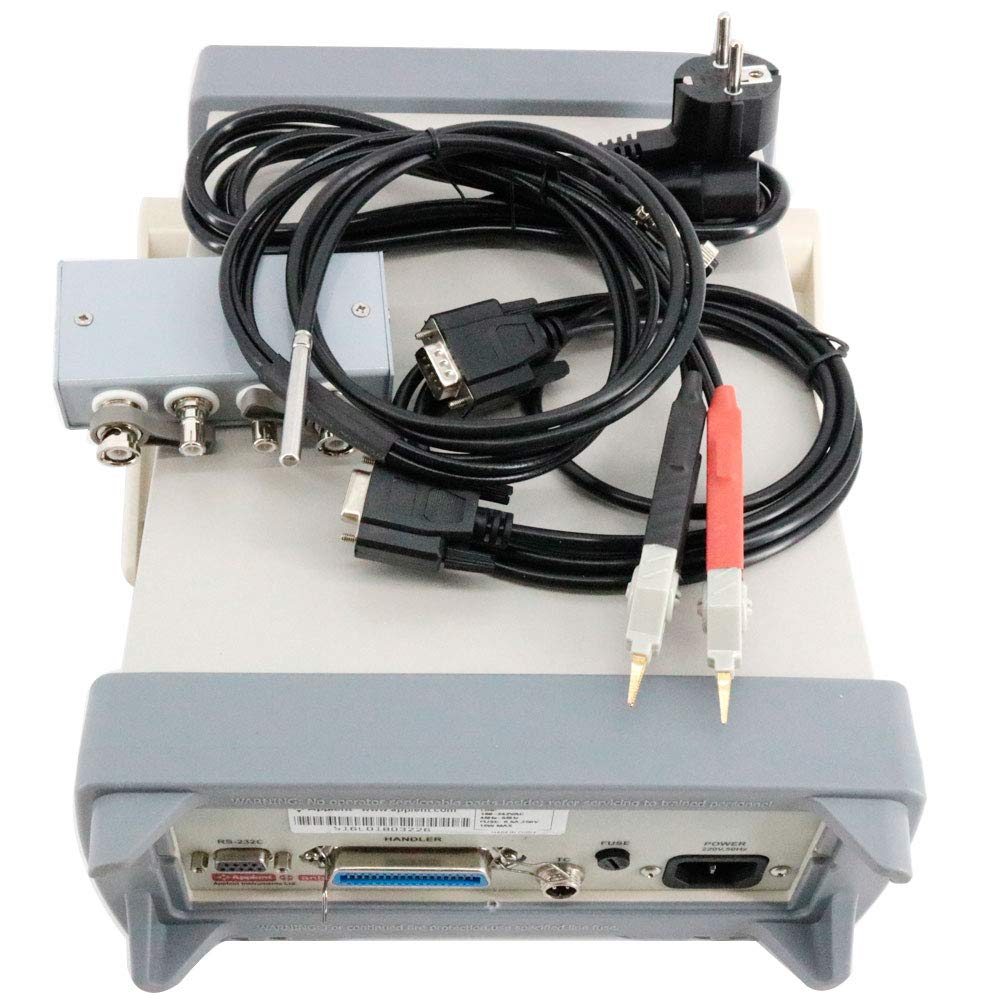

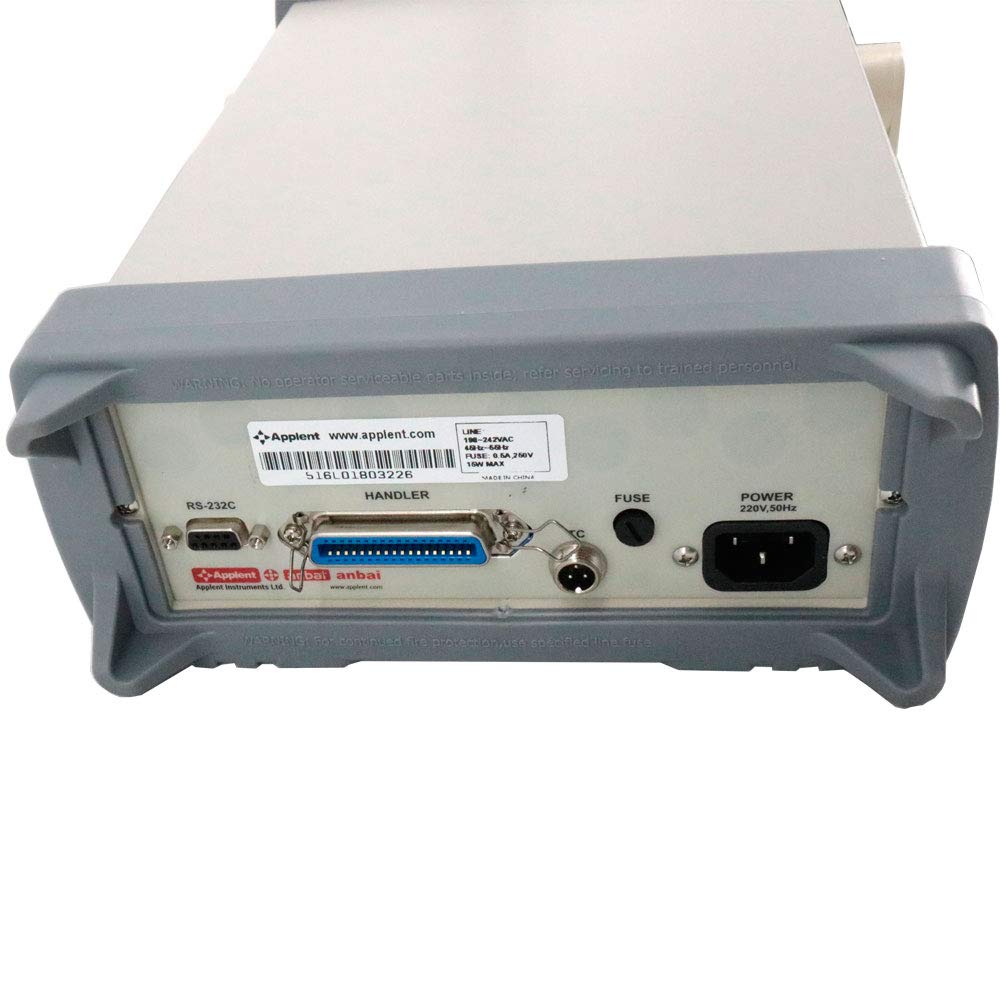

Build-in RS-232C, Handler(EXT-I/O) Interfaces
Adjustable Beeper and display
Internal,Manual,External and Remote Trig.
GPIB Interface(Optional).
SCPI compatible command sets.
Keypad lock function.
Data Hold function.

Application:
Suitable for all kinds of high, middle and low resistor
Contact resistance of the switches
Contact resistance of all kinds of connector
Resistance of motor and transformer
windings,
Enamel-insulated wire resistance.
relay/switch connector contacts,
PCB patterns,
Chip inductor DC resistance.
Wire Resistance.
Car,ship and plane fasten or secure resistance.

EAN: 0799649265382
