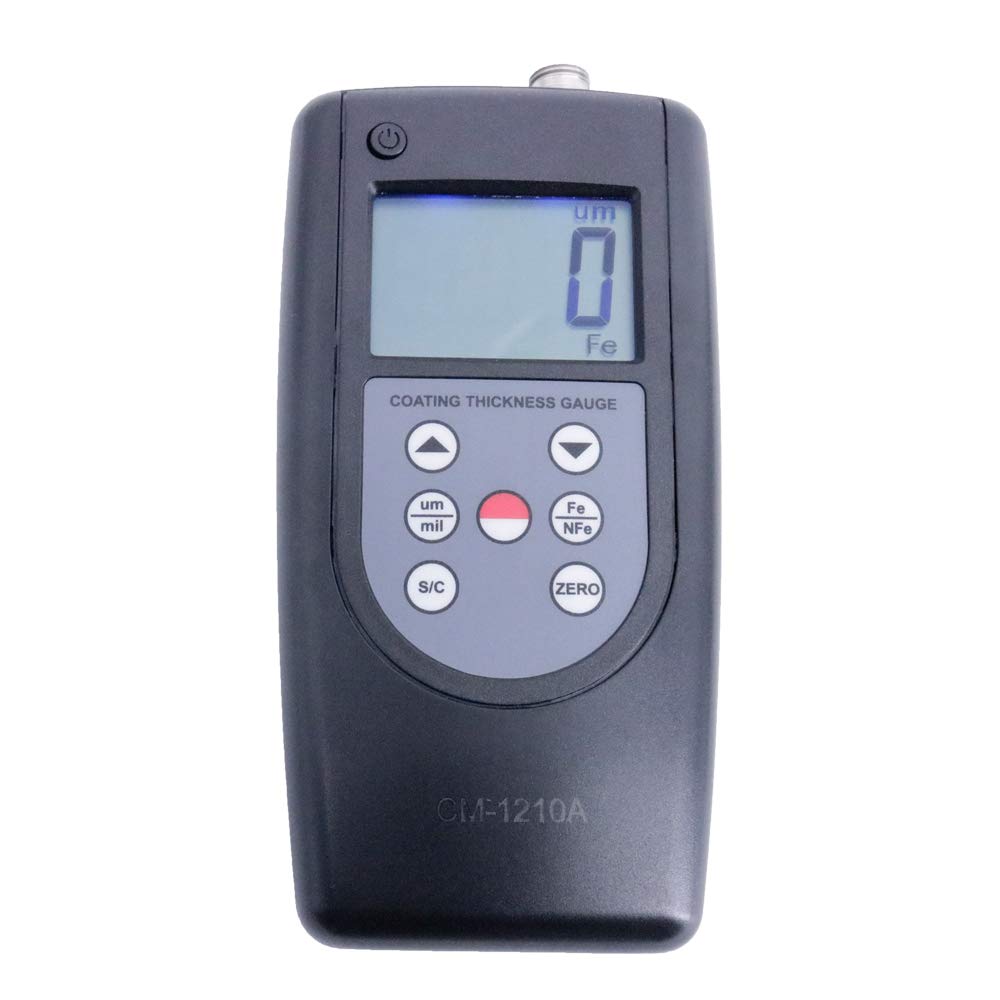

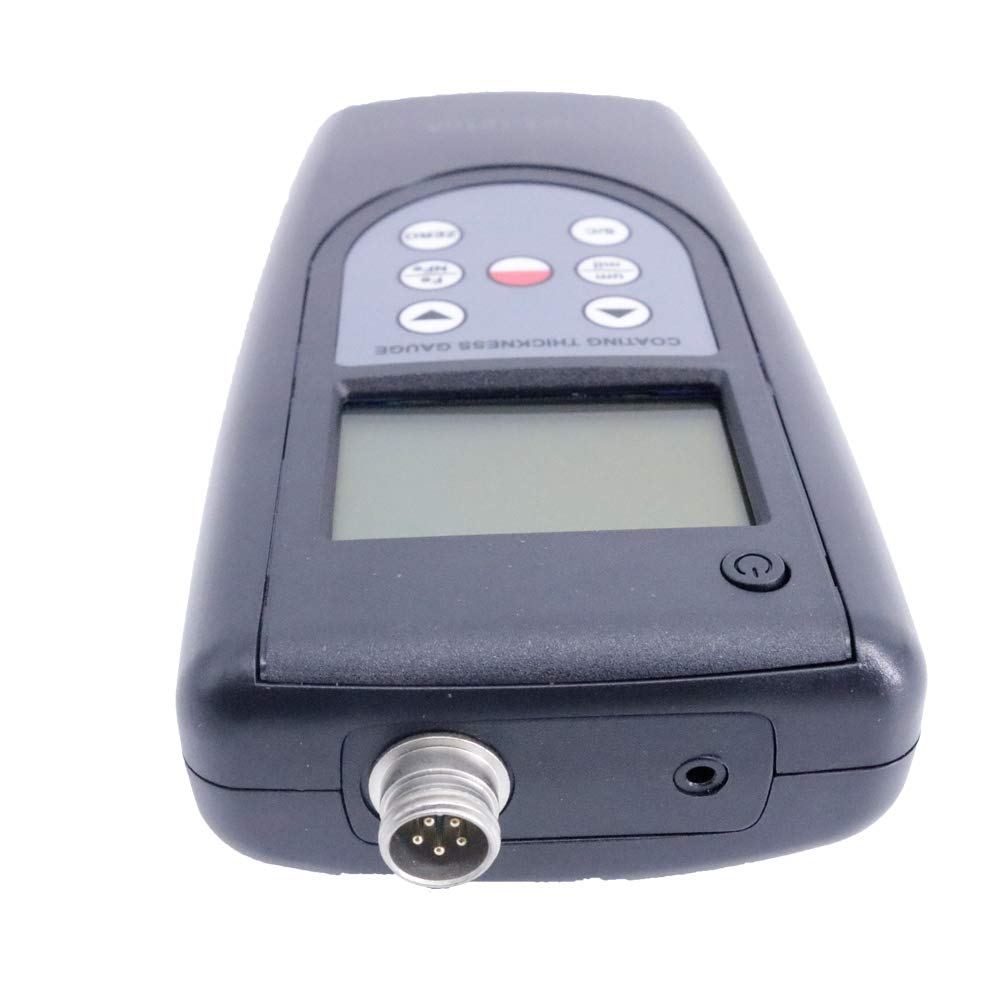

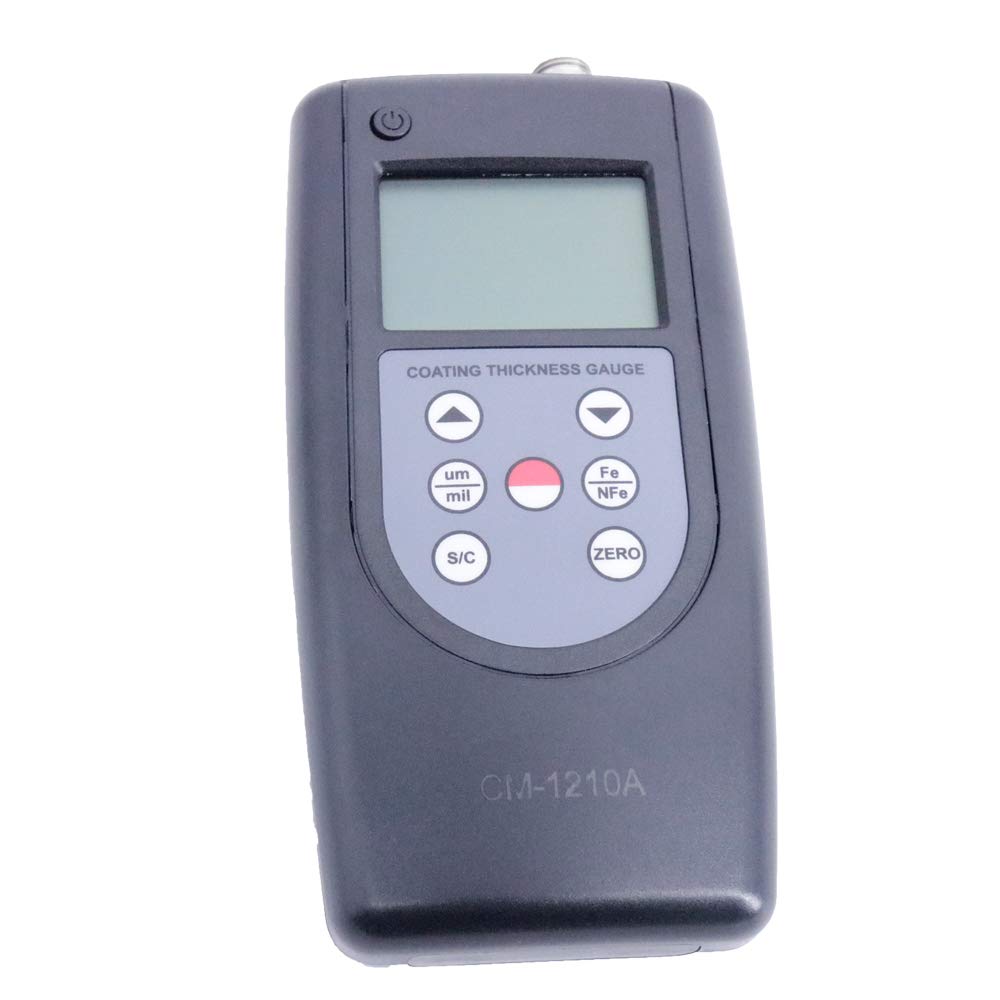

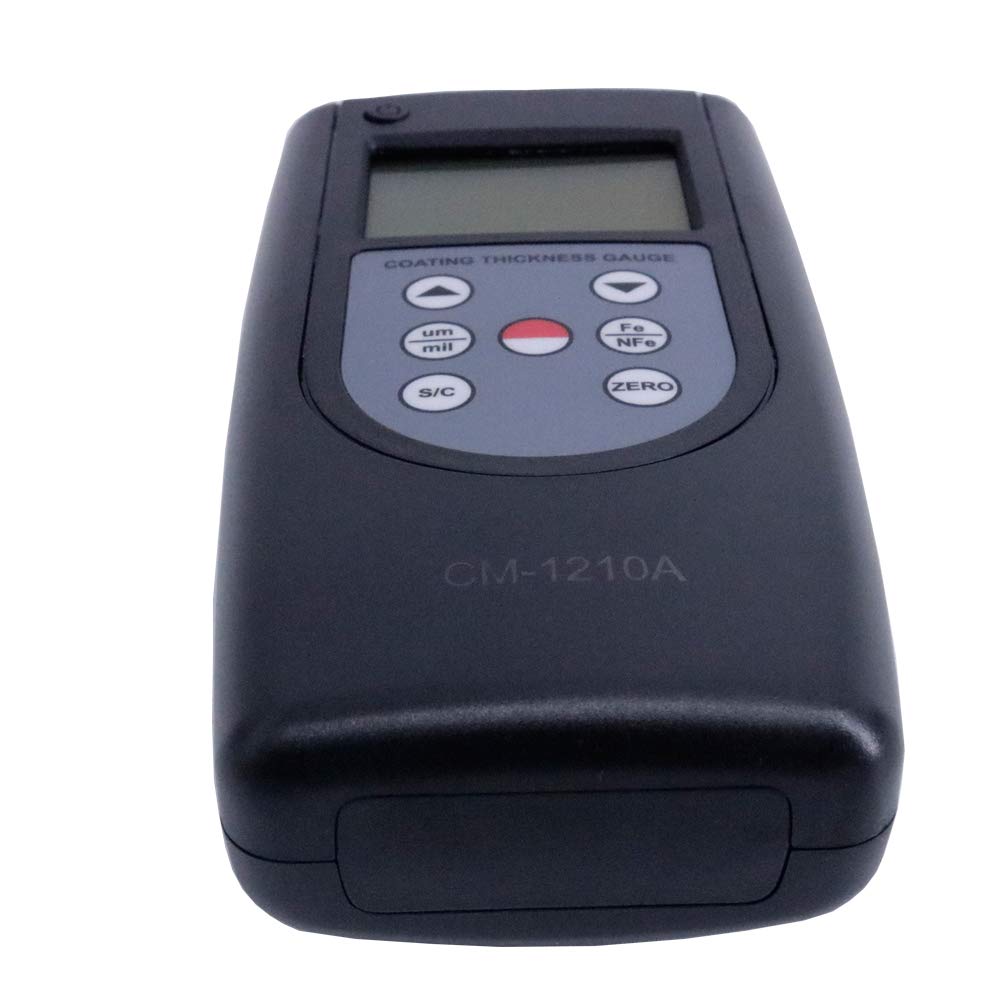

CM-1210A Coating Thickness Gauge Meter has two measuring methods: magnetic induction (F) and eddy current (N).
Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
Auto memory of calibration value,and auto recognize the substrate.
Operation process have buzzing reminder,while no buzzing in continuous mode.
Use “USB data output” and “RS-232 data output” to connect with PC.
Part Number: CM-1210A
Details: Applications:
The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
Features:
Use USB/RS-232 data output to connect with PC.
Provide Bluetooth data output choice.
Separate Type can provide several type probe, measure can be more flexibility.
Specifications:
Principle:F Magnetic Induction & NF Type Eddy Current
Range:0~2000um/0~80mil
Resolution:0.1um/1um
Accuracy:+/-1~3%n or+/-2.5um
Min. Radius Workpiece:
F Type:convex 1.5mm/concave 25mm
NF Type:convex 3mm/concave 50mm
Min.Measuring Area:6mm
Min.Sample Thickness:0.3mm
Metric/Imperial:Yes
Functions:Battery Indicator & Automatic Power Off
Operating Conditions:Temperature:0~40C; Humidity:10~90%RH
Power Supply:4x1.5V AAA (UM-4)Battery
Dimensions:140x72x34mm
Weight:215g(Not Including Batteries)

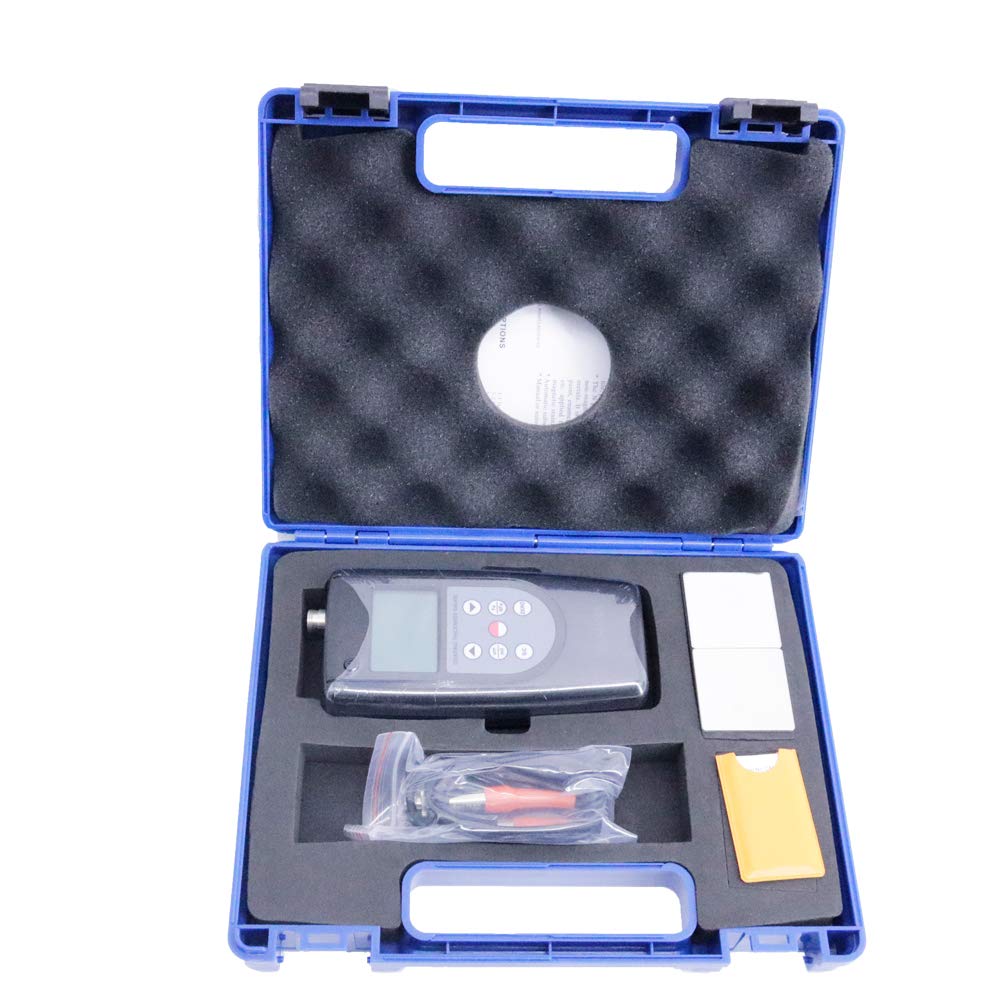

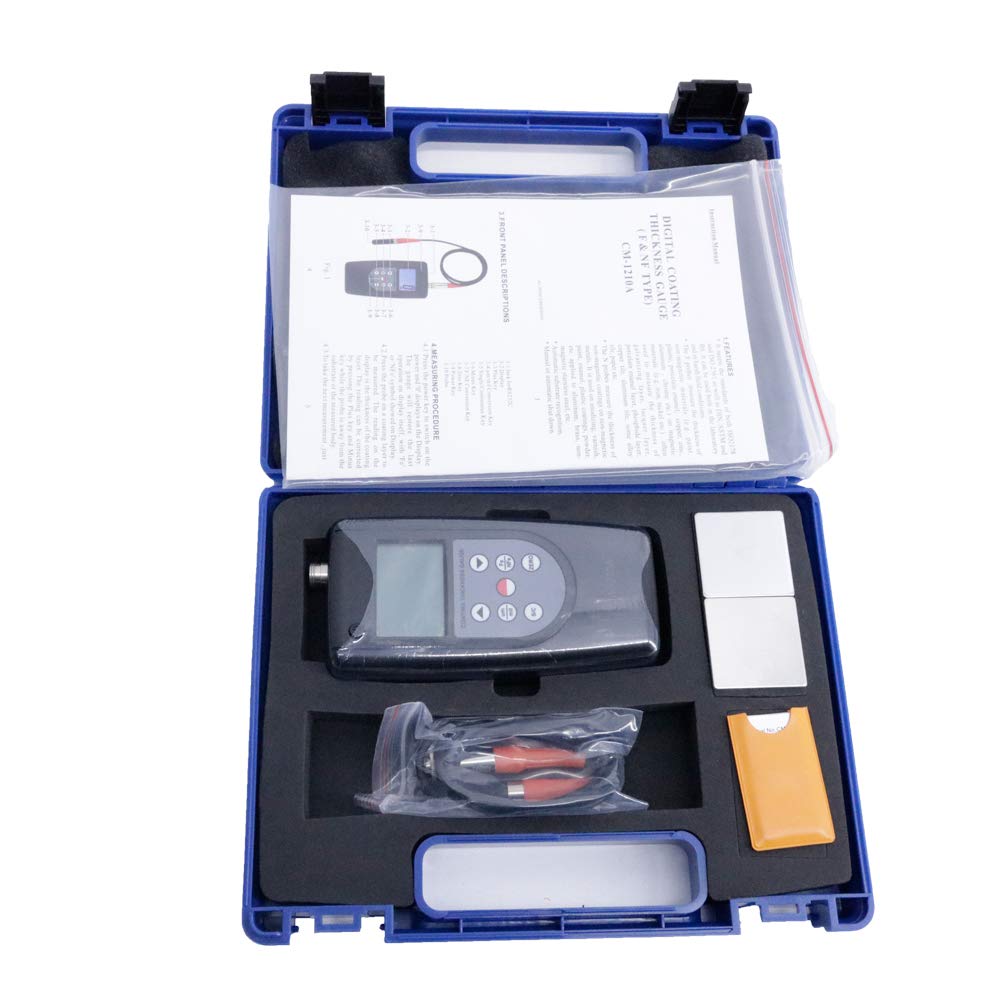

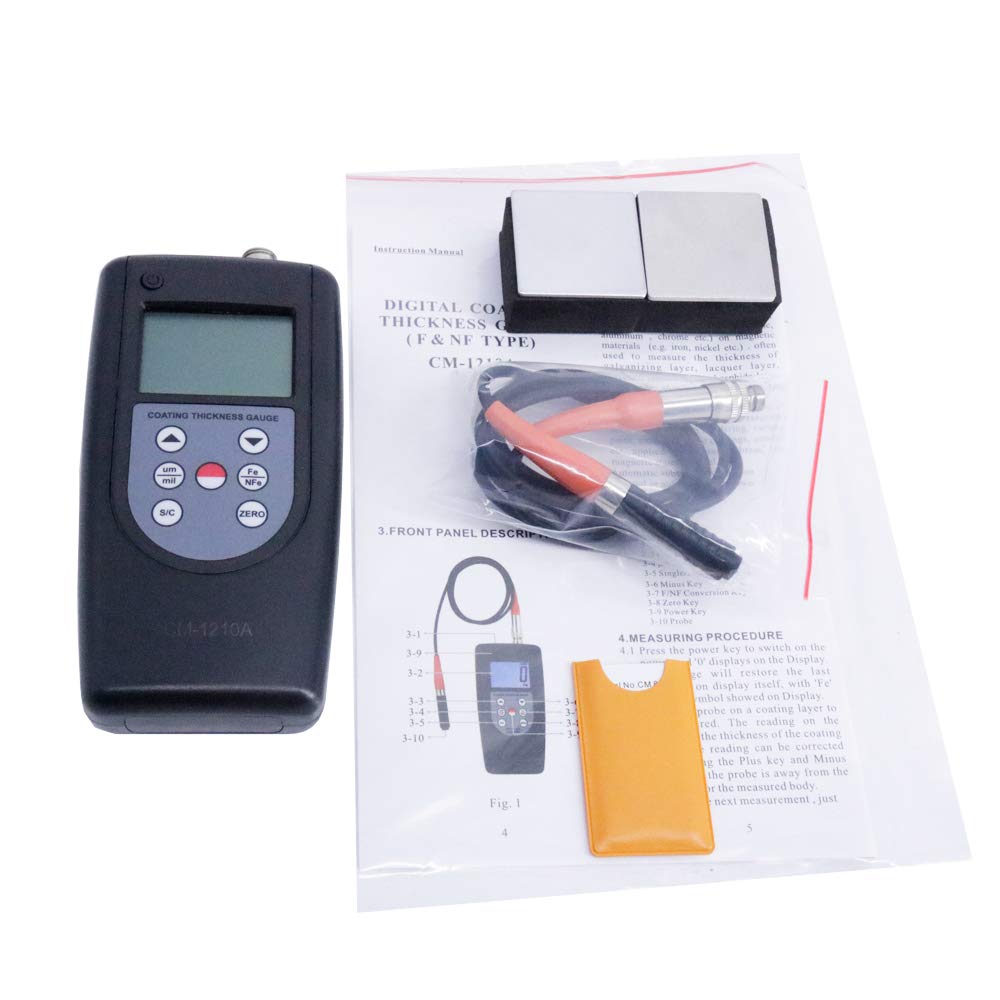

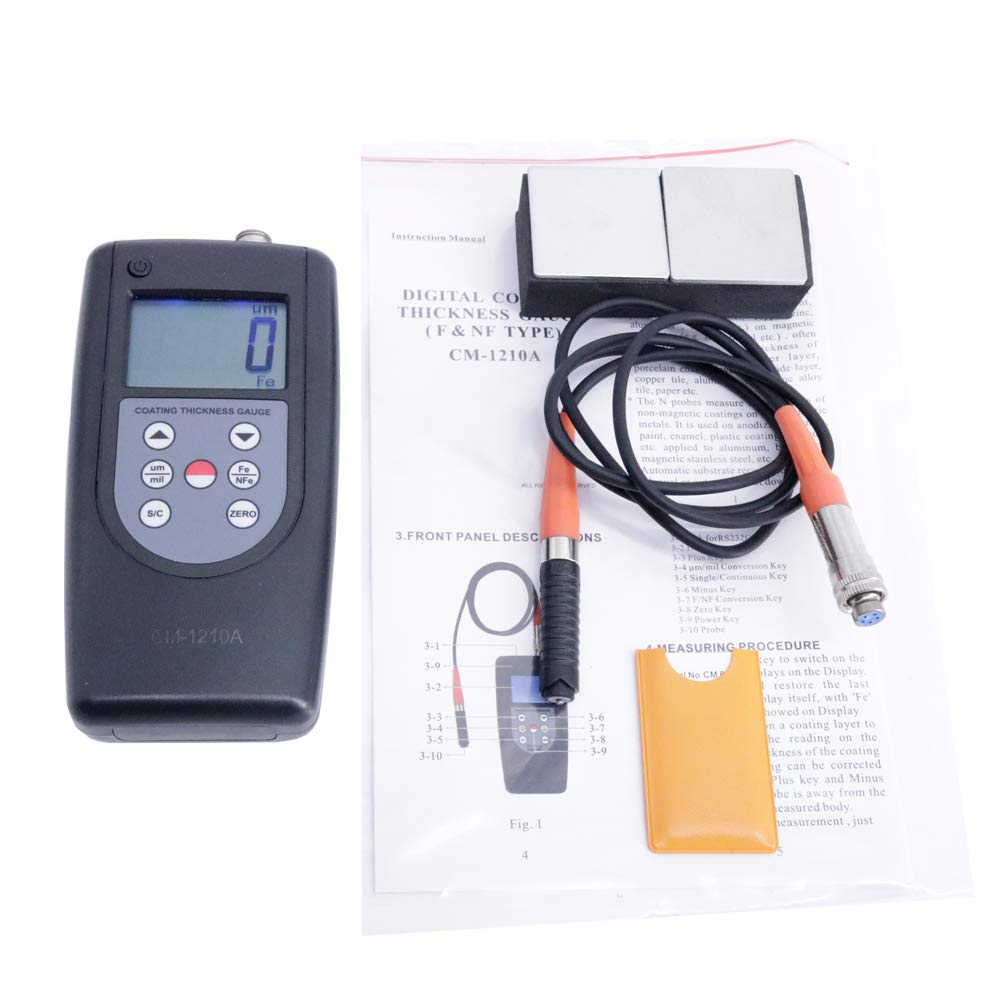

Package includes:
Main Unit
Probe (F Type / NF Type)
Calibration Base Set (F Type / NF Type)
Calibration Foils

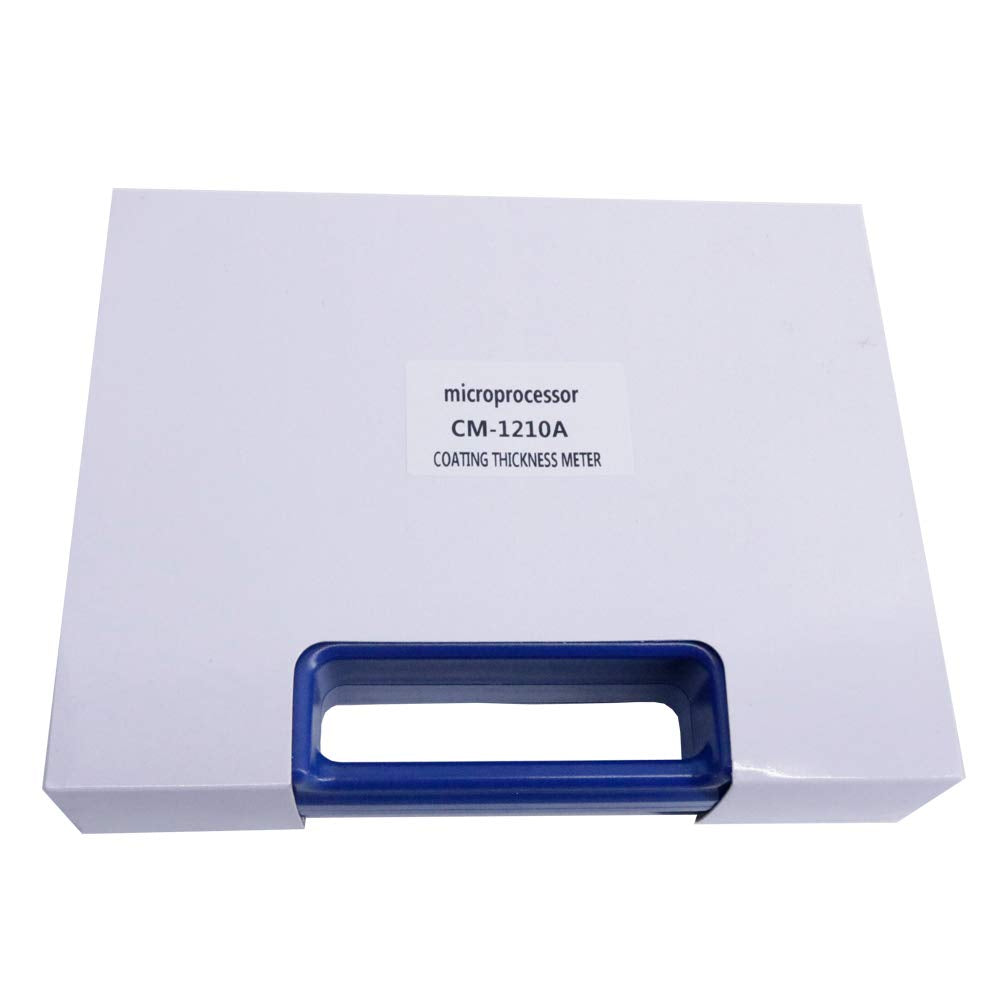

Carrying Case
Operation Manual
Optional accessories:
USB Data Cable with Software
Bluetooth Data Adapter with Software
