Graigar CM-8826FN Digital Paint Coating Thickness Gauge Meter Painting with F NF Probes 0~1250um 0~50mil

Brand: Graigar

Features:

• It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
• The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
• Two measuring methods: magnetic induction (F) and eddy current (N)
• Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
• Metric/imperial system selectable.

model number: CM-8826FN

Part Number: CM-8826FN

Details: Features:

Capable to measure magnetic & nonmagnetic materials in high resolution and wide measuring range of 0-1250umor 0-50mil
Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
Conforms and passed the standards of international standards including ASTM,DIN,BS and ISO-2178 as well as ISO-2360
With automatic substrate recognition
Provides single & continuous measurement mode
With manual and automatic shut down
With Zero Calibration for both F & NF probes
Lightweight and provides single-handed menu navigation
With FREE Protective & sturdy carrying case with contoured rubber compartments that fits the device perfectly. When closed, it then sandwiched between rubber foam to achieve optimum shock absorption

Specification:

Operating principle: magnetic induction/eddy current (F/NF)
Display: 4 digits, 10mm LCD
Measuring Range: 0-1250um/0-50mil
Resolution: 0.1um (0~99.9um), 1um (over 100um)
Accuracy: ±1-3%n or ±2.5um or 0.1mil(which ever is greater)
Power supply: 4x1.5V AAA (UM-4) battery
Operating Conditions: 0~50°C (32°F-104°F) Temperature, <80% Humidity
With 2 separate probe(s)
Automatic substrate recognition without guessing / choosing the probes
Dimensions: 4.96 x 2.56 x 1.06 in
Weight: 0.179lb (not including battery)

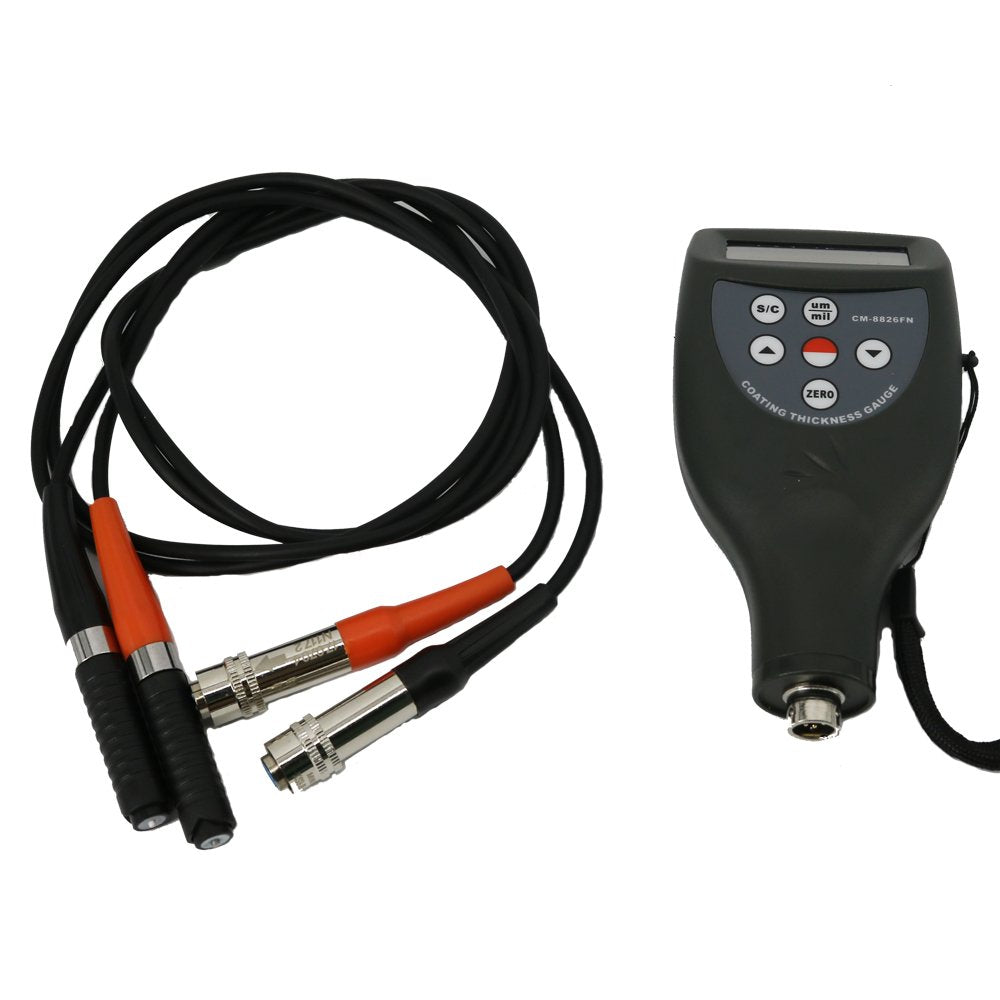

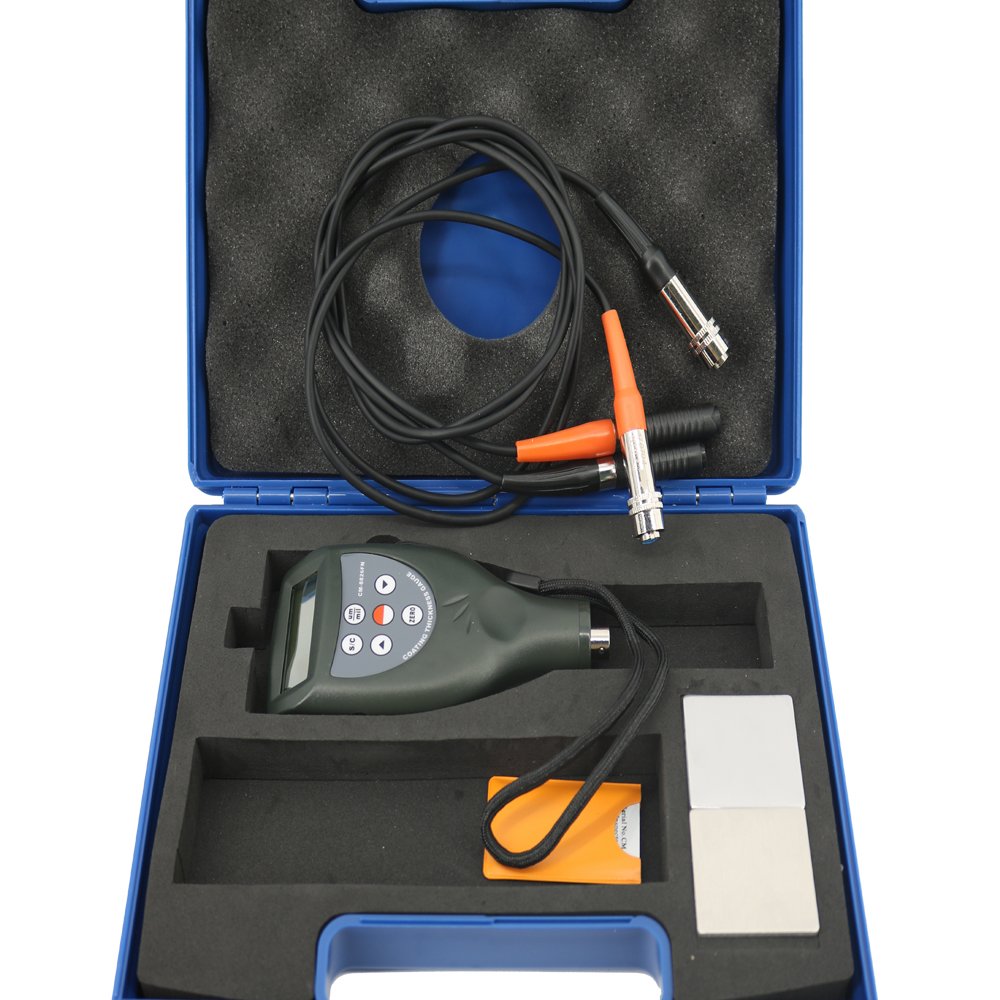

Standard configuration:

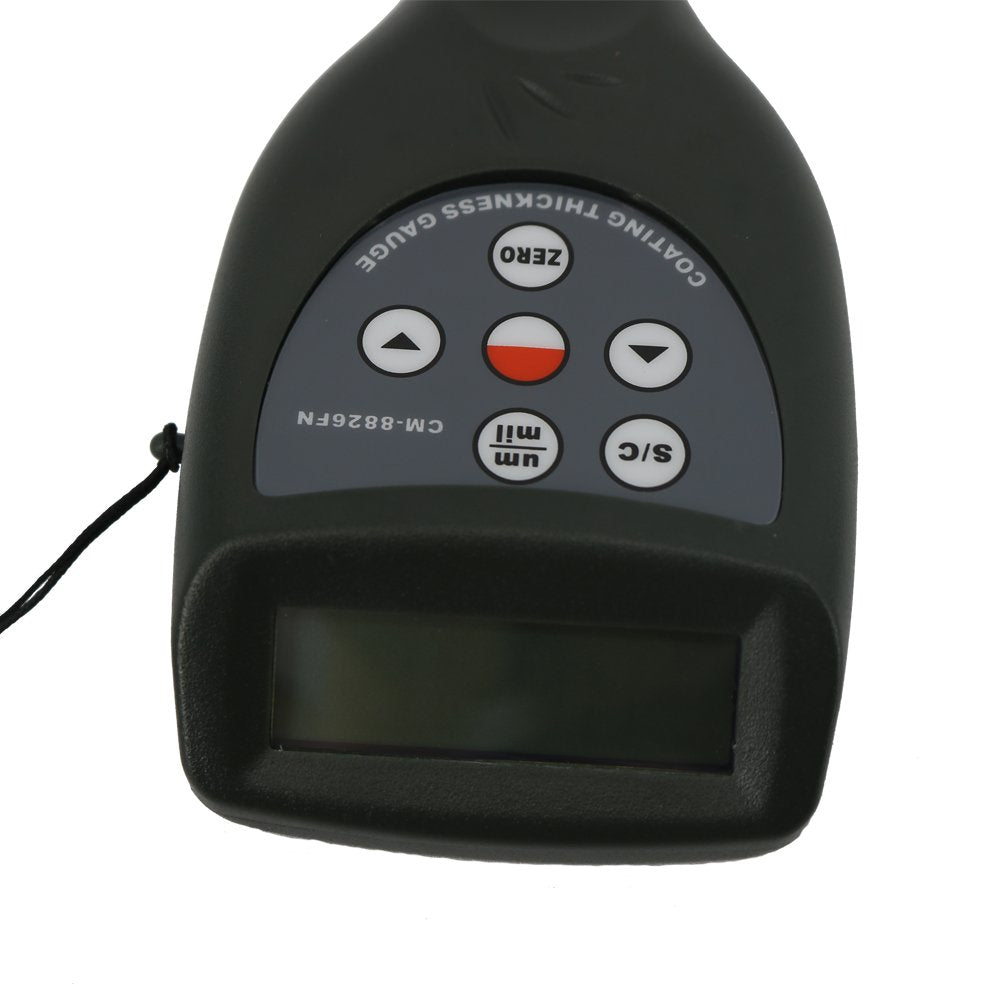

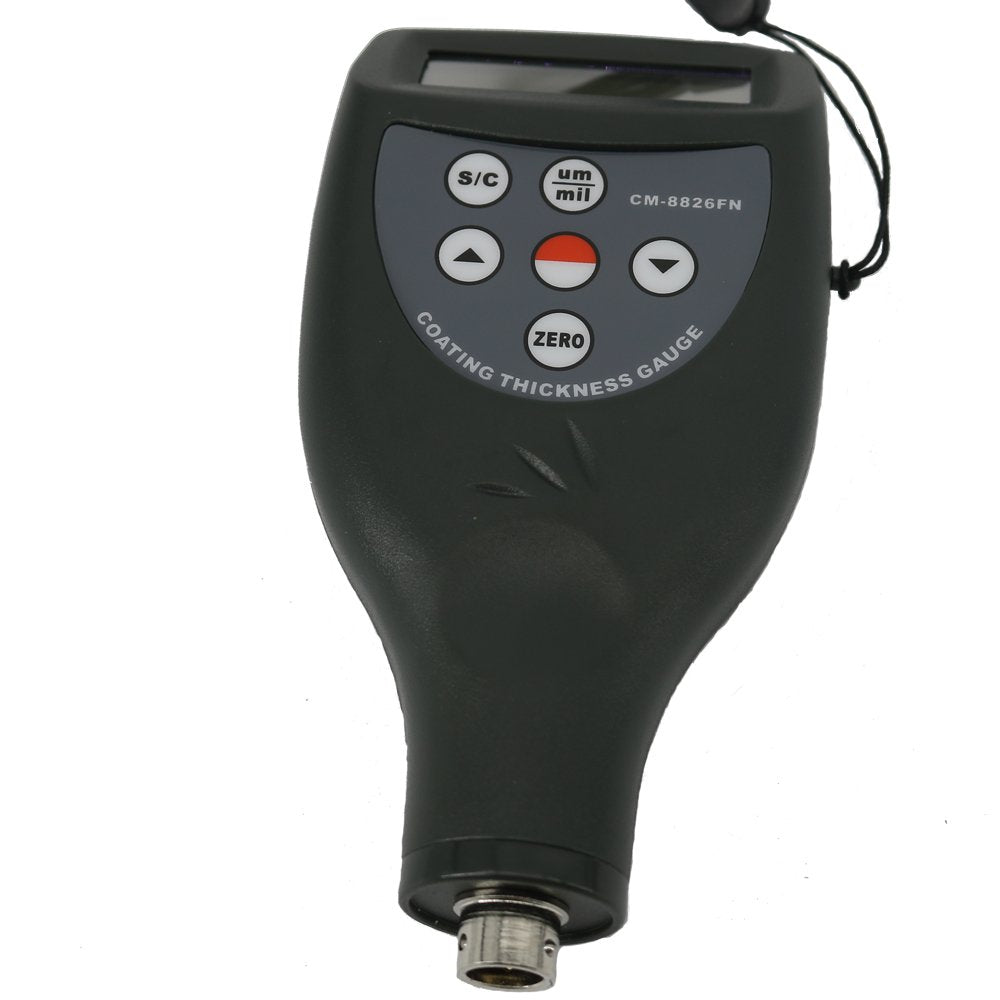

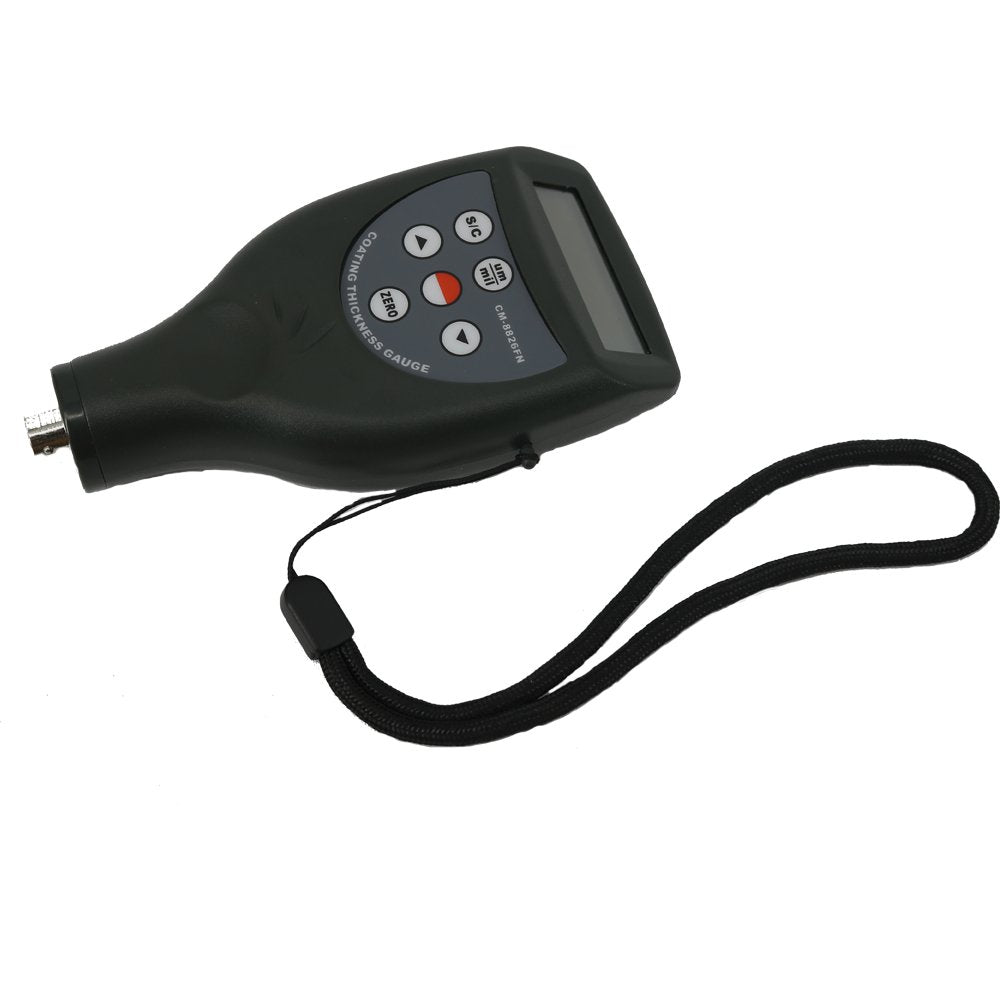

1 x Paint Coating Thickness Meter

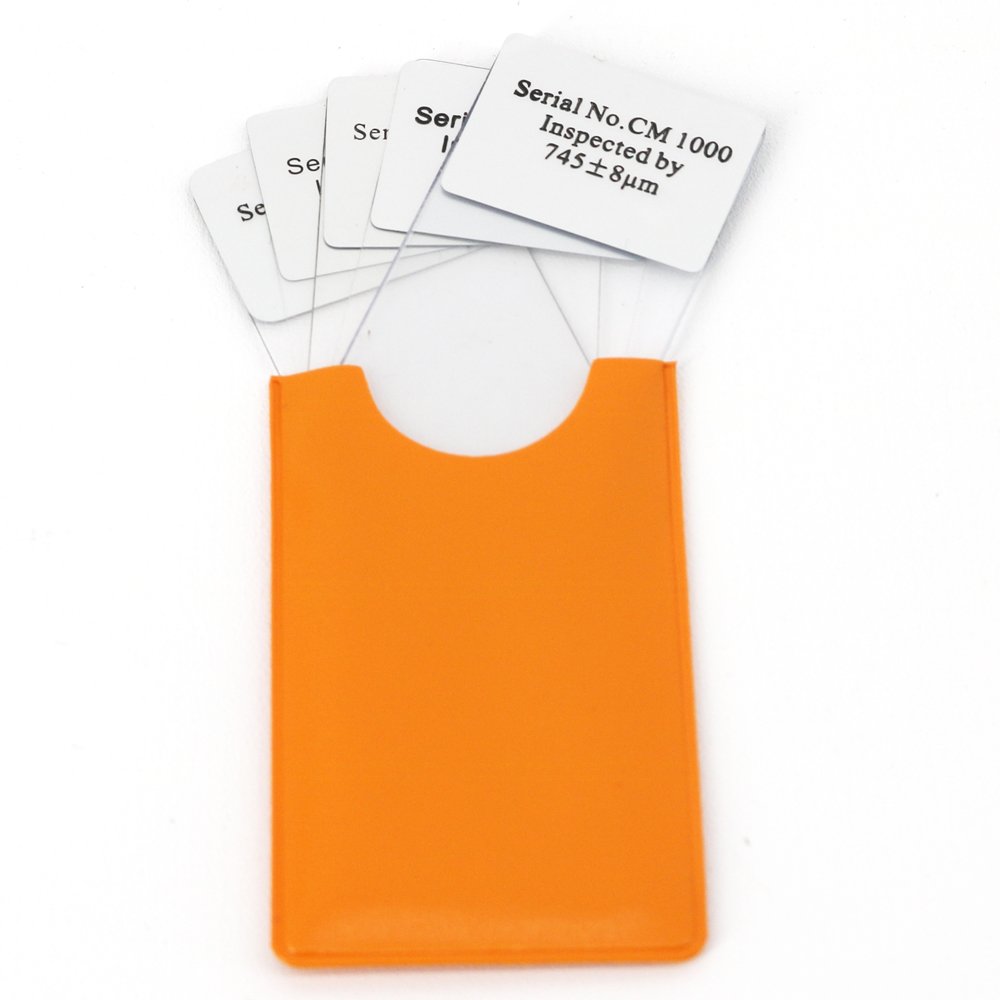

4 x Calibration foils

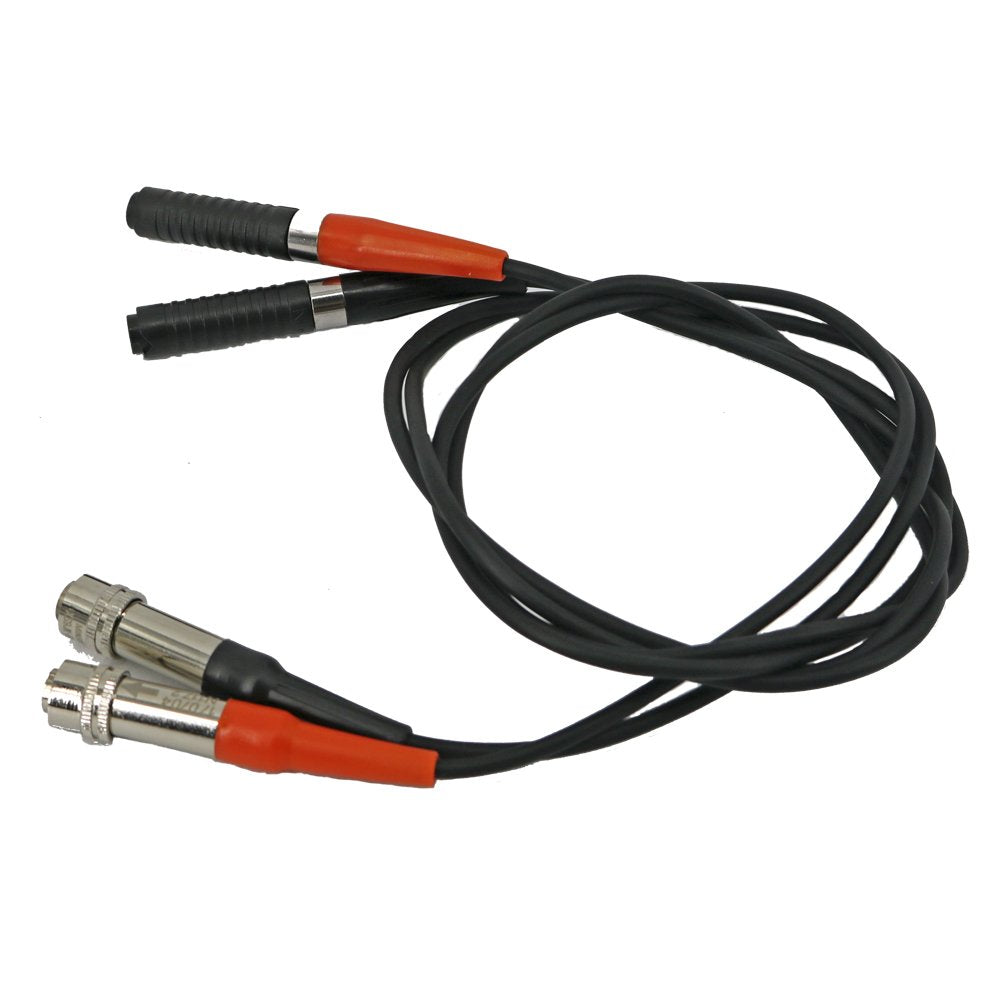

1 x F Probe
1 x NF Probe
1 x Aluminum & Iron substrates
1 x English Operations Manual

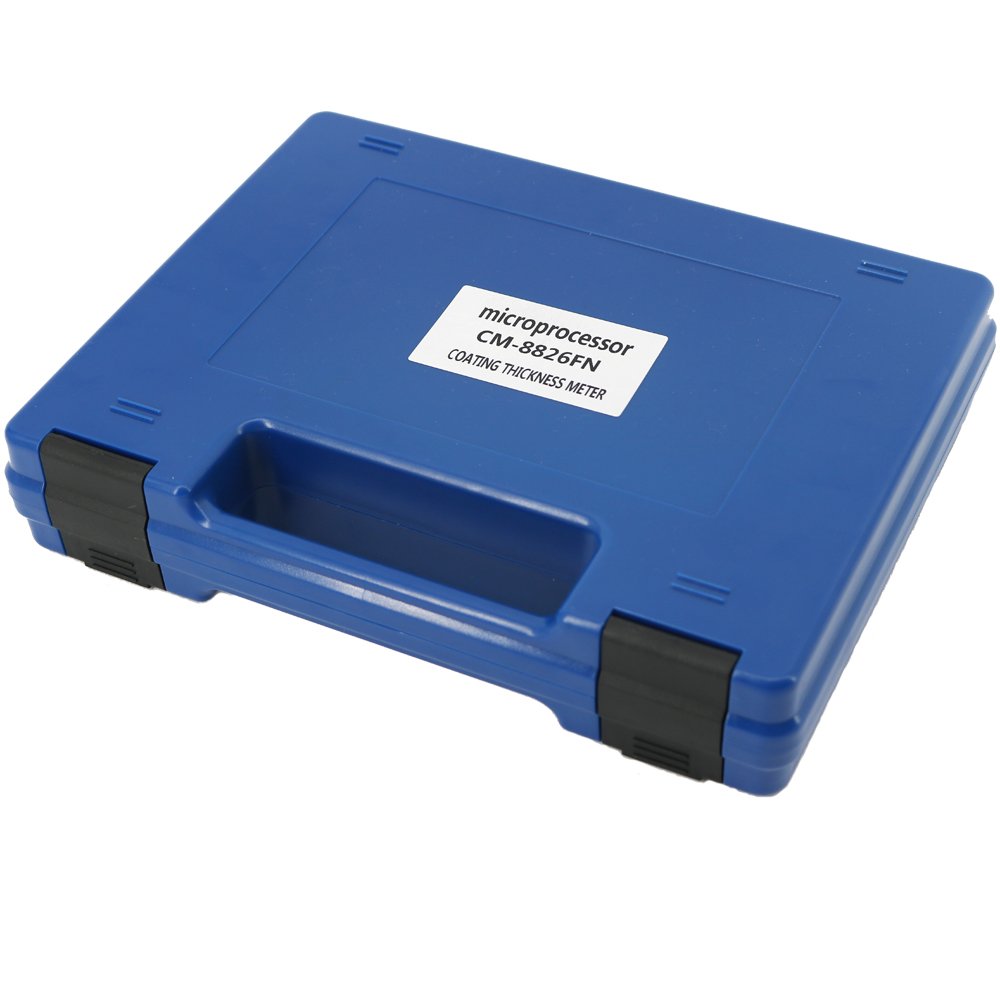

1 x Protective Carrying Case with Shock absorbent contoured rubber inside

EAN: 0725370407623
