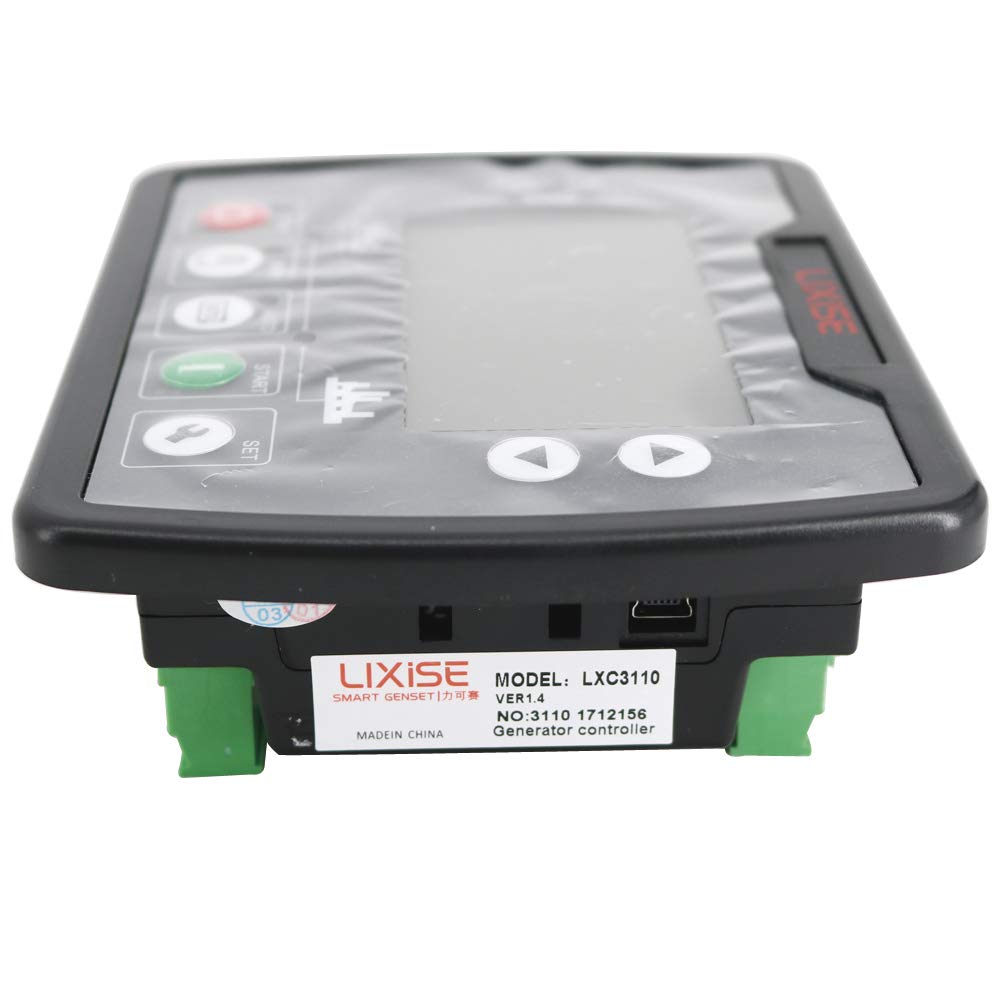

Graigar Diesel Auto Generator Controller LXC3110 Replacement of DSE3110 DSE3120

Brand: Graigar

Color: Gray

Features:

• LXC3110 power station automation controller integrates digital, intelligent, network technology, used for single automation and monitoring system for the diesel generator set, generator set can be automatically starting/stopping, data measurement, alarm, protection and "three remote" (to match RS485 module).
• Controller USES the large screen LCD display, Chinese, English, Spanish and Russian optional interface, simple operation, reliable operation.
• The precision measuring implements a variety of parameters, and set the value as well as the timing, the threshold setting adjustment function, all parameters can be adjusted from the controller front panel controller, or use a PC through USB, RS232 interface programming, adjusting and monitoring.
• Its compact structure, simple connection, high reliability, can be widely used in various types of generating set automatic system.

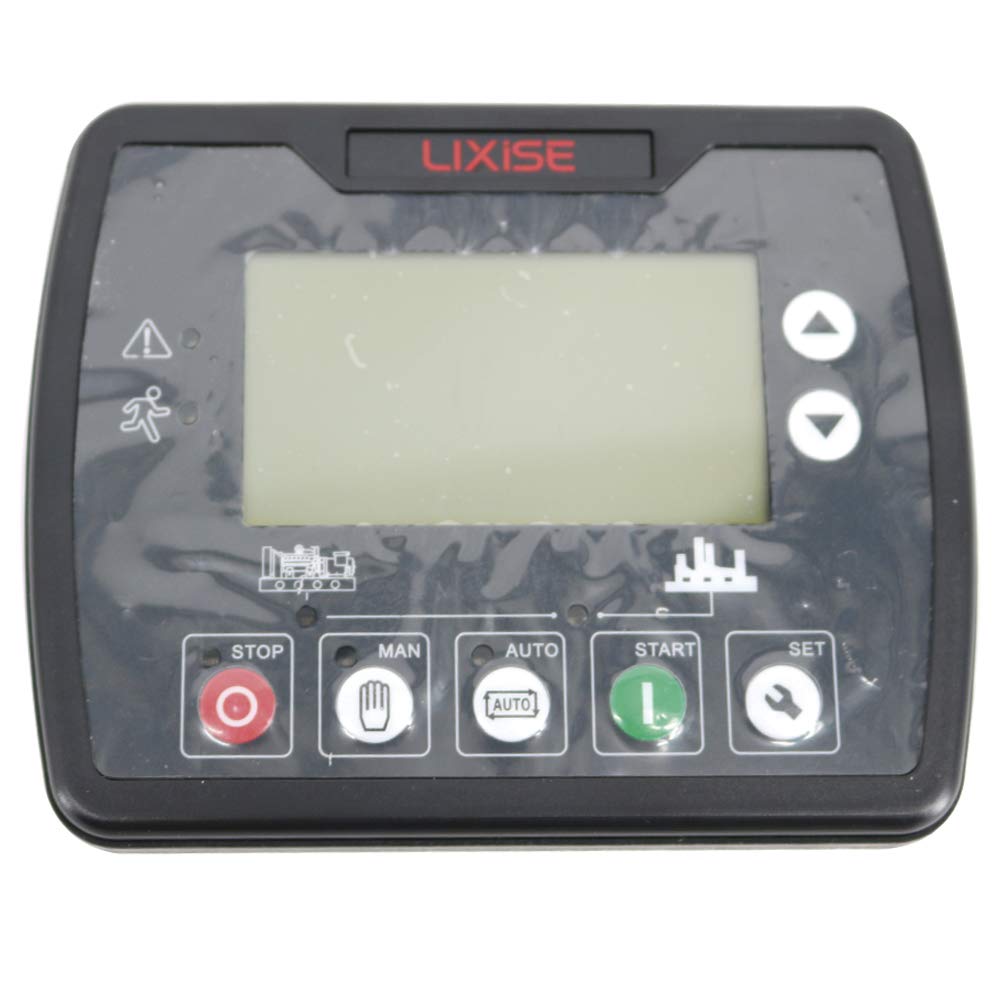

• LCD liquid crystal display (LCD) is 132 x 64, four languages (simplified Chinese, English, Spanish, Russian) showed that light touch button

Part Number: LXC3110

Details: Specification:

Continuous working voltage: DC8.0 V to 35.0 V power supply
The machine power consumption: <3 w (standby mode: 2 w or less)
Alternator voltage input: 15 V AC 360 V AC (phN)
15 V AC 360 V AC three-phase four-wire (phN)
Two phase three line 15 V AC 360 V AC (phN)
30 V AC 620 V AC single-phase secondary (PHPH)
Three-phase three-wire
Ac generator frequency 50 Hz / 60 Hz
Speed sensor voltage: 1.0 to 24 v (RMS)
Speed sensor frequency: biggest 10000 hz
Starter relay output: 5 a DC28V dc power supply output
1: programmable relay output 5 a DC28V dc power supply output
2: programmable relay output 5 a DC28V dc power supply output
3: programmable relay output 5 a DC28V dc power supply output
4: programmable relay output 5 a AC250V passive output
5: programmable relay output 5 a AC250V passive output
Dimensions: 143 mm x 115 mm x41mm
Hole size: 110 mm x 90 mm
Ct (current transformer) secondary current, rated: 5 a
Working conditions: temperature (25 ~ 70) : (20 ~ 93 ° C, humidity) % RH
Storage conditions: temperature: (30 ° C ~ + 80)
Protection grade: IP55: when equipped with waterproof rubber ring between controller and the control panel.
IP42: when no add waterproof rubber ring between controller and the control panel.
Dielectric strength: object: between the input/output/power supply
Reference: IEC688-1992
Test method: AC1.5 Kv / 1 min 3 ma leakage current
Weight: to be determined

EAN: 0799649266365
