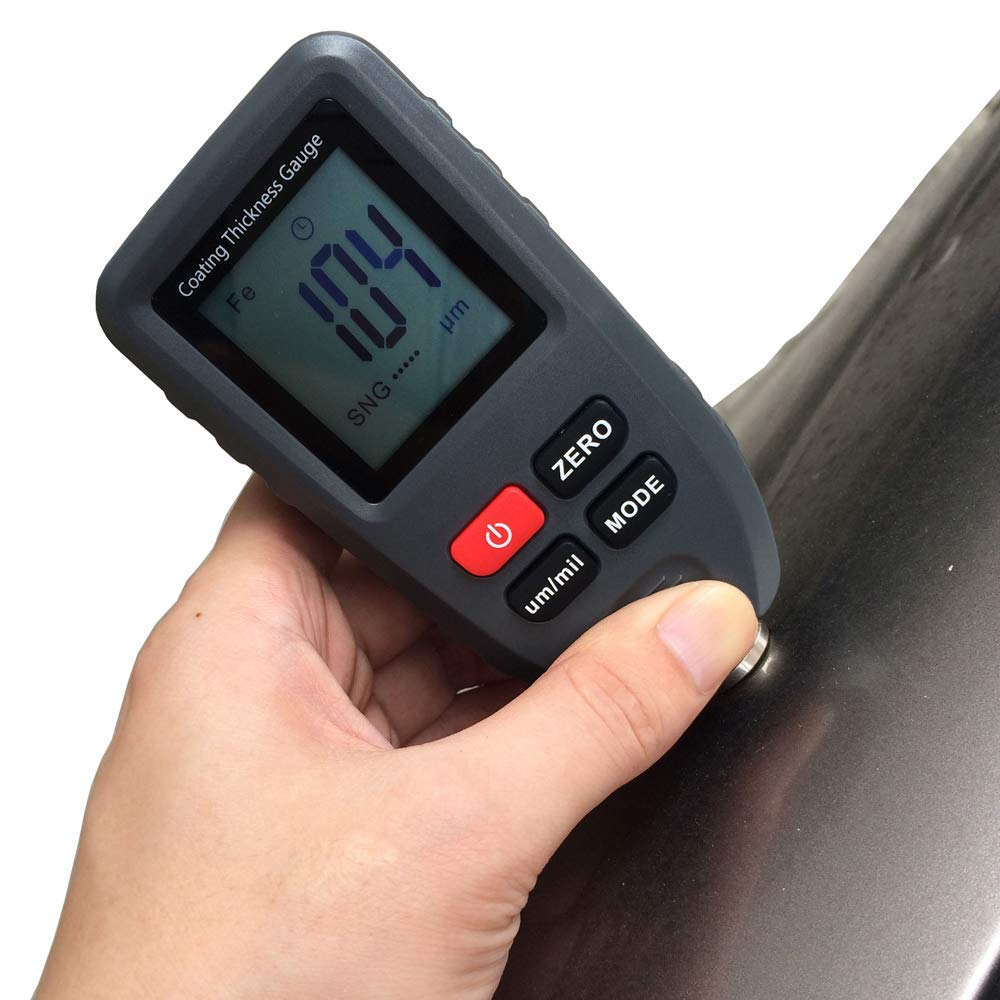

Graigar Digital Coating Thickness Gauge TC100 Paint Coating Thickness Meter Fe/NFe 0-1.25mm with LCD Display Electroplate Feeler Tester

Brand: Graigar

Color: Black

Features:

• TC100 Coating thickness gauge measurement data stay on LCD display automatically.
• Auto power-off in 15 minutes with no-operation.

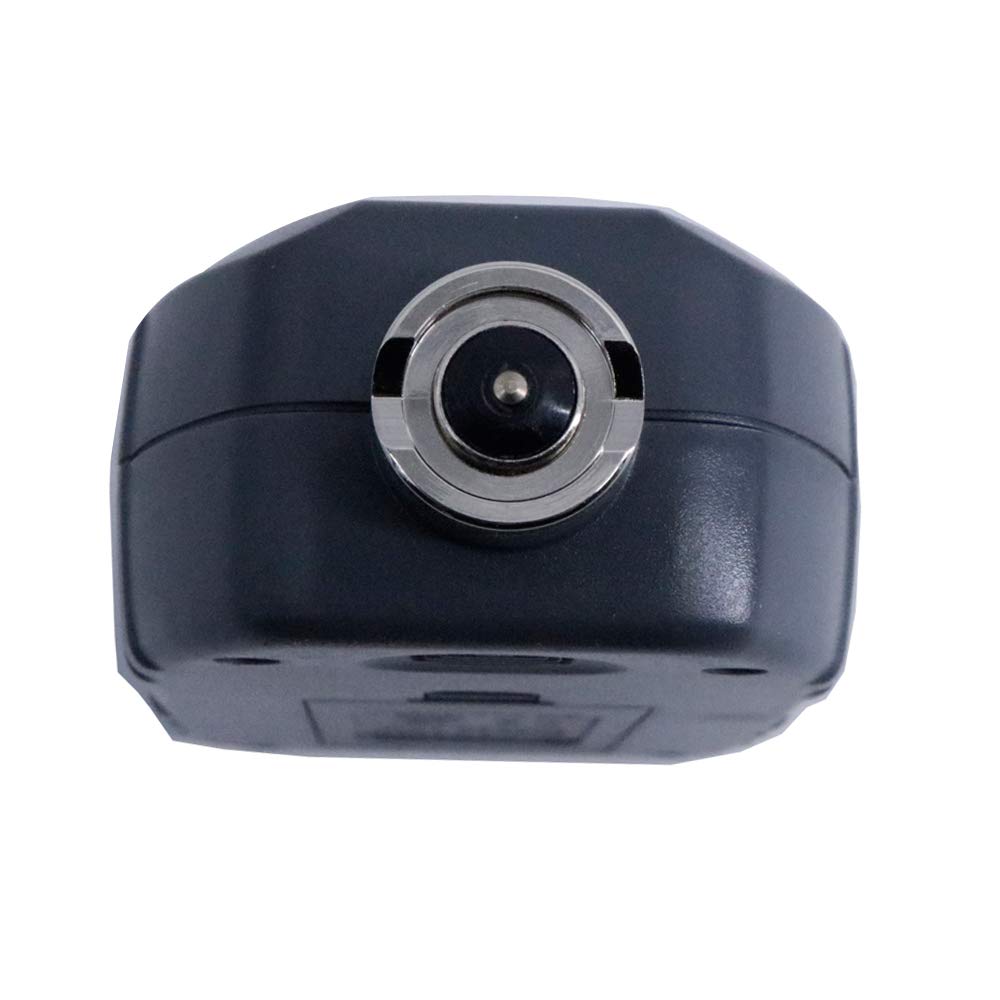

• Integral probe Fe&NFe, auto detecting attribute of substrates.
• Portable, user friendly and easy to carry even in pocket.
• Comes with iron base and non-iron (aluminum) base.

Part Number: TC100

Details: The thickness gauge is used to measure the thickness of the plated and coated sheet on metal. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates. It is a perfect instrument in manufacture, metal machining industry, chemical industry and commodity inspection, especially in automobile trading.
Features:
Comes with iron base and non-iron (aluminum) base.
Portable, user friendly and easy to carry even in pocket.
Integral probe F&NF, auto detecting attribute of substrates.
LCD displaying and measurement data maintaining automatically.
Auto power off flag, auto power-off in 15 minutes with no-operation.
Low battery indication, convenietnt to use.
Easy operation,rapid measurement, safe usage and portability.
Essential for material surface treatment and widely used in manufacturing industry.
Specifications:
Model: TC100
Material: plastic
Power supply: one 9V 6F22 battery(Not included)
Range: 0-1300um / 0-51.2mil
Accuracy: ±(3%+2um) / ±(3%+0.08mil)
Resolution: 0.1mm/0.01mil
Calibration points: 0/50/100/250/500/1000um
Min curvature radius convex: 1.5mm
Min curvature radius concave: 25mm
Min measuring area: diameter 6mm
Operation temperature: 0° ~ +40℃
Item size: 130 * 62 * 32mm / 4.88 * 2.44 * 1.26in
Package size: 195 * 110 * 70mm / 7.68 * 4.33 * 2.76in
Item weight: 100g / 3.53ounces
Package weight: 250g / 8.82ounces

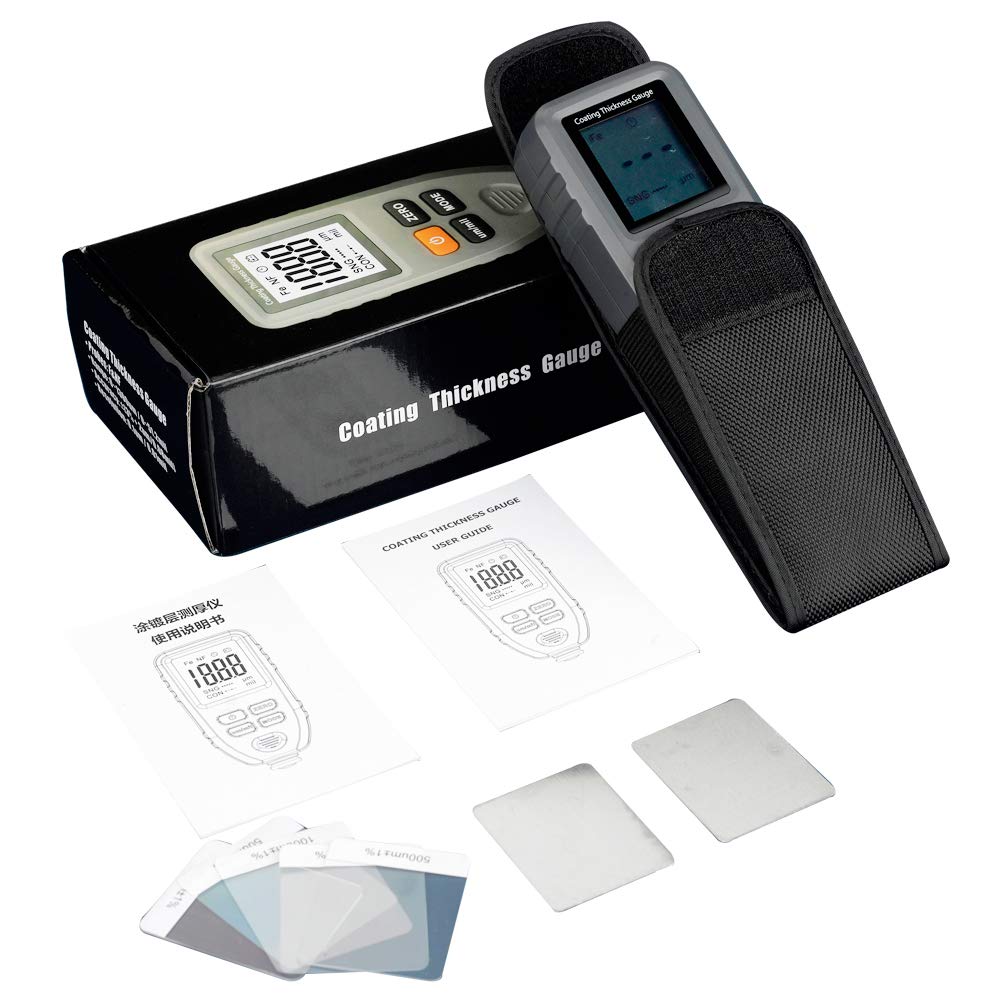

Package List:
1 * Coating Thickness Gauge
5 * Calibration Coating Films
1 * Aluminum Base
1 * Iron Base

EAN: 0761272056941
