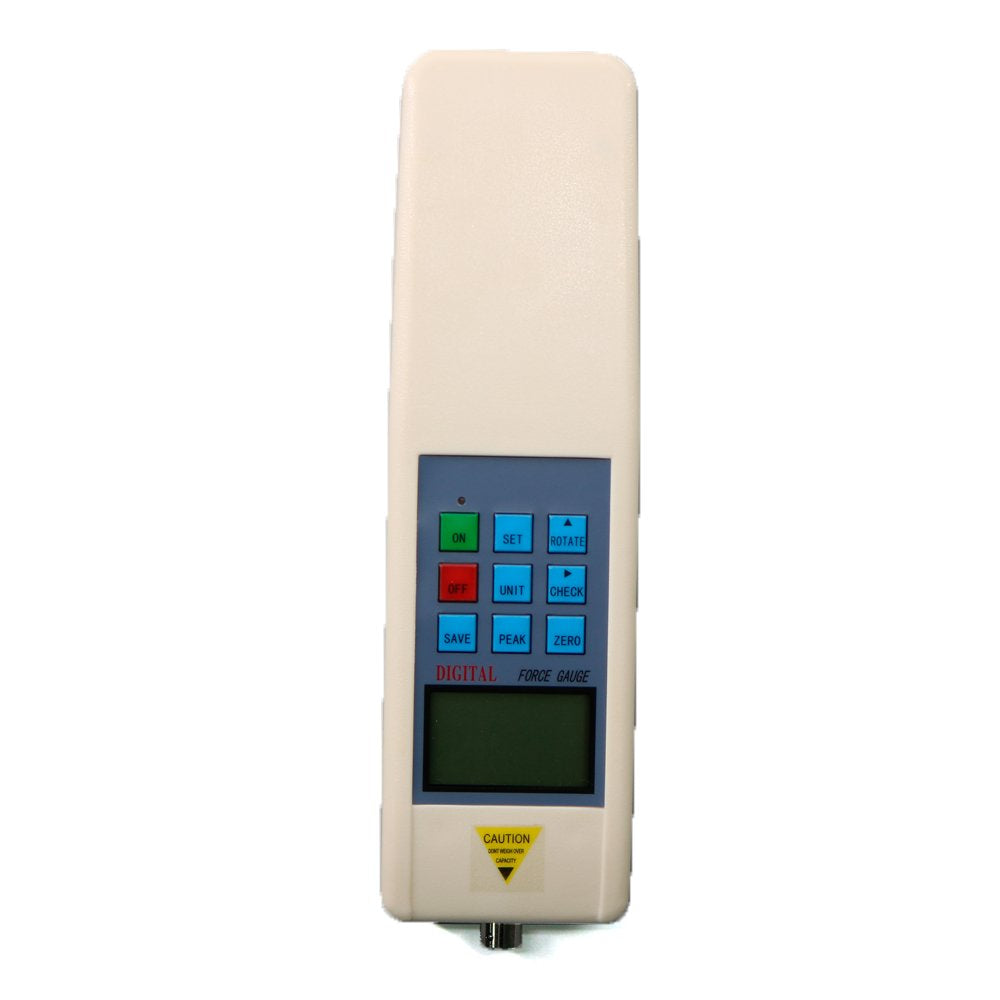

Digital Force Gauge HF-2K five testing modes and three display methods for selection N (Newton), kg (Kilogram) and Ib (Pound) three measuring units for selection and conversion.
Max. and min. and comparison value can be setted for statistic analysis.
Data storage function. 800 testing values can be stored.
Data output function. The data can be input into computer through data line for various analyses.
Setting function of gravity acceleration---User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.
Part Number: HF-2K
Details: Overview
The force gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of testing modes, convenience for conner and it can store and input data to computer for statistical analysis as well as constitutes testers with different functions, combinating with test-beds and clamp. Users can input local acceleration of gravity value to make test more precise.
Model specification
Peak load value
N 2000
kg 200
lbs 450
load division value
N 1
kg 0.1
lbs 0.1
Indication error: 0.50%
Unit: N / kg / lbs

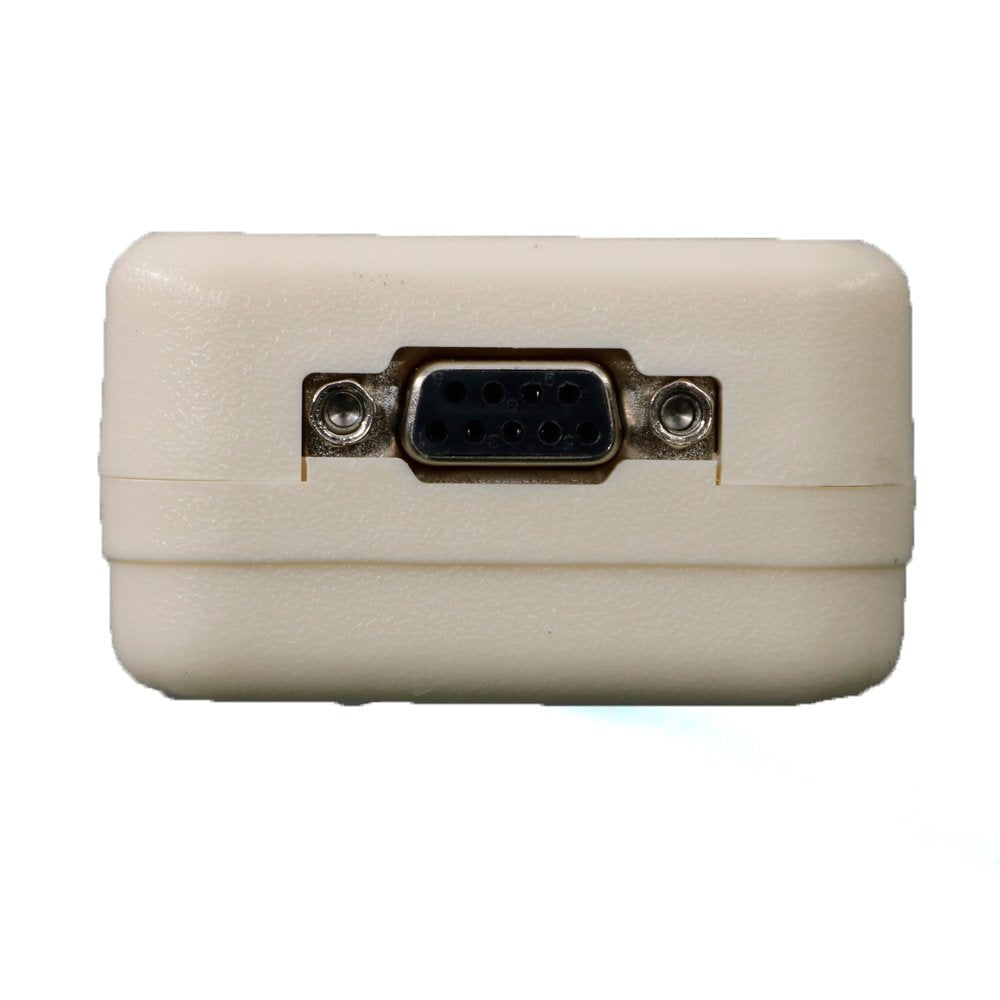

Data interface: Rs232 nine-hole socket
Power: rechargeable batteries, charger(charging voltage 100V-240V)

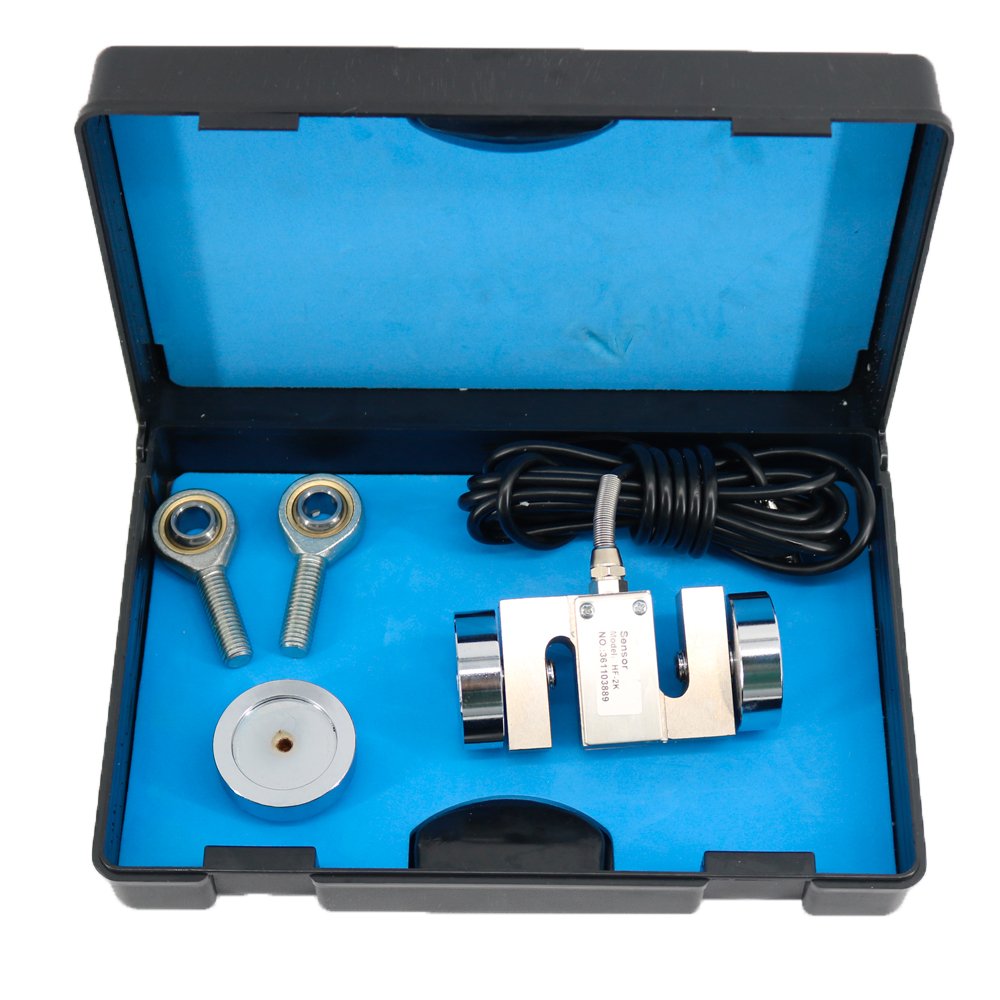

Sensor structure: S-tye sensor with high precision (inner sensor)
Ambient temperature: 5° C~35° C
Tansport temperature: -10° C~60° C
Relative humidity: 15%~80%RH
Working conditions: No hypocenter and corrosive medium
Gross weight: ~2000g/4.4lb
Size: 273 x 182 x70 mm/10.7X7.2X2.8in
