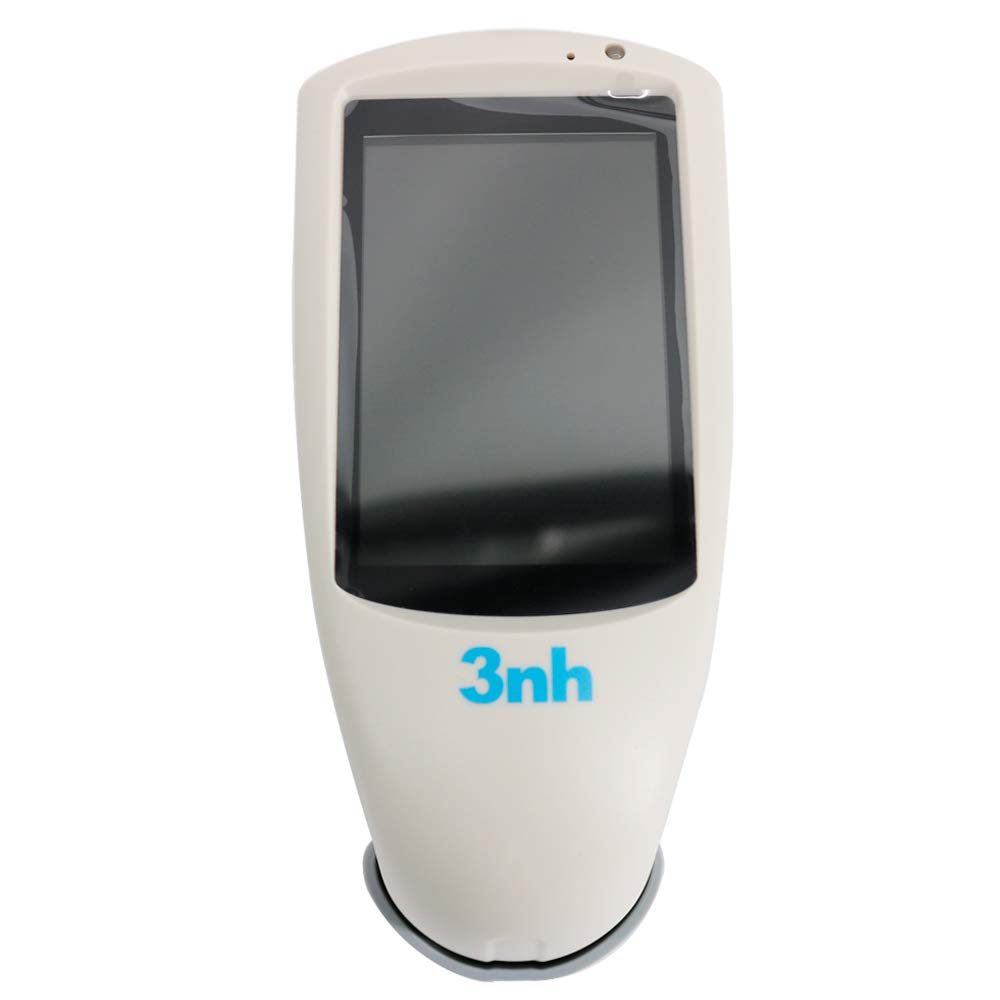

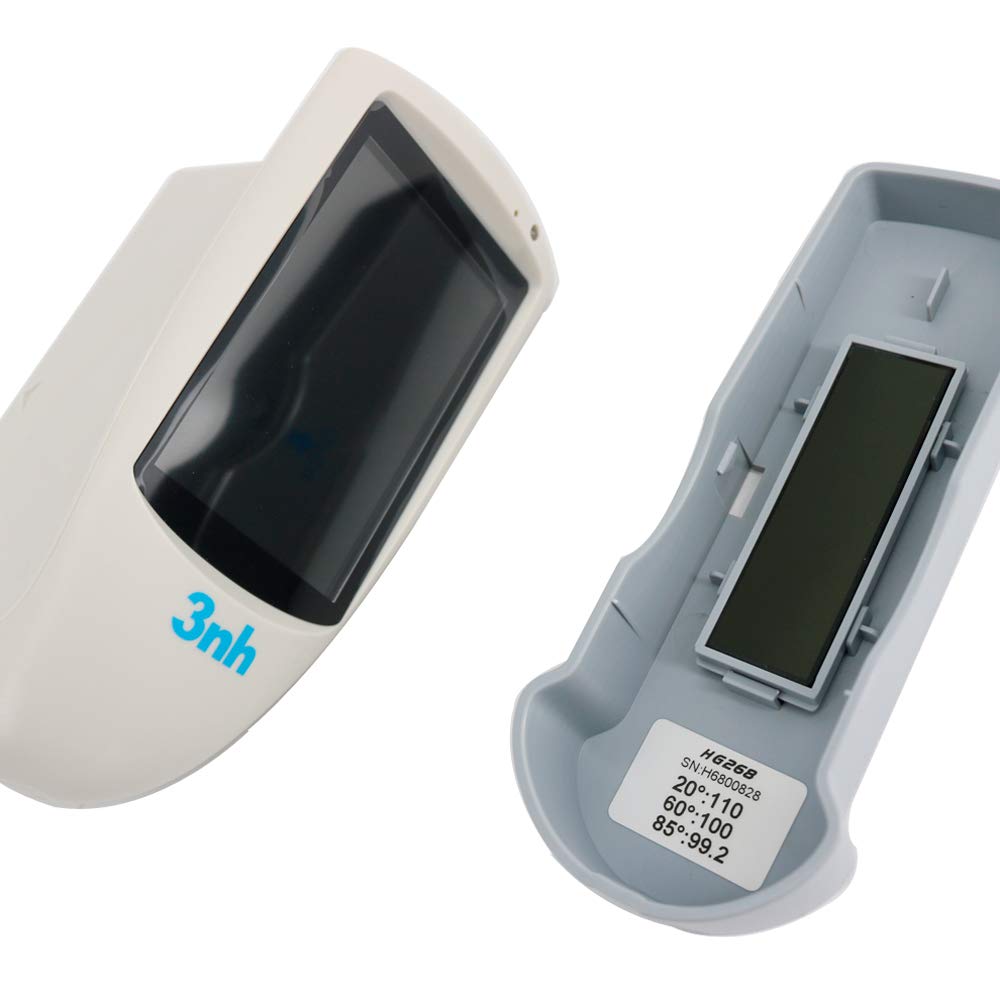

Graigar Digital Glarimeter HG268 Tri-angle Gloss Meter Glossmeter 20 60 85 Degree with USB RS-232 Interface Storage 1000 Data

Brand: Graigar

Color: White

Features:

• HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754.
• It is also compatible with international standards of ASTM D523, ASTM D2457.
• HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
• Display 5 sets of measurement data, good for comparison.

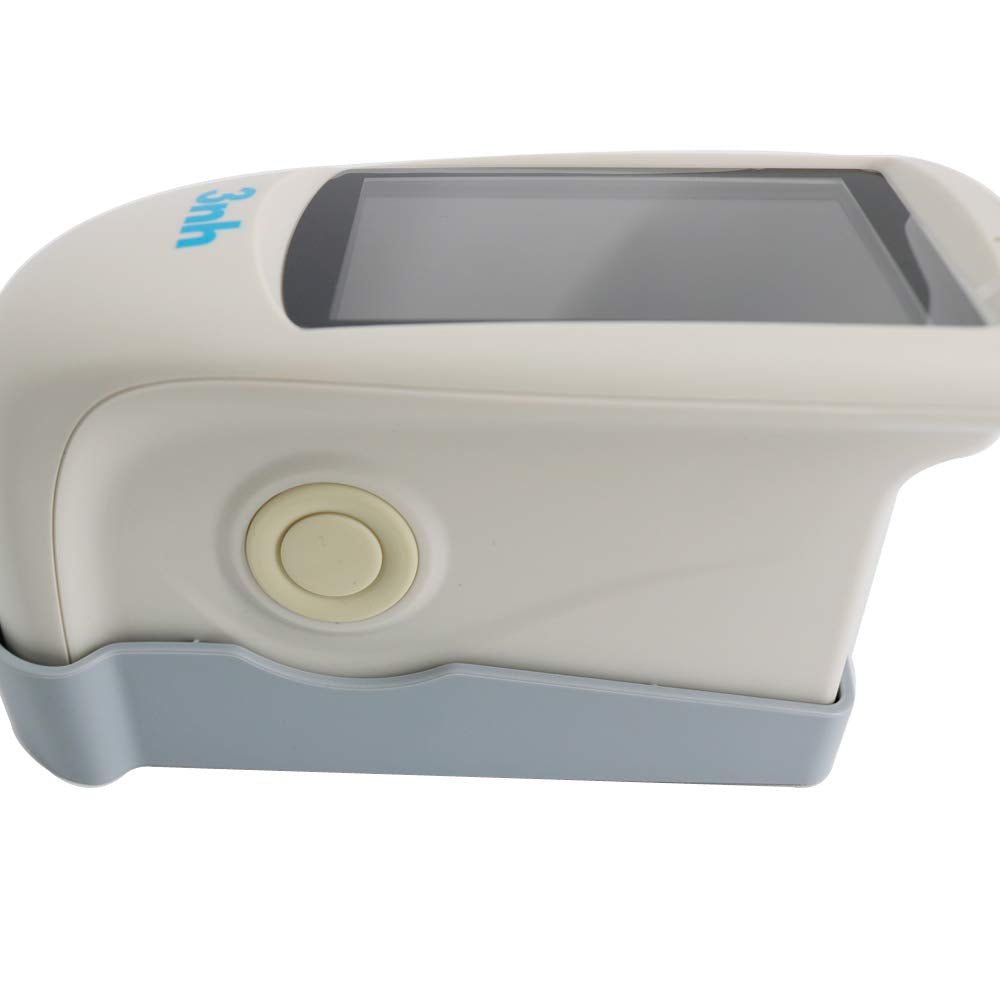

• One button for all angles measurement at the same location

model number: HG268

Part Number: HG268

Details: Introduction
HG268 tri gloss meter features with 20, 60 and 85°angle, manufactured according to ISO2813 and GB/T 9754.
HG268 tri gloss meter is widely used to test glossiness in automobile, paint, ink, wood, marble, granite,
vitrified polished tile, pottery brick and porcelain; plastic, paper.

Specification
Model: HG268
Measuring Angle: 20°60°85°
Comply with standard: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm): 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range: 20°:0~1000GU 60°:0~1000GU 85°：0~160GU
Division Value: 0.1GU
Repeatability: 0-10GU: ±0.1GU 10-100GU:±0.2GU 100-100GU: ±0.2%GU
Reproducibility: 0-10GU: ±0.2GU 10-100GU:±0.5GU 100-100GU: ±0.5%GU
Measurement Standard: Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source
Errors: ±1.5 , ± 1.5%
Measuring Time: 0.1s
Dimension: L*W*H : 160mm*75mm*90mm
Weight: 350g
Language: Chinese/English
Battery: 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Display: TFT 3.5 inch

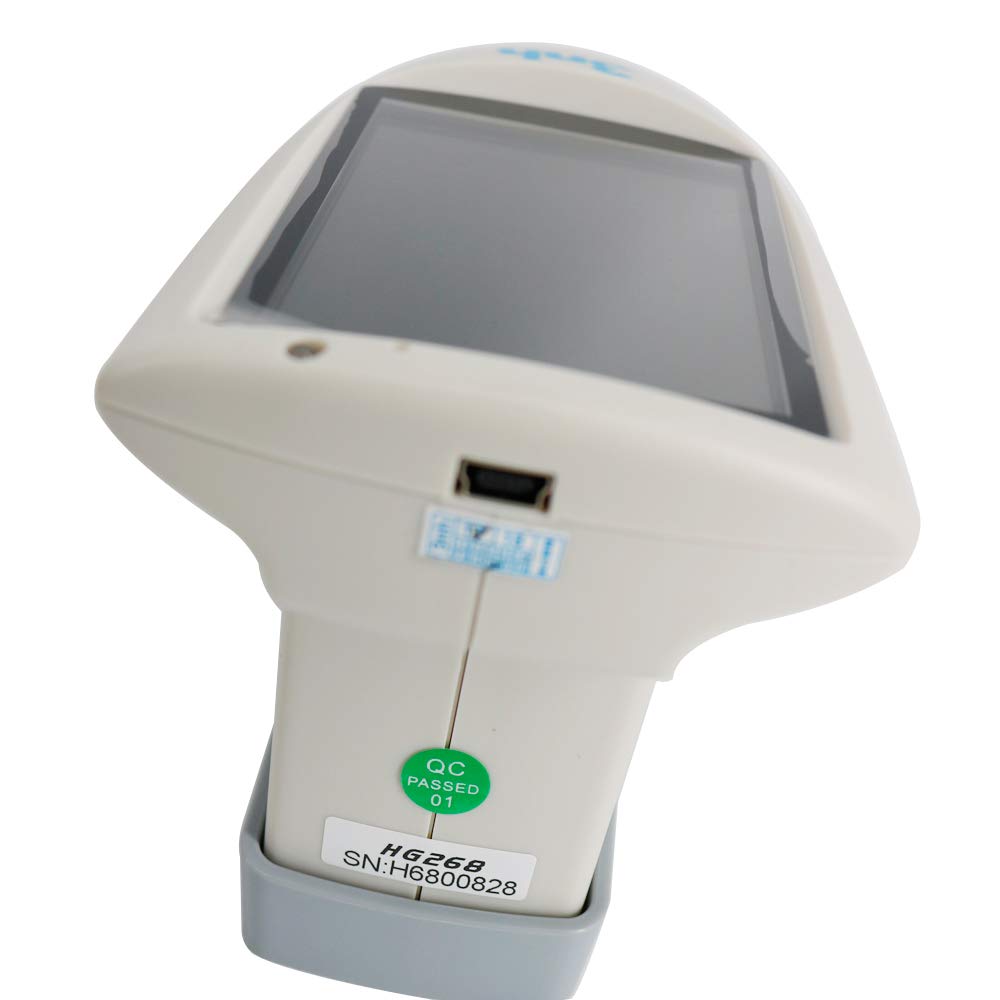

Interface: USB/RS-232
Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.
Storage: Basic mode: 1000
Operation Temperature: 0~40℃（32~104°F）
Storage Temperature: -20~50℃（-4~122°F）
Humidity: <85% relative humidity, no condensation

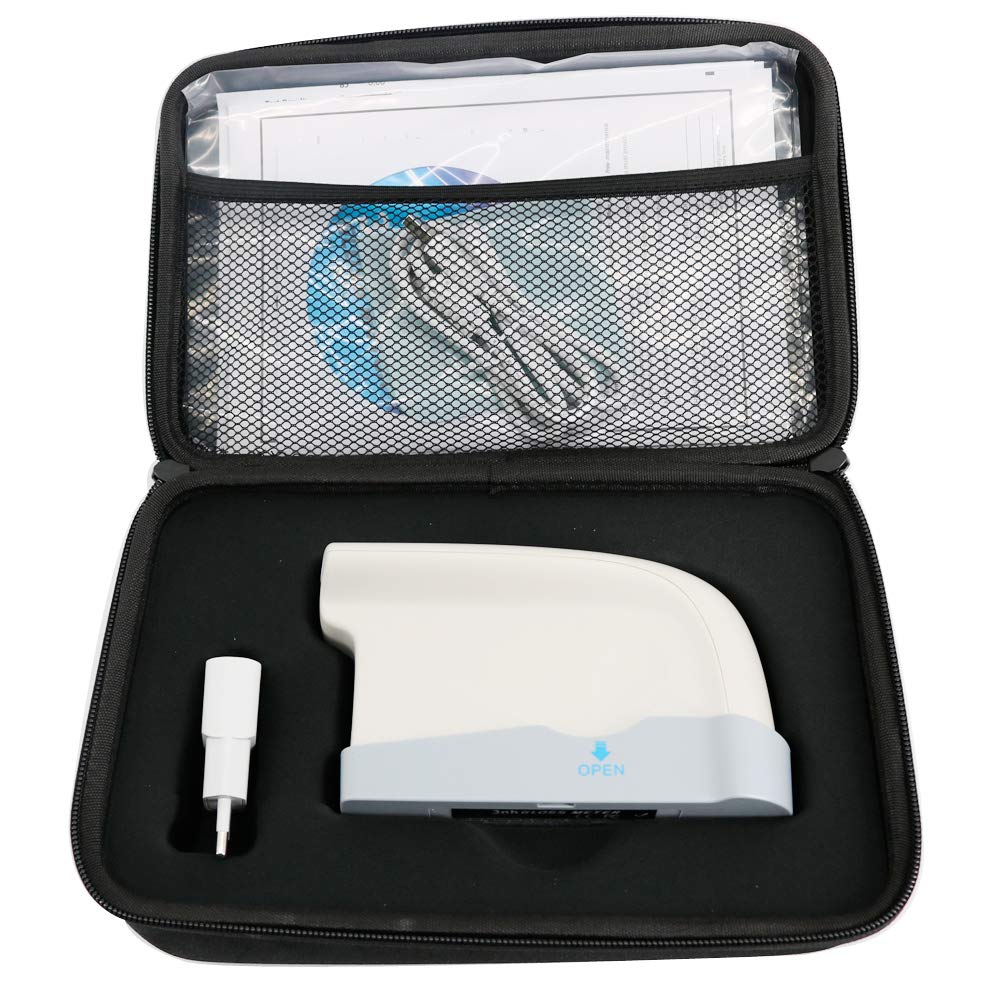

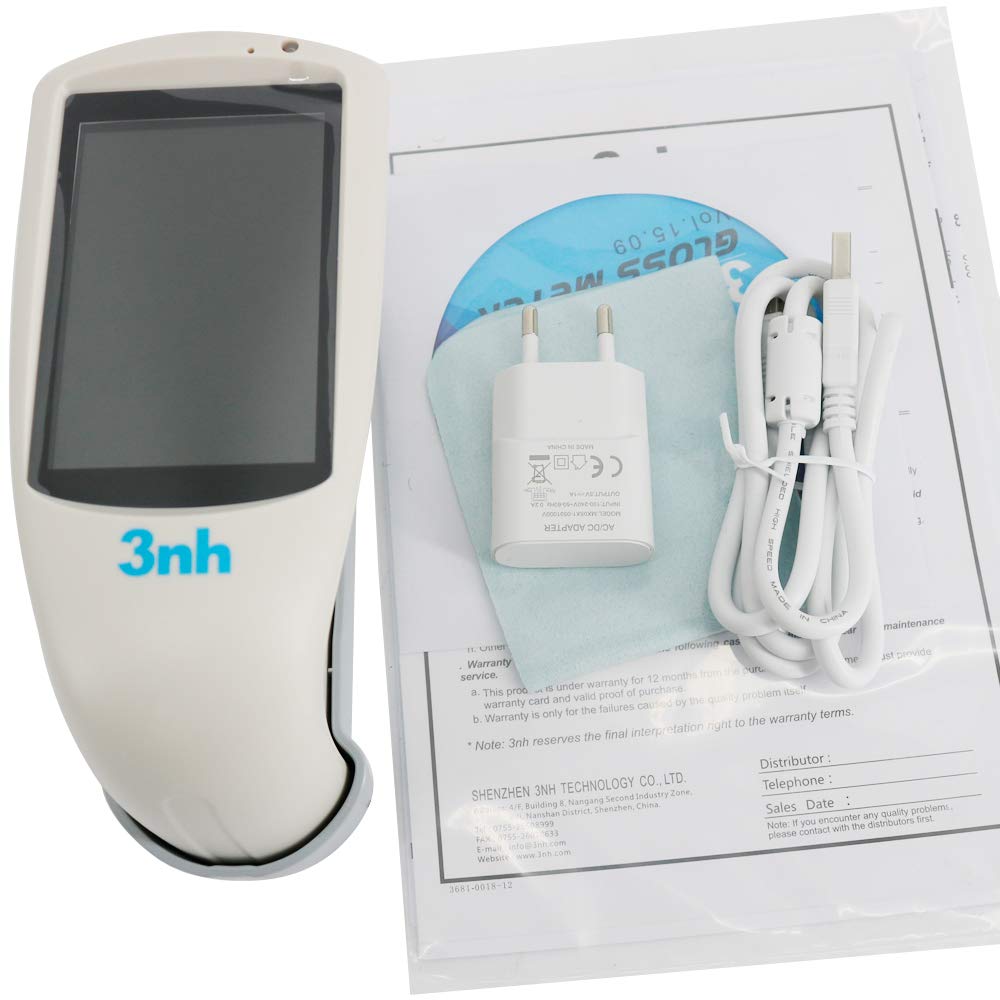

Standard Accessories
Main unit *1pcs
Power Adapter *1pcs
USB cable *1pcs
GQC6 software CD *1pcs
User Manual *1pcs

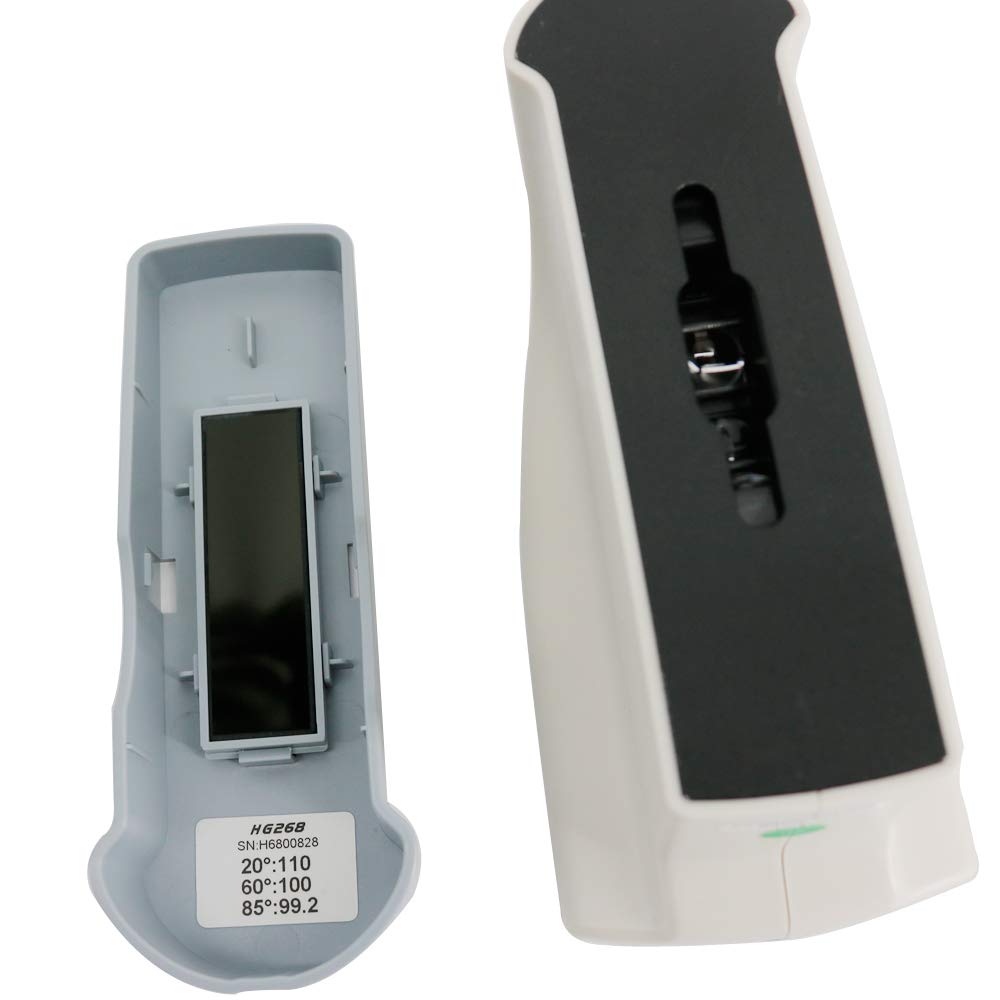

Calibration Plate *1pcs

EAN: 0799649265443
