Elegant Design combined with aesthetics and ergonomics
With auto-calibration function
Meet the second grade requirements of JJG696
Auto Power-off within optional 30-120 seconds
Comply to ISO2813,ASTM523, GB/T9754

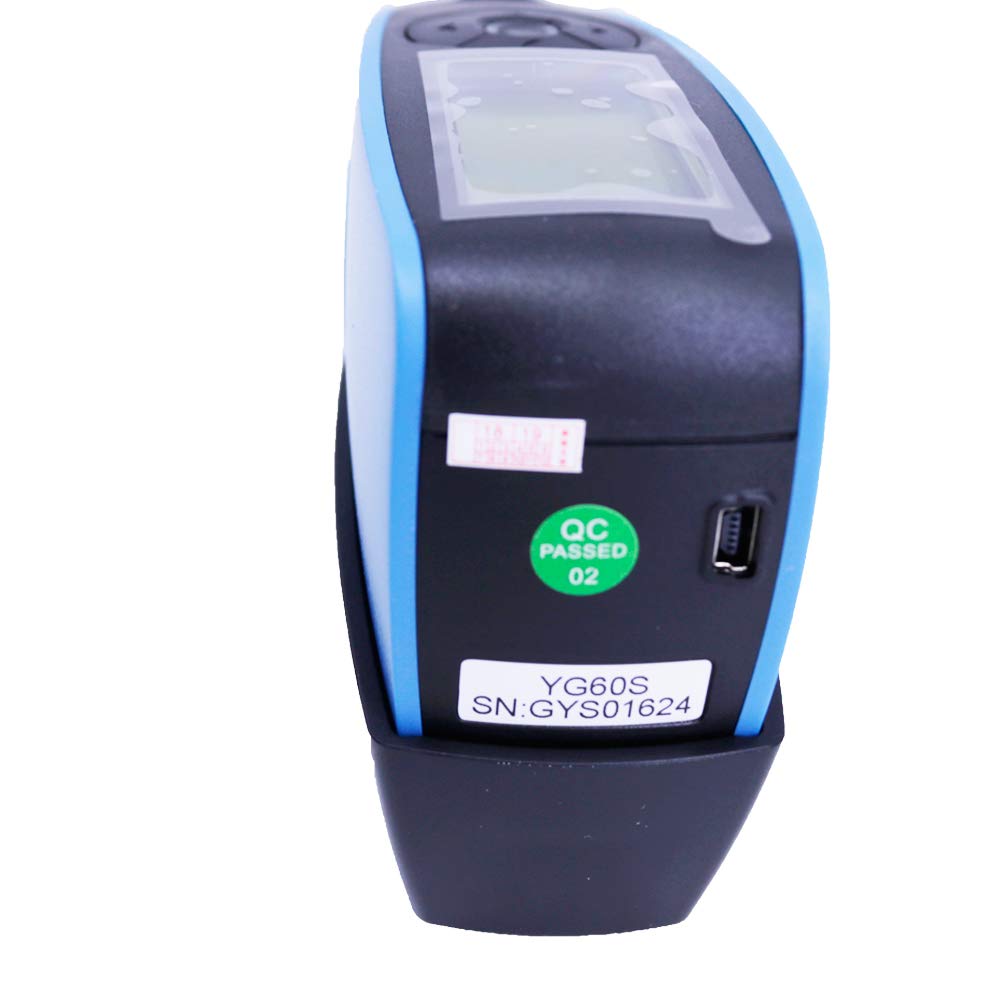

Part Number: YG60S
Details: Product Description

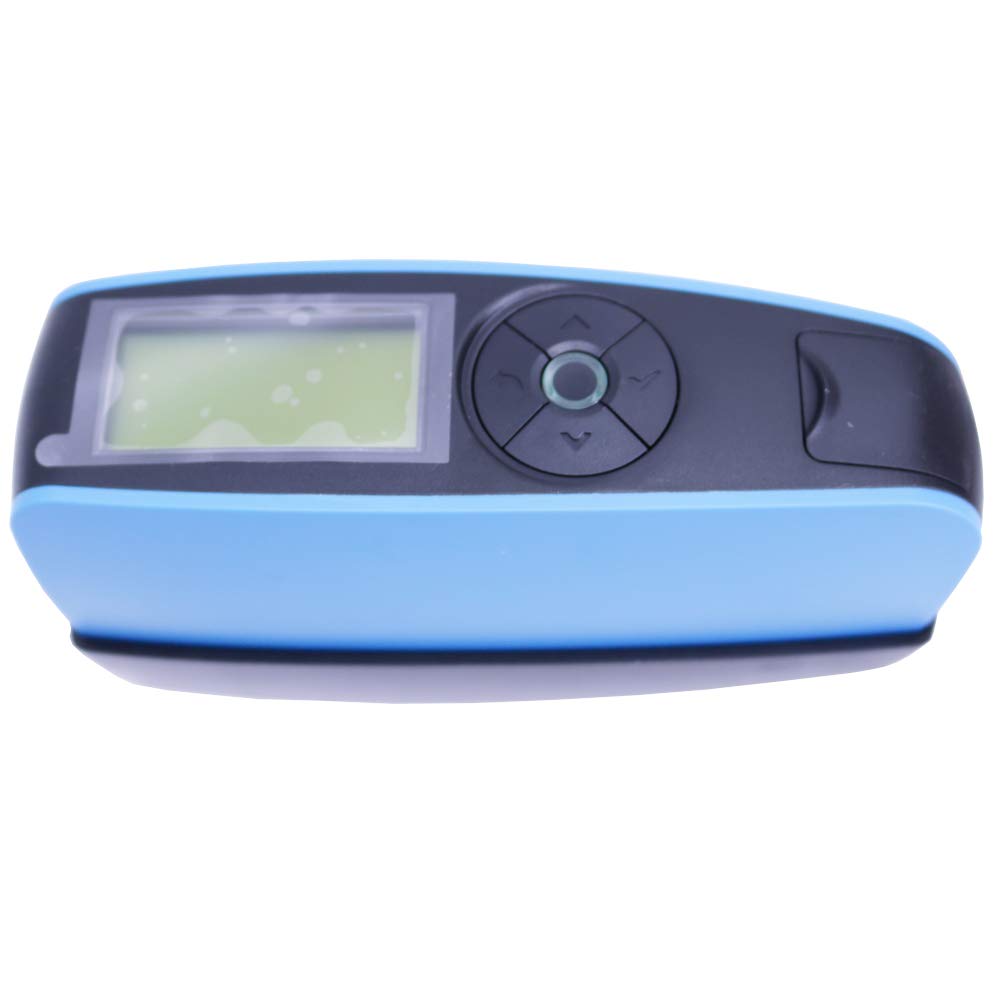

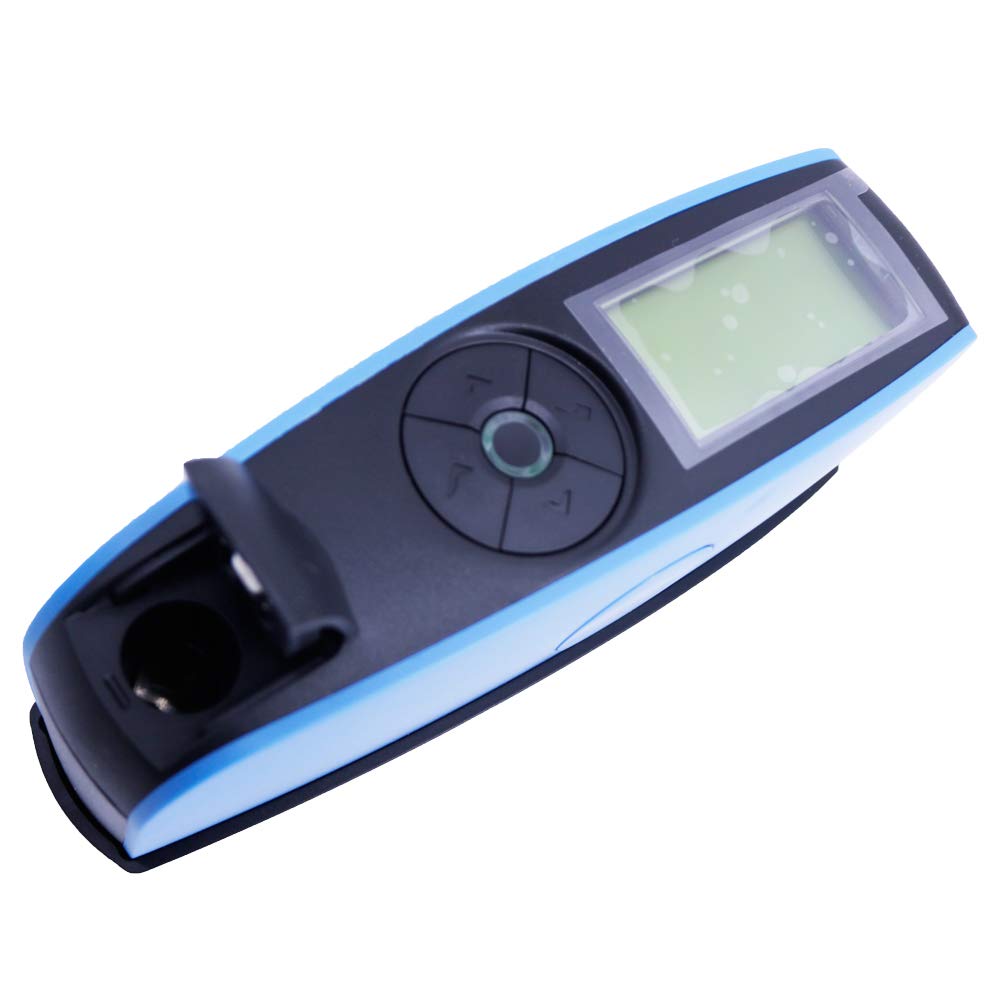

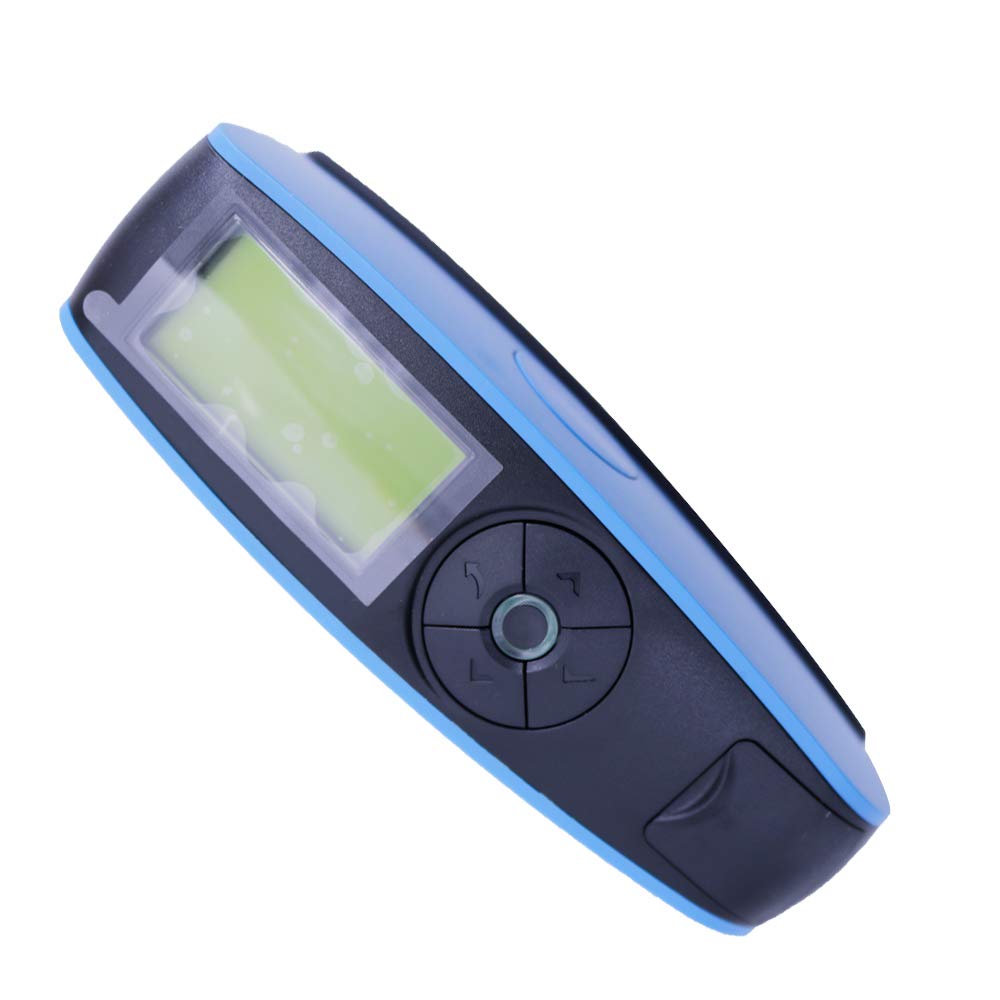

YG60S 60°Economic Gloss Meter is manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the second grade requirements of JJG696.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
Model : YG60 60°Accurate Gloss Meter
Measuring Angle : 60°
Measuring Area : 60°: 0-1000GU
Division Value : 0.1GU
Measuring Modes : Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time : 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate : Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time : Within 30s-120s
Long-time Calibration : Automatically check and made the calibration
Language : Chinese & English
Storage: 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display: 2.3 inch white and black screen
Size : 160*52*84mm
Weight: About 300g
Power Supply : 1pc dry-cell battery(can measure 10000 times)(battery not included) or use USB Charge
Interface: USB & Bluetooth 2.1 version
PC Software : GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range :0-40℃（32-104° F）
Storage Temperature Range : -20-50℃（-4-122° F）
Humidity Range :<85% RH, without condensation
Standard Accessories : USB cable, user manual, calibration plate, QC software
Optional Accessories :Miniature printer
