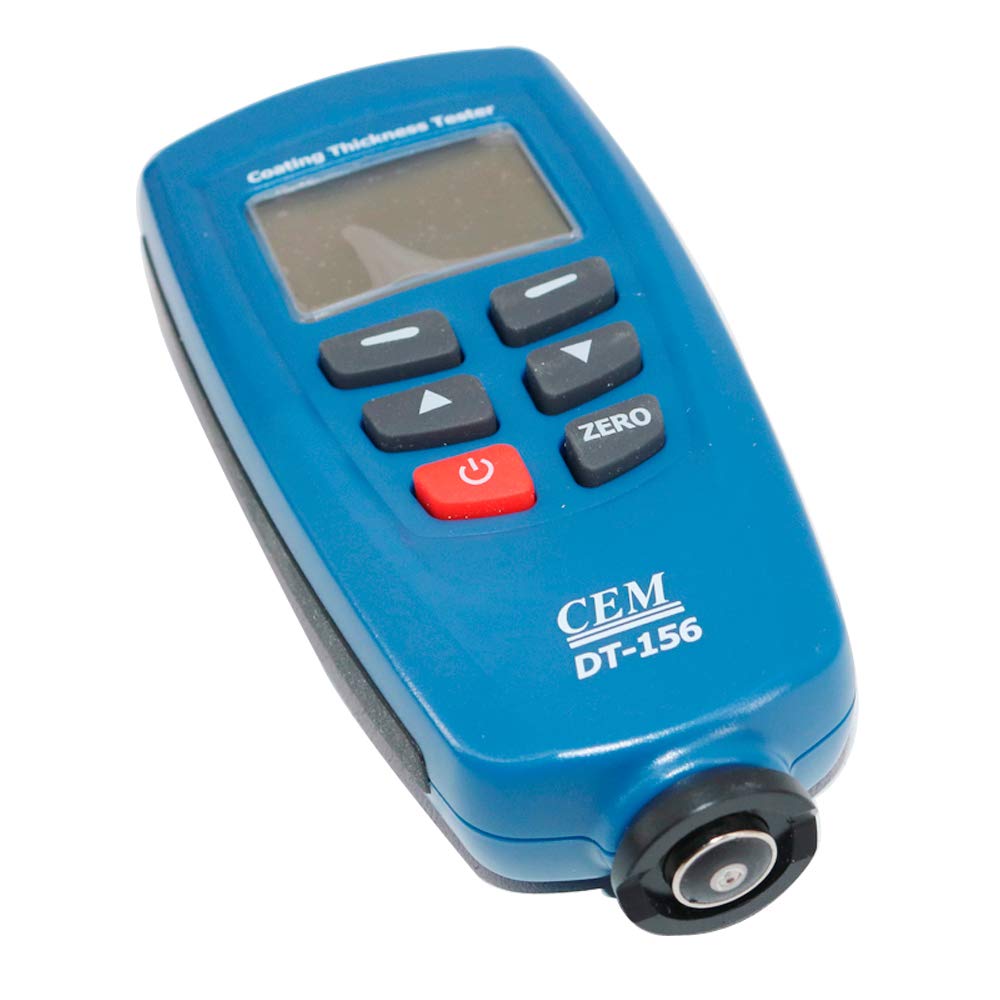

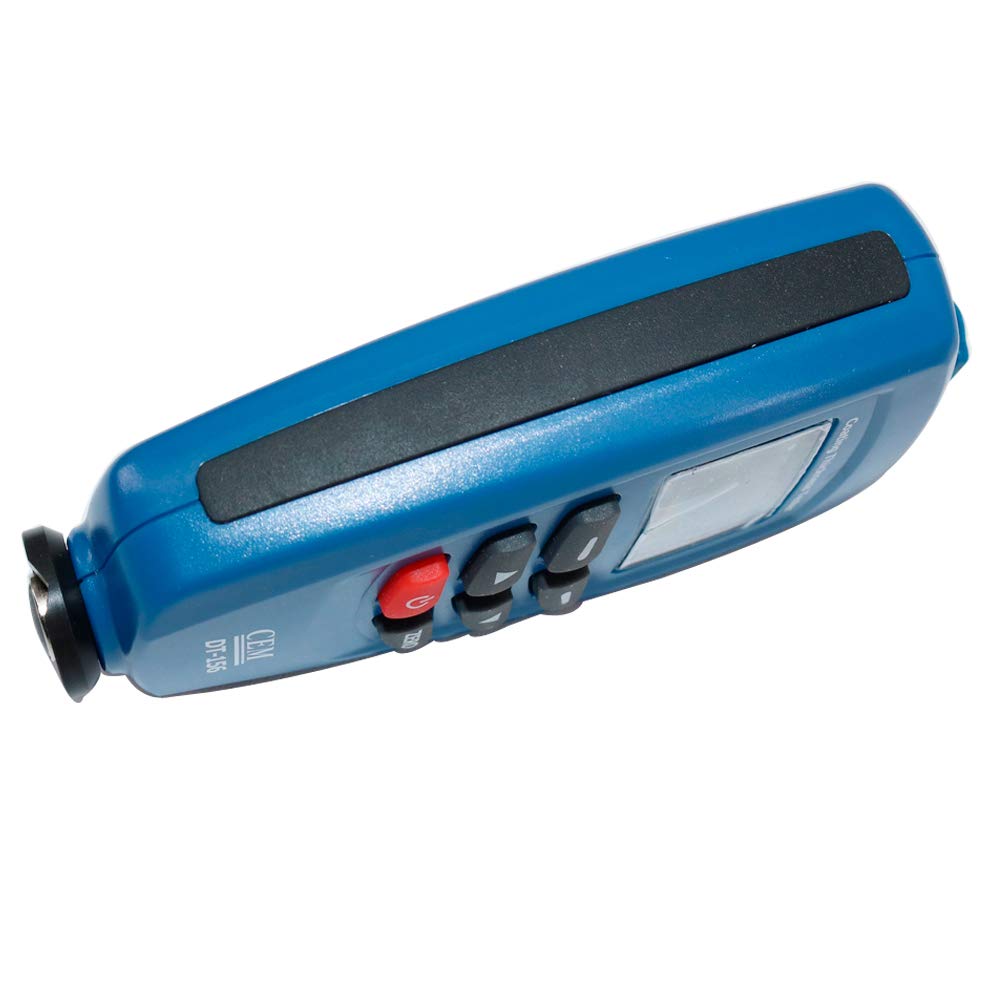

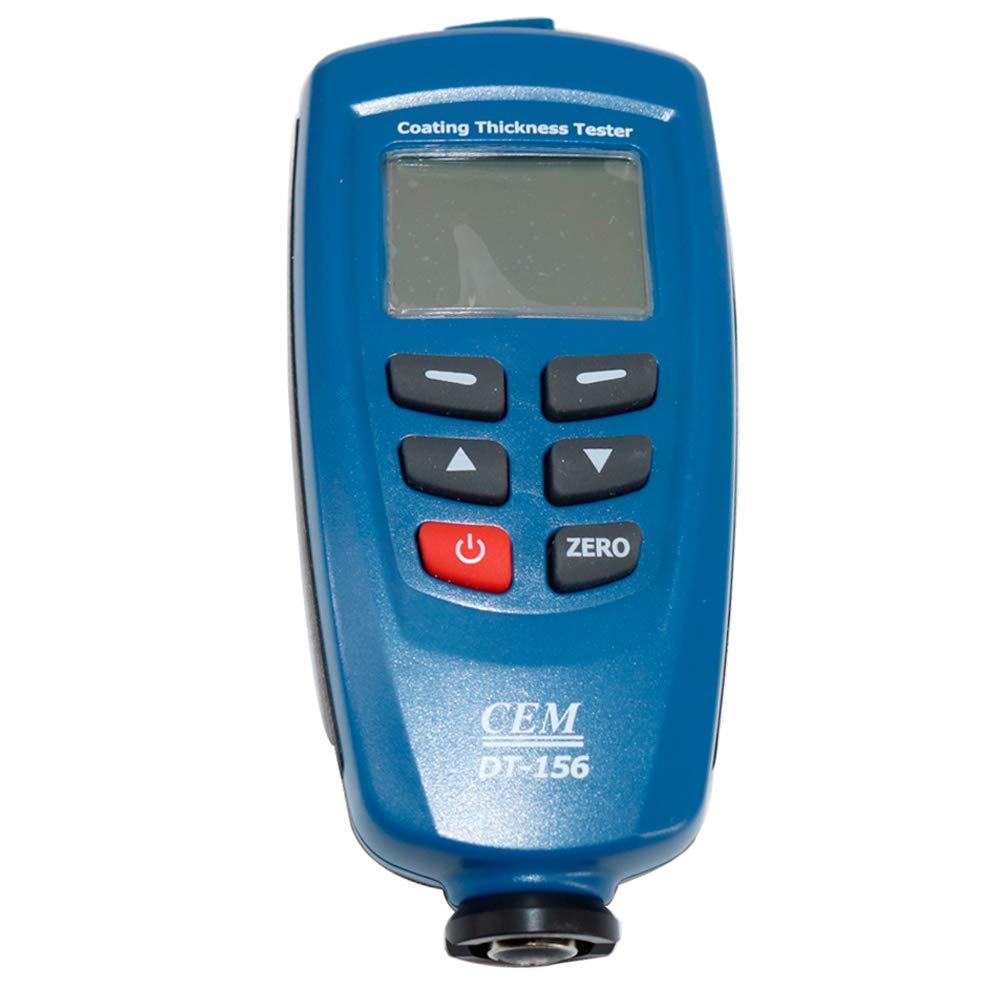

Graigar Digital Paint Coating Thickness Gauge Meter Tester DT-156 0~1250um with Built-in Auto F & NF Probe

Brand: Graigar

Features:

• DT-156 coating thickness gauge is suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.
• This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement. The principal aplications lie in the field of corrosion protection. Ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.
• Non-magnetic coatings (e.g. paint, zinc) on steel. Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
• No-ferrous metals coatings on insulating substrates. Easy MENU operation system
• Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode

Part Number: DT-156

Details: Features
Two measuring mode : CONTINUOUS and SINGLE mode
Two Operating/working mode :Direct mode : recommended for simple, quick & occasional measurements. Though can't be saved but hold up to 80 current readings + 5 statistics values
GROUP mode : permits measurement & storage of readings in a memory. 4 memory groups, 80 saved readings for each group

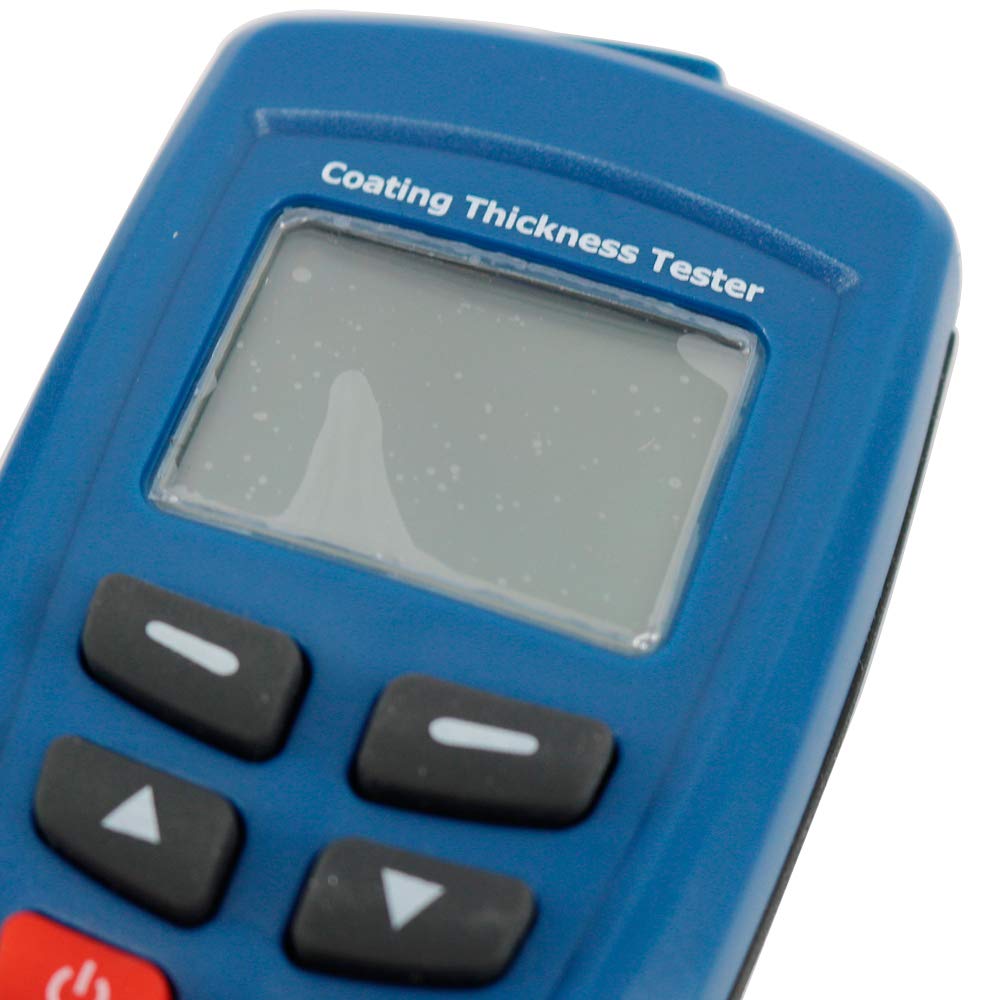

Blue backlight display
One-point calibrating and two-point calibrating independently for each working mode
Zero calibration
400 Memory readings (80 DIRECT and 320 GROUP readingS)
Delete functionsdelete current data or last reading
delete all data and statistics of current work mode
delete group data including high & low alarm set value and 1 & 2 point calibrations
High alarm and Error indication
V-Groove on probe for small cylindrical parts
Disable Auto-Power-Off function via MENU setting

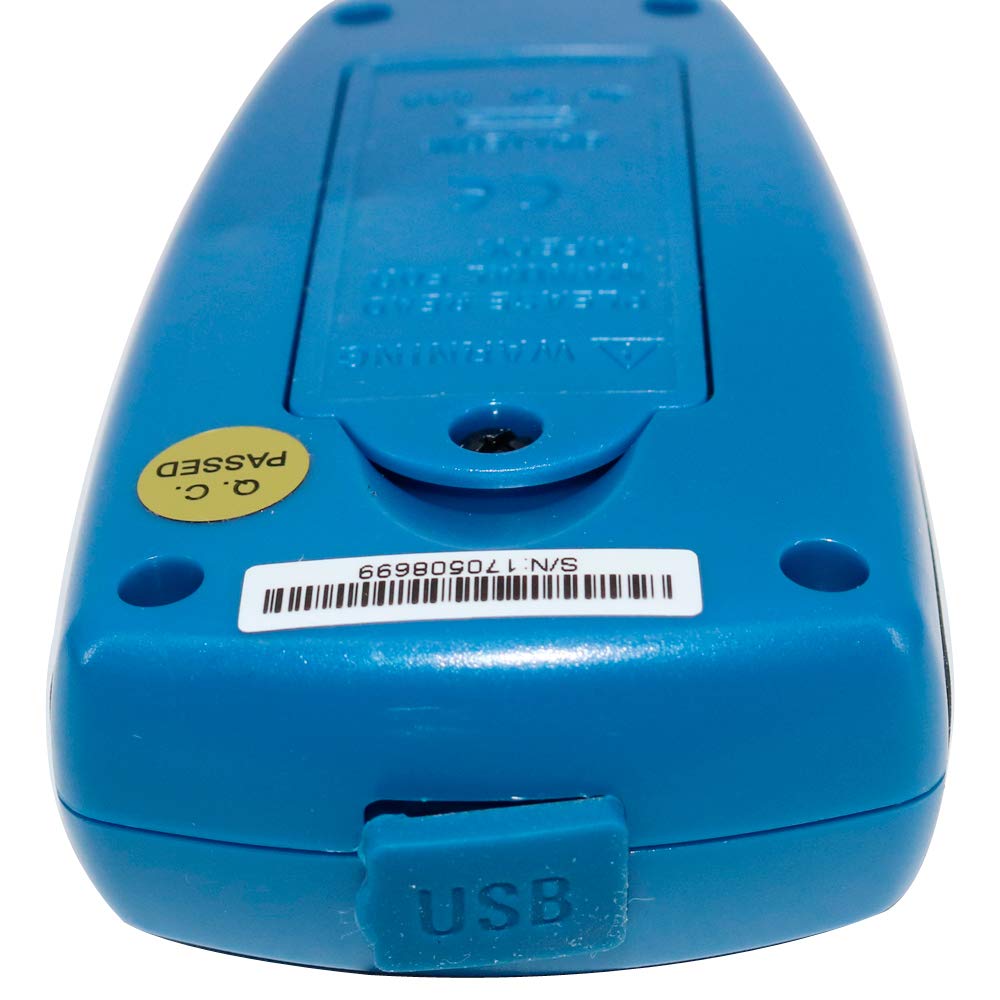

USB interface for PC software (compatible with windows 98/2000/xp/Vista/Win7)
Built with highest quality electronics
Conforms with the following industrial standards:GB/T 4956-1985
GB/T 4957-1985
JB/T 8393-1996
JJG 889-95
JJG 818-9

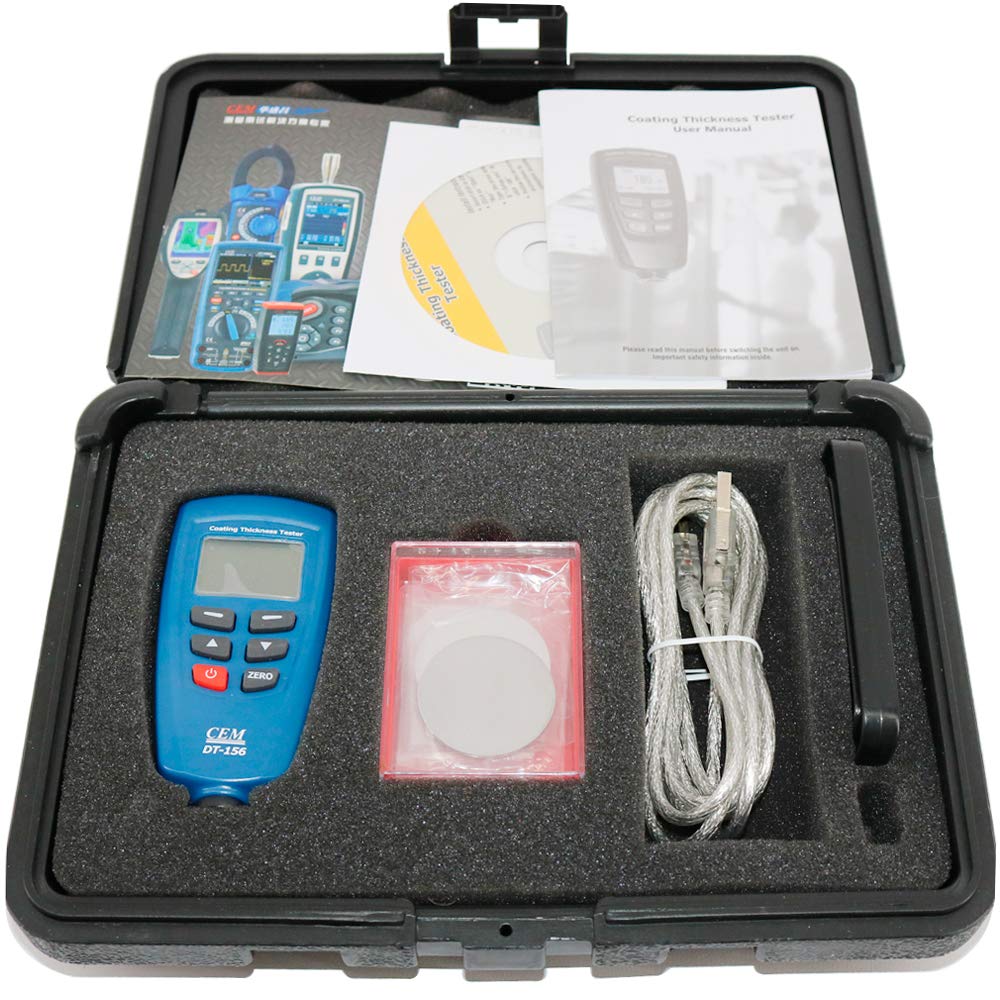

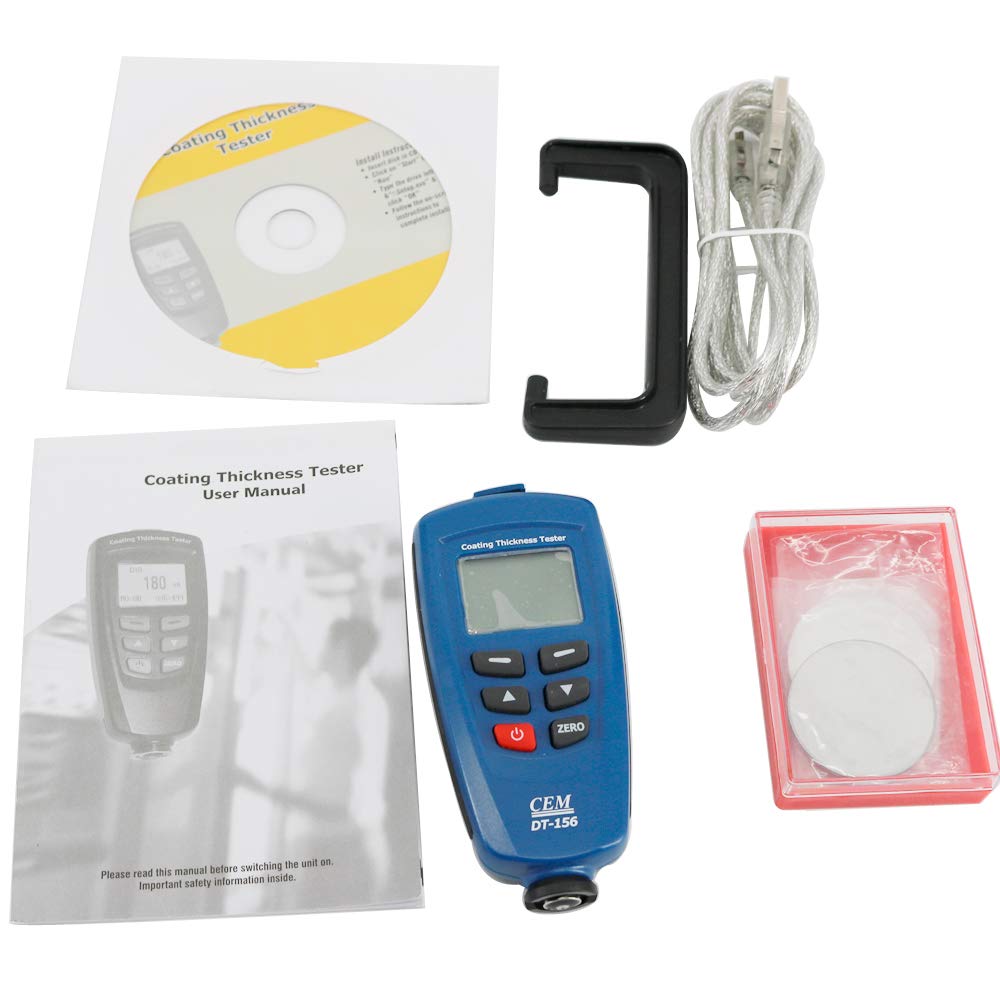

Set Includes
1 x Paint Coating Thickness Tester
5 x Calibration Foil
1 x Iron Substrate
1 x Aluminum Substrate

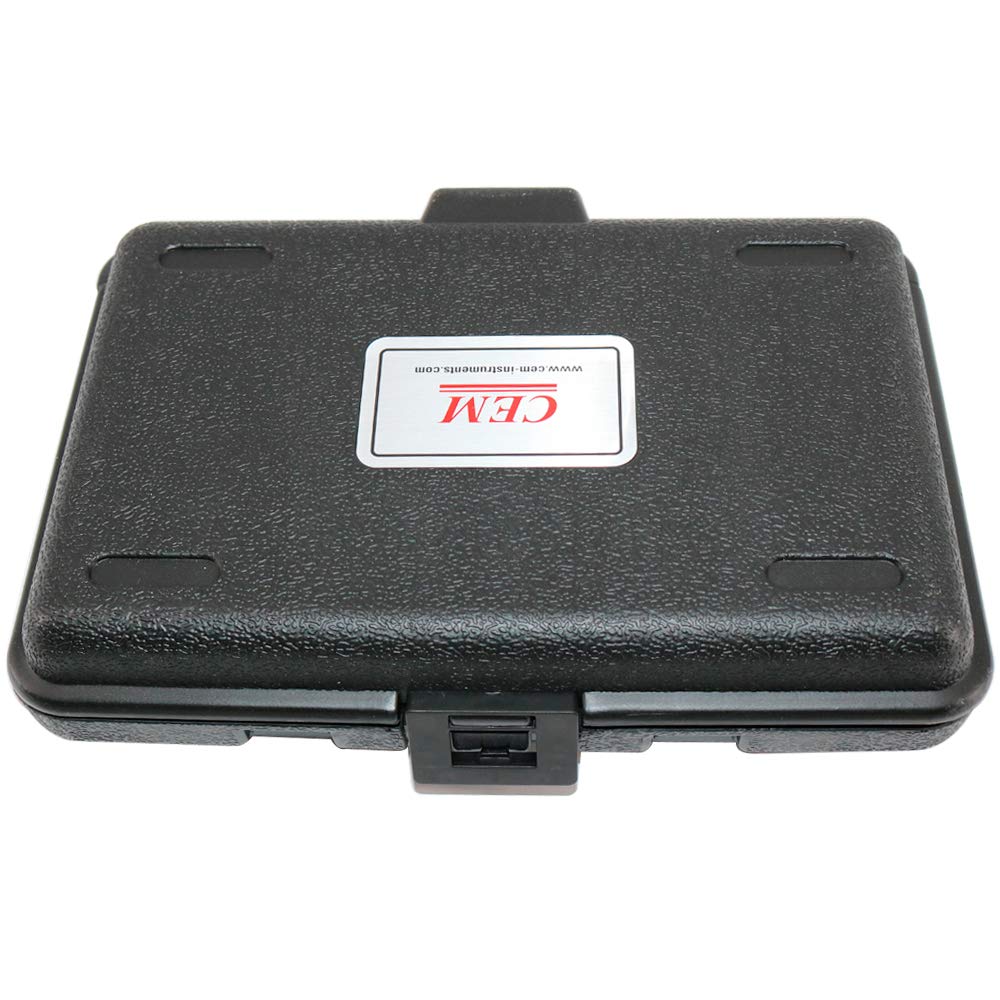

1 x Protective Carrying Case
1 x USB cable
1 x CD Software

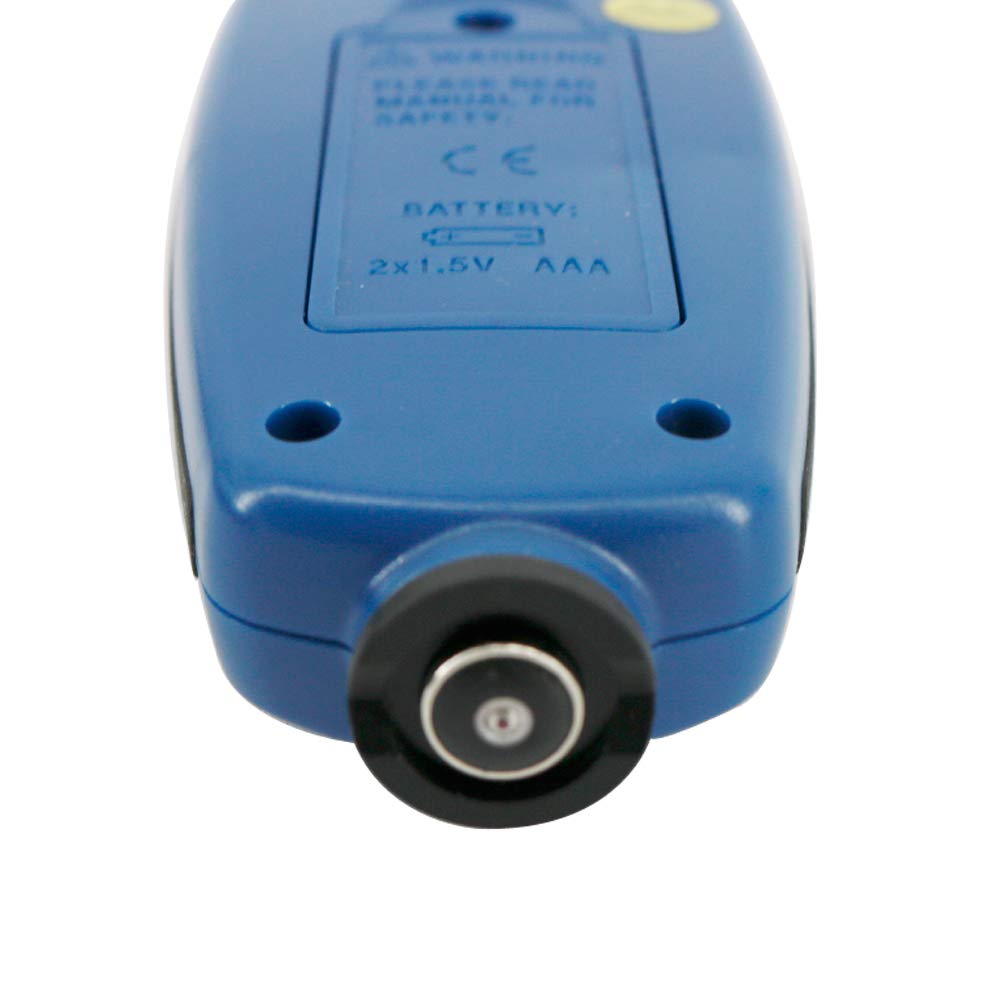

2 x 1.5V AAA Battery
English Instruction Manual

EAN: 0799649263586
