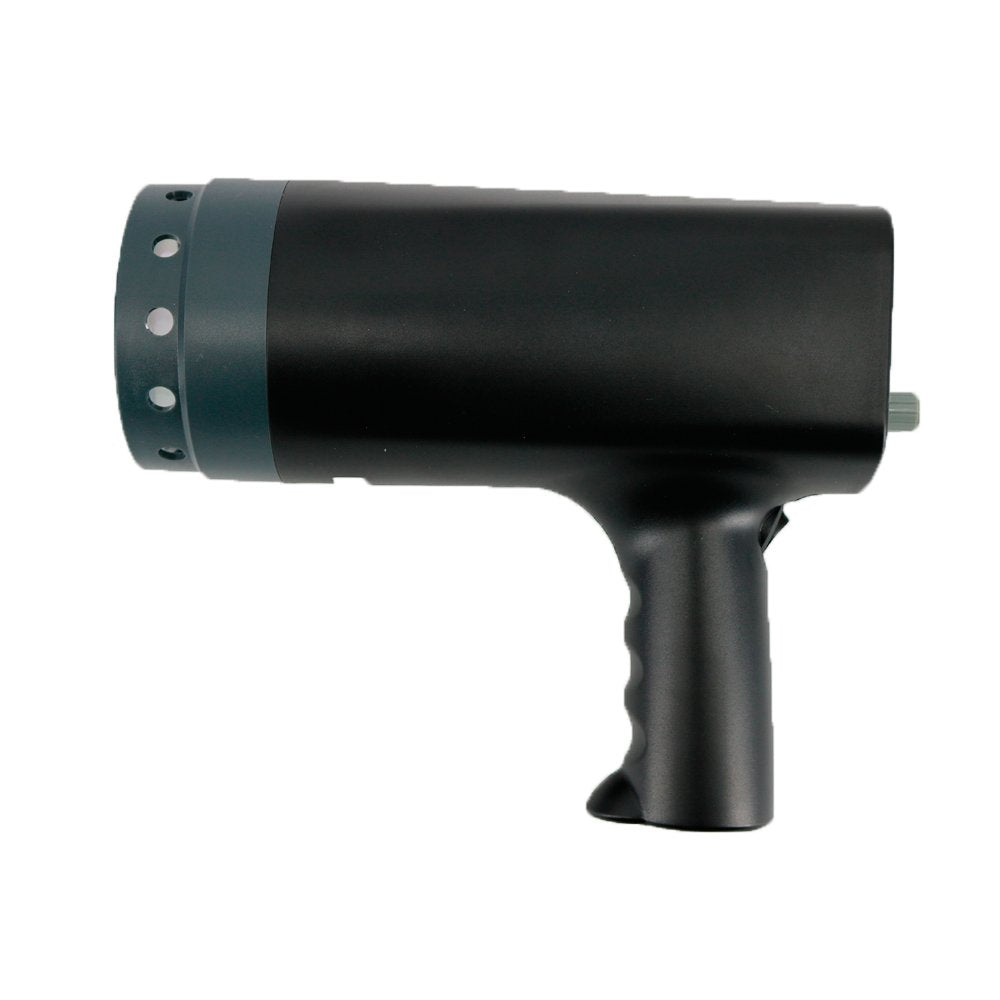

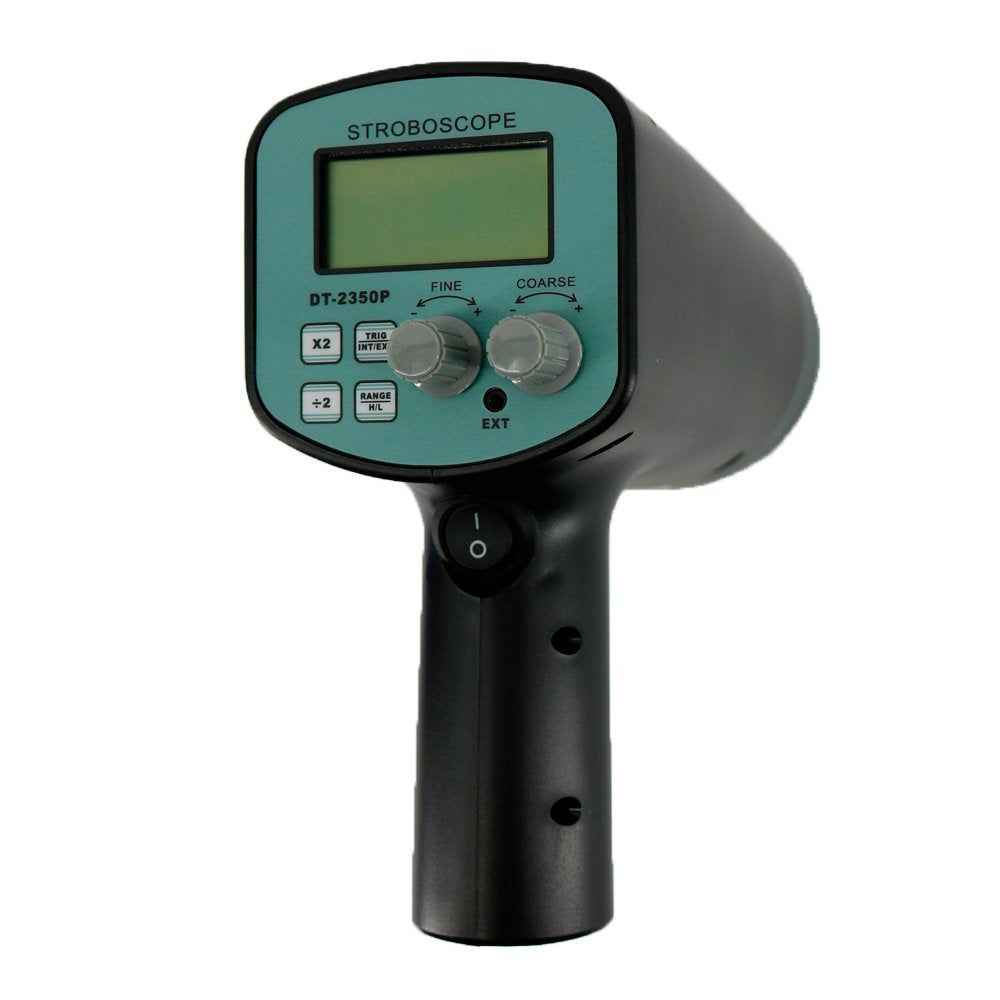

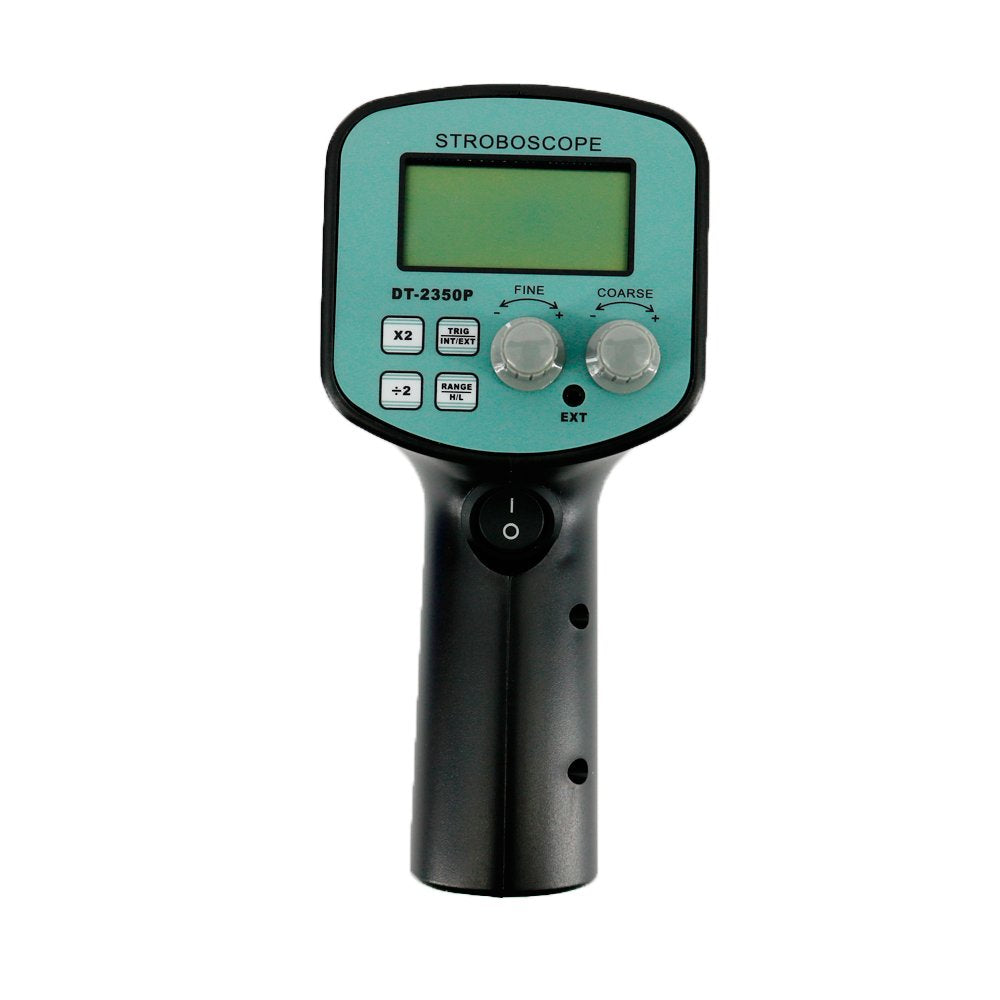

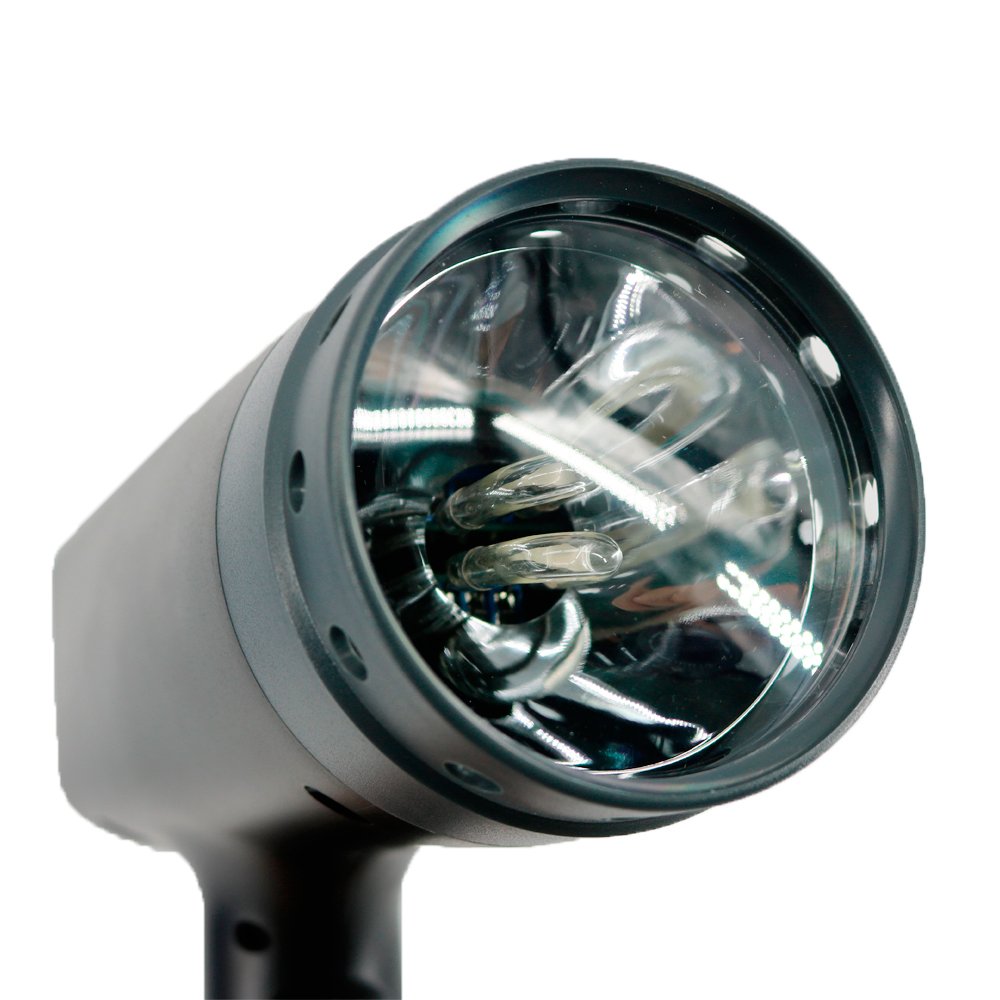

DT-2350PD Stroboscope Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
Automatic stop flashing to save electricity and improve flash tube lifetime.

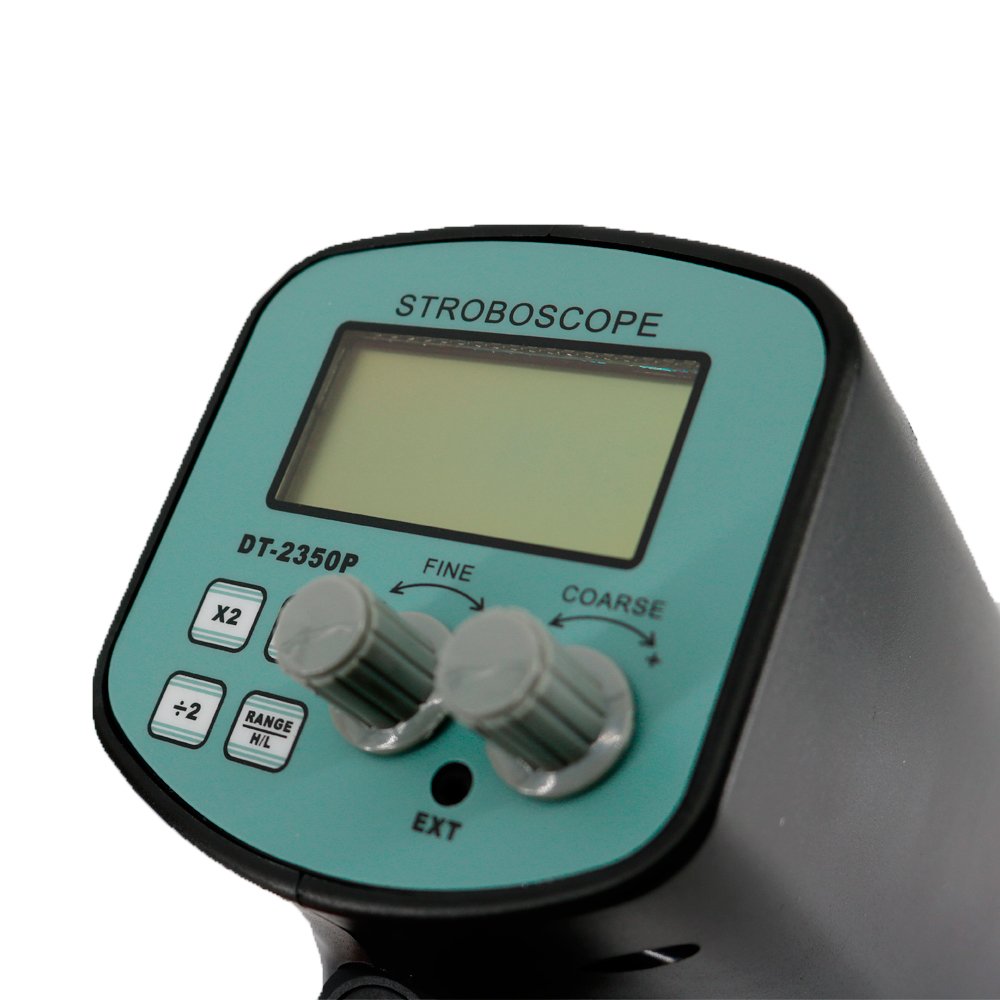

Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
Part Number: DT-2350PD
Details: Overview
The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.
Specifications
Model: DT-2350PD
Range: 50 ~ 30,000 FPM
Display: LCD
Resolution: 0.1 FPM(50~999.9 FPM)
1 FPM(Over 1000 FPM)
Accuracy: ±(0.05%n+1d)
Sampling Time: 0.3 Seconds
External Trigger Level: 3~24 V
H/L Range: Flashing Light is much Brighter at
Low Range than at High Range

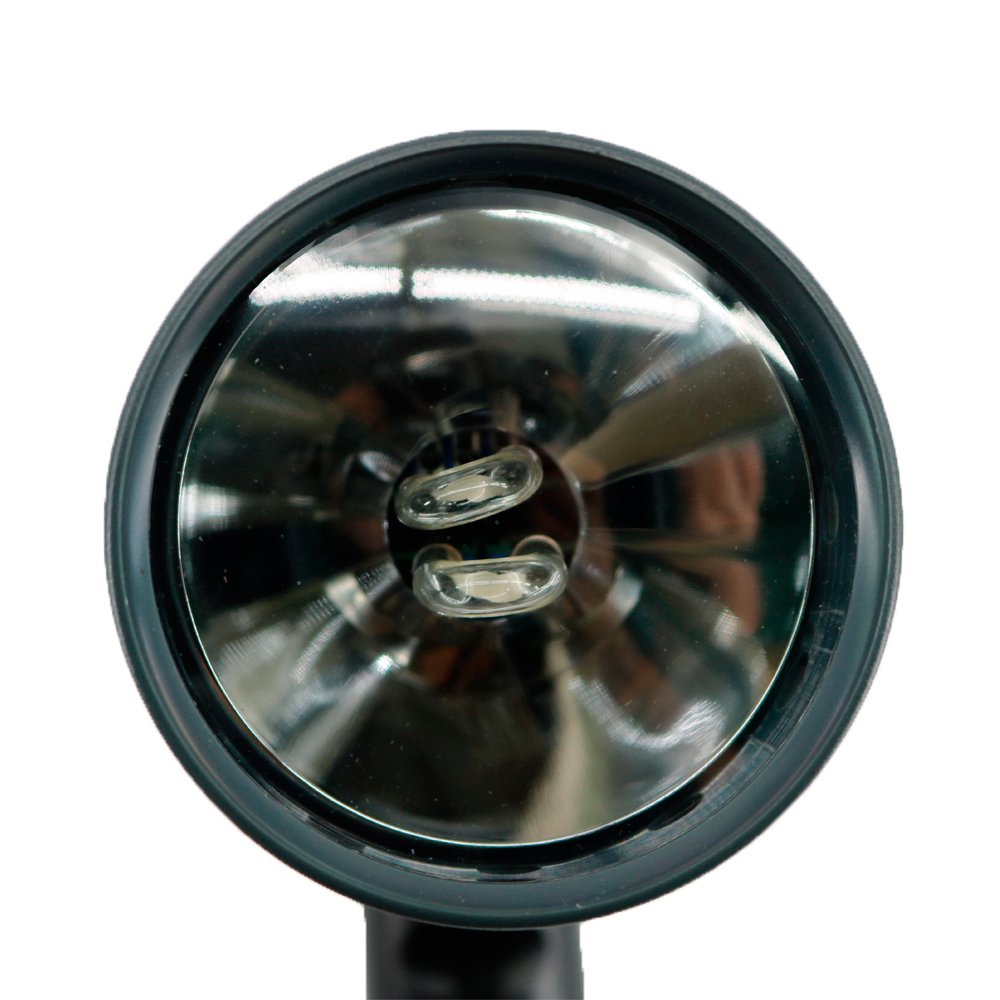

Flash Tube Life: 100 Millian Times
Temperature:0~40ºC
Humidity:<85%RH
Power Supply: AC 220V(Optional AV 110V)
Power Consumption: About 50W
Dimensions: 215x85x180 mm/8.5x3.3x7.1 in
Weight: Abou 1000 g/2.2 lb

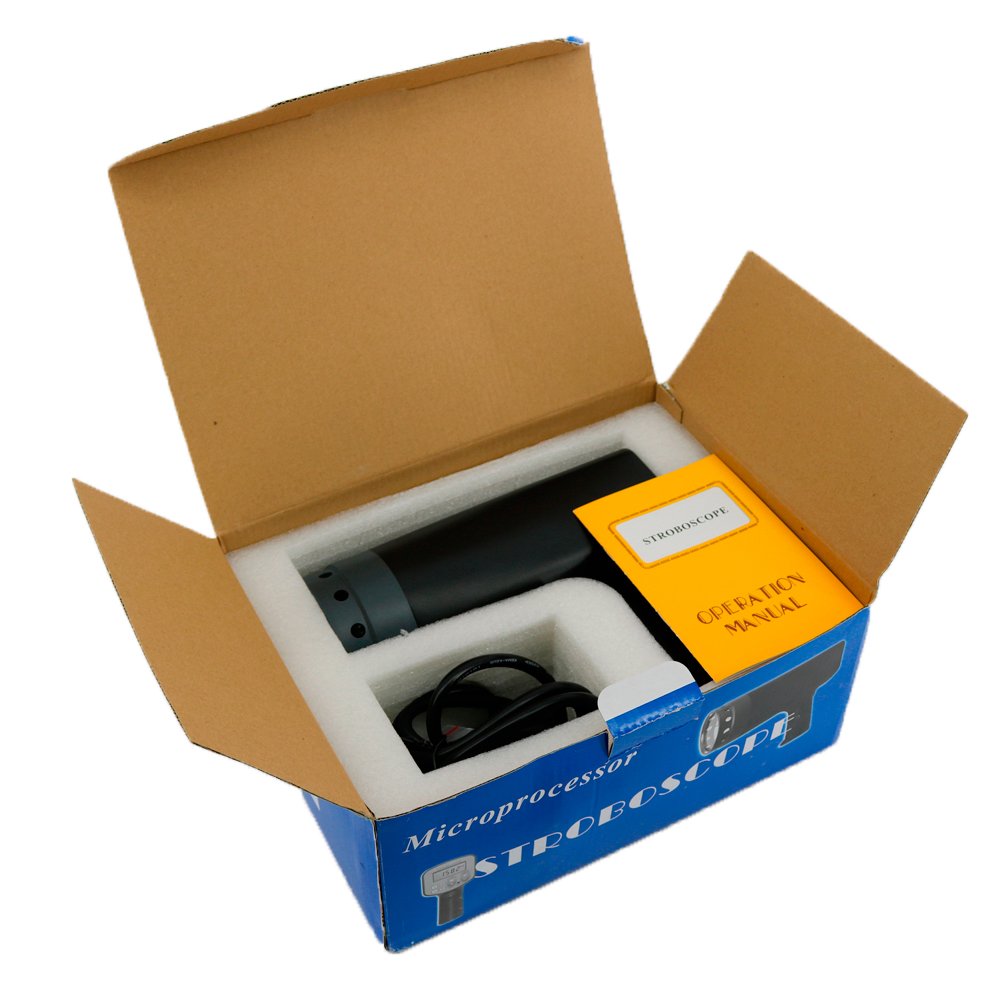

Standard Accessories
Main Unit
Carrying Case(B08)
Operation Manual
Optional Accessories
Sqare Flashing Tube
Rechargeable Battery only for DT-2350PA/DT-2350PE
