KR210 surface roughness tester with automatic dormancy, automatic shutdown and power saving function
Using DSP chip to control and data processing, high speed, low power consumption
Measurement information display, menu prompt information, false information and switch machine and other tips that information
Can be connected to a computer and printer
Electromechanical integration design, small volume, light weight, easy to use
Part Number: KR210

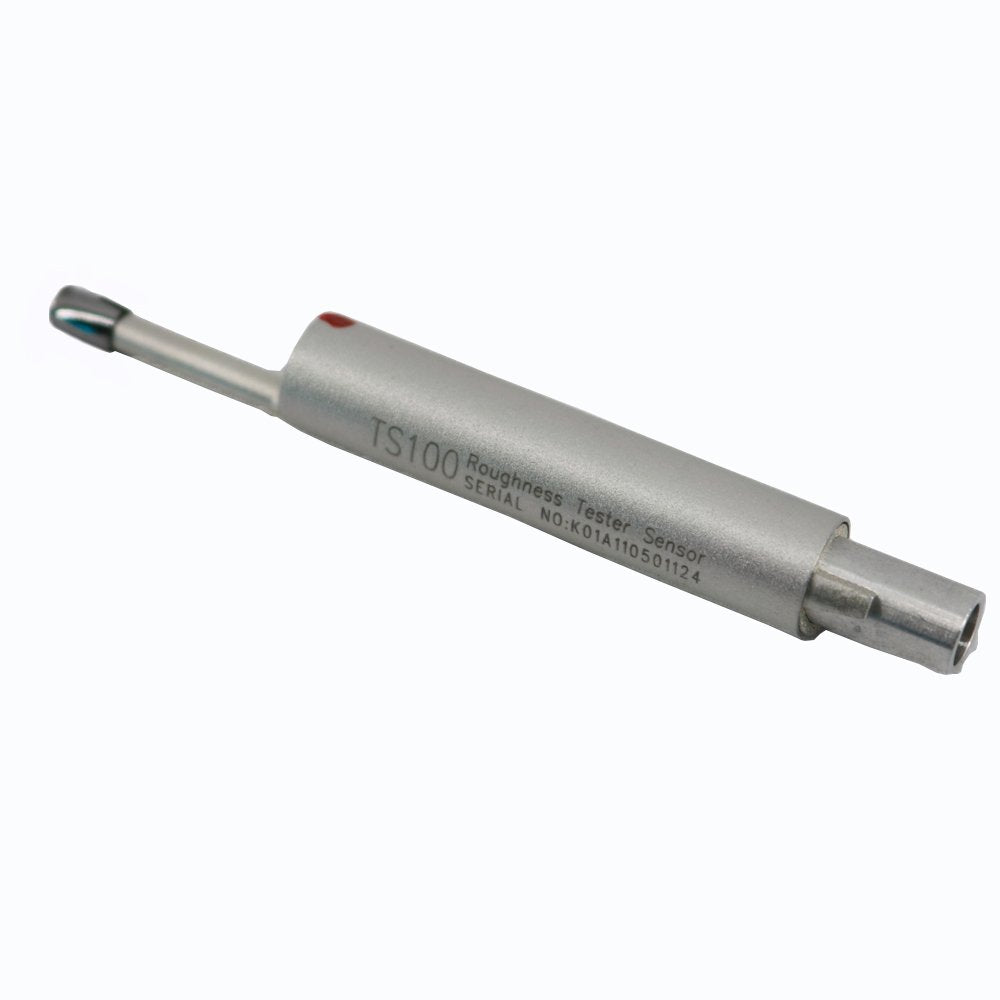

Details: The performance index of sensor
Measuring range 160 μm
Tip radius 5 μm
Tip material Diamond
Stylus force 4mN(0.4gf)
Stylus angle 90°
The guide head vertical radius 45mm
Item
The maximum driving trip 17.5mm/0.7inch
Indicating error Not more than ± 10%
Variation of indication Not more than 6%
The measured profile
Roughness, waviness, the original contour
Parameter
Ra(0.005μm ~ 16μm),
Rz(0.02μm ~ 160μm),
Rq, Rt, Rx,Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr.
Filter RC,PCRC,Gauss,ISO13565
The sampling length L 0.25mm,0.8mm,2.5mm,8mm
Evaluation length L (1-5)
lInternal storage capacity 100 groups of original data

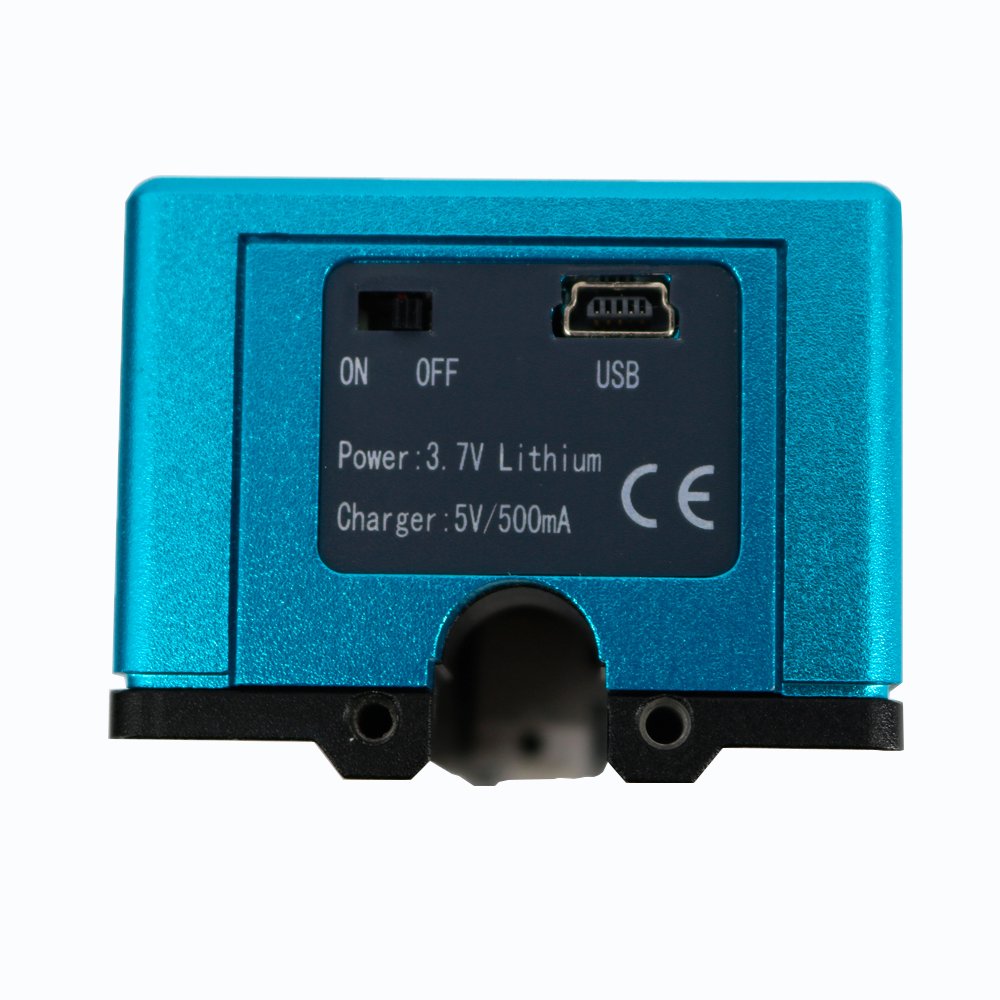

External input / output interfaceUSB
Electric source
Built-in rechargeable lithium ion battery or external power adapter
