Graigar Digital Tachometer Laser Contact Speed Meter Optoelectronic Photo Tach Speedometer Data Storage DT6236B 99999 RPM

Brand: Graigar

Features:

• DT6236B Tachometer Measurement Range: PHOTO/LASER (2.5 to 99,999RPM); CONTACT (0.5 to 19,999RPM); SURFACE SPEED (0.05 to 1,999.9m/min)
• Use Microcomputer (CPU) and junction laser technique to combine Photo (RPM) and Contact Tachometer (RPM, m/min) into 1 meter
• Offers 3 measurement options: photo/laser, contact, and surface speed
• Tested according to international guidelines and standards
• Can be used in both non-contact (laser) measurement & contact measurement

Part Number: DT6236B

Details: This is a digital, battery-powered portable optical tachometer operates up to 500mm
from a reflective target using a laser light source. It provides fast and accurate RPM
and surface speed measurements and combines both contact and non-contact models
for use in all applications
Features:
Higly visible LCD screen with clear and accurate test results
With visual laser guide
Wide measuring range 99,999 RPM and high resolution
Durable and built to last long
Can be used in model engines, propellers, wood and metal working to accurately
measure the speed of a lathe
New surface speed sensor with flute veils to measure speed and length of wire,
cable and rope conveniently
Specifications:
Resolution:
*PHOTO/LASER: 0.1 RPM (from 2.5 to 999.9 RPM)
***1 RPM (over 1,000 RPM)
**CONTACT: 0.1 RPM (from 0.5 to 999.9 RPM)
***1 RPM (over 1,000 RPM)
**SURFACE SPEED: 0.01 m/min (0.05 to 99.99 m/min)
***0.1 m/min (over 100 m/min)
Display: Large 5 digit LCD
Accuracy: ±(0.05% + 1 digit)
Sampling Time: 0.8 sec (over 60 RPM)
Time base: Quartz Crystal
Automatic Test Range Selection
Detecting Range: 50 to 500mm / 2 to 20inch (photo/laser)
Memory: Last value, Max. value, Min. value
Power: 4 x 1.5V AA Size Battery (not included)

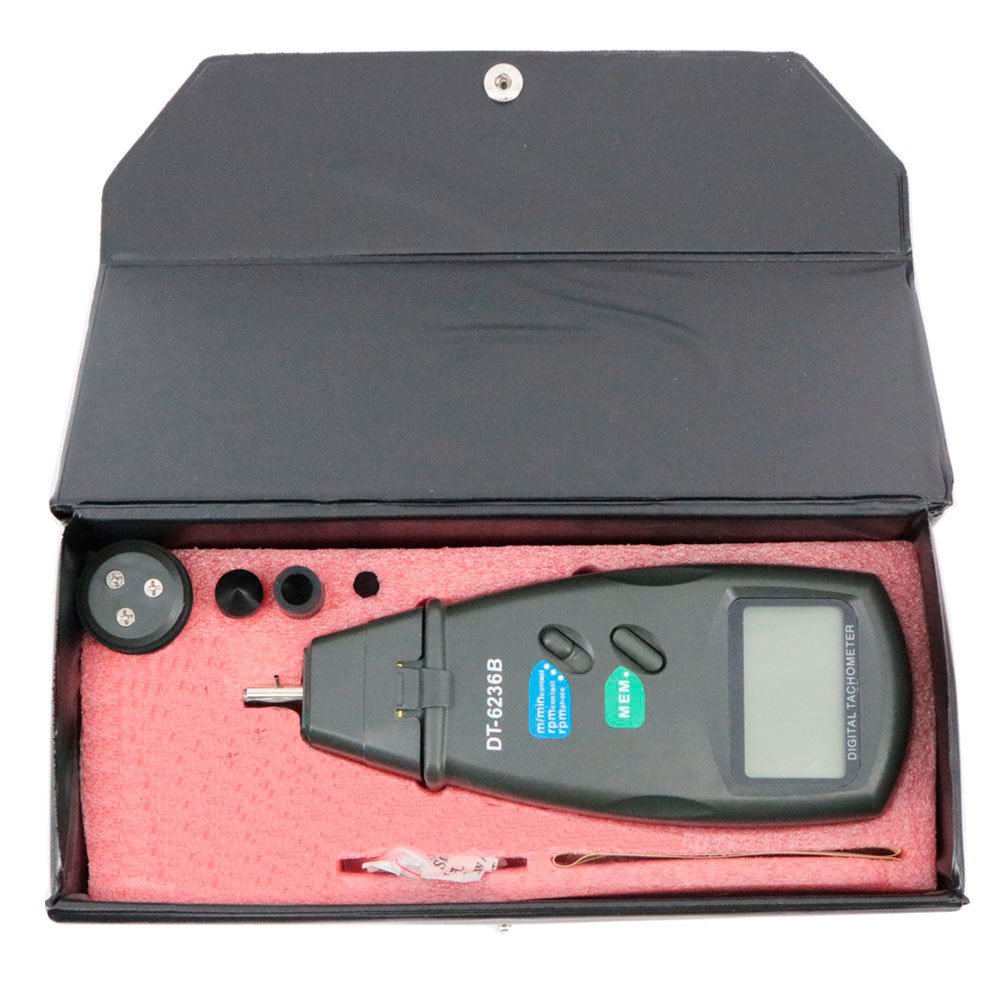

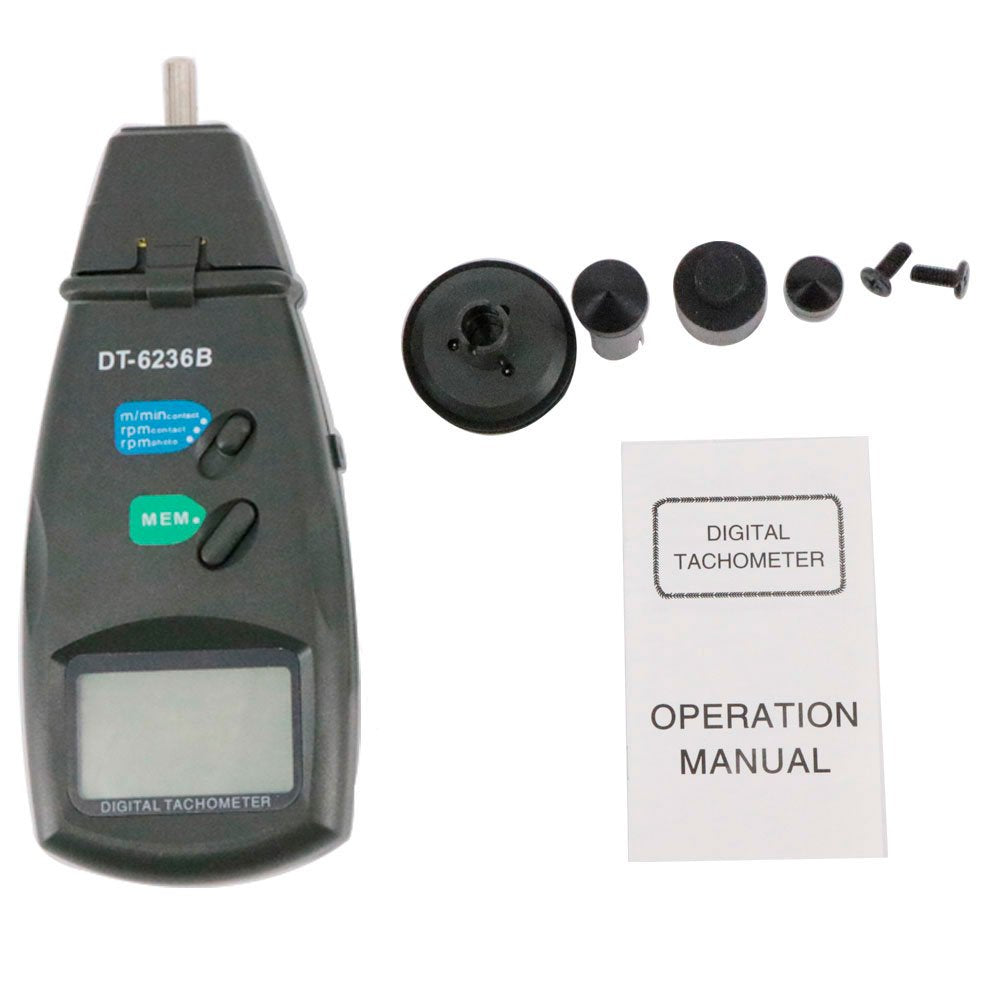

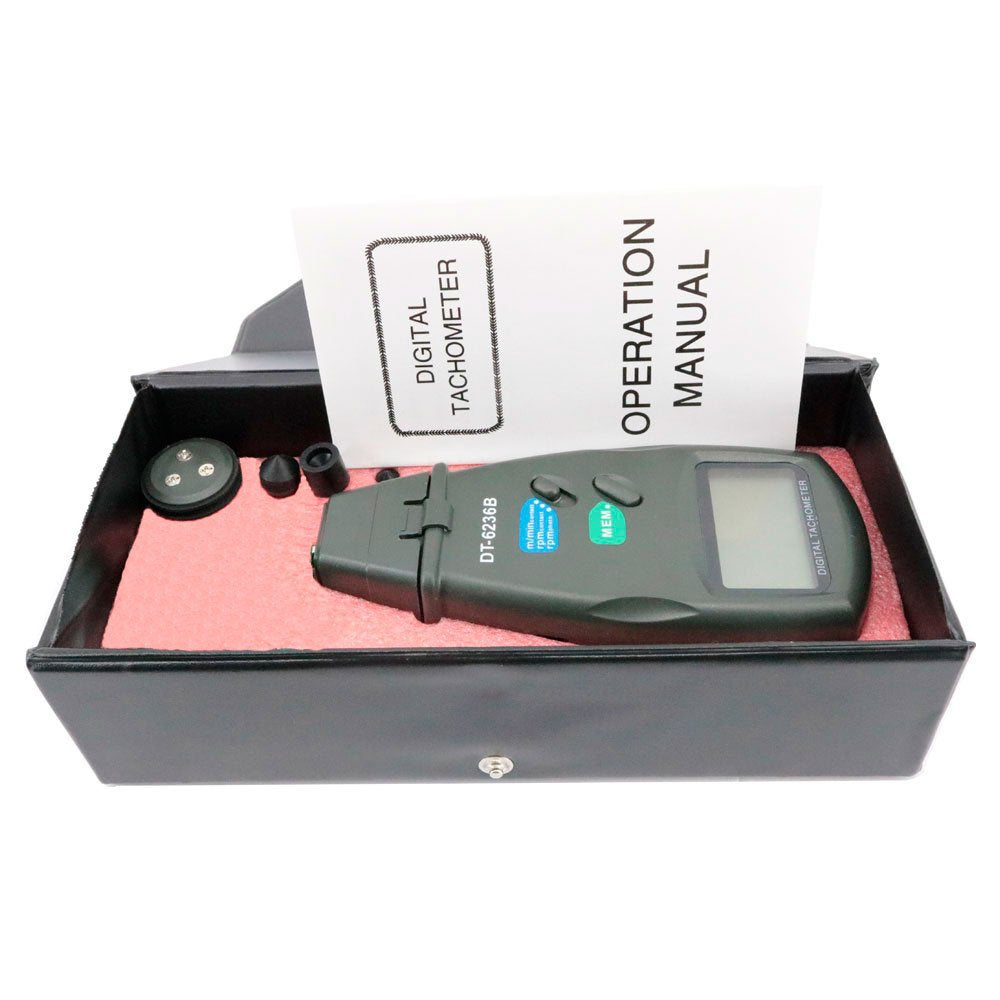

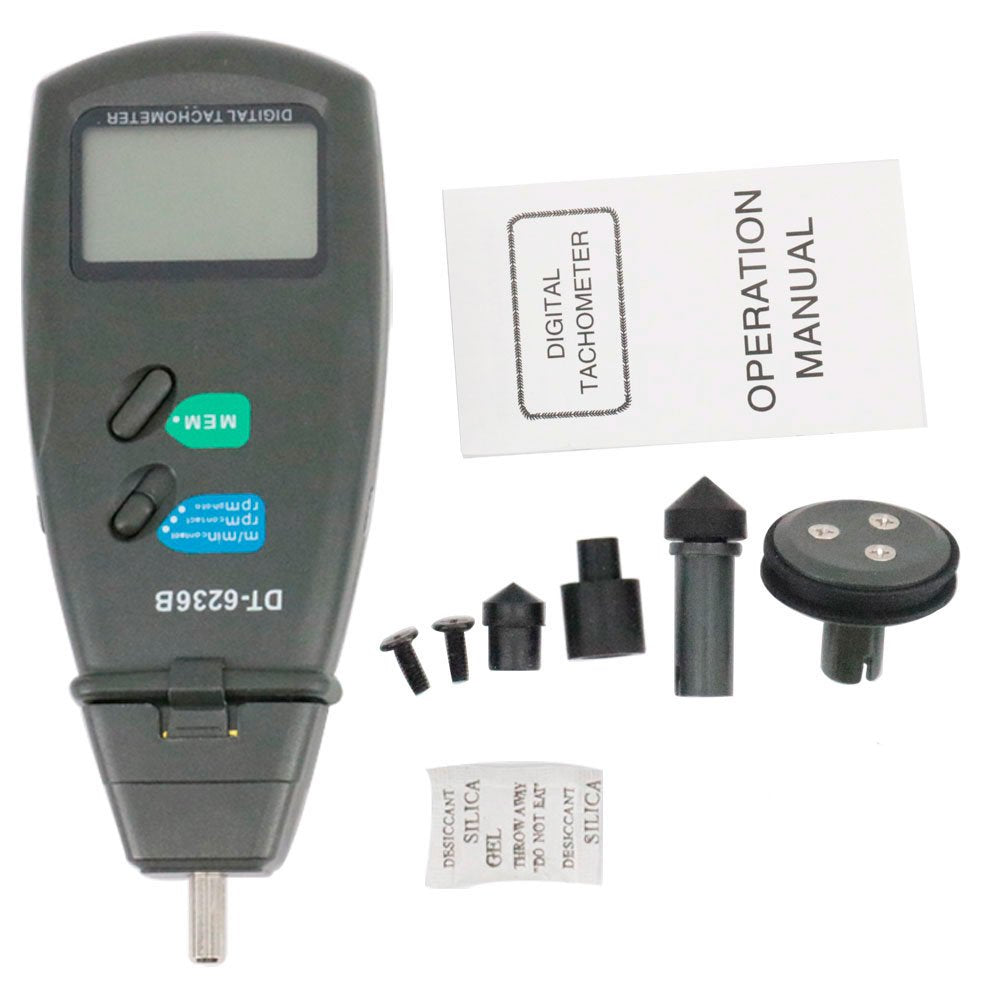

Set Includes:
1 x 2-in-1 Digital Photo &Contact Tachometer
3 x Reflective Tape Mark (total600 mm)

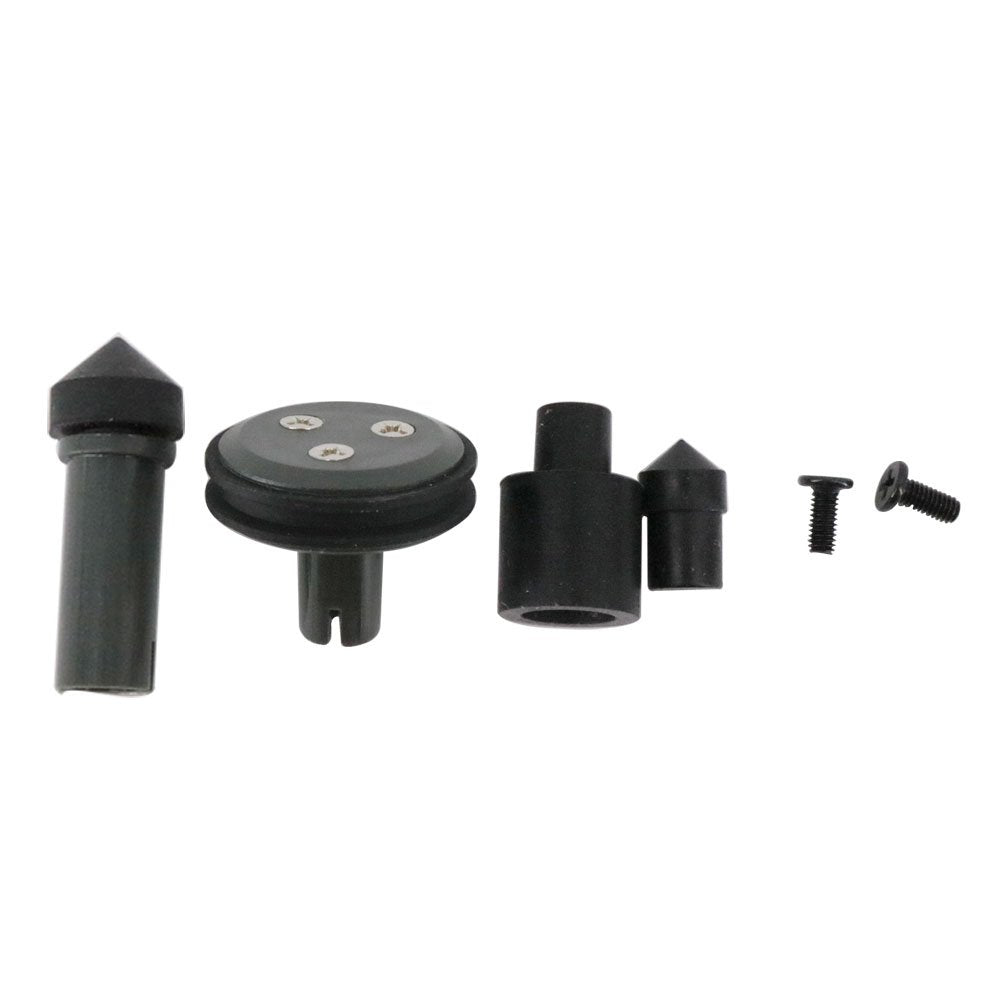

1 x Contact speed measurement fitting
3 x Contact rotational speed measurement fitting
2 x Screw
1 x User Manual

EAN: 0705419446424
