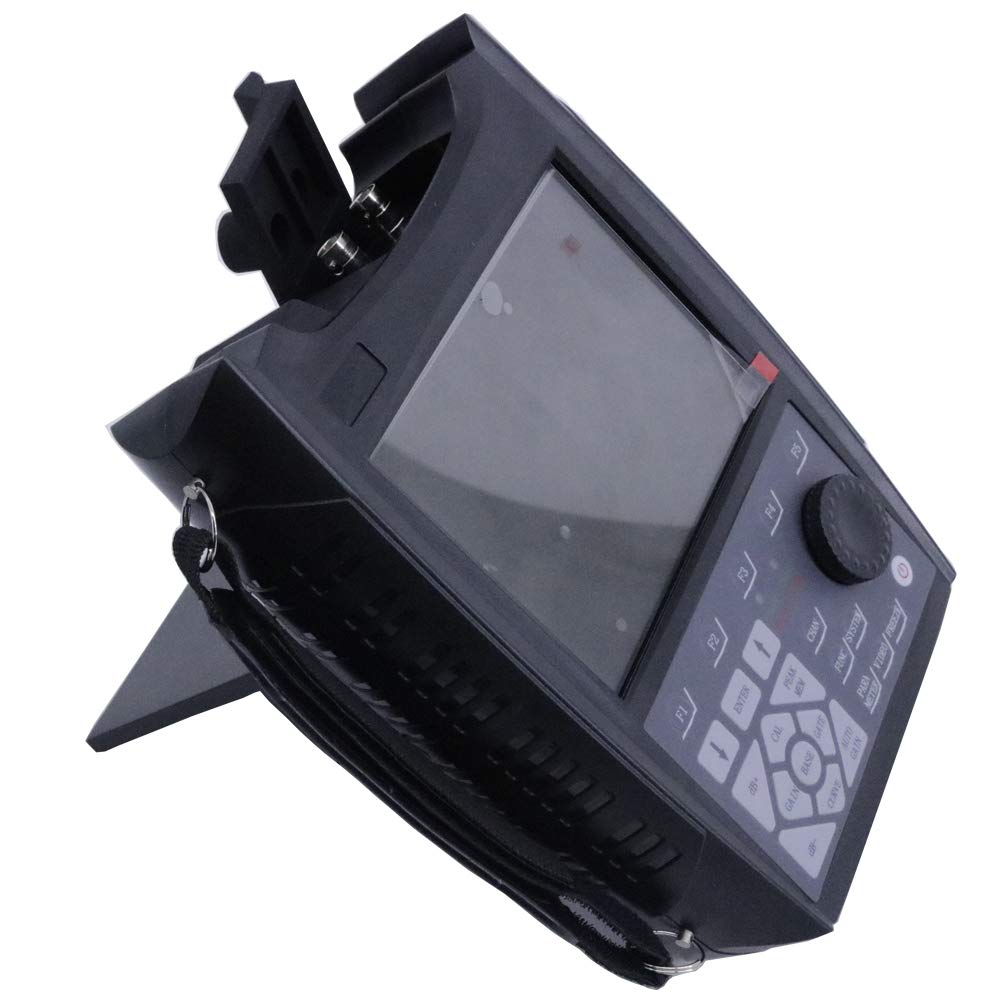

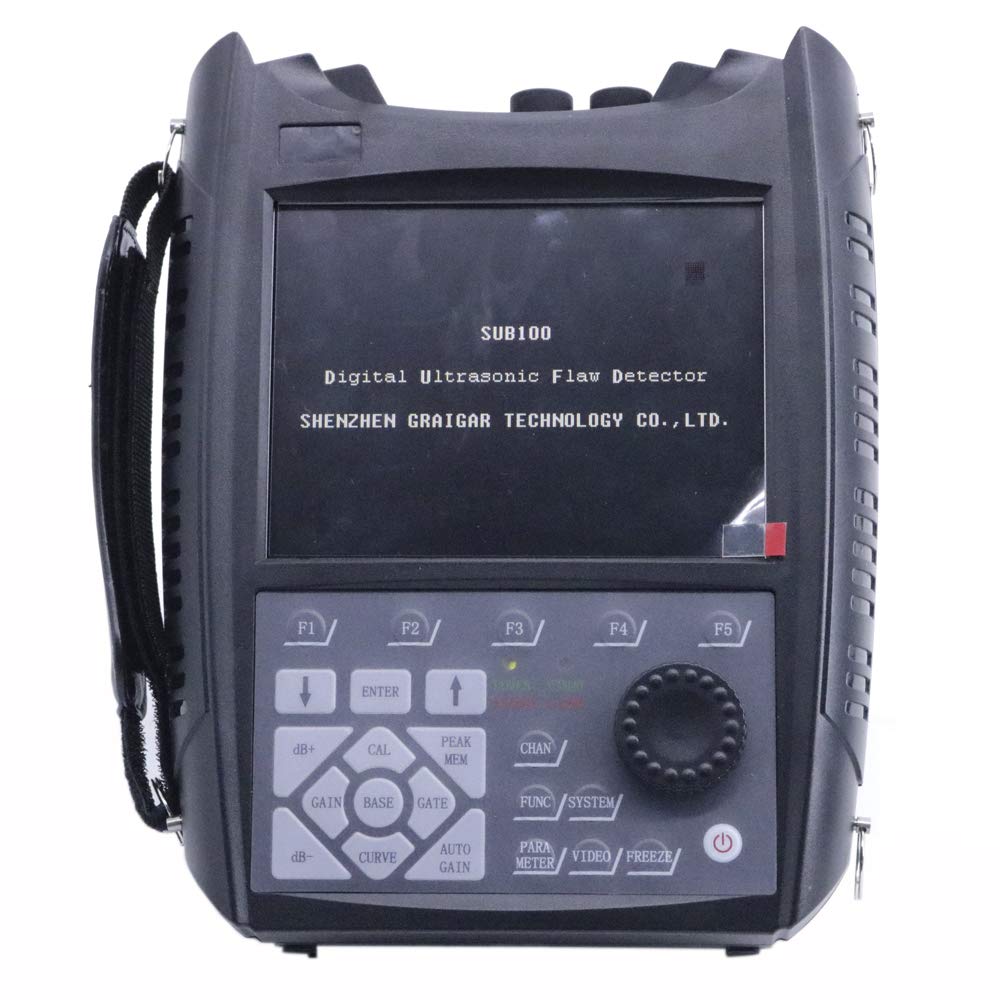

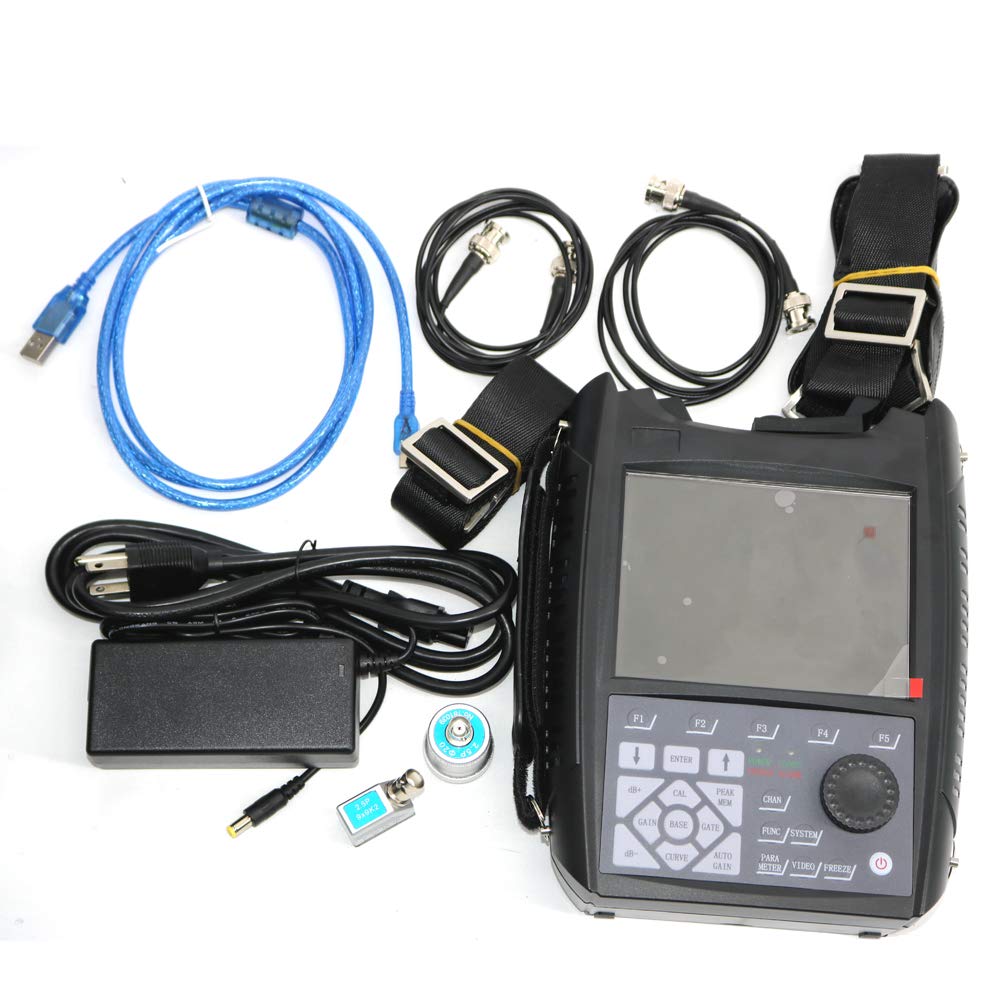

SUB100 ultrasonic flaw detector's menu and sub-menu display in the same window, no need to search, clear at a glance, simple and convenient to operate.

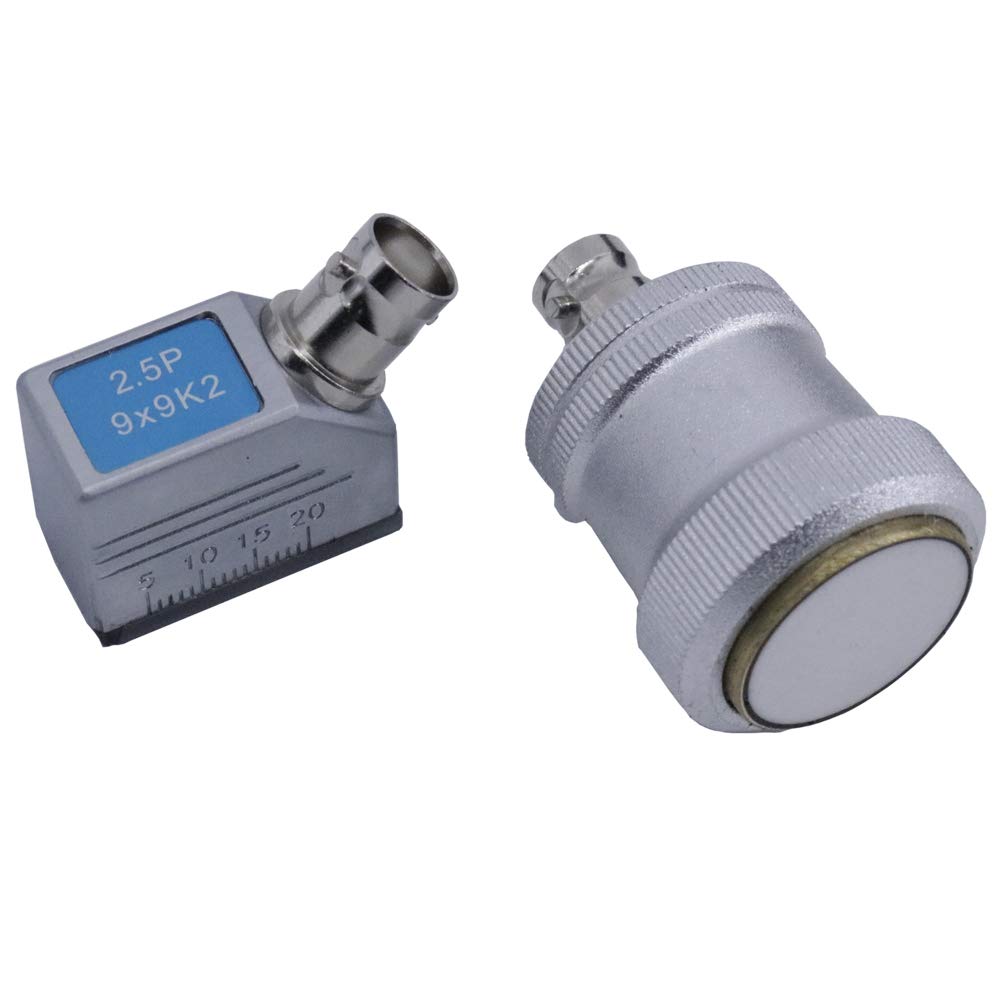

Has auto-calibration function for normal probe, angle probe, convenient to use.
Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth.
Peak value in the gate can be captured automatically.
A-scan and B-scan to be selected.
Part Number: SUB100
Details: Specifications
Scan Range 0~10000mm
Velocity range 1000 m/s~9999m/s
Gain 0dB~110dB
Display Delay -20μs~+3400μs
Sensor Zero Offset 0μs~99.99μs
Sensor Frequency 0.1~15MHz
Sensor Damping 100Ω,150Ω, 200Ω,500Ω
Repetition Rate 10~1000Hz
Sensitivity Allowance ≥60dB(D:200mm ,FBH:Diameter=2)
Resolution ≥40dB
Linear Rejection 0~80%
Vertical Linearity deviation ≤3%
Horizontal Linearity deviation ≤0.2%
Dynamic Range ≥32dB
Pulse Pattern square
Pulse Strength 100V——800V
Pulse Width 50ns——1000ns

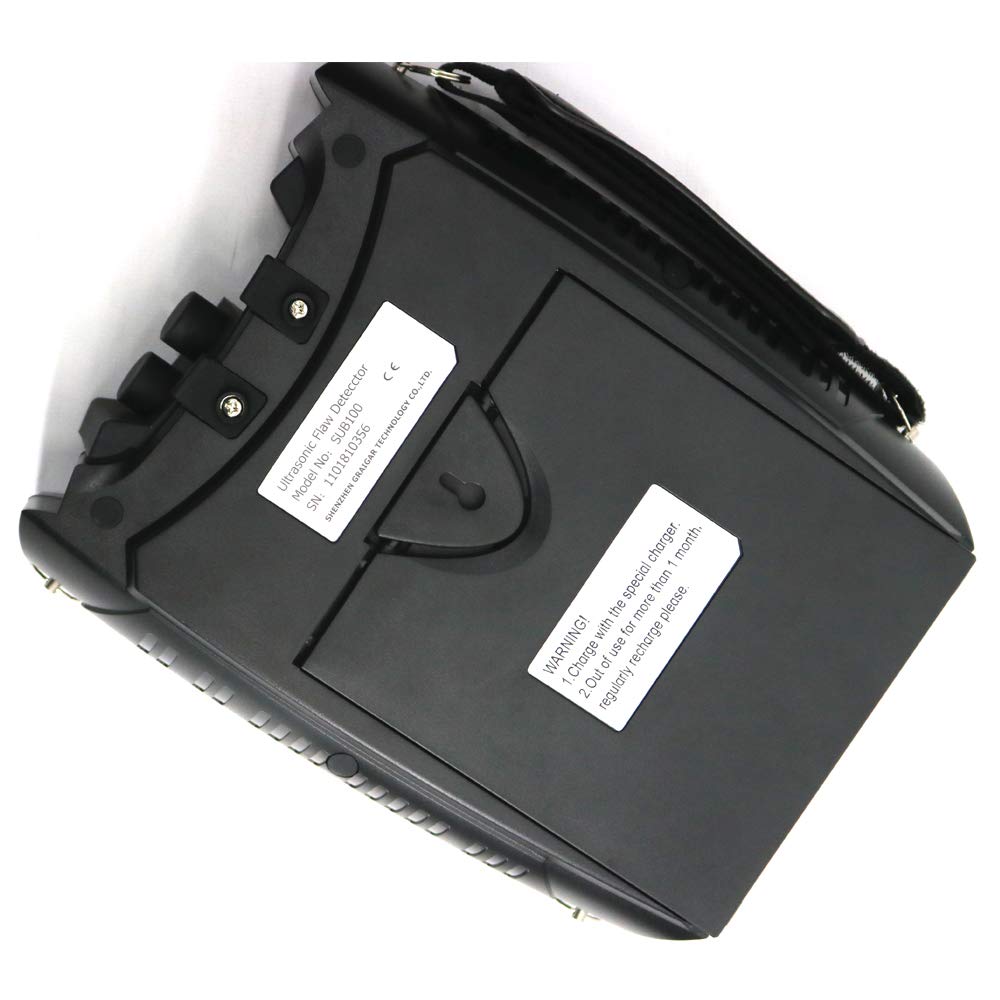

Power Supply 12×3.7V(Li-ion Battery)
Operation Temperature 20°C~50°C
Humidity 20%~90%RH
Size 250(L)mm×80(W)mm×150(H)mm
Weight 1.7kg(include battery)
