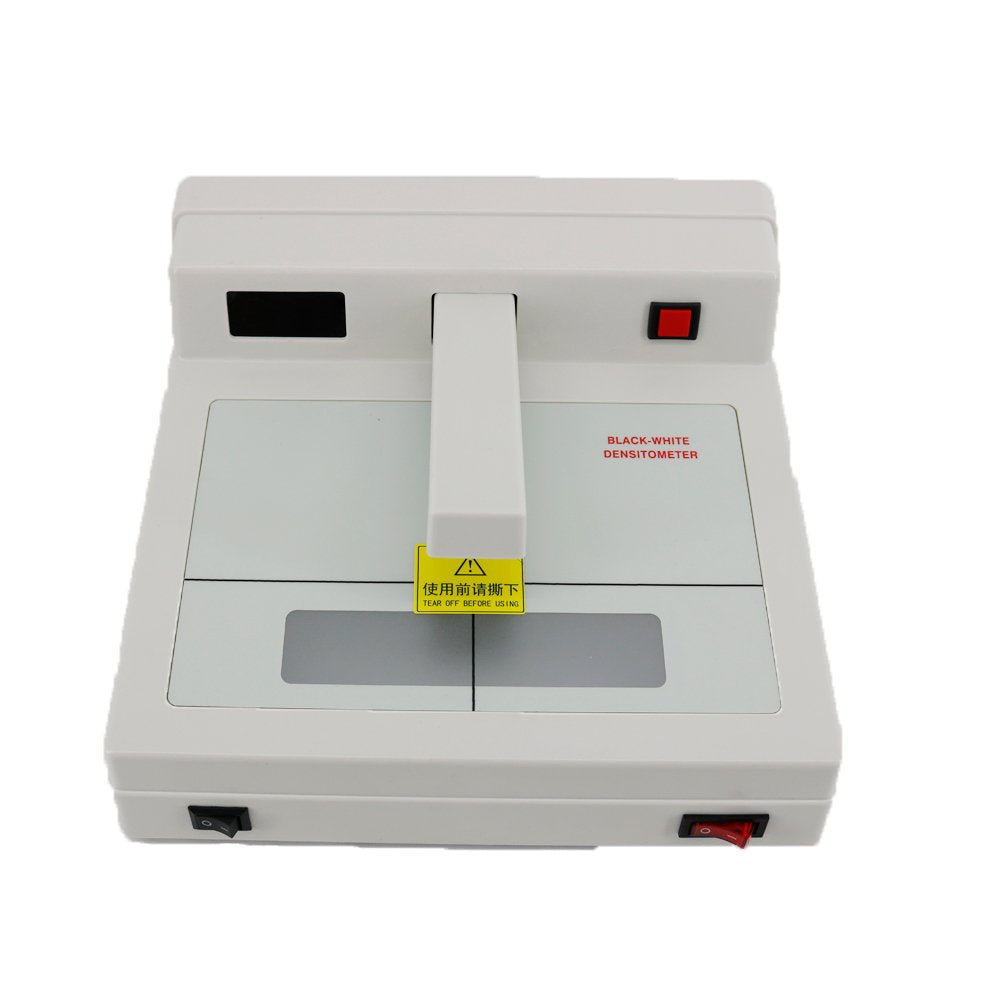

Graigar DM3011 Black and White Densimeter Range of Density: D=0.00~5.00 for NDT Testing

Brand: Graigar

Color: White

Features:

• DM3011 Densimeter can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc.
• It has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation.
• Three digital displaying
• Working Temperature: 0℃~40℃, Relative humidity ≤85%
• Range of density: D=0.00~5.00

Part Number: DM3011

Details: Introduction

The DM3011 Series Black and White densitometer developed by our company is a quality product using computer calibration technology. It has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. It can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc. each unit is equipped with density tablet and calibration software for testing its accuracy.

Specification

(1)Range of density: D=0.00~5.00
(2) Measuring Error: 0.00~3.00 ±0.02
3.00~4.00 ±0.03
(3)Reading Stability: ±0.02
(4)Measurement Area: 2mm (Diameter of the Aperture Hole)
(5) Sampling time: 0.8s
(6) Displaying Mode: Three digital displaying
(7) Power consumption: ≤25W
(8) Relative humidity ≤85%
(9) Power: 50~60Hz, 220V±10%
(10) Dimension: 260×265×110 (length ×width ×height)
(11) Weight: 2.1kg

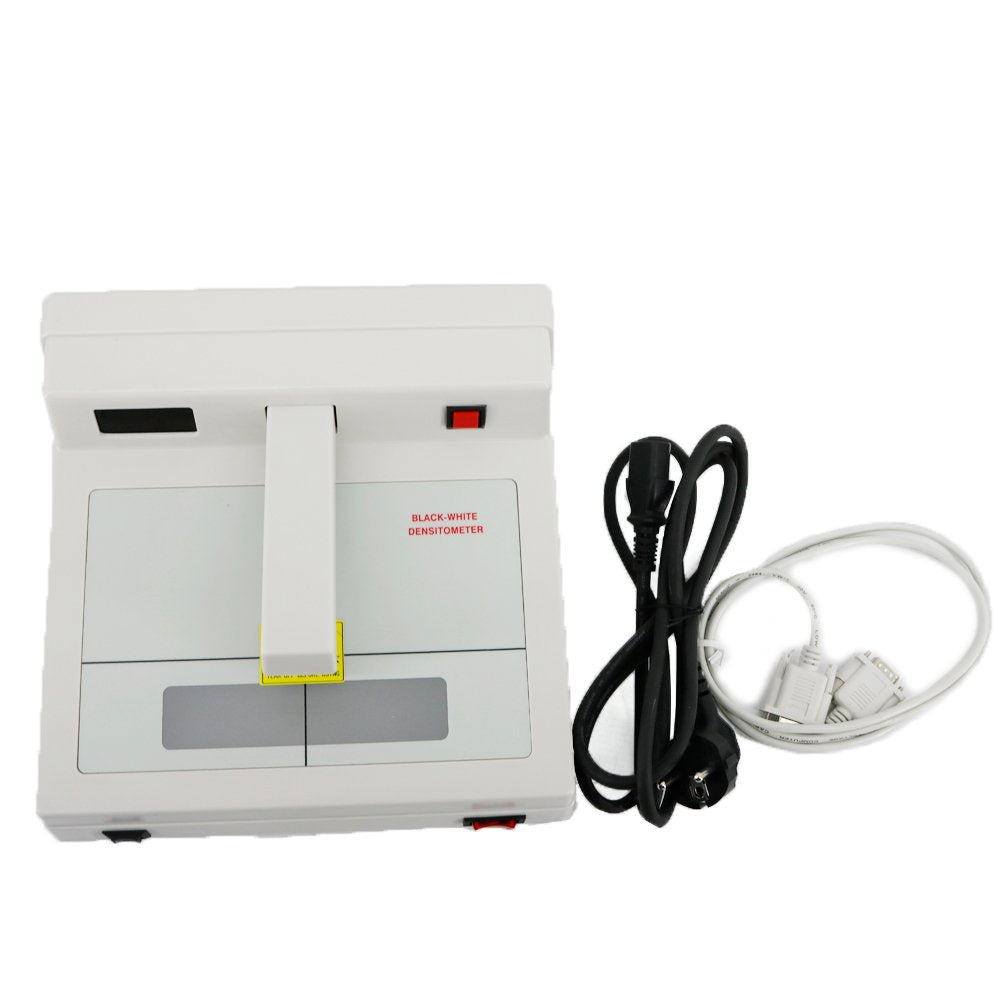

Standard Configurations

(1) DM30 Series Black-White Densimeter
(2) Standard Step Density Tablet
(3)Software CD

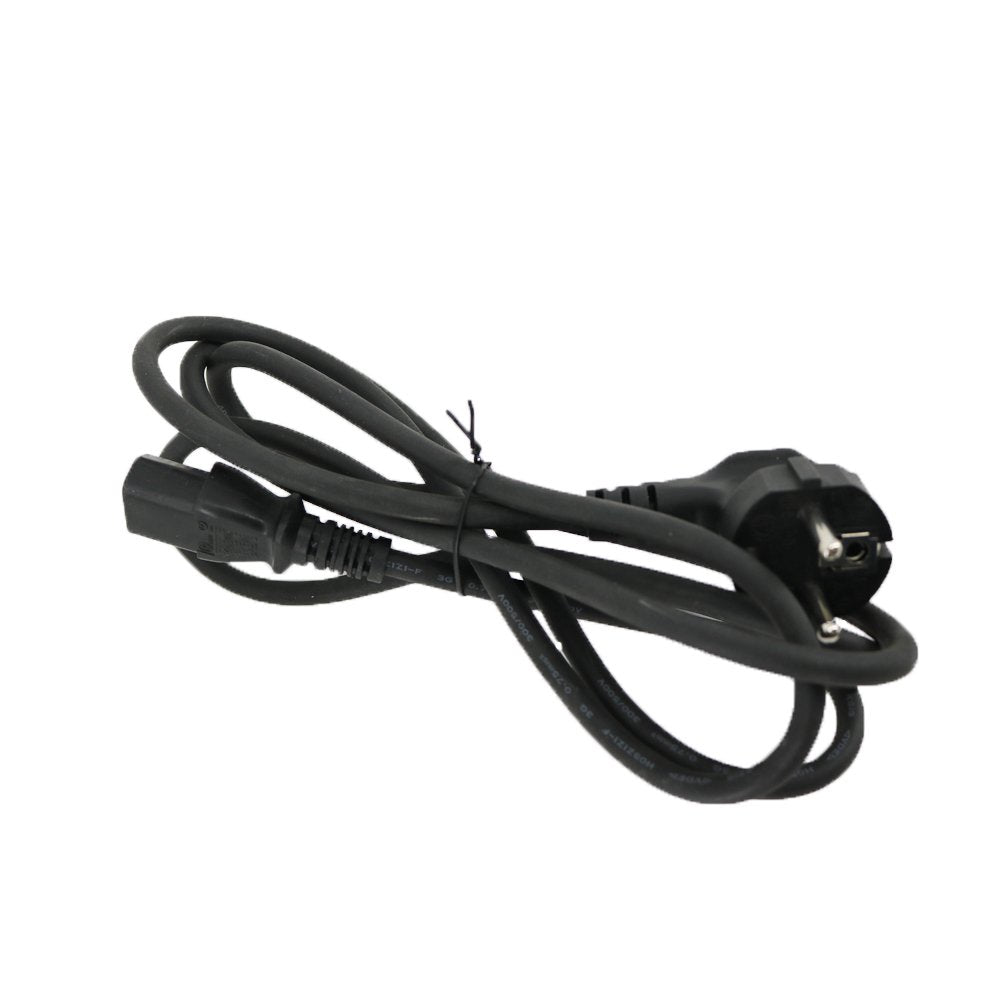

(4)Power Line
(5) Carrying Case
(6)Operating Manual

EAN: 0725370412498
