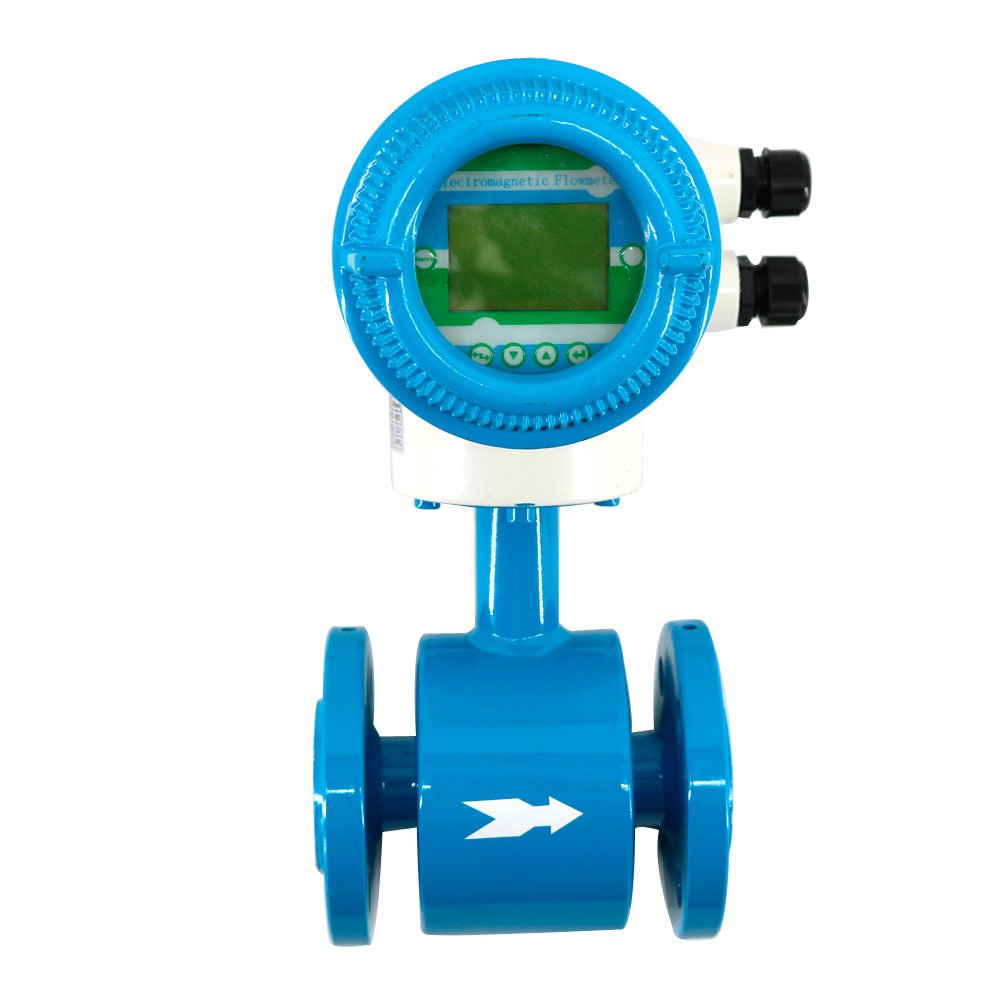

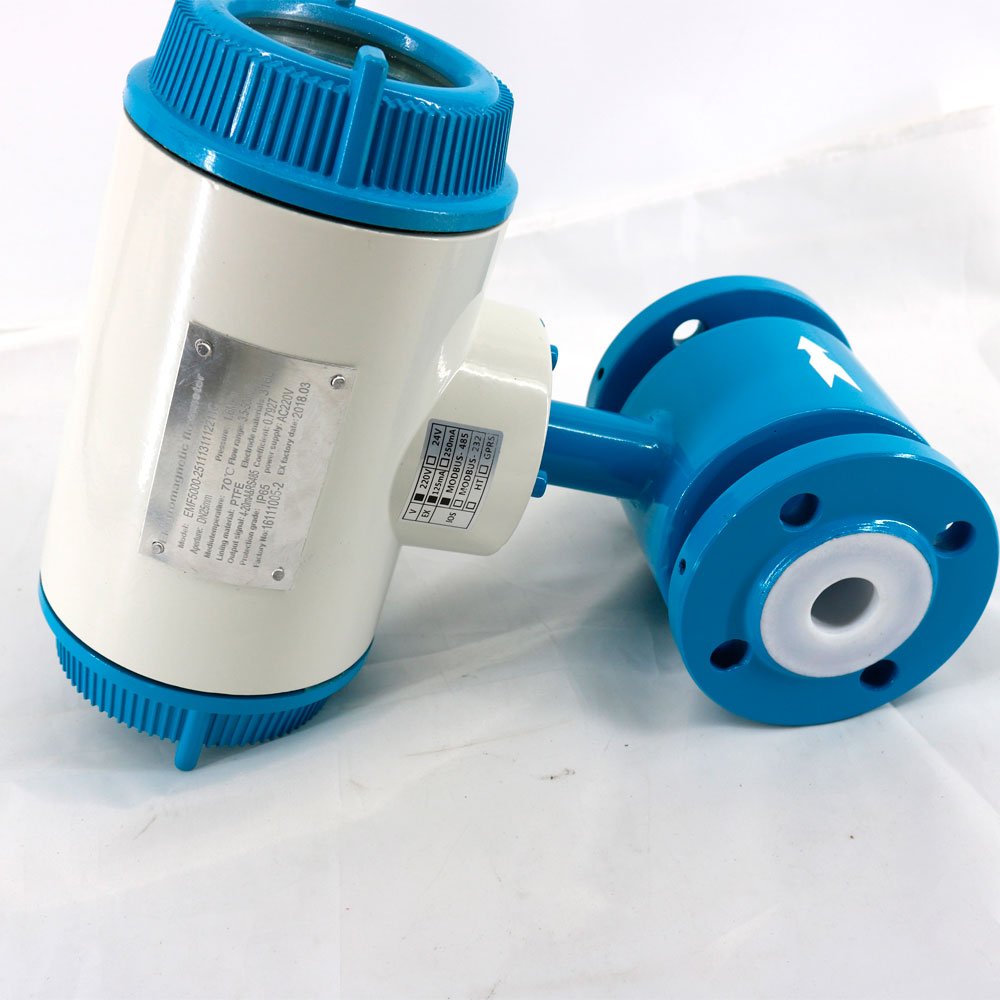

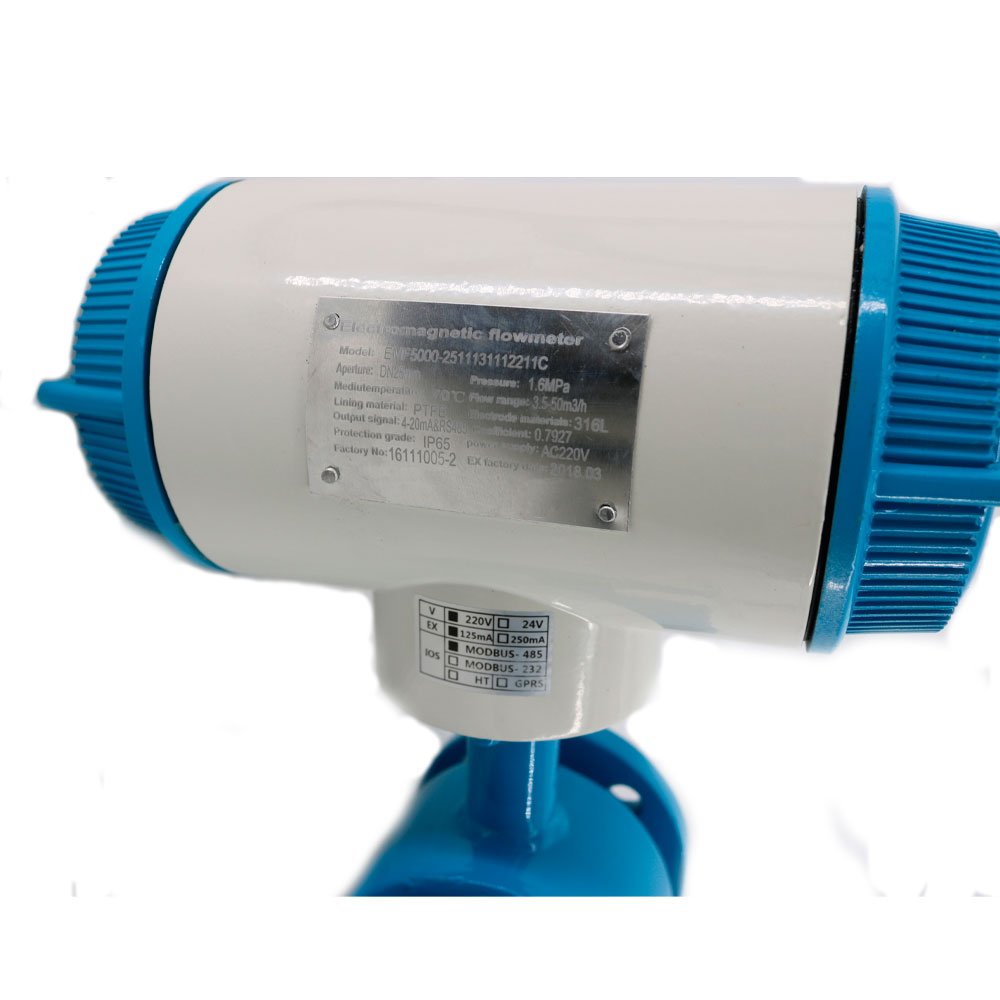

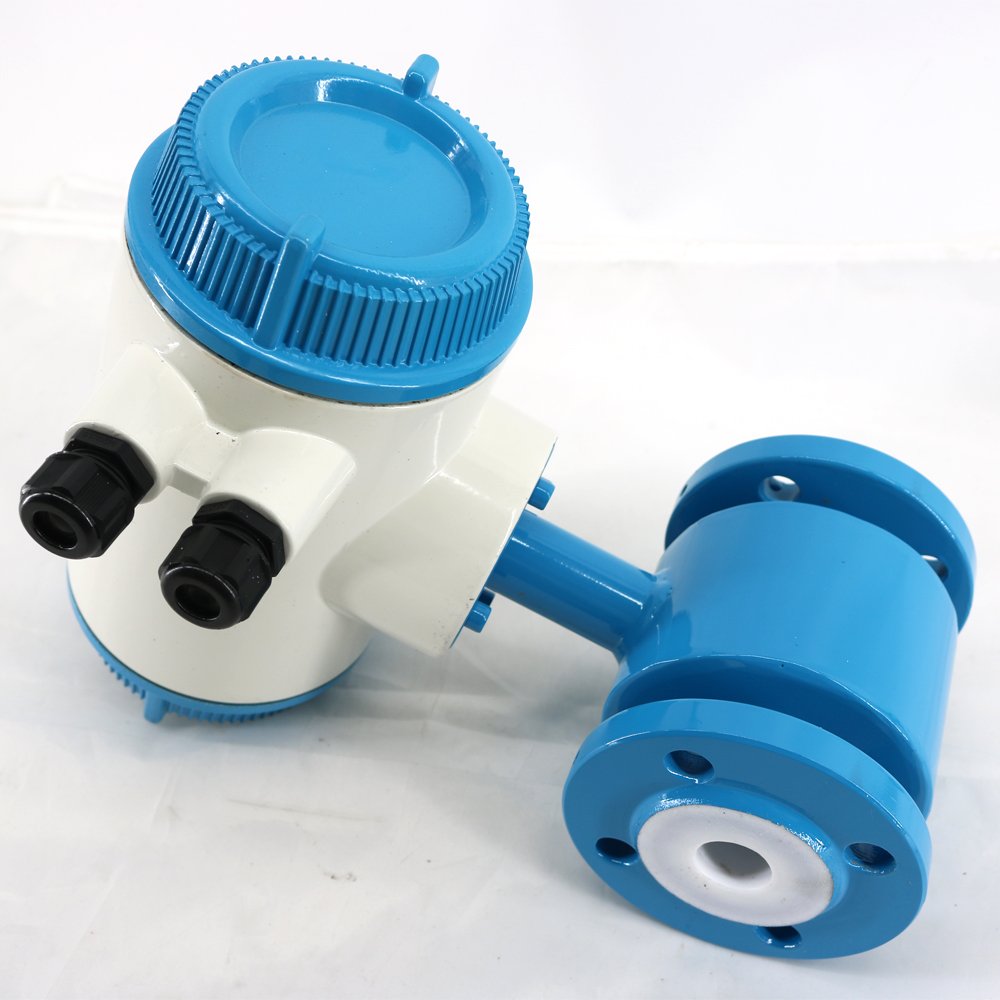

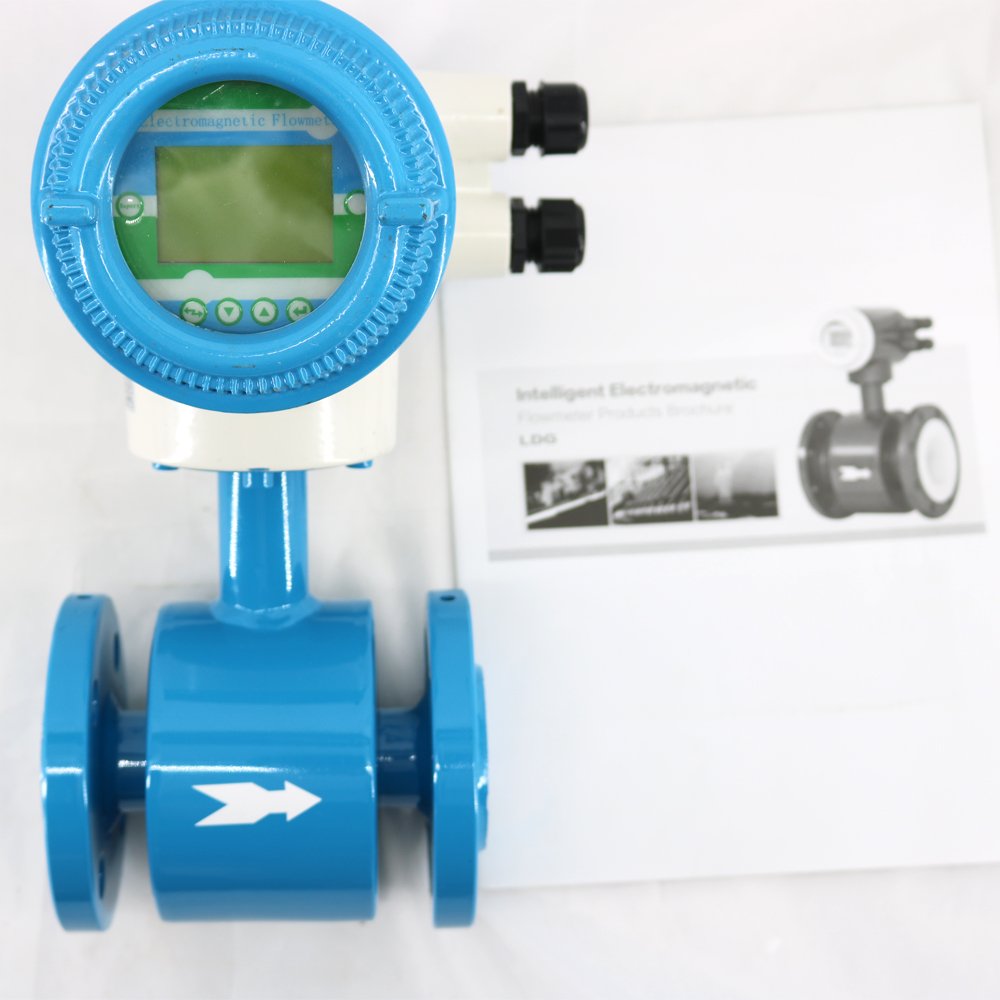

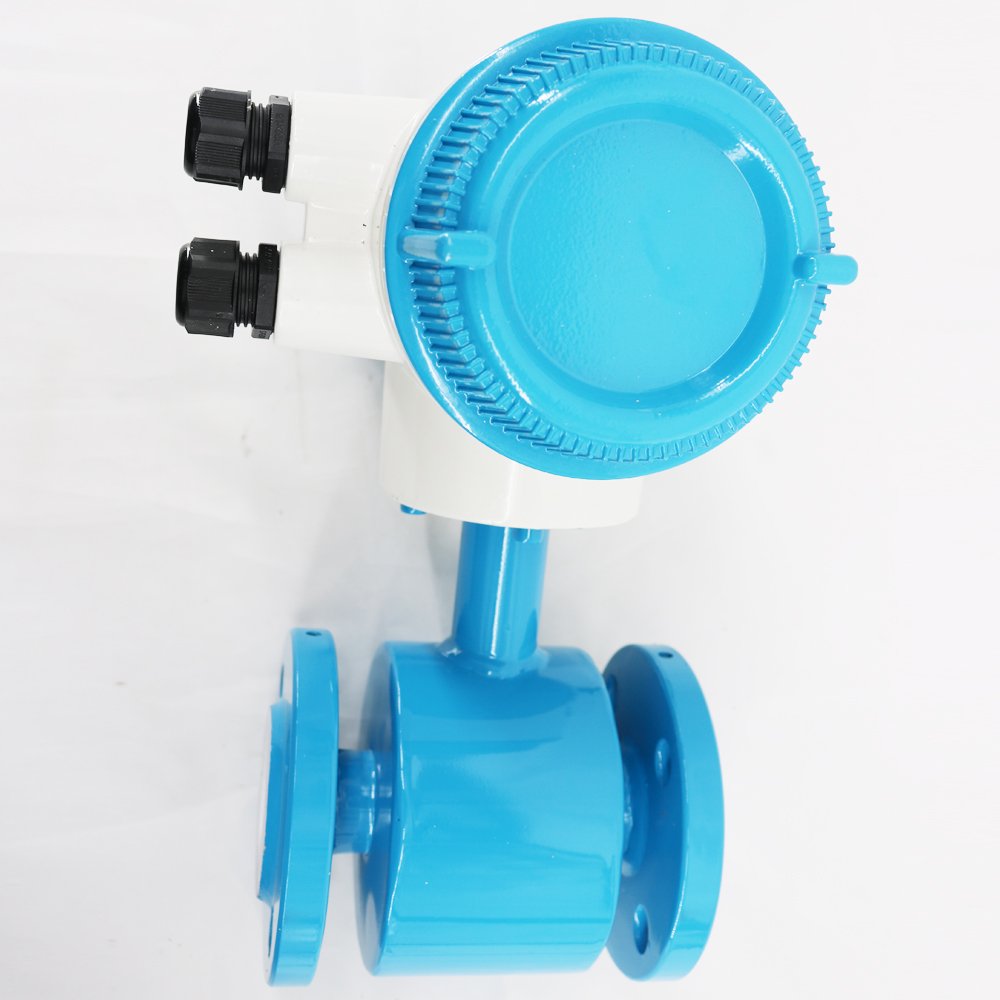

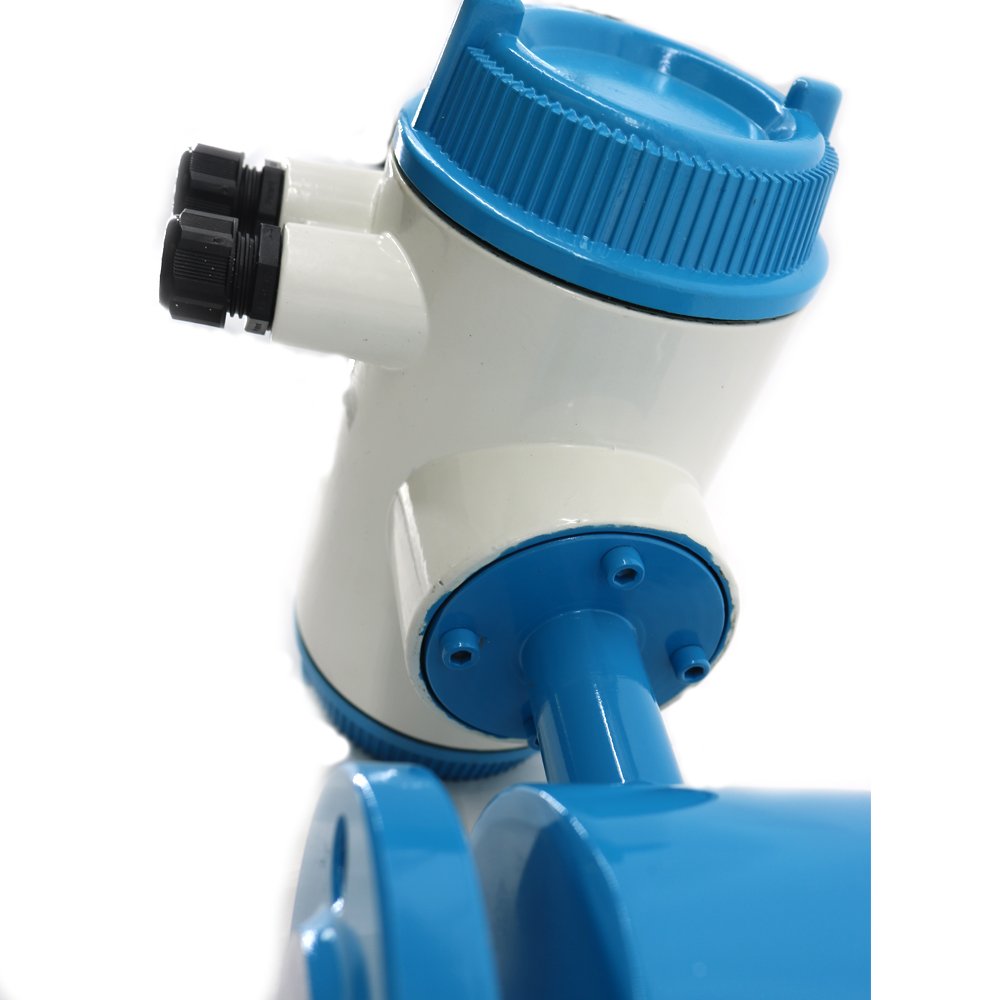

Graigar DN25MM Electromagnetic Flow Meter with 4~20mA Output for 1'' Pipe Water Flowmeter

Brand: Graigar

Features:

• It is suitable for all liquid flow test of conductivity of greater than 5. Conductivity change does not affect the performance of the change.
• The flow meter has the long-term high accuracy of measurement. It actually is not affected by fluid physical properties. Measurement accuracy can be up to 1, 0.5.
• The flow meter is with no mechanical and moving parts, usually without maintenance.
• Convenient operation, the flow meter is set automatically according to the scope of 0 ~ 10 m/s, without change of measuring range.
• Using the world's most excellent integrated circuit to eliminate the influence of excitation switch and using compensation method of excitation current, finally up to the optimal stability of the product.

model number: DN25MM

Part Number: DN25MM

Details: Technical Parameters
Sensor
Diameter of sensor：DN10~ DN600
Connection level：Accord with national standard GB/T9119-2000
The fluid conductivity：>5us/m
Medium velocity：0-10m/s setting automatically
Electrode form：standard interpolation
Electrode material： stainless steel 316L

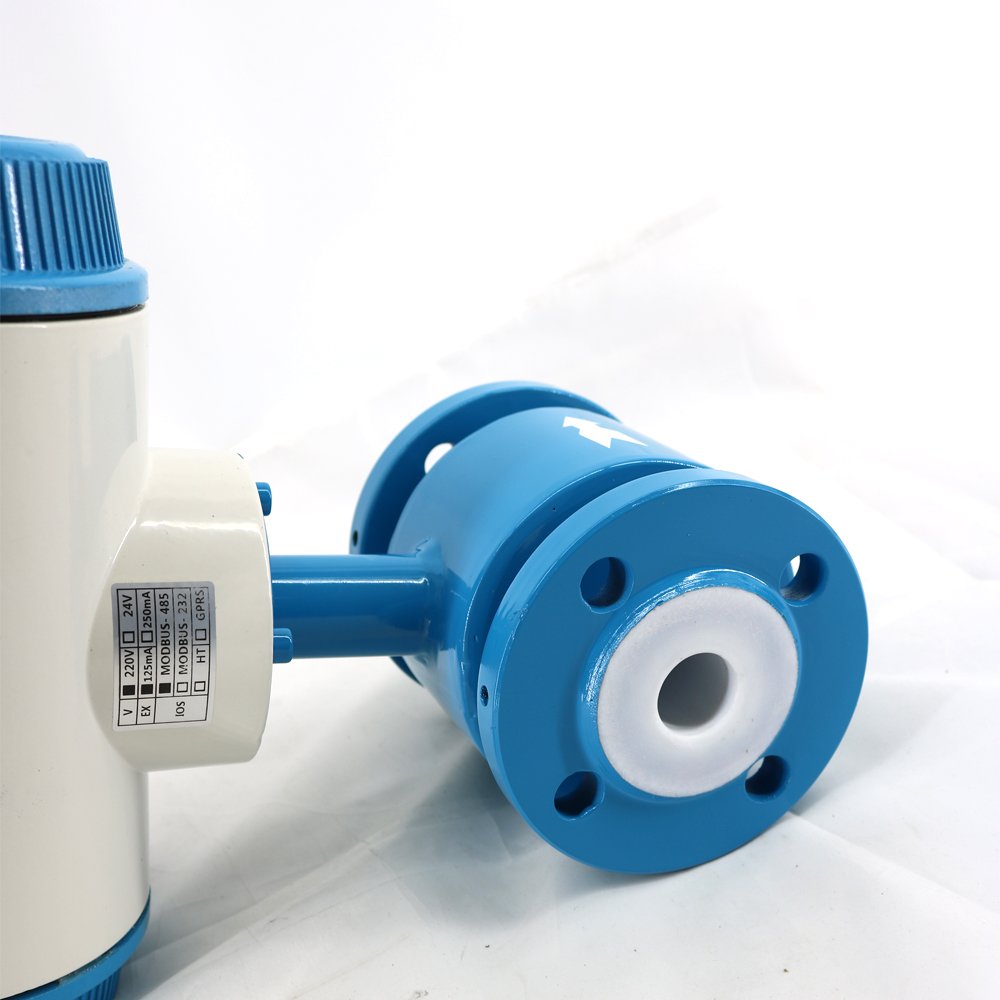

Lining materials：PTFE
Measuring temperature： - 20-140 C
protection grade ：Standard IP65
Converter (i.e., secondary instrument)
Shell material：shell material
Protection grade：explosion-proof type
Normal operating temperature ：- 10 ~ + 40 C
Storage temperature： 0~ +40 C
Using the environment temperature：relative humidity 5%-90%
Power supply：AC220V -15%~+10%
The power consumption：<10W
Load resistance： 0-20mA, 250-750 Ohm
Output signal
A) All isolated output current: 4-20 mA.
According to the content

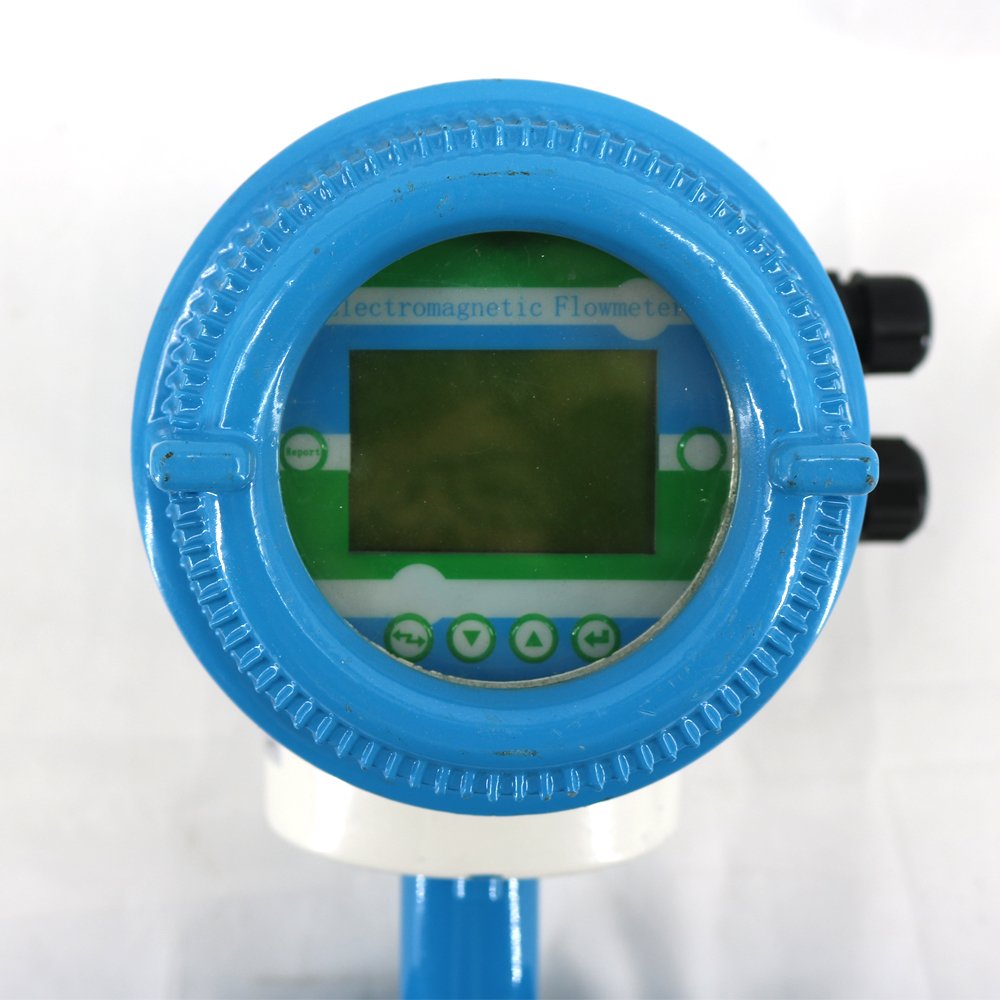

A) Instantaneous show for four decimal point can be mobile
B) Cumulative displayed for 8-bit decimal point can be mobile
Output can be selected by the user, such as output terminal of three way
A) 4 ~ 20 mA
B) The amount of frequency
C) Accuracy of 1.0%
D) Constant current characteristic of 1.0%
E) Power supply:
DC18V-36V DC
AC85V-265V AC
Pipe diameter(mm)：25
DNMin Flow range(m3/h)：0.1767
Max Flow range(m3/h)：17.6709
For sizes larger than 1000mm, please contact us.

EAN: 0725370414874
