used to take accurate measurement of the peak-to-valley height of the surface profile of the surface profile of blast cleaned surfaces.
4 digits,10mm LCD Display
Range 0 µm to 800 µm (0 mils to 30 mils)
Metric and Imperial switchable
Resolution: 1 µm (0.1 mils)

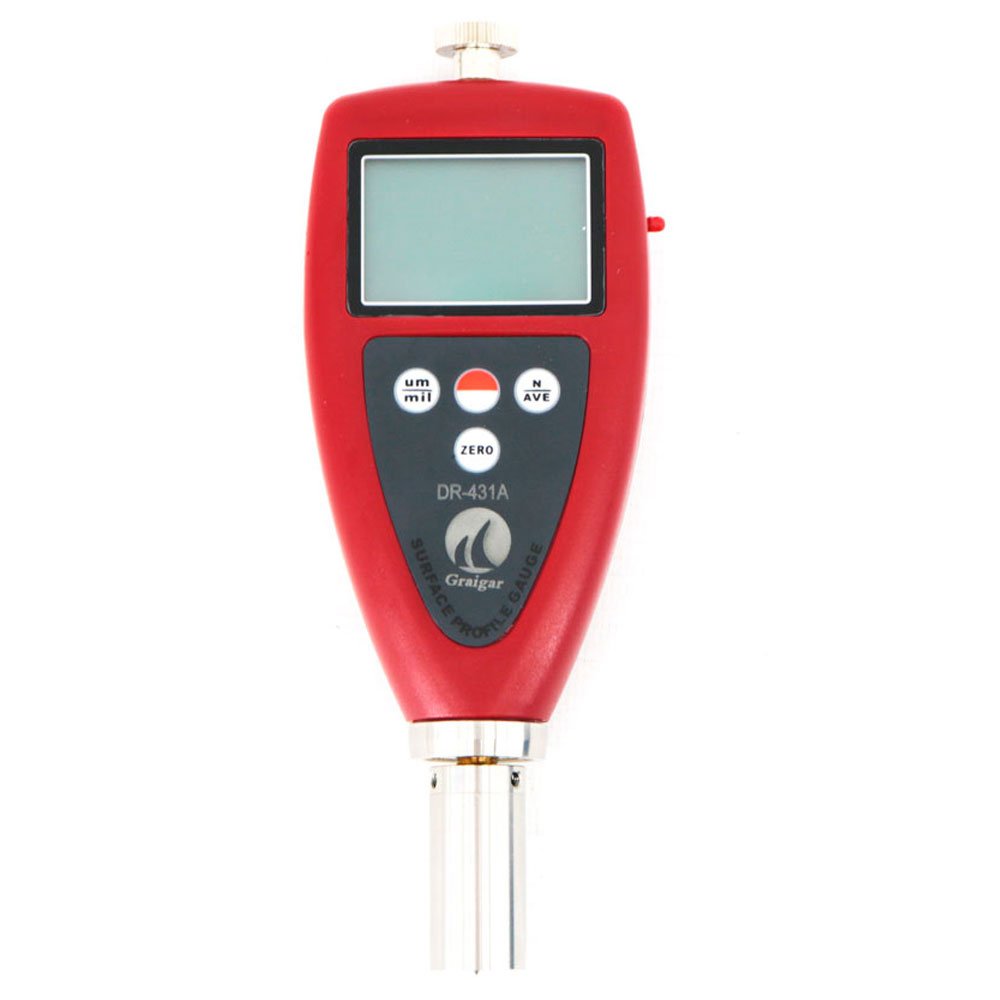

Part Number: DR-431A
Details: Applications:
Specially used to take accurate measurement of the peak-to-valley height of the surface profile of the surface profile of blast cleaned surfaces.
Specifications：
Display : 4 digits,10mm LCD.
Range: 0 µm to 800 µm (0 mils to 30 mils)
Accuracy: ±5% or ±5 µm,(whichever is the greater)
Resolution: 1 µm (0.1 mils)
Metric and Imperial switchable
PC interface RS232C
Measurement speed: >30 readings per minute
Weight: 280 g
Dimensions: 162 x 65x 28 mm (6.4 x 2.6 x 1.1 inch)
Operating temperature: 0°C to 40°C, <80%RH
Case: High impact ABS

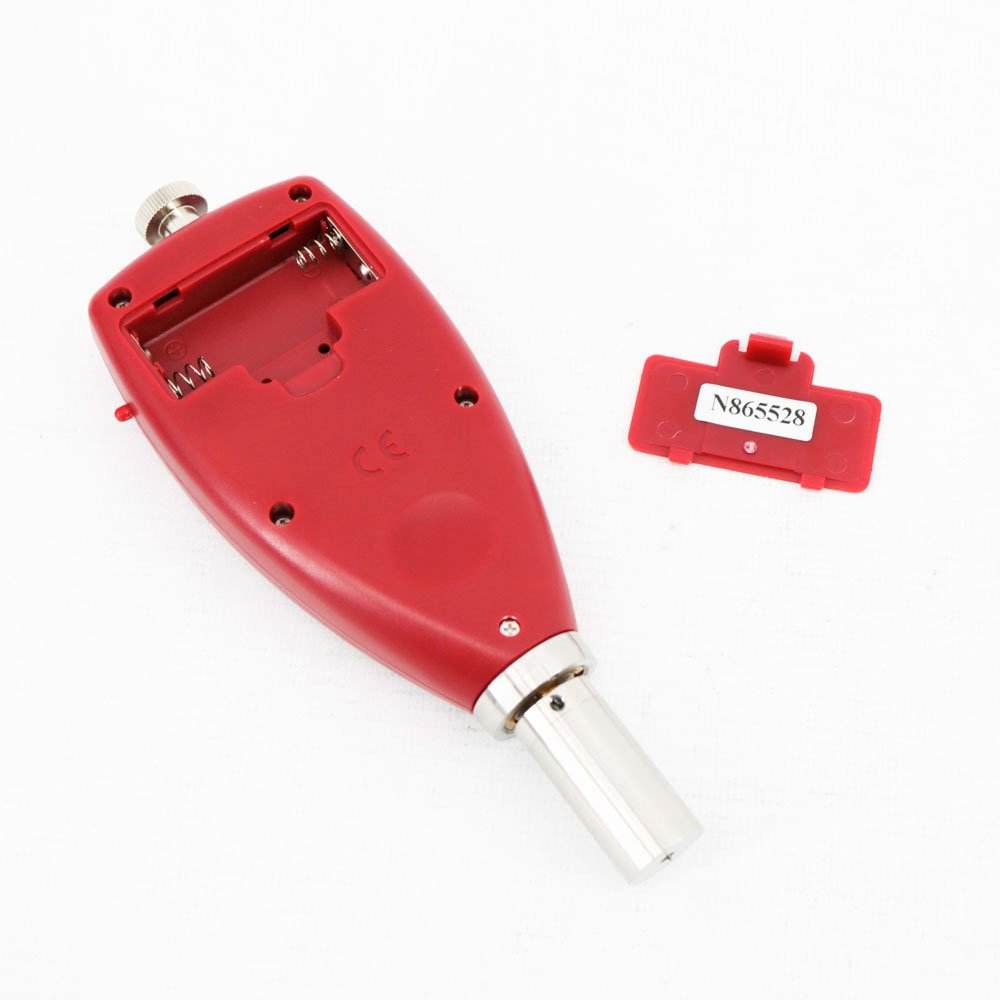

Batteries: 2 x 1.5v (AAA) battery (not included)

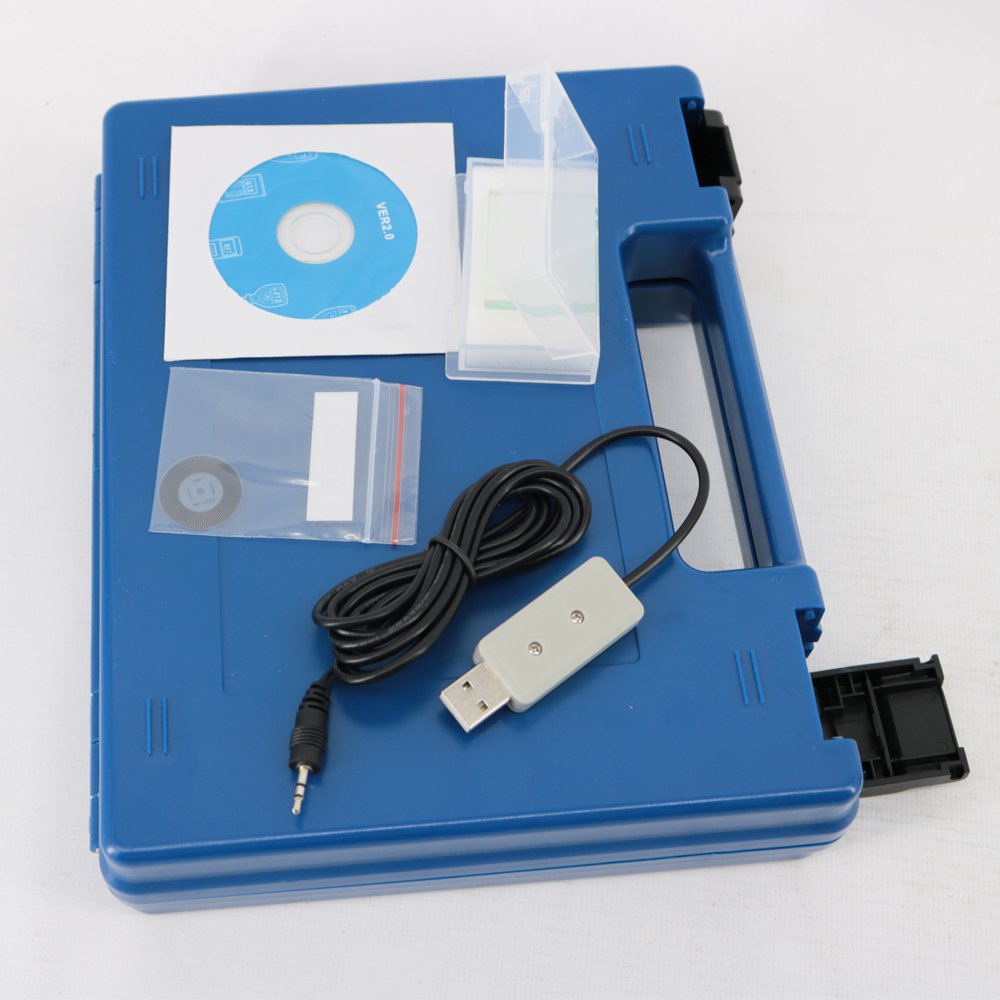

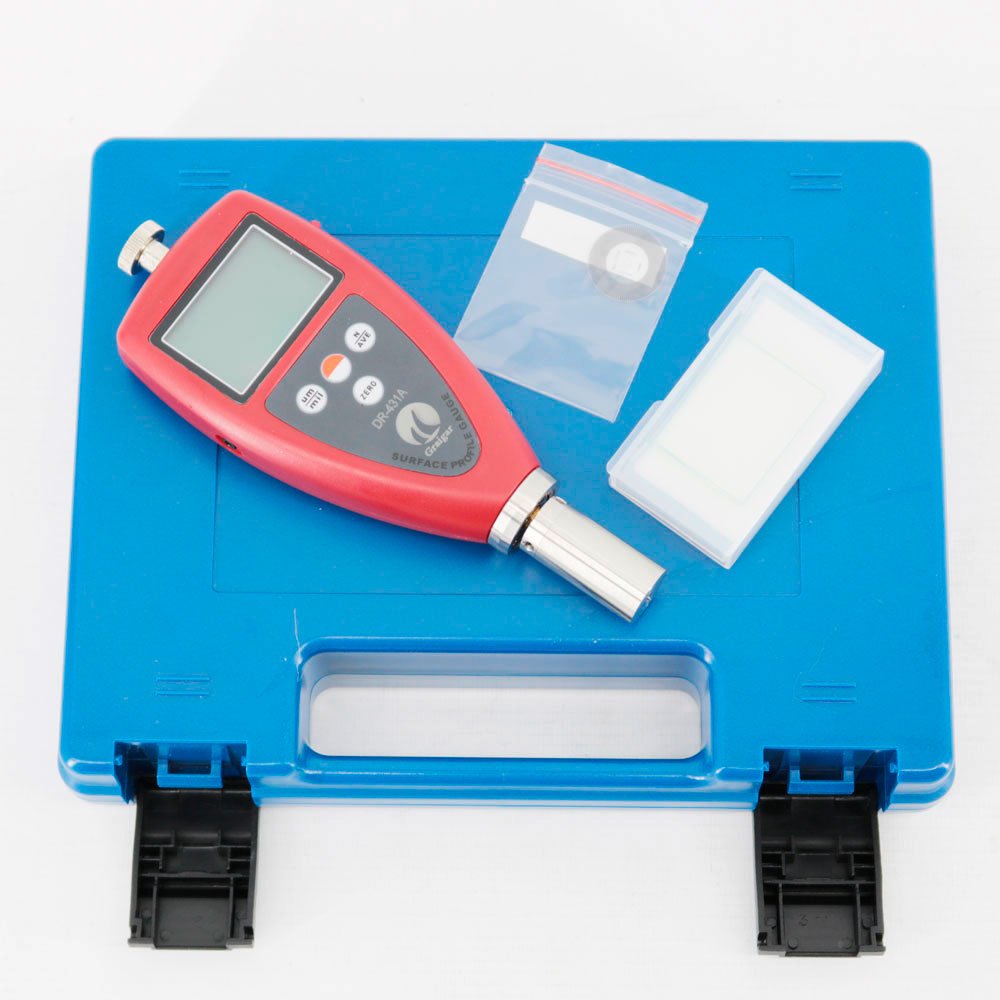

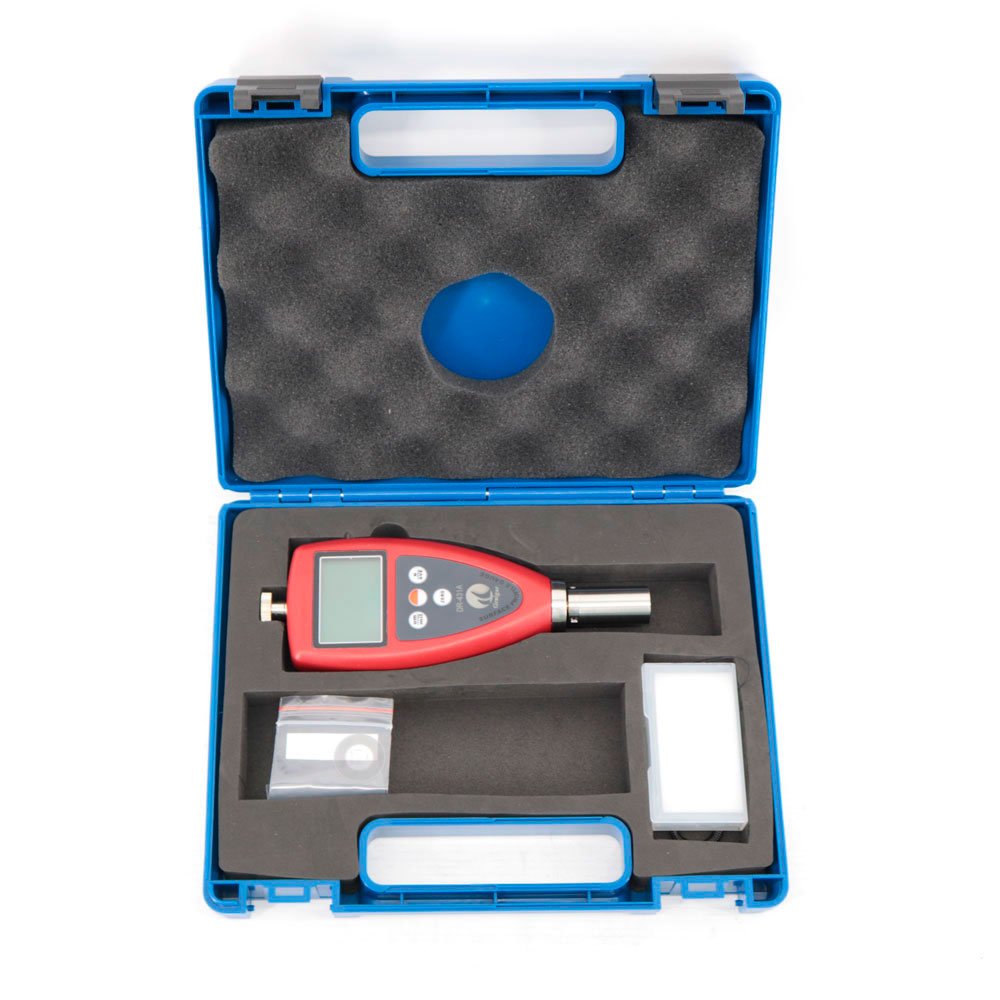

Standard accessories:
Main unit 1 pc

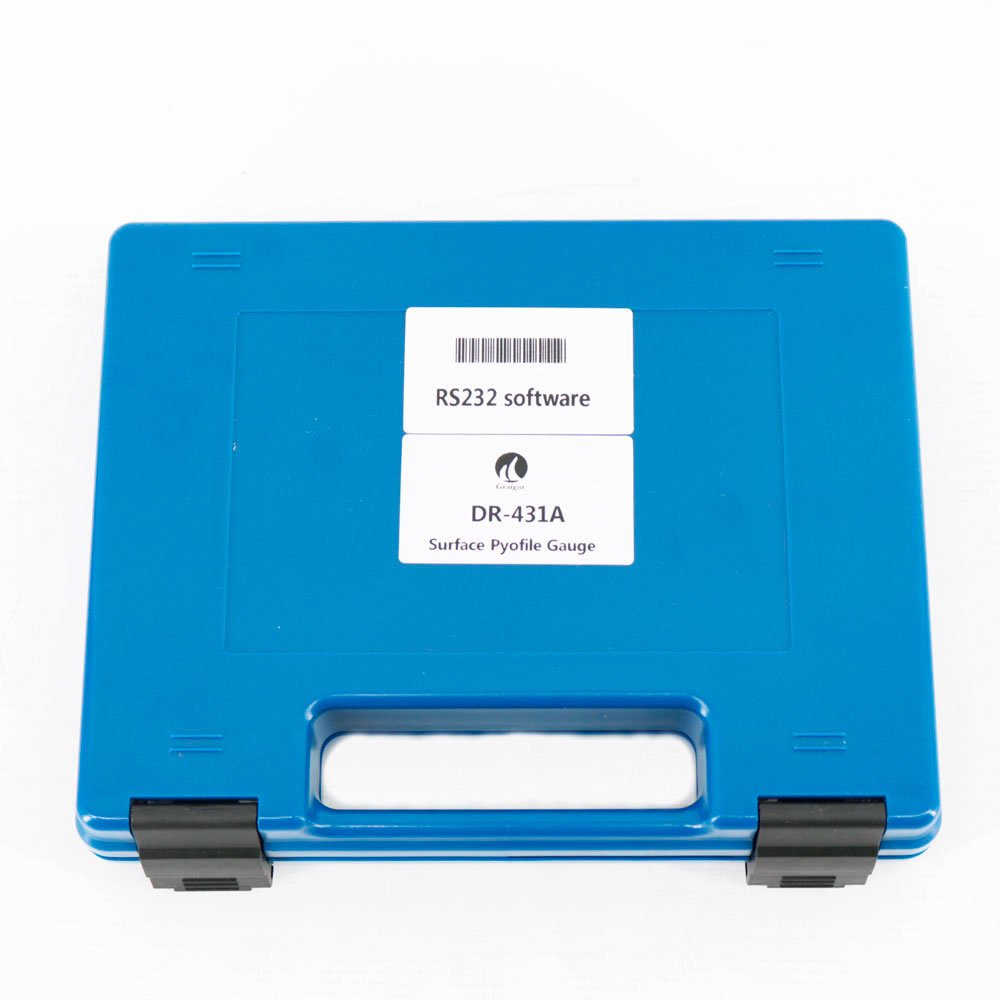

Carrying case 1 pc.
Operation manual 1 pc.
USB cable and RS232 software 1 pc
Optional function:
Bluetooth (Including software) 1 pc
