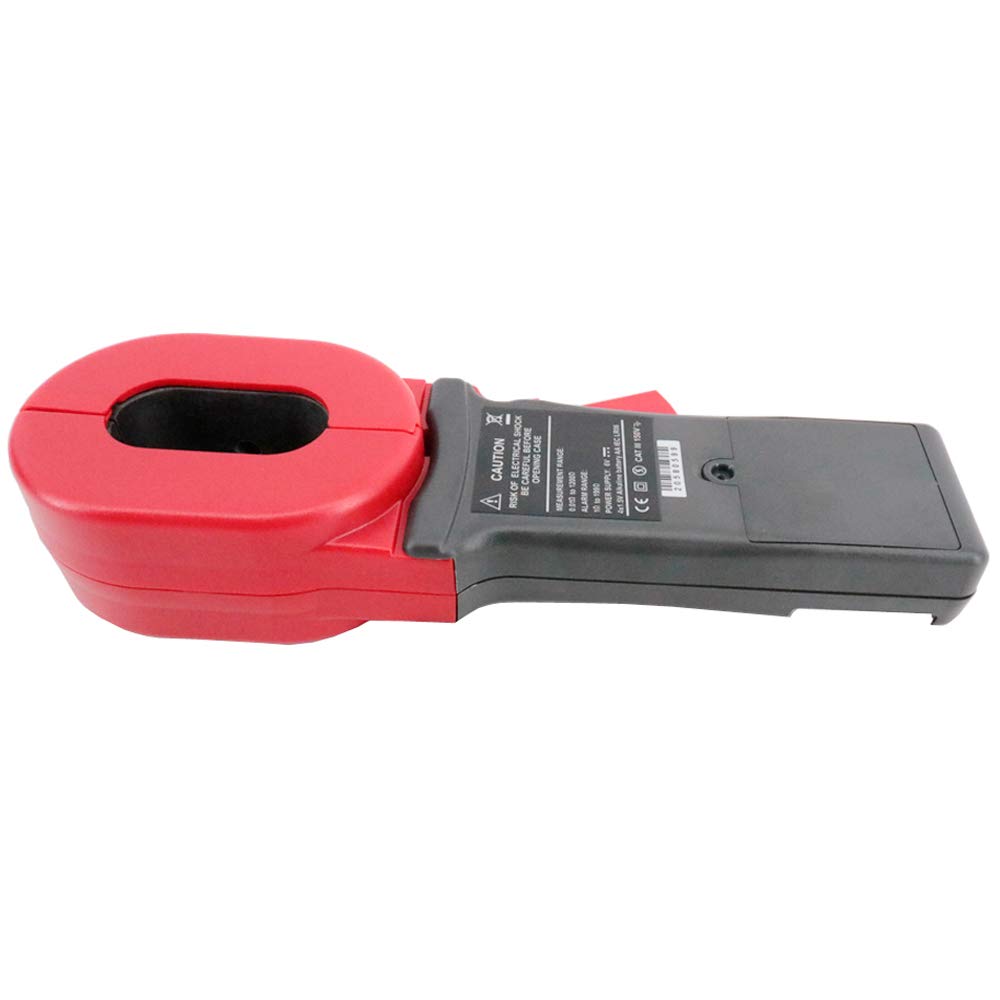

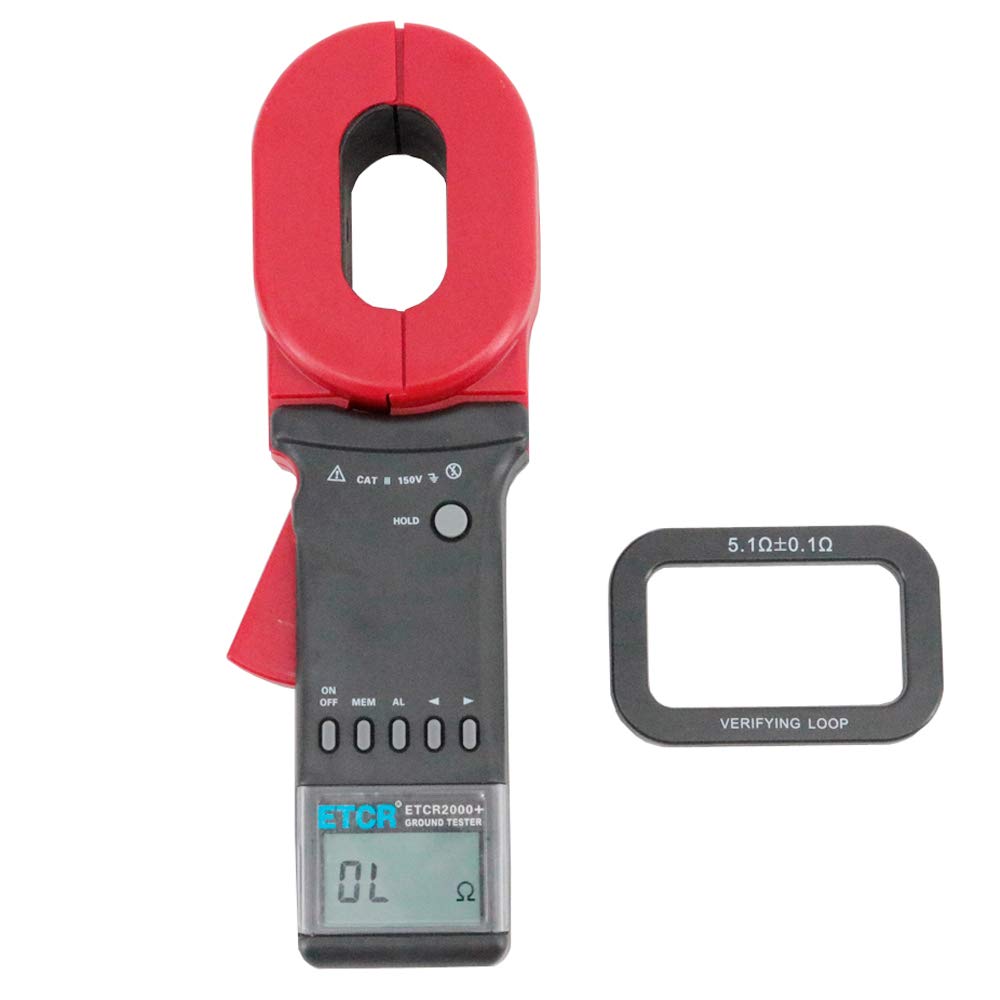

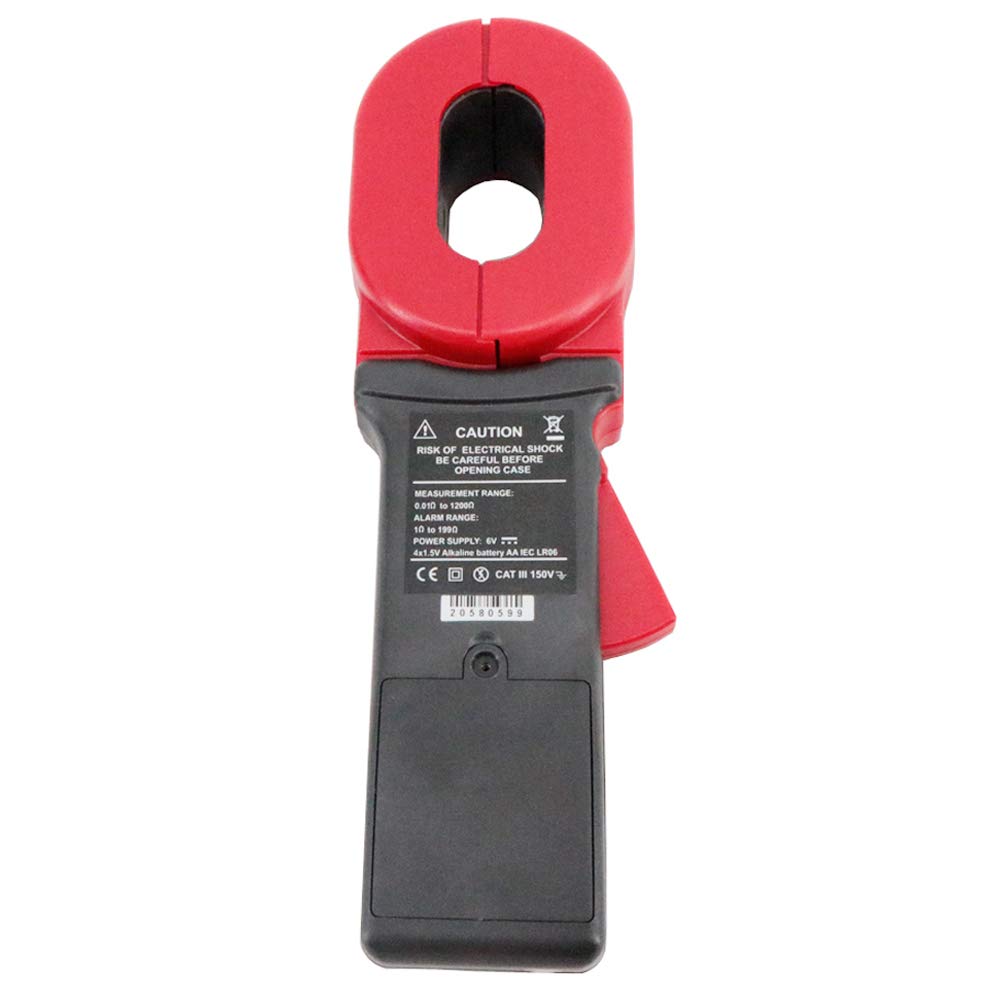

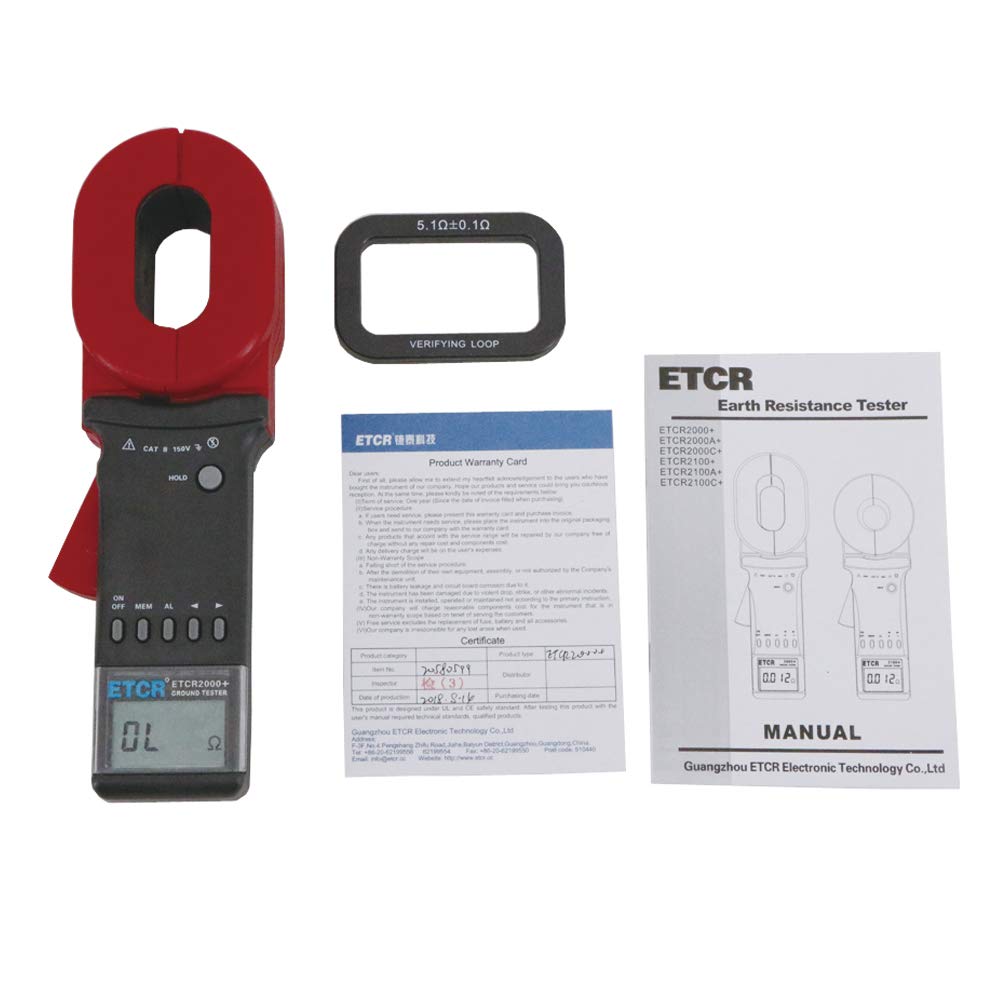

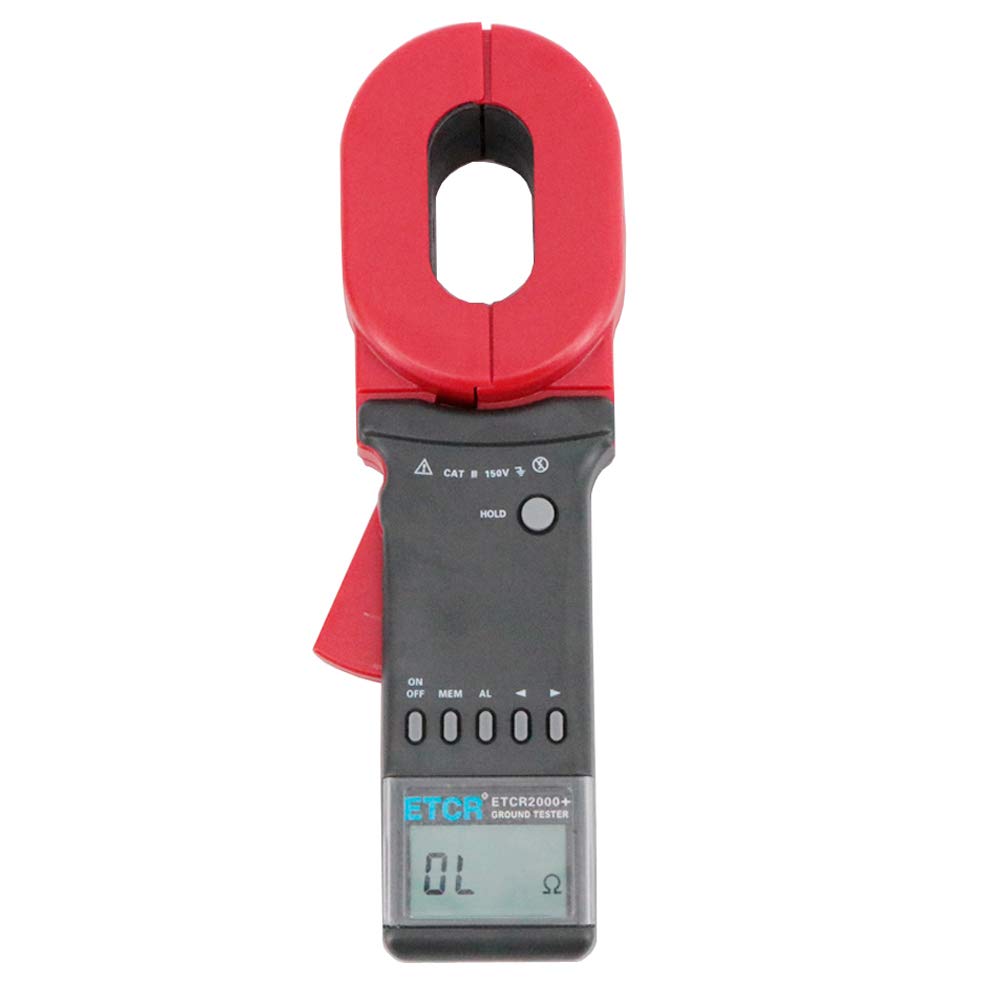

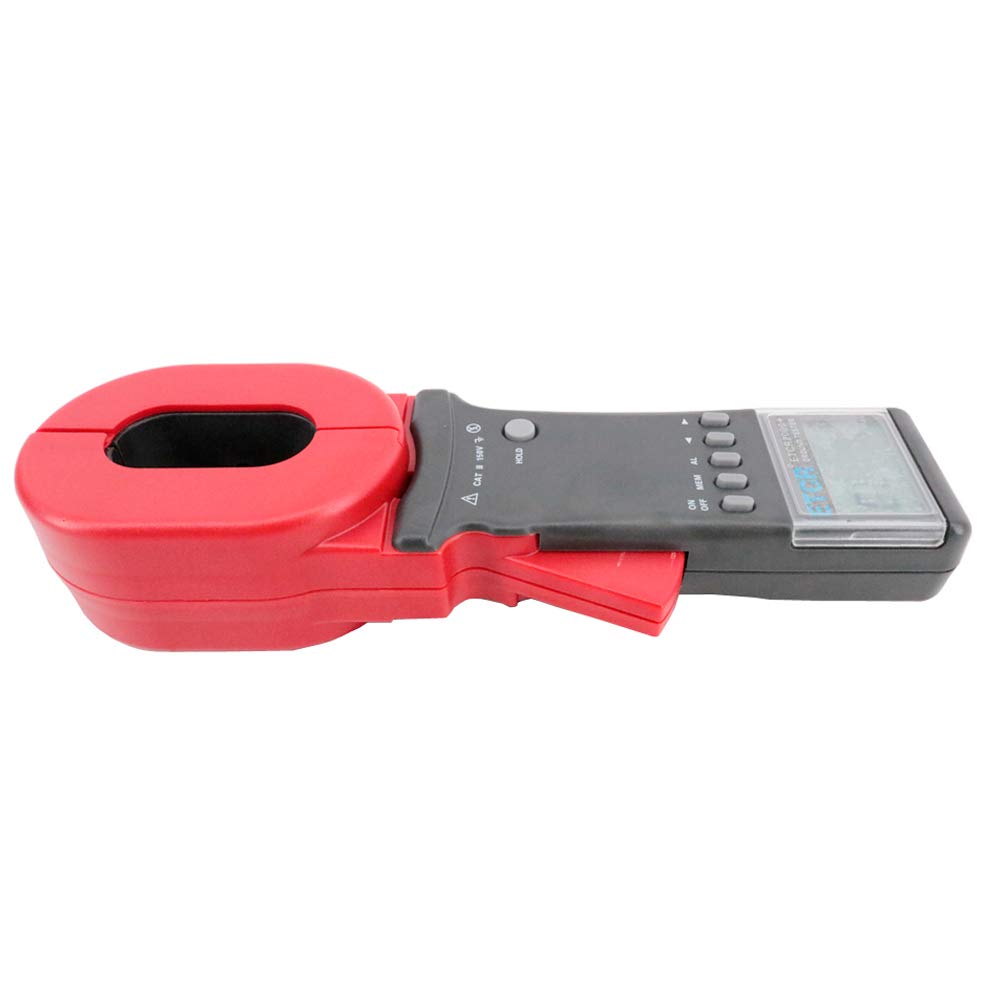

Graigar ETCR2000+ Clamp Ground Earth Resistance Tester Meter Digital Clamp Meter for Measuring Earth Resistance and Leakage Current

Brand: Graigar

Color: Black&Red

Features:

• ETCR 2000+ Earth Resistance Tester can measure the integrated value of the grounding body resistance and the grounding lead resistance.
• ETCR 2000+ Earth Resistance Tester can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods.
• ETCR 2000+ Earth Resistance Tester, in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and no need auxiliary electrode. It is safe, fast and simple in use.
• ETCR 2000+ Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.
• NEW Type 2000+ Series Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.

Part Number: ETCR2000+

Details: 1. Wider range: 0.01Ω-1200Ω
2. Stored data: 99 groups.
3. Resistance Resolution: 0.01Ω

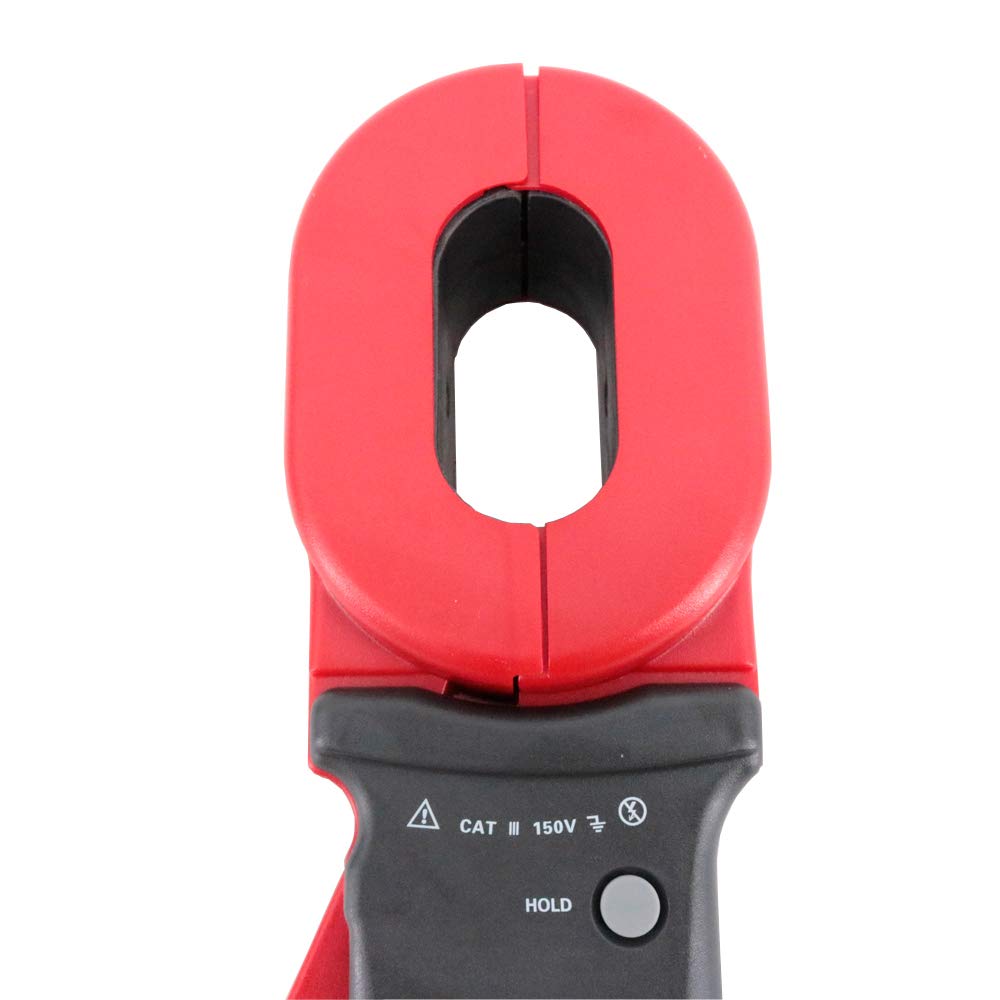

4. Size of Jaw: 65*32(mm) / ø32(mm)
5. Sound and light alarm, "beep - beep - beep -" alarm sound.
6. Breakthrough in self-test the boot a long time to wait, start immediately into the test.
7. Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, a fully intelligent.
8. Break the old product to heavy issues, more in line with characteristics of handheld devices.
9. The new design, panel 6 button operation, the performance through.
10. Lower power consumption: Maximum operating current not exceeding 50mA.
Function Ground resistance test, Loop resistance test

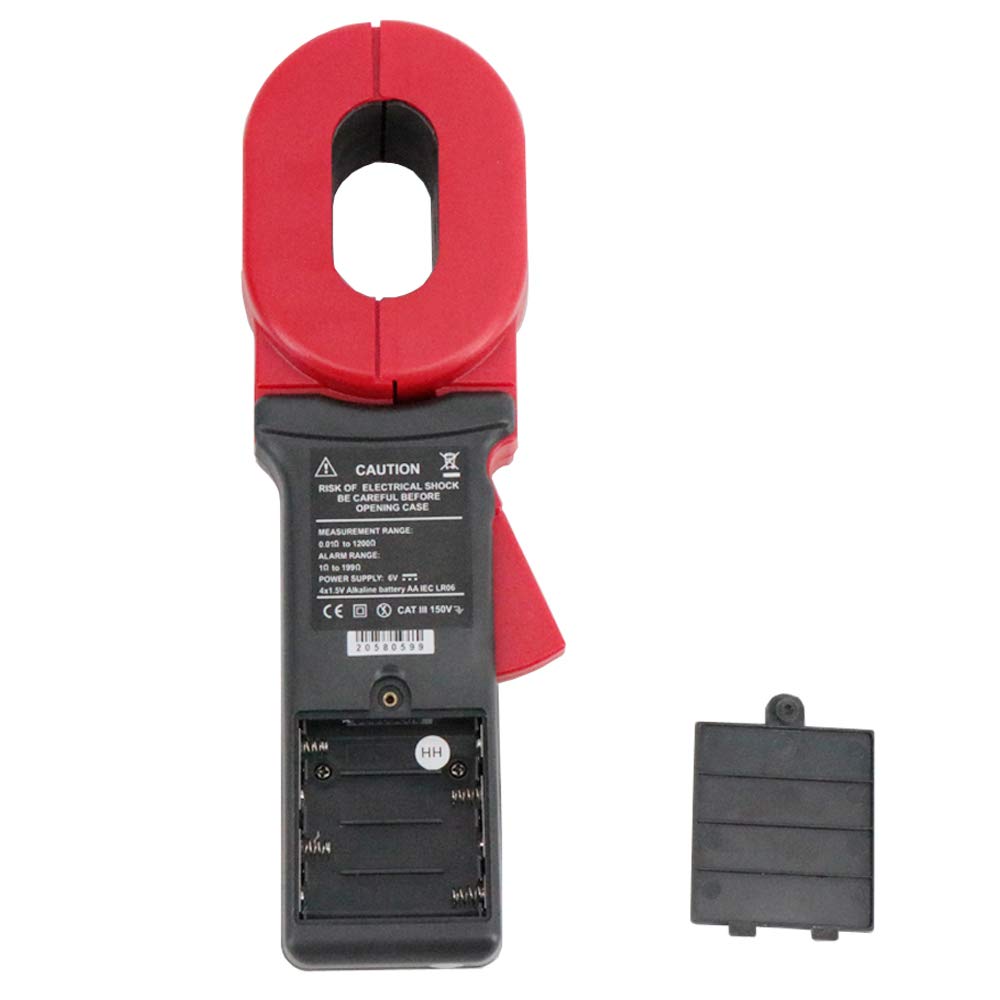

Power Supply 6VDC 4 PCS of AA Alkaline batteries
Resistance Range 0.01-1200Ω
Resistance Resolution 0.001Ω
Highest Resistance Accuracy ±1%±0.01Ω
Data memory 99 Sets
Alarm Threshold Setting Range Resistance: 1-199Ω
Alarm Sound and Light "Beep-beep-beep" alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
Interference Signal Recognition "Beep-beep-beep" tone, NOISE symbol blinking
Working Temperature and Humidity -20°c-55°c; 20%RH-90%RH

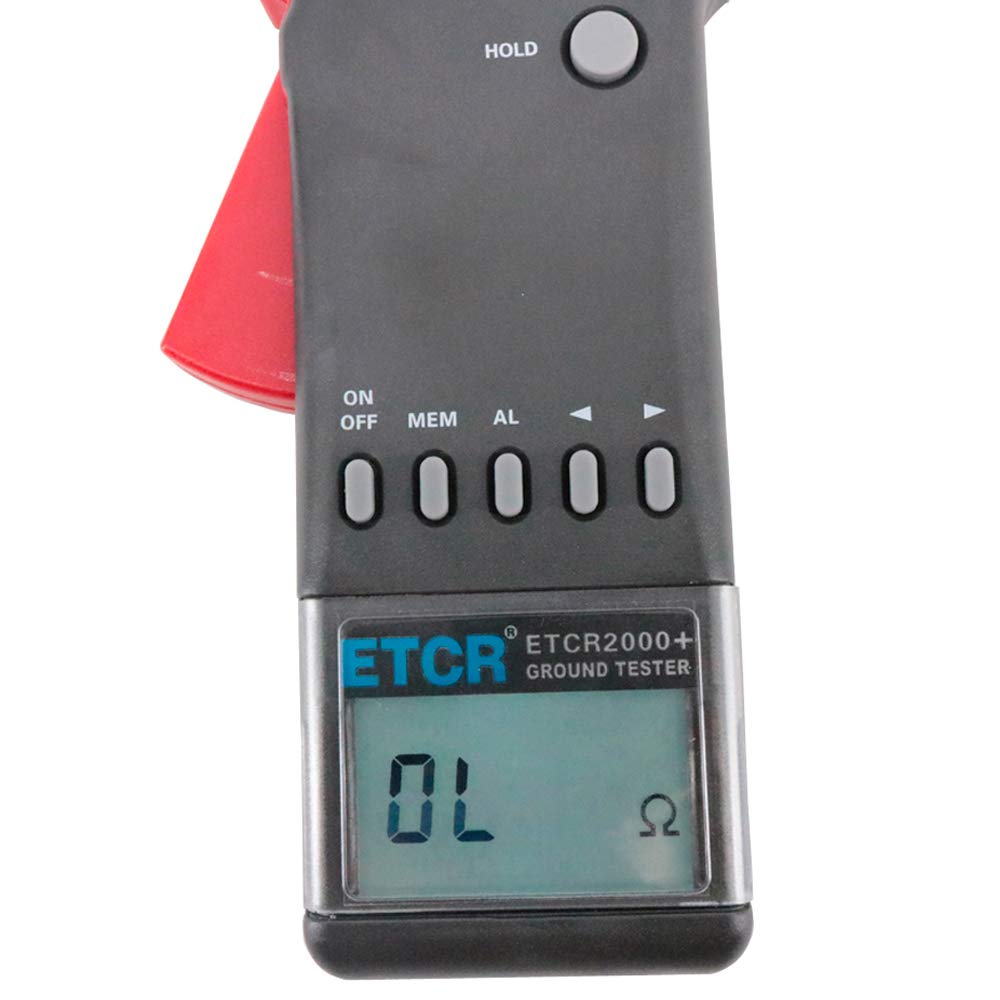

LCD Screen 4 Digits LCD display, Screen L*W: 47mm*28.5mm
Clamp Size 65mm×32mm
Clamp Opening Extent 32mm
Tester Weight 1160g
Clamp Dimension L*W*T: 285mm*85mm*56mm
Protection Level Dual Insulation
Structural Feature Clamp CT
Shifting Automatic shifting
External magnetic field <;40A/m
External electrical field <;1V/m
Single measurement time 0.5 second
Resistance measurement frequency >1KHz
Measured current frequency 50/60Hz Automatic measurement
Low Battery Indication Low battery symbol displays when battery is lower then 5.3V
Memory Full Indication M

EAN: 0799649266105
