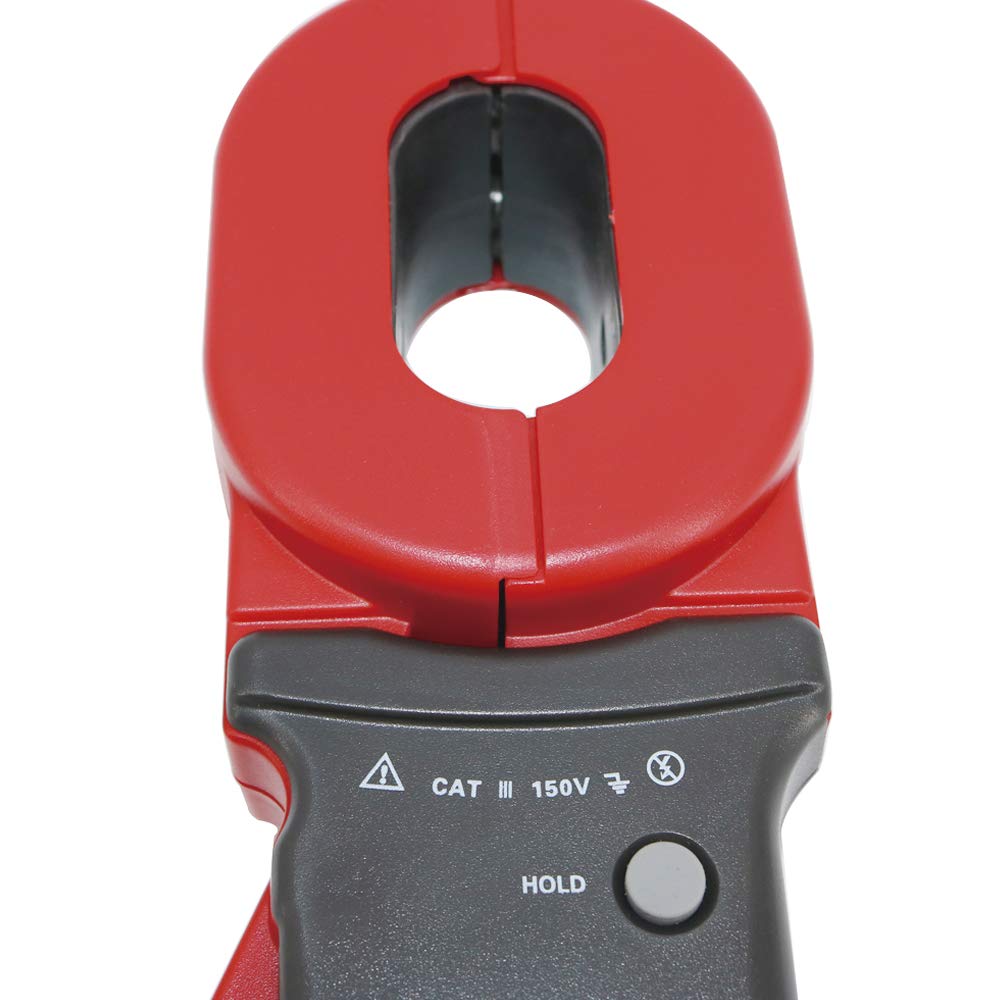

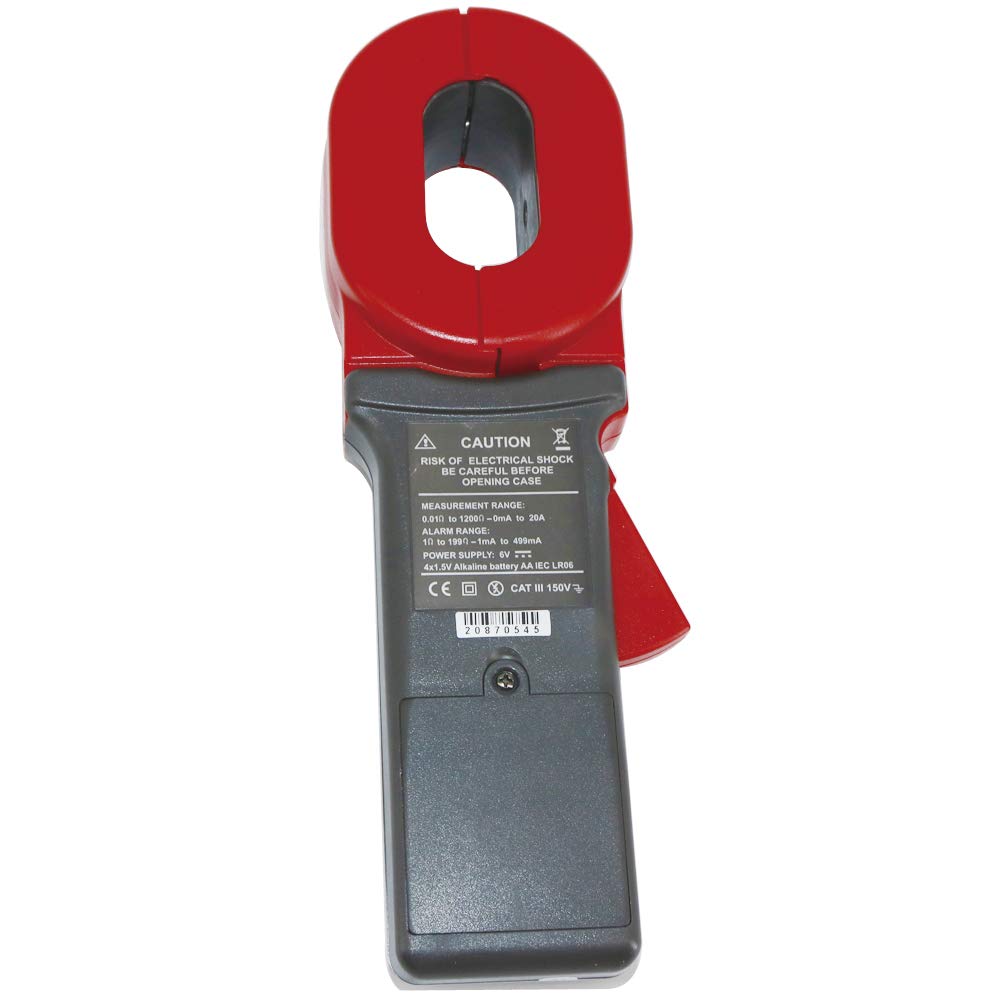

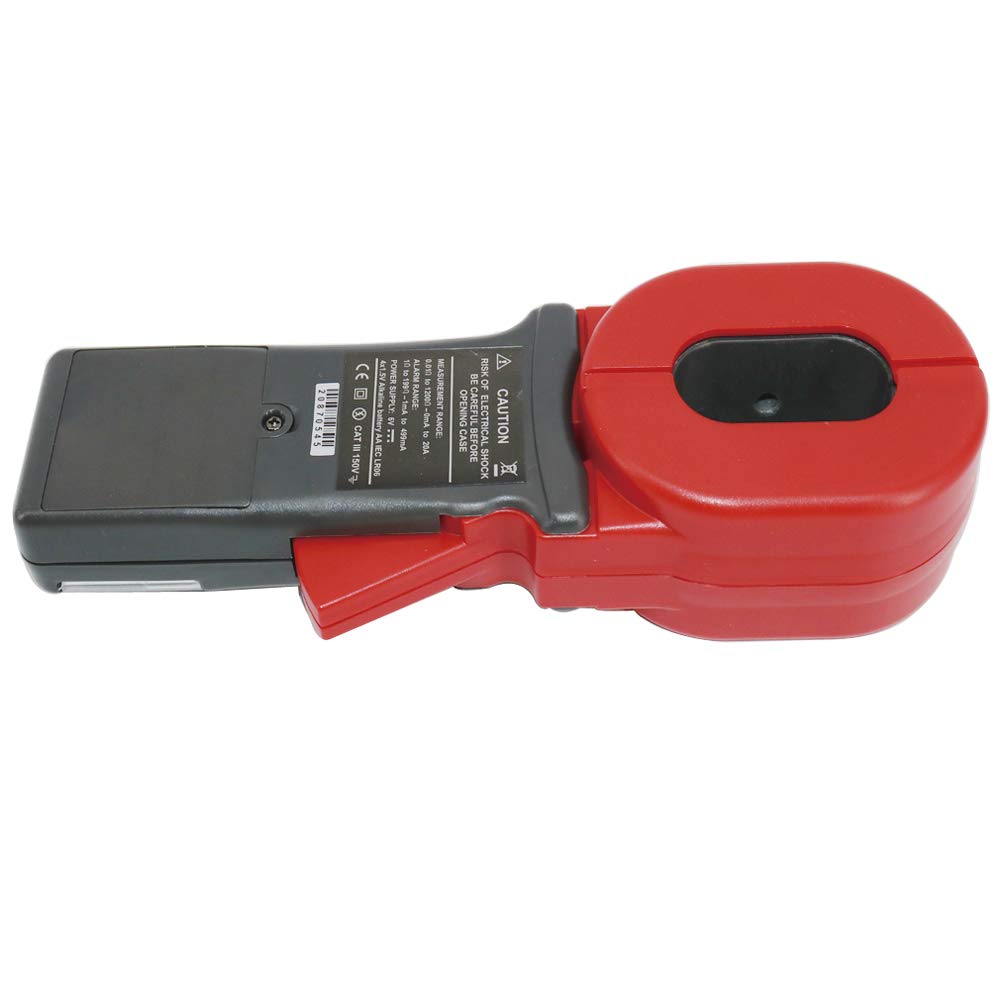

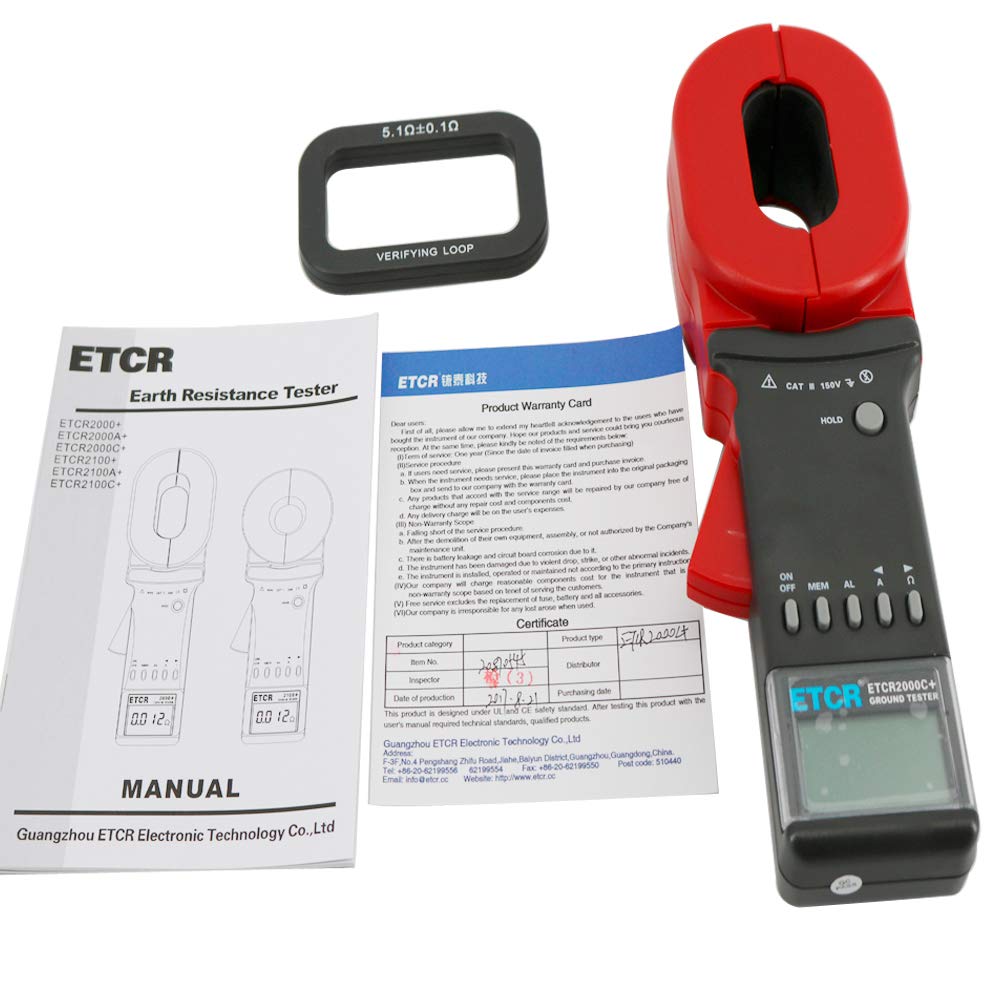

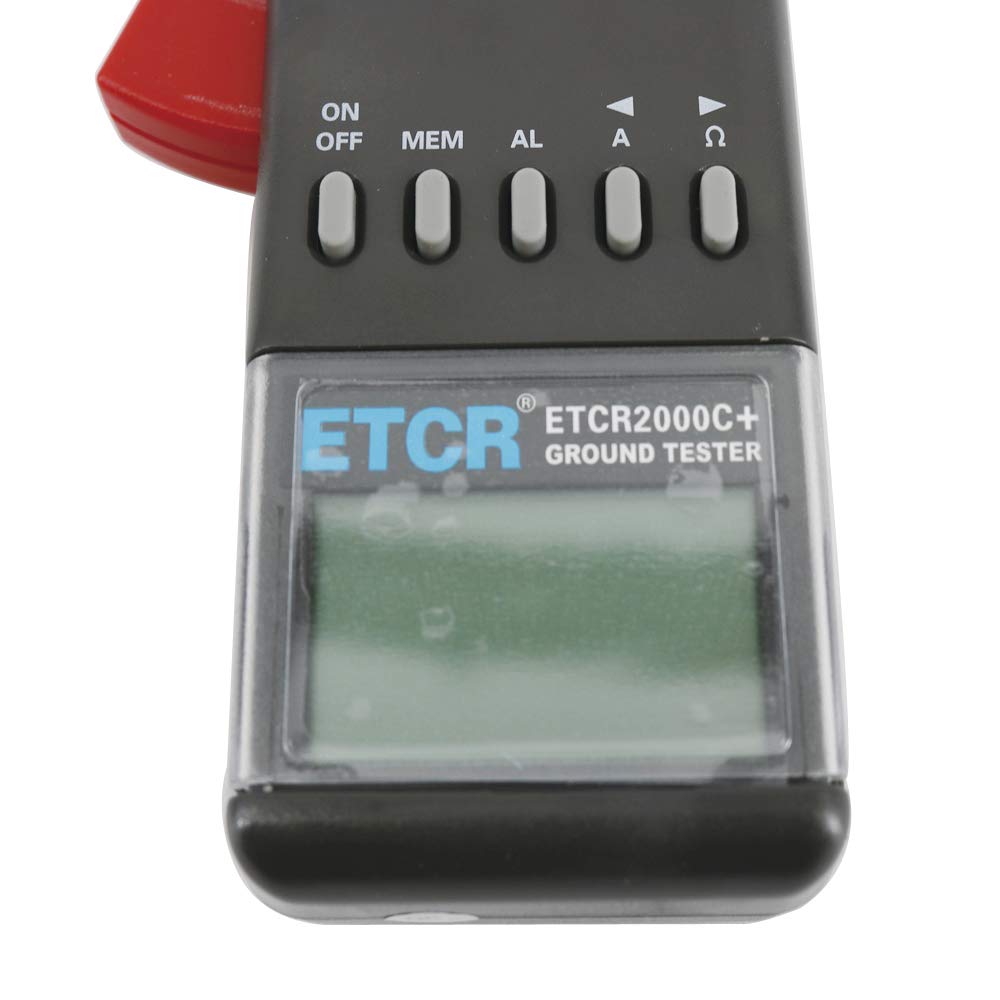

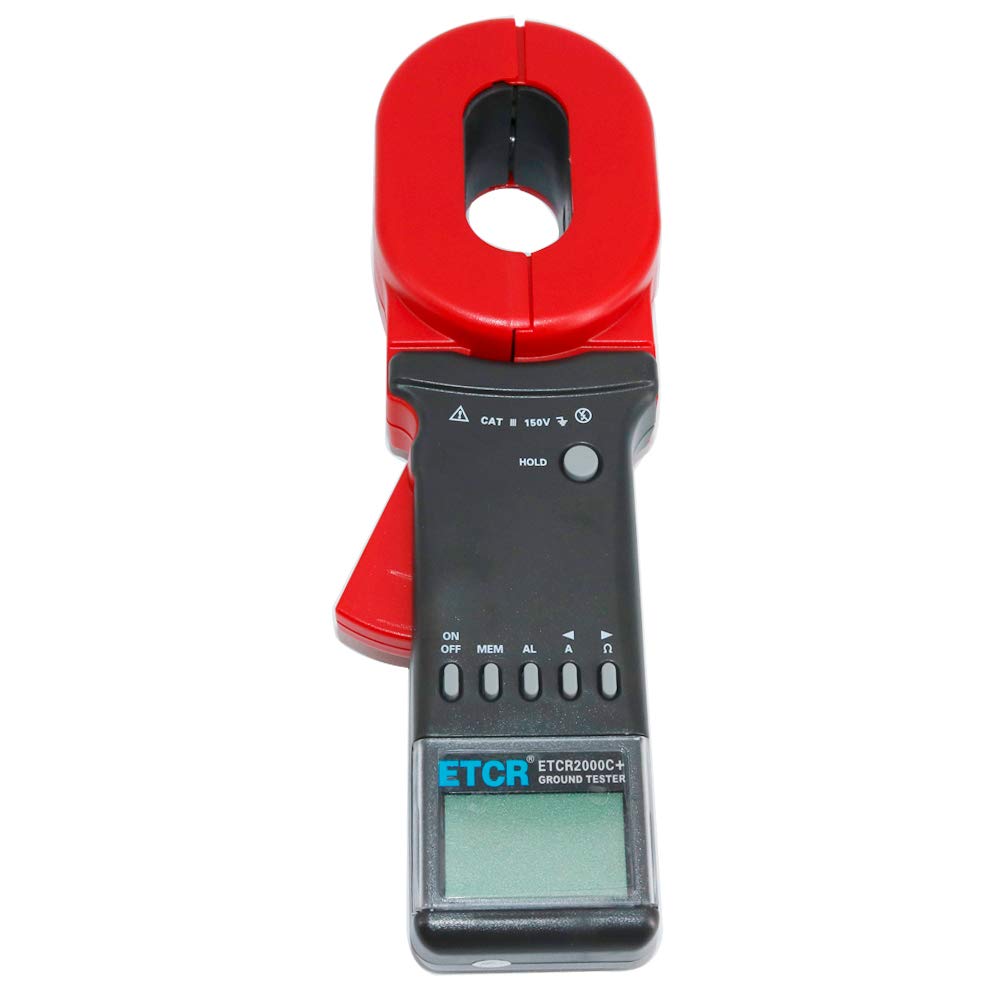

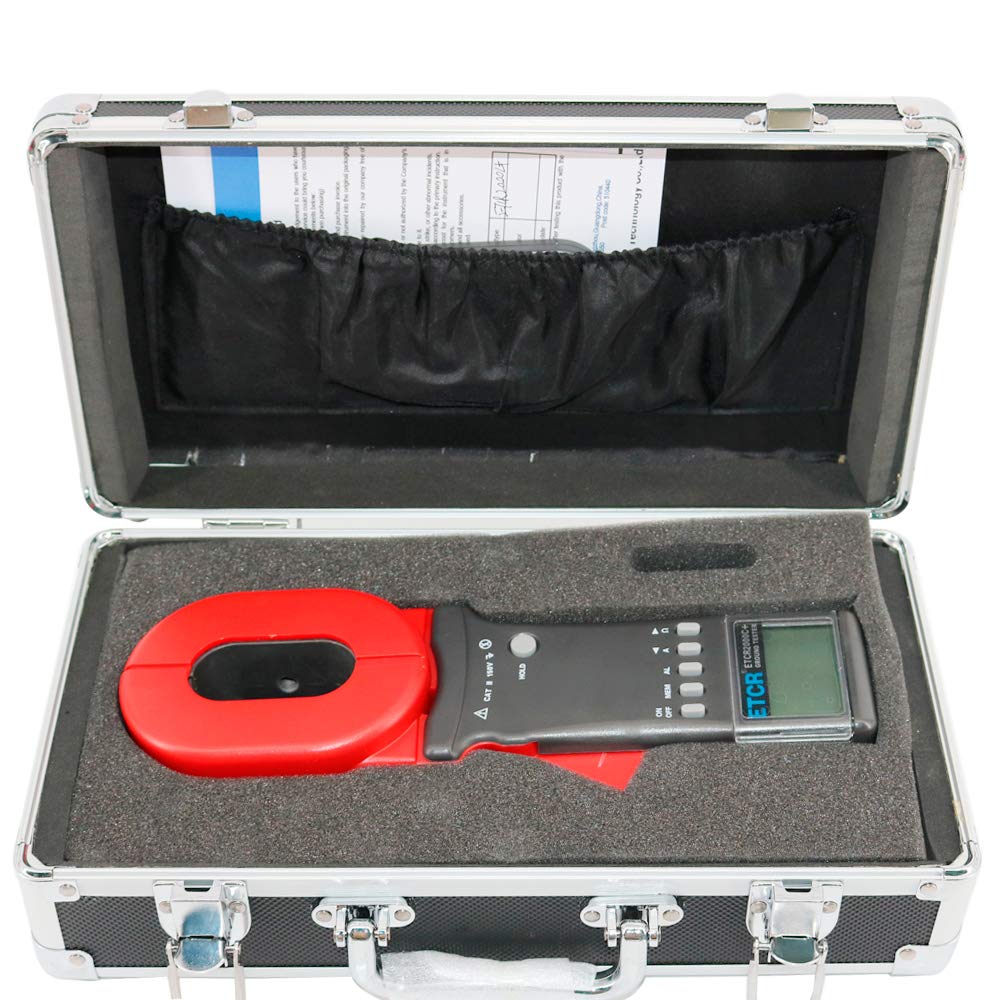

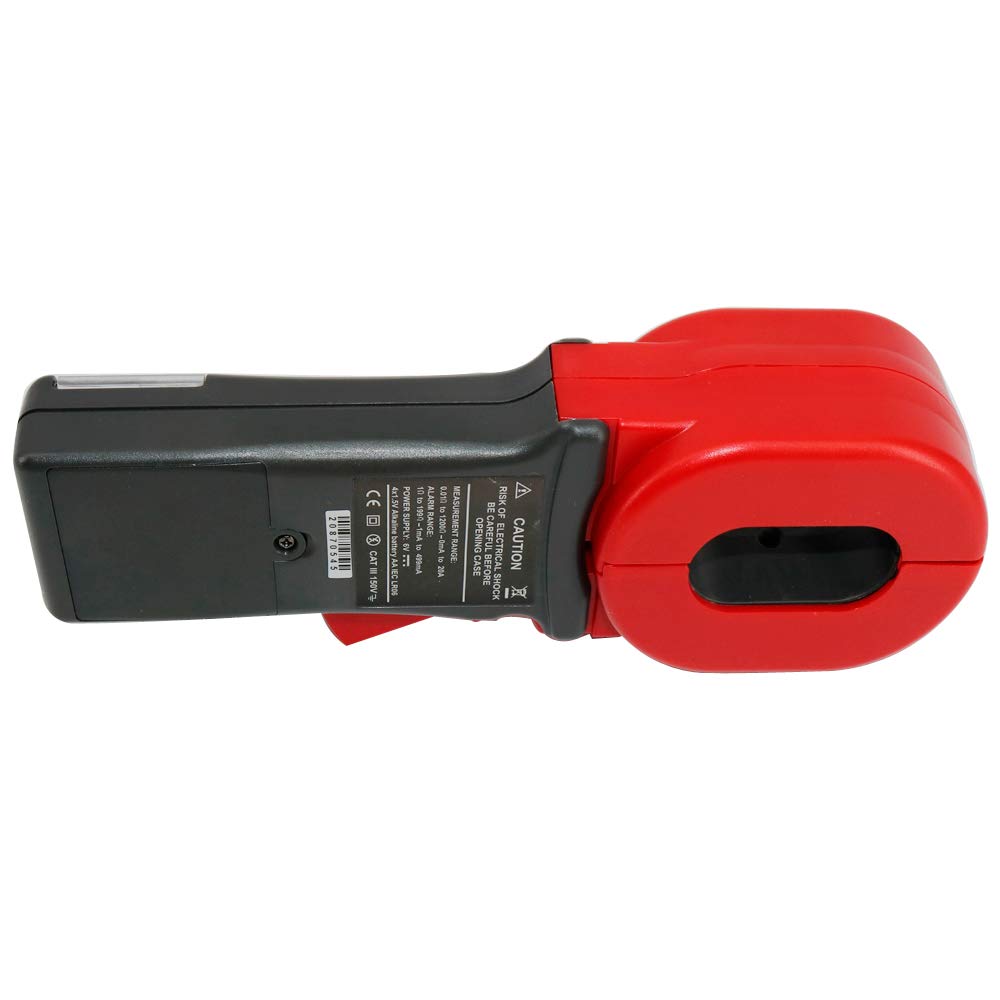

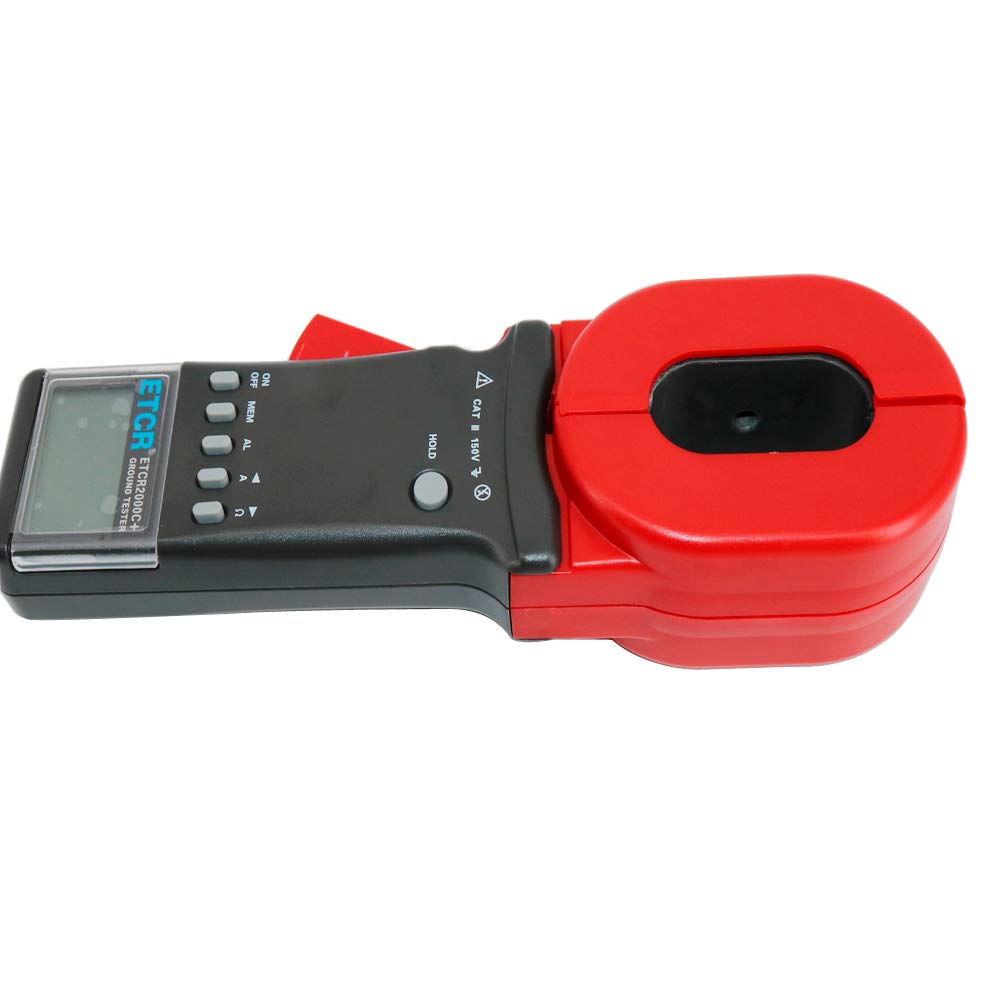

Graigar ETCR2000C+ Clamp Ground Resistance Tester

Brand: Graigar

Color: Red&black

Features:

• ETCR2000C+ Clamp Ground Resistance Tester Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.
• When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster.
• ETCR2000C+ Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable.
• ETCR2000C+ Clamp Earth Resistance Tester measures the integrated value of ground resistance and resistance lead.
• What’s more, ETCR 2100C+ Series tester can measure the leakage current of ground wire.

model number: ETCR2000C+

Part Number: ETCR2000C+

Details: Specificaiton:Function:Ground resistance test, Loop resistance test Power Supply:6VDC 4 PCS of AA Alkaline batteries Resistance Range:0.01-1200Ω Resistance Resolution:0.001Ω Highest Resistance Accuracy:±1%±0.01Ω Current Range:0.00mA-20.0A Current Resolution:0.05mA Highest Current Accuracy:±2.5%±1mA Data memory:99 Sets Alarm Threshold Setting Range:Resistance: 1-199Ω Alarm Sound and Light:“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. Interference Signal Recognition: “Beep-beep-beep” tone, NOISE symbol blinking Working Temperature and Humidity:Working Temperature and Humidity LCD Screen:4 Digits LCD display, Screen L×W: 47mm×28.5mm Clamp Size:Clamp Size Clamp Opening Extent:32mm Tester Weight:1160g (With batteries) Clamp Dimension:L×W×T: 285mm×85mm×56mm Protection Level:Protection Level Structural Feature:Clamp CT Shifting:Automatic shifting External magnetic field:＜40A/m External electrical field:＜1V/m Single measurement time:0.5 second Resistance measurement frequency:＞1KHz Measured current frequency:50/60Hz Automatic measurement Low Battery Indication:Low battery symbol displays when battery is lower then 5.3V Memory Full Indication:MEM symbol blinks when all 99 sets memory is full Over Range Indication:Out of range indication “OLΩ”, “L0.01” or “OL A” Auto Power-off:5 minutes after Boot up

EAN: 0799649266099
