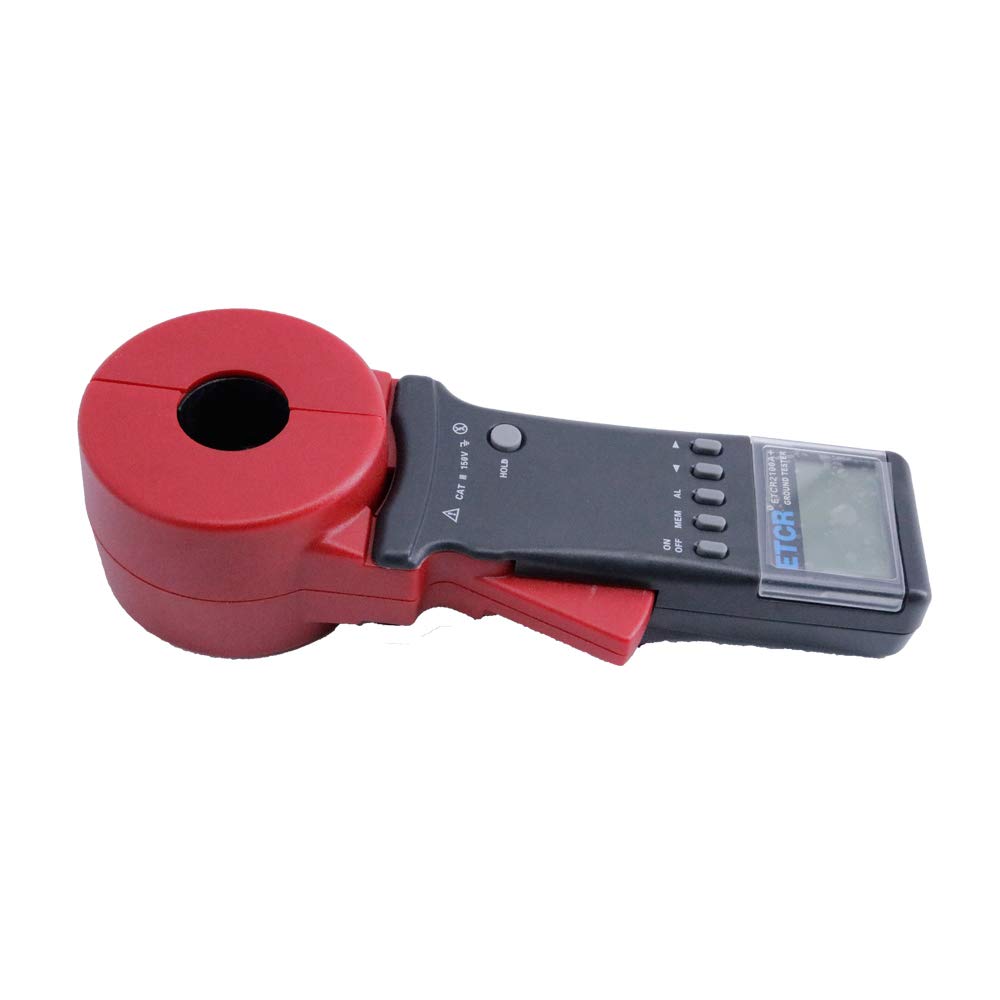

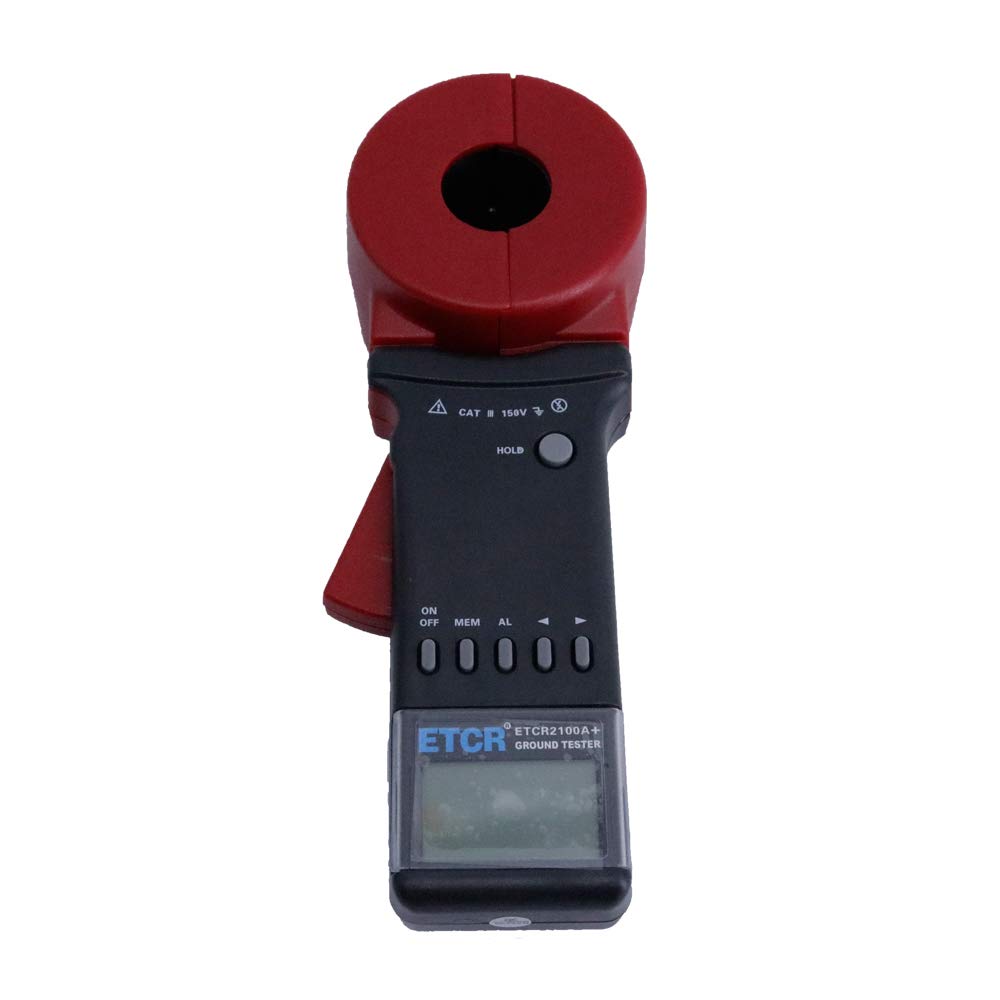

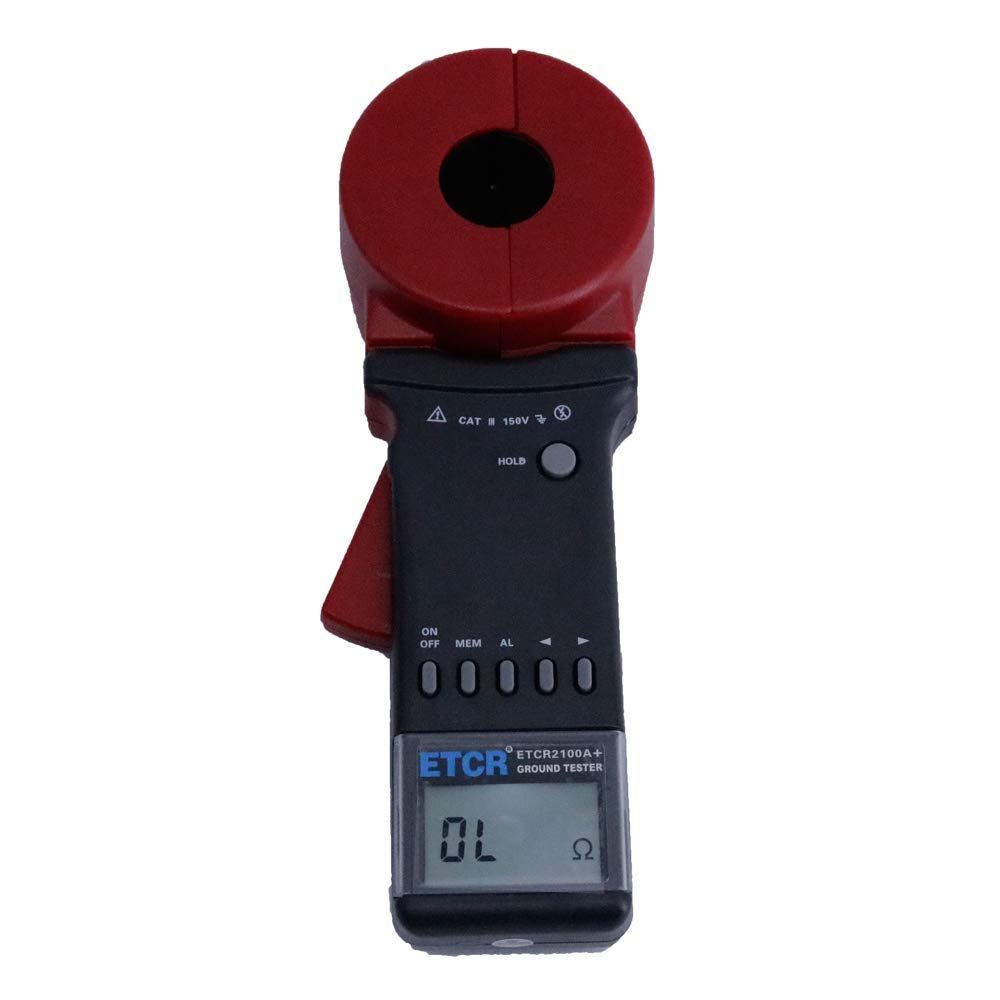

Graigar ETCR2100A+ Digital Clamp Meter Ground Earth Resistance Meter Tester Clamp Earth Resistance Tester 0.01-1200 Measuring Range

Brand: Graigar

Color: Black&Red

Features:

• NEW Type 2100+ Series Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.
• NEW Type 2100+ Series Clamp Earth Resistance Tester is another perfect upgrade on old models.
• ETCR2100A+ Digital Clamp Meter Ground Earth Resistance Meter break open a long time self-test waiting, boot immediately into the test.
• Breakthrough relay self-test mode, out of the relay, the use of advanced algorithms and digital Integrated processing technology, fully intelligent.
• Break the old product cumbersome problem, more in line with handheld instrument features.

model number: ETCR2100A+

Part Number: ETCR2100A+

Details: Function Ground resistance test, Loop resistance test
Power Supply 6VDC 4 PCS of LR6 Alkaline batteries
Resistance Range 0.01-200Ω
Resistance Resolution 0.001Ω
Highest Resistance Accuracy ±1%±0.01Ω
Data memory 99 Sets
Alarm Threshold Setting Range Resistance: 1-199Ω
Alarm Sound and Light “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.
Interference Signal Recognition “Beep-beep-beep” tone, NOISE symbol blinking
Working Temperature and Humidity -20C-55C;20%RH-90%RH

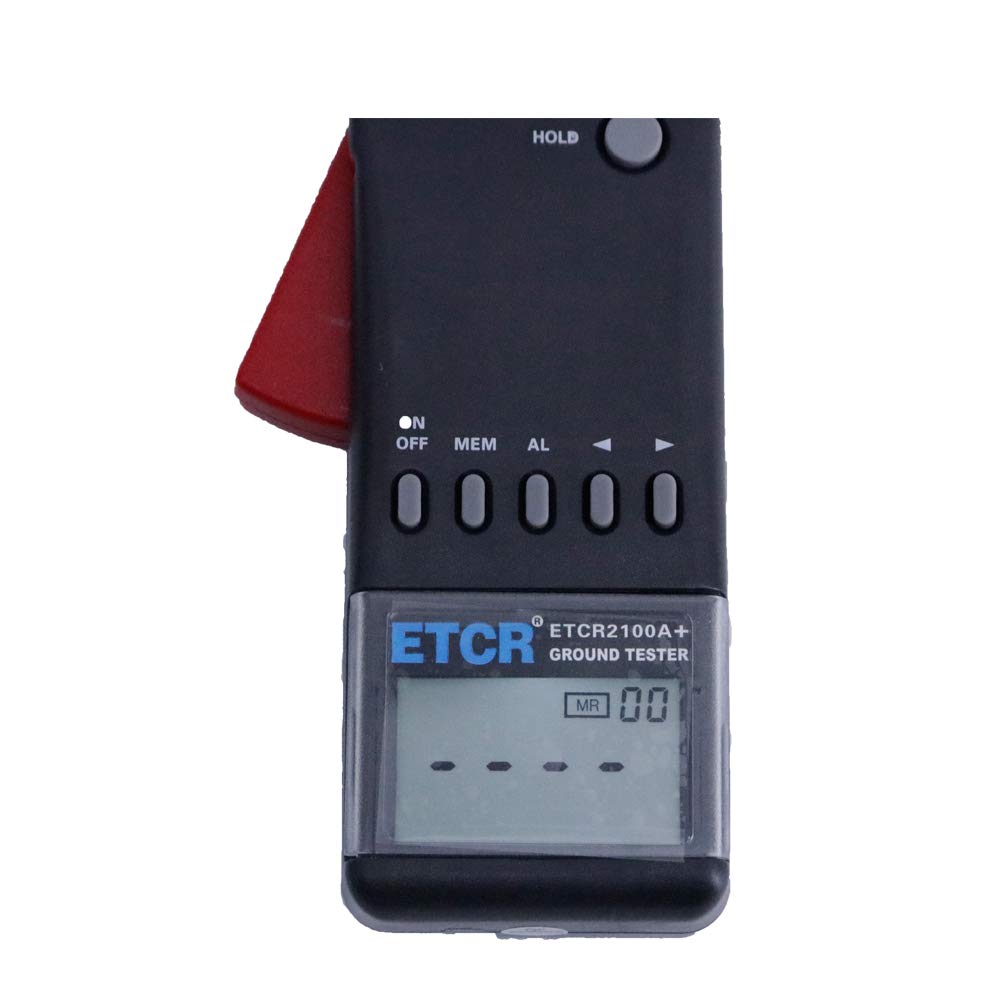

LCD Screen 4 Digits LCD display, Screen L×W: 47mm×28.5mm
Clamp Size Φ32mm
Clamp Opening Extent 32mm
Tester Weight 1160g
Clamp Dimension L×W×T: 285mm×85mm×56mm
Protection Level Dual Insulation
Structural Feature Clamp CT
Shifting Automatic shifting
External magnetic field <;40A/m
External electrical field <;1V/m
Single measurement time 0.5 second
Resistance measurement frequency >1KHz
Measured current frequency 50/60Hz Automatic measurement
Low Battery Indication Low battery symbol displays when battery is lower then 5.3V
Memory Full Indication MEM symbol blinks when all 99 sets memory is full
Over Range Indication Out of range indication “OLΩ”, “L0.01” or “OL A”
Auto Power-off 5 minutes after Boot up
Power Consumption Max 50mA either in booting up or normally working, Continuously working for 30 hours
RS232 Interface (Optional) The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

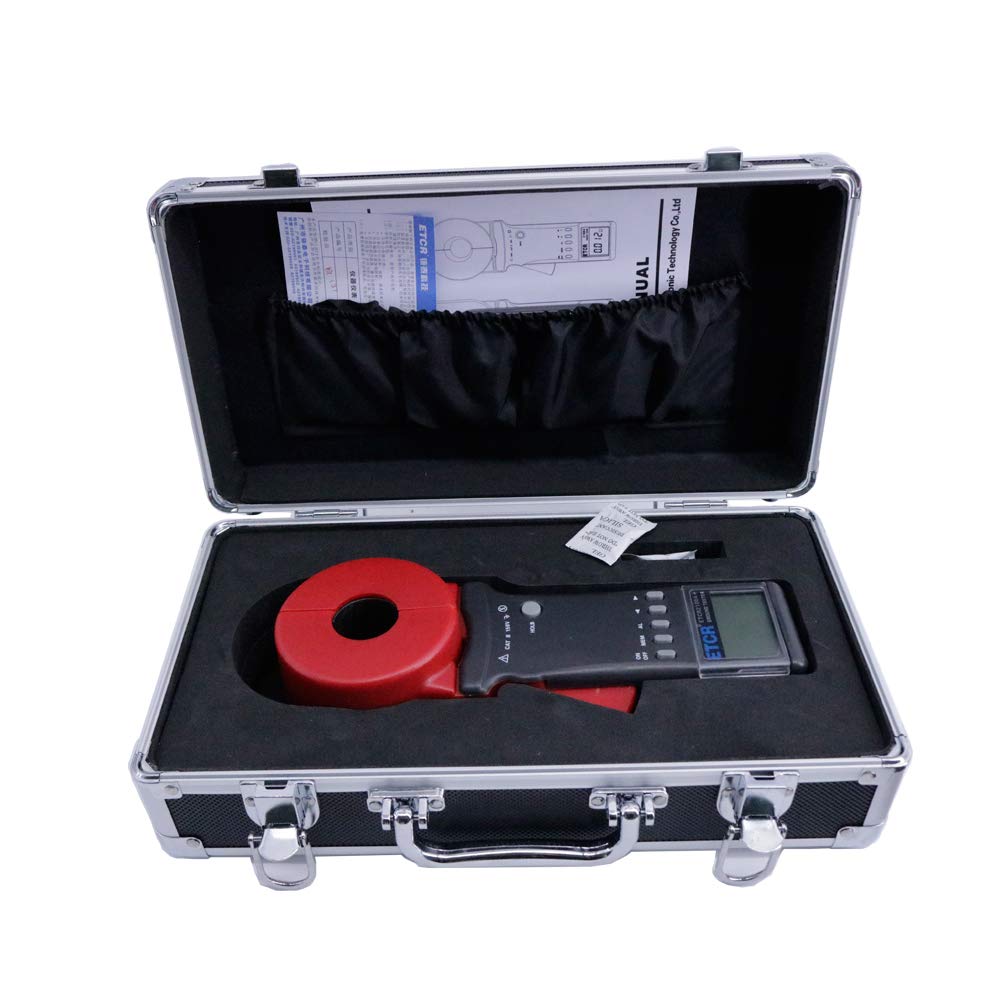

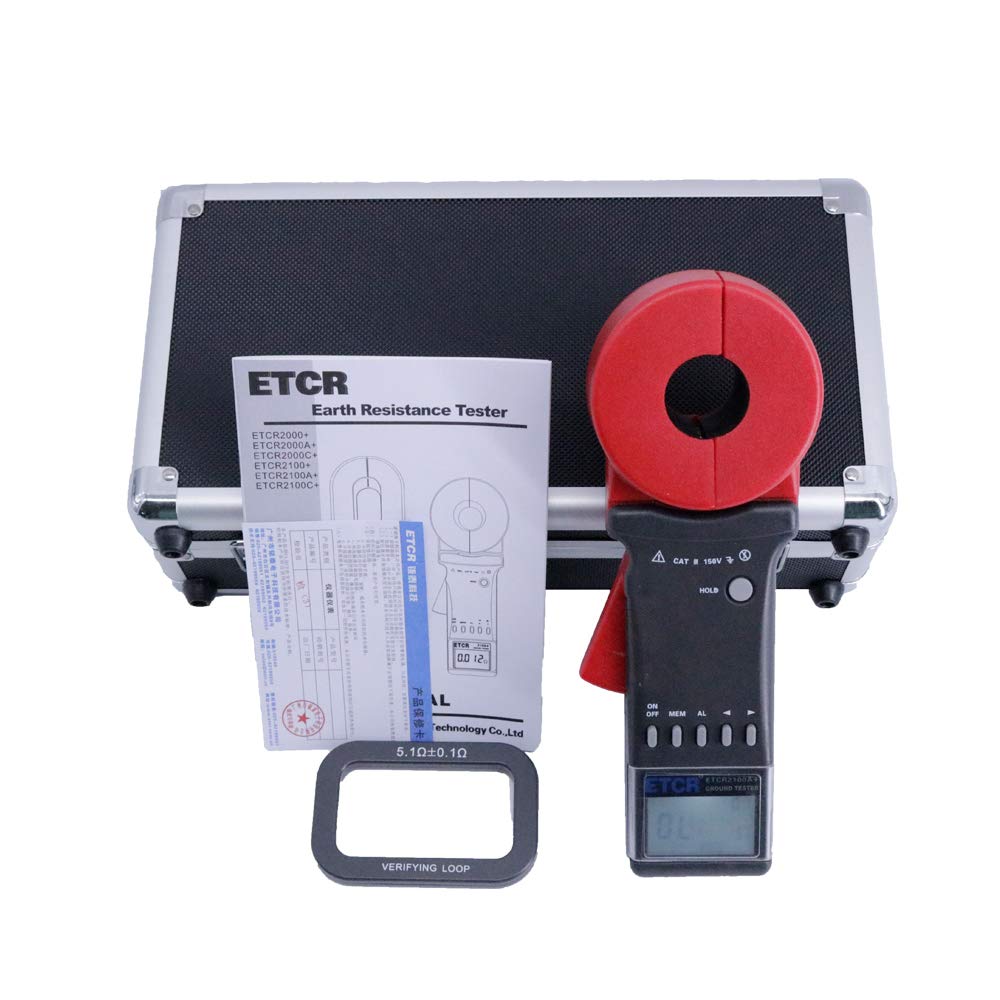

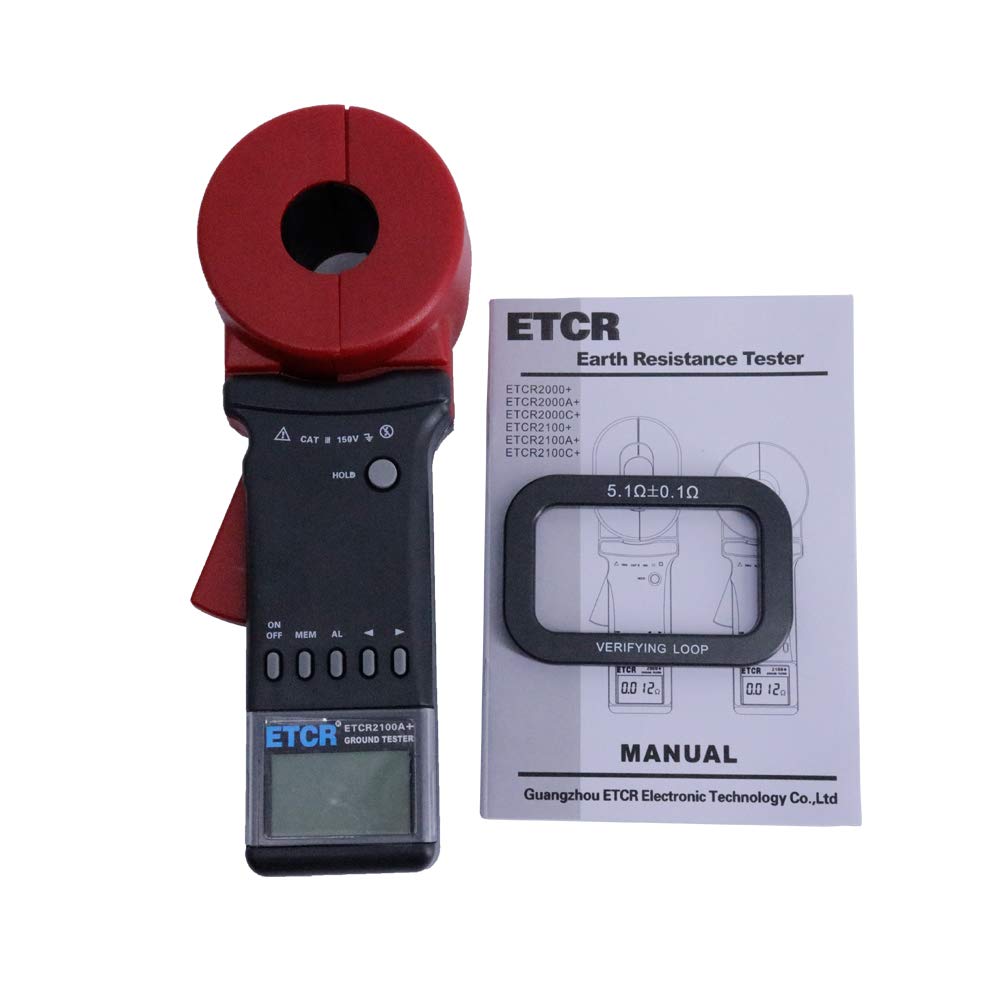

Accessories Meter: 1 piece, Test Ring: 1 Piece, Meter Suitcase: 1 Piece , Batteries: 4 PCS (LR6)

EAN: 0799649266198
