Graigar ETCR3200 Double Clamp Earth Resistance Meter Ground Resistance Multifunction Ground Resistance Tester Earth Resistance Tester

Brand: Graigar

Color: Red&black

Features:

• ETCR3200 Double Clamp Grounding Resistance Tester is specially design for the measurement of earth resistance, soil resistivity, earth voltage, leakage current of grounding line, AC current, DC resistance.
• ETCR3200 Double Clamp Grounding Resistance Tester is composed of host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others.

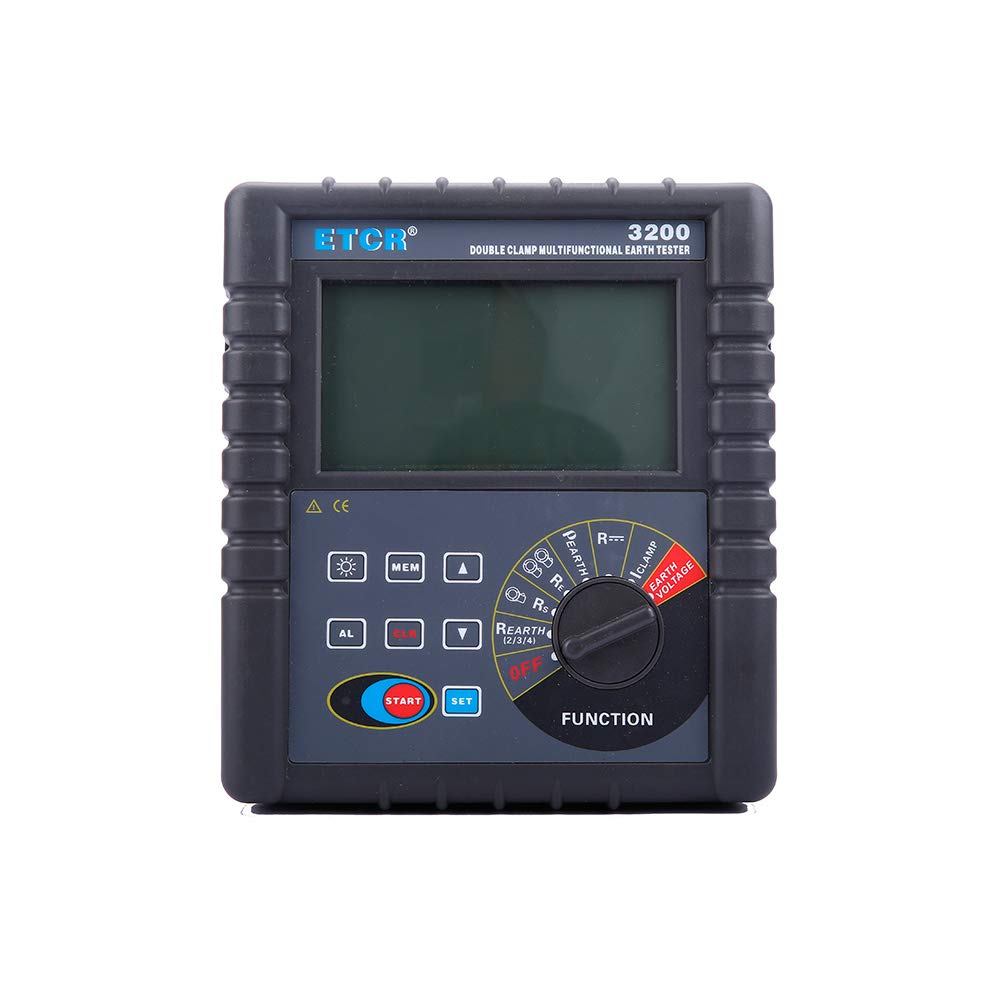

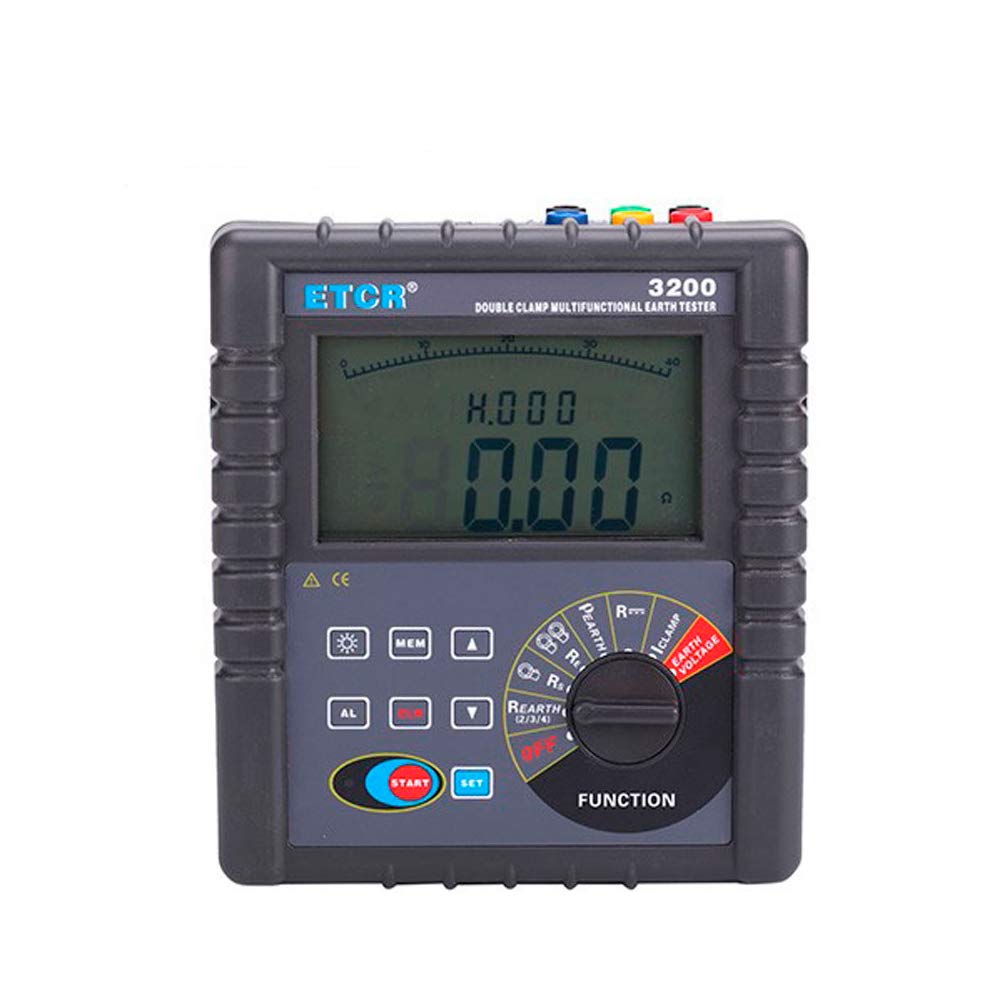

• The large LCD display of host machine is with blue backlight and bar graph indicating that can be seen clearly.

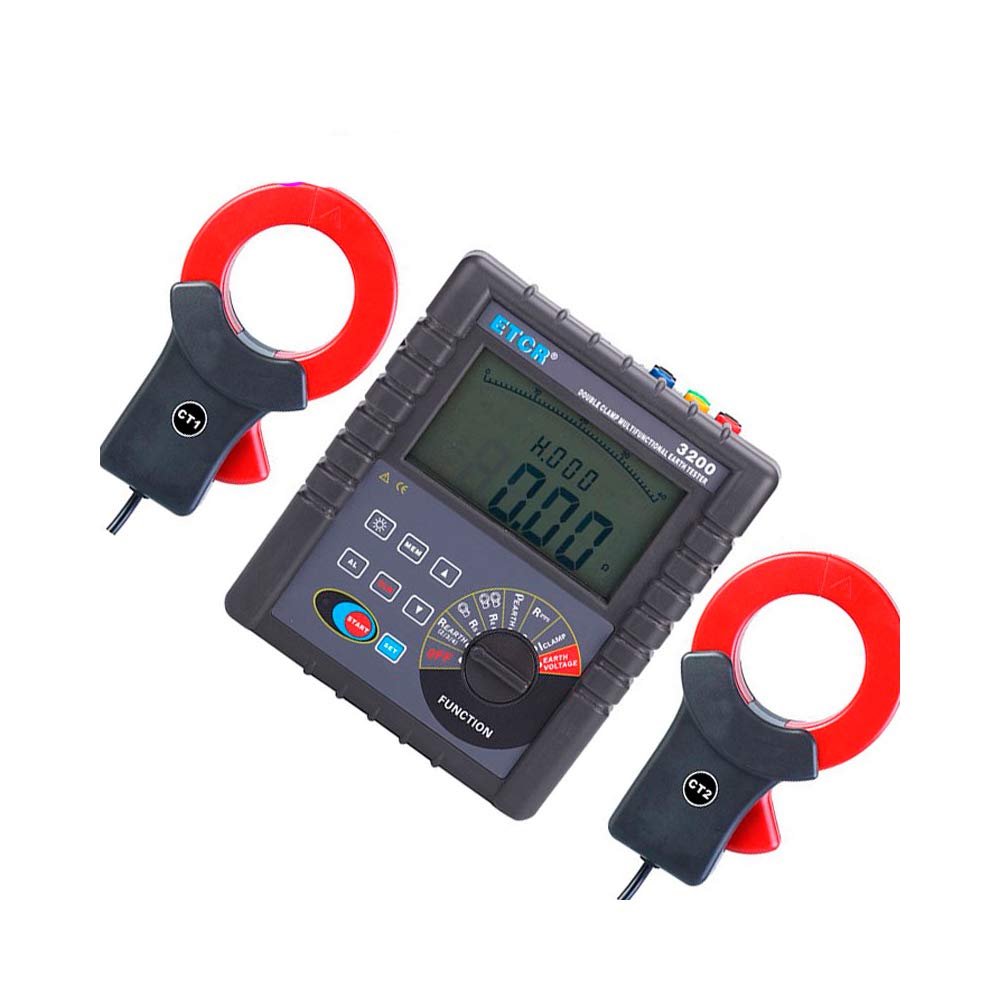

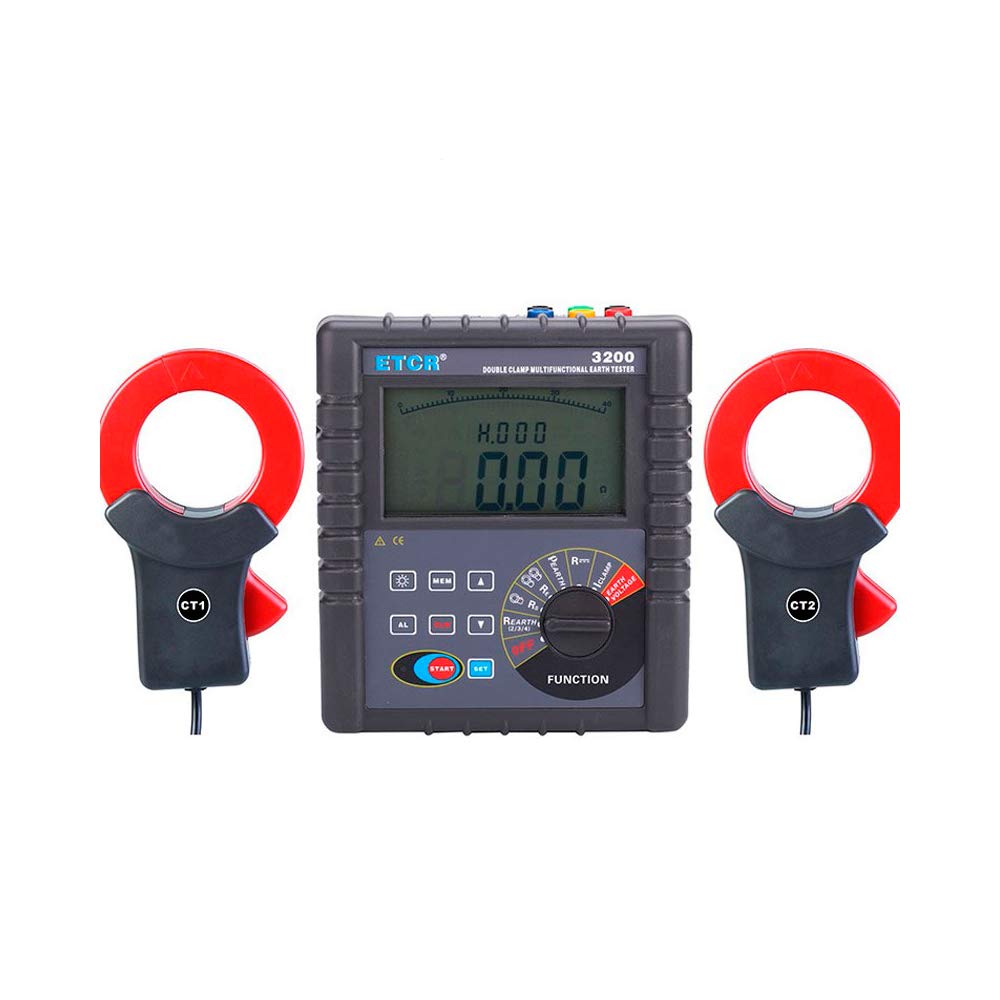

• ETCR3200 Double Clamp Earth Resistance Meter can flexibly and precisely measure the value of grounding resistance in every complicated situation like single point grounding, grounding mesh; it is not need to disconnect any parallel connection pole when measuring parallel-grounding, and massively improve the convenience when measuring.
• At the same time it can store 2000 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, and alarm indicator, auto-shut down and with the functions like historical data access, reading, preservation, report forms, printing and so on.

model number: ETCR3200

Part Number: ETCR3200

Details: Function：4-pole, 3-pole and simple 2-pole, selection, double clamp method measure grounding resistance, soil resistivity; Measurement of earth voltage, AC voltage, leakage current of AC current
Power Supply：DC 9V(Zn-Mn dry battery R14S 1.5V 6 PCS, continuous standby for 300 hours )
Caliber of clamp:Φ68mm
Measurement Range: Selection method: 0.00Ω-3000Ω; Double clamp method: 0.00Ω-9000kΩ; 2/3/4 pole method:0.00Ω~30.00kΩ; Soil resistivity:0.00Ω~9000kΩ; DC resistance:0.00Ω~30.00kΩ; Earth voltage:0.0V~100.0V; AC current:0.00mA~600A
Measuring Mode:Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement, selection method, double clamp method measure grounding resistance
Test Frequency: 128Hz/111Hz/105Hz/94Hz(AFC).
Short-circuit Test Current：AC 20mA max
Open-circuit Test Current: AC 40V max
Test Voltage Wave：Sine wave
Electrode Distance Range：Can be set 1m-100m
Backlight：Blue screen backlight, suitable for dim places
Standard Test Wire：4 wires: each for red 20m, black 20m, yellow 10m, and green 10m
Simple Test Wire：2 wires: each for red 1.6m and black 1.6m
Measuring Rate:Voltage to ground: about 2 times/second; Current to ground: about 2 times/second; Earth resistance, soil resistivity: about 5 seconds/time
Measuring Times：Over 5000 times (Short-circuit test, interval time should be at least 30 seconds)

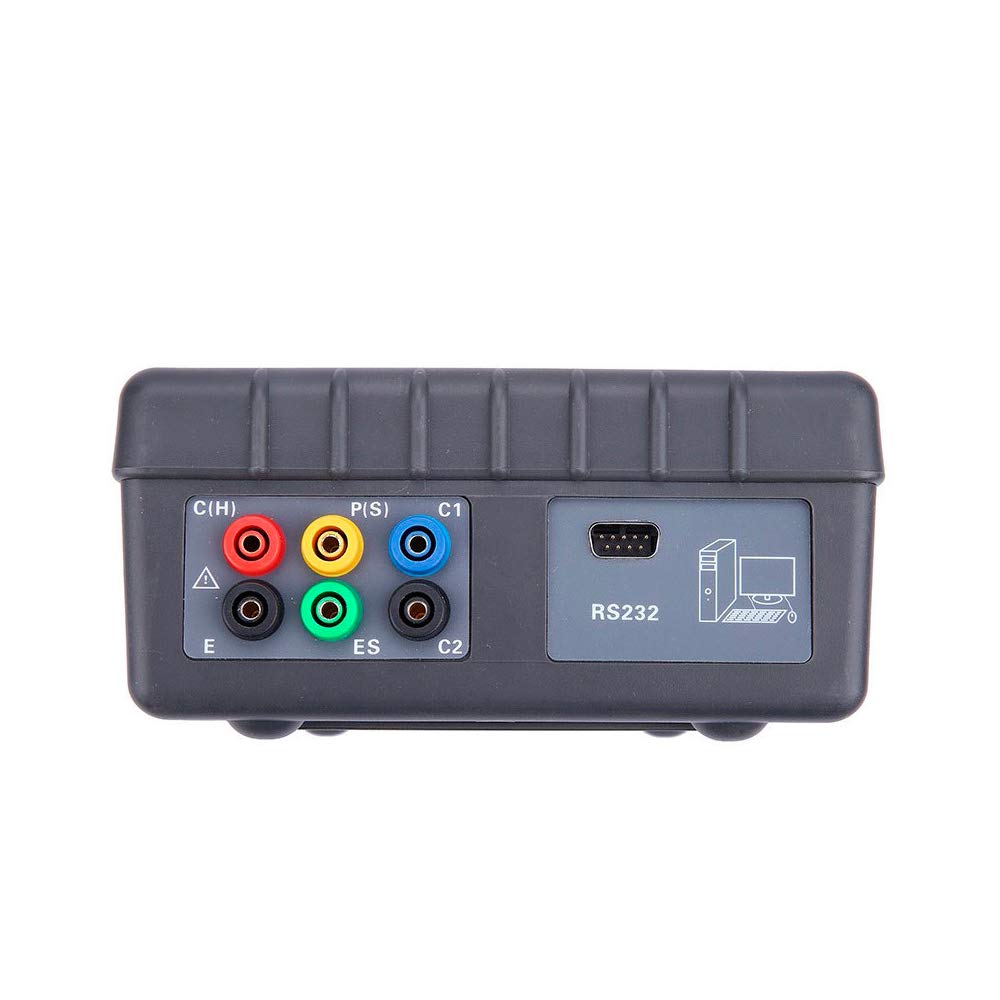

RS232 Interface: One piece of RS232 communication wire, with length 1.5m,RS232 interface, software supervision, storage data can be uploaded to computer, saved or printed.
Power Consumption:Standby: about 20mA (Backlight shut off); Boot and with backlight: about 45mA (25mA without backlight); Measurement: about 100mA (Backlight shut off)

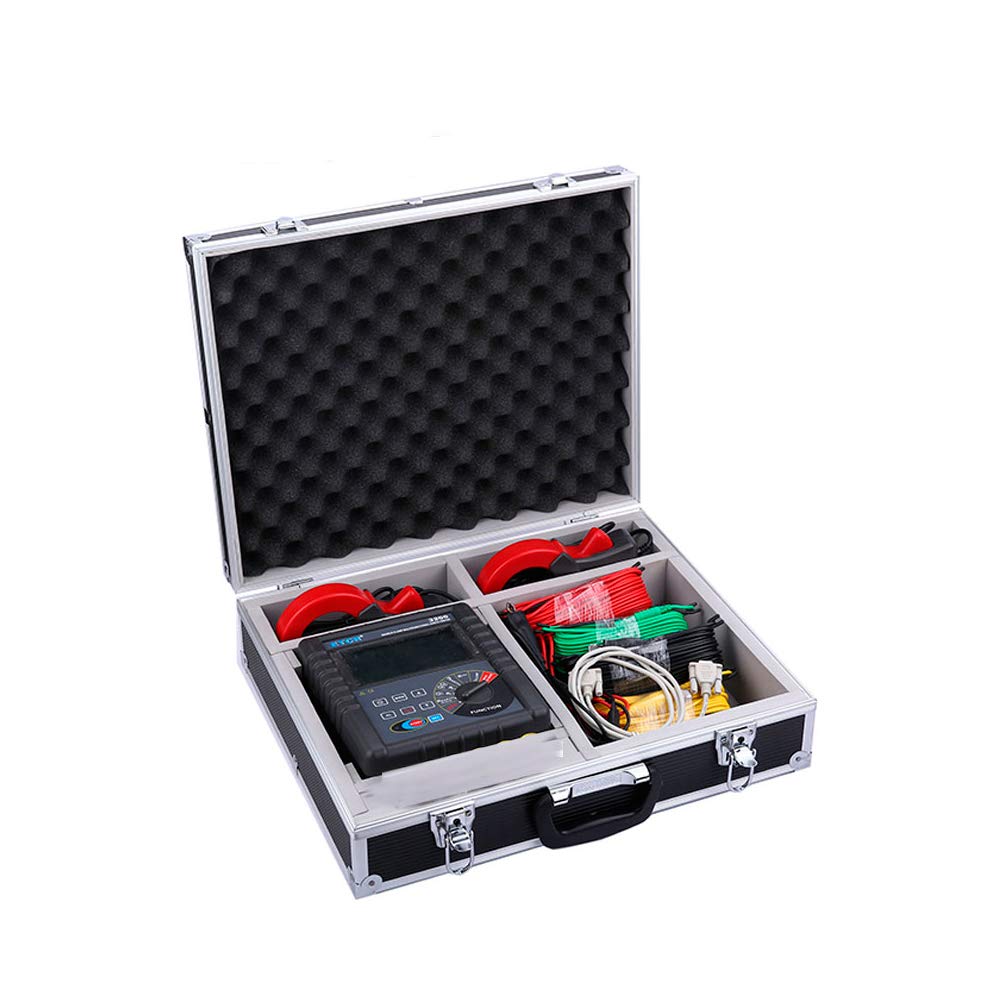

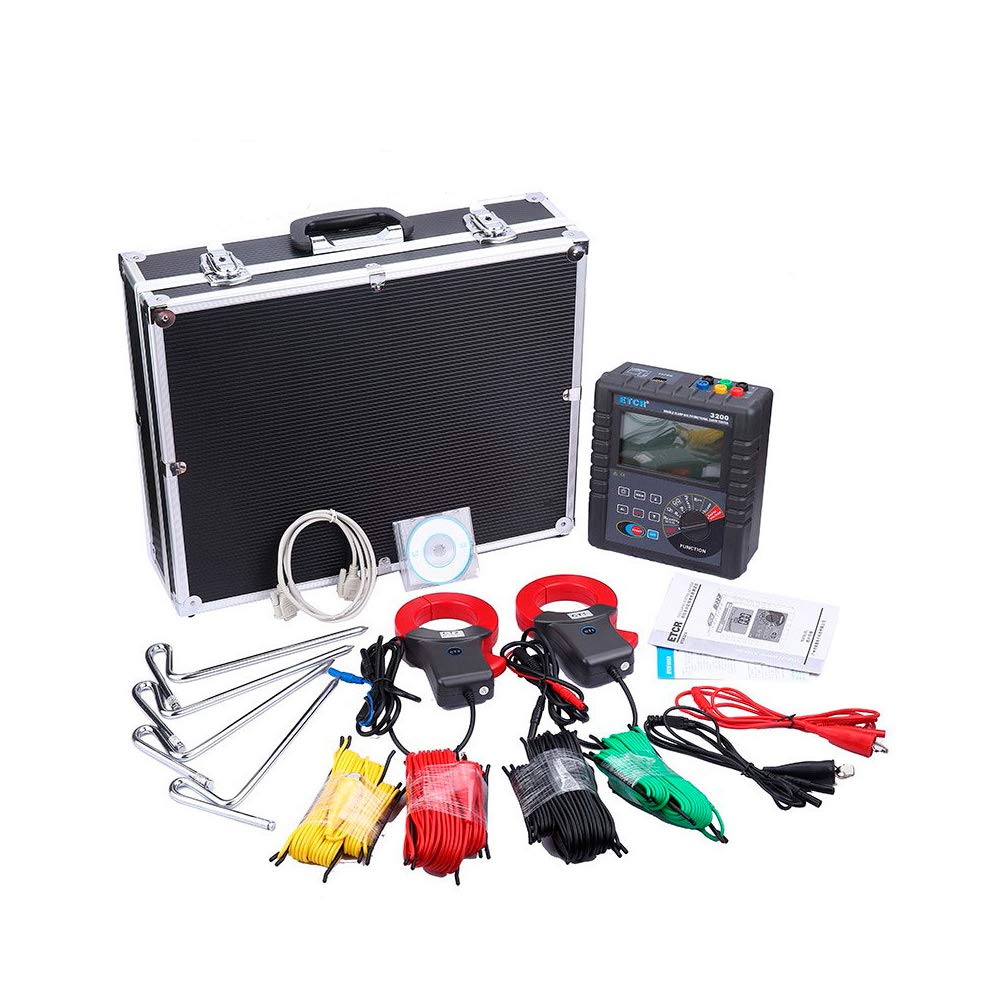

Accessories:Tester: 1PC;clamp：2PC; Earthing Rod: 2PCS; Testing Wire: 3PCS; Simple testing wire: 2PCS; RS232 Com-cable: 1PC; Software disk: 1PC; Tester bag: 1PC

EAN: 0761272049776
