Graigar Fixed Ultrasonic Flowmeter TDS-100F-S2 DN15-100mm TDS-100F Wall-Mount Flow Meter

Brand: Graigar

Color: Green

Features:

• TDS-100F Ultrasonic flow meter Low fixed ultrasonic flowmeter with large planning integrated circuits CPLD, table process, accuracy is higher.
• TDS-100F-S2 has suitable pipe diameter DN15-DN100mm.
• S2 standard transducer can be used in Fluid temperature 0°C-160°C.
• Is stationary time difference ultrasonic flowmeter flow body could be water, sea water, or oil, uniform liquid slurry, conduct electricity or not, corrosive or no corrosive liquid can be measured.
• Widely used in industrial field of various liquid flow metering online, which host is divided into standard wall hanging type, plate type, hanging type explosion-proof, the use of different field in order to meet user needs.

Part Number: TDS-100F-S2

Details: Specifications:
Linearity: Better than ±1%.
Accuracy: ±1% of reading at rates >0.6 ft/s (0.2m/s). Assume a fully developed flow profile.
Repeatability: ±0.2%.
Velocity: ±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
Measurement Period: 0.5s
Display: LCD with backlight. 2x20 letters.
Keypad: 4x4-key membrane keypad with tactile feedback
Protection Class: IP65 (NEMA 4X).
Size: 9.88x7.56x3.15 (251x192x80mm3) for standard version
Clamp-on
S2-type: for pipe size (DN15~DN100mm)
M2-type: for pipe size (DN50~DN700mm)
L2-type: for pipe size (DN300~DN6,000mm)
Liquid Types Virtually all commonly used clean liquids.
Liquids with small quantity of tiny particles may also be applicable. Particle size should be less than 75um, particle concentration less than 10,000ppm.
Liquids should contain no or very minor air bubbles.
Examples are chilled/hot water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, etc.
Liquid Temp(0C - 160C) for clamp-on transducer. Higher temperatures can be accommodated. Consult us for assistance.
(0C - 160C) for wetted transducer.
Pipe Size: 1 ~ 240 (DN15mm ~ DN6,000mm).
Pipe Material: All metals, most plastics, fiber glass, etc. Allow pipe liner.
PowerAC: 240V DC: 8VDC~36VDC
Power consumption: <2W
WeightStandard main unit: 6.6lb (3kg)

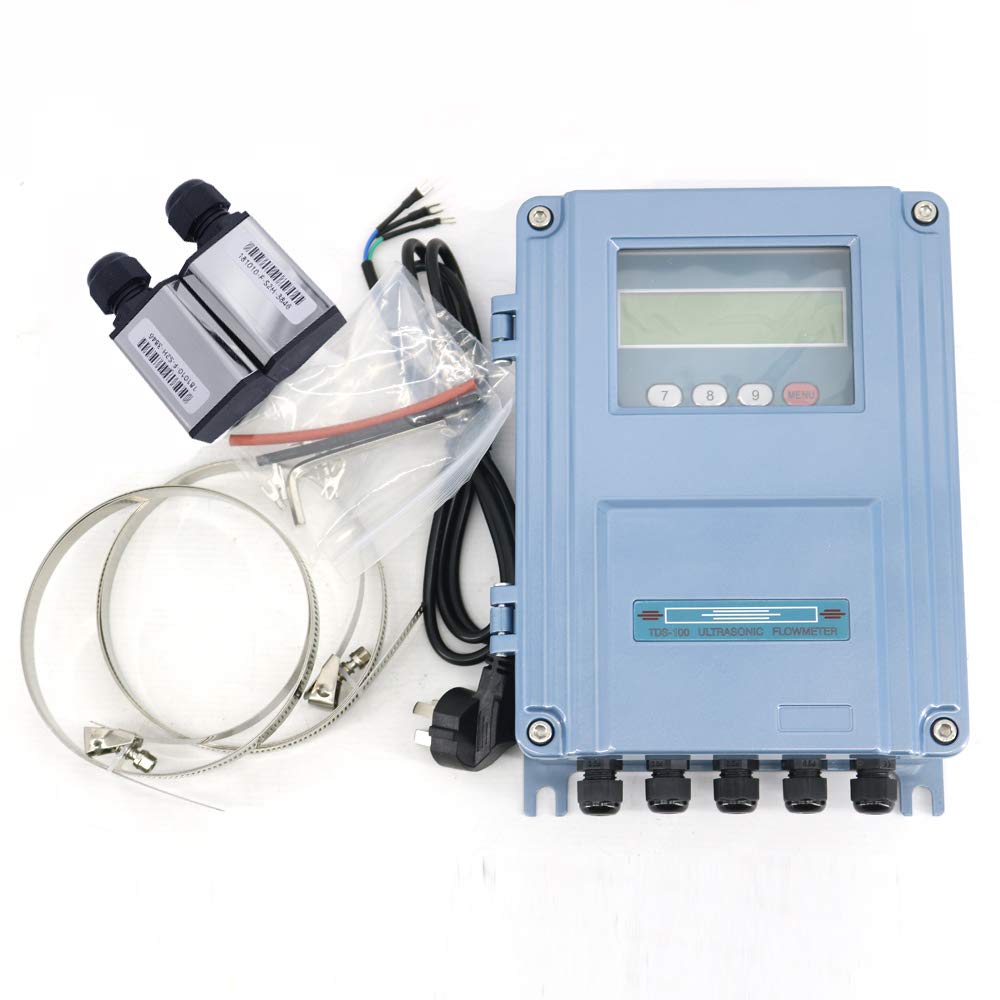

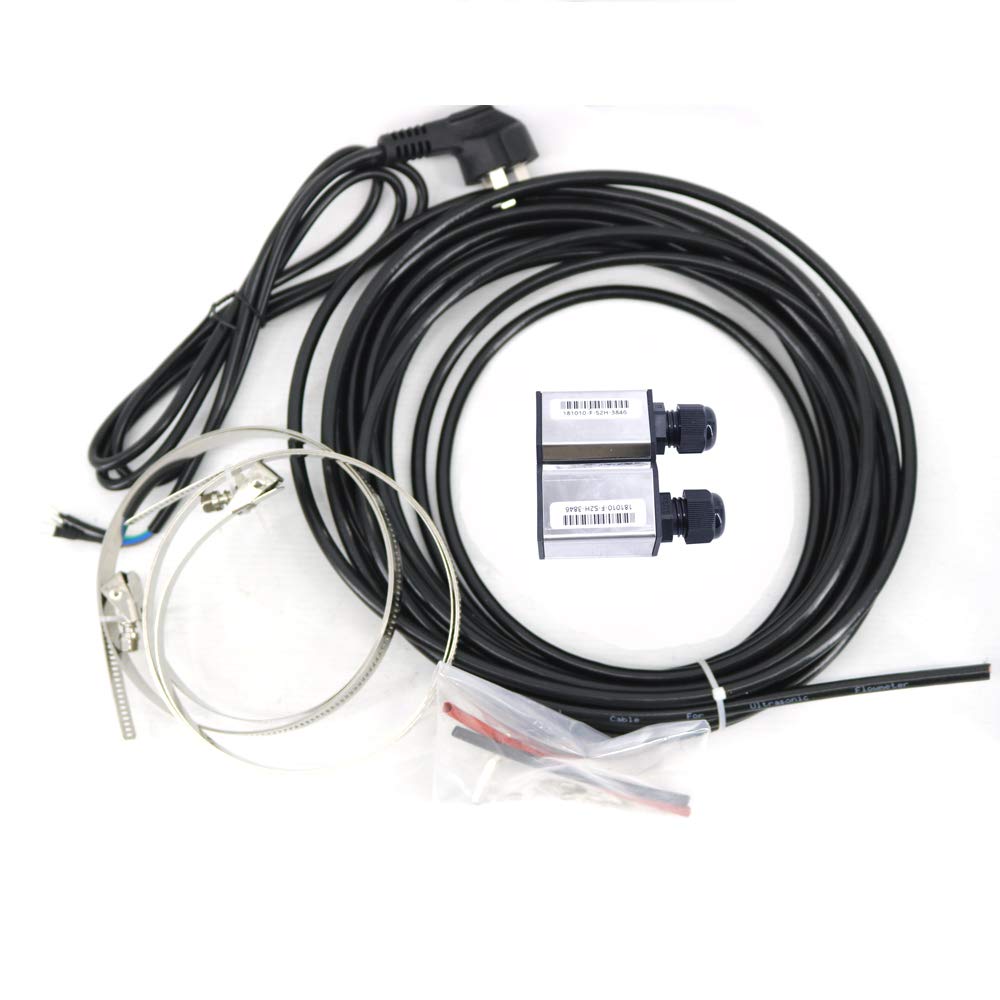

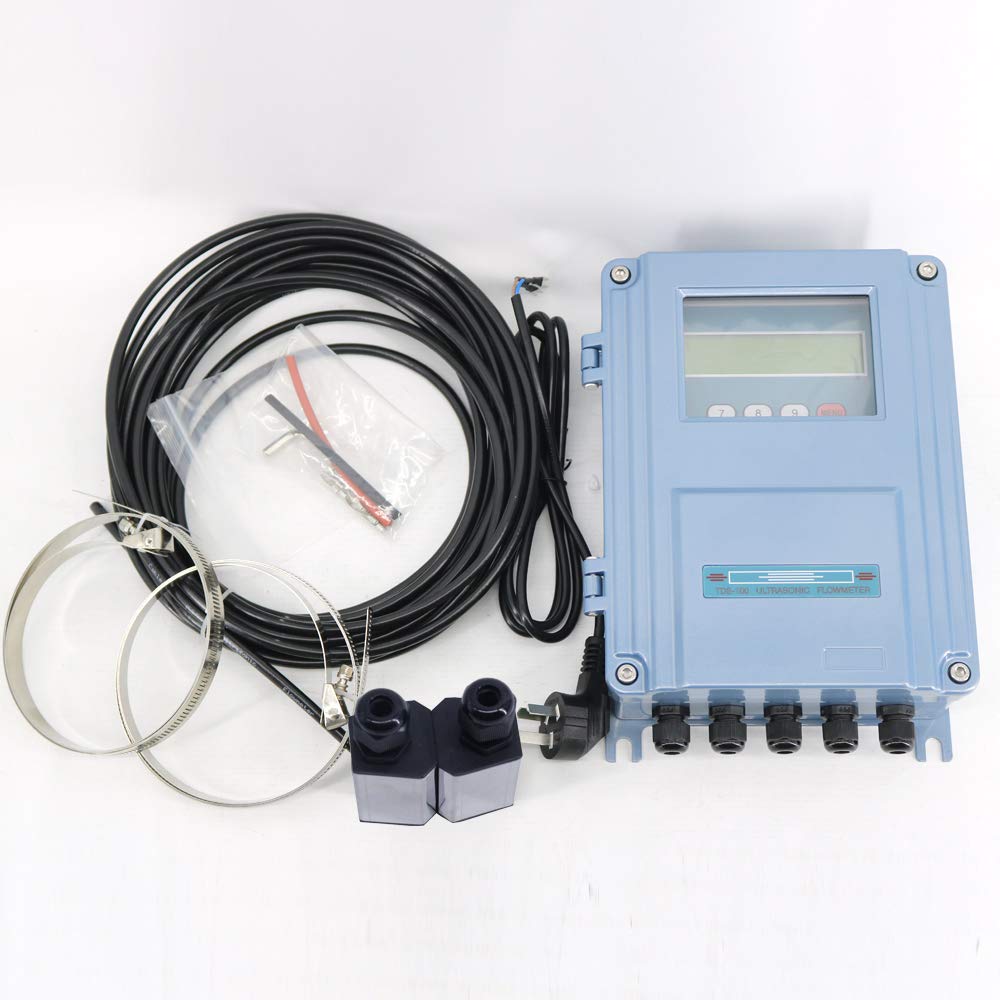

Standard configuration:

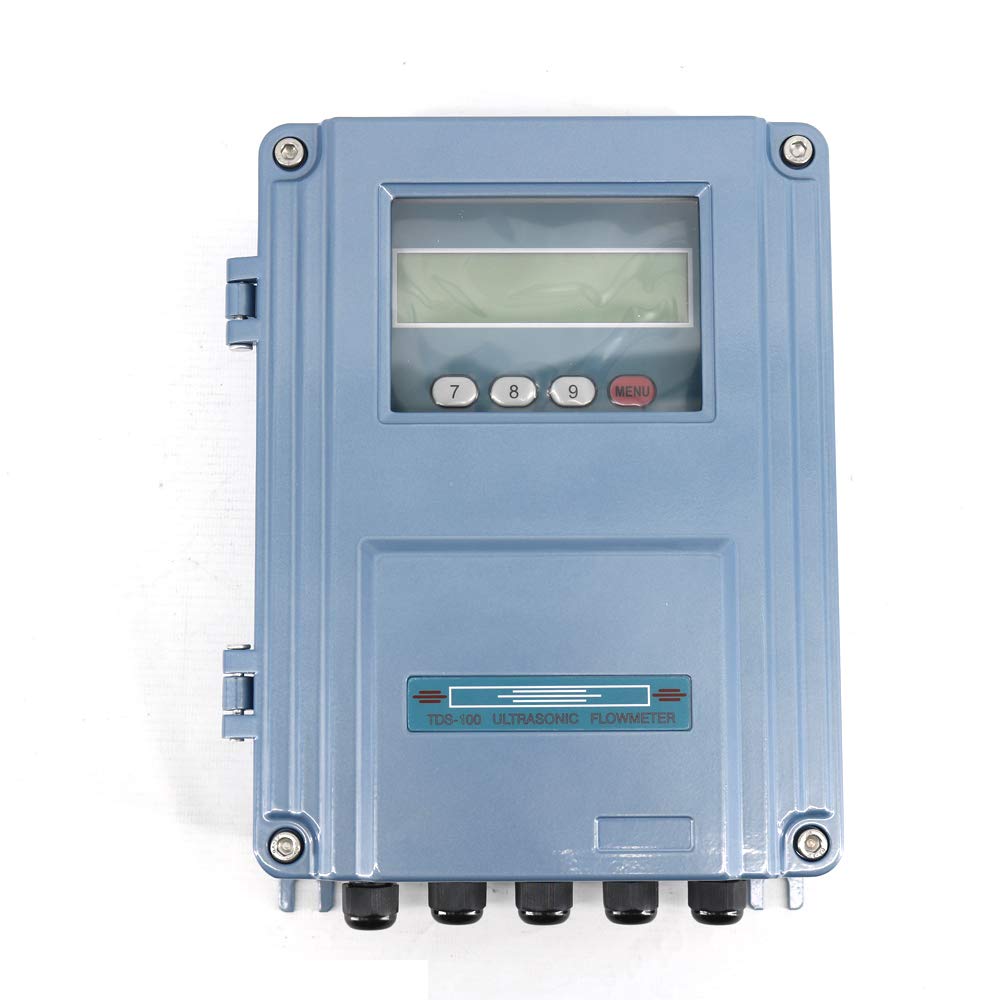

TDS-100F Ultrasonic Flowmeter
Clamp Fixture

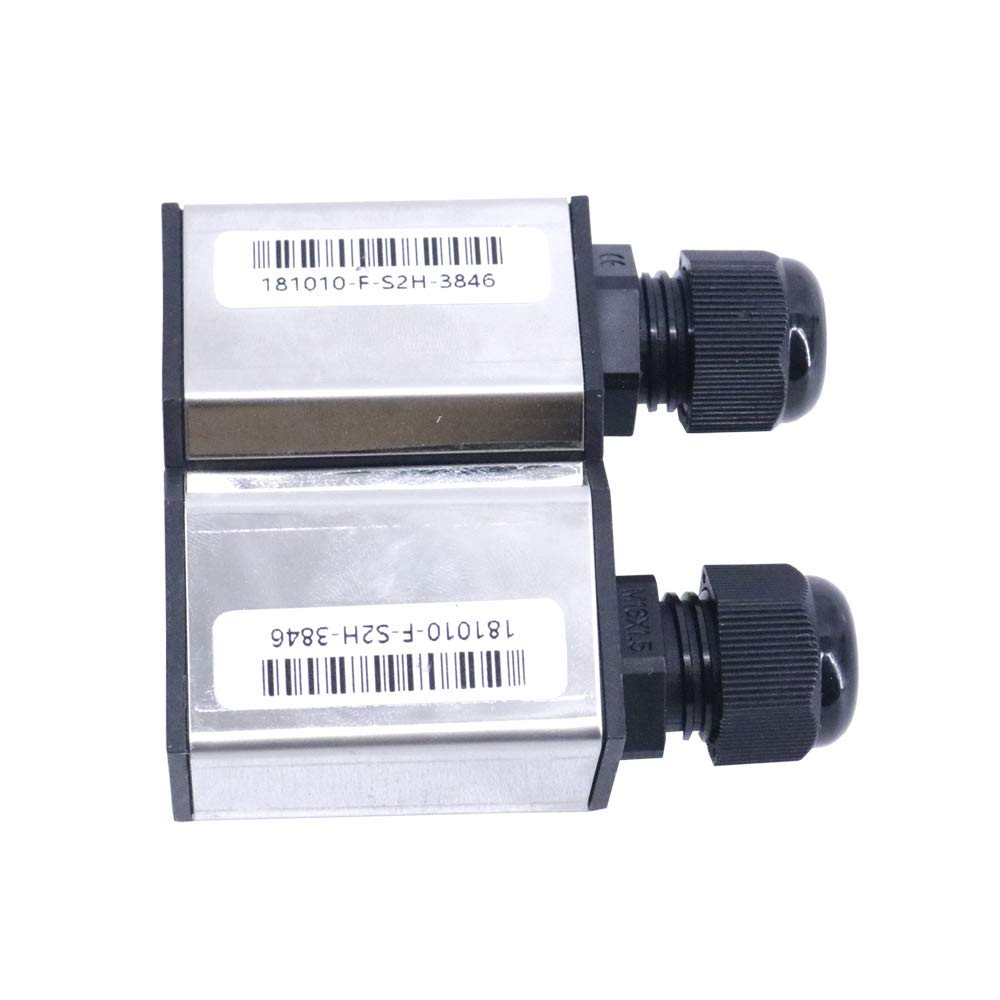

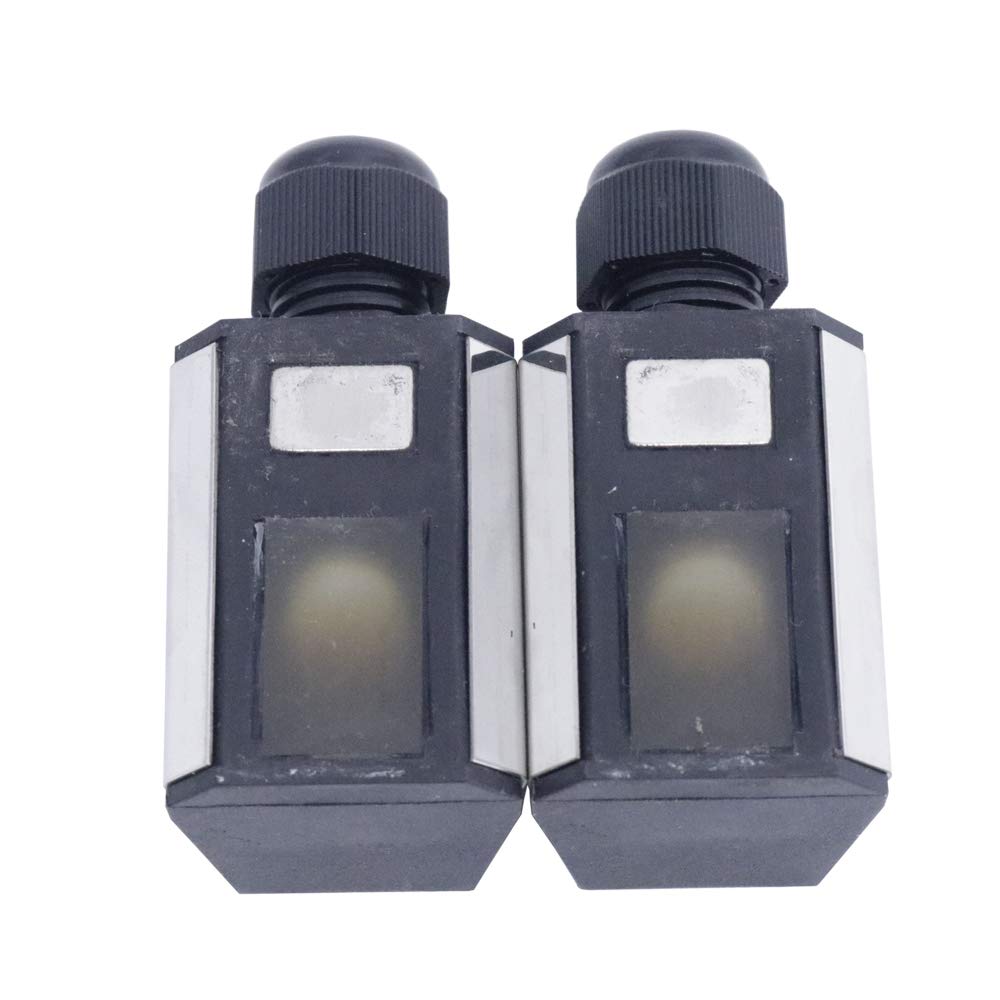

Standard S2 Transducer
2 x 5m Signal Cable

EAN: 0761272049752
