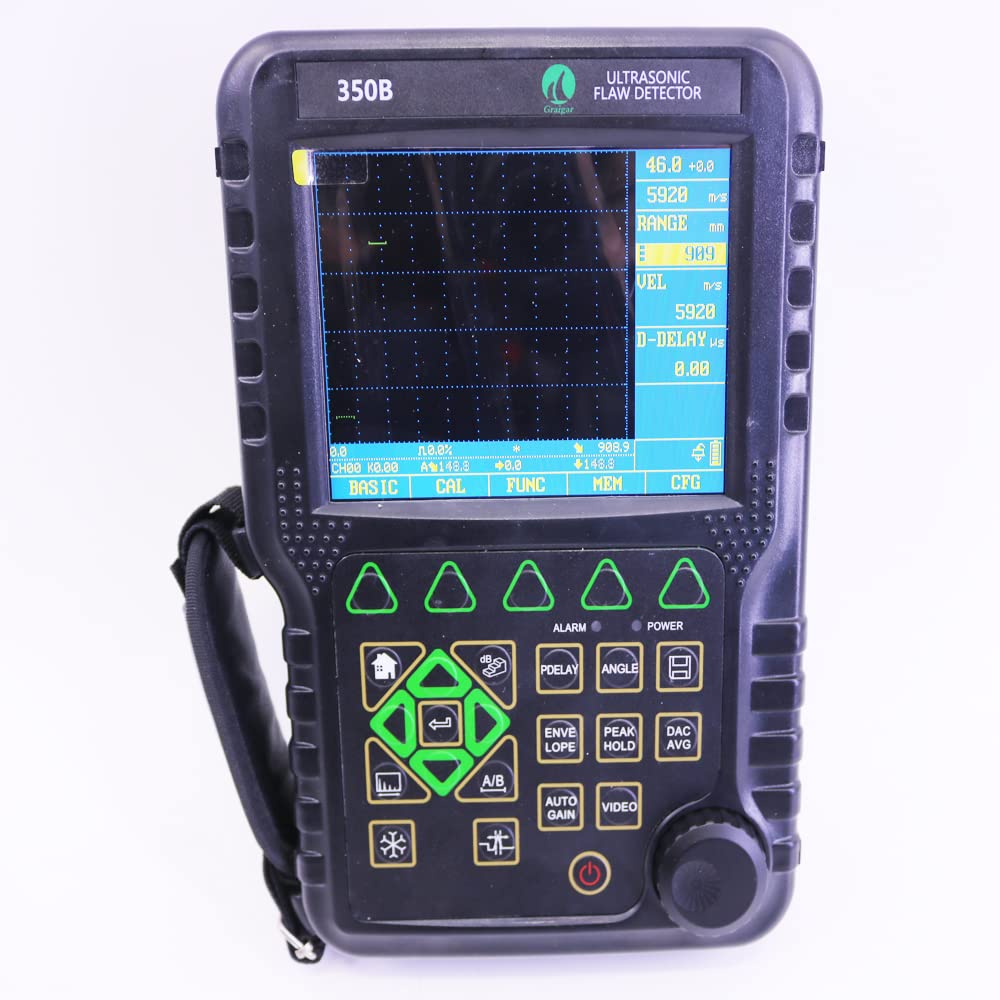

Graigar Handheld Ultrasonic Flaw Detector MFD350B NDT with Extra Probes and Cables

Brand: Graigar

Color: Black

Features:

• RANGE： 0~ 6000mm (at steel velocity); range selectable in fixed steps or continuously variable.
• Damping:100,200,400ohm selectable to meet different resolution and sensitivity need.
• DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode
• Power supply: DC 9V; lithium batteries work for 4 to 8 hours or more
• Overall dimensions: 263 × 170 × 61 (mm)

Details: Specification

Range: 0 to 6000 mm, at steel velocity
Material Velocity: 300 to 15000m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity Leavings: >60dB (flat-bottomed deep hole 200mm2)
Resolution : >40dB (5P14)
Noise Level: ≤ 8%
Test Modes: Pulse echo, dual element and thru-transmission
Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: Low, Medium and High spike pulse.
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.2 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF
System Linear Deviation:Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter

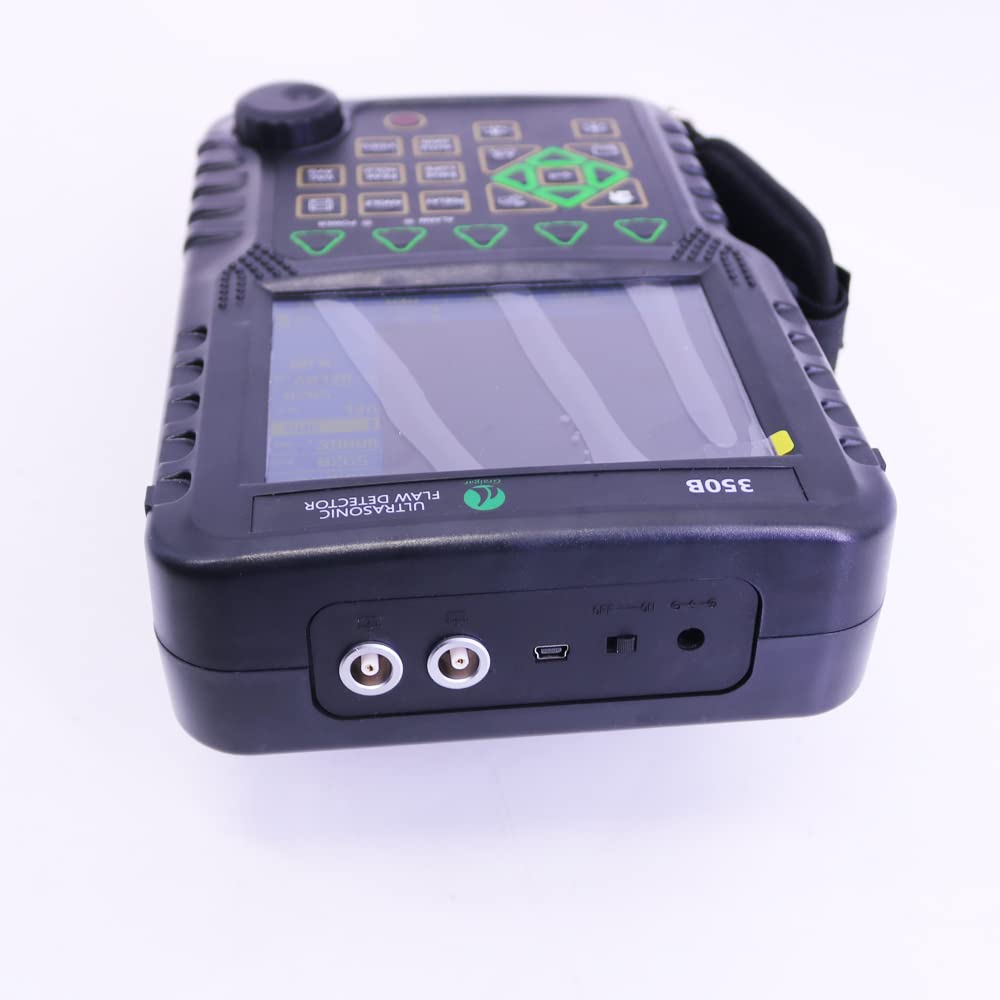

Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Overall Dimensions: 10.35×6.7×2.4 in
Relative Humidity: (20 ~ 95)% RH
Power Supply: DC 9V
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃

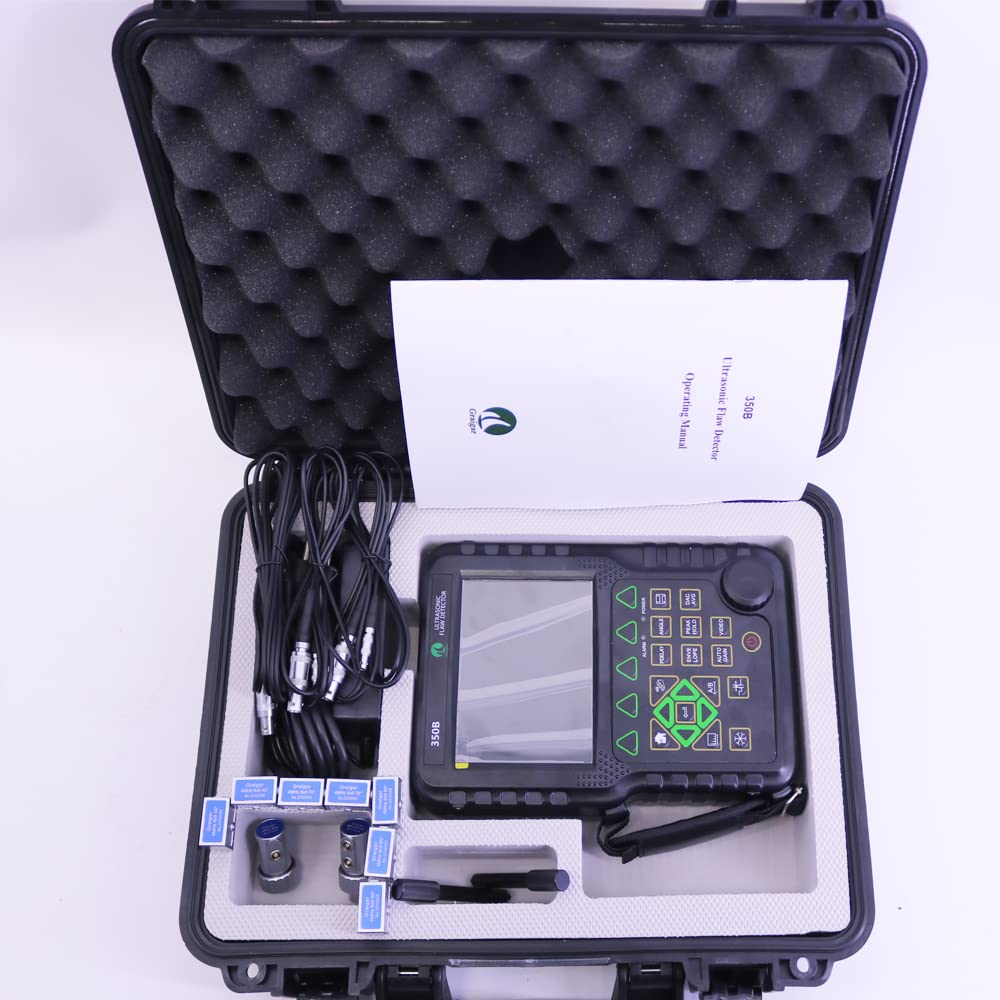

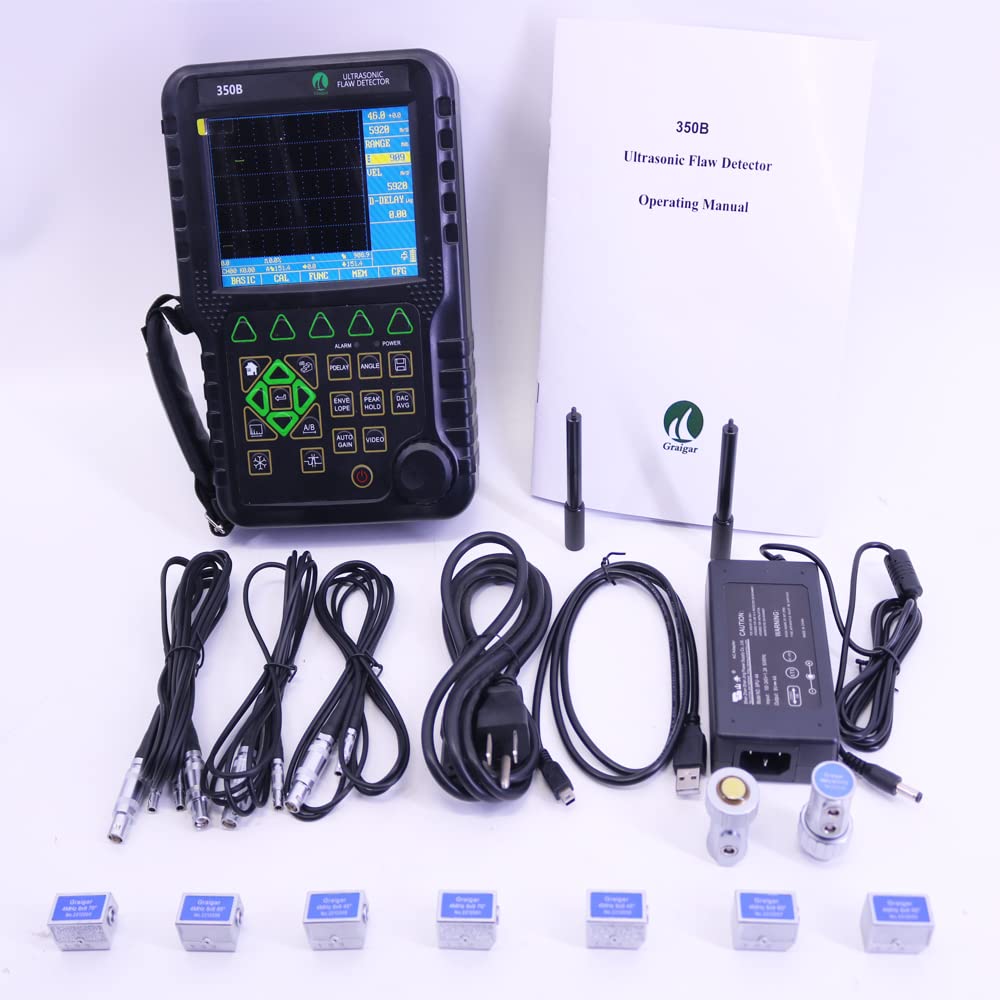

MFD350B Standard Configuration
Main Body x 1
Straight Beam Probe x 1
Angle Probe x 1
Machine-probe Cable (Q9-Q9) x 1
Battery Module x 1
Power Adapter (Charger) x 1
Support Pillar x 1
English Manual x 1

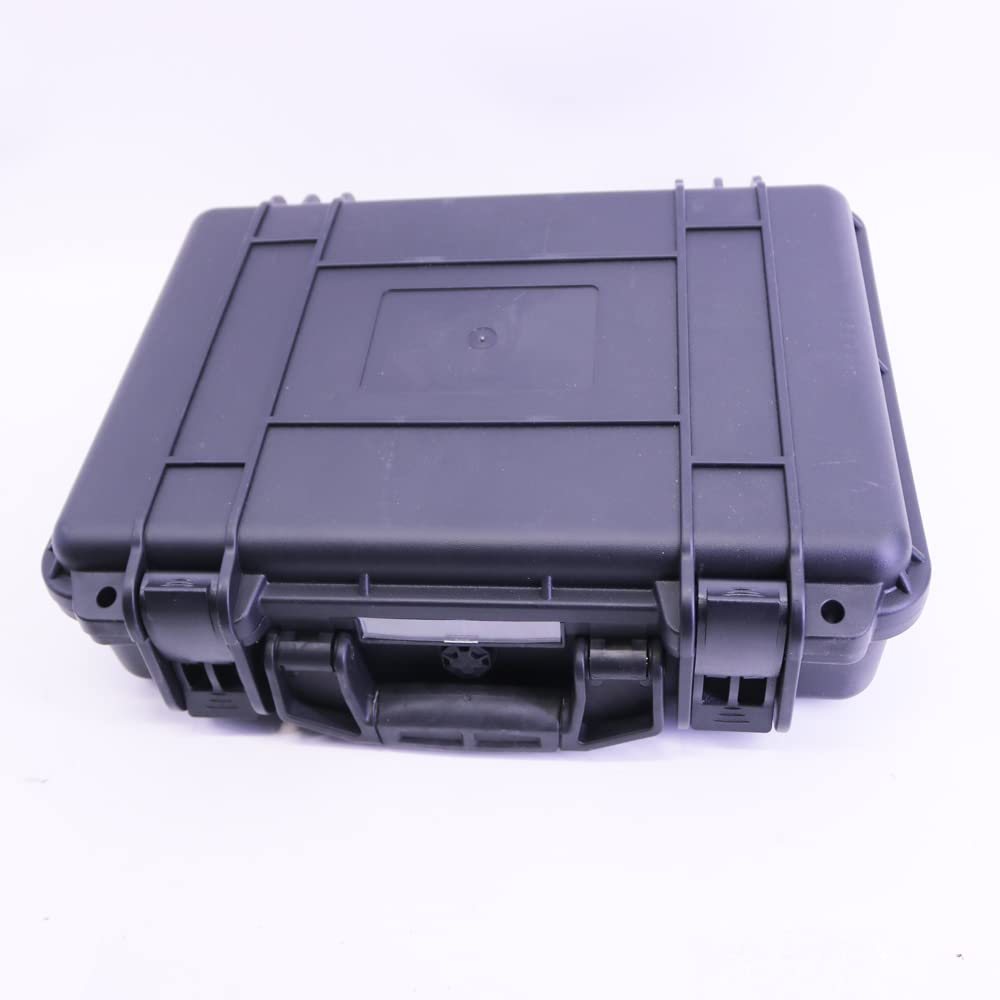

Instrument Case x 1
Data proceeding Software x 1
USB communication Cable x 1

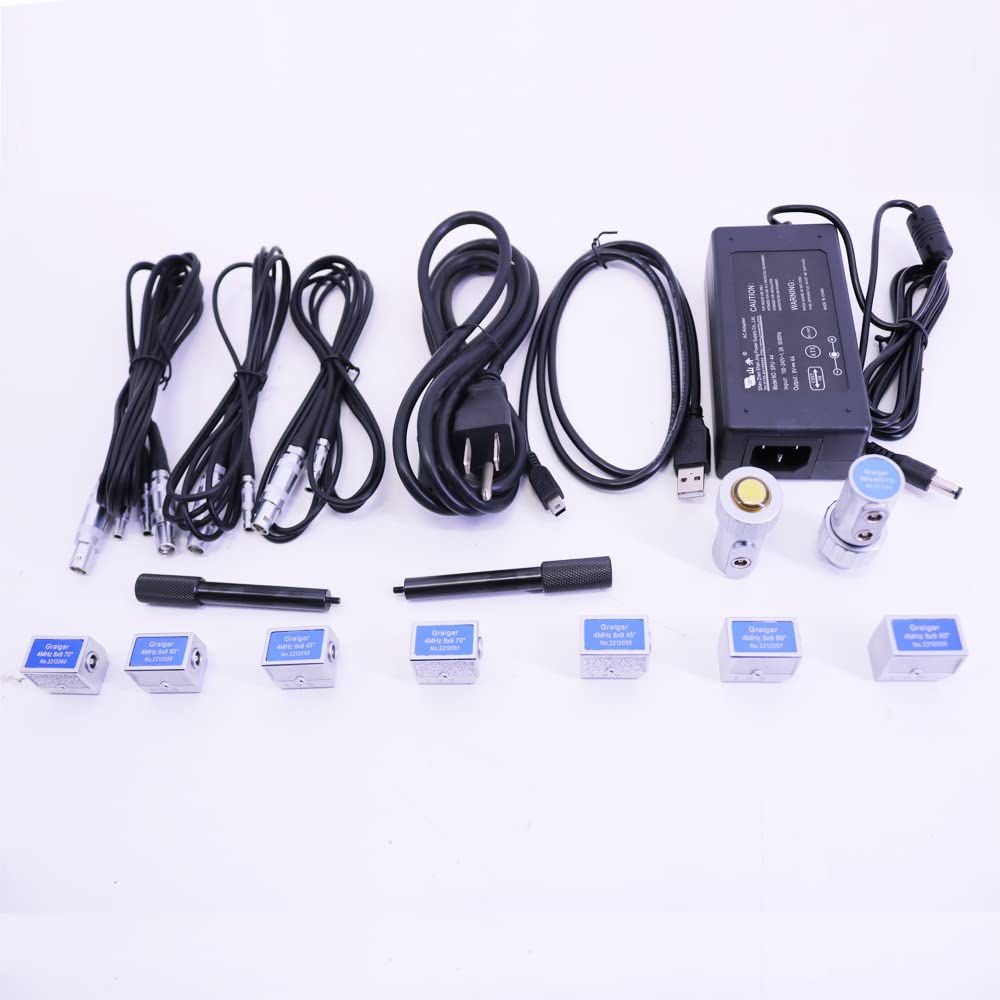

Extra Transducers and Connection Cables:
1 x 4MHz 10mm Dual Straight Beam Probe F10 Transducer
2 x 45 º Angle Beam Probe Transducer (4MHz 8x9)
2 x 60 º Angle Beam Probe Transducer (4MHz 8x9)
2 x 70 º Angle Beam Probe Transducer (4MHz 8x9)
1 x Connection Cable for angl

EAN: 0761272053971
