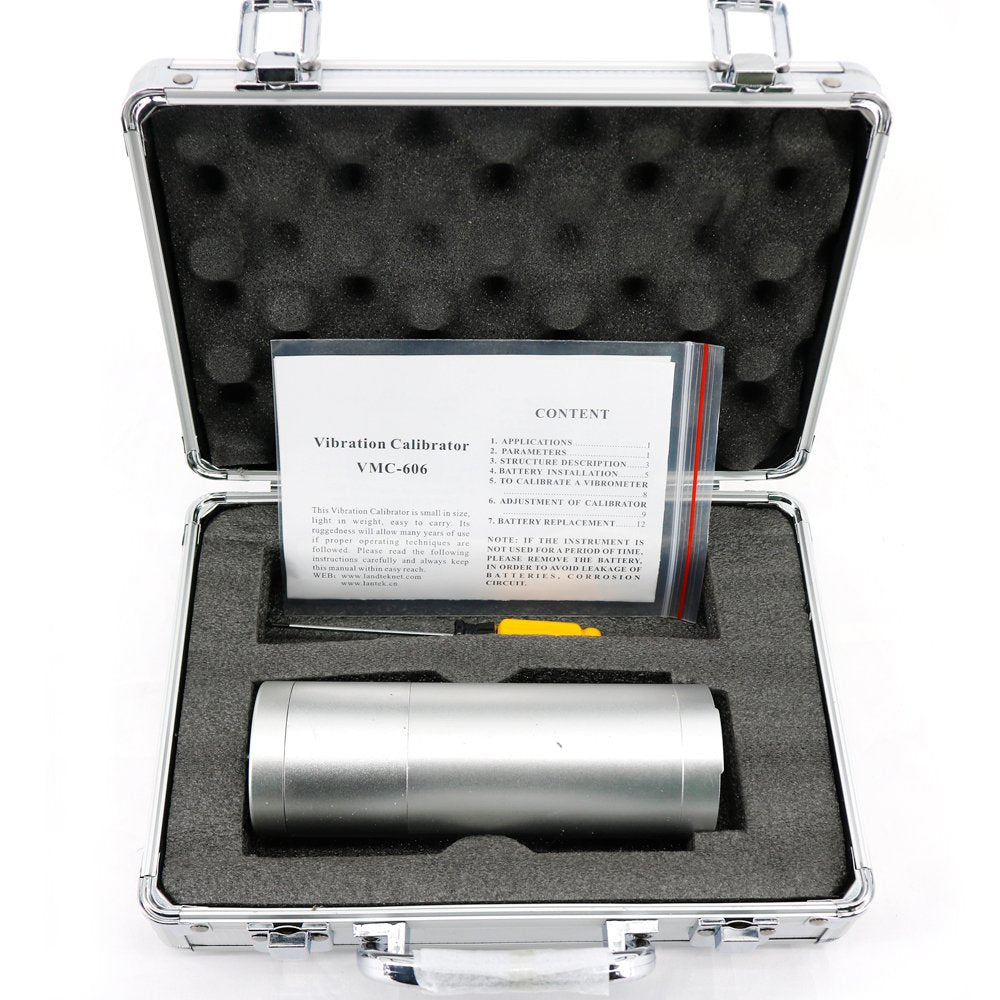

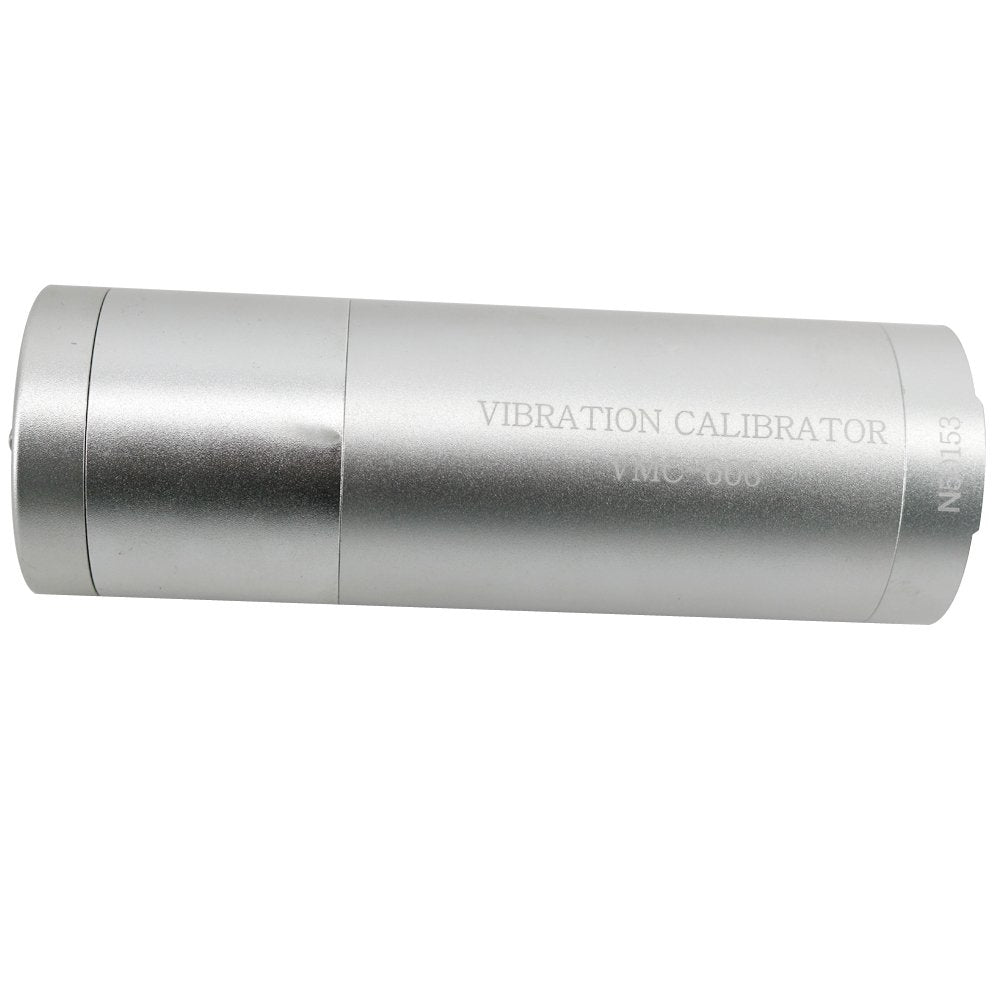

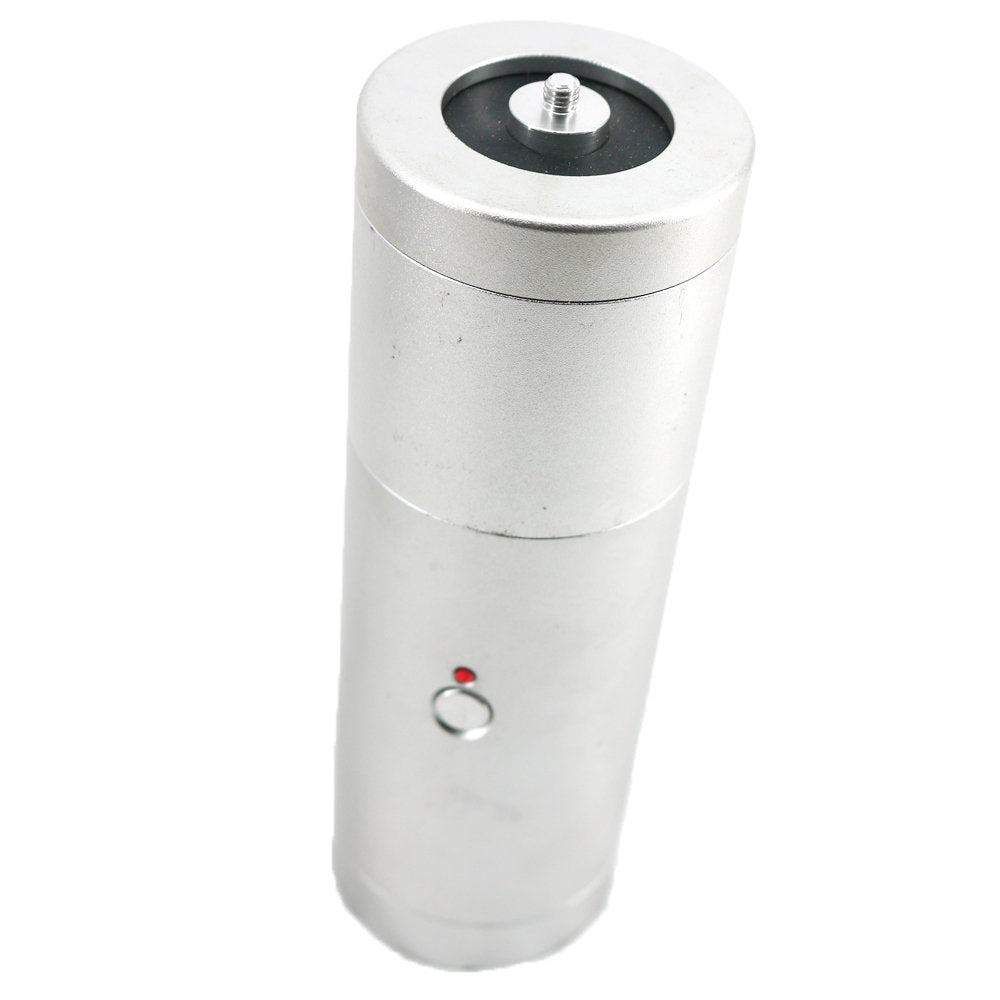

VMC-606 Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems.
10 mm/s RMS velocity output.
Drives vibration sensors up to 150g.
Operates at 159.2 Hz.
Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.
model number: VMC-606
Part Number: VMC-606

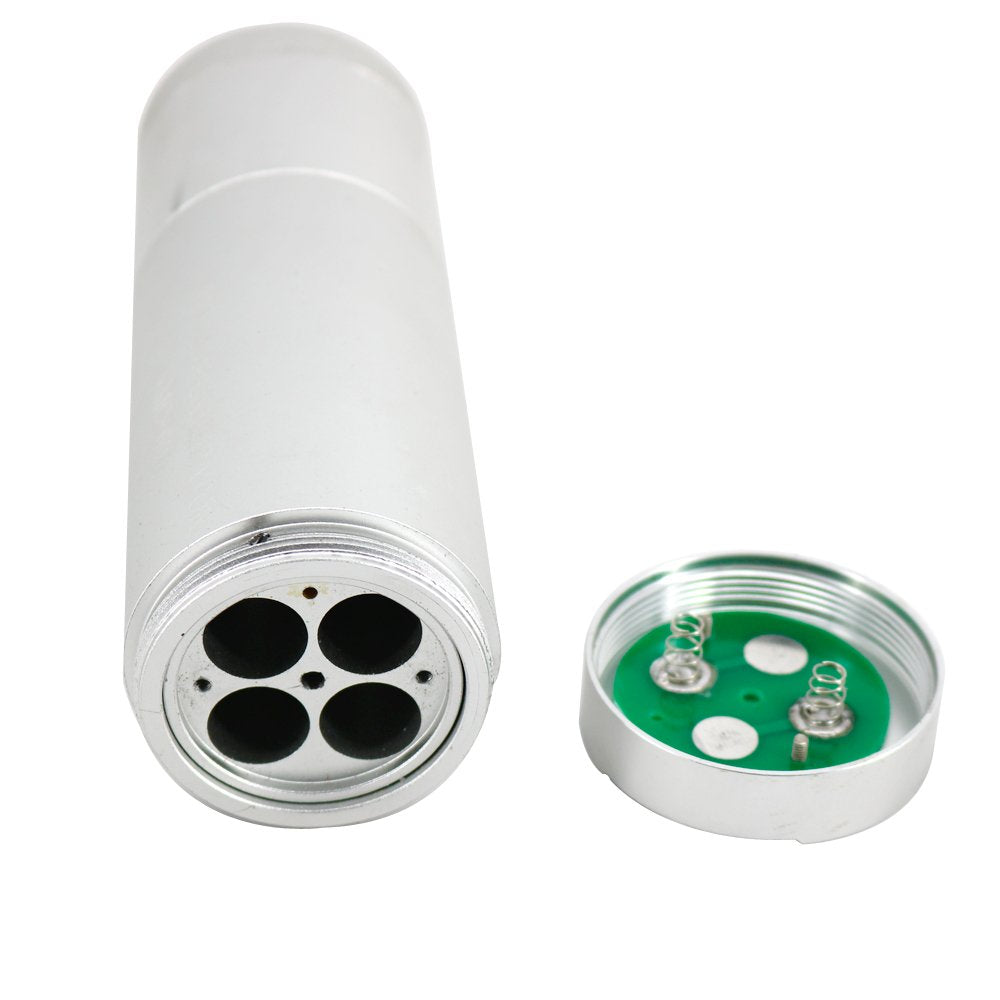

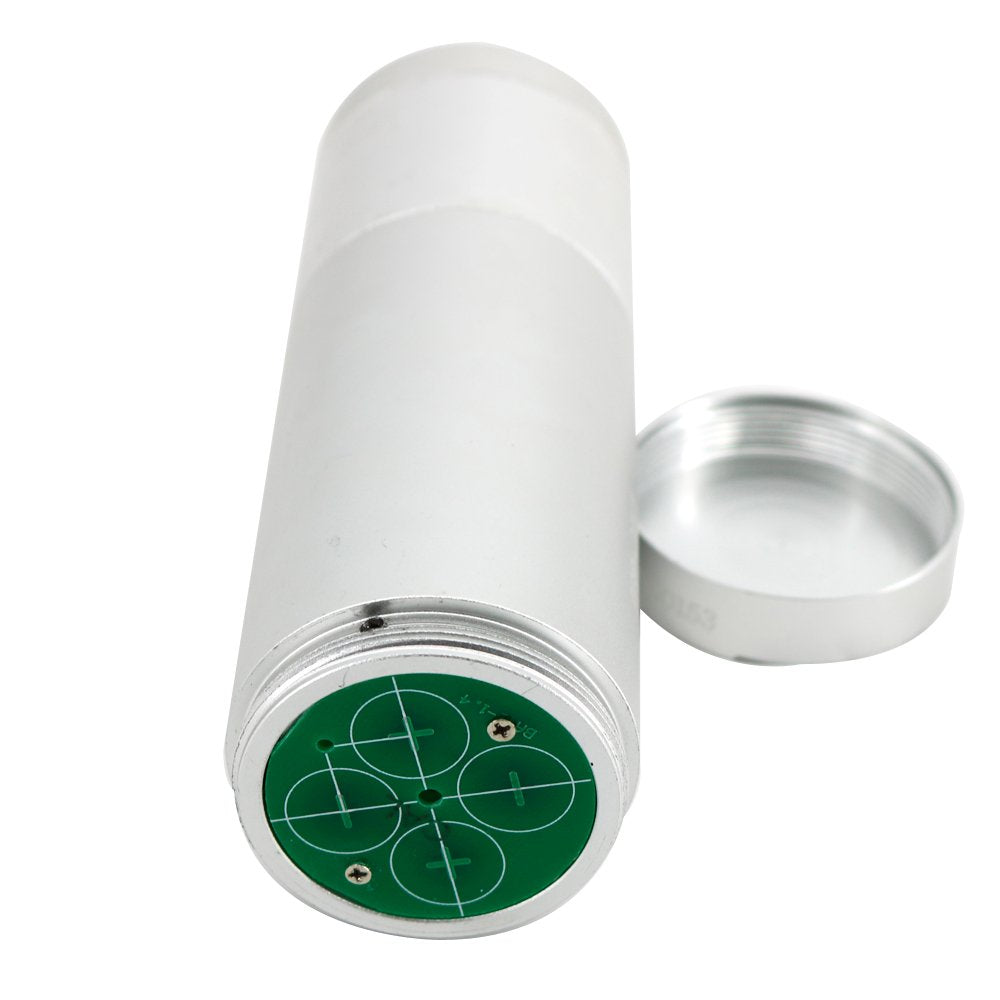

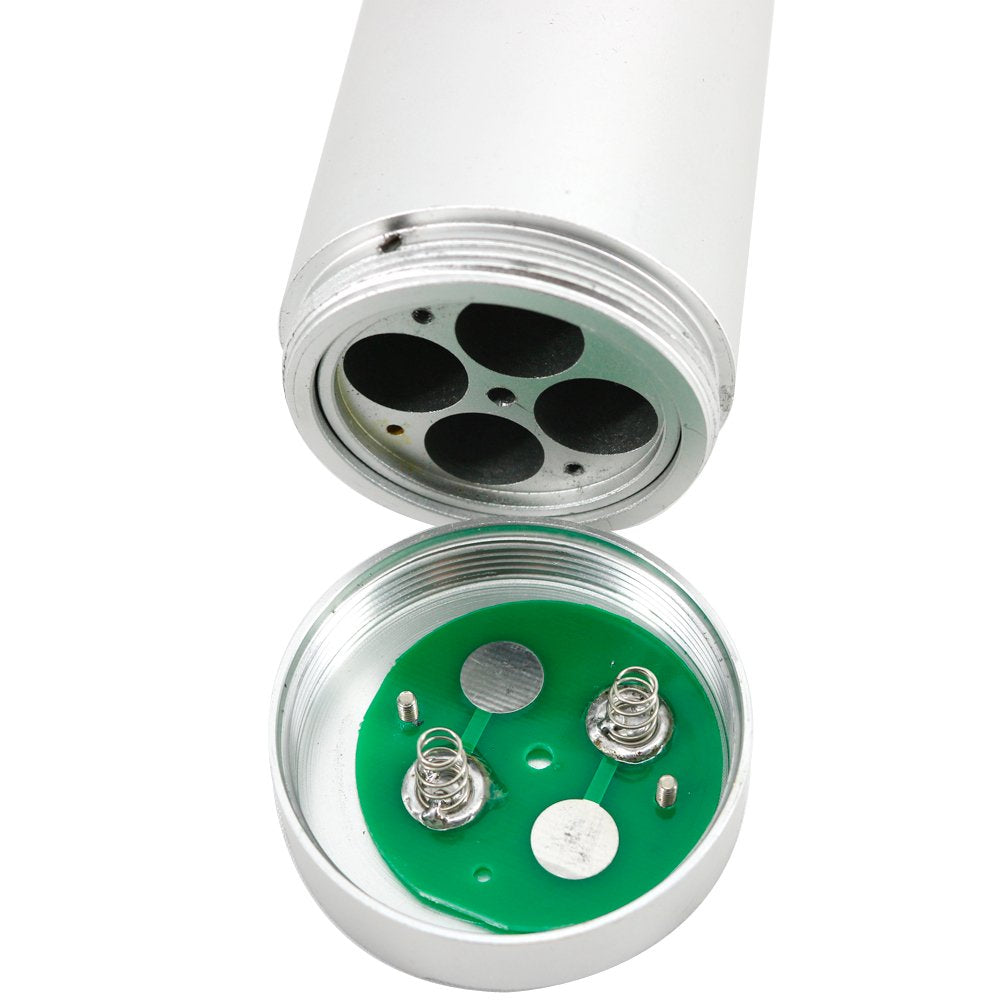

Details: Applications The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g. Specifications Operating Frequency: 159.2Hz±0.5% Acceleration Output: 10m/s²(RMS)±3% Velocity Output: 10mm/s(RMS)±3% Displacement Output: 10um(RMS)±3% Transverse Output: <5%Distortion<3% Maximum Losd: 150 g Ramp-Up Time< 3 Seconds Operating Conditions Temp: -10~40°C Humidity: <85%RH Internal Battery1 x 9V 6F22 Size (Diamter x Height): 56 mm x 200 mm/2.2x7.9 in Weight: 900 g/ 2 lb
