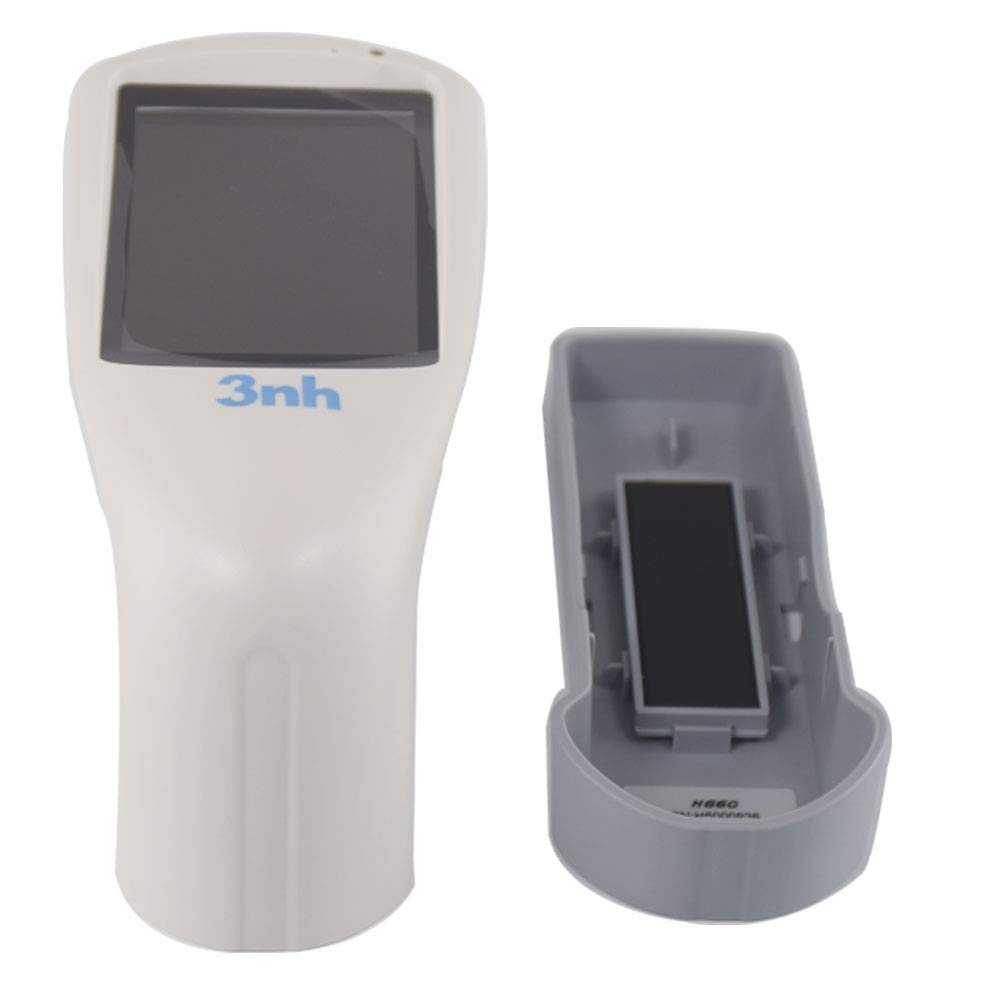

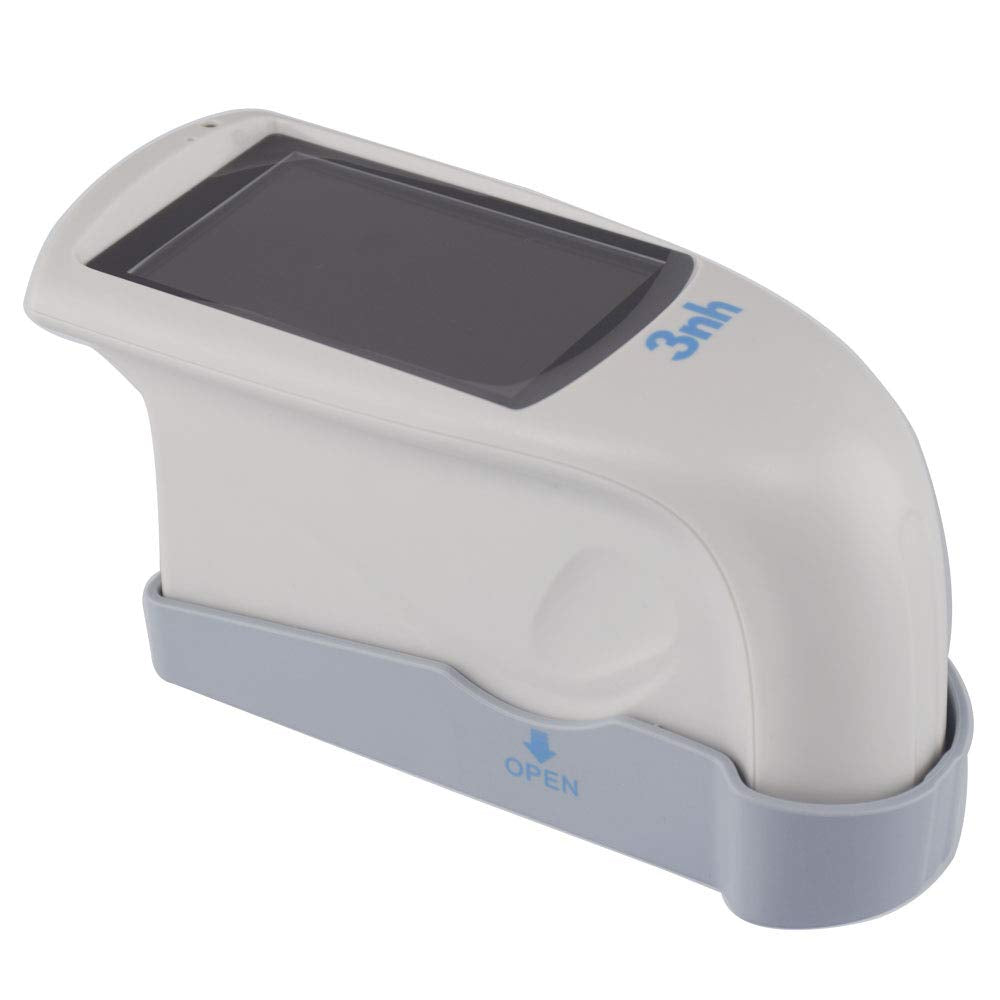

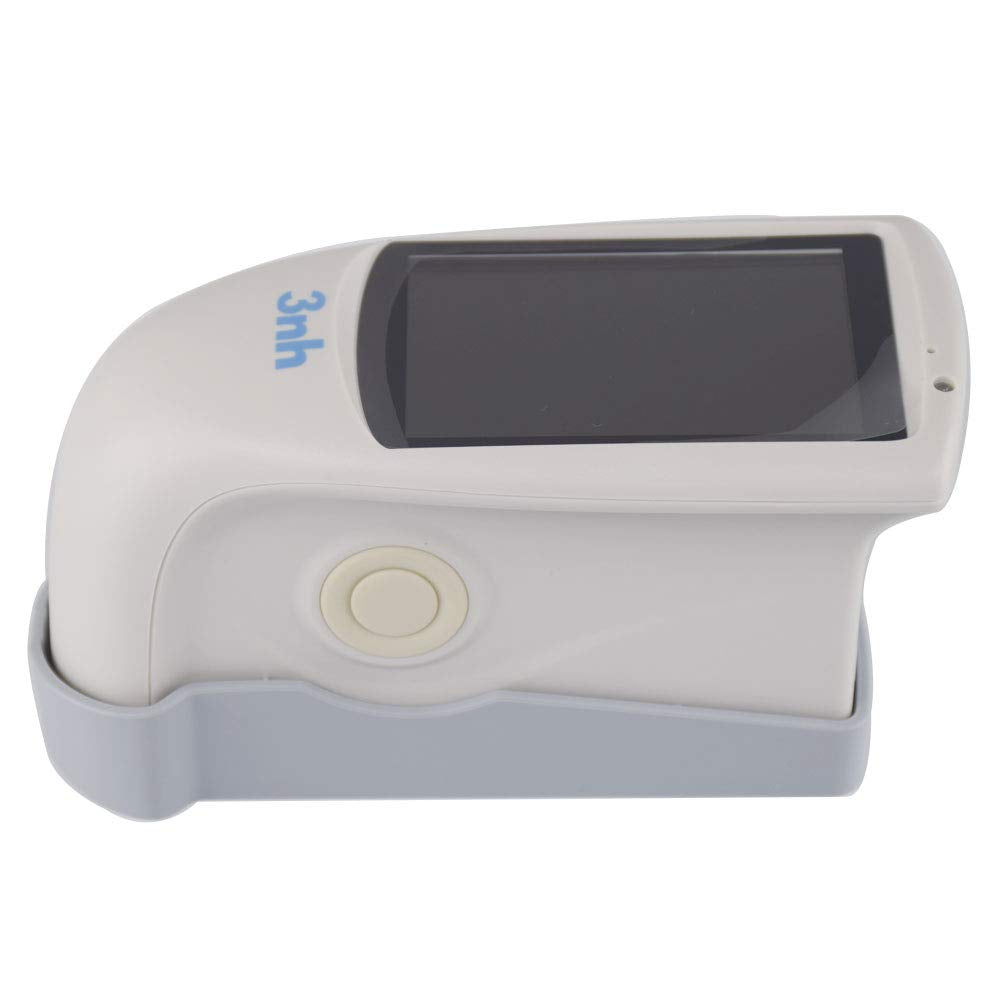

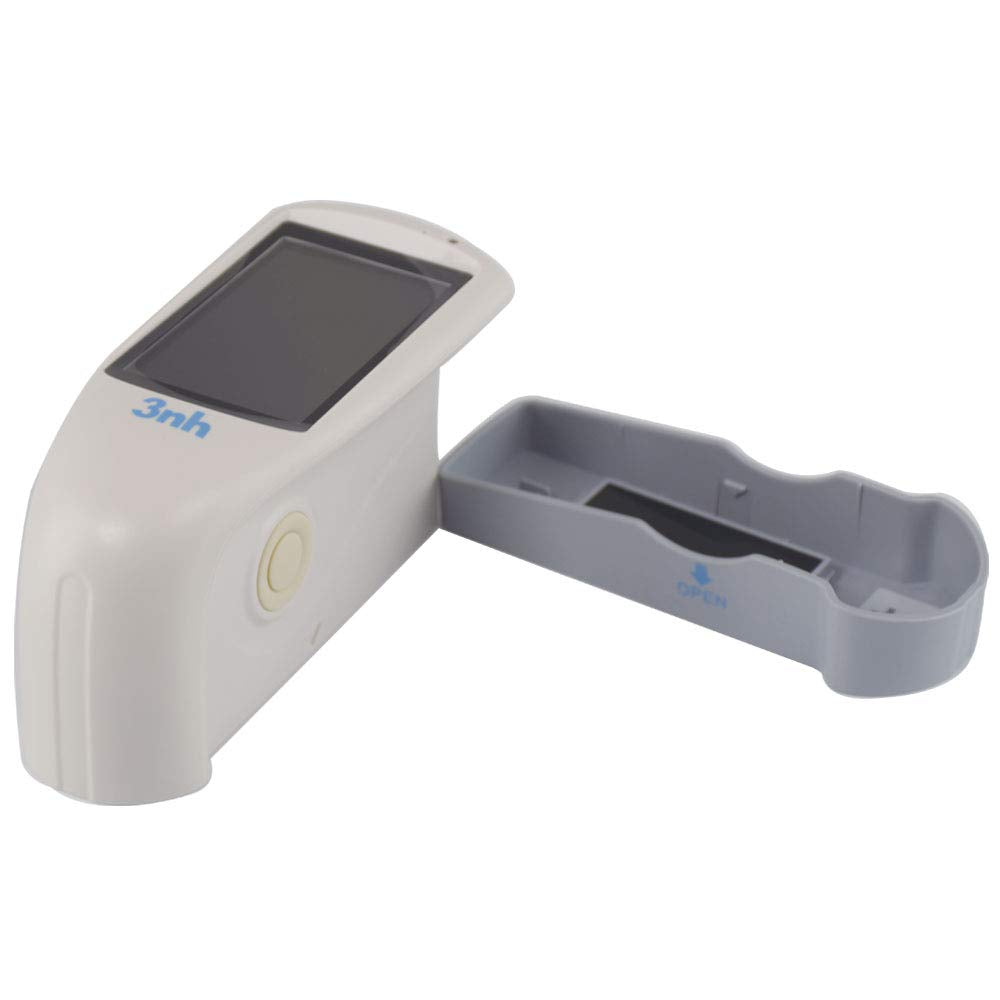

HG60 gloss meter with 3.5 inches ultra large color screen, high resolution (480*320), full view display
Flexible choice, automatic boot calibration, simple and convenient operation
Concise, atmospheric appearance design and ergonomic design of a perfect combination
Automatic shutdown function to save power consumption.
Multiple sets of measurement data are displayed simultaneously, which is convenient for comparison
Part Number: HG60

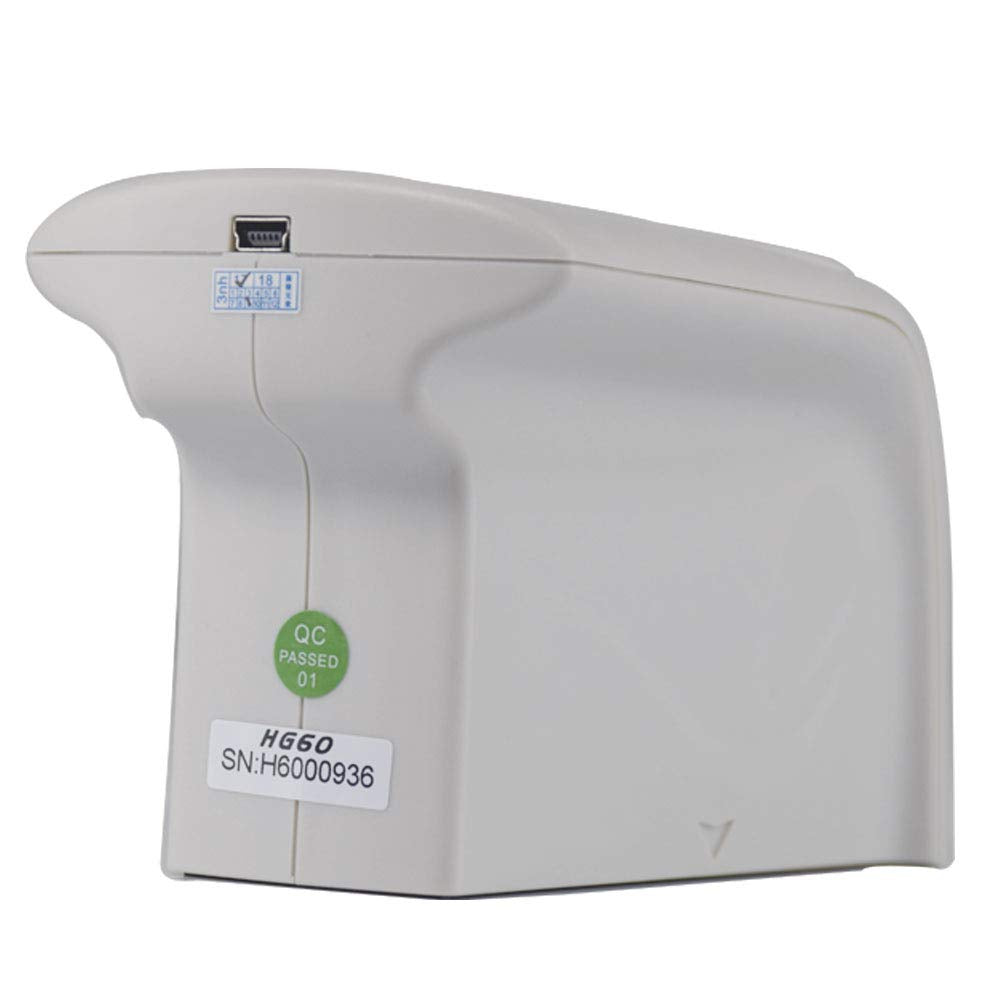

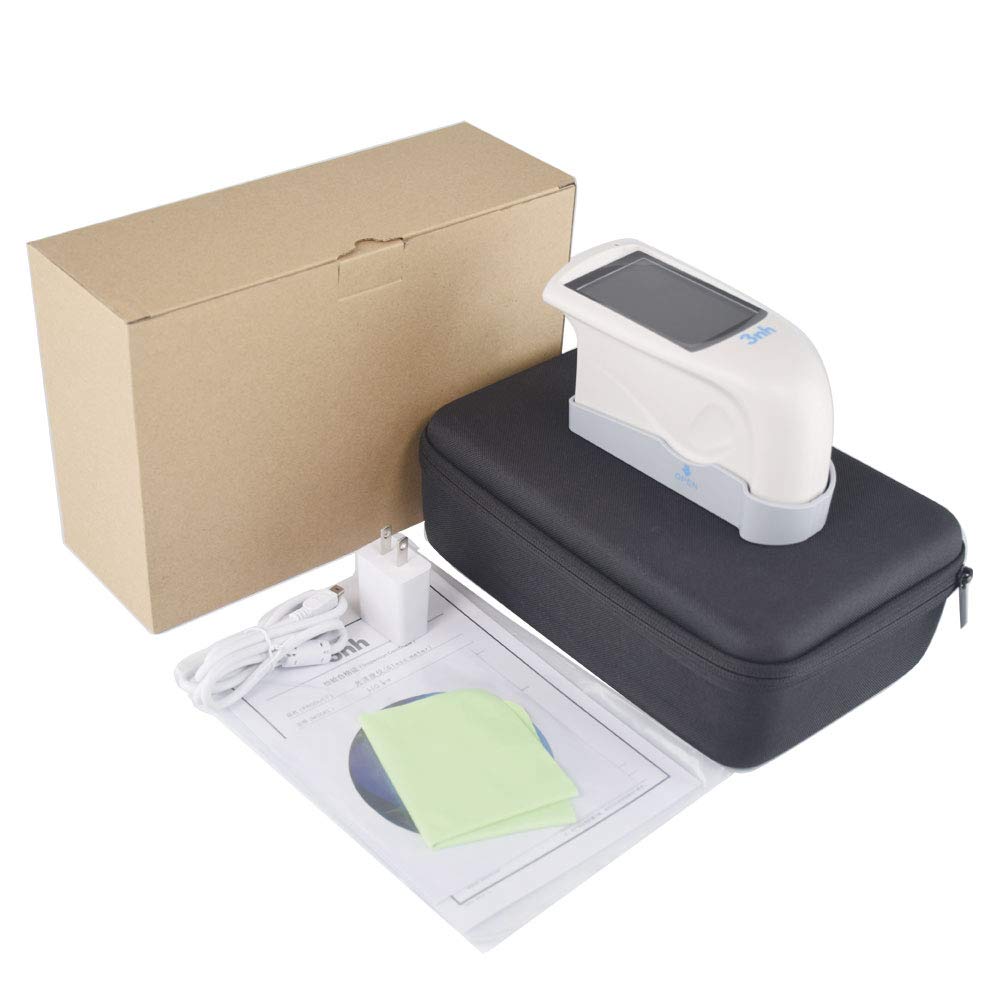

Details: HG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.Technical Specifications*Model: HG60*Measuring angle: 60°*Measuring spot (mm): 60°:9X15*Measuring range: 0~300GU*Graduation value:0.1GU*Errors: ±1.5 , ± 1.5%*Measurement time: 0.5s*Size: LXW XH : 160X75X90mm*Weight: approx. 350g*Language: Simplified Chinese, English*Battery capacity: 3200mAh Li-ion Battery, >10000 times(within 8 hours)*Display: TFT color 3.5inch display screen*Interface: USB/RS-232*Storage data: basic mode 1000*Operating temperature range: 0~40℃（32~104°F）*Storage temperature range: -20~50℃（-4~122°F）*Humidity: <85% relative humidity, no condensation*Standard accessories: Power Adapter, USB cable, User Manual, GQC6 software CD *Optional accessories: micro printer
