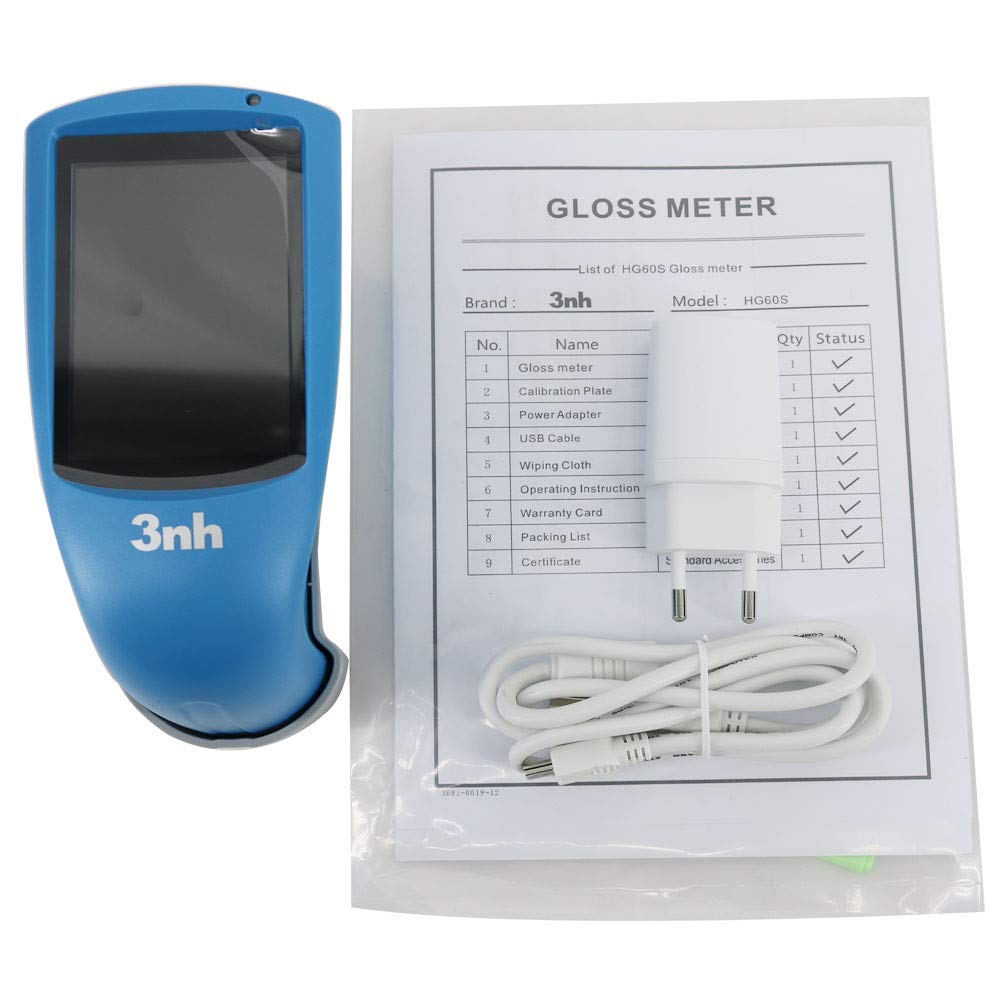

Graigar HG60S Digital Portable Glossmeter 60 Degree Economic Gloss Meter Tester Single Angle Handheld Glarimeter Measuring Range 0 to 200GU

Brand: Graigar

Color: Blue

Features:

• HG60S glossmeter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
• Concise appearance, feel good; 60°angle for semi gloss; Measuring angle: 60°Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D
• Basic model measurement can meet basic glossiness testing requirements;Measuring range: 0~200GU;Repeatability: ±1GU; Reproducibility: ±1GU
• Stable performance, Comply with international standards; Measuring spot (mm): 60°:9X15

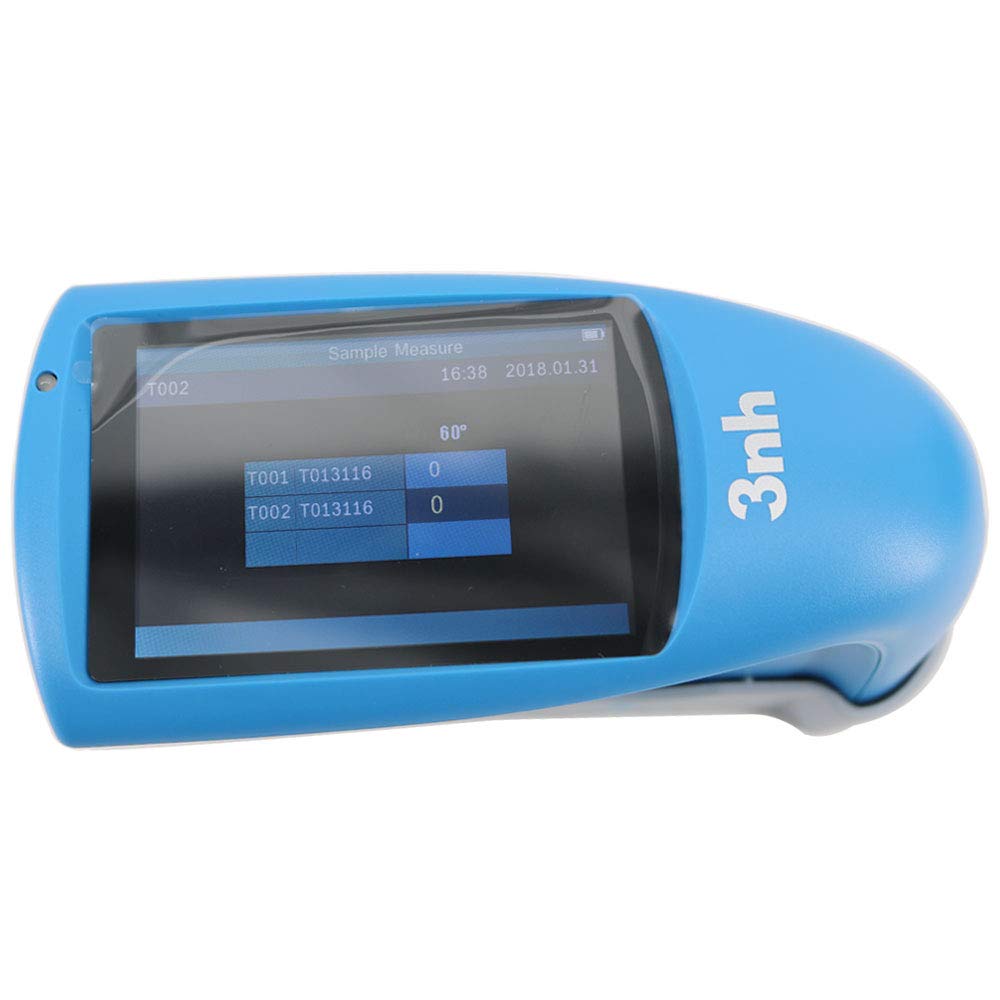

• Ultra large color screen, high resolution (480*320), full view display;

Part Number: HG60S

Details: Introductions:
HG60S gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Features:
1.Built-in lithium ion rechargeable battery
2.One button for all angles measurement at the same location
3.Stable performance, easy to read data.

Specifications:
Model: HG60S
Measuring Angle: 60°
Comply with standard: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm): 9x15
Measuring Range: 0~200GU
Division Value: 1GU
Repeatability: ± 1GU
Reproducibility: ±1GU
Measurement Standard: Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source
Errors: ±1.5 , ± 1.5%
Measuring Time: 0.5s
Dimension: L*W*H : 160mm*75mm*90mm
Weight: 350g
Language: Chinese/English
Battery: 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Display: TFT 3.5 inch
Interface: USB/RS-232
Storage: Basic mode: 1000
Operation Temperature: 0~40℃（32~104°F）
Storage Temperature: -20~50℃（-4~122°F）
Humidity: <85% relative humidity, no condensation

EAN: 0705419446721
