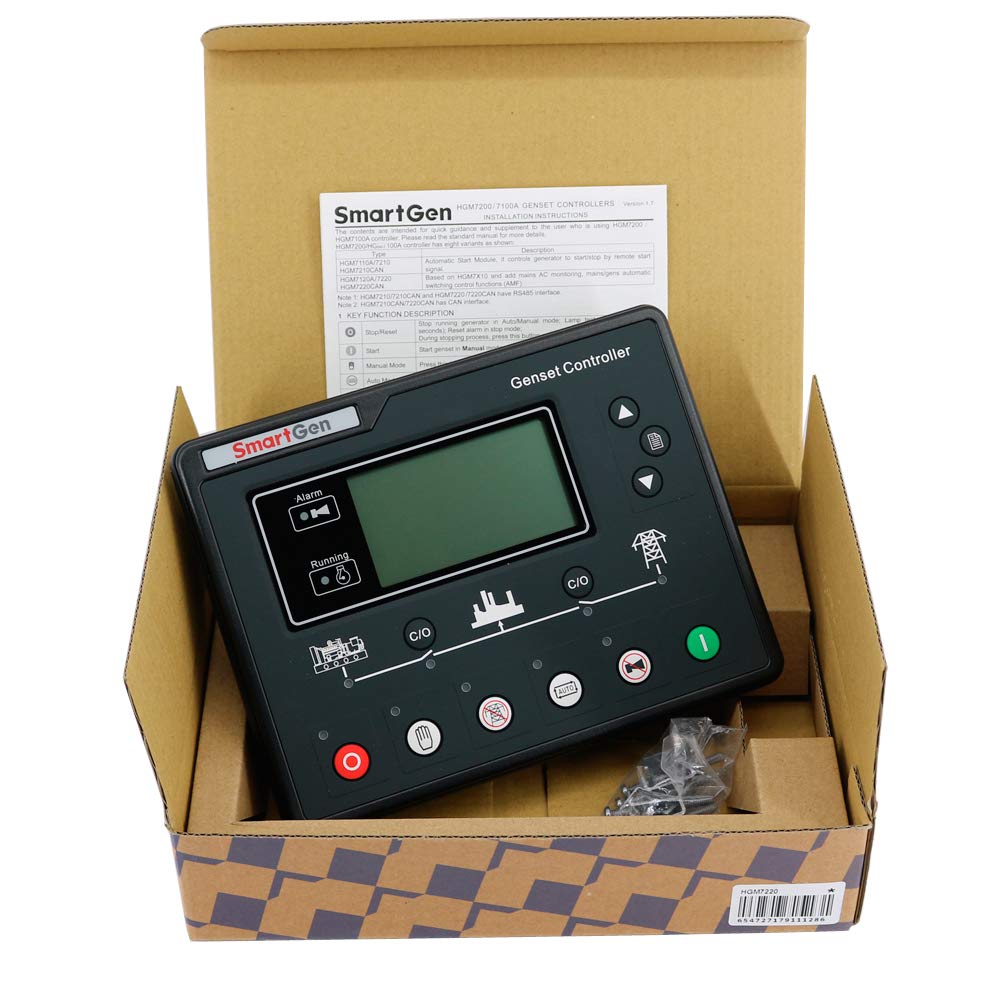

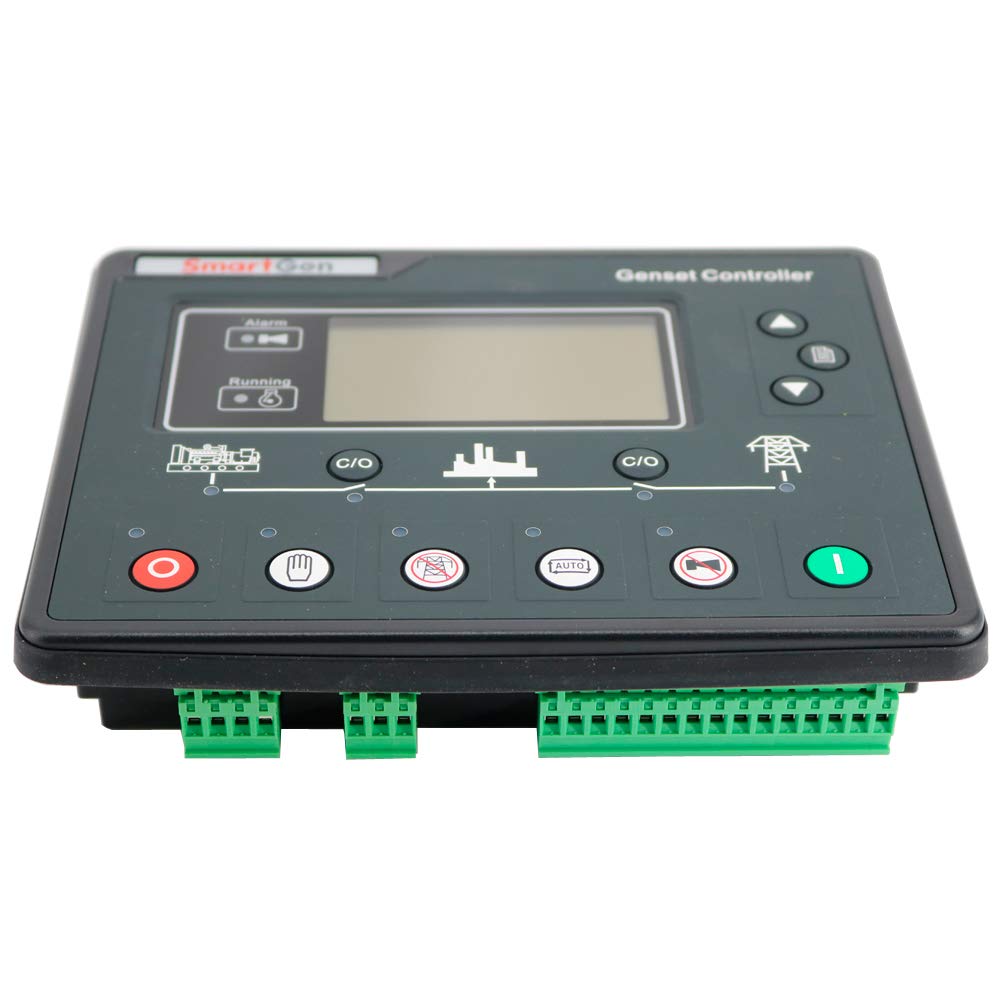

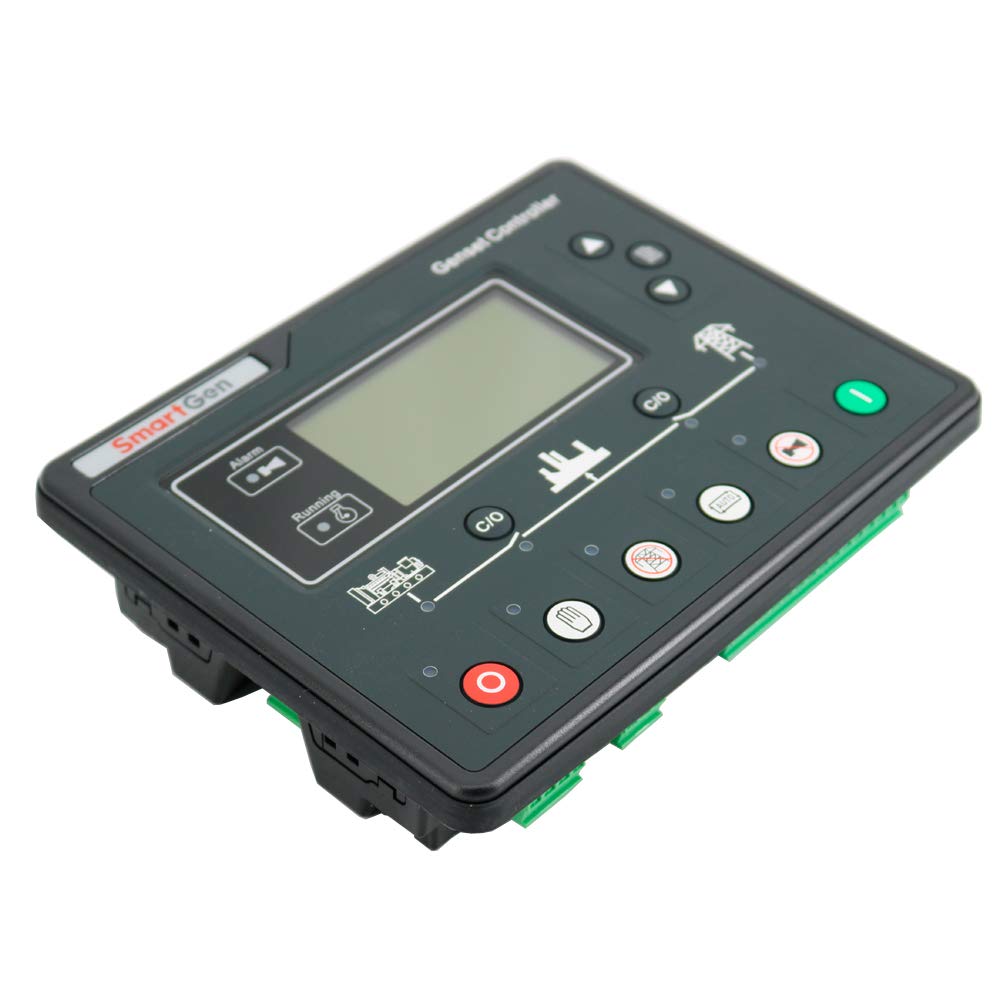

Graigar HGM7220 Genset Controller Generator Controller Diesel Generator Panel

Brand: Graigar

Color: Black&Green

Features:

• HGM7220 genset controller generator controller is integrating digital, intelligent and network techniques, used for automatic control system and monitor of diesel generator
• HGM7220 genset controller generator controller has functions of controlling genset start/stop automatic, data measuring, “remote controlling, remote measuring, remote communication” and protection alarm.

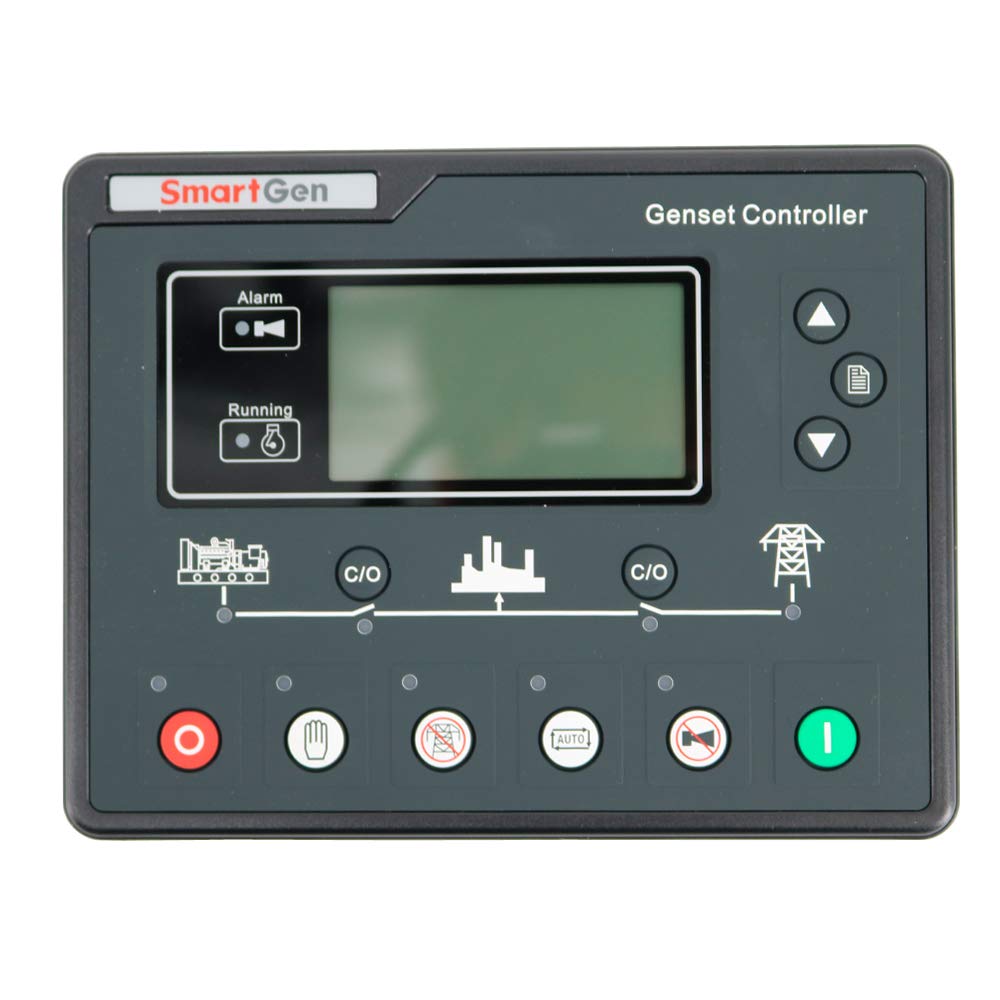

• HGM7220 equips with bigger LCD display, Chinese and English option display. It is easy operation and reliable running.
• HGM7220 applies for microprocessor technique which can carry out precision measure, constant value adjustment, timing and threshold setting and etc.
• 132x64 LCD with backlight, multilingual interface which can be chosen at the site, making commissioning convenient for factory personnel.

model number: HGM7220

Part Number: HGM7220

Details: HGM7200/7100A series genset controllers are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.
HGM7200/7100A controller adopts 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The majority of parameters can be set using front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 ports. It can be widely used in a number of automatic genset control system with compact structure, simple connections and high reliability.
HGM7X10, Auto Start Module, controls genset to start or stop automatically by remote start signal.
HGM7X20, Auto Main Failure, updates based on HGM7X10, especially for automatic system composed by generator and mains.
- With ARM-based 32-bit CPU, highly integrated hardware, new reliability level;
- 132x64 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
- Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;

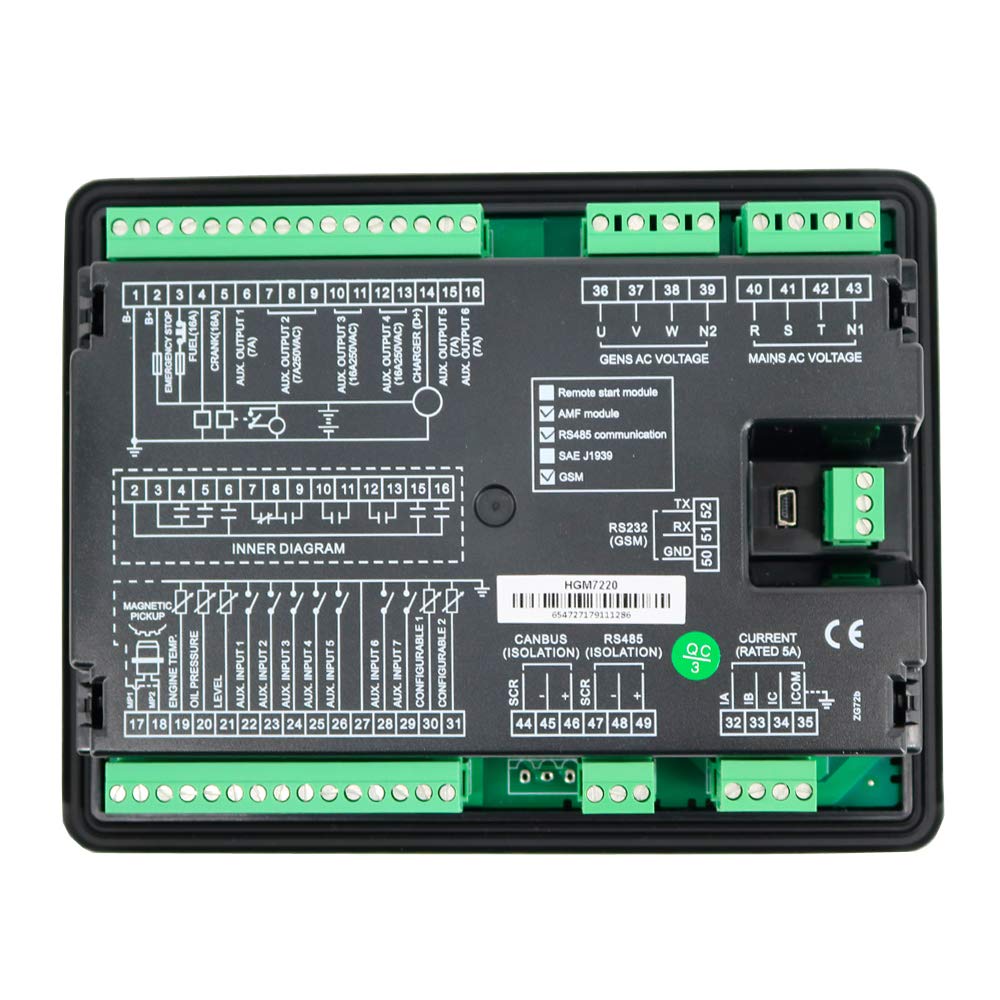

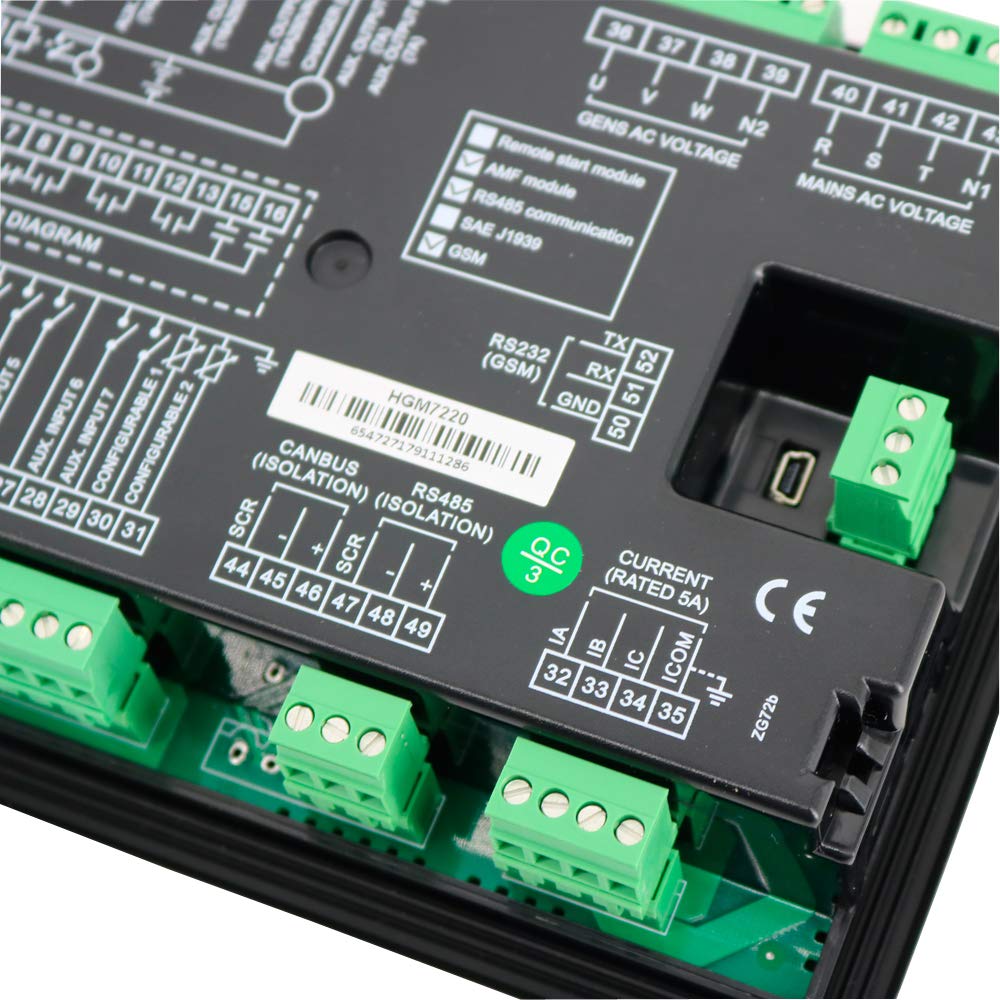

- RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (controller with RS485 port only);
- Equipped with SMS (Short Message Service) function. When genset is alarming, controller can send short messages via SMS automatically to max. 5 telephone numbers. besides, generator status can be controlled and checked using SMS (controller with GSM port only);

EAN: 0799649266693
