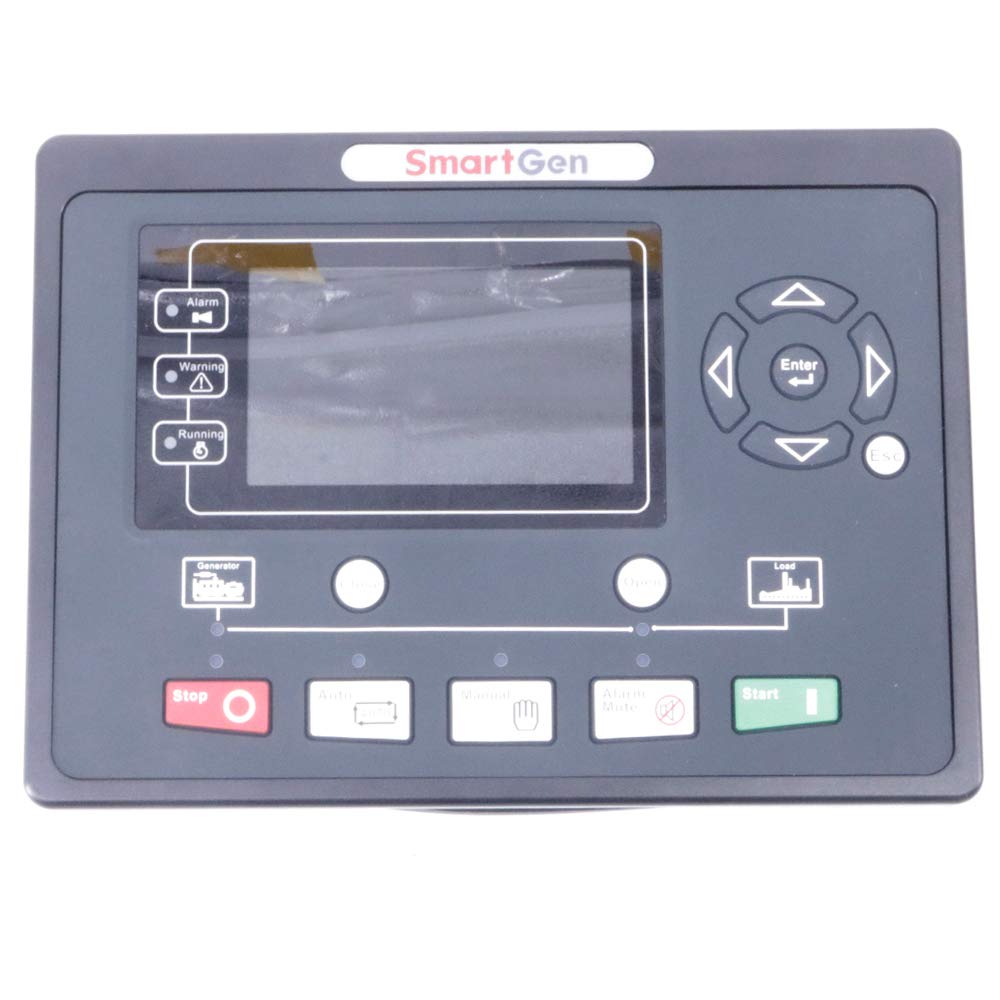

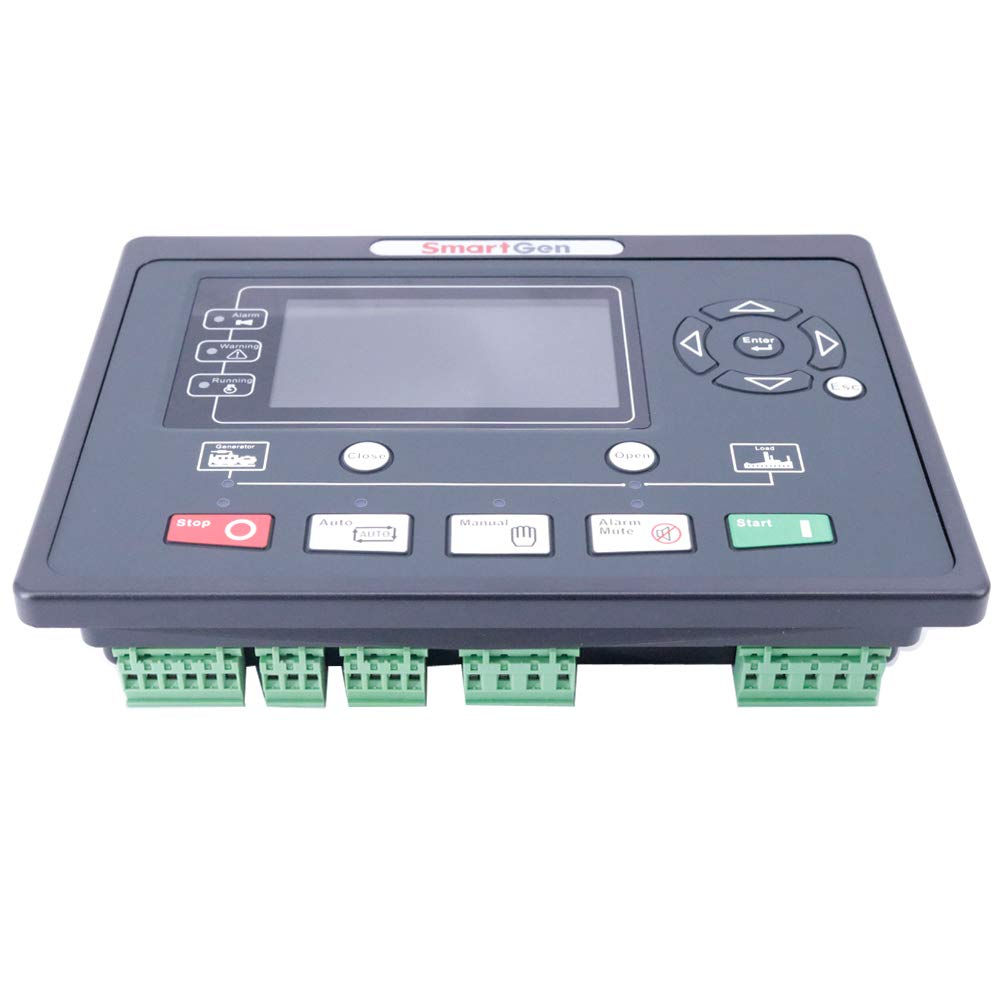

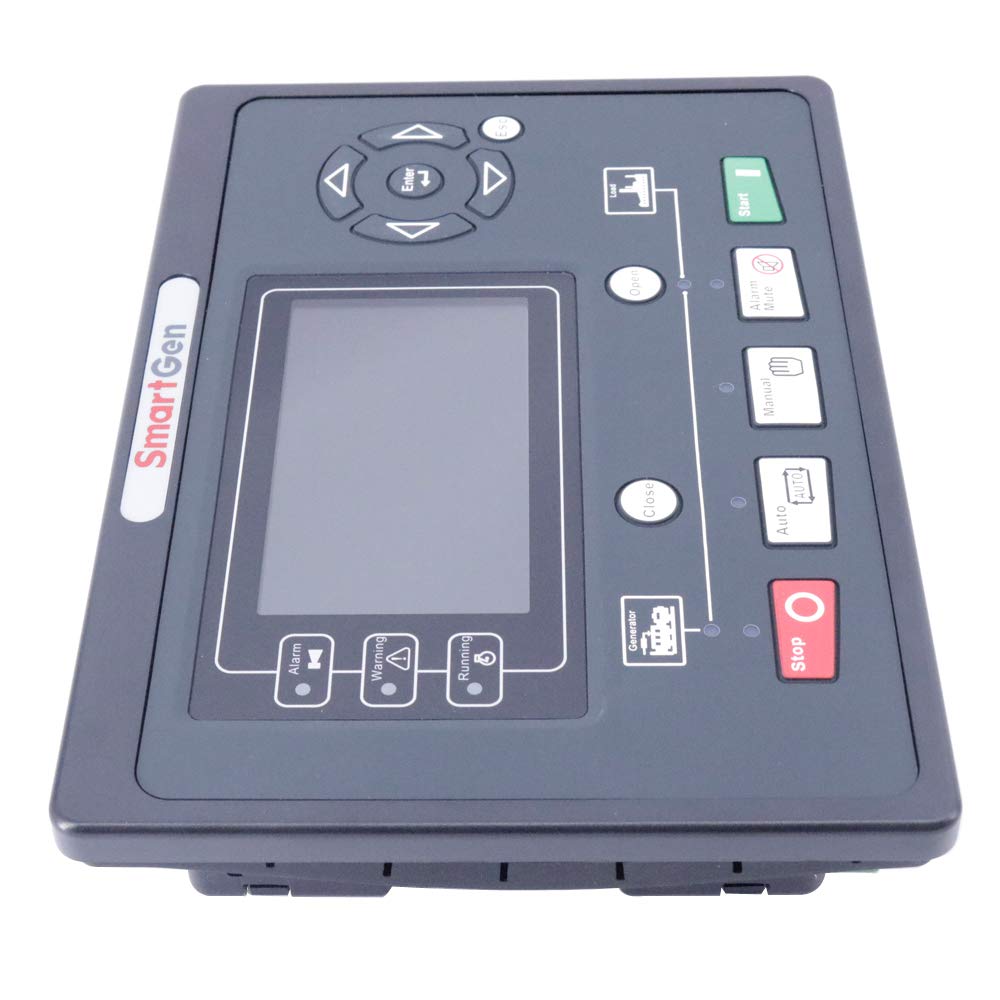

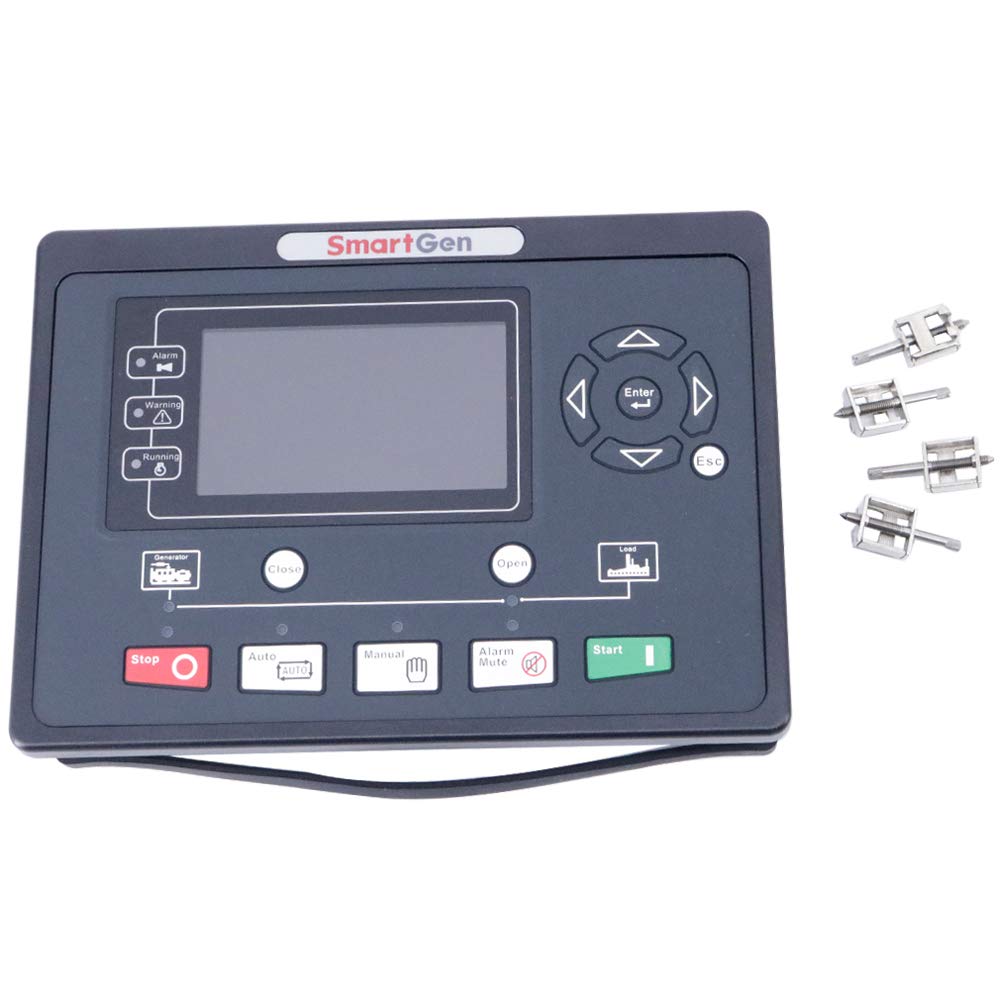

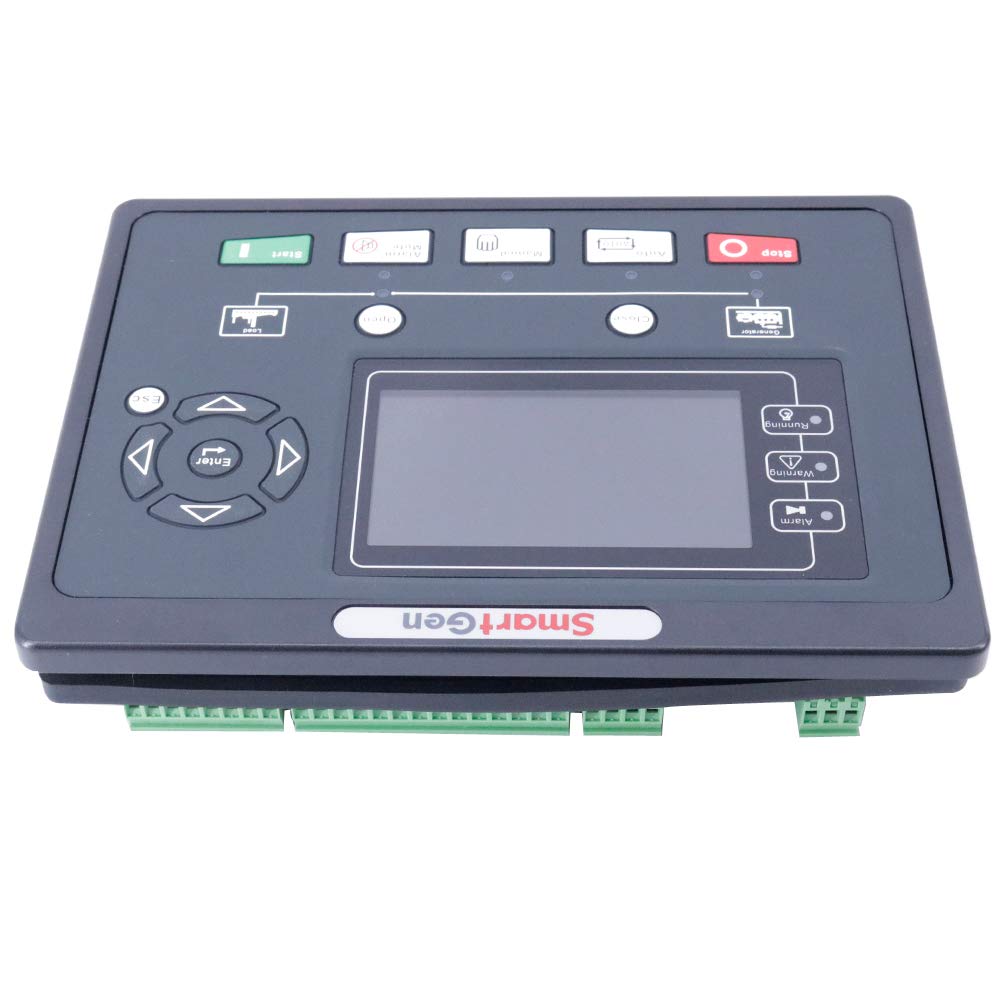

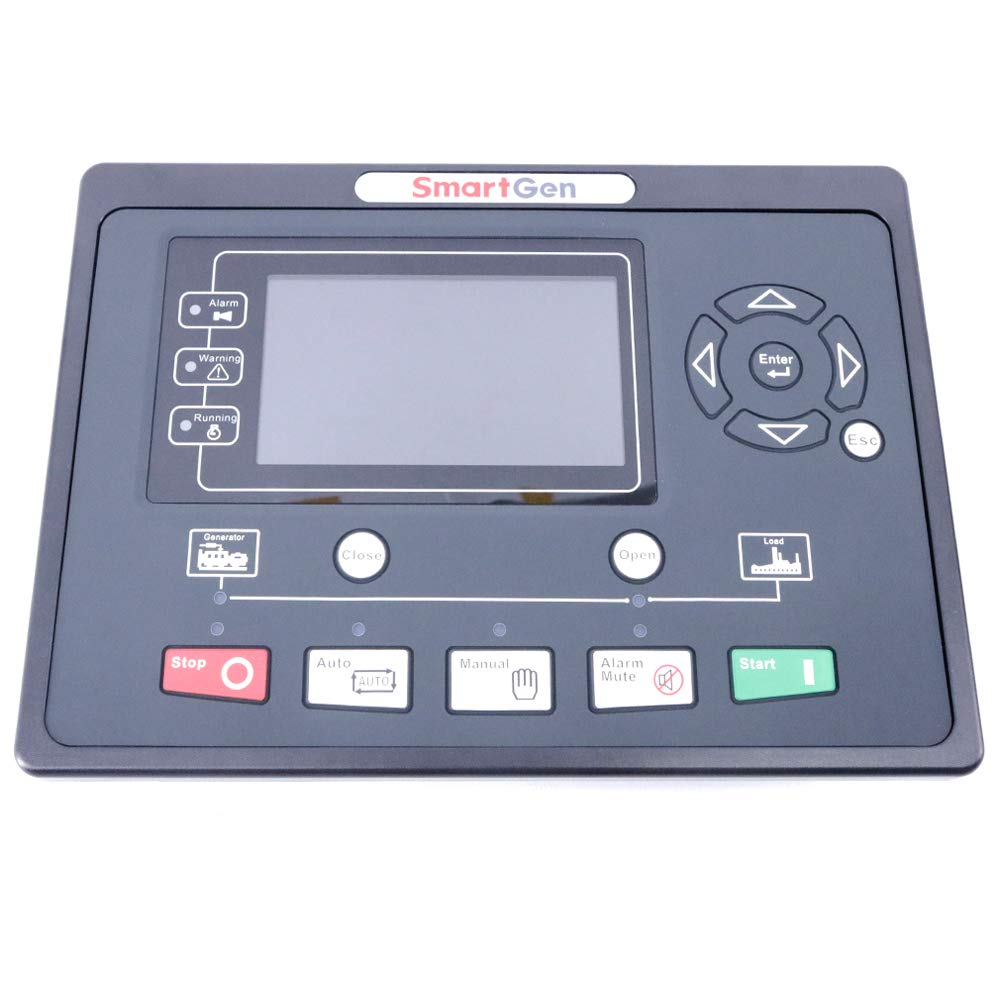

Graigar HGM9310CAN New Smartgen Genset Controller Used for Genset Automation and Monitor Control System

Brand: Graigar

Color: Black

Features:

• HGM93XX MPU(CAN) series genset controllers are used for genset automation and monitor control system of gen-set to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication).
• HGM9310CAN Generator Controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.
• HGM93XX MPU(CAN) gen-set automatic controllers adopt 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc.
• The majority of parameters can be configured from front panel, and all parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 port.
• HGM9310CAN Genset Controller can be widely used in all types of automatic gen-set control system with compact structure, advanced circuits, simple connections and high reliability.

Part Number: HGM9310CAN

Details: HGM93XX MPU(CAN) series genset controllers are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.
HGM93XX MPU(CAN) series genset controllers adopt 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The majority of parameters can be set using front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 port. It can be widely used in a number of automatic genset control system with compact structure, simple connections and high reliability.
Performance and Characteristics:
HGM9310 MPU(CAN), used for single automation systems, auto start/stop of the unit are performed with the help of remote signal.
HGM9320 MPU(CAN), has all functions of HGM9310 MPU(CAN) as well as automatic mains failure function (AMF), particularly well suited for single automation systems that include mains and generator.
- With ARM-based 32-bit SCM, highly integrated hardware, new reliability level;
- 480x272 TFT LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen at the site, making commissioning convenient for factory personnel;
- Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
- Silicon panel and pushbuttons for better operation in high-temperature environment;
- RS-485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol (RS485 communication port is needed);

EAN: 0799649266174
