The Ultrasonic Clamp On Transducers are most important part of ultrasonic flowmeter，they are work with ultrasonic flowmeter main unit and other transducers, can’t work alone .
Measuring range is for DN50 ~ DN300mm pipe size, the liquids temperature is from -40℃~ 90℃
Apply to water, sea water, sewage water, alcohol, oil and other liquids.
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Work Together With other Transducers and Handheld Type Ultrasonic flowmeter TUF-2000H; Portable Printer Type Ultrasonic flowmeters TUF-2000P; Digital Heat Flowmeter TUC-2000E.
Part Number: HM
Details: Introduction:

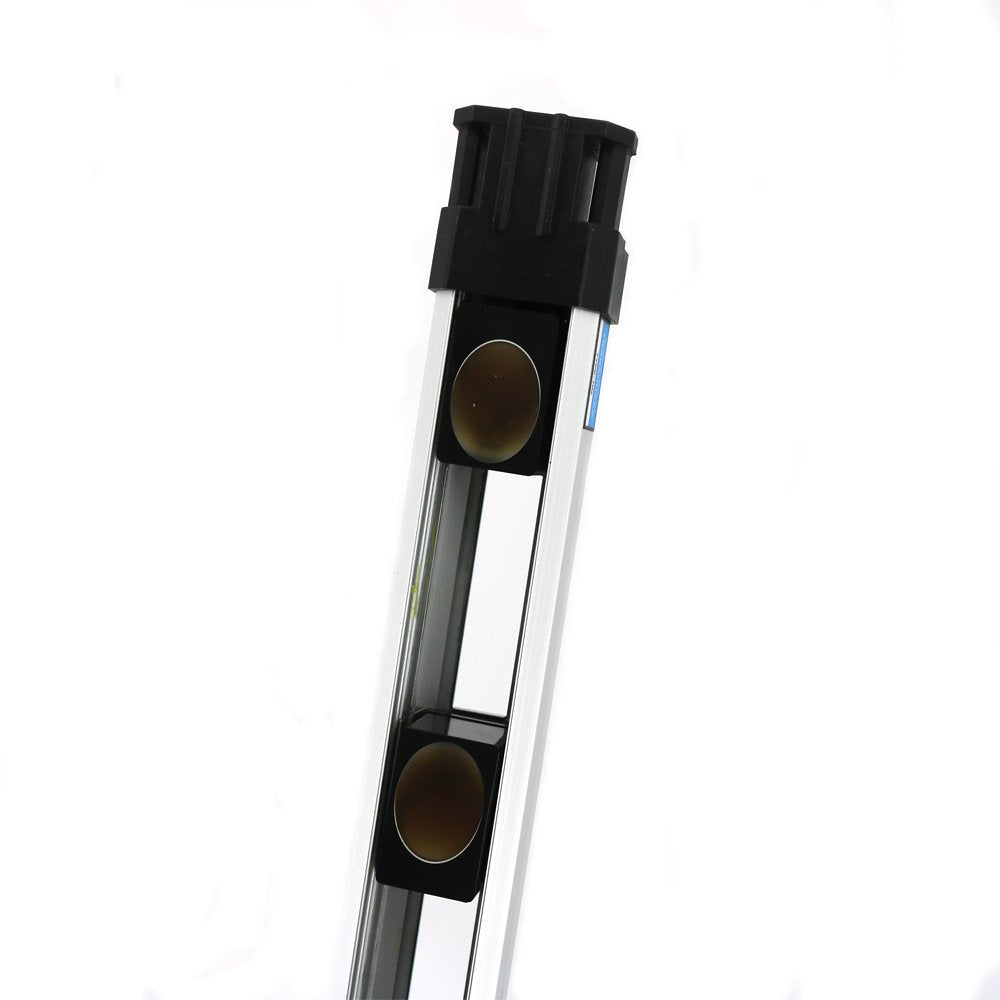

The ultrasonic flowmeter transducers are equiped with a strong magnet, easy to be absorbed on the pipeline.
Can be used in surrounding with strong electromagnetic interference.
Light weight and sturdy construction by using aluminum in fixture and slide.
Anti-corrosion by using stainless steel in transducer parts.

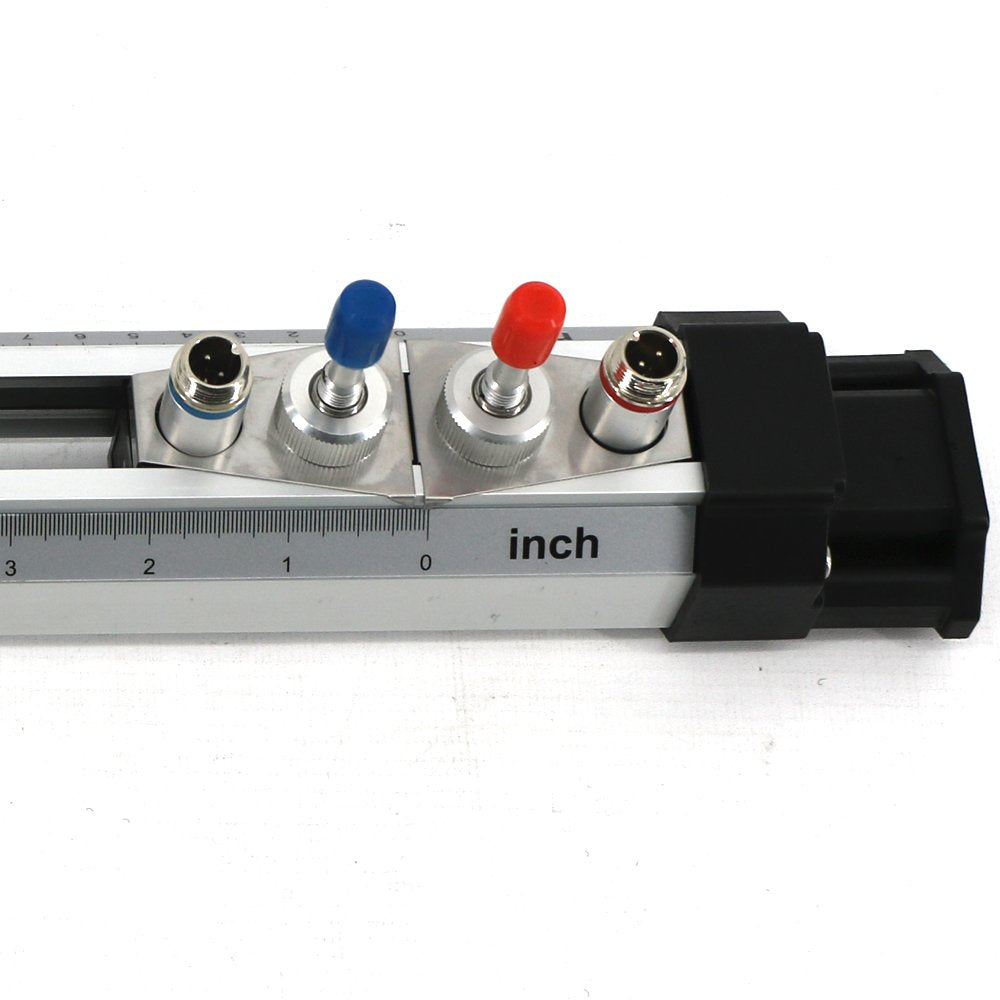

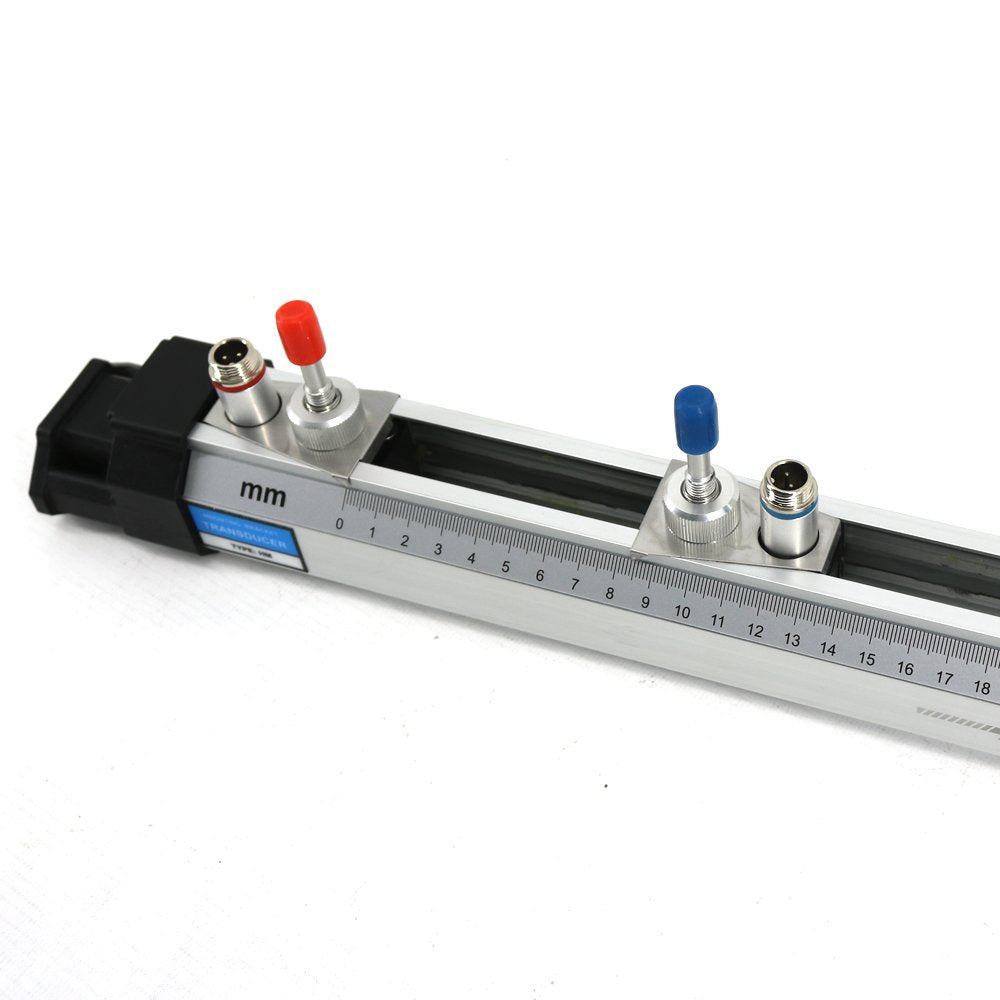

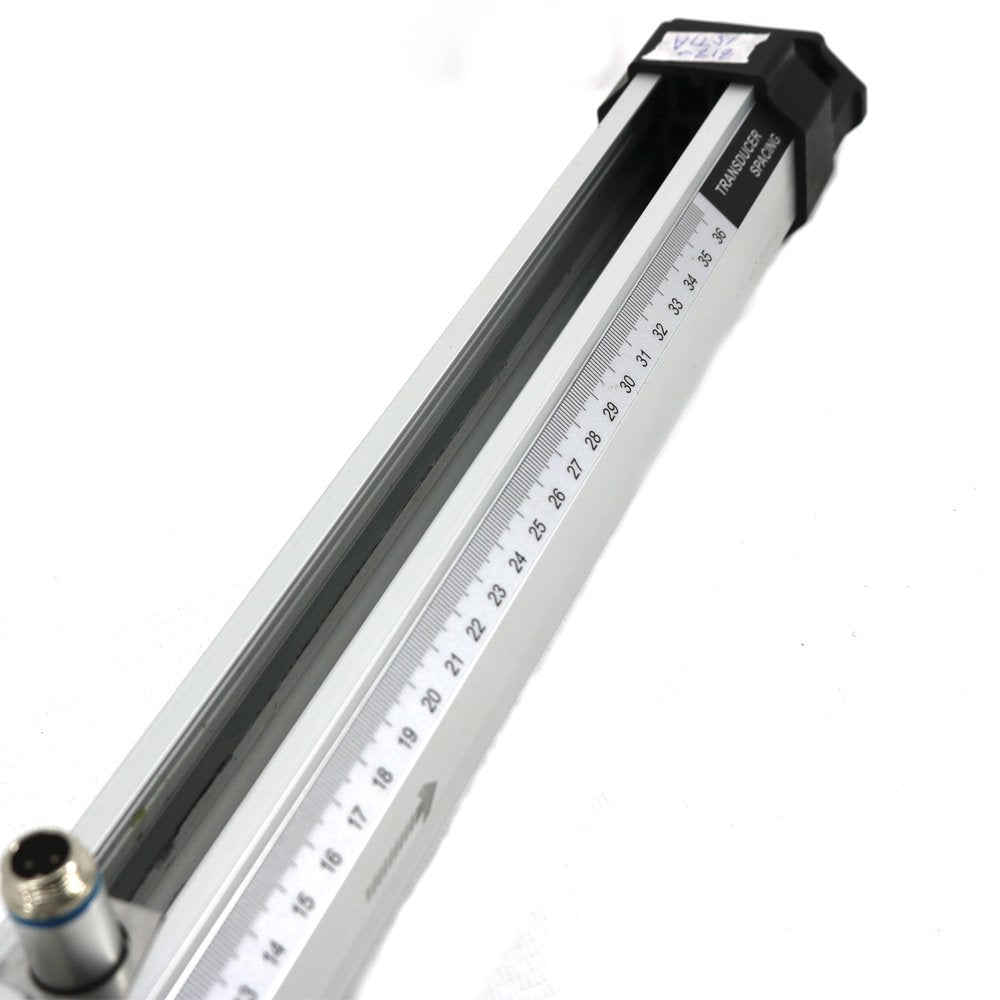

Equiped with scaleplate to improve installation accuracy.
Design of disassembly, available to connect with extended bracket.
Diversity in fixed type.
Application:
Work Together With other Transducers and Handheld Type Ultrasonic flowmeter TUF-2000H; Portable Printer Type Ultrasonic flowmeters TUF-2000P; Digital Heat Flowmeter TUC-2000E.
Model And Range:

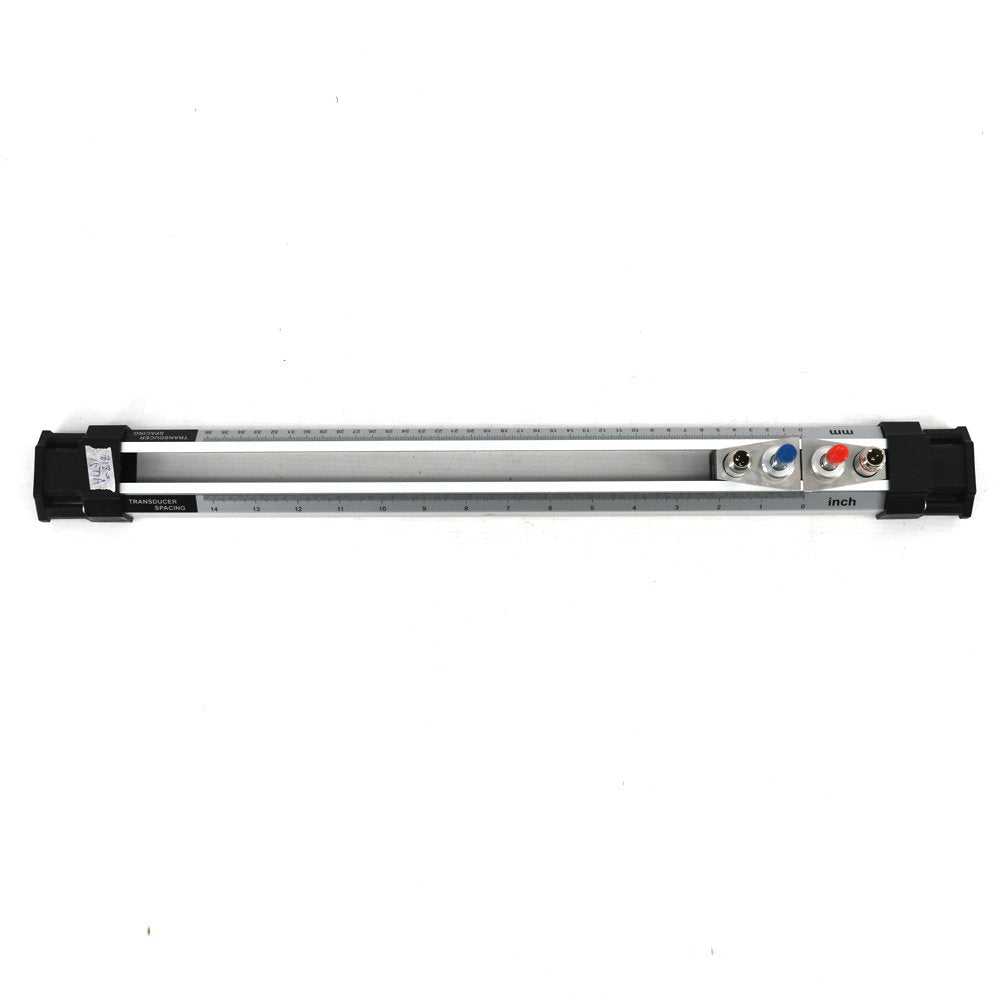

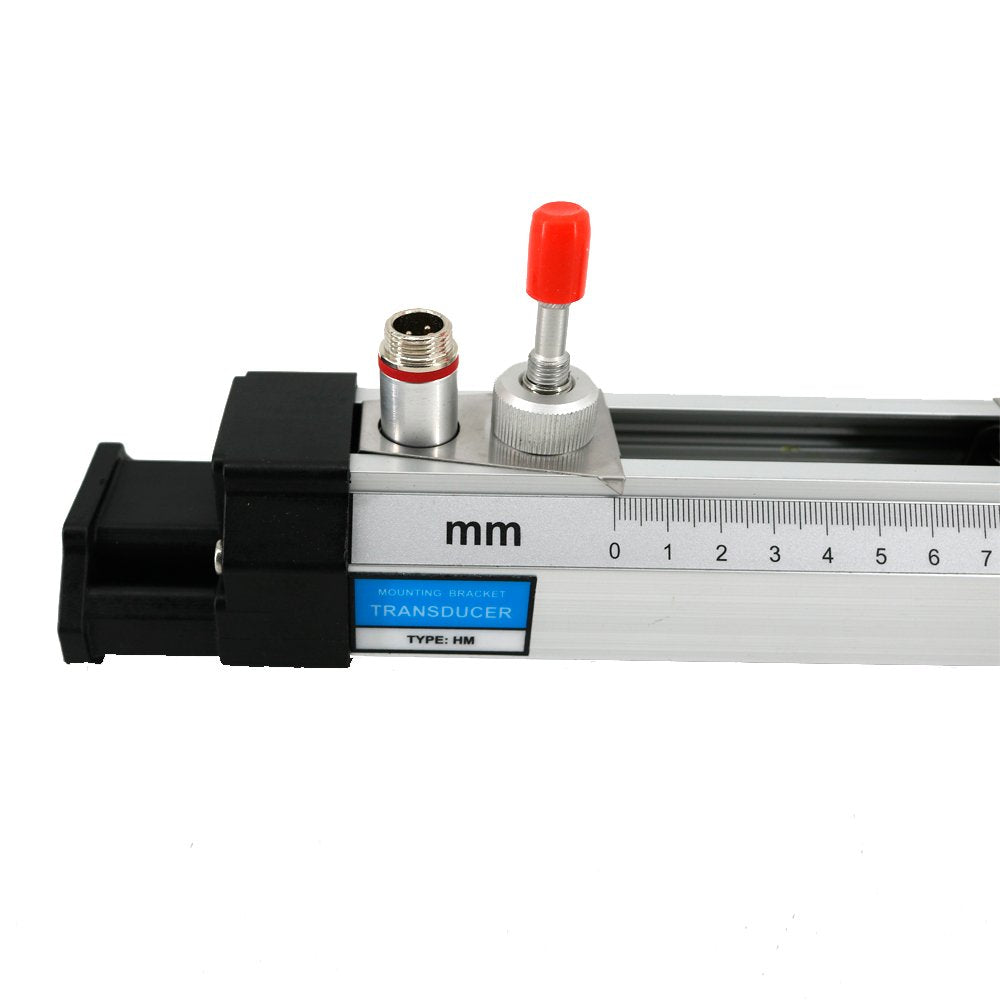

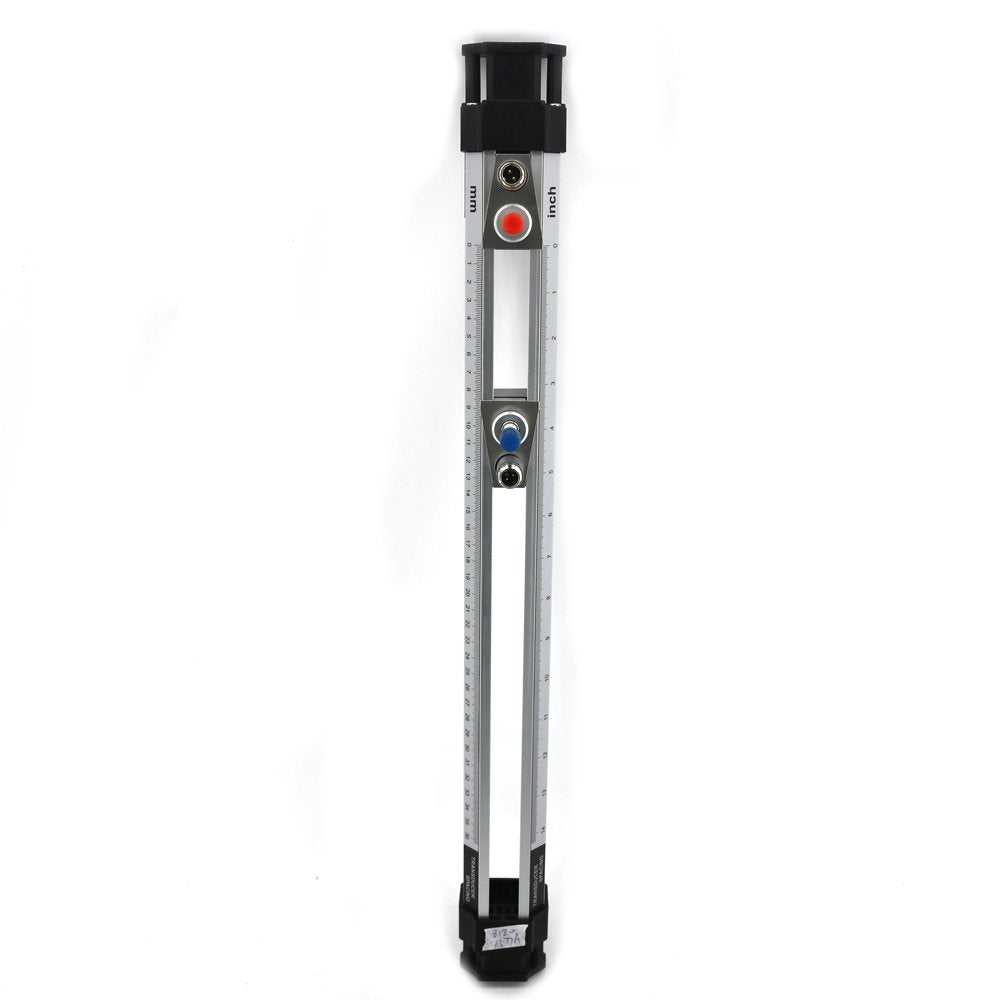

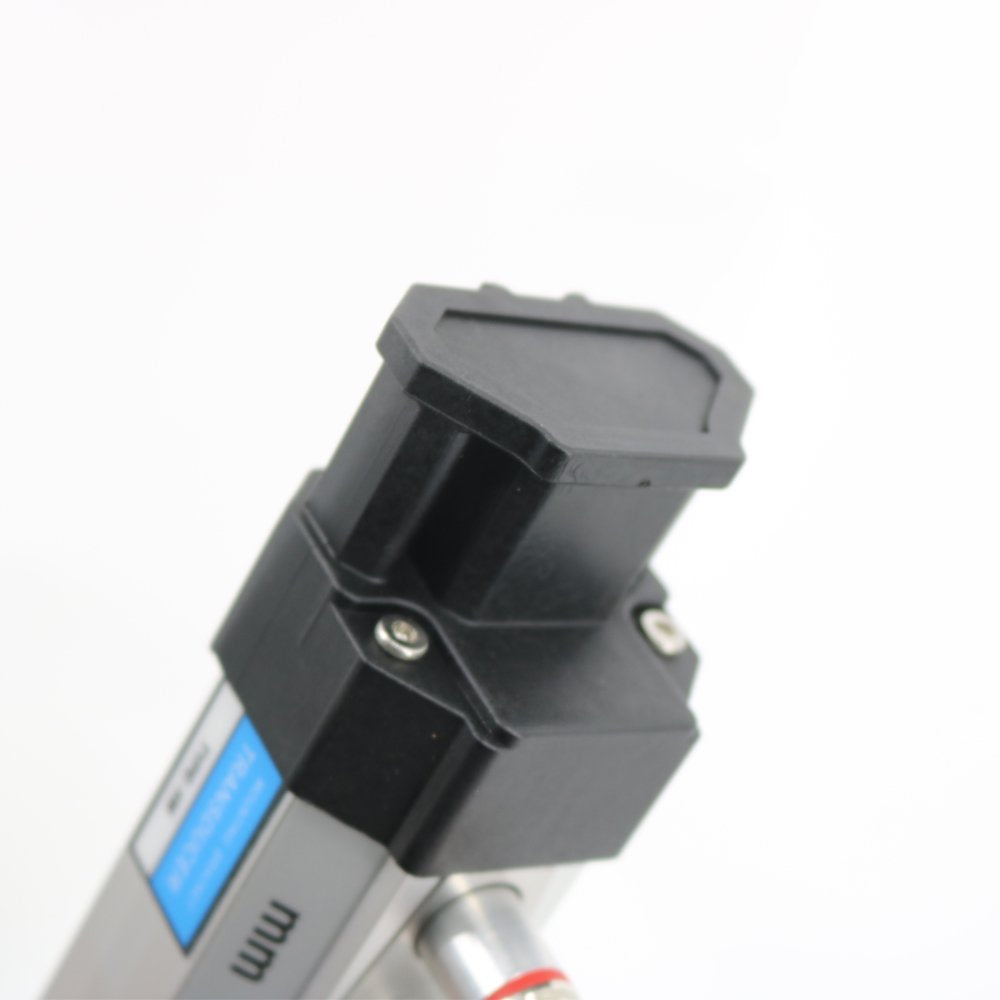

*Model: HM Medium Bracket Transducer
*Measuring Range: DN50mm ~ DN300mm.
*Temperature: -40℃~ 90℃.
*Size:568*59*85mm
Package includes:
1 piece HM Medium Bracket Transducer
