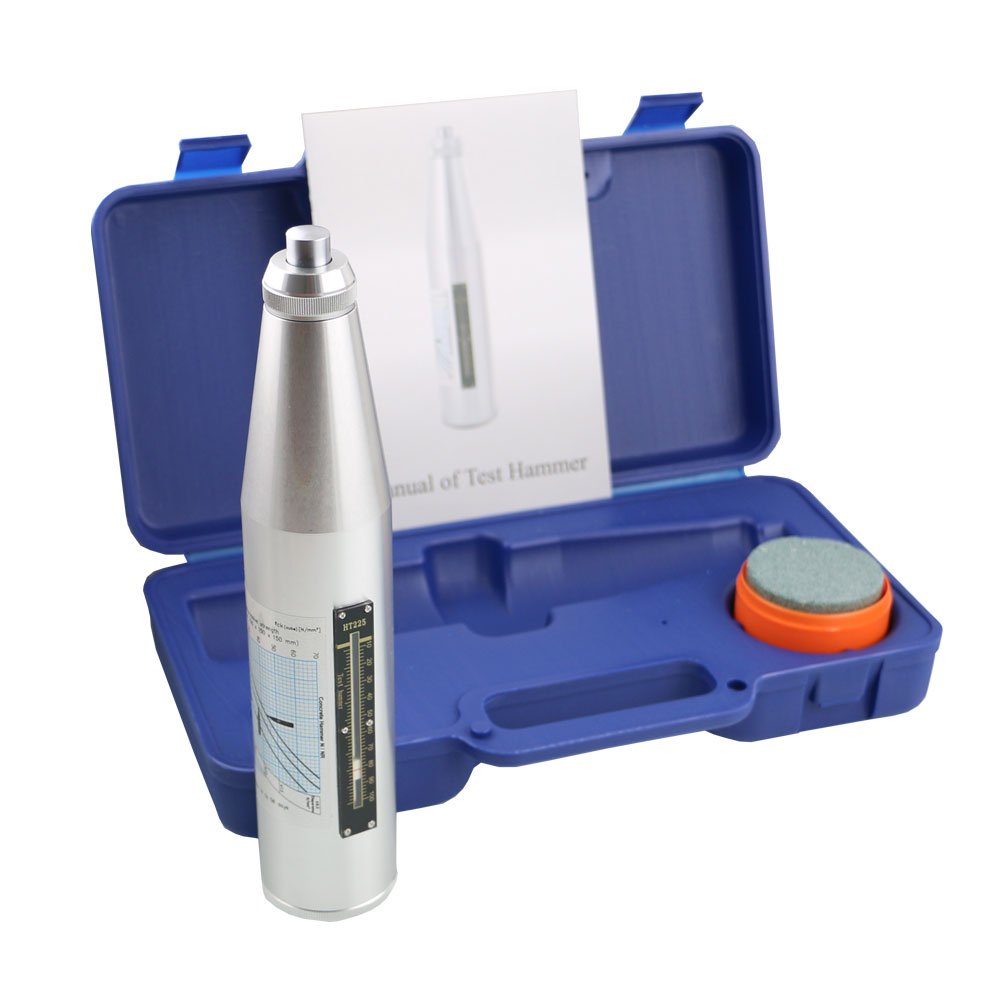

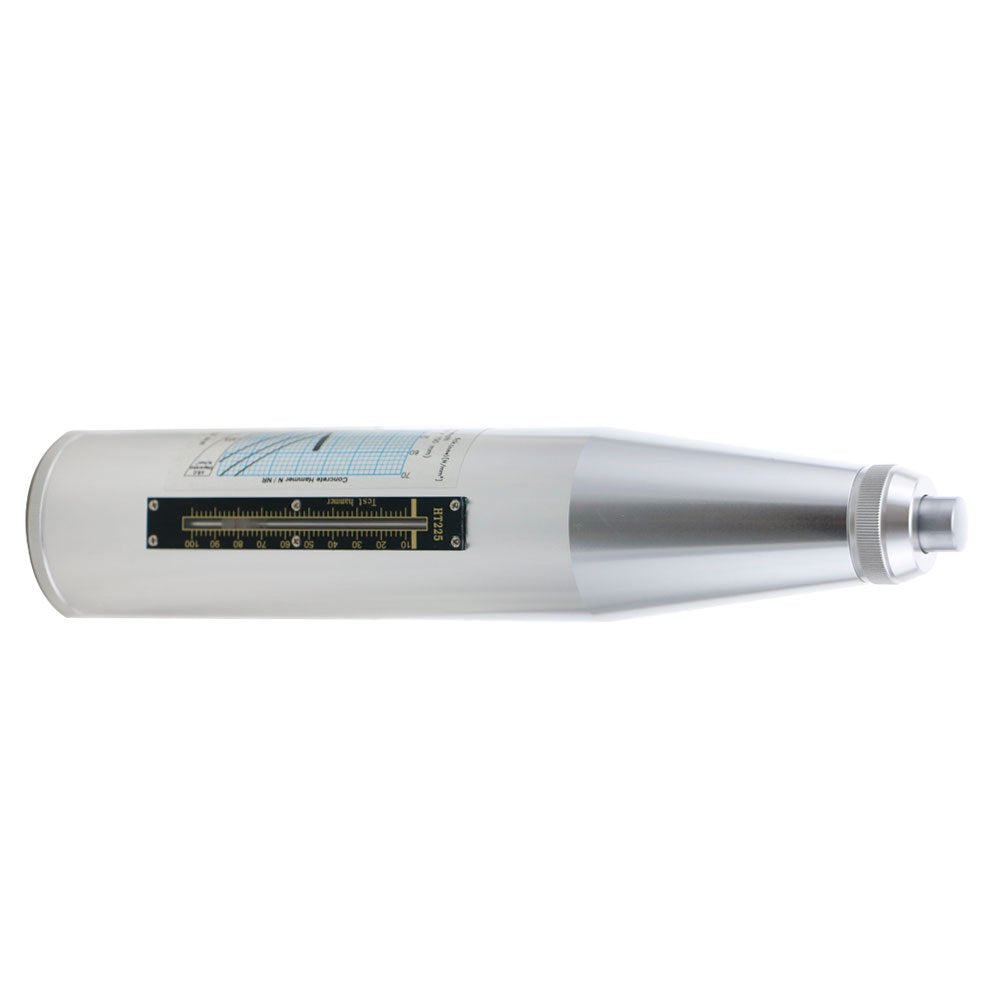

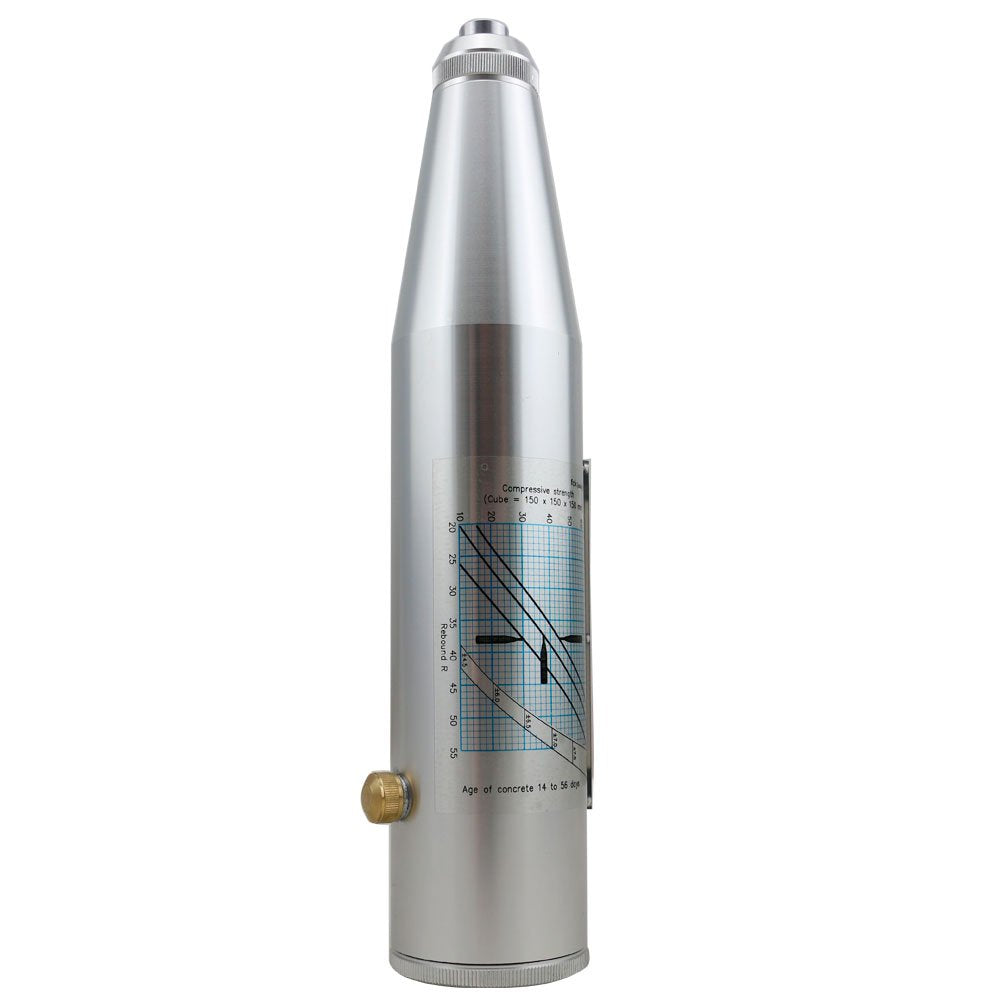

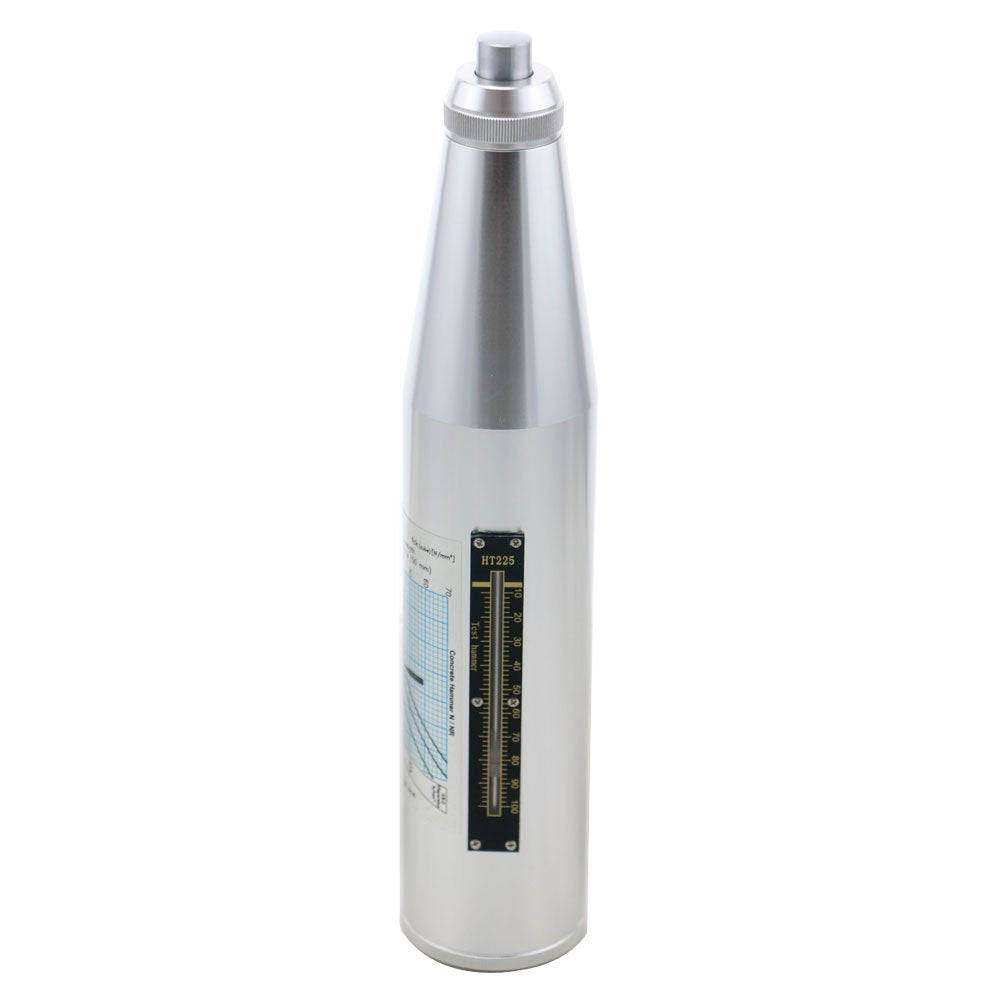

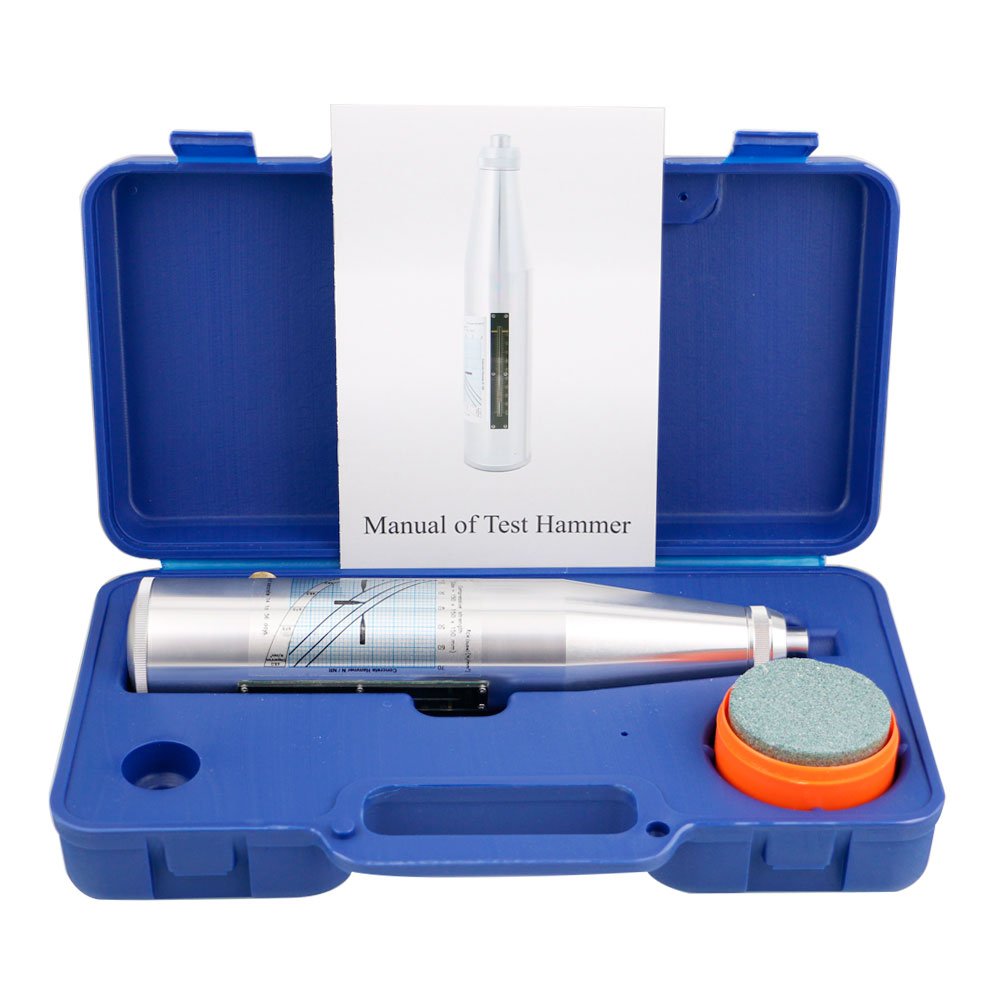

Graigar HT-225 Portable Concrete Rebound Hammer Tester Resiliometer Hammer 10-60Mpa

Graigar HT-225 Portable Concrete Rebound Hammer Tester Resiliometer Hammer 10-60Mpa

Regular price $189.00 USD
Regular price Sale price $189.00 USD
Sale Sold out

Brand: Graigar

Features:

  • HT-225 Concrete Rebound Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
  • The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life.
  • Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate.
  • Center rod is made from imported material, high accuracy and durable resistance.
  • Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Part Number: HT-225

Details: Introduction:

The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.

Features:

1)Center rod is made from imported material, high accuracy and durable resistance.

2)The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life.

3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Parameters:

Test range: 10~60Mpa

Standard impact energy: 2.207J(0.225Kgf.m)

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.5N~0.8N

Sphere radius of rebound pole SR: 25mm1mm

Average rebound value on steel anvil Rm: 80±2

Size: 54*278mm

Weight: 2KG

EAN: 0725370415598
