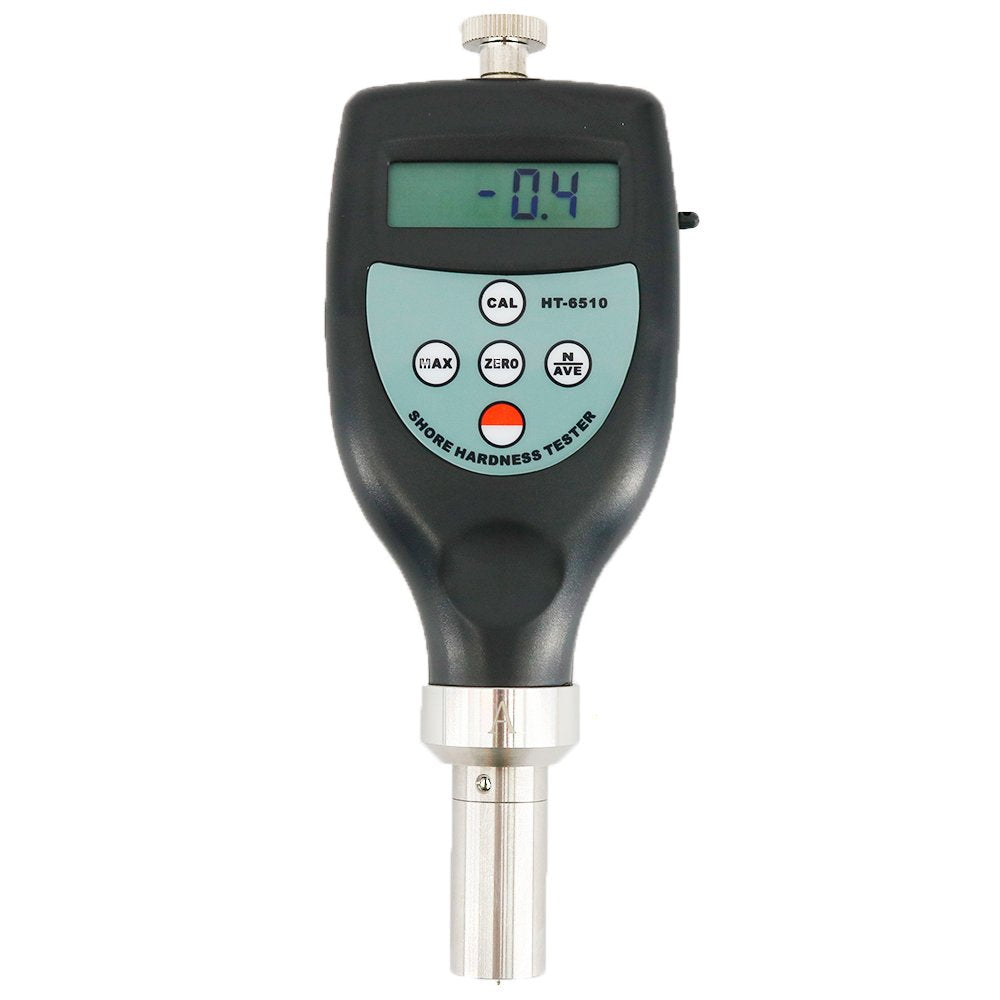

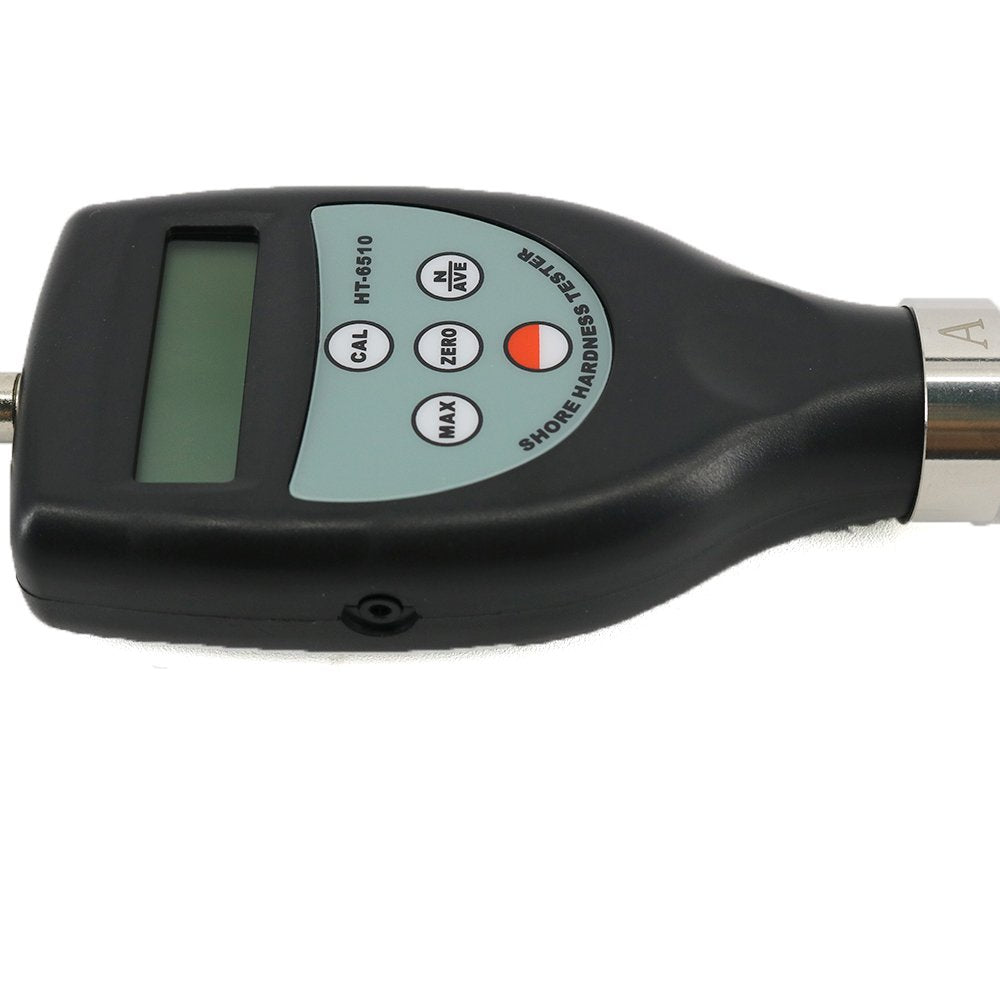

HT-6510A shore a hardness tester meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
Provide Bluetooth data output choice.
Peak value deposit function.
Under-voltage alarm function.
Use USB/RS-232 data output to connect with PC.
model number: HT-6510A
Part Number: HT-6510
Details: Features:
With INTEGRATED (built-in) PROBE and designed to determine the penetration hardness of rubber, elastomers and other rubber like substance such as neoprene, silicone, vinyl and can also be used for soft plastics, felt, leather and similar materials.
Equipped with wide measuring range and high resolution
Automatically switch off after about 2 minutes and also gives you the freedom to manually switch it off anytime to conserves batteries.
Delivers ultra accurate reading with no guessing errors. Features instant, easy to read, legibly written results indicating a specific value, with a 0.1 resolution.
Use anywhere and suitable for use in the laboratory or in field conditions.
Specifications:
Test scale: Shore A Hardness
Standards: DIN53505, ASTM D2240, ISO 7619, JIS K7215
Parameters displayed: hardness result, average value, max. value
Measurement range: 0-100HA (Shore A)
Microcomputer: Newly developed microcomputer delivers maximum results
Measurement deviation: = ±1
Temperature Operating conditions: 0 - 50°C
Humidity Operating Conditions: <80%

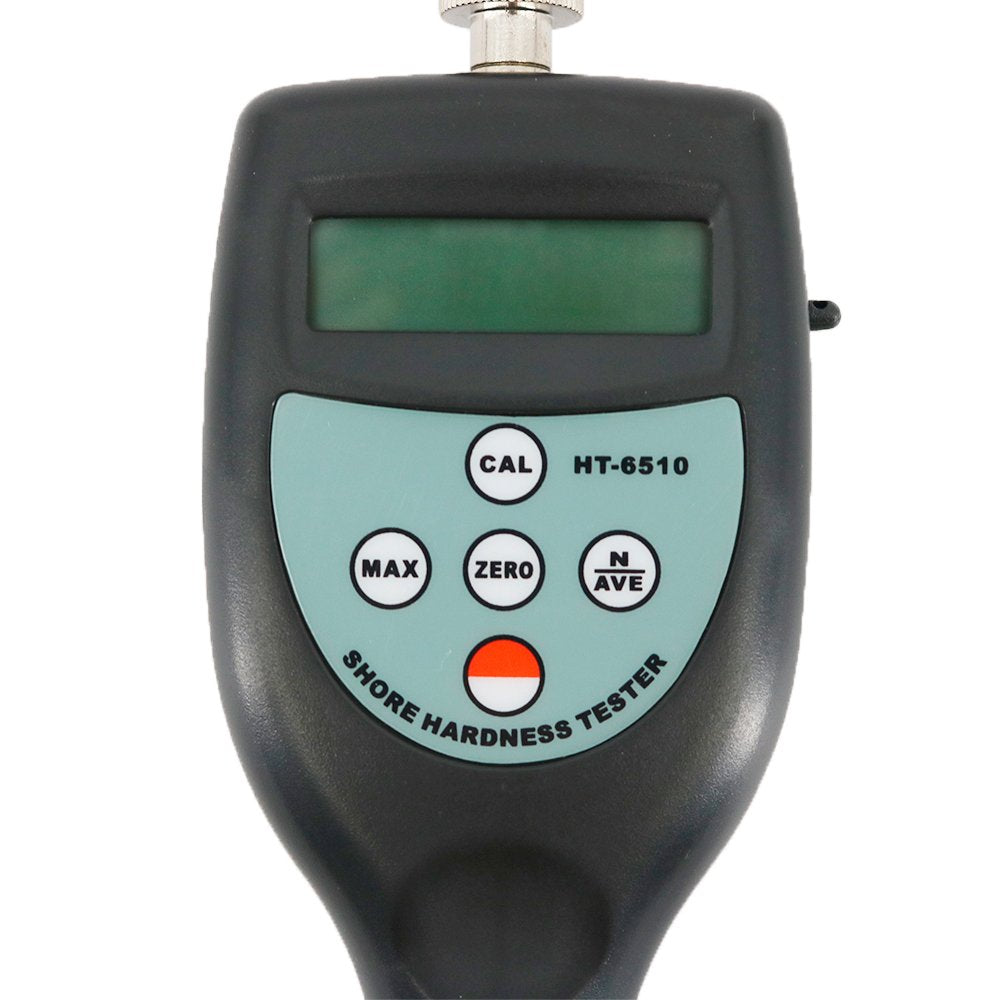

Display: 4 digits, 10mm LCD

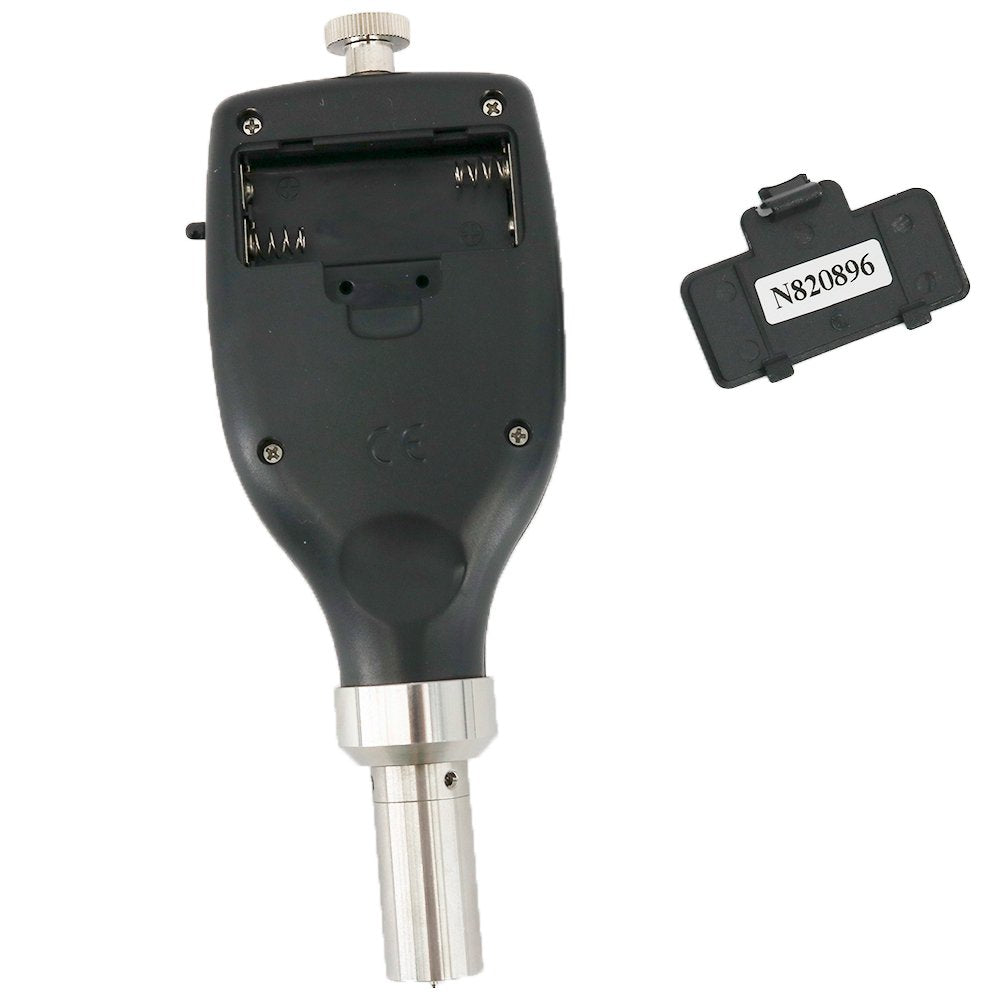

Power supply: 4 x 1.5V AAA (UM-4) battery
Battery indicator: low battery indicator
Power off: manual or auto after 10 minutes
Dimensions: 162mm x 65mm x 38mm
Weight (without batteries): 170g

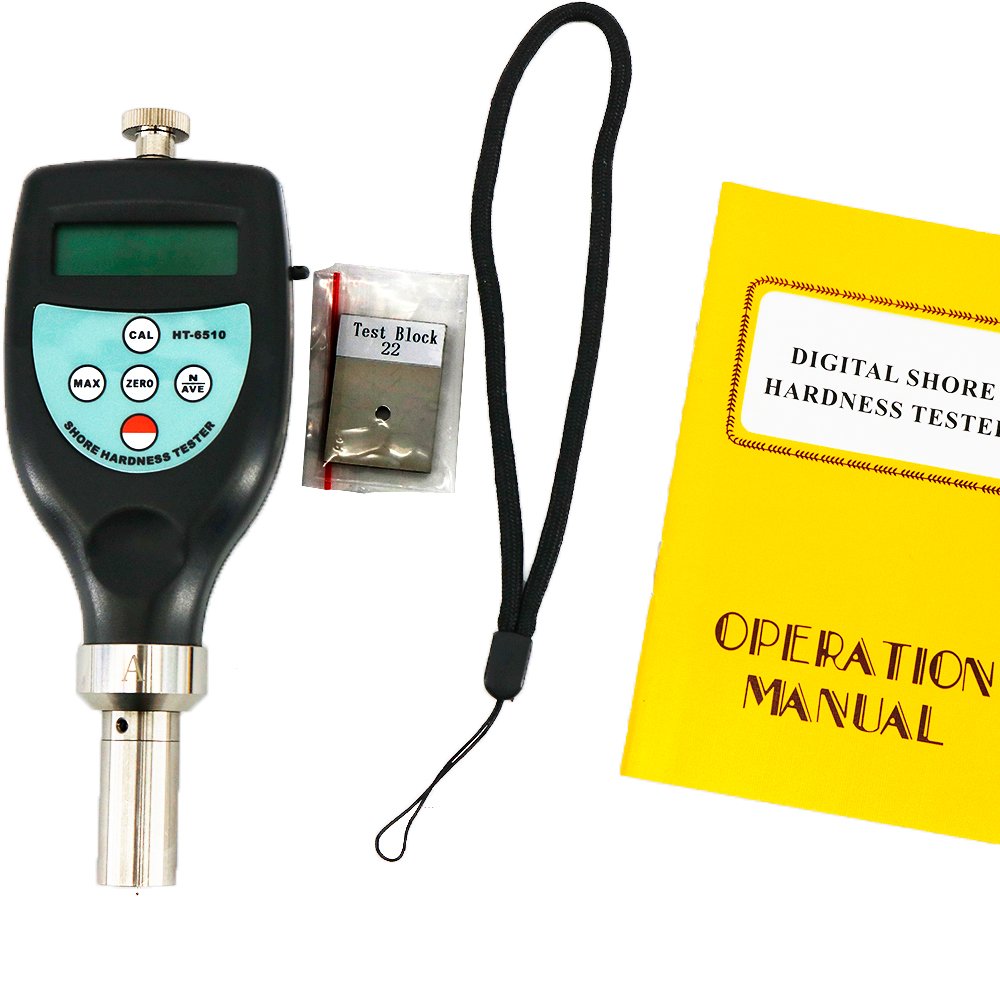

Standard Configruation:
1 x Hardness Durometer Tester (Shore A)

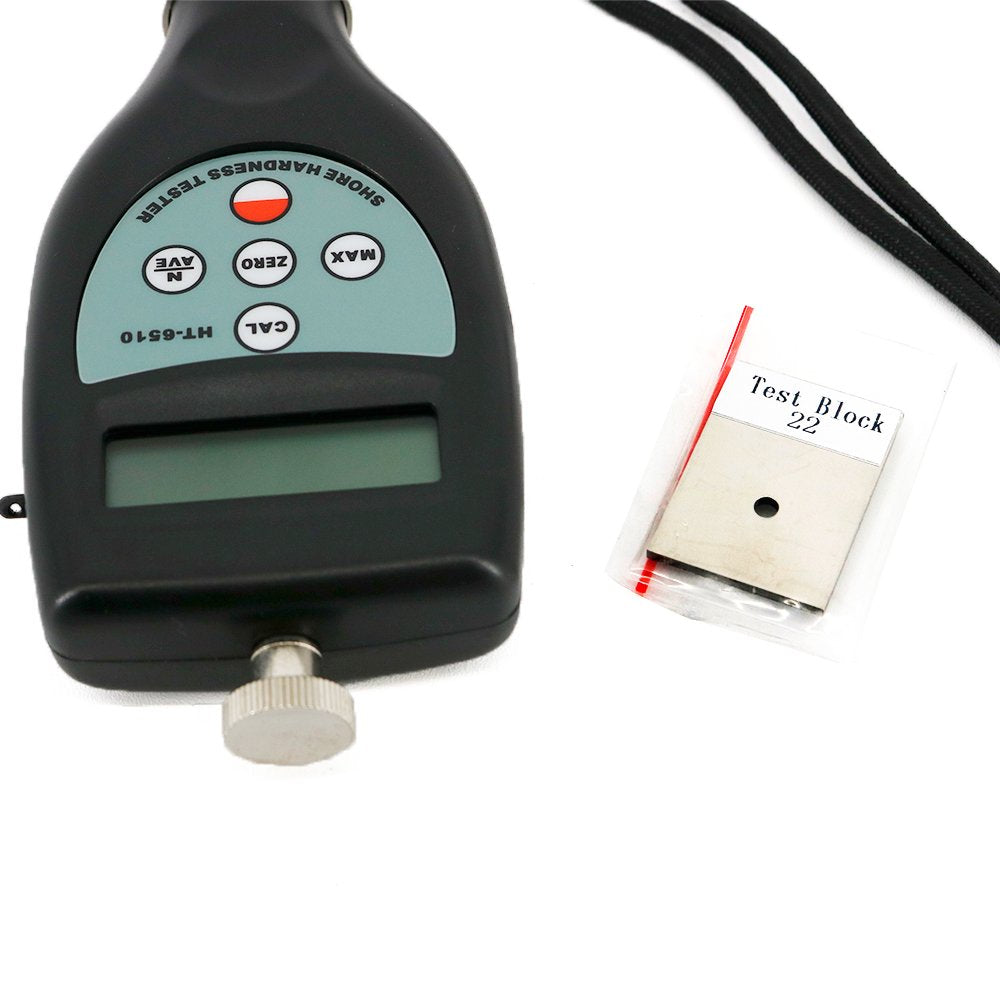

1 x FREE Test block
1 x FREE Wrist Strap

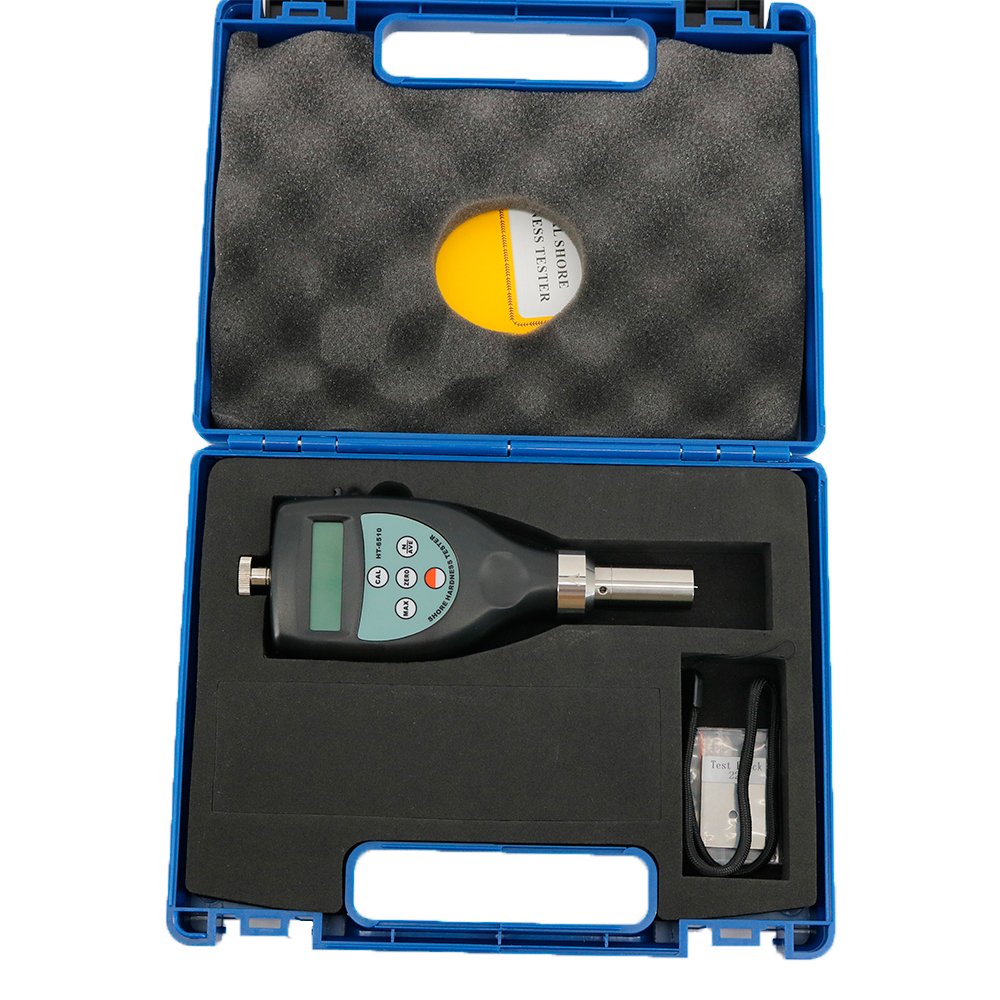

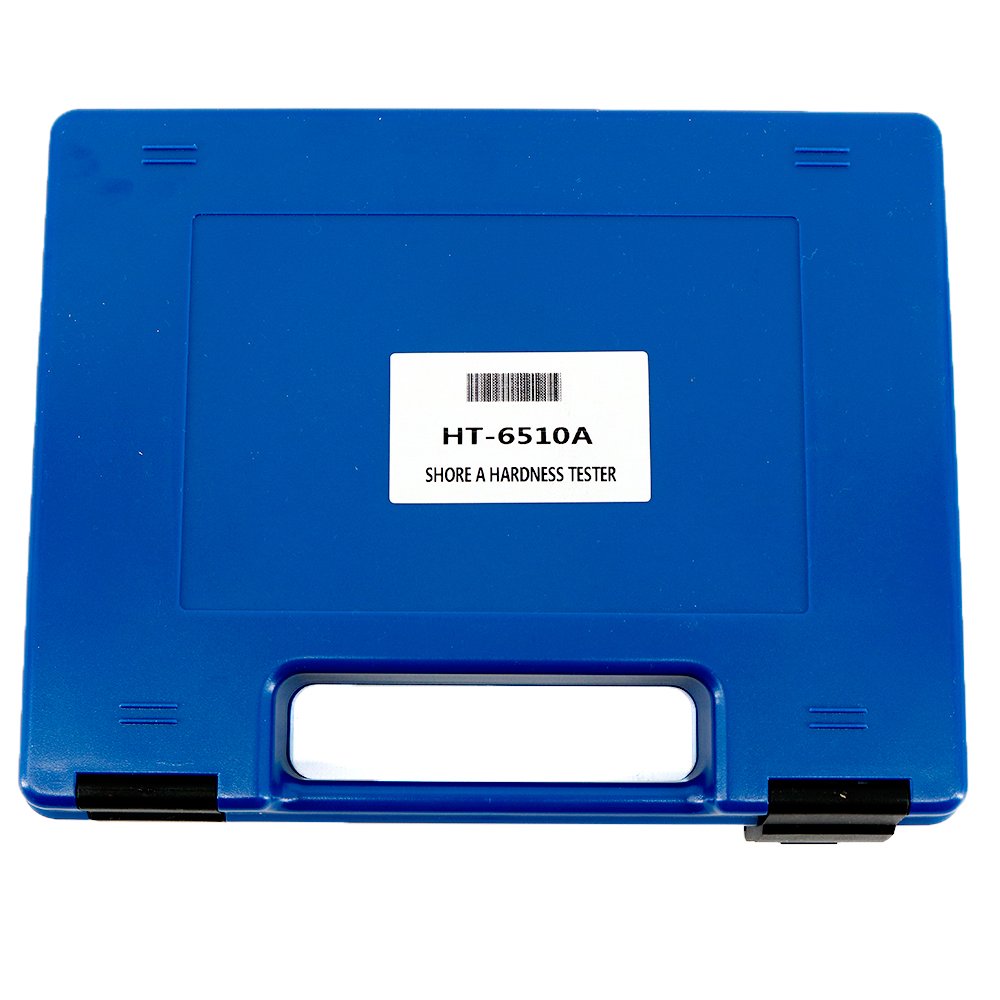

1 x Hard plastic carry case with padded & contoured interior
English Instruction manual
