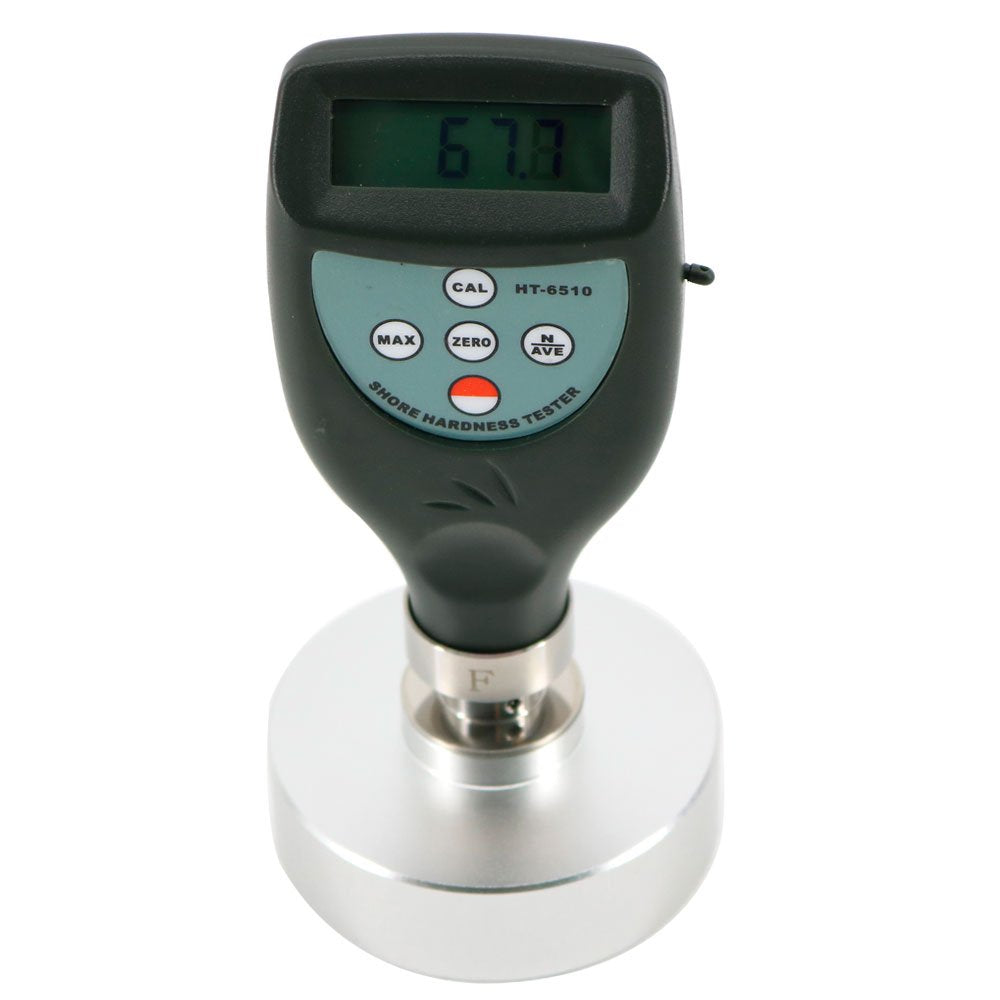

Shore Hardness Tester HT-6510F is an exclusive design for testing soft cellular materials.
The large diameter presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen. SPECIFICATIONS
With average calculate, peak value deposit, under-voltage alarm function;
It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215;
Use USB/RS-232 data output to connect with PC (Optional);Provide Bluetooth data output choice (Optional).
Part Number: HT-6510F
Details: Shore Hardness Tester HT-6510F is an exclusive design for testing soft cellular materials. The large diameter presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen.
SPECIFICATIONS
Display:4 digits, 10 mm LCD
Range:0~100
Resolution: 0.1

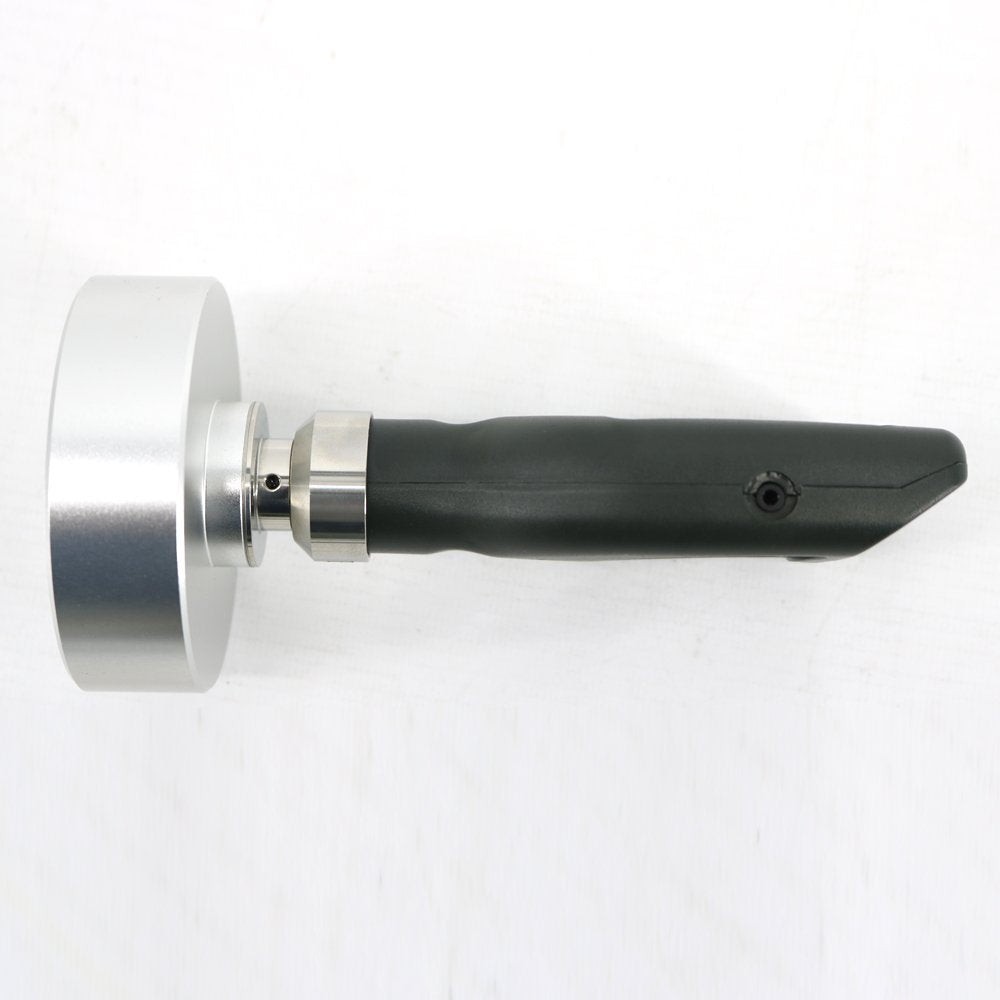

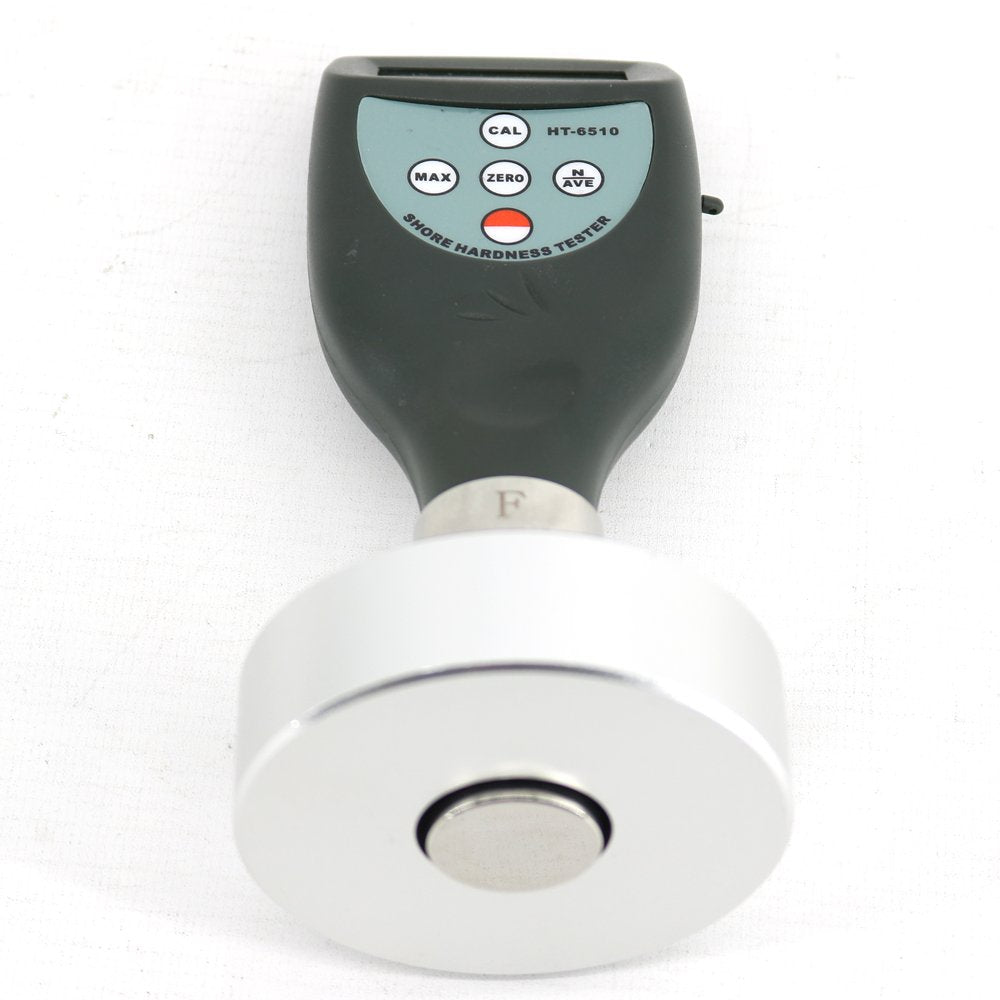

Presser foot: 80mm diameter
Indenter: Extension 2.54mm
25.2mm Cylinder
Spring force: 455gf
Measurement deviation: ? ±1

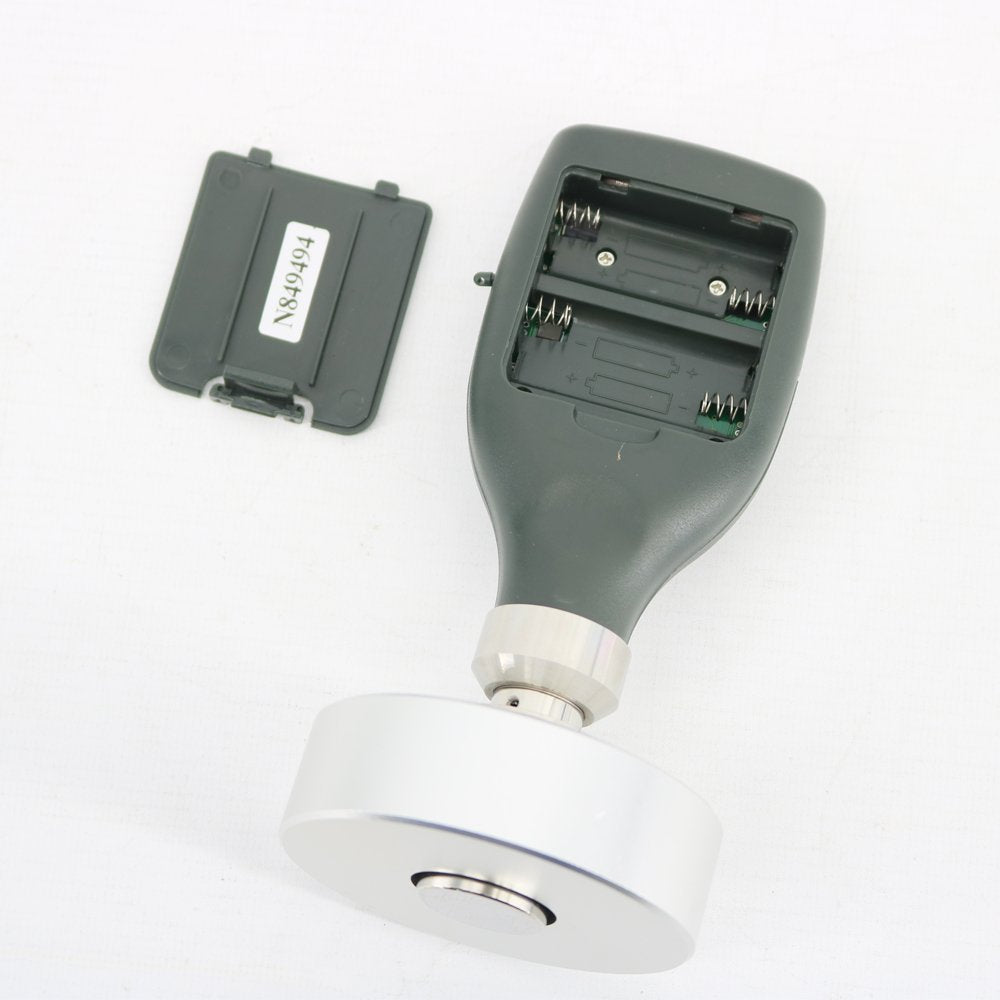

Power supply: 4x1.5v AA (UM-3) battery
Operating condition: Temp. 0~50C
Humidity <80%
Size:162x65x28mm (6.4x2.6x1.1inch)
Weight:about 490g / 1.1lb(not including batteries)
PC interface: RS232C interface
Power off : 2 modes
Manual off at any time by depressing the power key till OFF shows on the display or Auto power off after 2 minutes from last key operation .

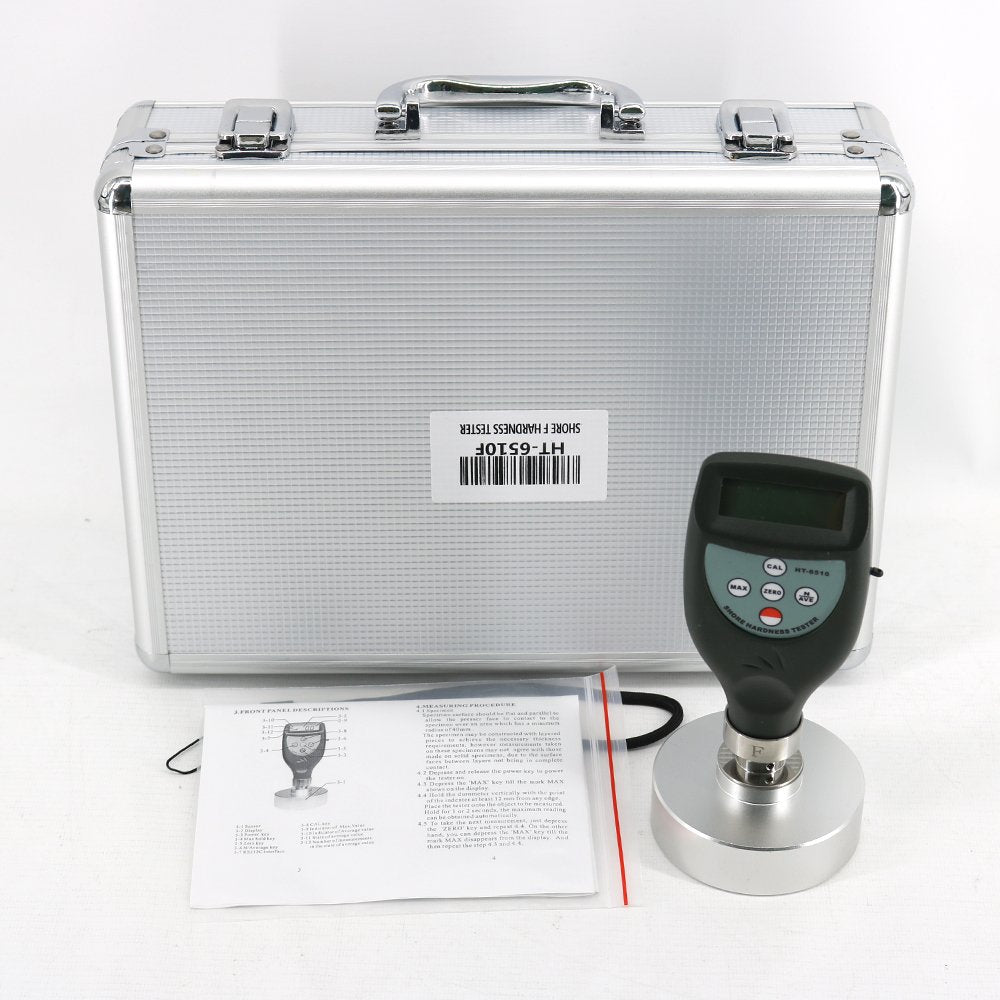

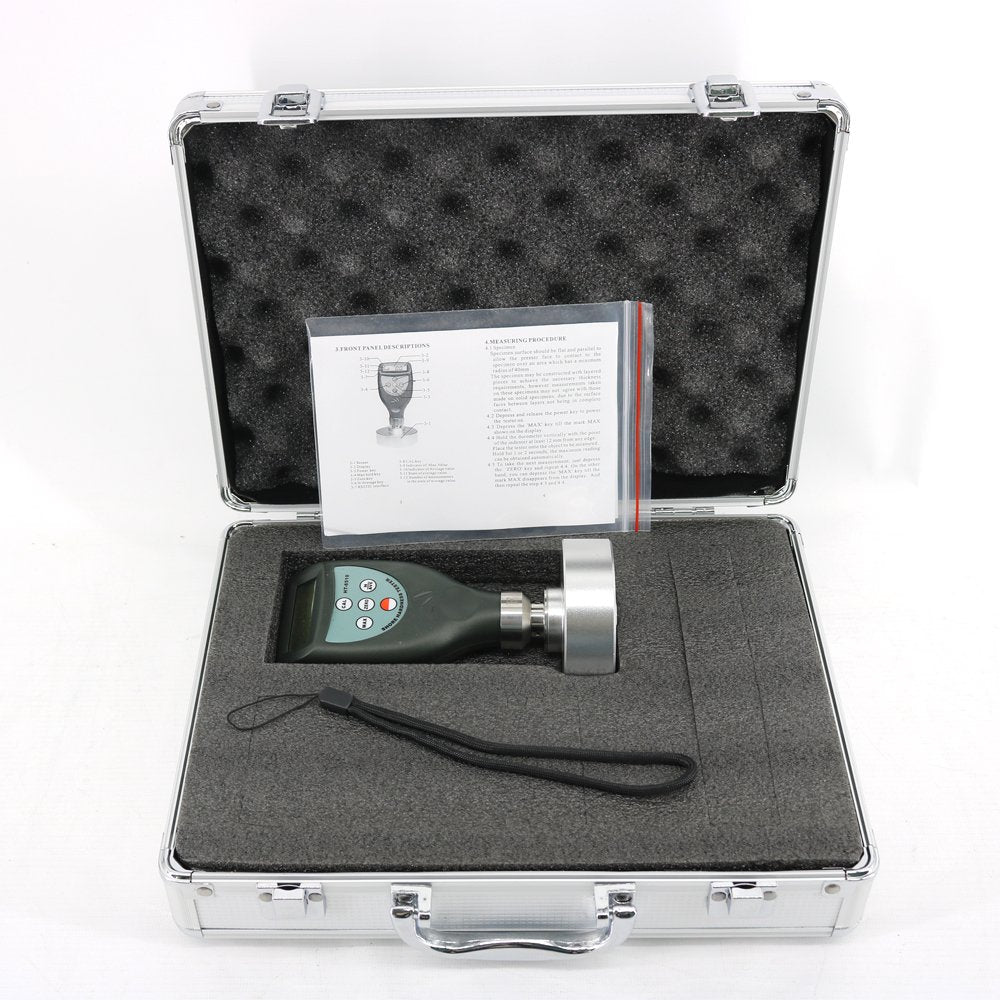

Standard Accessories
1. Main Unit

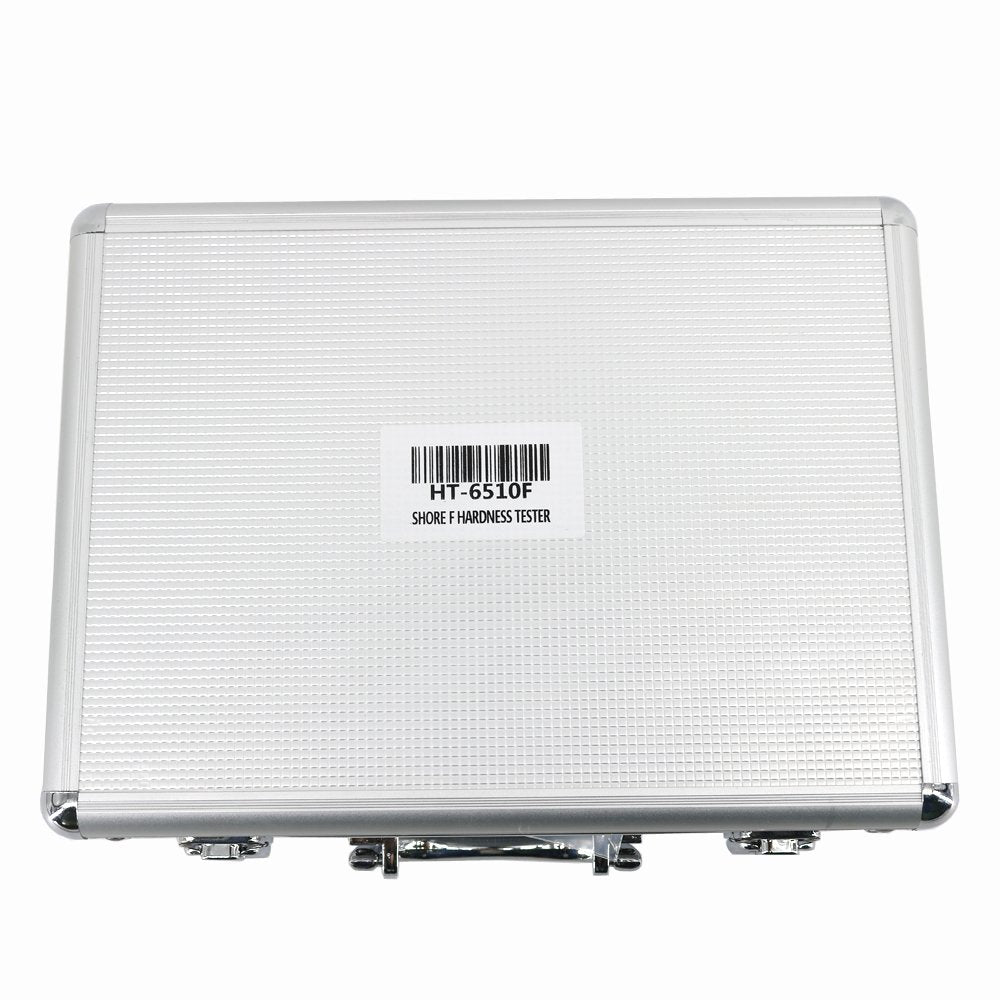

2. Carrying Case

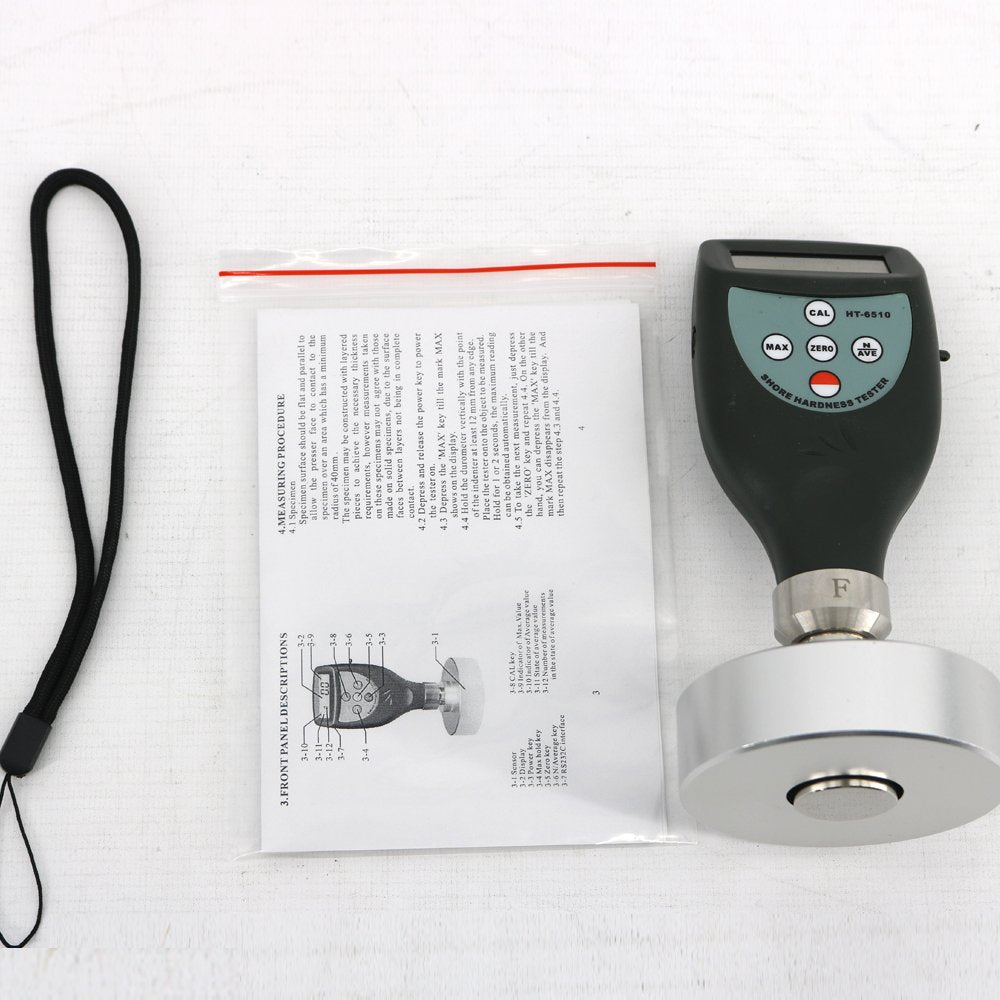

3. Operation Manual
Optional Accessories
1. Shore Hardness Tester Measurement Stand
2. Rubber Hardness Test Block (A / D Type )
3. USB, RS-232C data cable with software
4. Bluetooth data out put with software
