Max. Operation Voltage: DC 0~ ± 40kV; AC 1~ 28kV(50/60Hz).

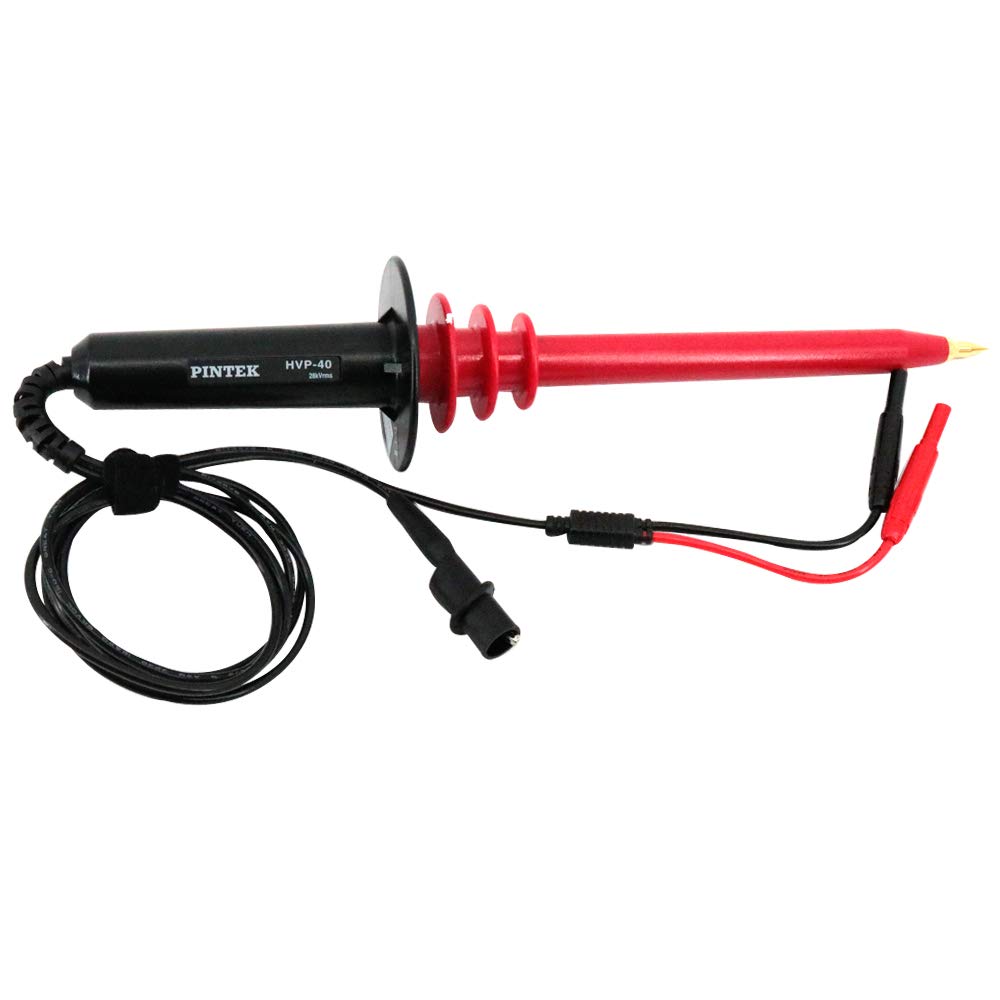

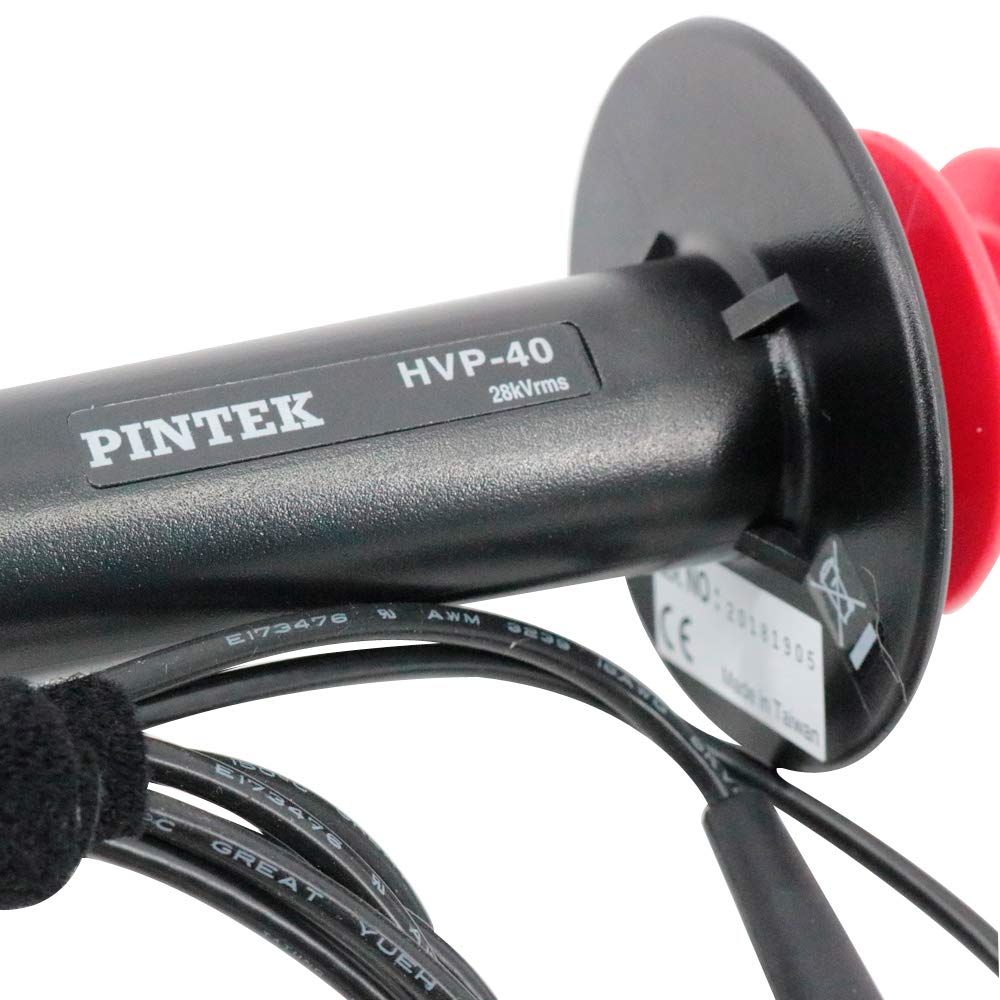

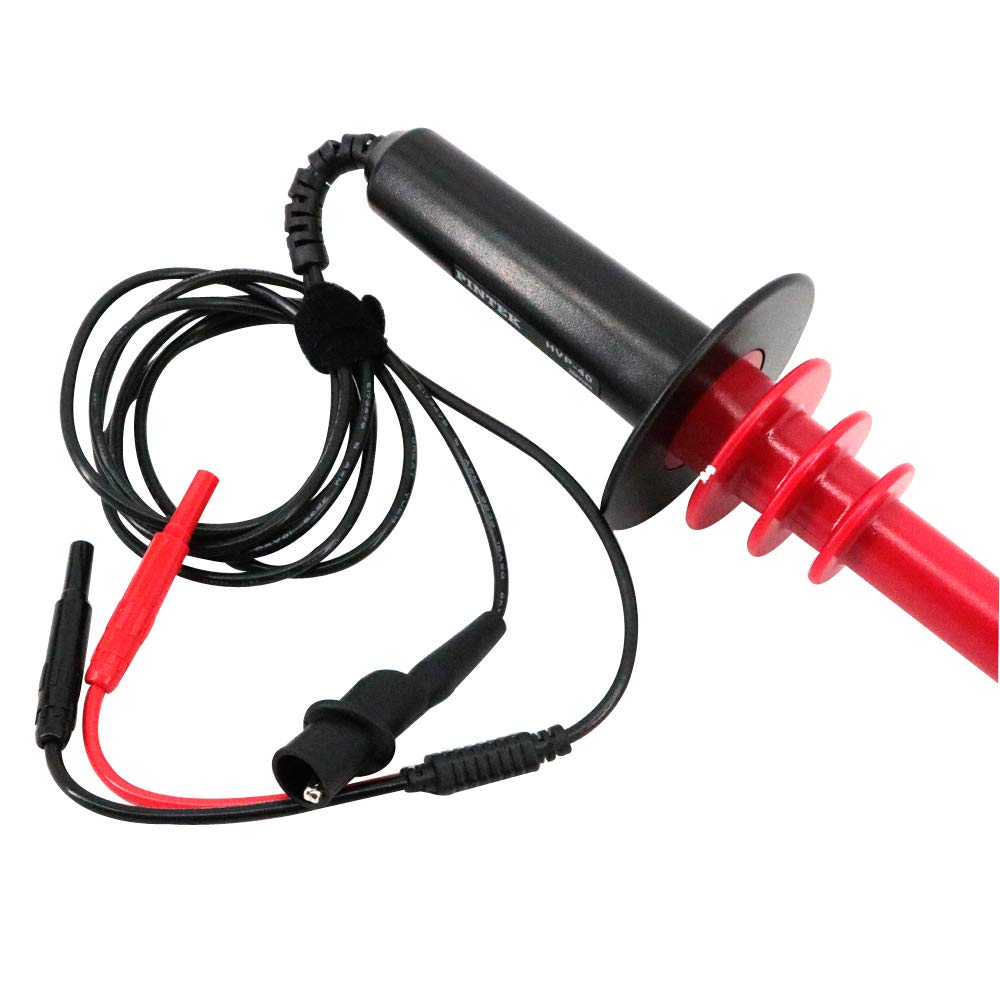

Part Number: HVP-40
Details: Product specification:
Input impedance: 1000MΩ
Attenuation ratio 1000:1
Maximum test voltage: DC:0 ~ 40KV; AC:1 ~ 28KV (50/60Hz)
Safety regulations admit:EN610105UL3111-1; TUV-GS; IEC1010 CAT II Pollution 2
Polarity: positive / negative can be measured.
Accuracy: DC: + 1%to20 KV; + 2%to40 KV; AC: - 5% to -10% at 50 ~ 60Hz
Temperature coefficient: ≤ 200ppm/ ℃
Maximum load current: ≤ 40uA (at40KVDC)
Maximum power consumption (fever): ≤ 1.6 Watt
Operating temperature:0℃ - 50 ℃
Storage temperature: -20℃ - 70℃
The ground wire is:90cm (3ft).
The length of cable wire connected to the meter is 100 cm (3.3ft).
Specified link: 10MΩ DMM with eight impedance
Ammeter output instruction: X1000 bit, that is 1V-1000V; 10V-10KV
Outline size: 340 mm (L) x 800 (mm)
Net weight: 300g
Note: In addition to the input impedance of the selected meter specified 10MΩ, the accuracy should also be within (± 0.5%), otherwise it will seriously affect the attenuation ratio.
