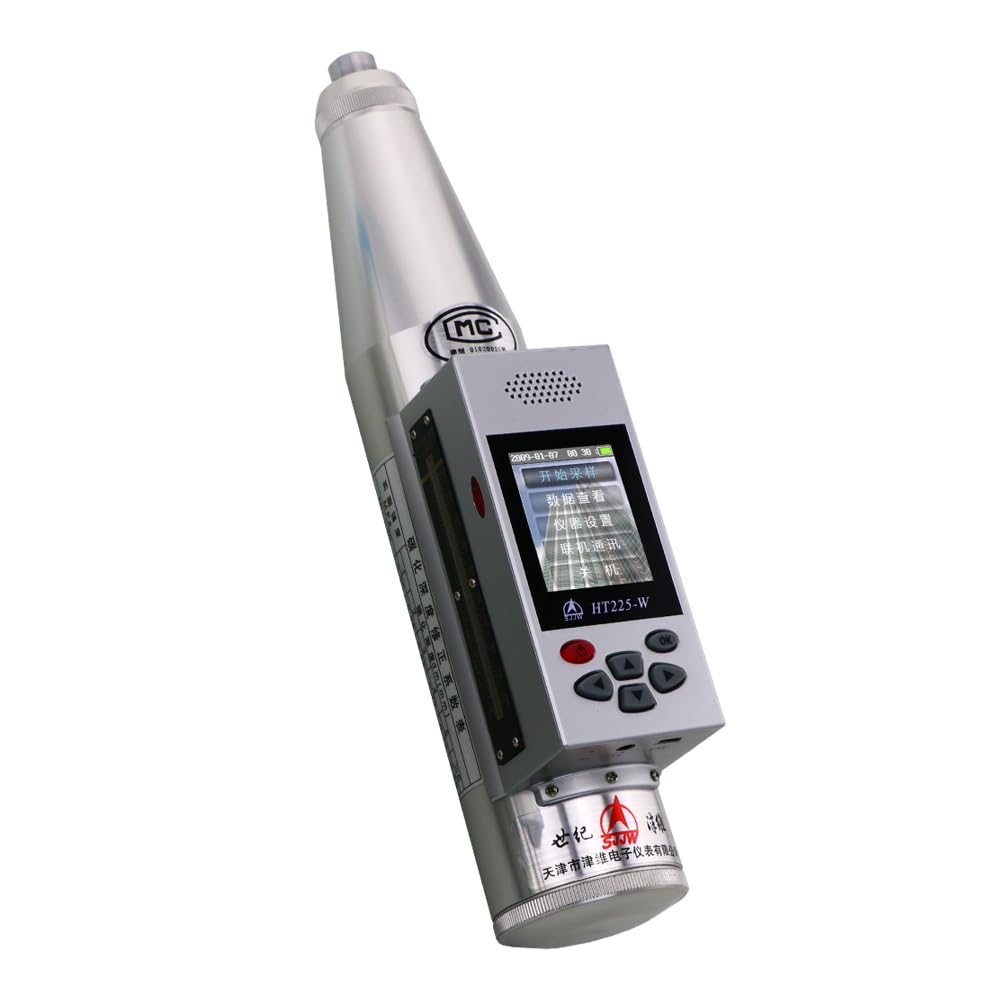

Graigar Integrated Voice Digital Test Hammer HT225-W with Measuring Ranges 10 to 60MPa Rebound Hammer High-resolution LCD Screen

Graigar Integrated Voice Digital Test Hammer HT225-W with Measuring Ranges 10 to 60MPa Rebound Hammer High-resolution LCD Screen

$888.00 USD
$1,024.00 USD $888.00 USD
促销 售罄

Integrated Voice Digital Test Hammer HT225-W/W+ with Measuring Ranges 10 to 60MPa Rebound Hammer High-resolution LCD Screen

Feature:

1. LCD large screen, high-resolution 160 * 160 (market products for the 160 * 128)

2. Low-power 2, 5# batteries (market products for the 6, 5# batteries)

3. Sweet voice report numbers function to improve the efficiency of testing staff. (Market products have no voice function)

4. Using USB communication interface, then quickly export the computer component data (market products for the RS232 interface)

5. Easy to operate, the software set the upper and lower rebound values, the outliers can be automatically removed.

6. Test hammer using imported parts, mechanical parts machining high precision

Specification
Specification

Measuring strength ranges

10~60Mpa

Impact energy

2.207J

Strike hammer stroke

75 mm

The consistency of the sample displayed value

≤± 1 (difference value between digital sampling

output value and the pointer readings)

Measurement range

From 10 to 70 N/mm2

The rebound values calibrated on steel anvil

80±2

Power

1.5V AA alkaline batteries

Power consumption approx.

Sampling case ≤50mA (average current)

Storage

80000 testing result

Brand: Graigar

Features:

  • 1)Based on the Technical Specification for Detecting Compressive Strength of Concrete by Rebound Meter (JGJ/T23-2011). 2)One-piece structure design, the rebound meter host and rebound meter sensor fusion into one, free of connecting wires, easy to carry, low failure rate. 3) The use of true-colour LCD display, 176 × 220 resolution, full Chinese interface, easy to operate.
  • 4) rebound value voice prompts function, do not have to watch the screen to know the rebound value, the detection of personnel testing efficiency. 5) rebound instrument sensor using non-contact metal reflective grating sensors, the use of potentiometer method or other contact sampling methods are prone to mechanical wear and tear and other defects, and have high precision, while retaining the mechanical pointer scale. 6) Can be connected externally to a wireless portable printer, on-site generation of test reports.
  • 7) Large-capacity data storage, can store 500 standard components, a standard component can be detected in 99 measurement areas, the actual detection of the needs of the work. 8) Instrument built-in uniform curve, and local curve, and can increase the regional curve, can store 20 strong curve. 9) The parameters of components and measurement areas can be recorded on site, and automatically calculate the results of components.
  • 10) Automatic rejection of abnormal values, the user can set the upper and lower limits of the rebound value, and the screen and voice prompts. 11) Adopt USB communication port, and virtual U disk mode, driver-free, export data or intensity measurement curve.
  • 12) With real-time clock calendar function, can automatically record the date and time of detection of each component. 13)Low power consumption power management function, can set the screen backlight, voice volume, automatic hibernation, and automatic shutdown function, the instrument's use of time.

model number: HT225-W

Part Number: HT225-W
