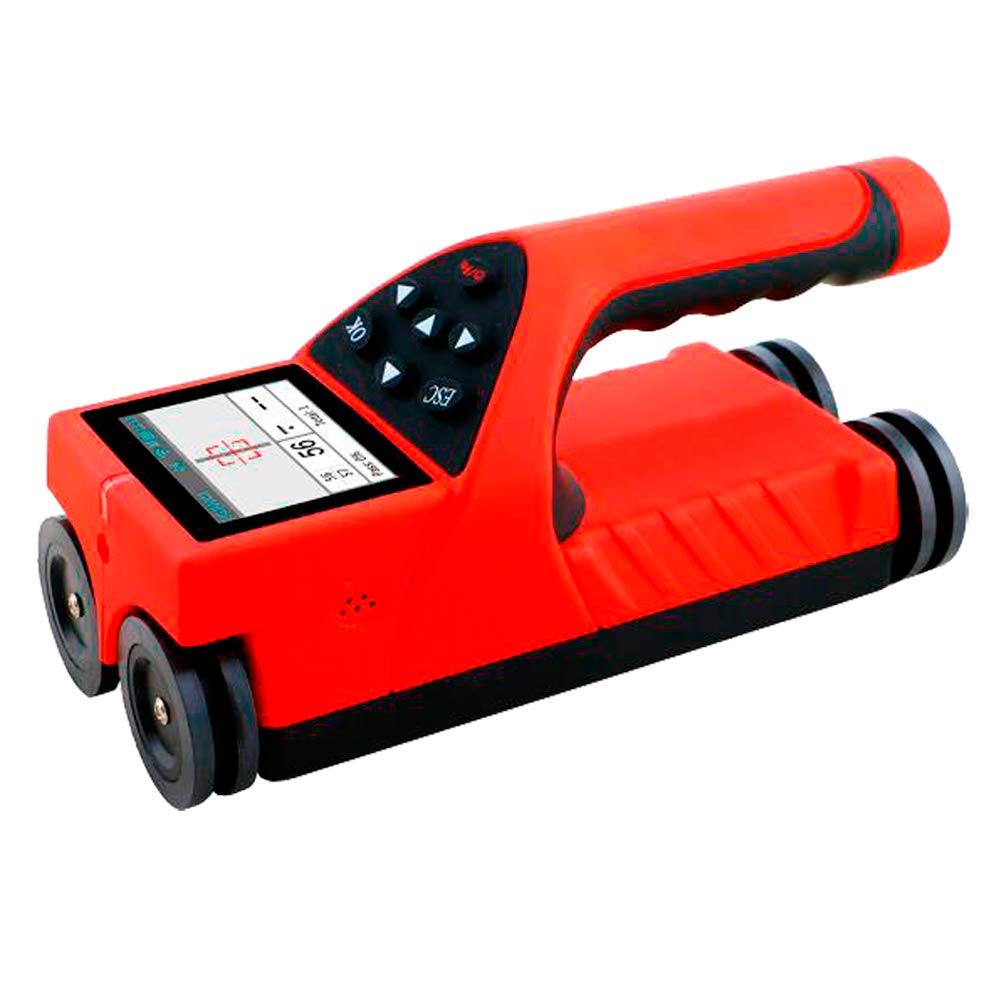

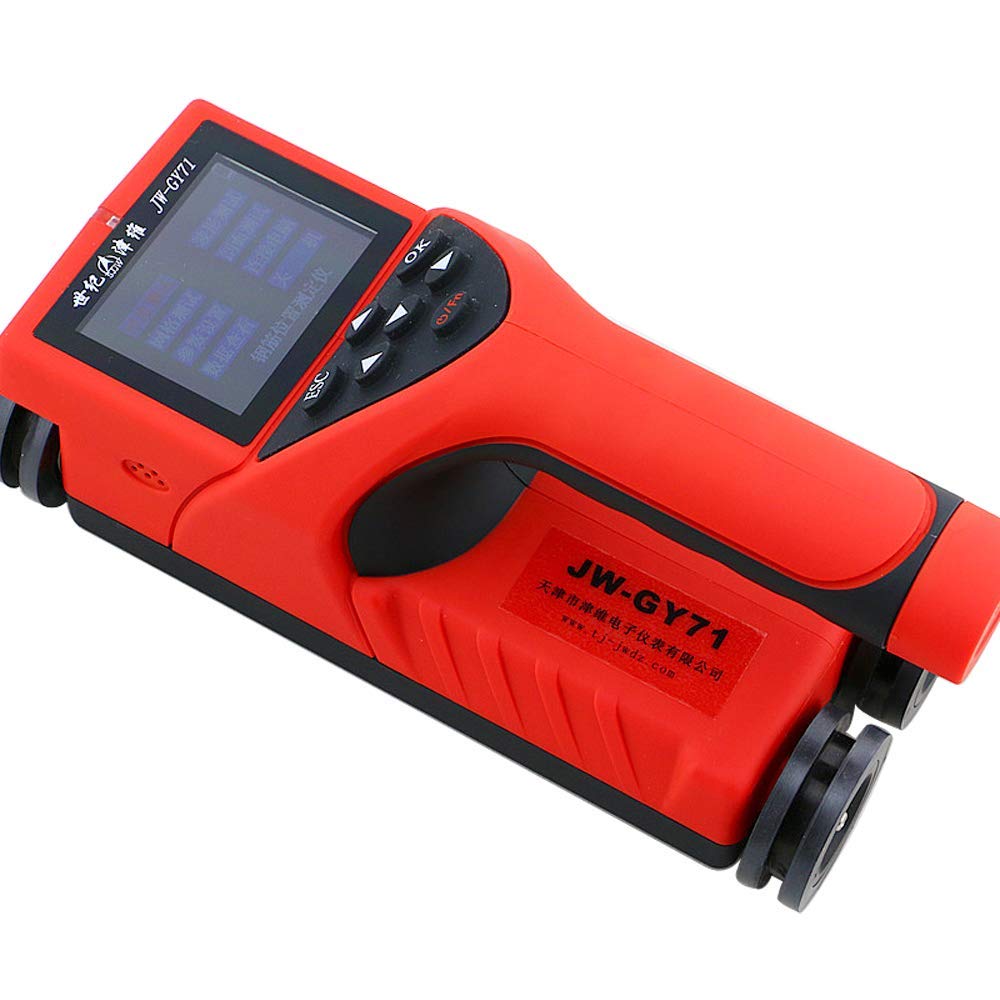

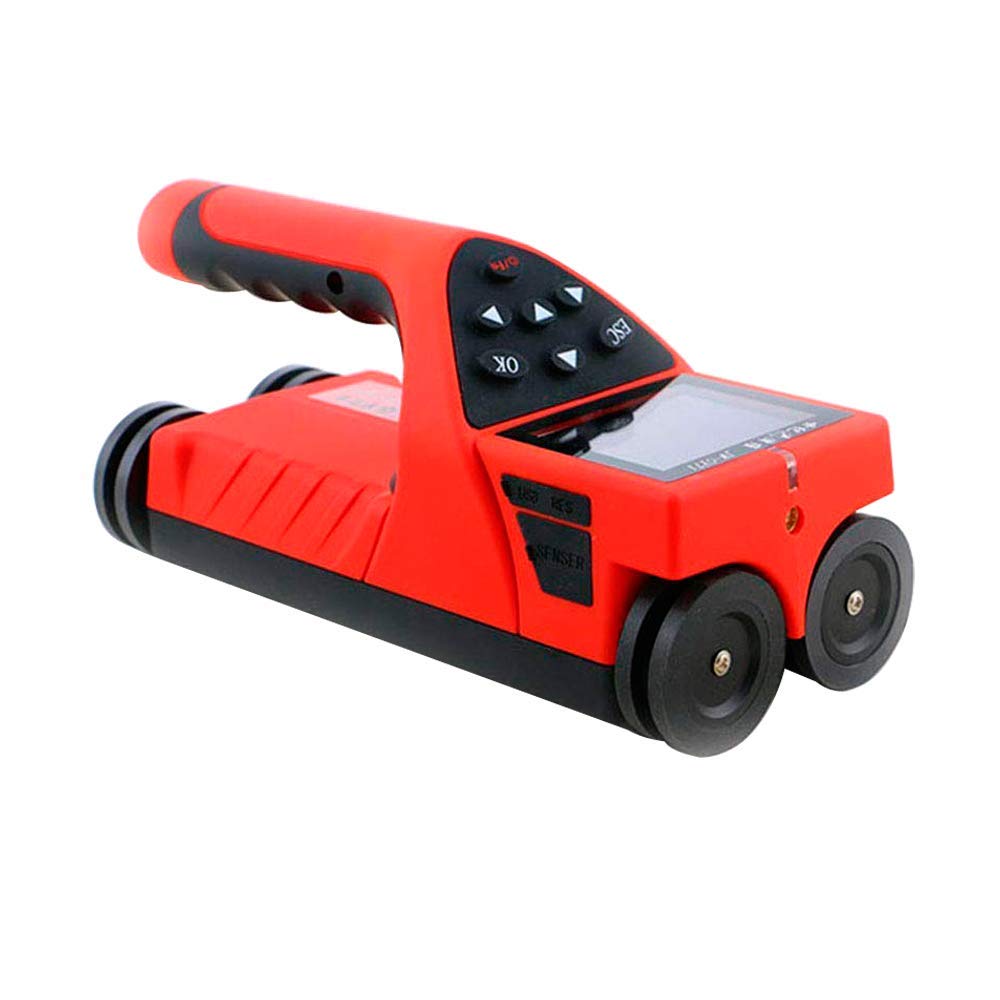

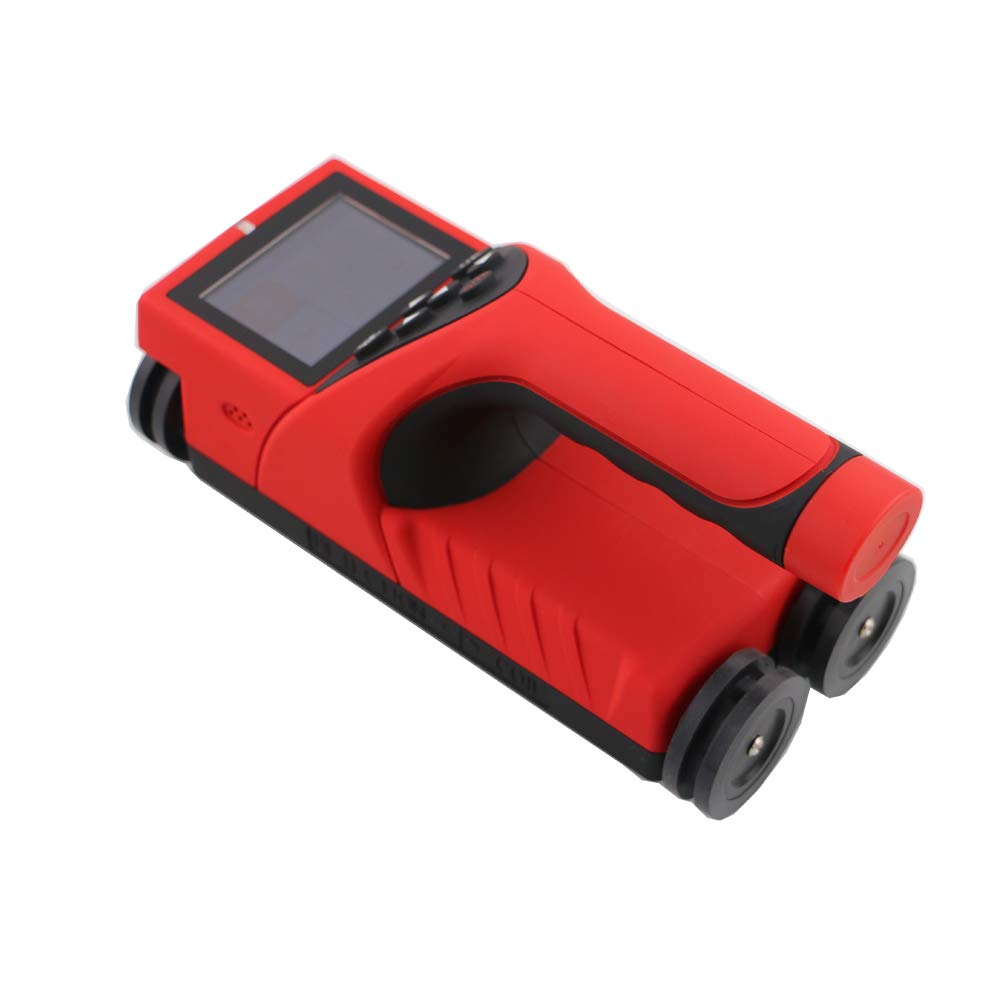

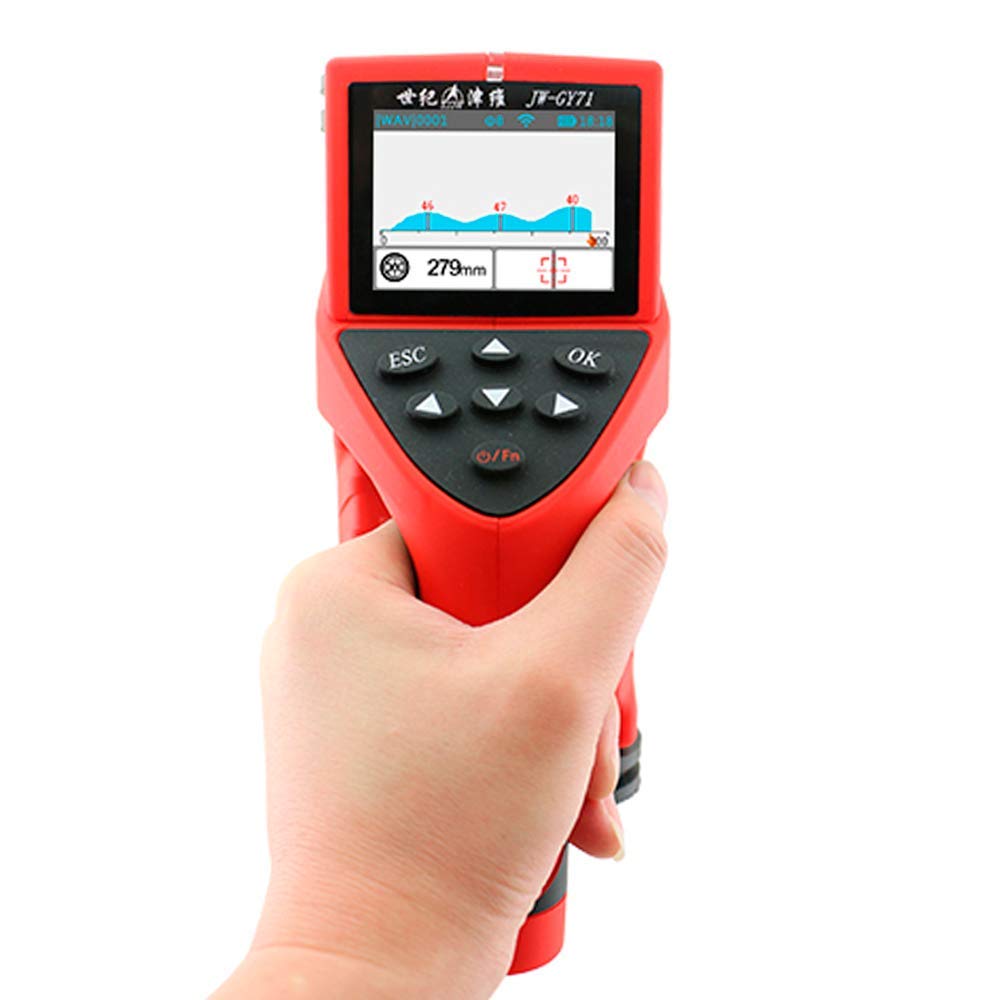

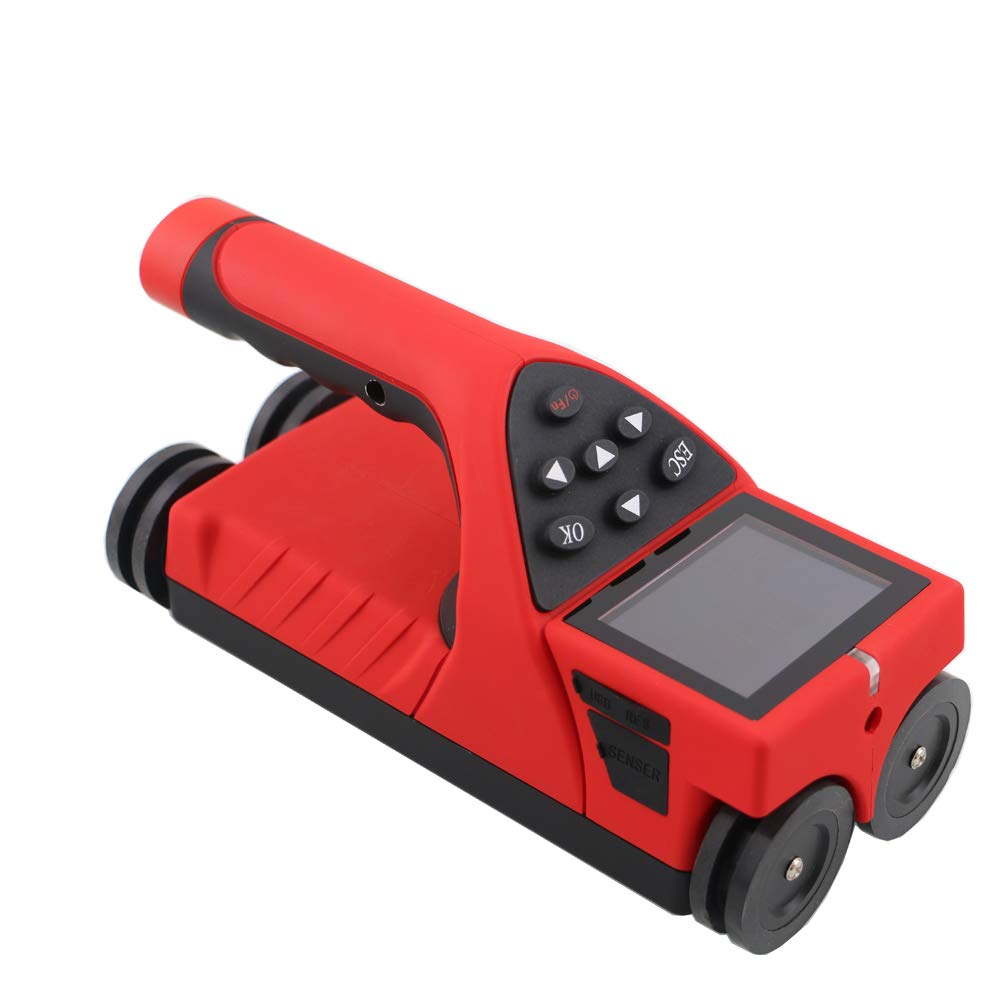

Graigar JW-GY71 NDT Integrated Rebar Scanner Integrated Rebar Locator Deep Concrete Scanner NDT Testing Steel Bar Scanner

Brand: Graigar

Color: Red&Black

Features:

• JW-GY71 NDT Integrated Rebar Scanner Integrated Rebar Locator' s investigation depth could reach 180mm
• JW-GY71 has single comprehensive probe.
• Automatic identification of rebar positions.
• Automatic reading spacing of bars.
• Peak scanning.

model number: Graigar JW-GY71

Part Number: JW-GY71

Details: Features:

investigation depth could reach 180mm

Single comprehensive probe.

Peak scanning

Automatic identification of rebar positions

Laser positioning

Automatic reading spacing of bars

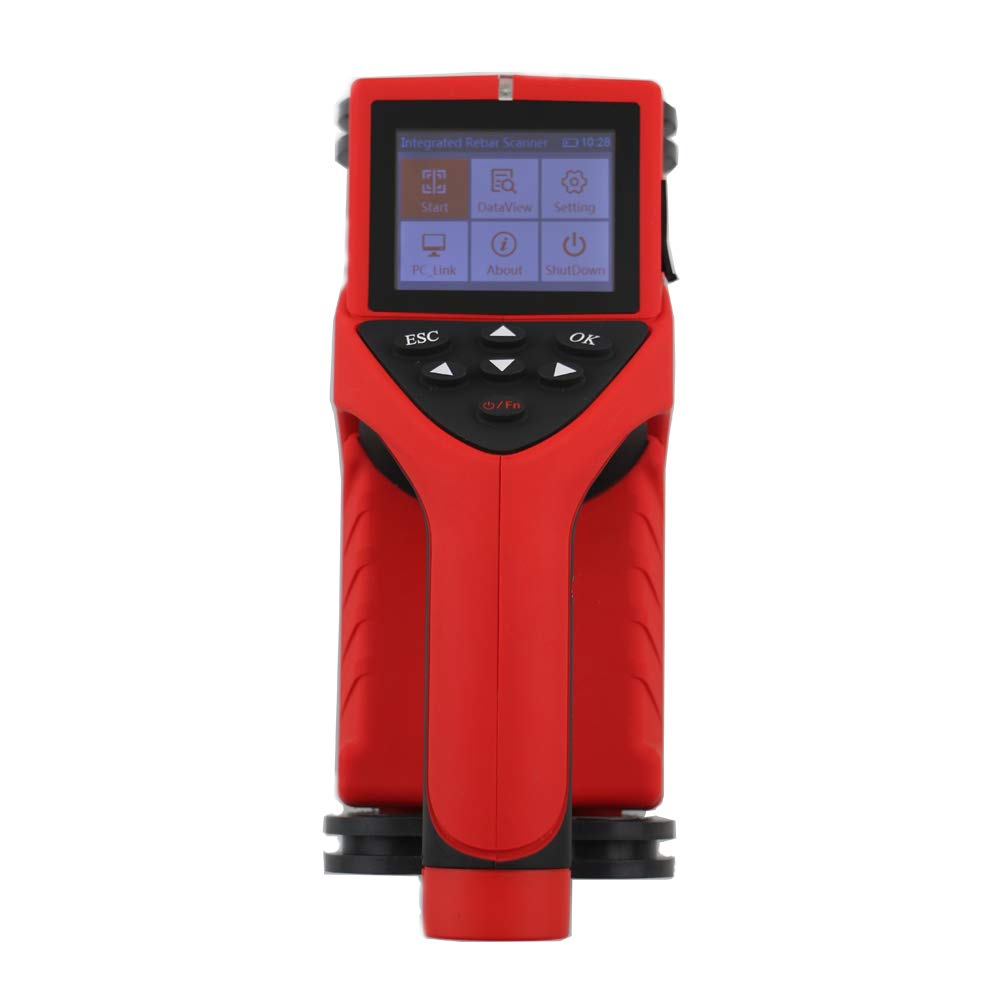

Machine software is complete.The report could be printed automatically connecting with computer

Grid scan of the rebar position

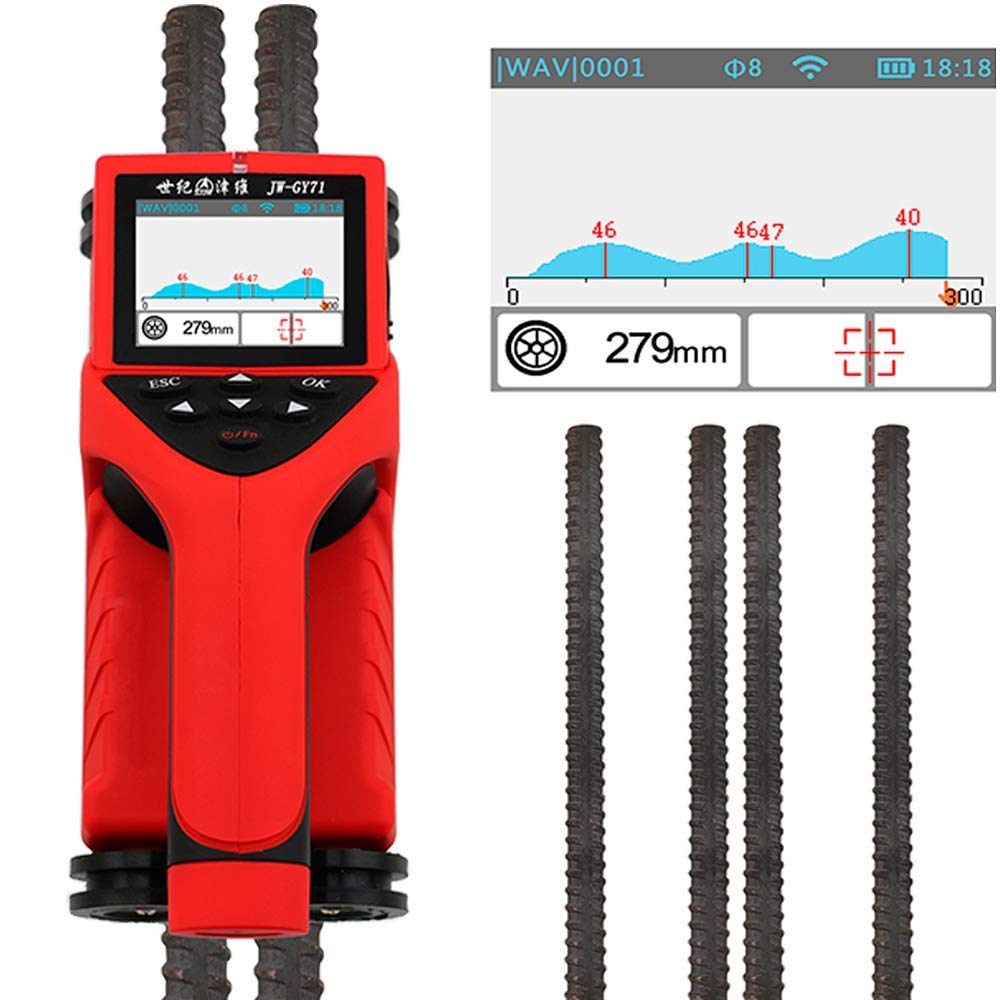

Profile scan of the rebar position

Technical Specification:

Bar diameter application range(mm):Φ6 - 50

Maximum permissible error of Bar diameter:≤±1

Cover thickness measuring range

The first measuring range (mm):6 - 90

The second measuring range (mm):7-180

The maximum error of cover thickness

The first measuring range (mm):6 - 59;The second measuring range (mm):7 - 79;Accuracy:≤±1

The first measuring range (mm):60 - 69;The second measuring range (mm):80 - 119;Accuracy:≤±2

The first measuring range (mm):70 -90;The second measuring range (mm):120 - 180;Accuracy:≤±4

Standard Packing:

Main unit, Software*1

USB connecting cable*1

Power charger*1

Manual*1

Warranty card*1

Carry case*1

EAN: 0799649266655
