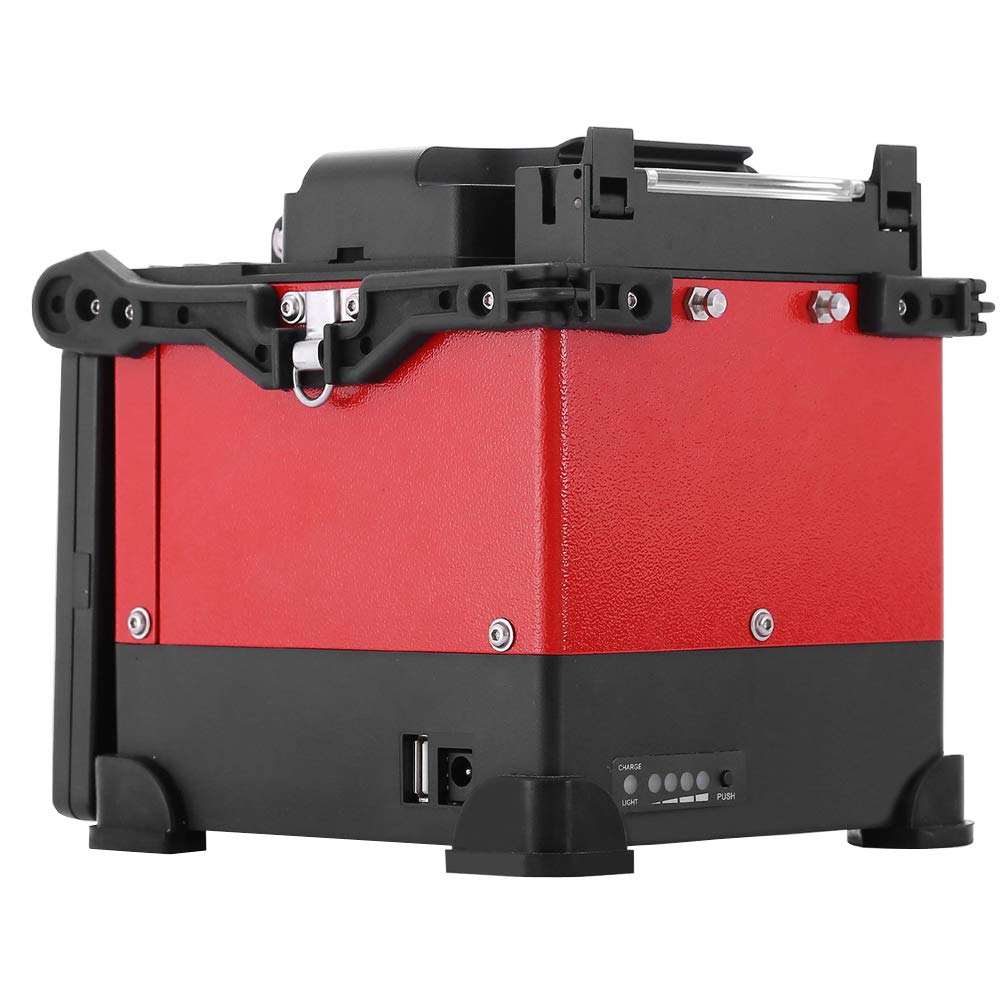

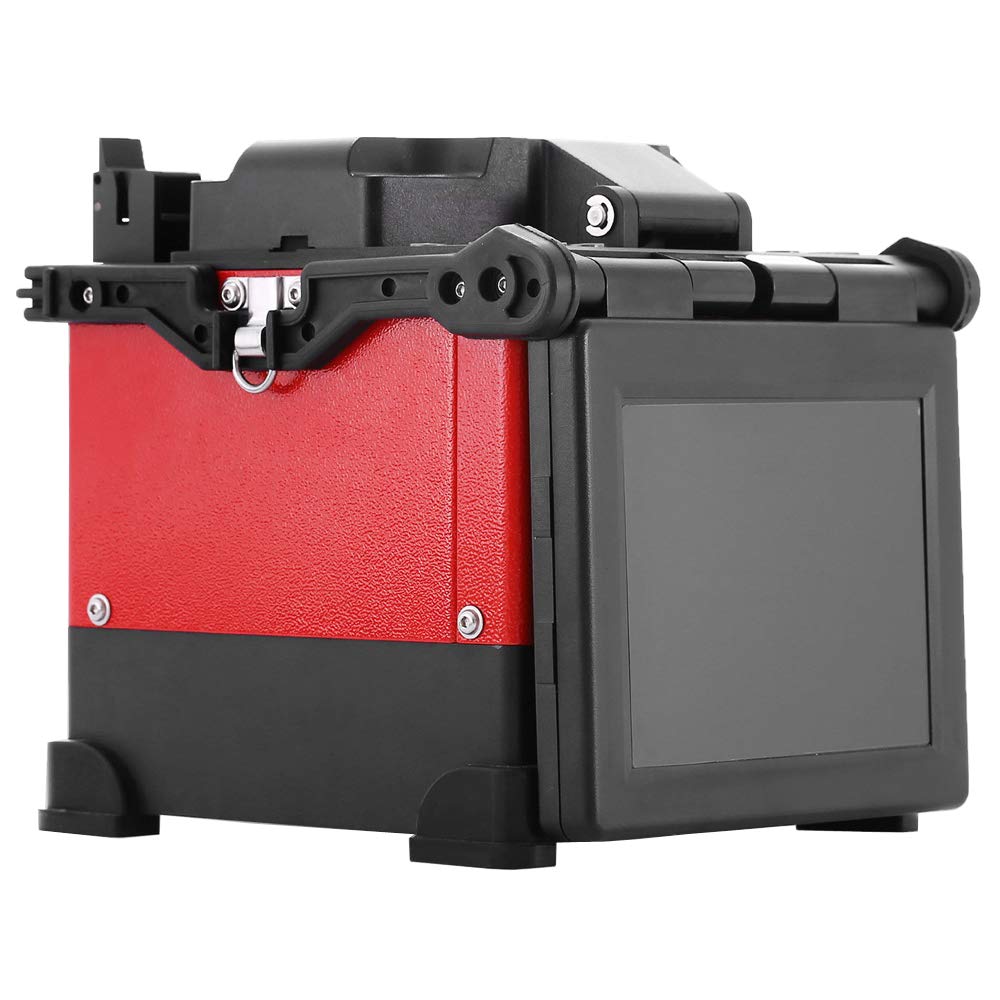

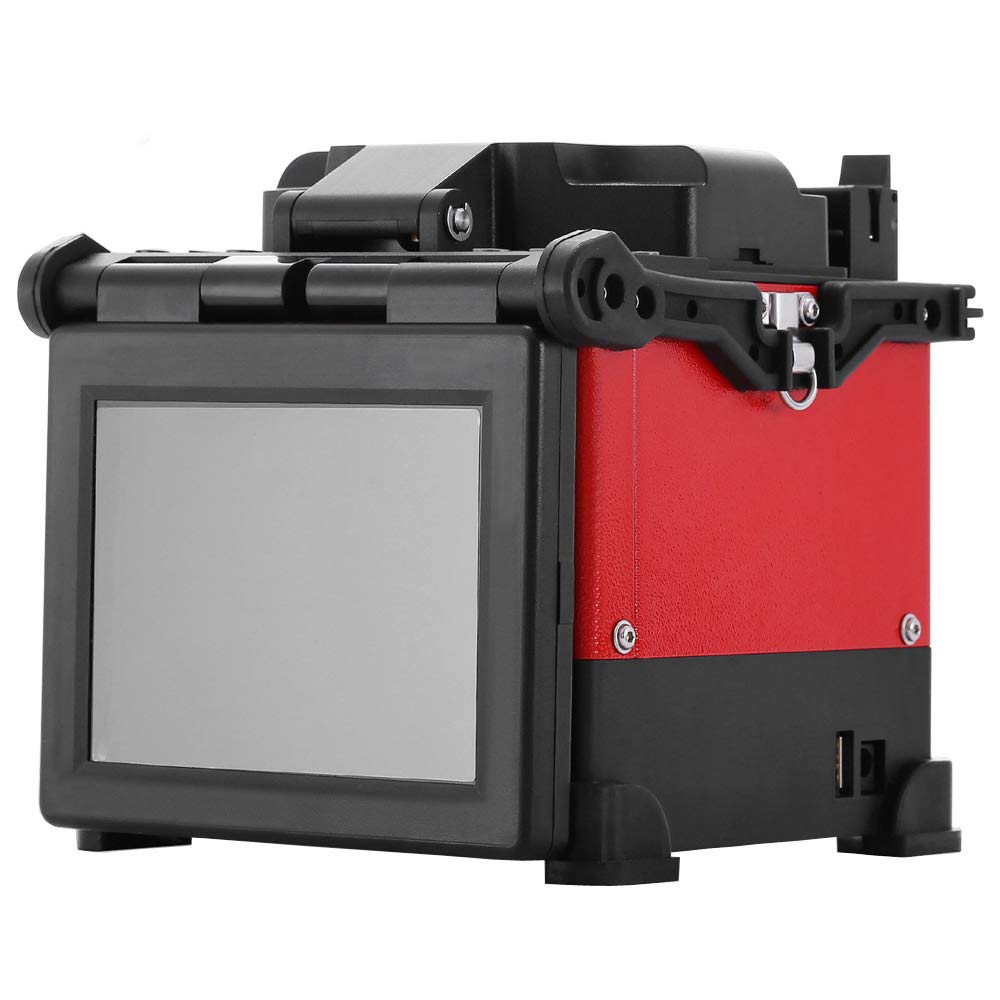

Graigar JW4108S Fully Automatic Heating Intelligent Optical Fiber Fusion Splicer Fiber Optic Splicing Machine 5 Inch LCD Display

Brand: Graigar

Color: Black&red

Features:

• JW4108S Optical Fiber Fusion Splicer has5 inches high Resolution colorful LCD display;Average splice time: 10 second;Average tube-heat time: 30 second;
• Lithium battery: up to 180 times of continuous splice and heat;Simultaneous X and Y views with 180 times magnification;
• New developed technology providing wind and dust resistance; Splicing mode：Auto & Manual & Full-Automation;
• Multipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber);
• Support USB Port;Storing 6,000 groups of splice results.

model number: JW4108S

Part Number: JW4108S

Details: Features
● Used for FTTH and ordinary fiber project ● Core to core alignment by PAS technology
● 8 sec splicing time and 30 sec heat time ● 300 X or Y view, 200 X and Y view
● 5 inch digital high-quality LCD screen, observe X and Y view at same time
● Three in one fixture, splicing single fiber, cable indoor and pig tail
● Built in large capacity lithium battery of 200 times splicing and heating
Splicing TypeSM, MM, DS, NZDS
Splicing Loss0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)
Return Loss>60dB
Splicing ModeManual, Half Auto, Auto
Fiber AlignmentCore to Core Alignment by PAS technology
Applicable FiberCable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time≤9s
Heat Time≤30s
Cleaved Length8～16mm
Fiber Image/ Magnification300/200
Tension TestStandard 2N (option)
Heat Shrinkable Sleeve60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time)
Electrodes Life3000, easy to replace electrodes
InterfaceUSB Convenient data download and software update
Construction LightingBuilt in high brightness, wide range of lights, easy to operate at night
Power supplyBuilt in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition0-5000m above sea level, Temperature: -10-60℃,Humidity:0～95%RH (No dew)

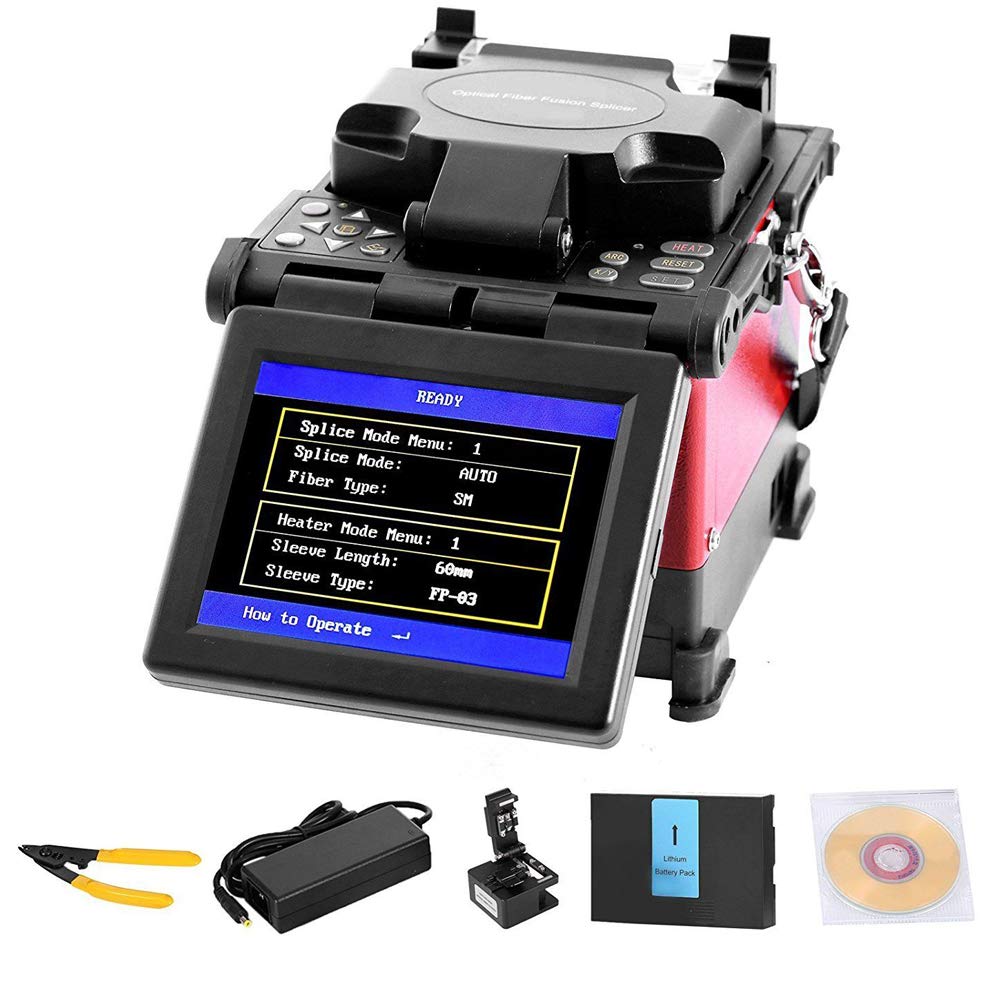

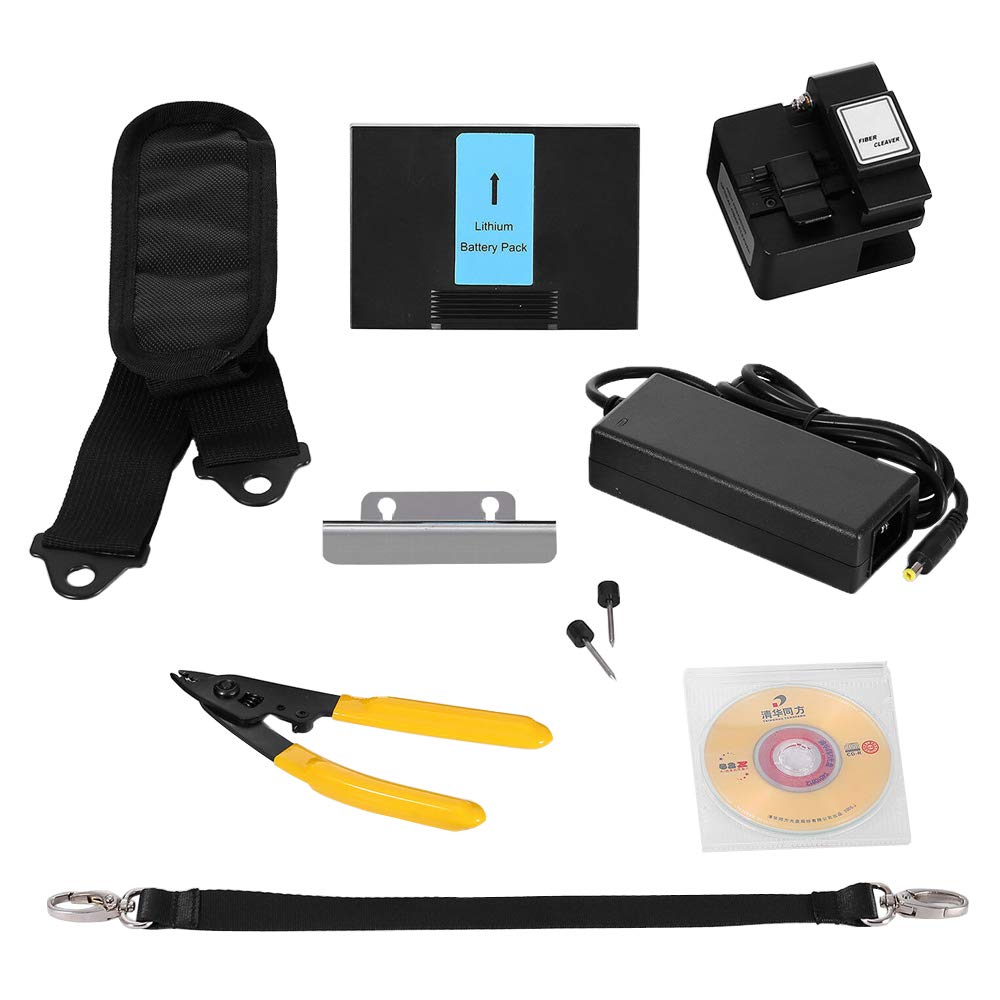

Packing List
1 Fusion Splicer ( JW4108S )1 set

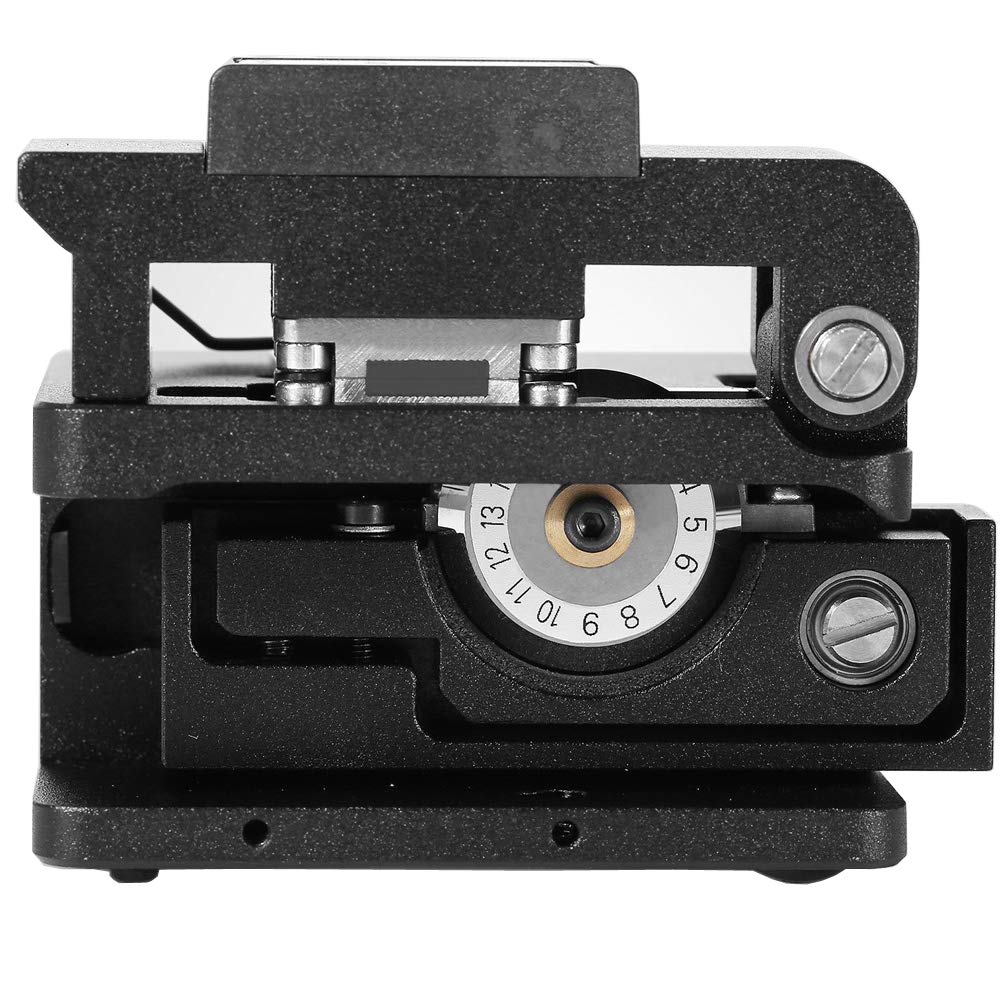

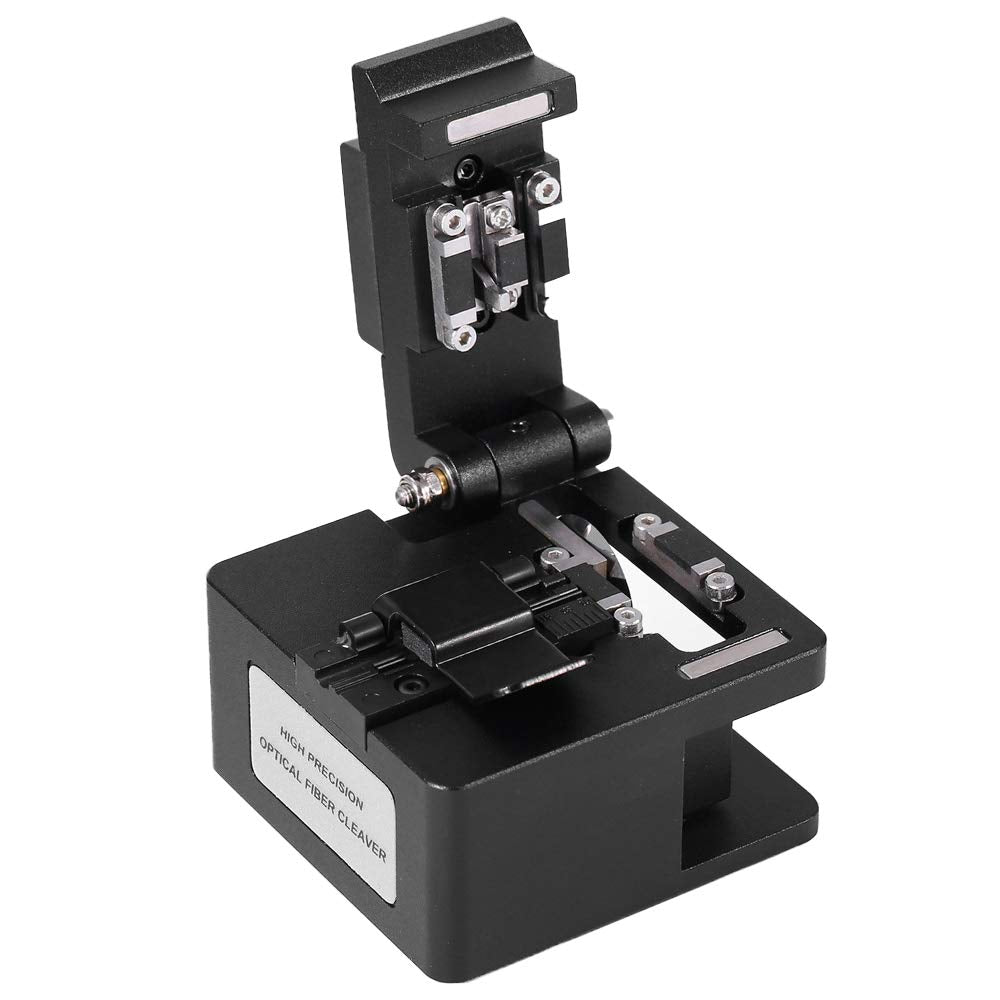

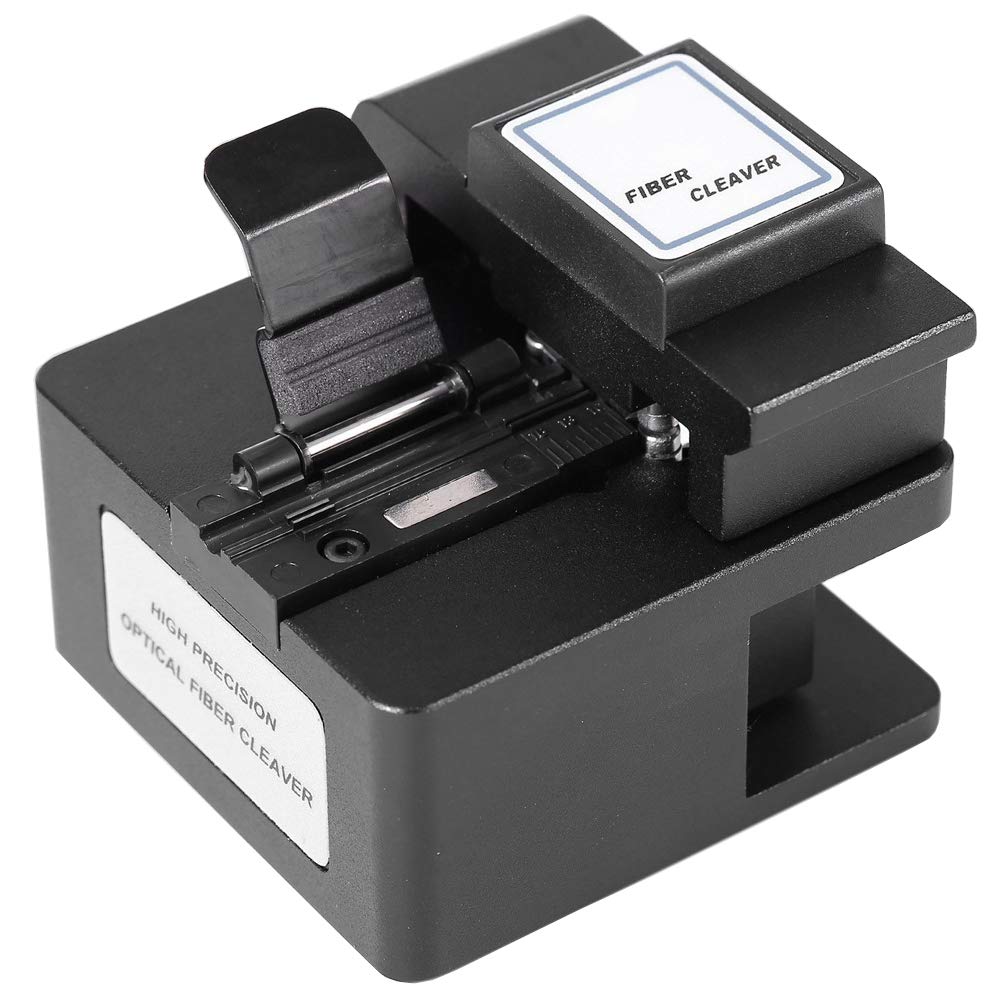

2 Fiber Cleaver1 pc
3 Fiber Stripper1 pc
4 AC Adatpor1 pc
5 Li Battery1 pc
6 Charger1 pc
7 Spare Electrodes1 pair
8 Cooling Tray1 pc
9User Manual CD1 pc

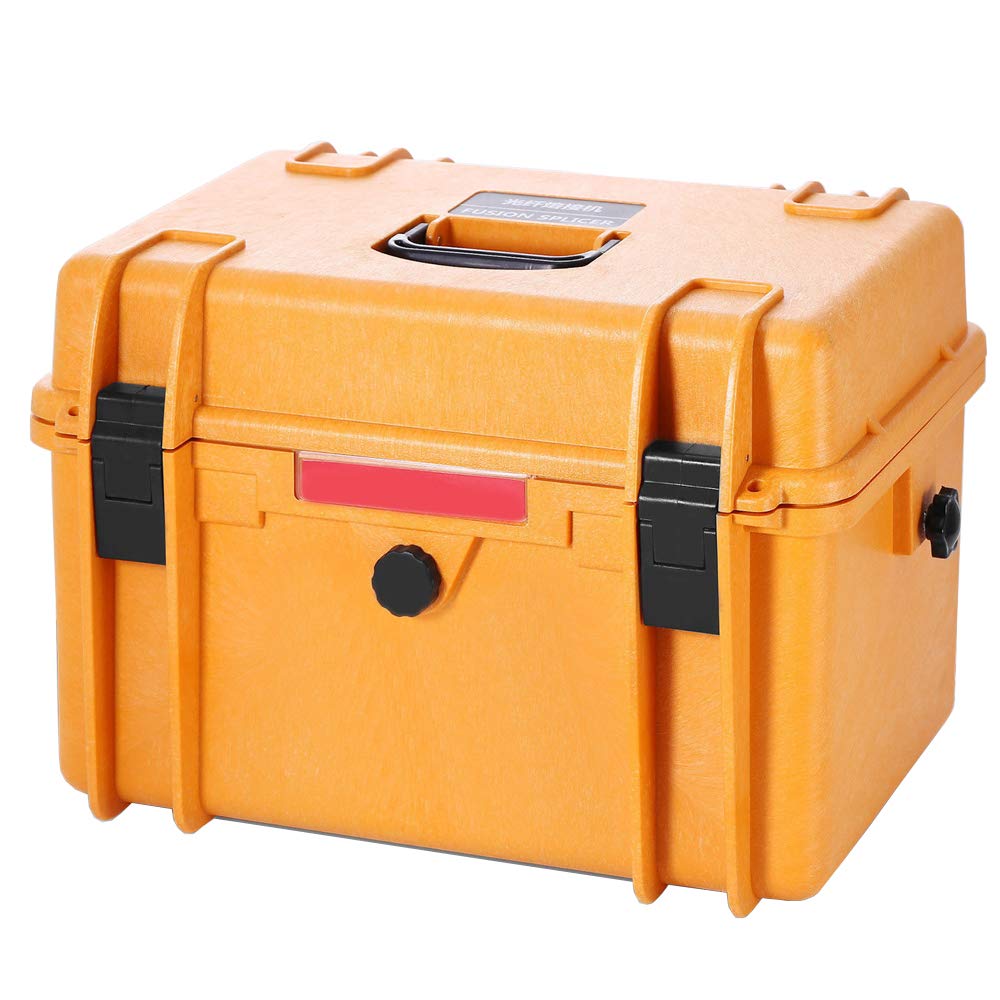

10Carrying Case1 pc

EAN: 0799649266839
