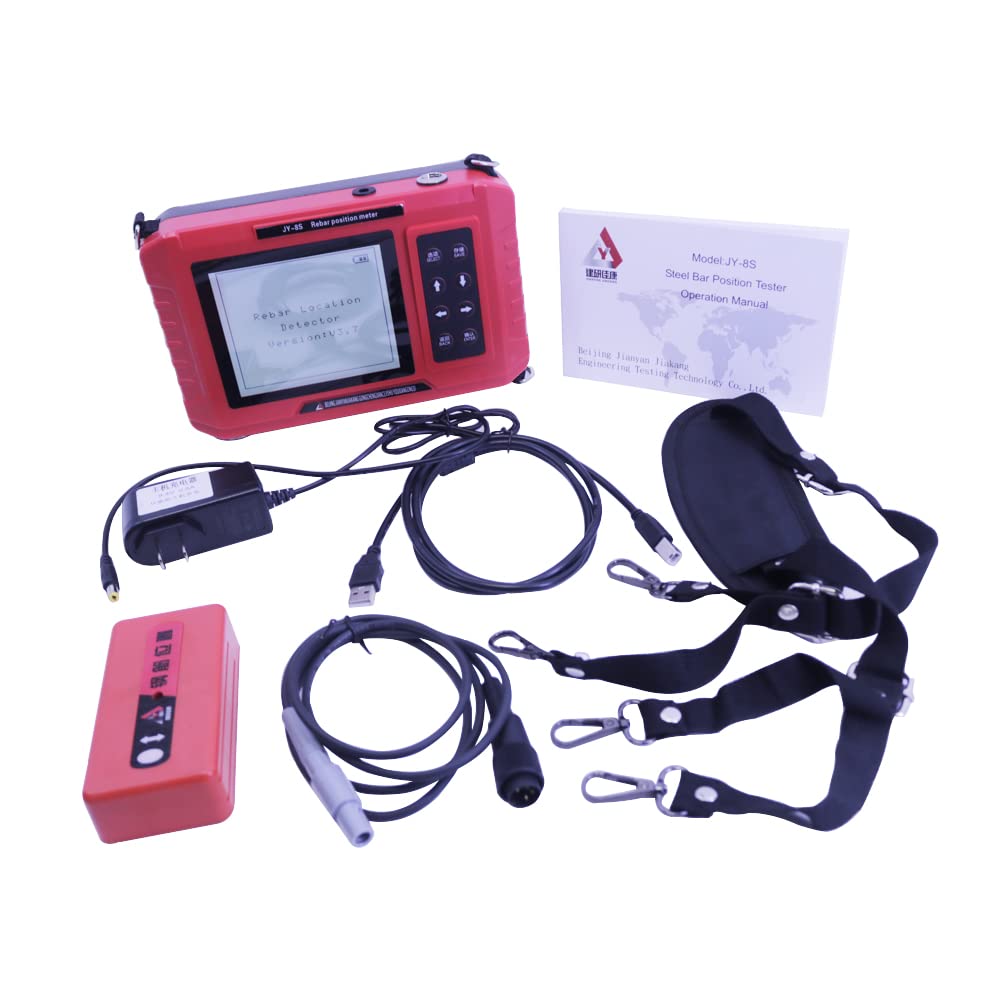

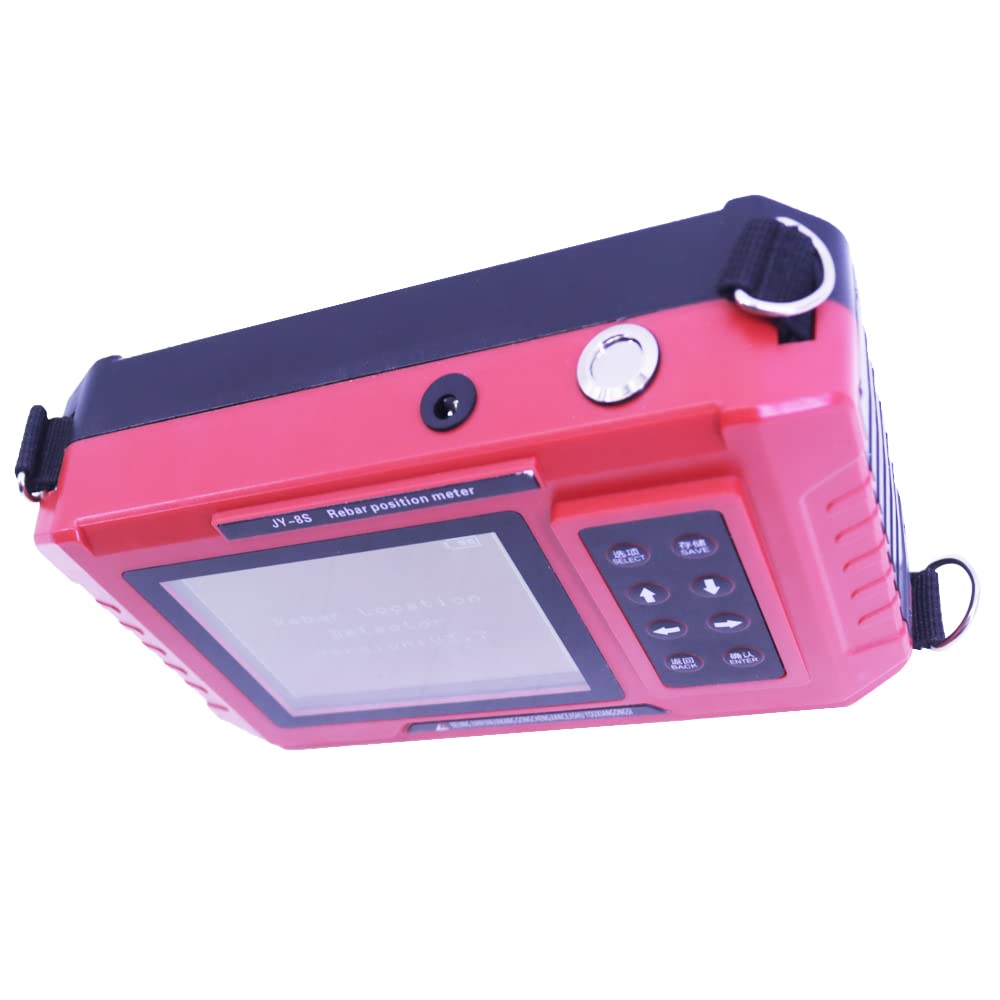

Graigar JY-8S Concrete Rebar Locator Scanner: Reinforcement Detector, Compact, Lightweight, Non-Destructive, Accurate, Voice Alarm, Backlit Display

Brand: Graigar

Color: Red

Features:

• Compact, lightweight JY-8S rebar locator using nondestructive techniques of electromagnetic induction ，reinforced concrete in order to detect and analyze the position .
• Can accurately locate reinforcing bars and steel mesh ,can measure the thickness of the protective layer of concrete , and to determine the diameter of reinforcement bars.
• Detect and locate reinforcing bars and other metal construction equipment
• Use voice alarm and signal to determine the reinforcement bar shows the location of the largest
• easy to use indicator has a backlit display

model number: JY-8S

Part Number: JY-8S

Details: Use
After the removal of the concrete cover template for acceptance
Positioning reinforced to avoid them when drilling
Provide the necessary data ( location , cover, reinforcement diameter )
Measure the depth of concrete cover
Quality assurance in mass production of precast concrete elements .

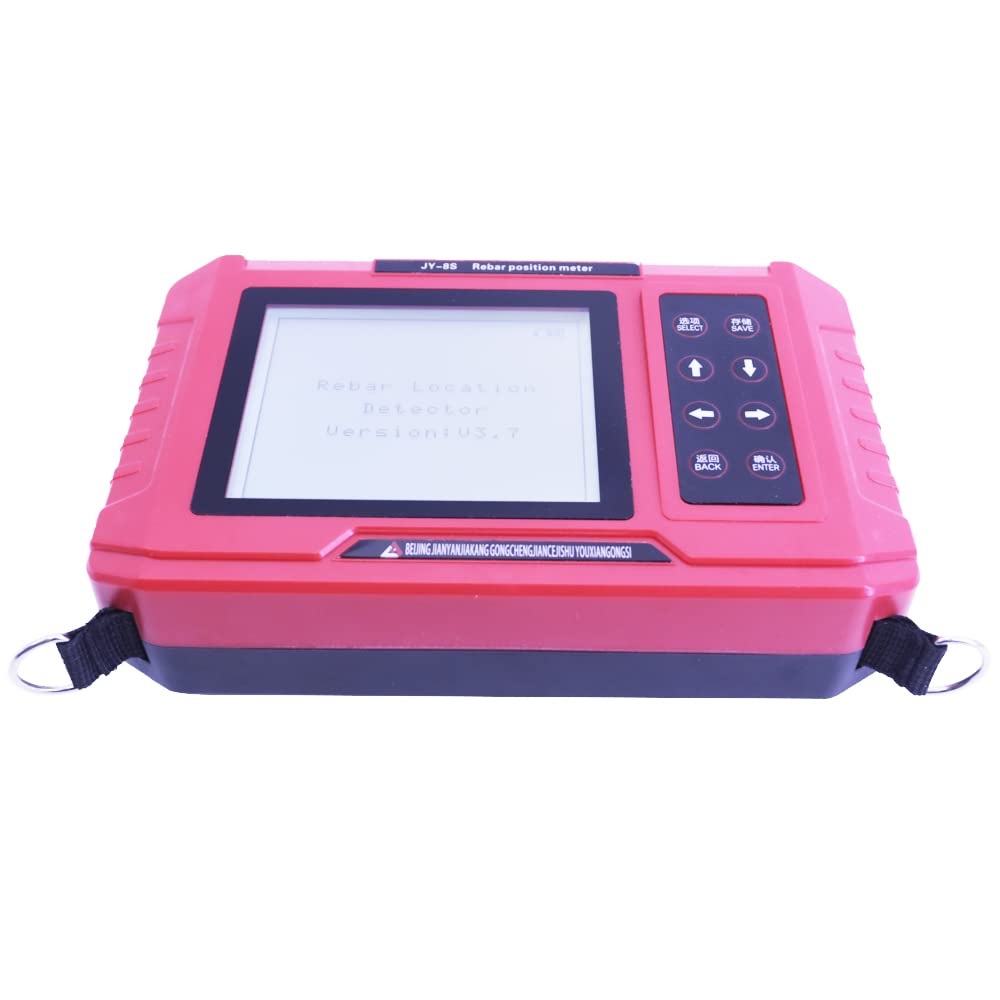

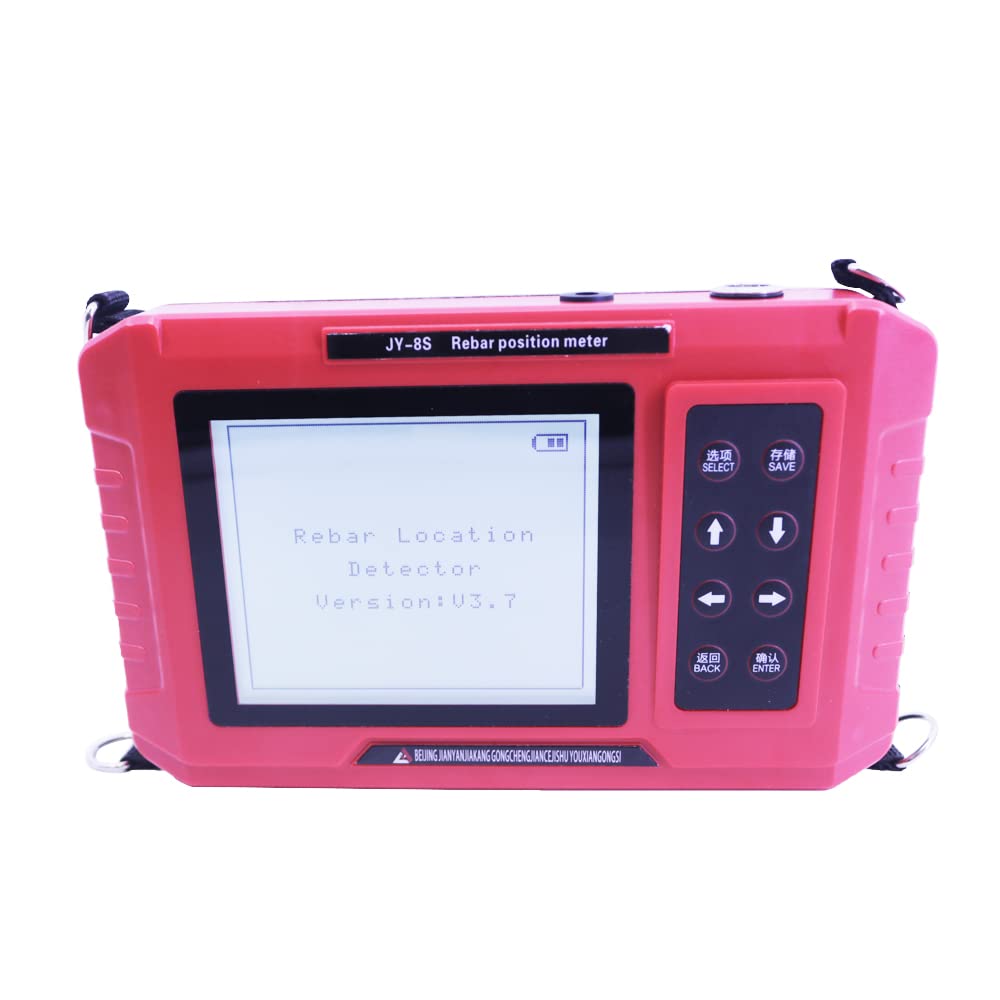

Display: LCD display with backlight display,
Interface : RS232 interface or a USB adapter
Protective layer thickness measurement ( nominal ) range:
The first range ( nominal ) range : 6mm ~ 90 mm;
The second range ( nominal ) range : 7mm ~ 180mm;

Battery Life: 32 hours continuous operation
Memory Capacity: Can store data for 1000 objects, 256 measured values for one object max
Data Transfer: 1 USB port
Analysis software: Based on Microsoft Windows, can export Detect Report in Microsoft Office Word format automatically.
Operating Weight (including probe): 0.75kg(1.7lb)

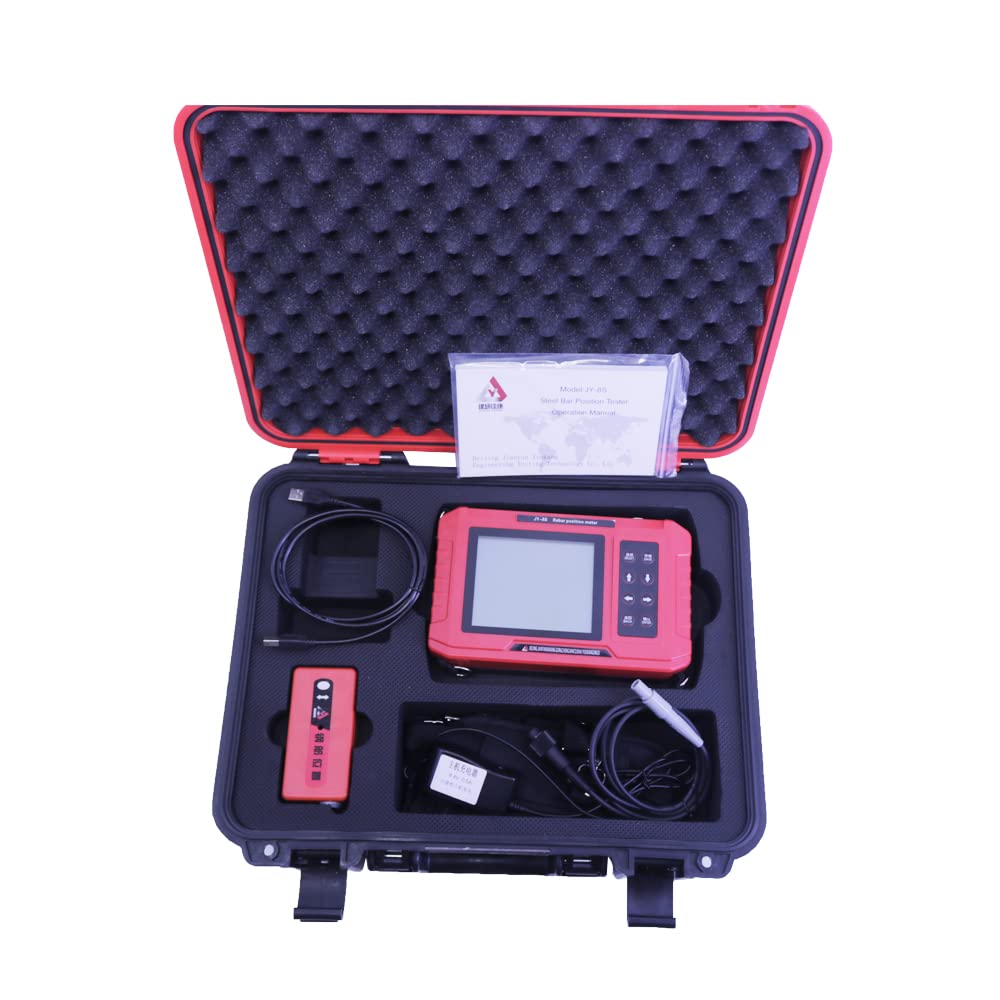

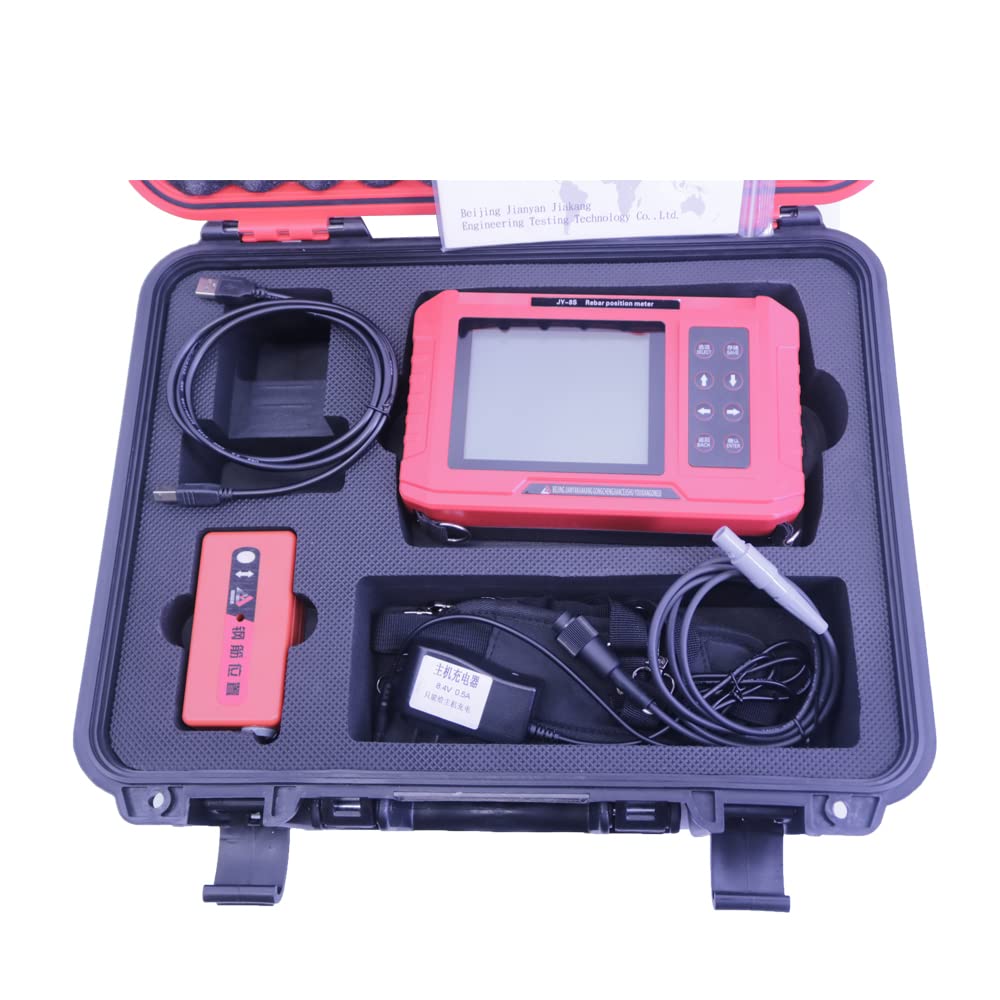

Weight including Carrying Case: 4.5kg(10lb)
Operating Temperature Range: -10°C to 40°(14°F to 104°F)

EAN: 0707457583895
