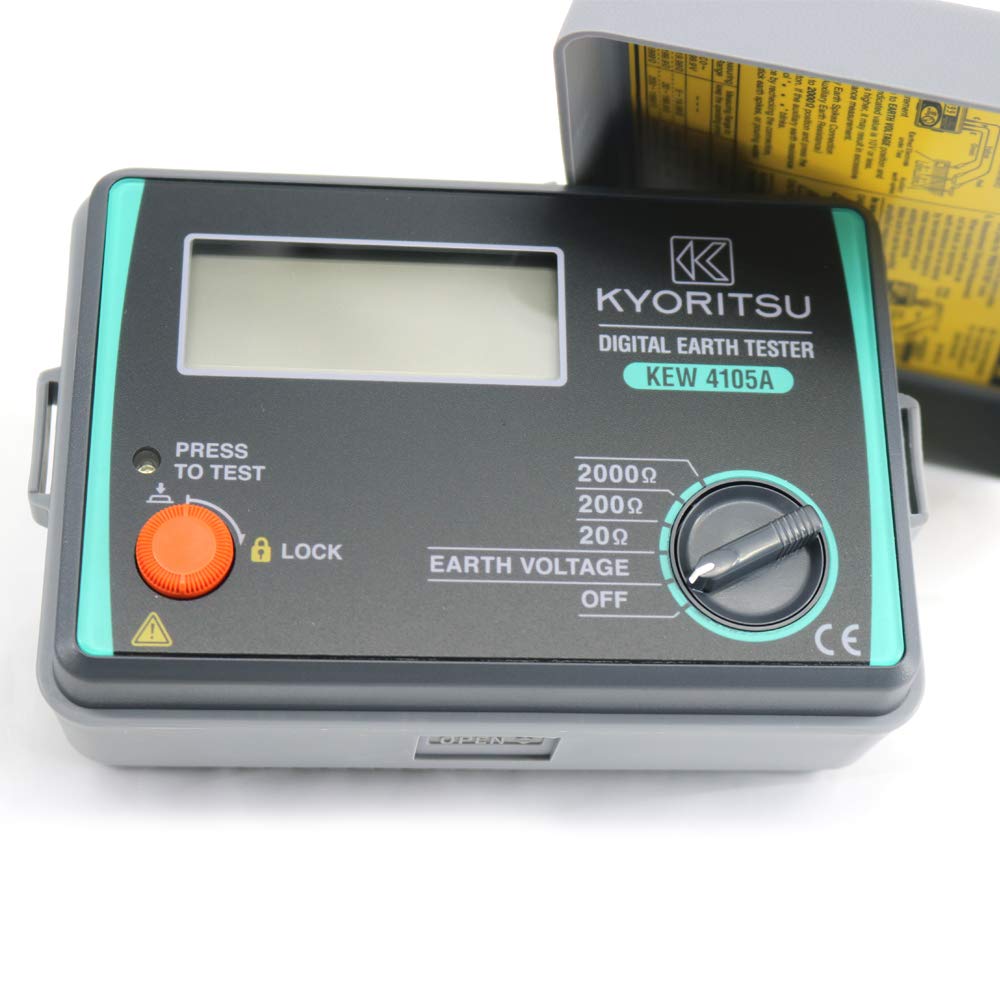

Graigar KEW4105A-H Digital Earth Tester Range 0-20/200/2000OHM Kyoritsu 4105AH Resistance Meter

Brand: Graigar

Color: Black&Blue

Features:

• In addition to the facility for precision measurement, test leads for simplified two wire easuring system also supplied as standard accessories. (unit can be hung from the neck for simplified measurement)
• Dust and drip proof.(designed to IEC 529 IP54). Designed to meet IEC 61010-1 safety standard.
• KYORITSU 4105A-H Digital Earth Resistance Tester is capable of measuring earth voltage. Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

model number: KEW4105A-H

Part Number: KYORITSU 4105A

Details: Specification:
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
Dust and drip proof. (designed to IEC 529 IP54)
Earth resistance value can be read directly from the scale.
Designed to meet IEC 61010-1 safety standard.
Capable of measuring earth voltage.
Small and lightweight. Shock resistant new case material.
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp. Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.

MeasurementRangesEarth Resistance: 0~12 Ω/0~120 Ω/0~1200 ΩEarth Voltage [50,60Hz]: 0~30V AC
AccuracyEarth Resistance: ±3% of full scaleEarth Voltage: ±3% of full scale
Overload ProtectionEarth Resistance: 276V AC for 10 secondsacross 2 of the 3 terminalsEarth Voltage: 276V AC for 1 minute
Safety StandardIEC 61010-1 CAT.III 300V Pollution Degree 2, IEC 61557
Applicable StandardsIEC 60529 IP54
Withstand Voltage3700V AC for 1 minute
Power SourceR6P (AA) (1.5V) × 6
Dimensions105(L) × 158(W) × 70(D)mm
Weight600g approx.

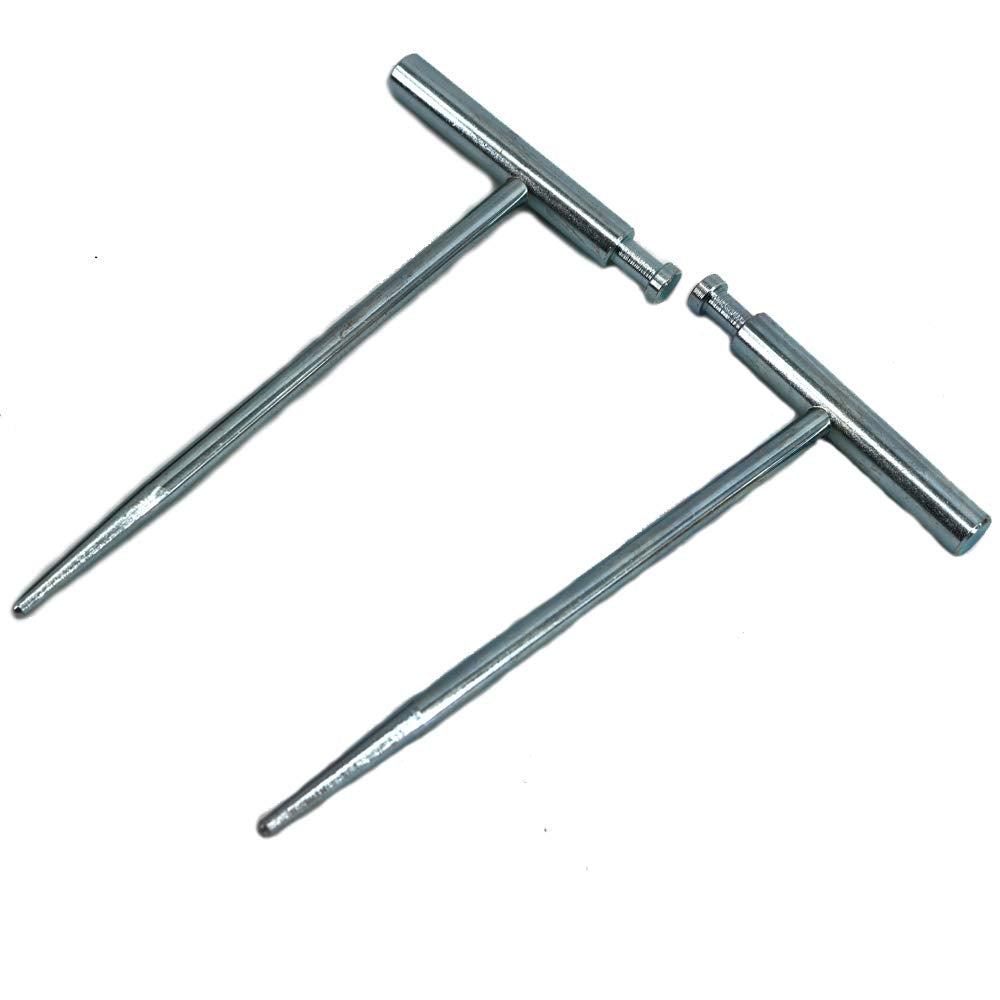

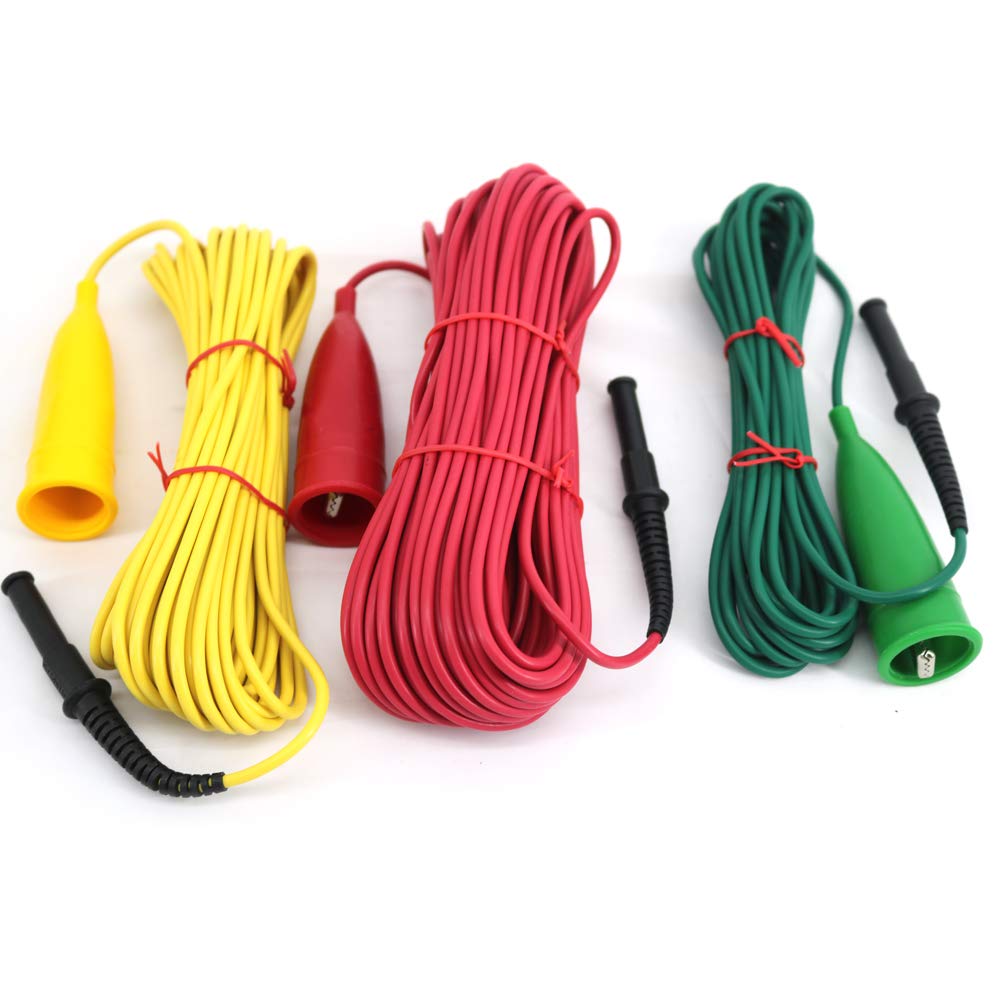

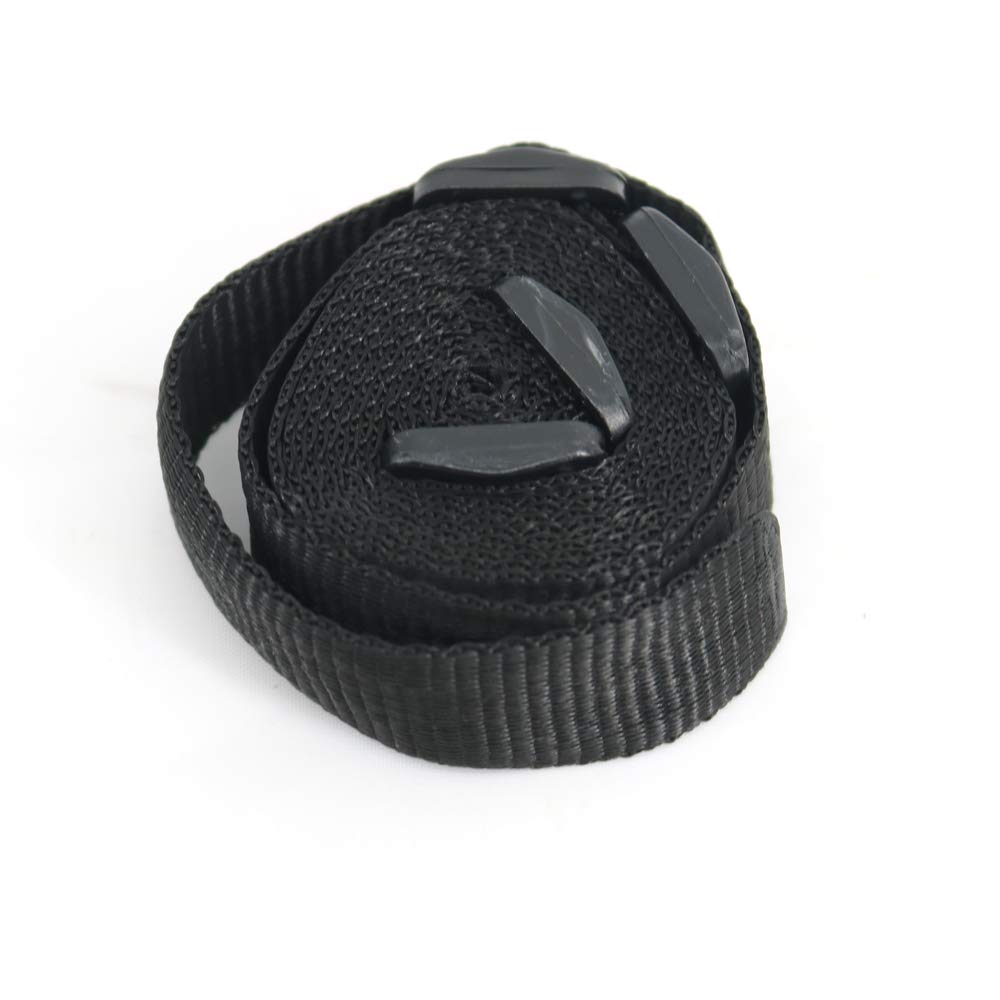

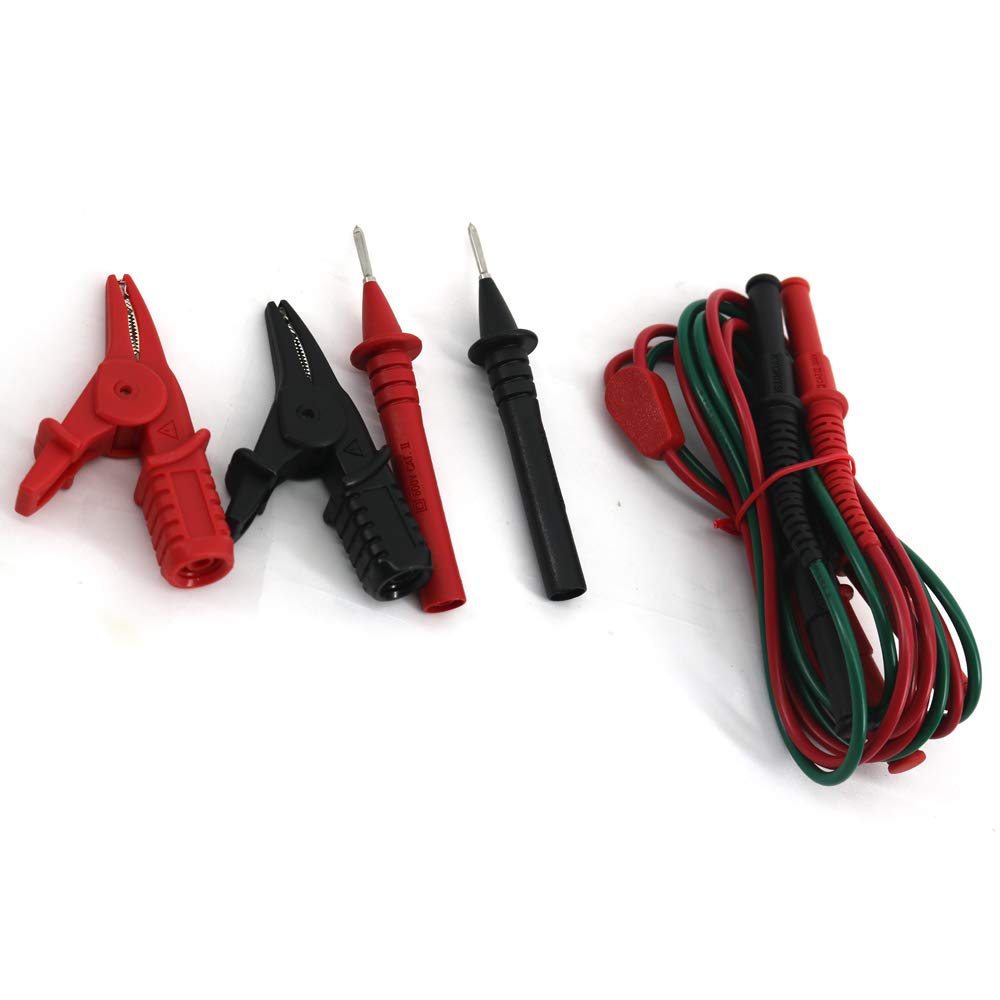

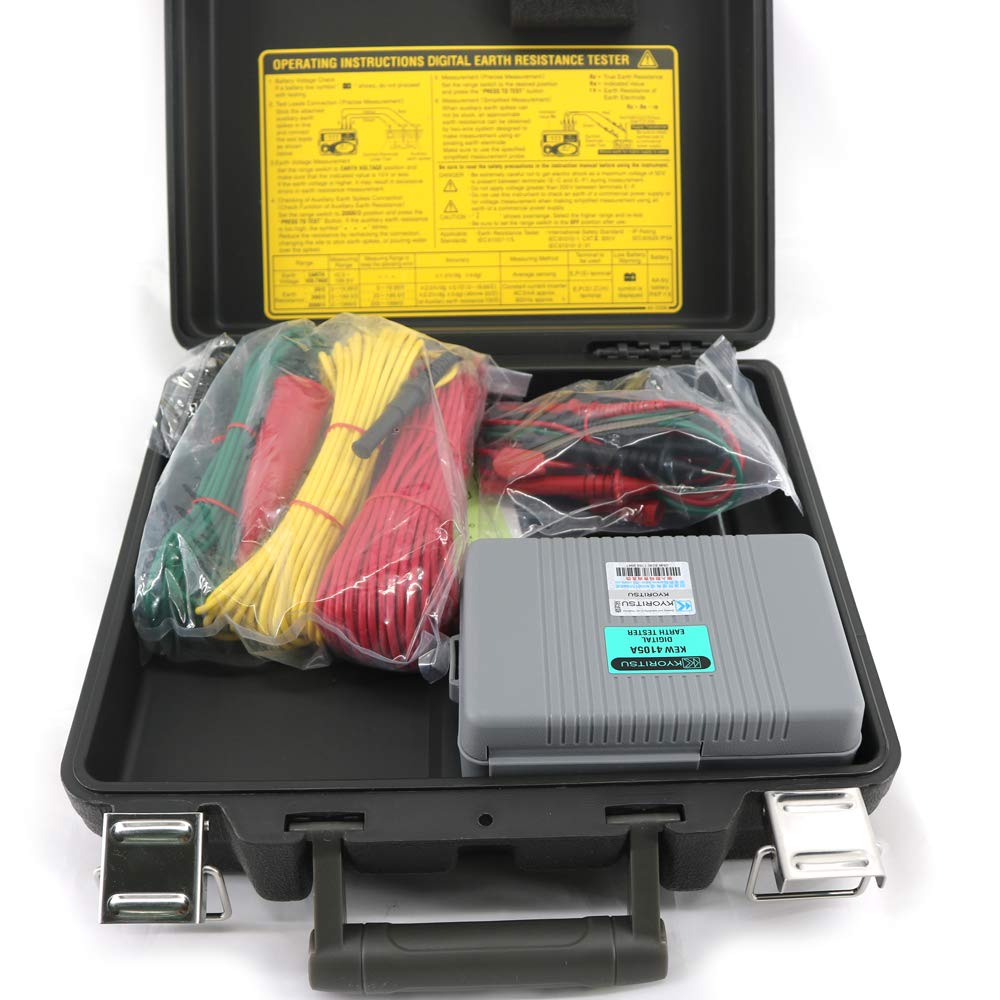

Accessories7095A (Earth resistance test leads) × 1set(red-20m, yellow-10m, green-5m)8032 (Auxiliary earth spikes) × 1set7127A (Simplified measurement probe) × 1setR6P (AA) × 6Neck strapInstruction ManualCarrying Case: : 9164 (Hard case)

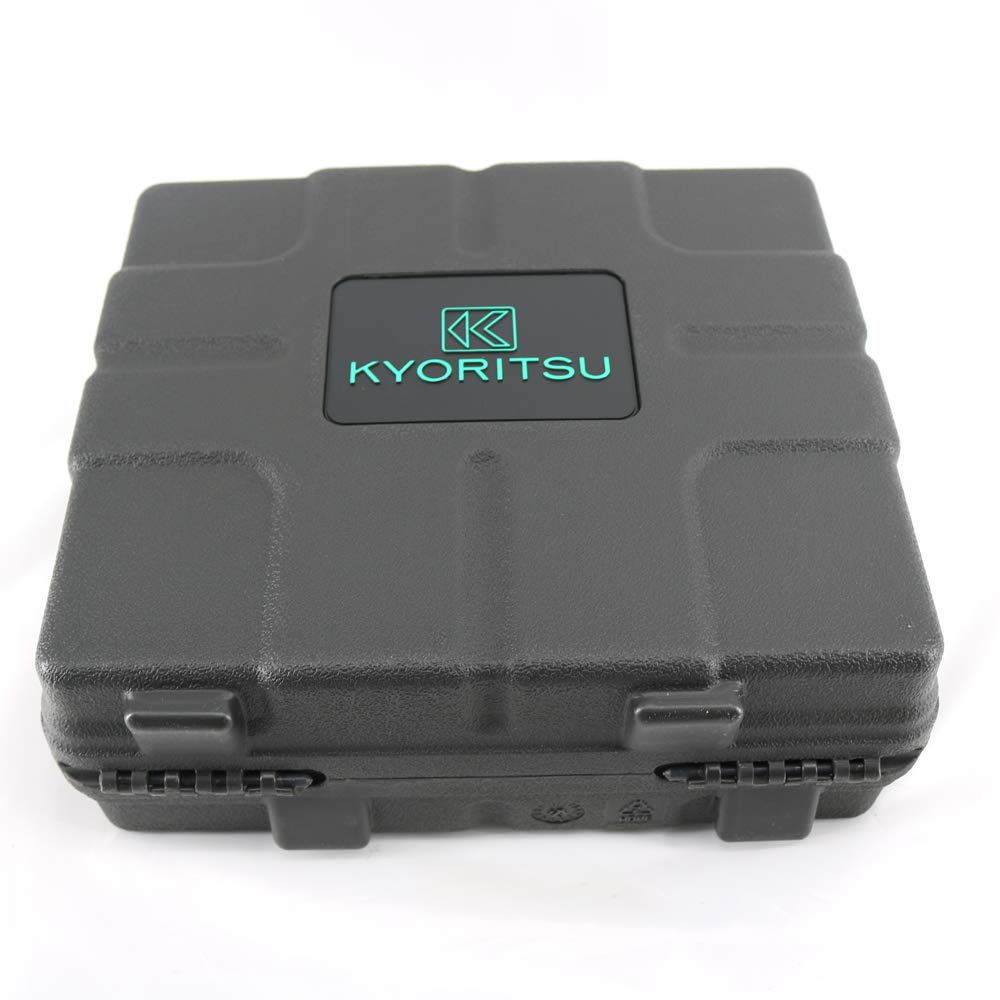

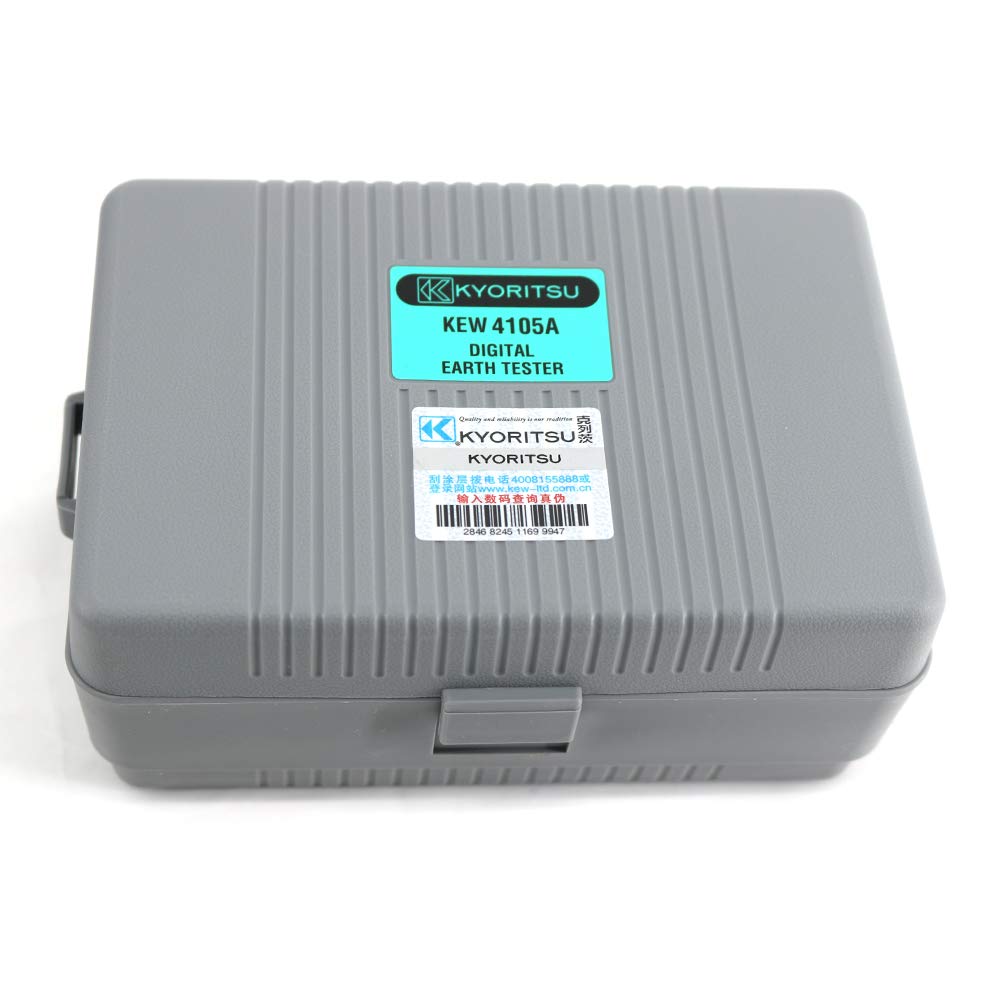

Carrying Case: 9164 (Hard case)

EAN: 0799649266716
