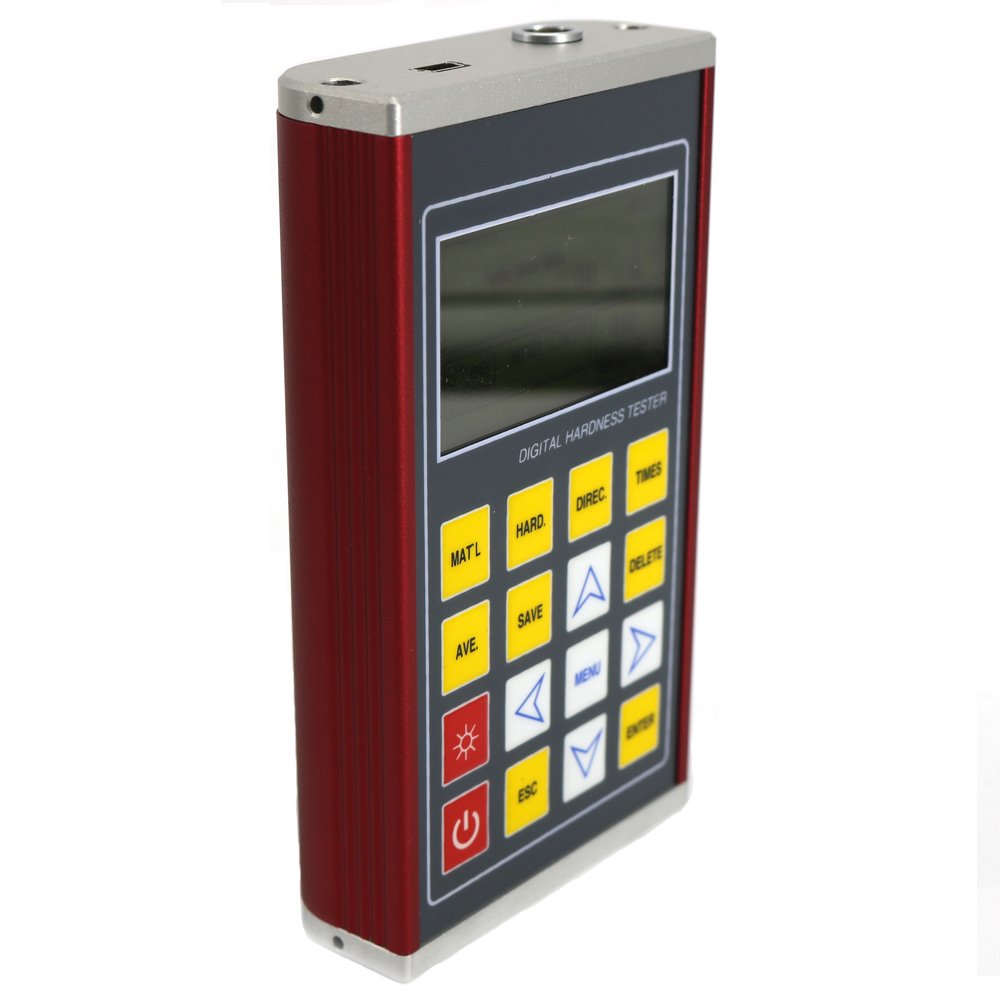

Brand: Graigar
Color: Black
Features:
- Covered common scales (HV, HB, HRC, HRB, HRA, HS)
- Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability

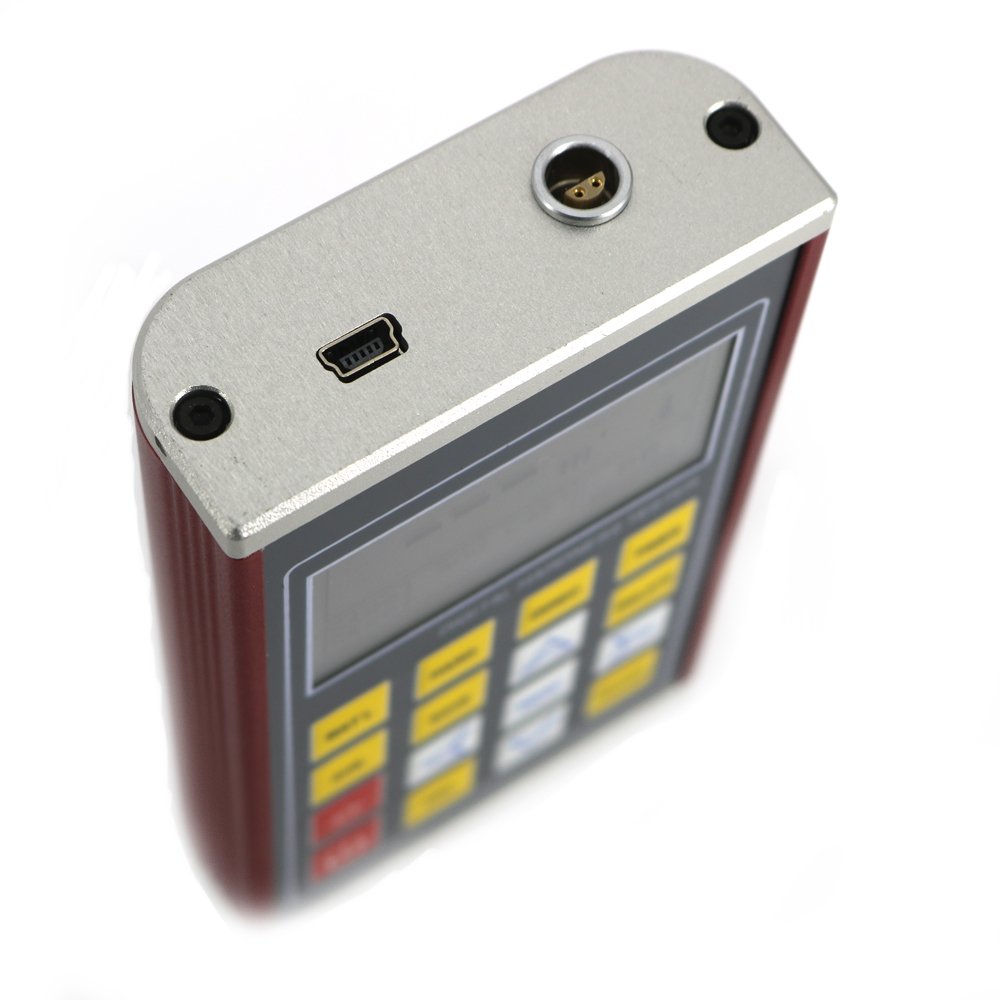

- With USB or RS232 interface, covenient to connect with PC
- Auto match with 7 types of impact devices
- Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements
Part Number: KH200
Details: Applicable materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Specifications:
Measuring Range: HLD(170-960) (170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV,(30~110)HS
Impact Directions: Up,down,horizontal,slanting up,slanting down
Measuring materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Hardness scales: HL, HB, HRB, HRC, HRA, HV,HS.

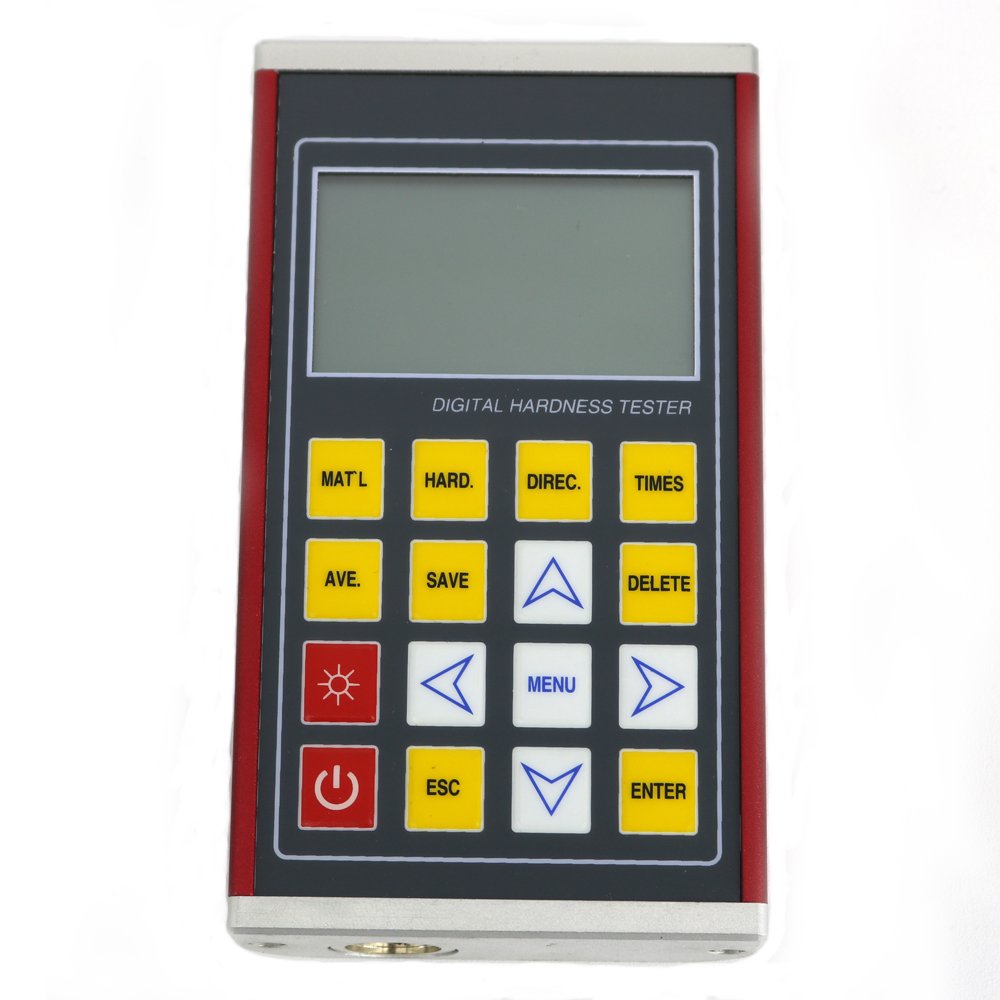

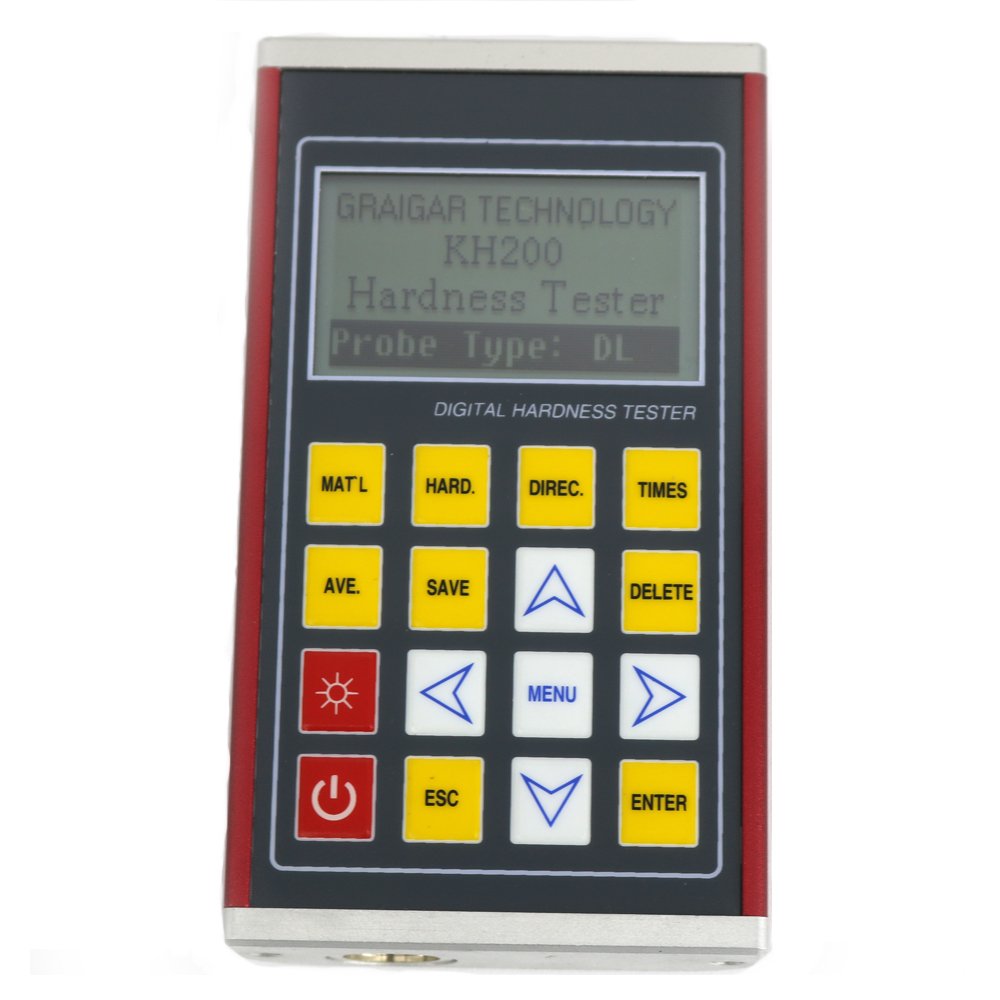

Display: 128*64 digital matrix LCD
Memory: 600group(32 every group)

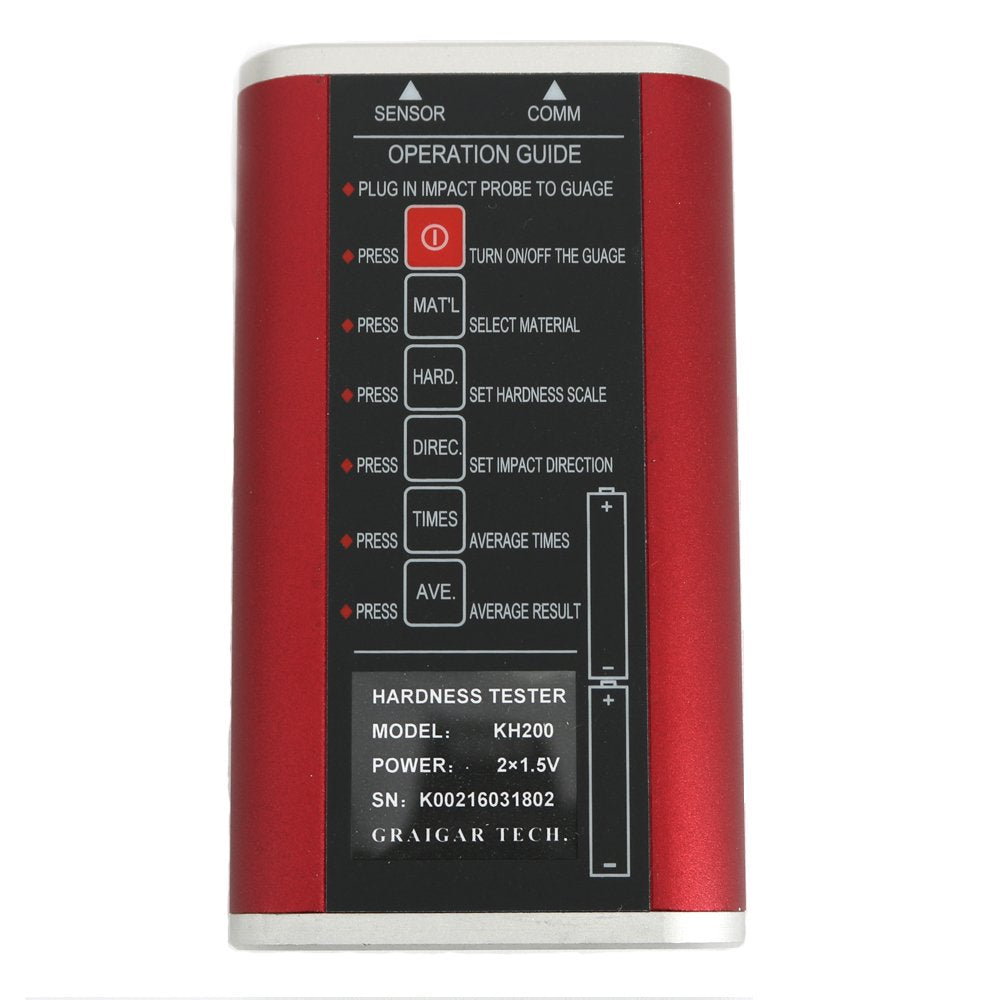

Work voltage: 3V 2 AA alkaline batteries (not included)
Interface port: RS232
Dimensions: 4.92 x 2.8 x 1.06 in
Weight: 0.66 lb
Continuous working period: 200 hours (with backlight off)
EAN: 0725370407654
