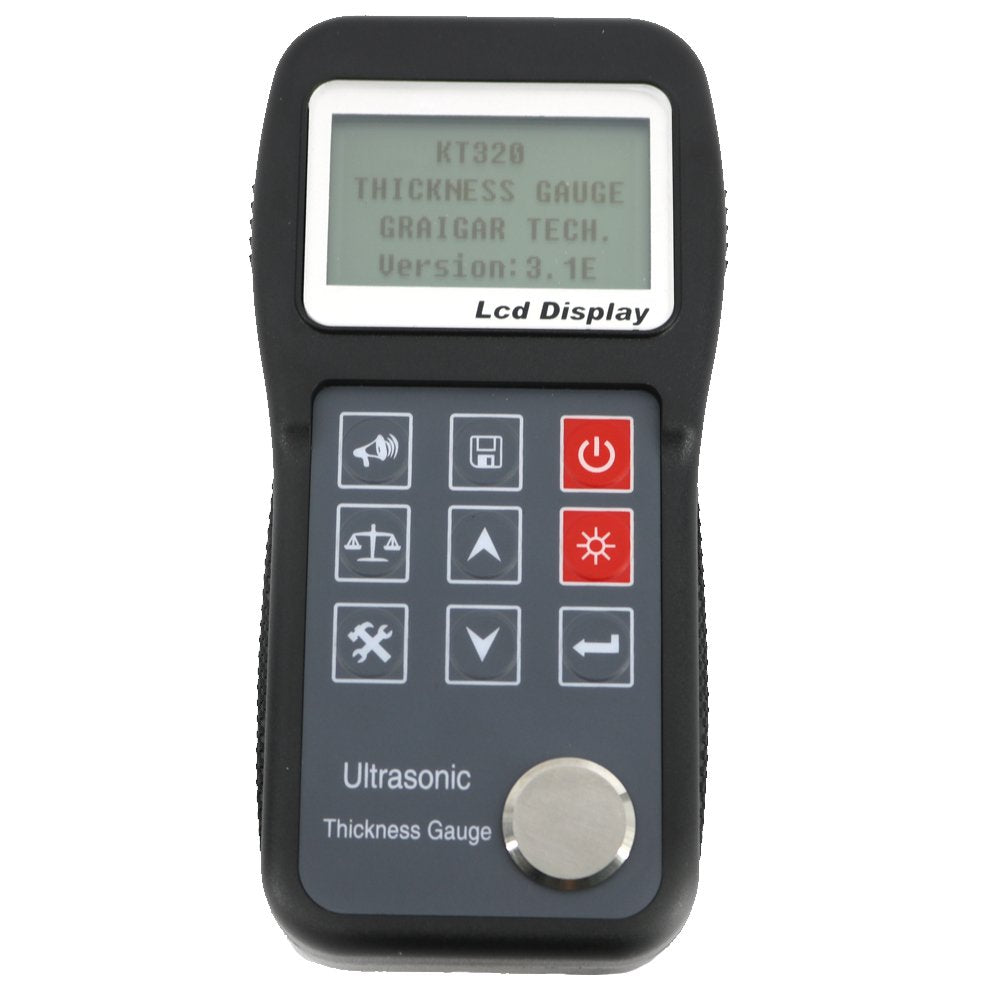

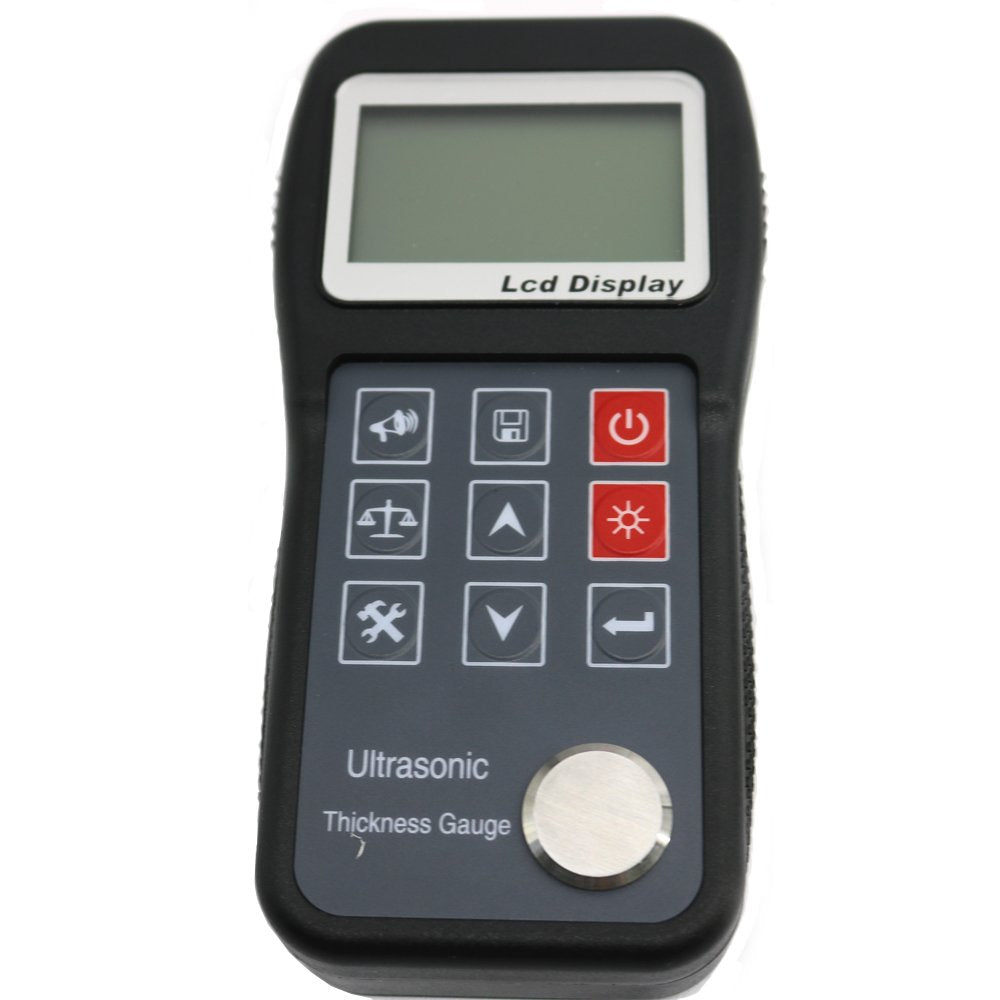

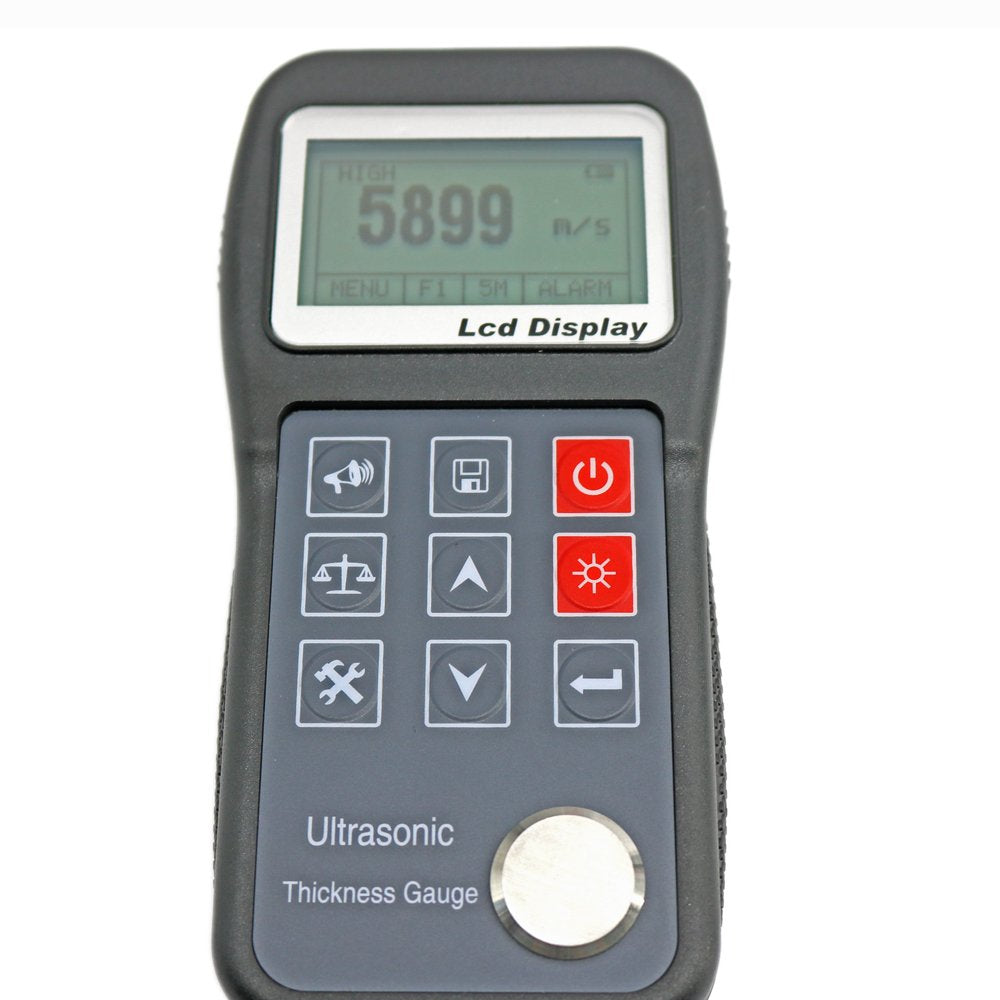

Graigar KT320 Digital Ultrasonic Metal Thickness Gauge Meter Tester 0.75mm~300.0mm 0.03inch~11.8inch

Brand: Graigar

Color: Black

Features:

• Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
• Can be equipped with a variety of different frequency, chip size, double crystal probe use.
• Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.

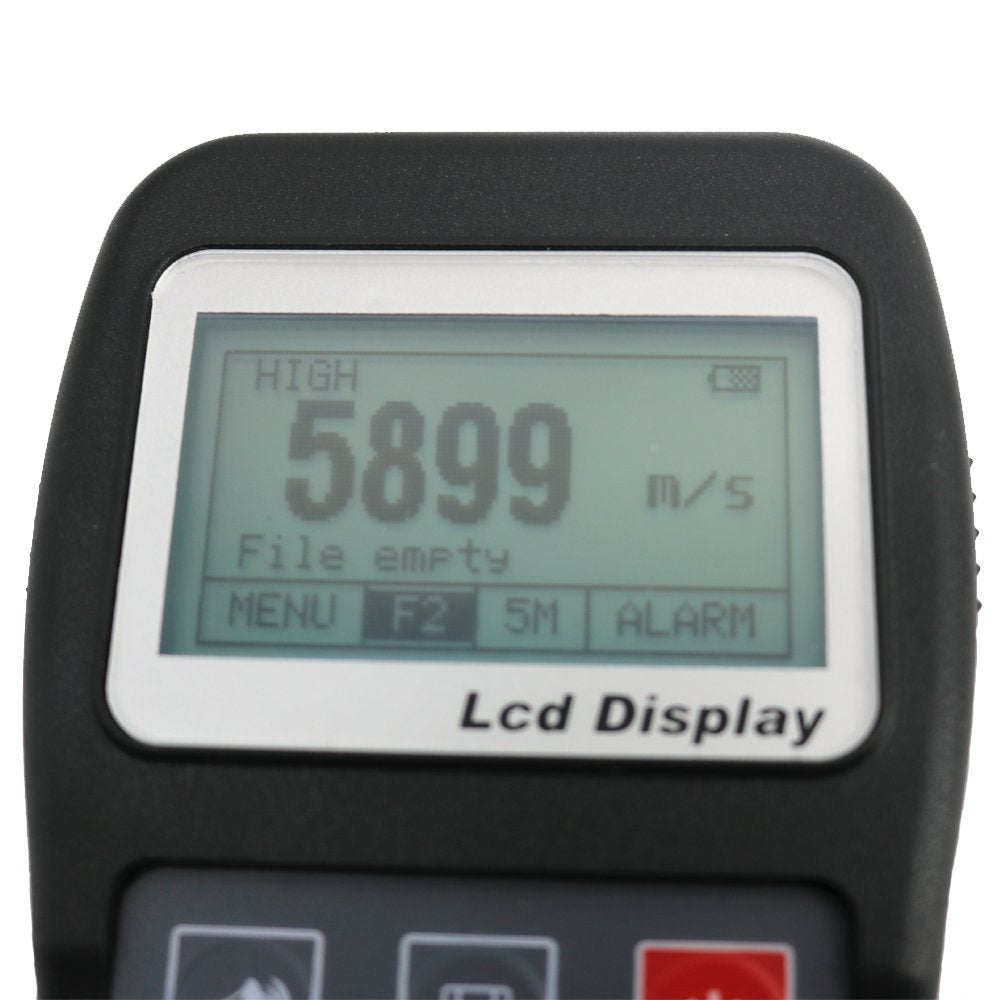

• LED backlight display, convenient to use in dark environment.
• The background data processing function; PC communication function; printing support.

model number: KT320

Part Number: KT320

Details: Main function:

Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness. Can be equipped with a variety of different frequency, chip size, double crystal probe use. Have probe zero calibration, a two-point calibration function, can be automatically on system error correction. Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement. With functions of coupling status alerts. LED backlight display, convenient to use in dark environment. The battery indicator function, can real-time display the battery remaining power. With automatic power saving function dormancy, automatic shutdown, etc. Small, portable, high reliability, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference. The background data processing function; PC communication function; printing support.

Technology Parameter:

Measuring range:
0.75mm~300.0mm(0.03inch~11.8inch)
Units:
Metric/Imperial unit seletable
Sound Velocity Range:
1000m/s~9999m/s(0.039~0.394in/μs
Display resolution:
0.01mm or 0.1mm(lower than 100.0mm)
0.1mm(more than 99.99mm)
Accuracy:
±(0.5%Thickness+0.04)mm,depends on Materials and conditions
Data Memory:
5 files(up to 100 values for each file)of stored values
5 Sound Velocity of stored values

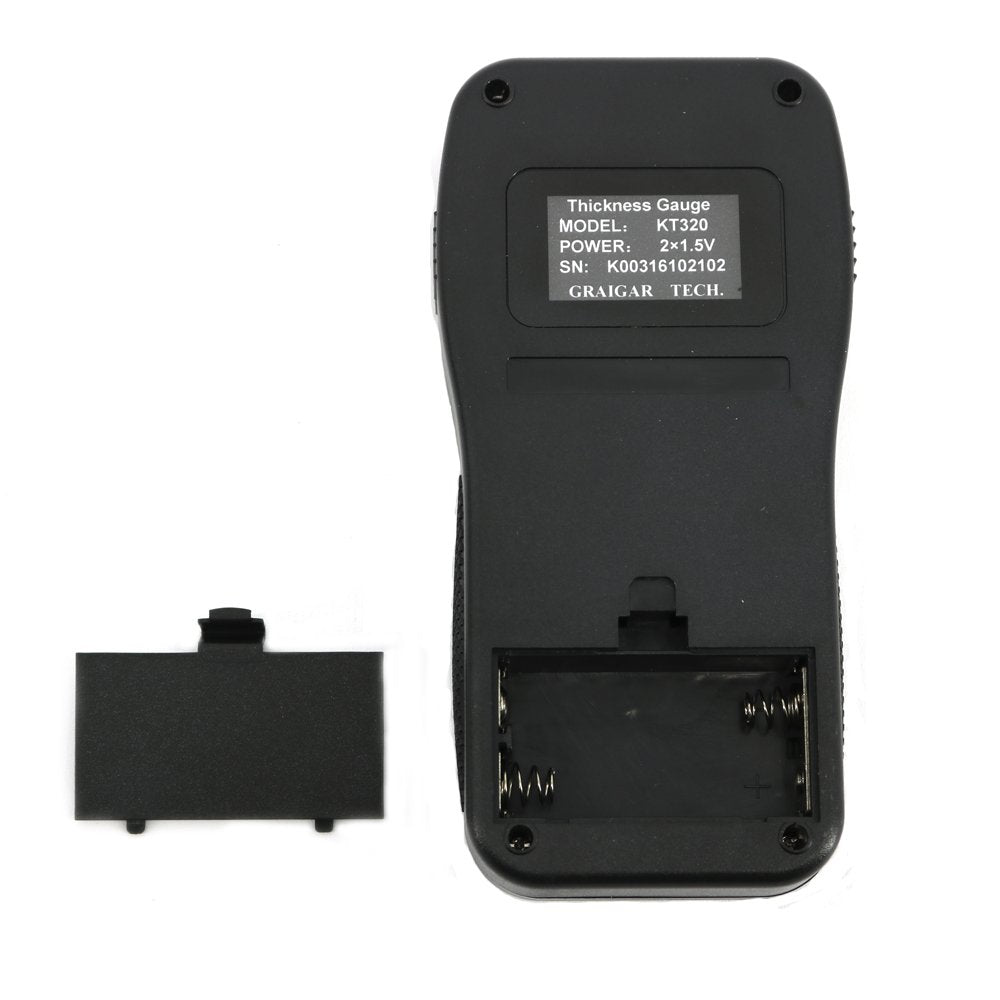

Power Source:
2pcs 1.5V AA size,batteries.250 hours typical operating time(LED backlight off)
Outline Dimensions:
150mm*74mm*32mm
Workpiece surface temperature:
- 10 ~ 60 °C
The minimum thickness value capture capacity
With a minimum thickness value capture capacity

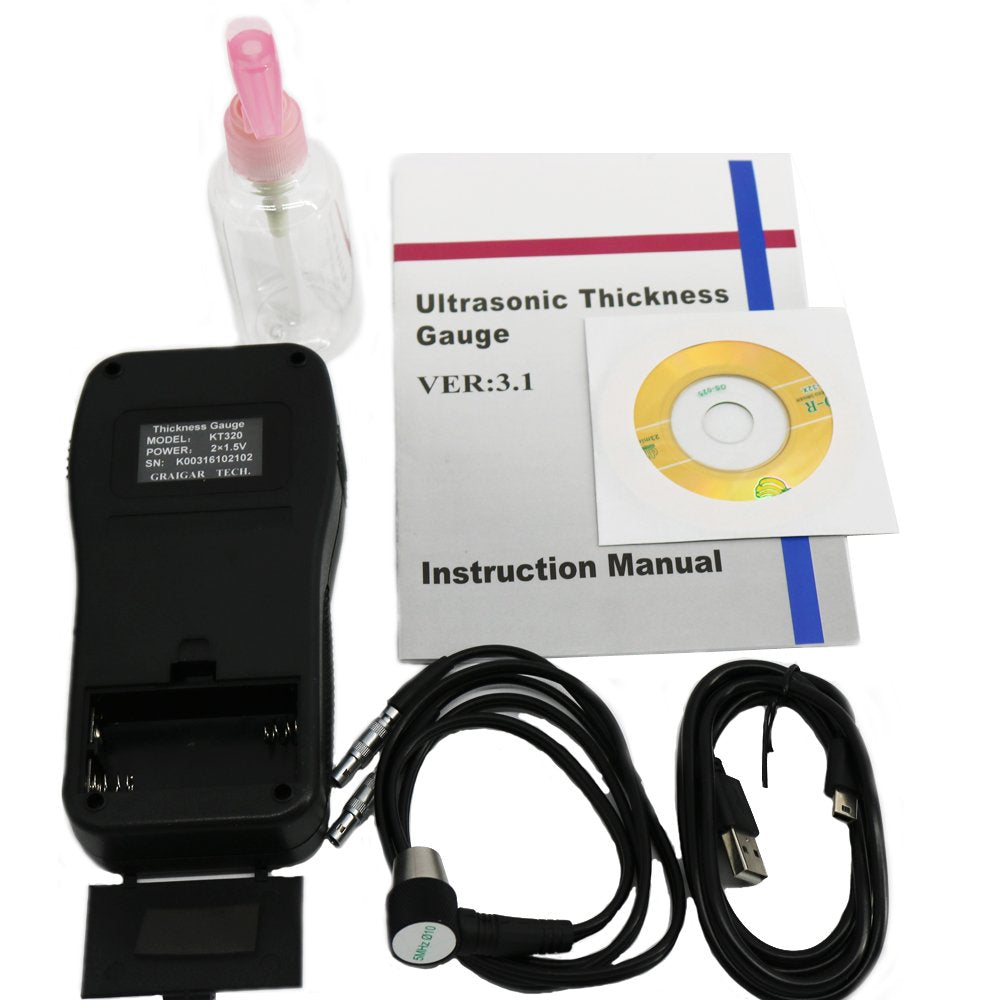

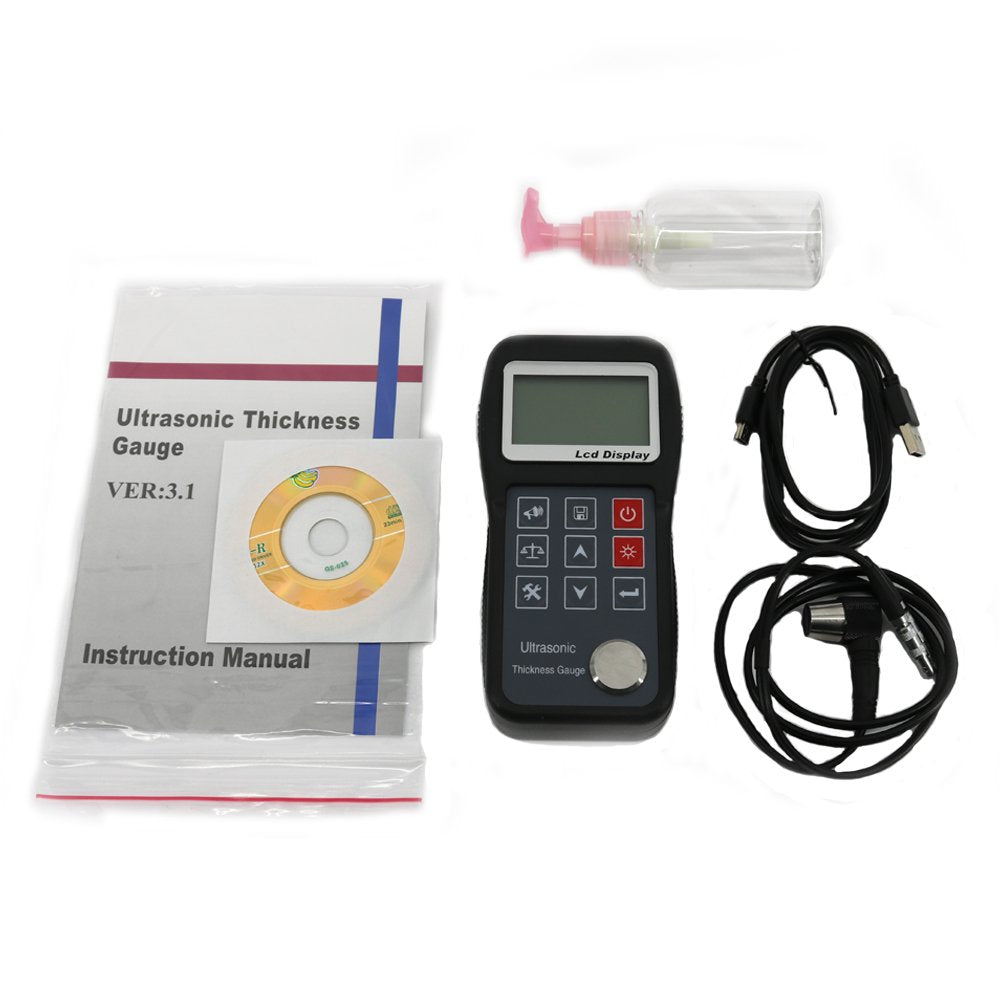

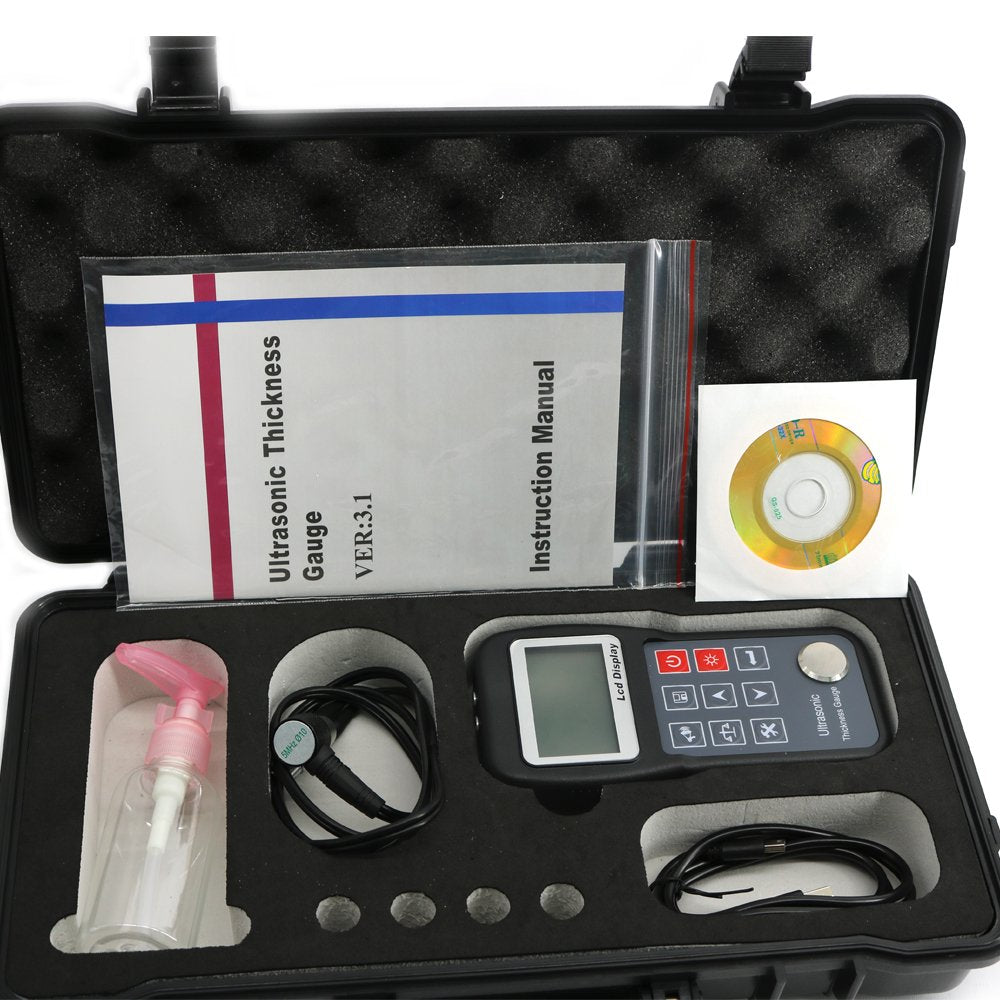

Standard configuration
KT310 host, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non - Aviation)
Measurement cycle:
4 times

EAN: 0725370412412
