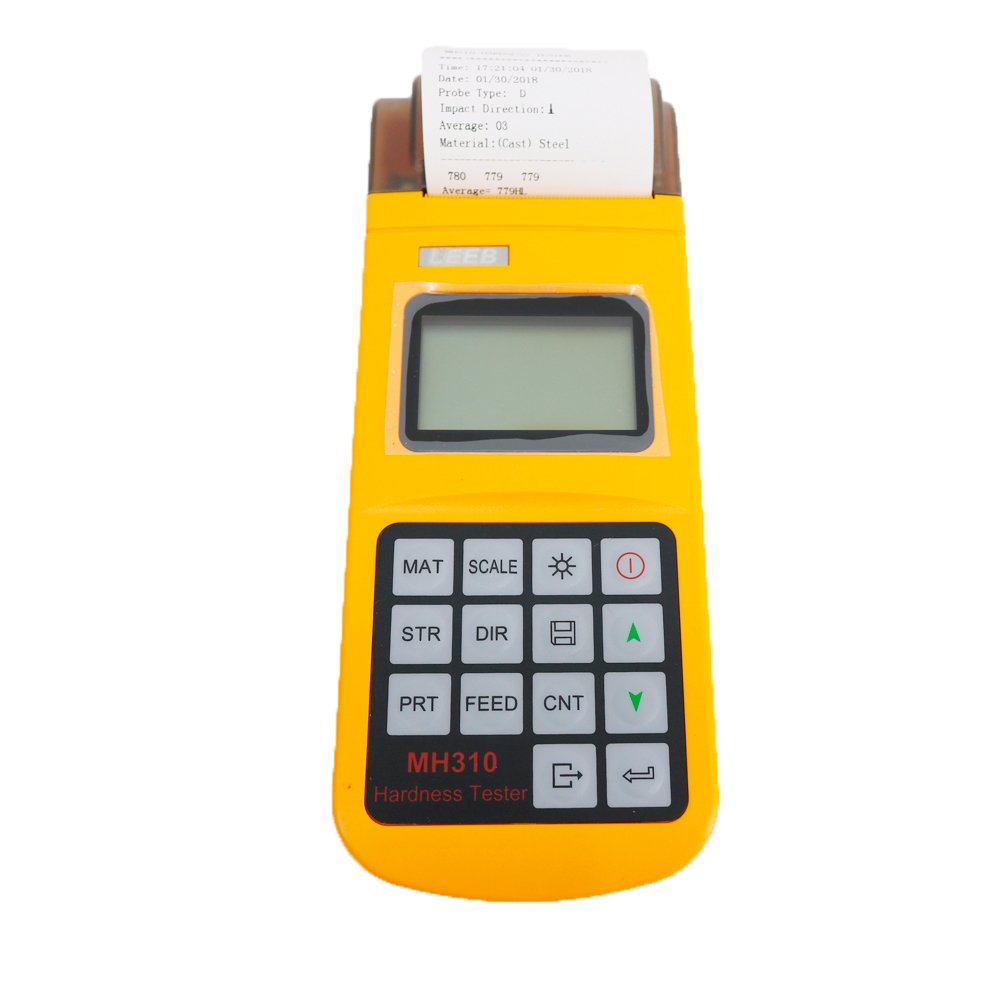

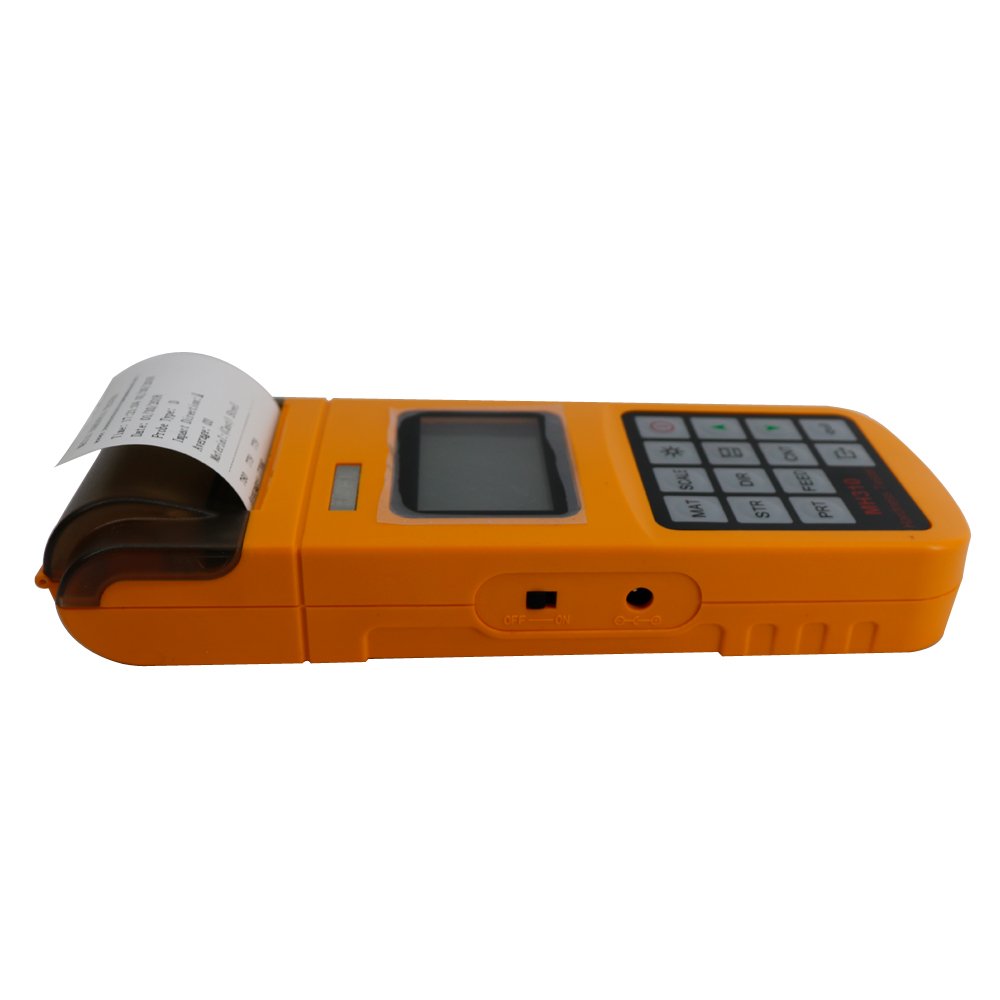

Graigar Leeb Hardness Tester Meter Gauge MH310 Measure Metallic Materials,HRB, HRC, HV, HB, HS, HL

Brand: Graigar

Color: Yellow

Features:

• MH310 leeb hardness tester with wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
• Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.
• Test at any angle, even upside down.
• Large memory could store 100 groups (Relative to average times 32--1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
• NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

Part Number: MH310

Details:

Main Application:

1.Die cavity of molds

2.Bearings and other parts

3.Failure analysis of pressure vessel, steam generator and other equipment

4.Heavy work piece

5.The installed machinery and permanently assembled parts

6.Testing surface of a small hollow space

7.Material identification in the warehouse of metallic materials

8.Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications:

1.Measuring range：HLD（170～960）HLD

2.Measuring direction：0-360°

3.Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

4.Display：segment LCD

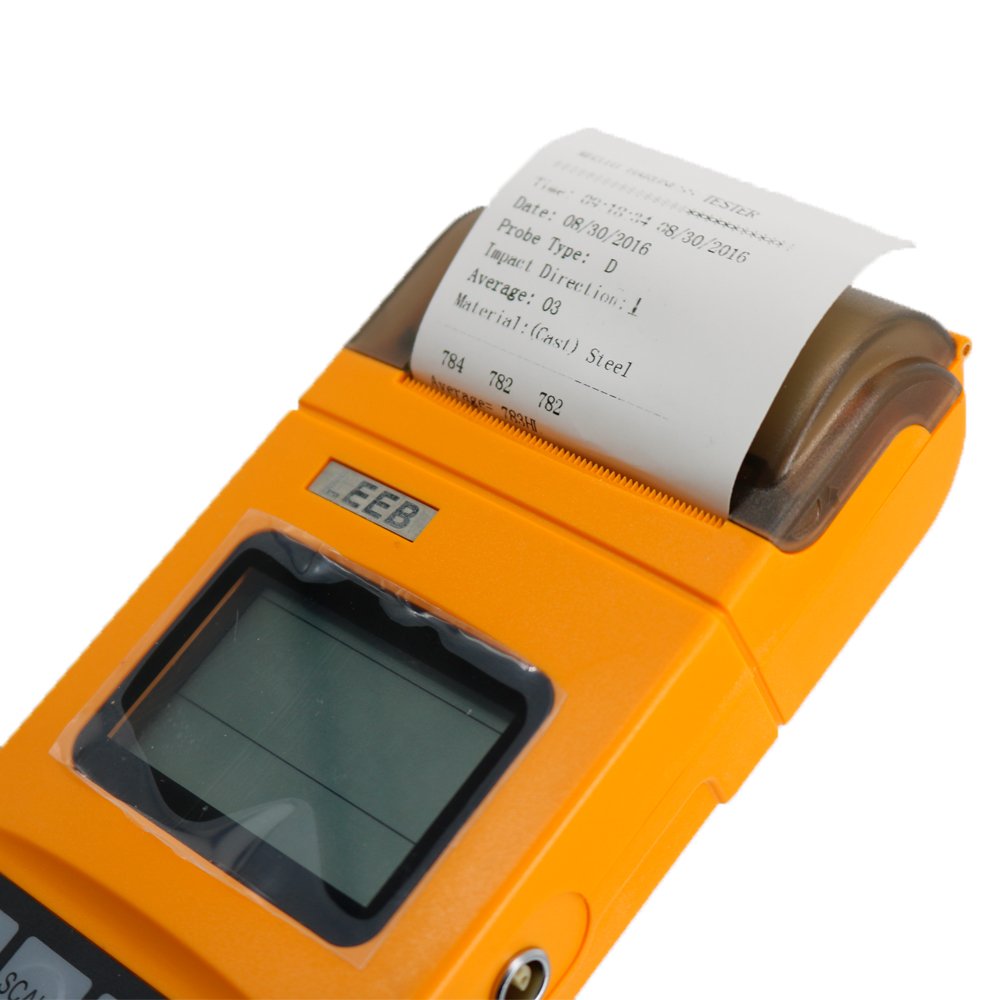

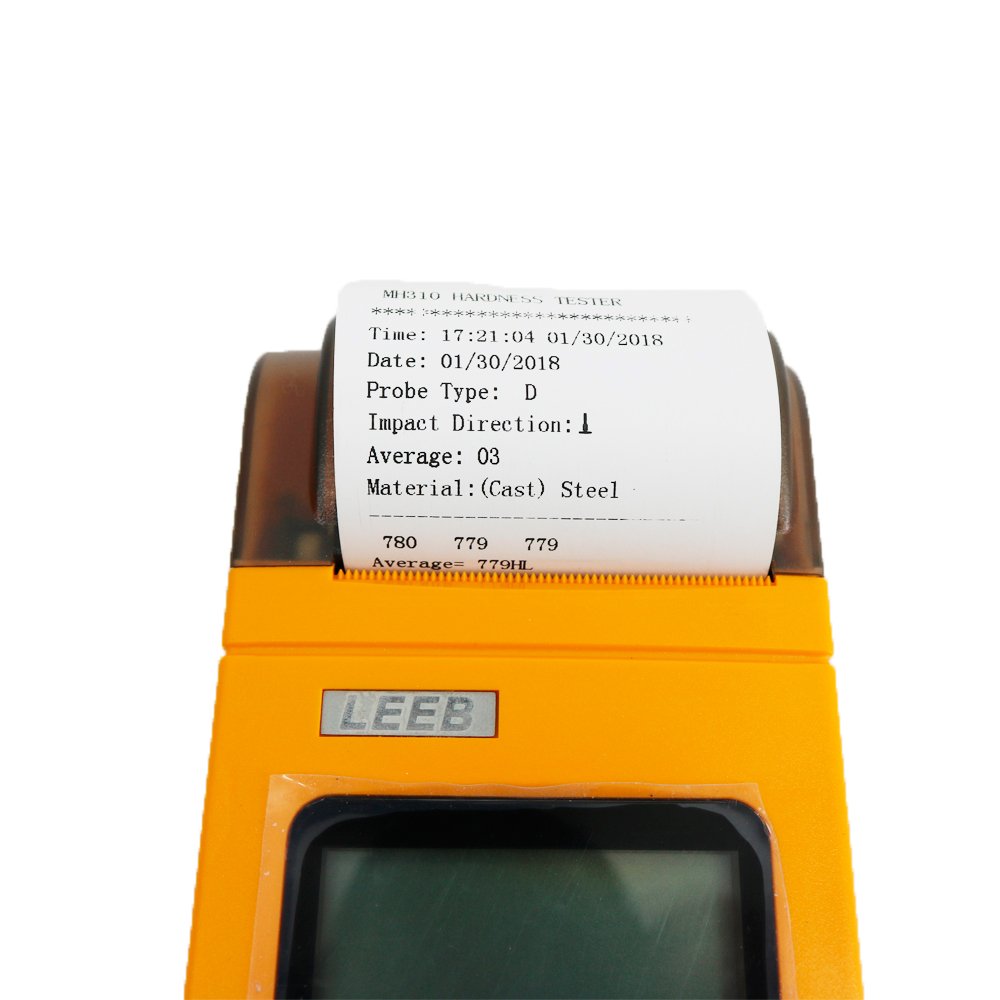

5.Data memory： 100 groups max.（relative to impact times 32～1）6.Printing paper: width is （57.5±0.5）mm, diameter is 30mm

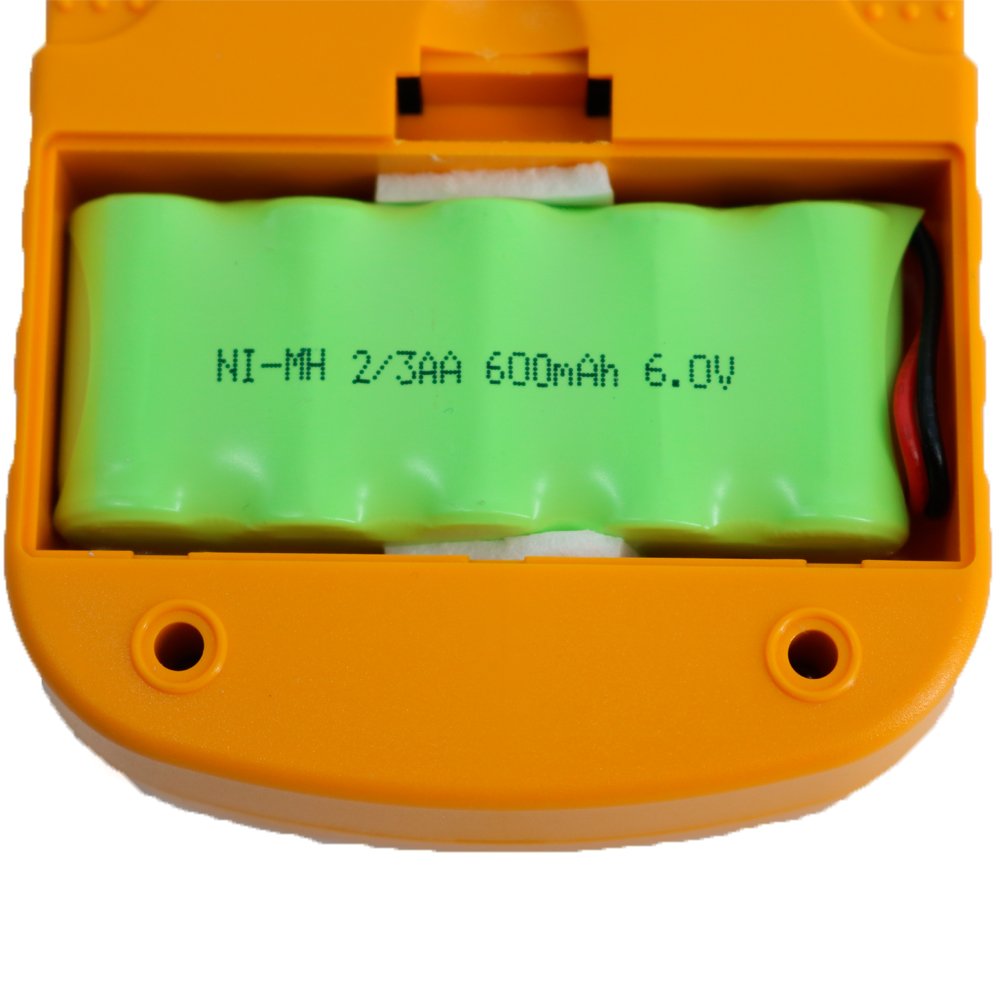

6.Battery pack: 6V NI-MH

7.Battery charger: 9V/500mA

8.Continuous working period：about 150 hours（With backlight off, no printing）

9.Communication interface：USB1.1

10.Outline dimensions: 212mm×80mm×32mm

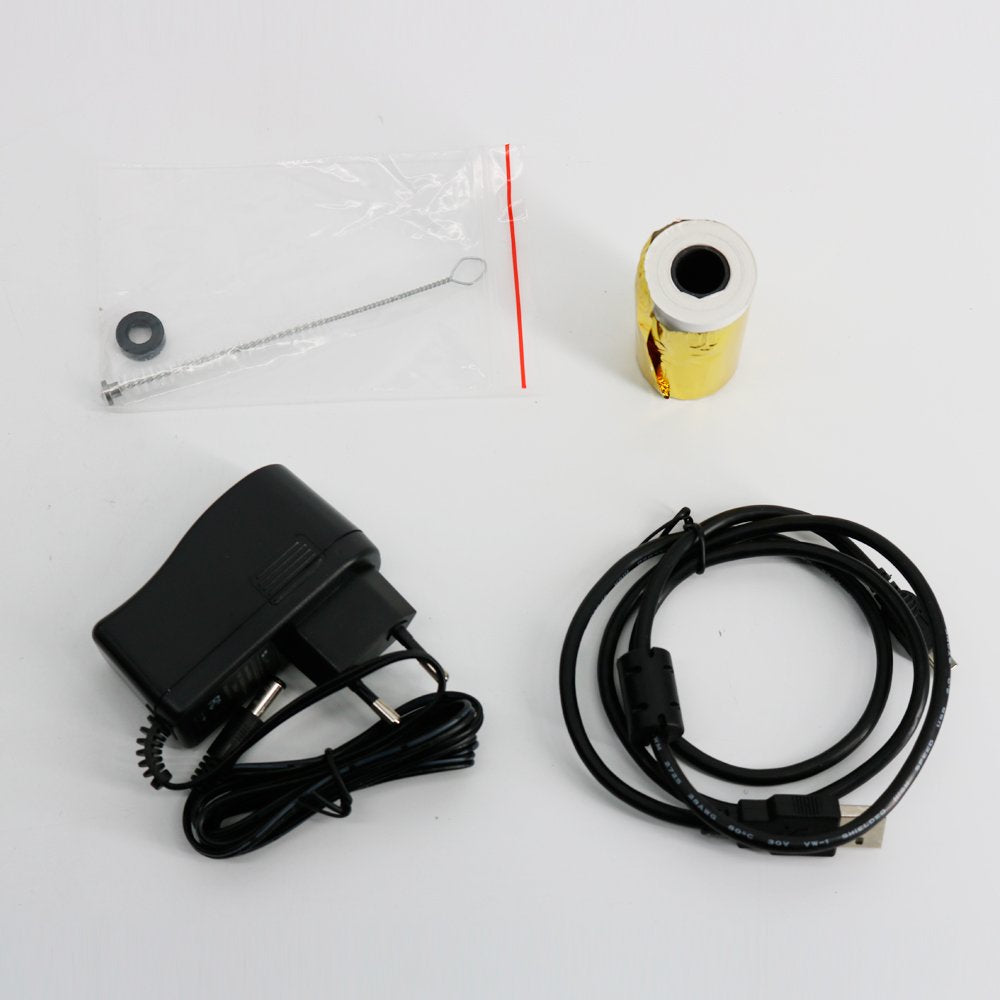

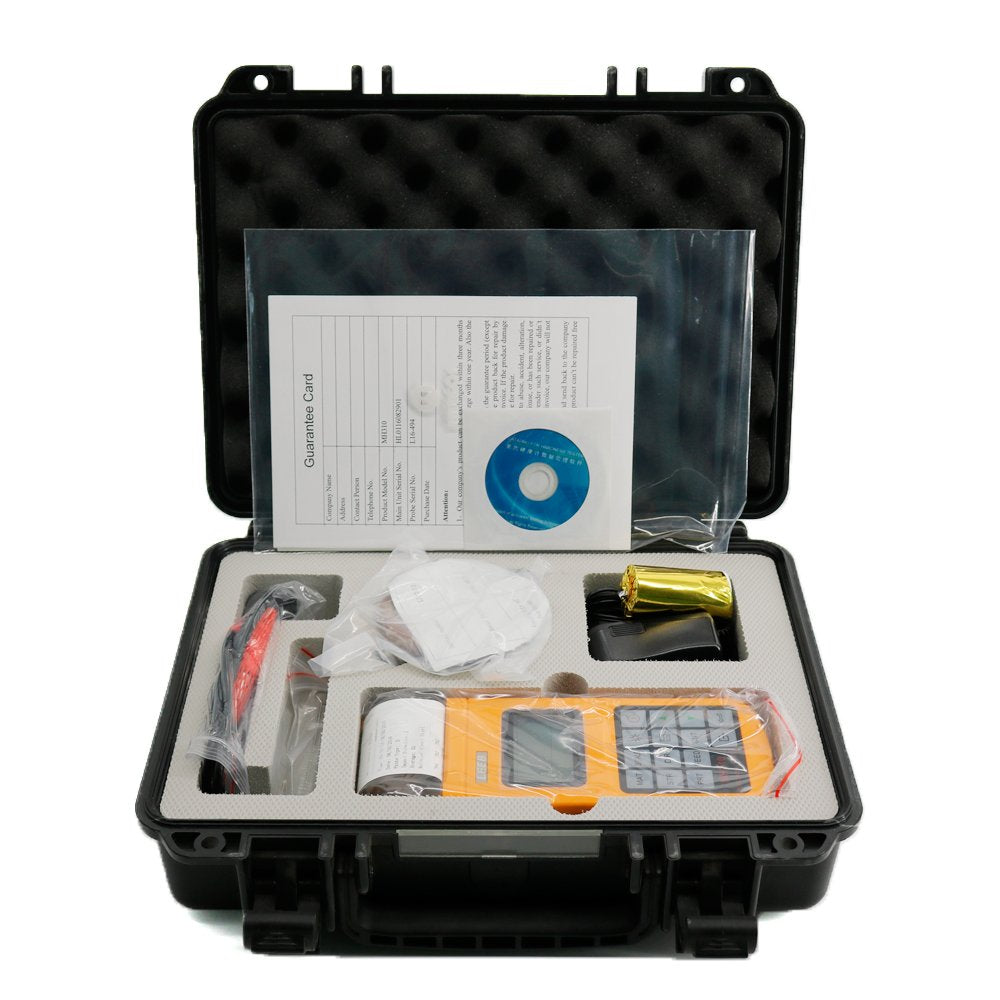

Standard Configuration:

Main Unit;

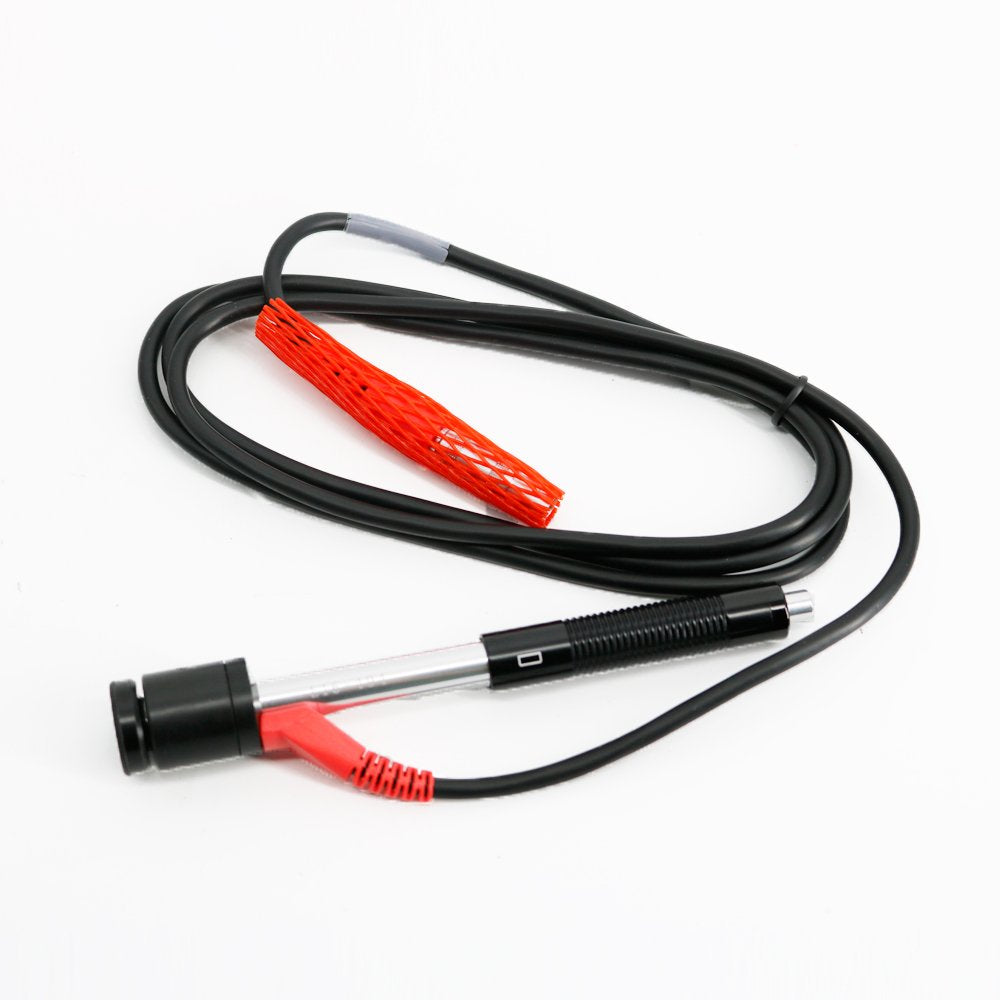

D type impact device With cable;

Standard test block;Cleaning brush (I);

Small support ring;

Battery Charger 9V 500mA;

Paper for printing;

Manual;

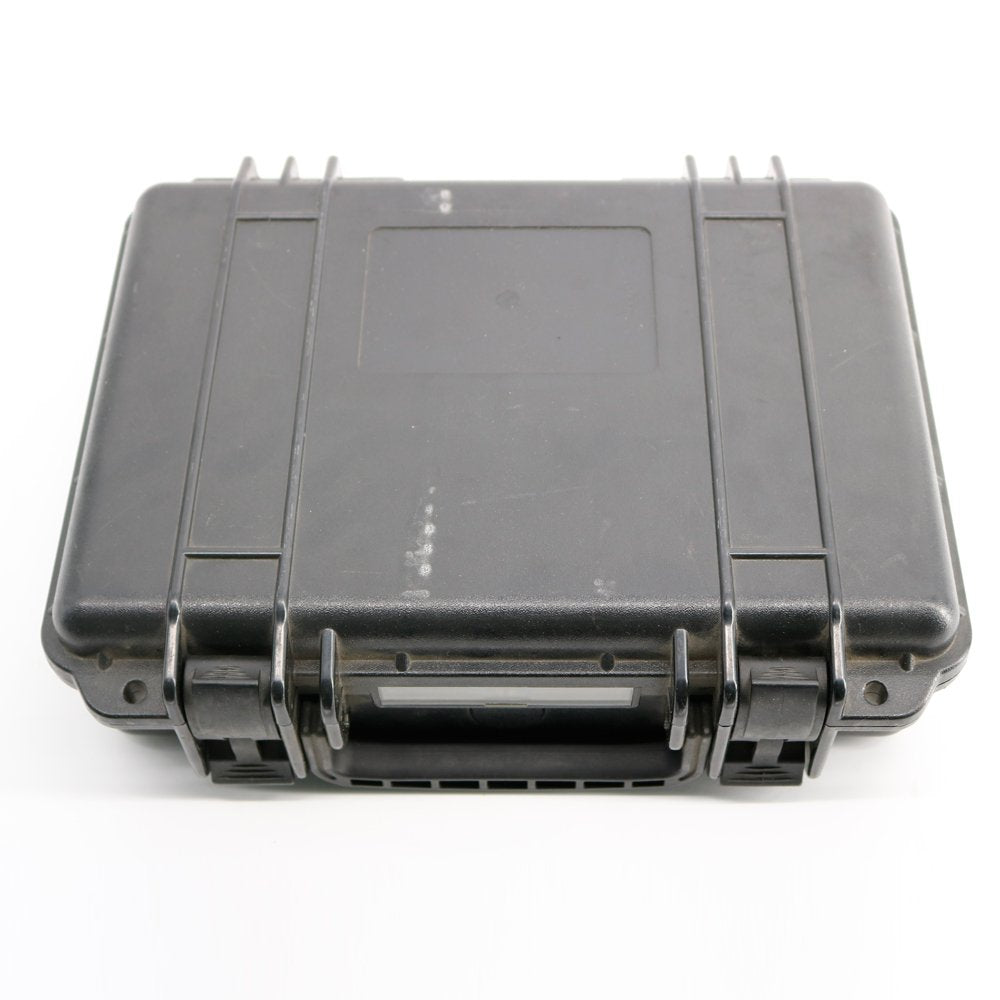

Instrument case

EAN: 0725370412467
