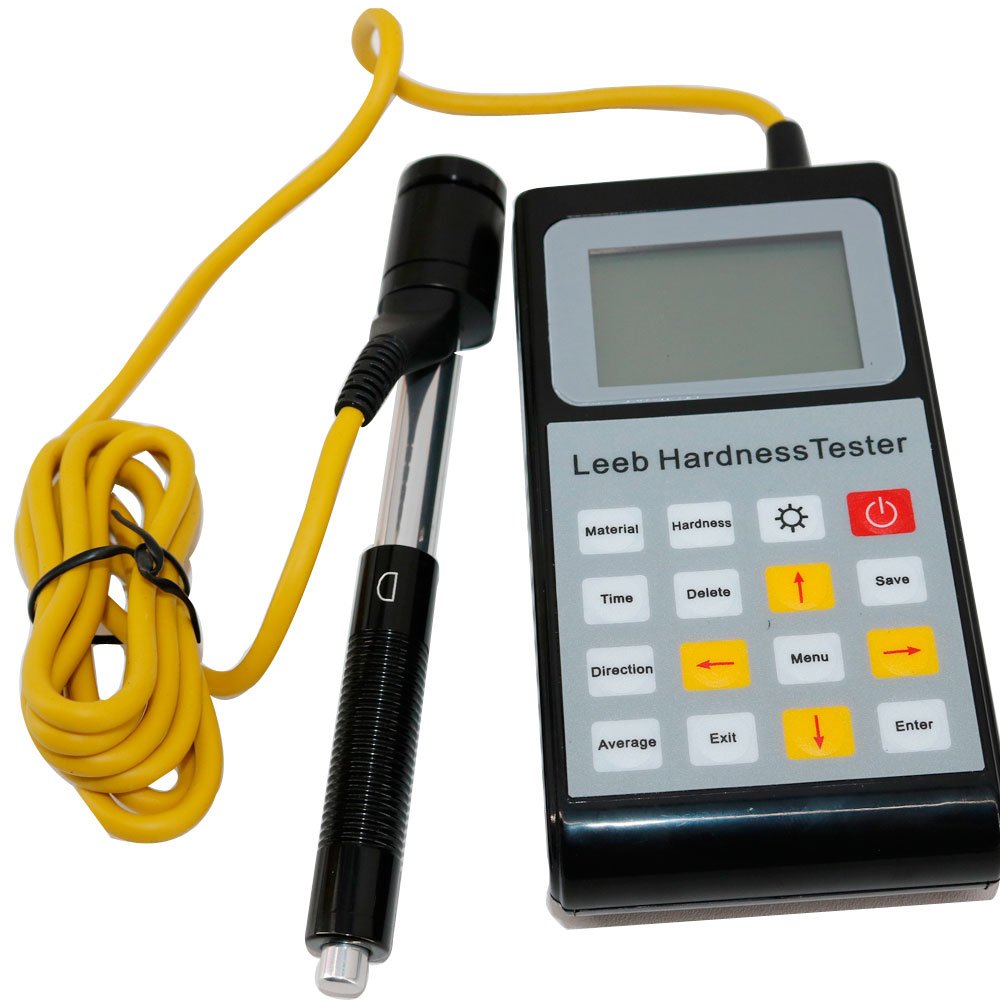

Hardness standards HL,HRB,HRC,HB,HV,HS all can be shown on the screen.
Suitable for harsh operating environment, anti vibration, shock and electromagnetic interference.
On the basis of Leeb hardness measurement principle, can be used to detect a variety of metal materials.
Instantly showing the hardness measurement, and can be used in different formats conversion between hardness of freedom.
Can be configured to 8 different impact device, automatic identification device for impact type, replaced without the need to re-calibrate.

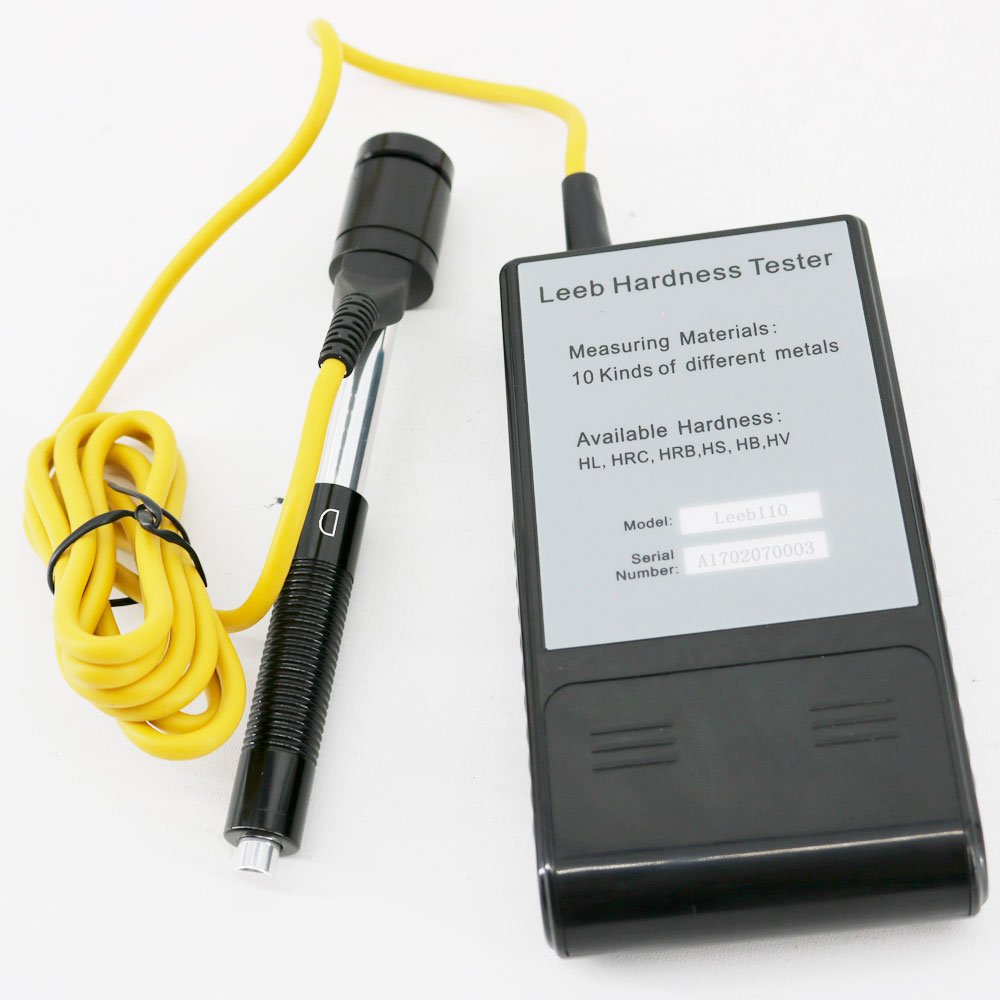

model number: Leeb110
Part Number: Leeb110

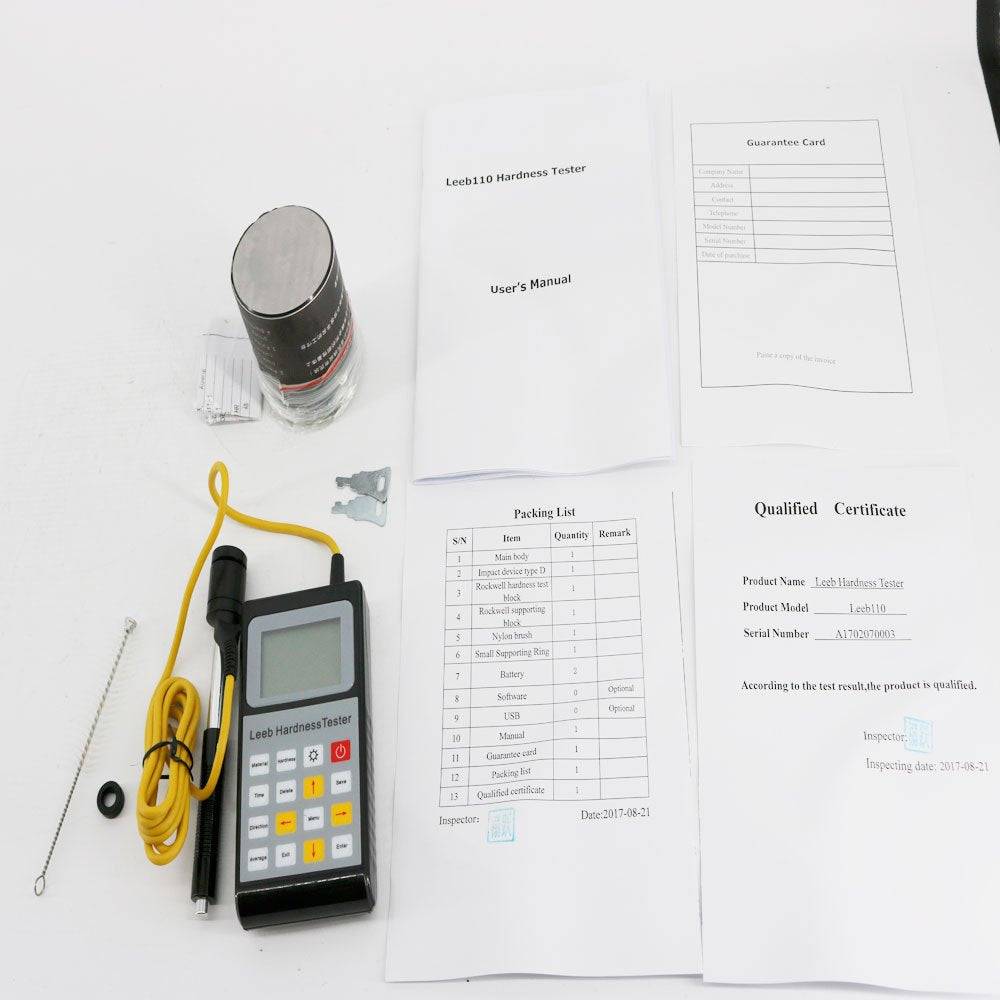

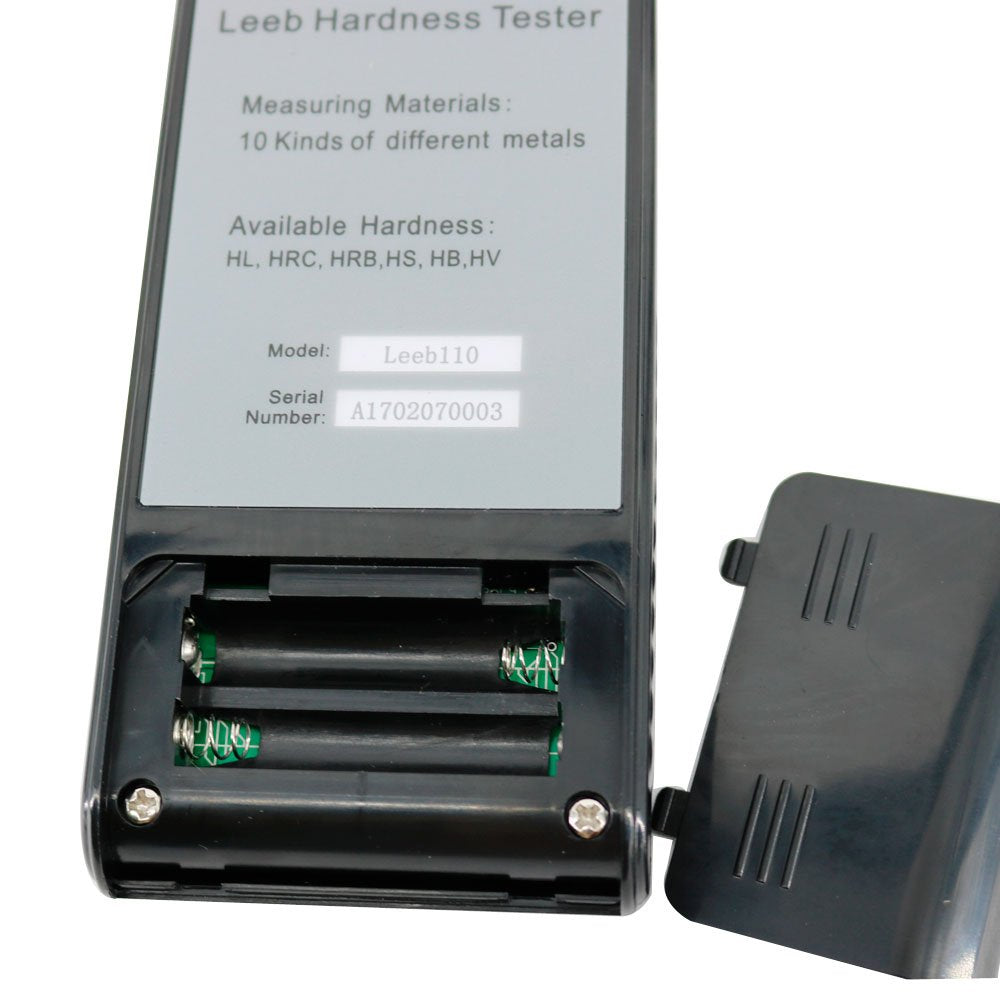

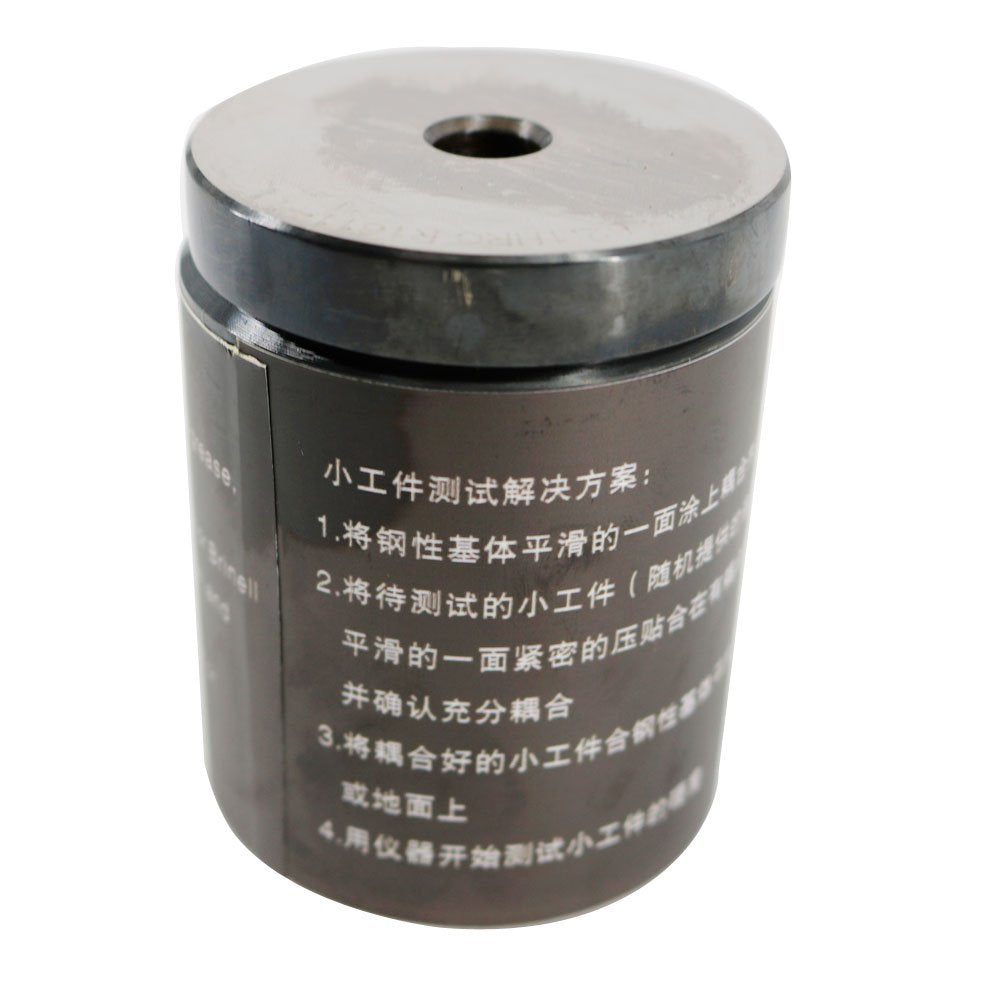

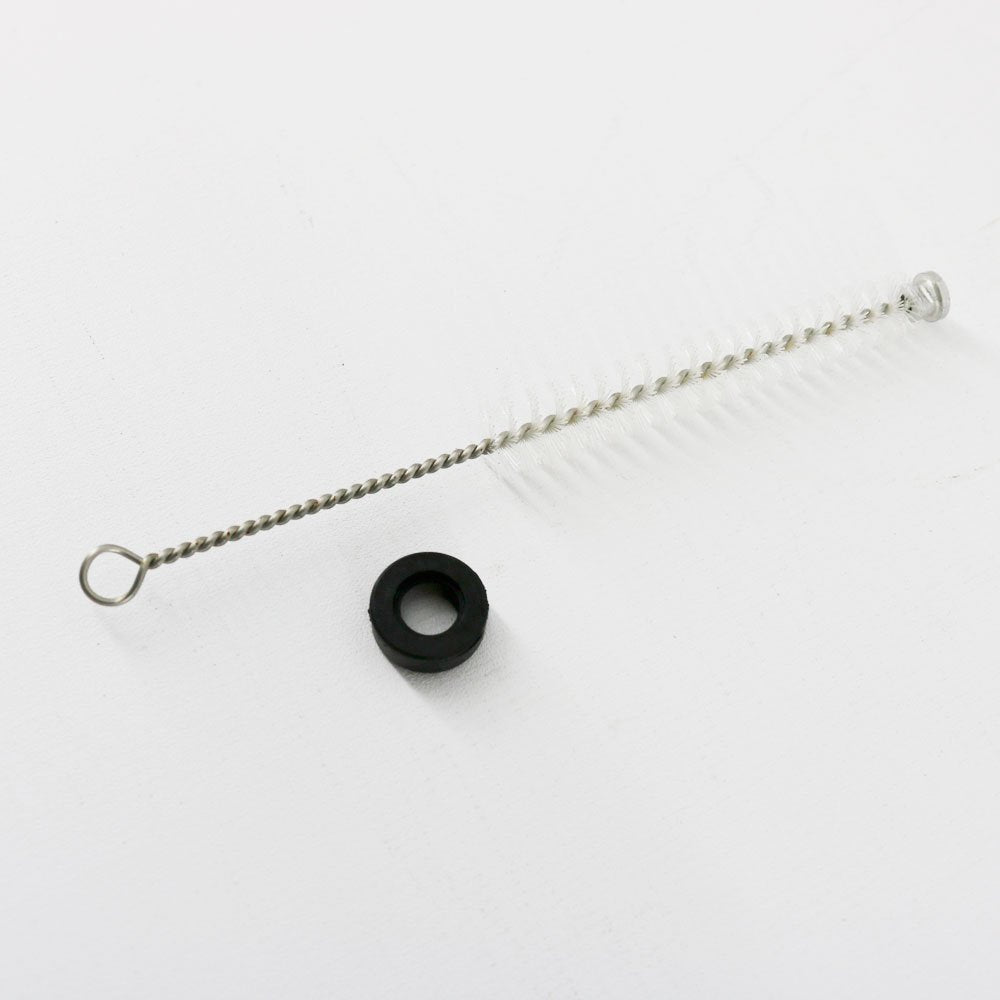

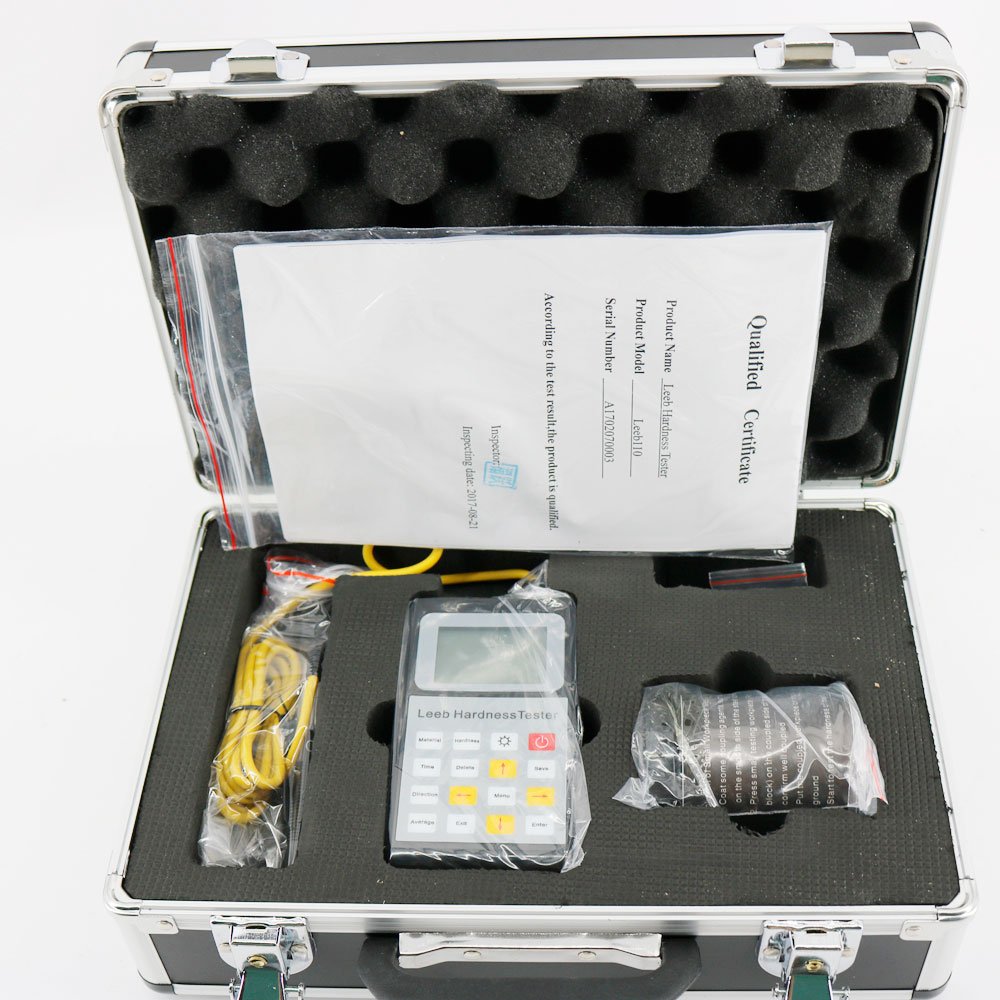

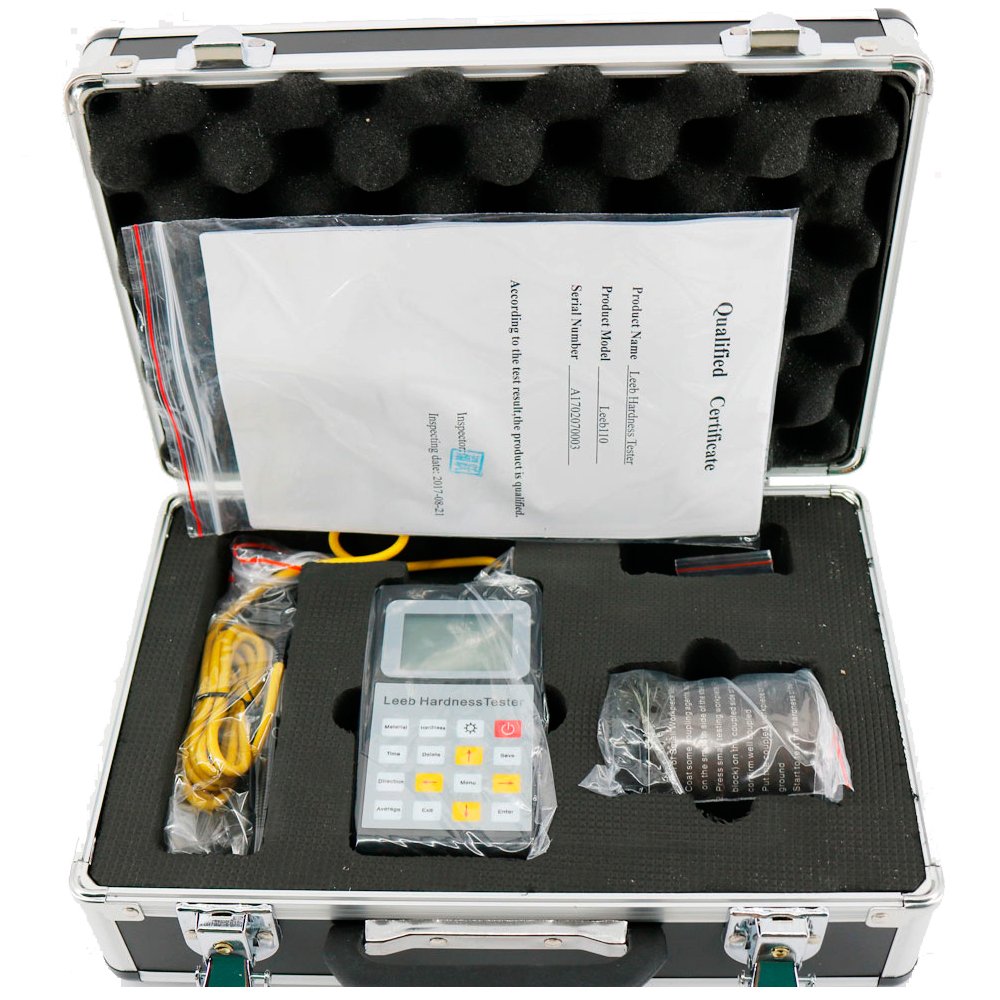

Details: Application FieldsThe bearings and other parts, heavy workpiece, metal material, pressure vessel, failure analysis of turbine generator unit and equipmentMechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test resultsLarge workpiece within a wide range of more rapid test measurement siteMeasuring MaterialsSteel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steelTechnical Specifications*Model: leeb110*Measuring Range: (170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB*Hardness parameter: HL, HRC,HRB, HS,HB,HV*Accuracy: Within±0.5%(HLD=800)*Display: LCD with back-light*Memory: 1250 groups*PC Connection: No*Printer: No*Battery : 2 AAA（Battery not included in the package）*Operating Temperature: -20℃~+60℃*Dimensions: 129×68×25mm*Shell: Plastic*Impact Device Type: D*Weight: 230g*Standard Delivery: Main unit, Impact Device type D, Operation manual,Small supporting ring,Cleaning brush
